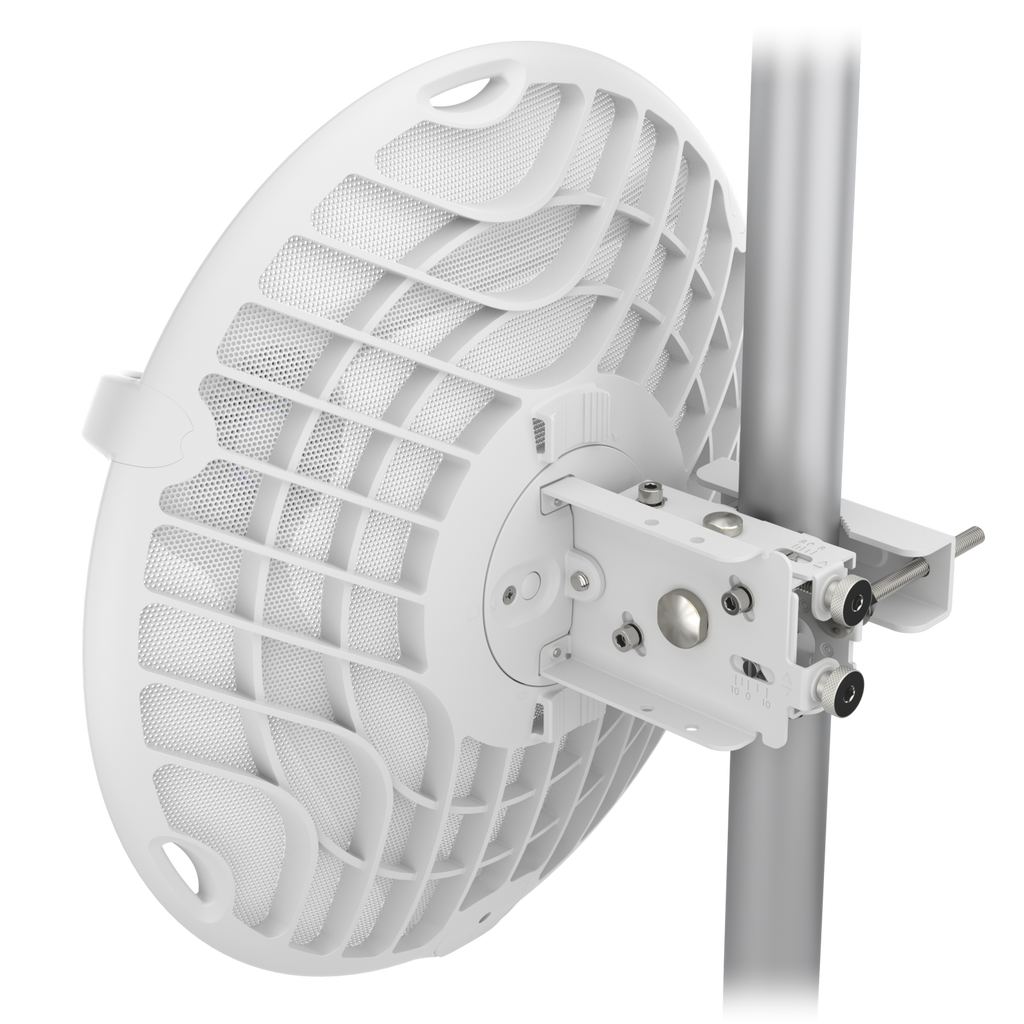

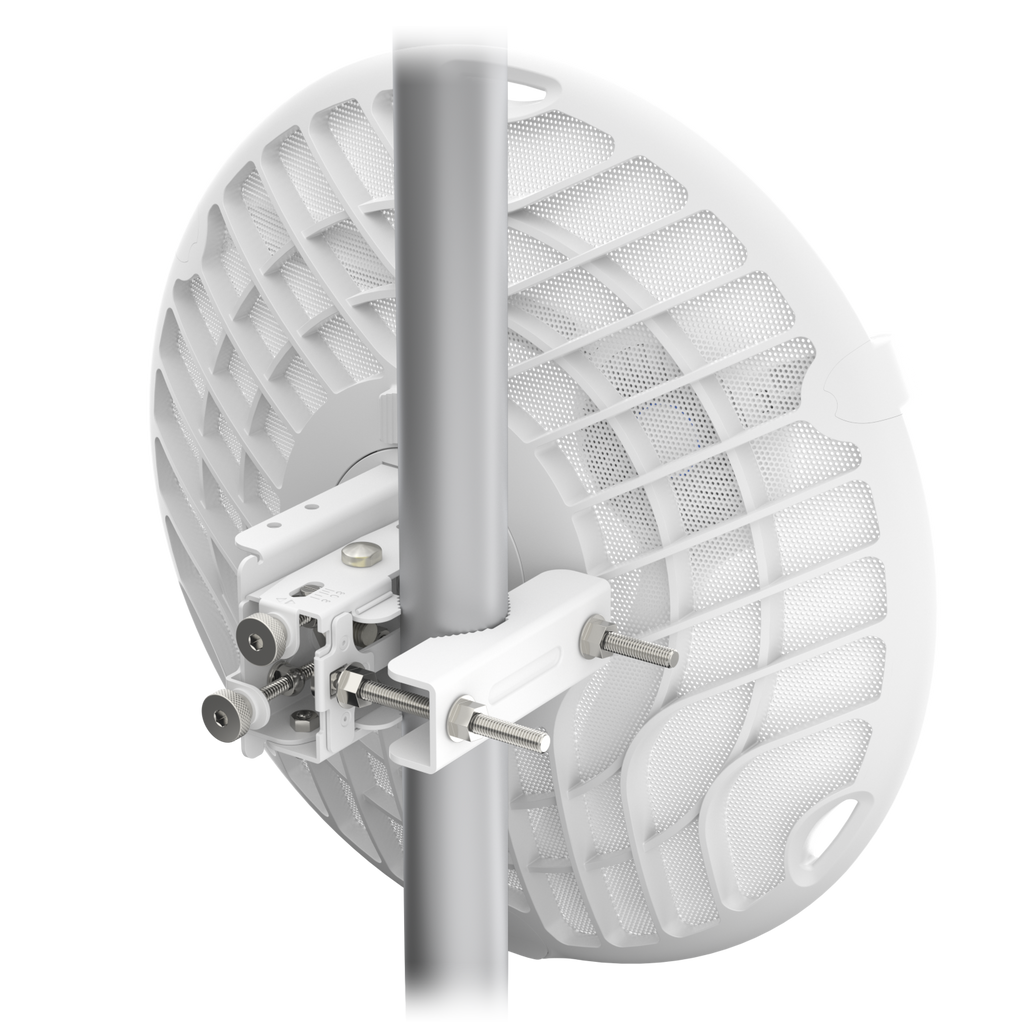

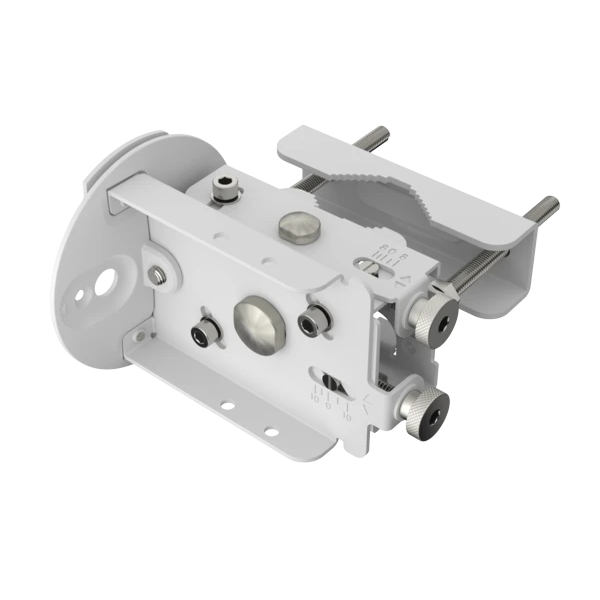

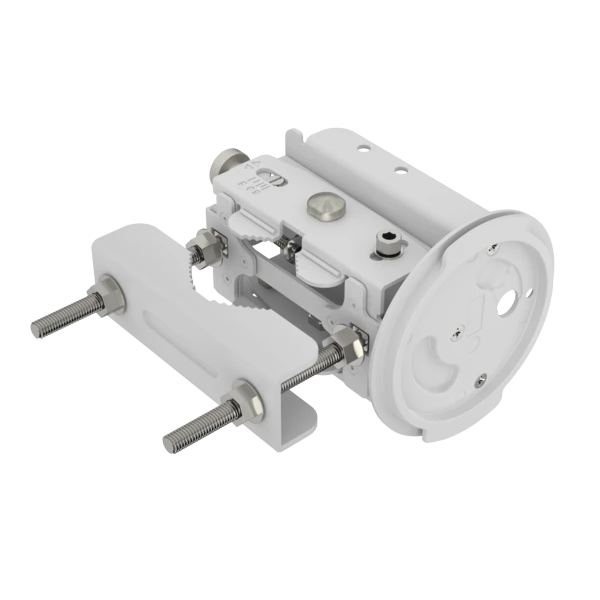

Ubiquiti 60G-PM | 60G Precision Alignment Mount

A precision alignment mount for 60 GHz Ubiquiti radios that need fine angular adjustment after initial installation.

Why this one

• Metal construction keeps the radio locked on-axis once aligned — thermal expansion and wind load are less likely to walk the beam off a narrow 60 GHz link.
• Compatible with Wave-LR, Wave-Pro, GBE-LR, AF60-LR, AF60-HD, and UBB-XG, so one mount SKU covers the main 60 GHz radios in the UniFi and airFiber range.
• At 1.1 kg it adds minimal load to the mounting surface, which matters on parapet walls or fascia boards with limited structural depth.

Good fit if you're installing a 60 GHz point-to-point link where the standard fixed mount leaves insufficient adjustment range to hit alignment precisely, particularly on building faces that aren't parallel.

Worth considering something else if your radio isn't one of the six listed compatible models — the mount is not a universal fit, and forcing an incompatible radio onto it risks both the mount and the radio.

What you'll also need

One of the compatible radios (Wave-LR, Wave-Pro, GBE-LR, AF60-LR, AF60-HD, or UBB-XG), appropriate masonry or structural fixings for the mounting surface, and outdoor-rated cabling to the radio.
