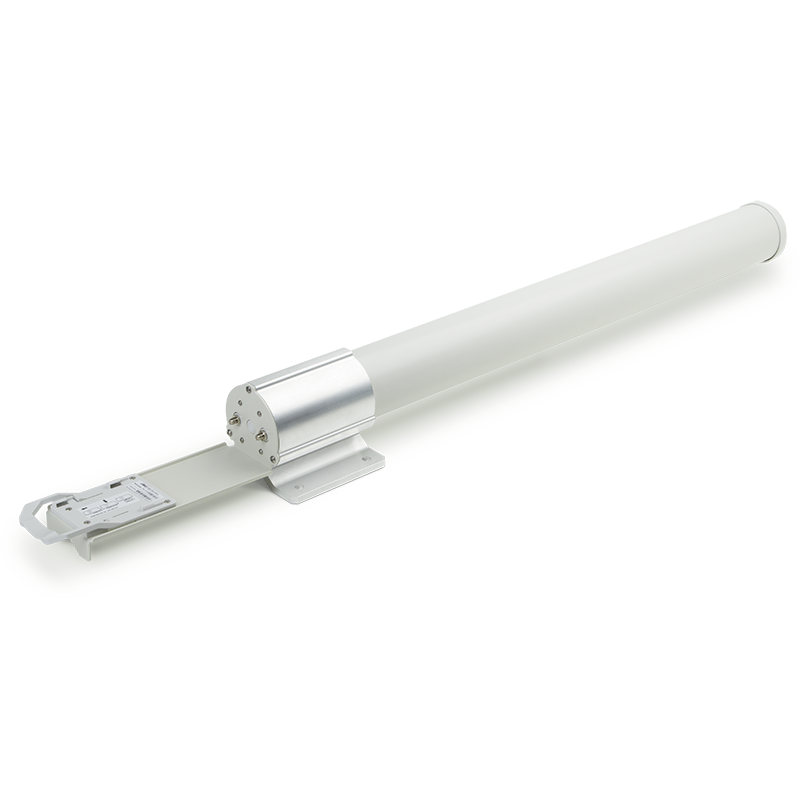

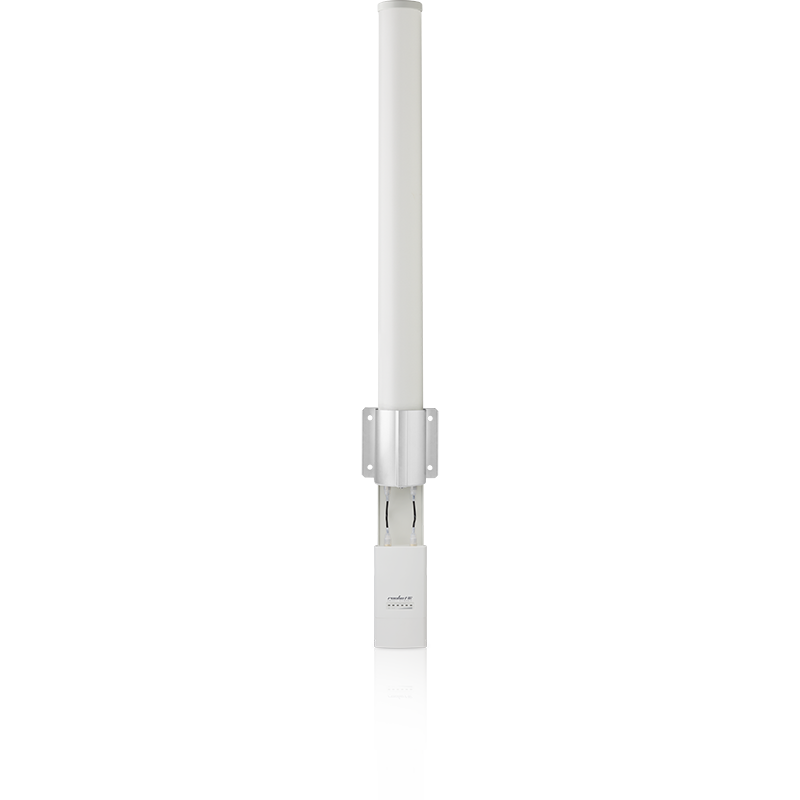

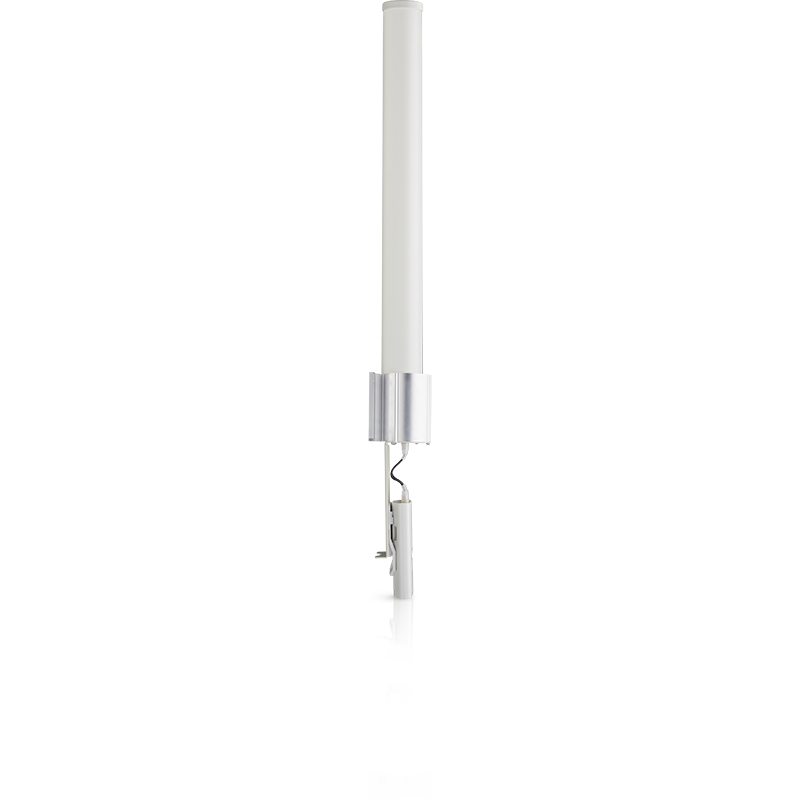

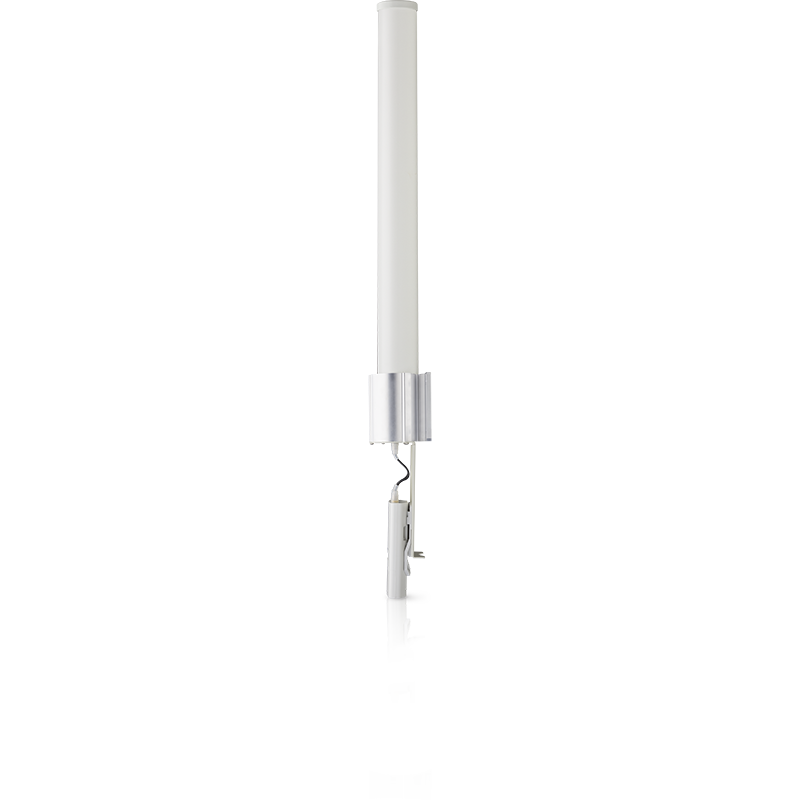

Ubiquiti AMO-2G10 | airMAX Omni Antenna 2.4 GHz
10 dBi
$356.00
Ubiquiti AMO-2G10 | airMAX Omni Antenna 2.4 GHz
$356.00
airMAX Omni Antenna 2.4 GHz
Technical Specifications
Mechanical
| Dimensions | 1030 x 122 x 84 mm (40.6 x 4.8 x 3.3") |
| Weight | 2.1 kg (4.6 lb) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 62.3 N at 160 km/h (14 lbf at 100 mph) |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
| Downtilt | 4° |
Hardware
| Frequency Range | 2.35—2.55 GHz |
| Antenna Gain | 2.35—2.55 GHz |
| Elevation Beamwidth | 12° |
| Max. VSWR | 1.7:1 |
| Polarization | Dual-Linear |
| Cross-Pol Isolation | 25 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| NDAA Compliant | True |
