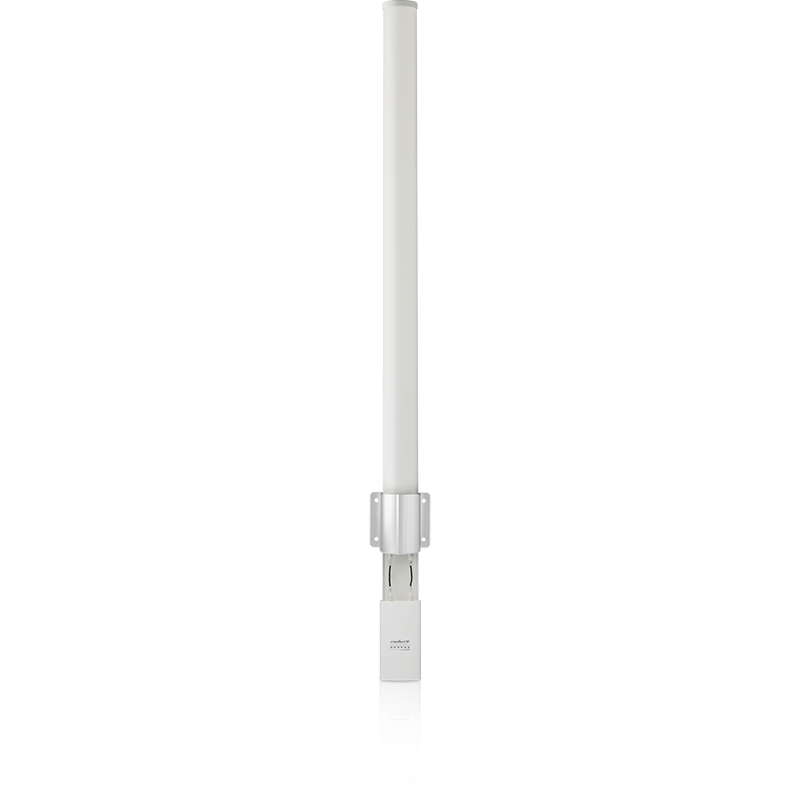

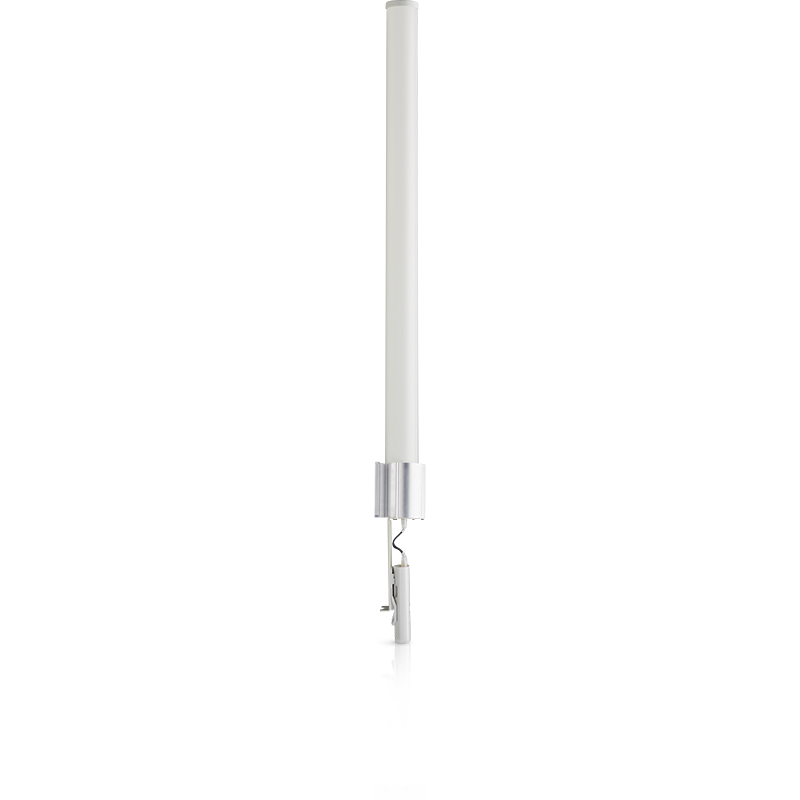

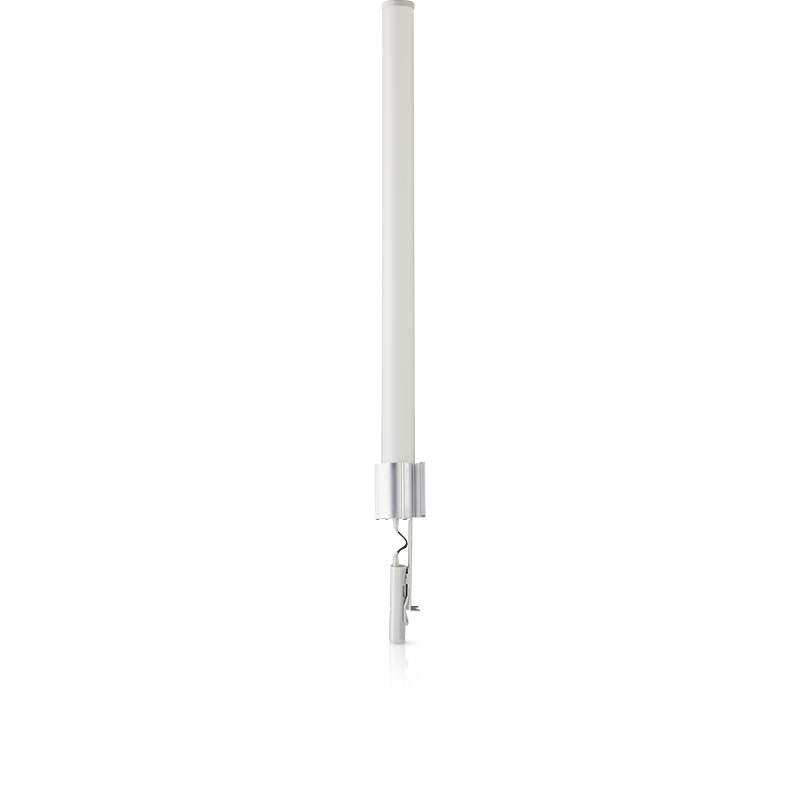

Ubiquiti AMO-2G13 | airMAX Omni Antenna 2.4 GHz

A 2.4 GHz omnidirectional sector antenna for WISP tower and rooftop deployments that need 360° 2x2 MIMO coverage from a single mast-mounted unit.

Why this one

• 13 dBi gain across a 360° horizontal pattern means a single antenna covers all client directions from one mounting point, without the overlap management of multiple sector panels.
• The 7° elevation beamwidth keeps energy focused at client height rather than wasted skyward, which matters when your clients are spread across a flat terrain or rooftop-dense area.
• Rated to survive 200 km/h winds with a tested load figure of 71.2 N at 160 km/h, so it's built for permanent mast installation rather than temporary or sheltered setups.

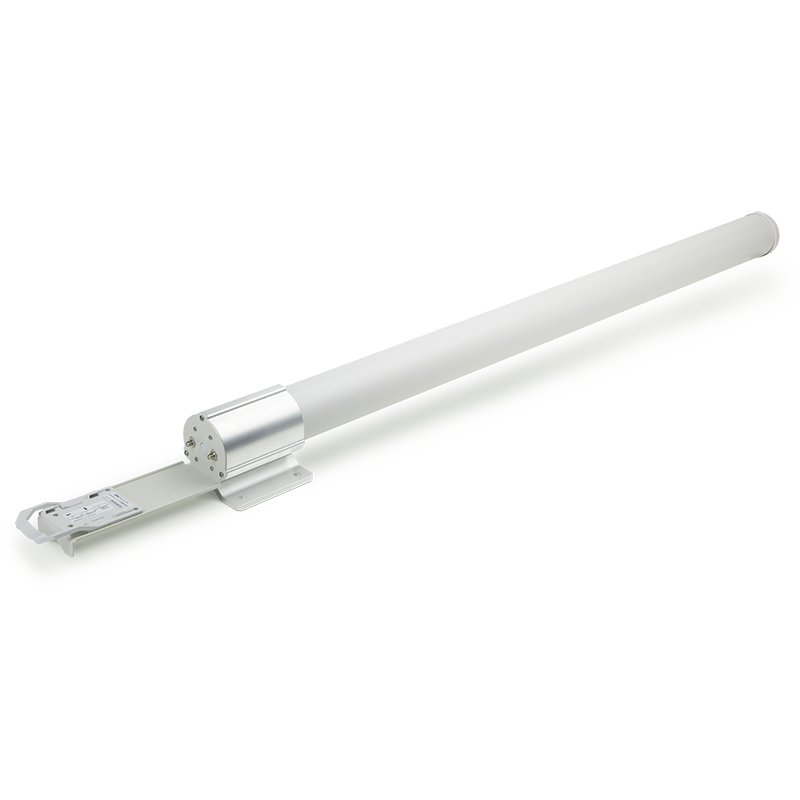

• Ships with a universal pole mount, RocketM bracket, and weatherproof RF jumpers — the mechanical install kit is complete out of the box.

Good fit if you're running a Rocket radio on a 2.4 GHz WISP or campus backhaul node and need omnidirectional coverage with carrier-class build quality on an exposed mast.

Worth considering something else if your deployment is point-to-point rather than point-to-multipoint — a directional dish like the AMO-5G13 (if your link is 5 GHz) or a sector panel will concentrate gain where you actually need it, and the AMO-2G10 is available at a lower price band if 10 dBi is sufficient for your link budget.

What you'll also need

A compatible Rocket radio (such as the R2AC or NSM2) to drive the antenna — this is a passive antenna only with no radio or PoE of its own — plus a mast or pole for mounting and outdoor-rated coax or the included RF jumpers to reach your radio enclosure.

Technical specifications

Mechanical

Hardware
