Ubiquiti BULLETAC-IP67 | airMAX Bullet AC IP67

$251.00

Ubiquiti BULLETAC-IP67 | airMAX Bullet AC IP67

$251.00

A dual-band 802.11ac radio body for building point-to-point or point-to-multipoint outdoor links where you supply your own directional antenna.

Why this one

  • IP67 weatherproofing means the enclosure is fully dust-tight and rated for temporary immersion — it can be pole-mounted in exposed coastal or industrial sites without a separate housing.
  • The 5 GHz path delivers 300+ Mbps throughput, which is enough headroom for backhaul links carrying multiple simultaneous video streams or busy office traffic.
  • The N-Type connector lets you pair the radio body with a wide range of third-party directional antennas, so you can match gain and beam width to the specific path length and geometry.
  • Passive PoE on 24V DC keeps the power run simple — one Cat5e cable to the mounting point carries both data and power, with no active PoE switch required at that end.

Good fit if you're building a fixed outdoor wireless link — building-to-building, tower-to-CPE, or similar — and need a rugged radio body you can dress with an antenna suited to the path rather than accepting a fixed built-in optic.

Worth considering something else if you need a self-contained unit with an integrated antenna for a straightforward point-to-point bridge, where the UniFi Building-to-Building Bridge (UBB) is purpose-built for that job and ships ready to mount.

What you'll also need

A compatible N-Type directional antenna sized to the link distance and frequency, a 24V passive PoE injector (not included — the POE-48-24WG is not suitable here; you'll need the 24V passive adapter), and outdoor-rated Cat5e or better to the mounting point; a second unit and matching antenna are required at the far end for any point-to-point link.

Technical specifications

Mechanical

Dimensions 190 x 46 mm (7.7 x 1.8")
Weight 190 g (6.7 oz)
Enclosure Materials Aluminum, rubber
Weatherproofing IP67

Hardware

Networking Interface (1) GbE RJ45 port
Power Method Passive PoE 2-pair (4, 5+; 7, 8 return)
Power Supply 24V DC, 0.3A gigabit PoE adapter (Not Included)
Supported Voltage Range 20–27V DC
Max. Power Consumption 7W
Max. TX Power 22 dBm
Ambient Operating Temperature -40 to 70° C (-40 to 158° F)
Ambient Operating Humidity 5 to 95% noncondensing
Shock and Vibration Certification ETSI300-019-1.4
Certifications CE, FCC, IC

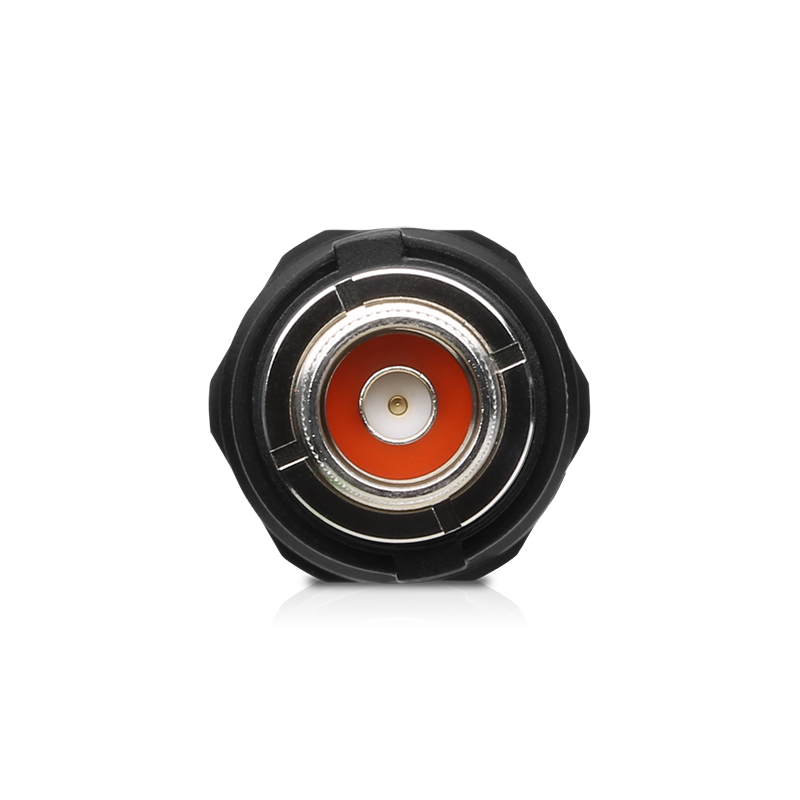

Antenna Connector N-Type Connector

Software

Operating Modes Access Point
Station
QoS WMM packet classification with user-level priority: High, Medium, Low

System

Total Throughput 2.4 GHz: 160+ Mbps
5 GHz: 300+ Mbps

Radio Frequency

Worldwide 2400 - 2483.5 MHz
5150 - 5875 MHz
US/CA 2400 - 2483.5 MHz
U-NII-1: 5150-5250 MHz
U-NII-2A: 5250-5350 MHz
U-NII-2C: 5470-5725 MHz
U-NII-3: 5725-5850 MHz
