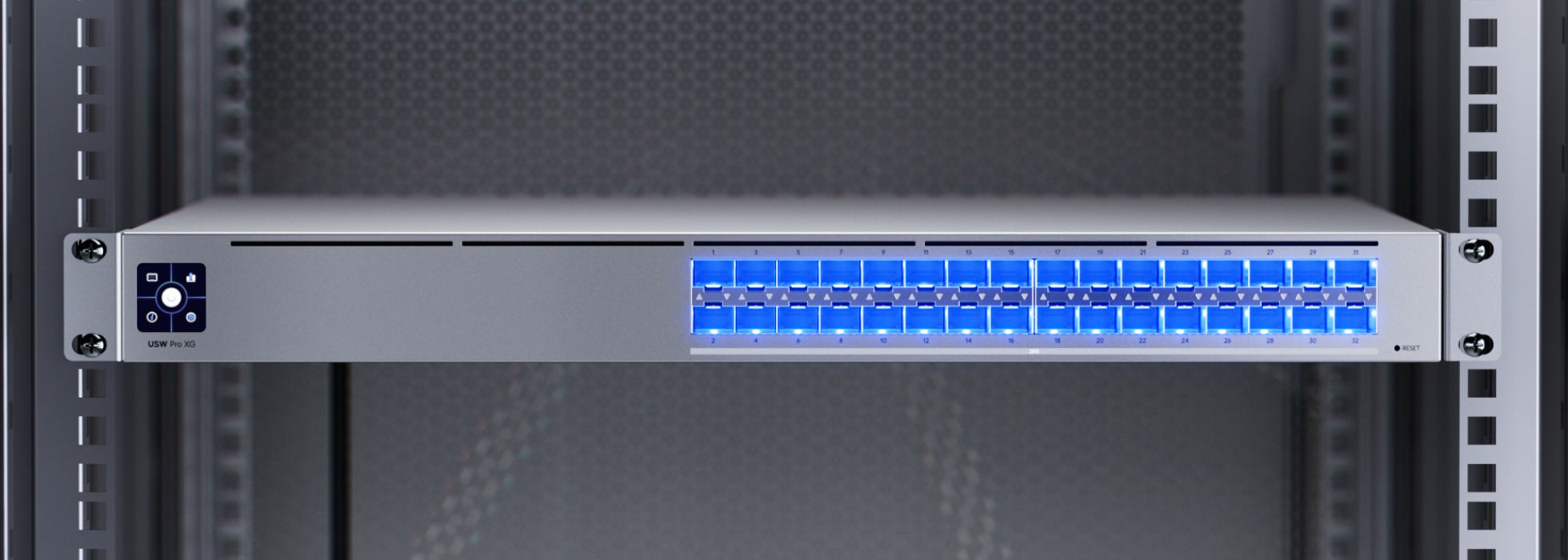

Ubiquiti PRO-XG-AGGREGATION | UniFi Pro XG Aggregation Switch
$4,606.00
Ubiquiti PRO-XG-AGGREGATION | UniFi Pro XG Aggregation Switch
$4,606.00
UniFi Pro XG Aggregation Switch
Technical Specifications
Overview

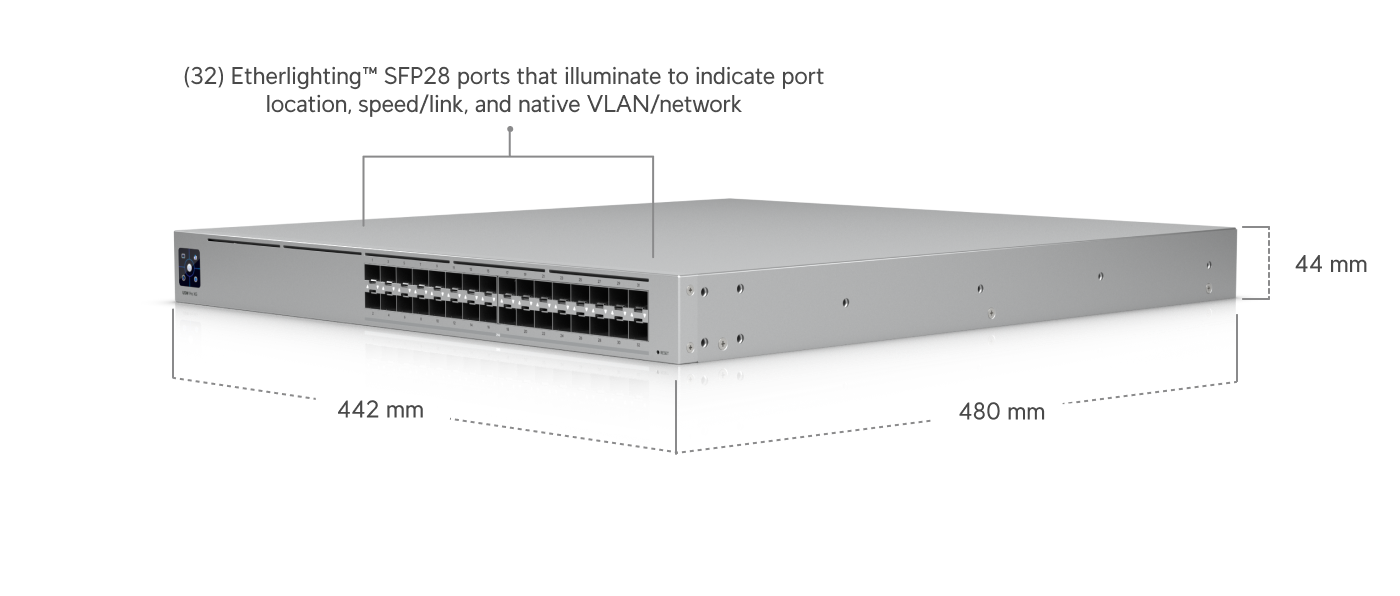

| Dimensions | 442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9") |

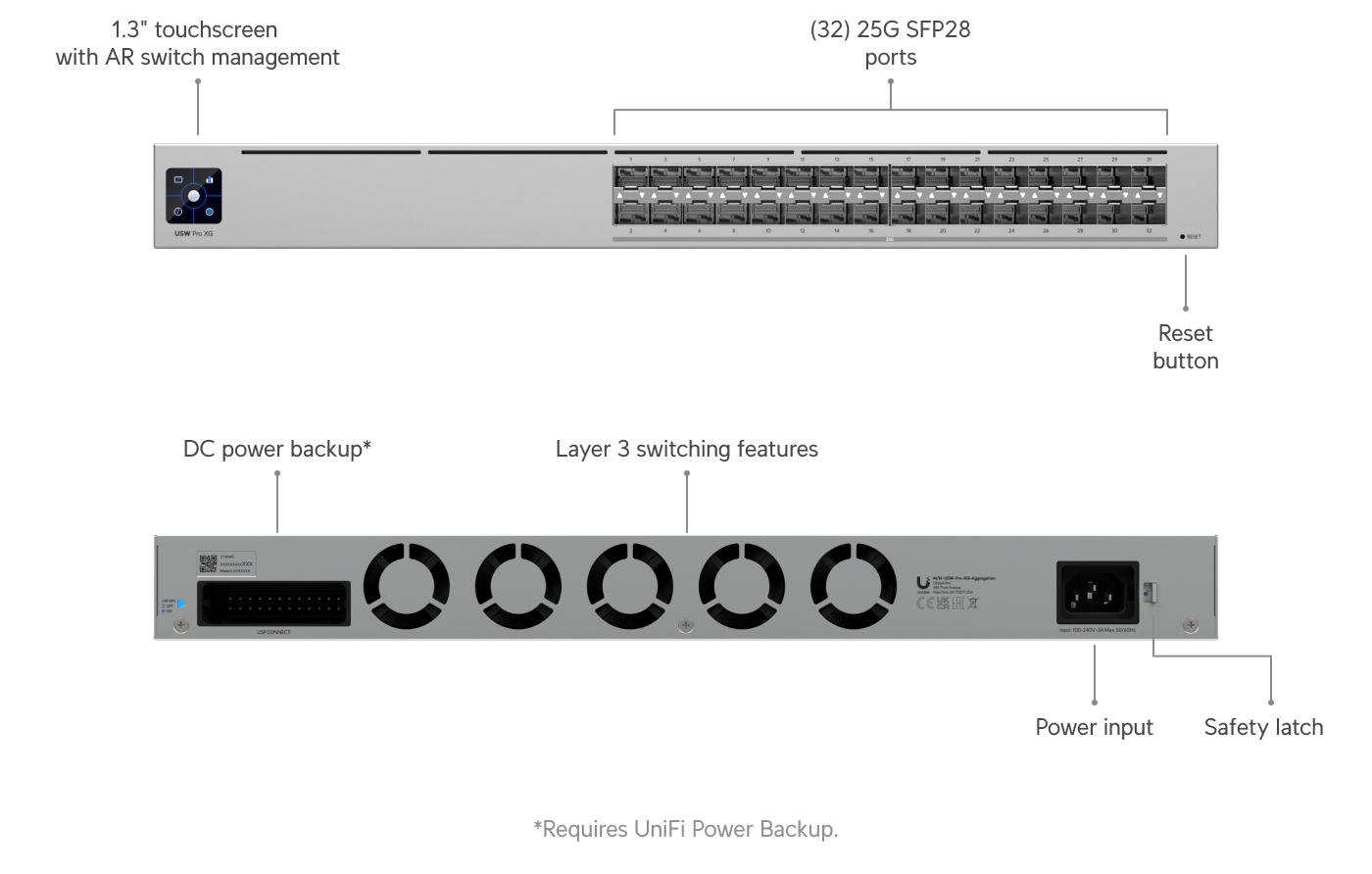

| Port Layout — 25G SFP28 | 32 (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | True |
| Form Factor | Rack Mount (1U) |
| Etherlighting™ | True |
Performance
| Switching Capacity | 1.6 Tbps |
| Total Non-Blocking Throughput | 800 Gbps |
| Forwarding Rate | 1.2 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size — ARP Entries | 128,000 |
| L3 Table Size — IPv4 Routes | 256,000 |
| L3 Table Size — IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists — IPv4 | 256 |
| Access Lists — MAC | 256 |
Layer 3 Features
| DHCP Server (Local Networks) | True |
| DHCP Relay | True |
| Inter-VLAN Routing (Local Networks) | True |
| Static Routing (Local Networks) | True |
Layer 2 Features
| LACP Port Aggregation | True |
| STP & RSTP | True |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | True |
| IGMP Snooping | True |
| 802.1X Control | True |
| MAC-Based ACLs & Device Isolation | True |
| DHCP Snooping & Guarding | True |
| Egress Rate Limit | True |
| Flow Control | True |
| Storm Control | True |
| Multicast & Broadcast Rate Limiting | True |
| MAC Address Blocking | True |
| IP-Based ACLs & Network Isolation | True |
| MAC-Based Port Restriction | True |
| Port Isolation | True |
| Port Mirroring | True |
| Jumbo Frames | True |
| LLDP-MED | True |
| Voice VLAN | True |
| Loop Protection | True |
| Virtual Network Override | True |
Hardware
| Max. Power Consumption | 200W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 200W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 457 BTU/hr |
| Weight | Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

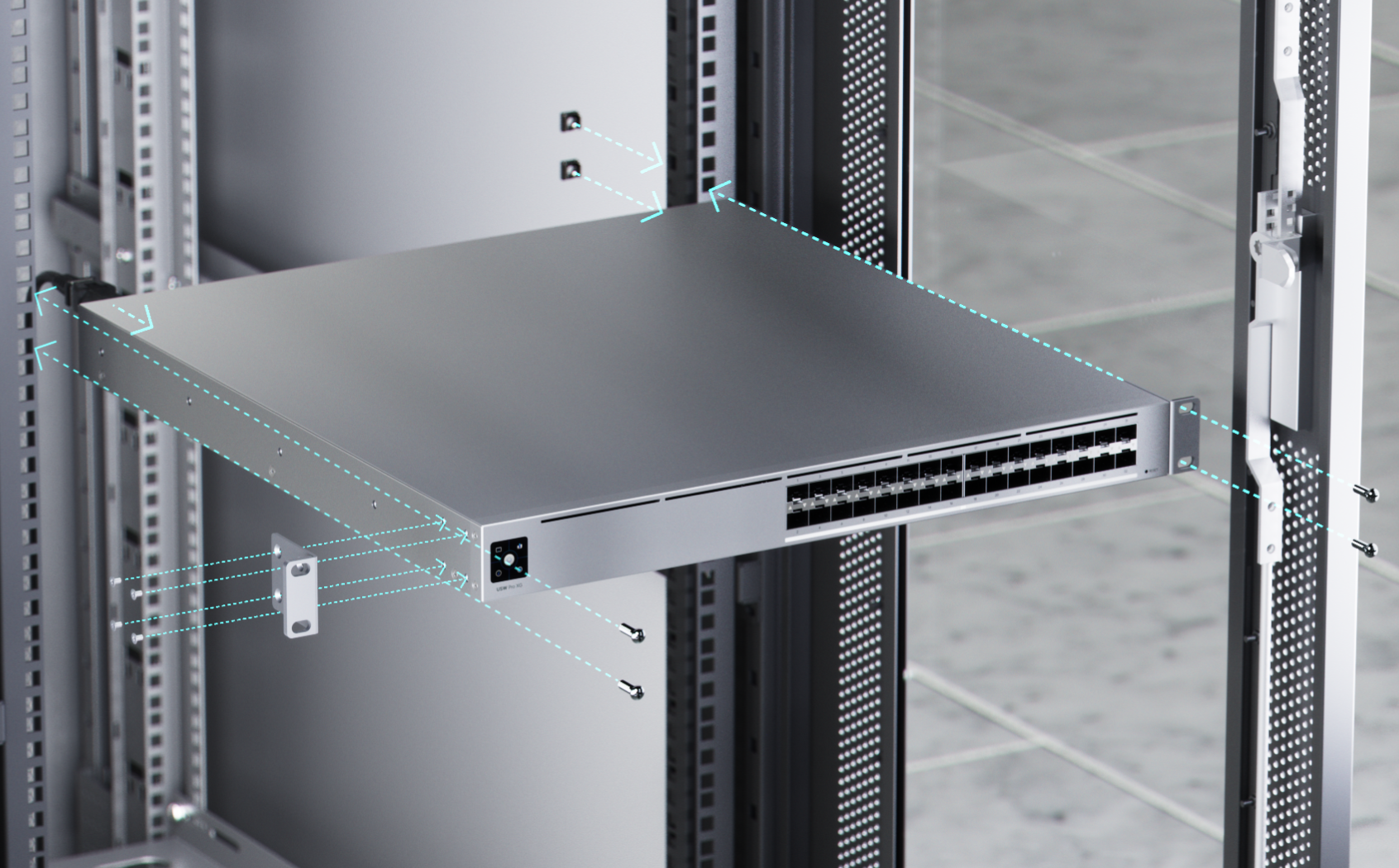

| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting™ — SFP28 | True |
| LEDs — RPS | True |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 05977-25-08356 |
