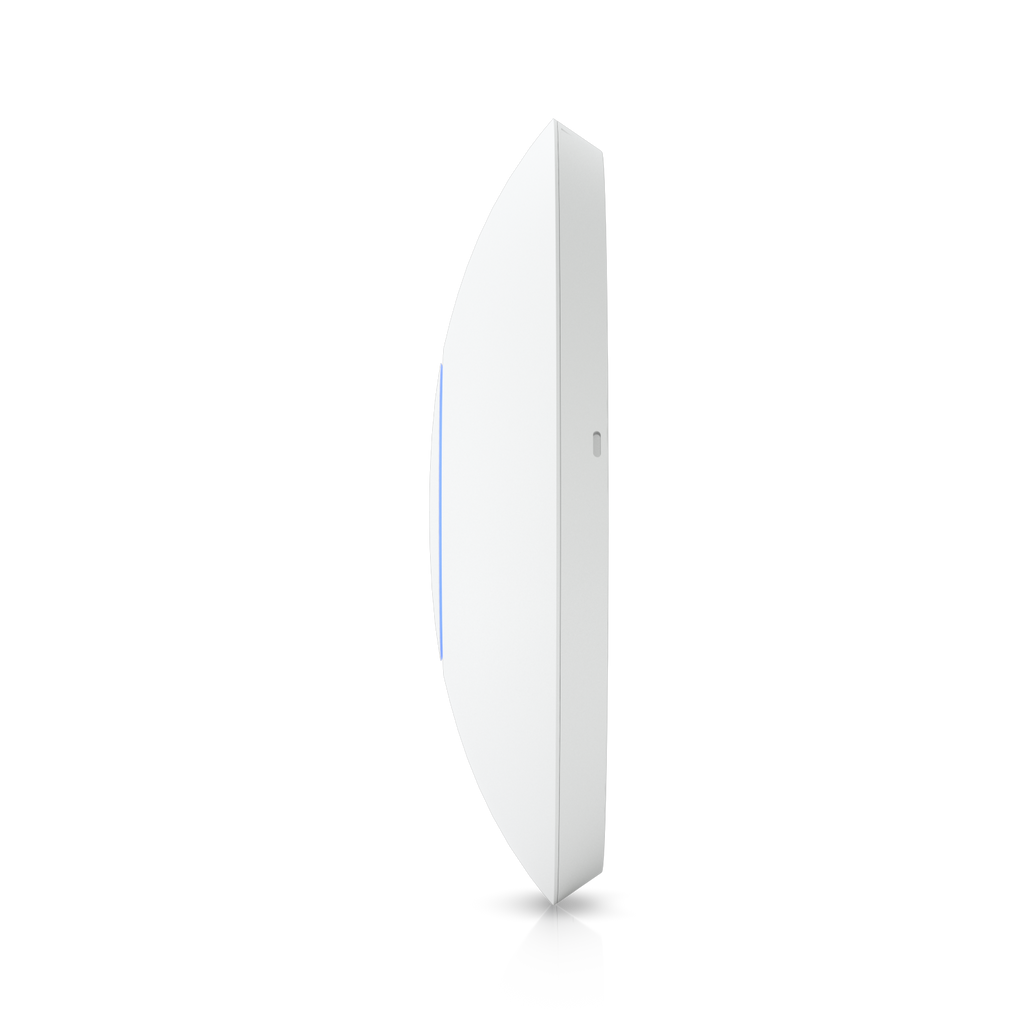

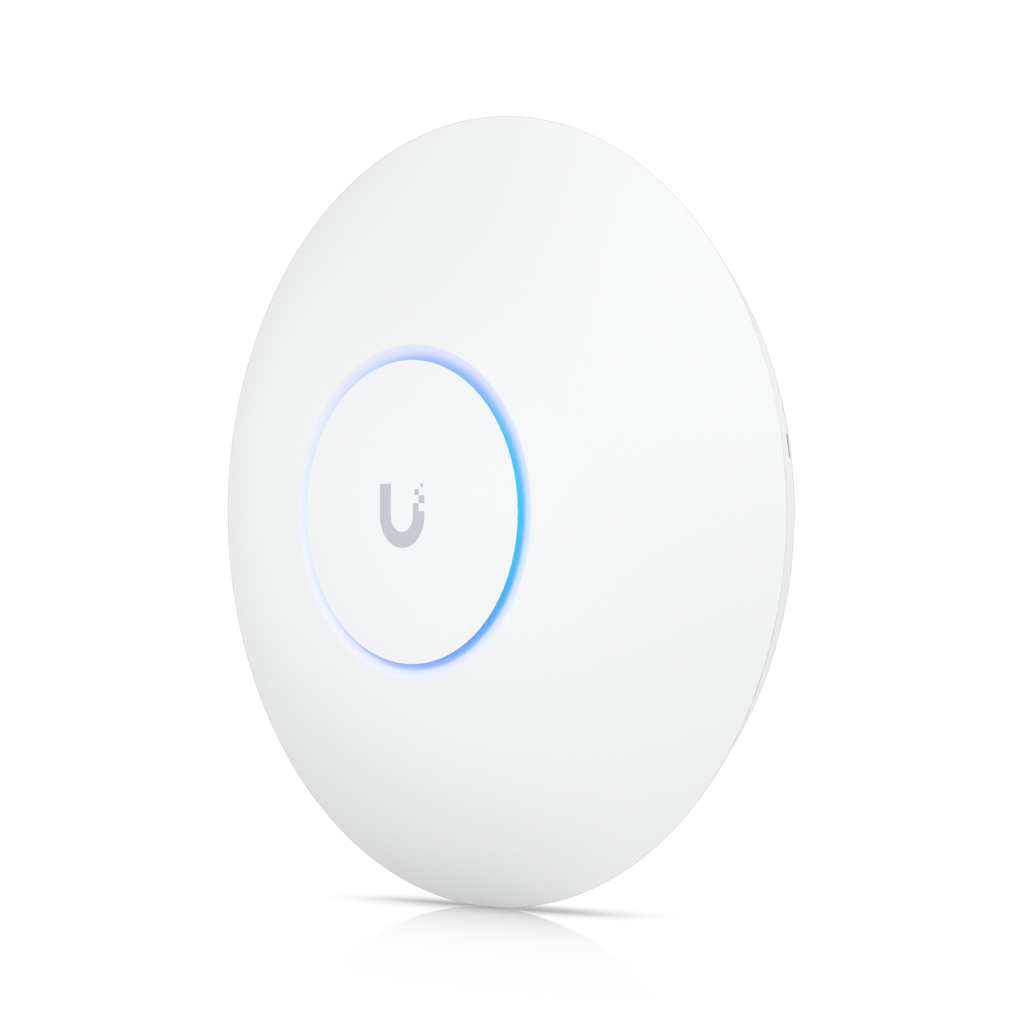

Ubiquiti U6-ENTERPRISE | UniFi 6 Enterprise | WiFi 6E | 2.5 GbE | PoE+
$621.00
Ubiquiti U6-ENTERPRISE | UniFi 6 Enterprise | WiFi 6E | 2.5 GbE | PoE+
$621.00
UniFi 6 Enterprise
Technical Specifications
Overview

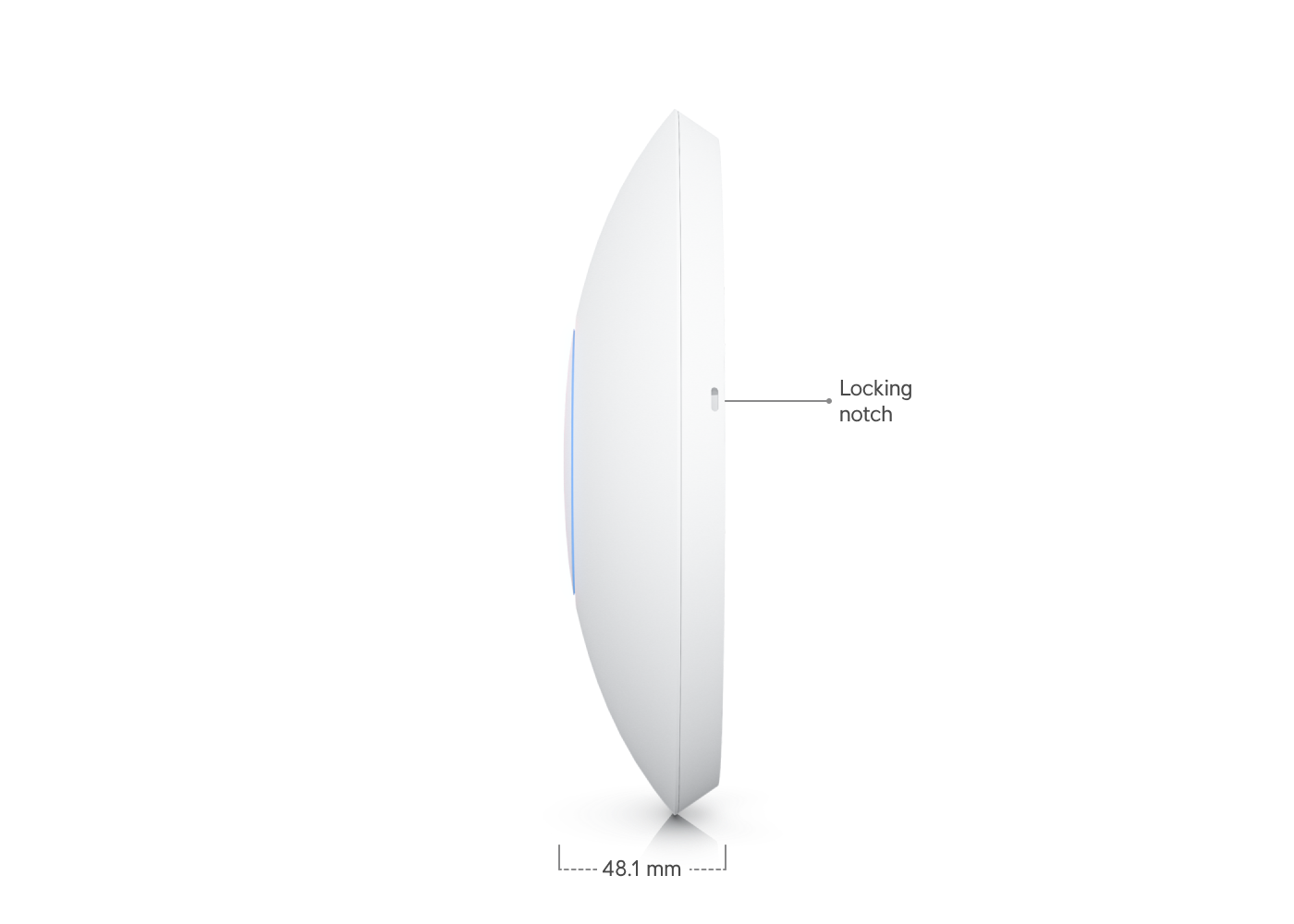

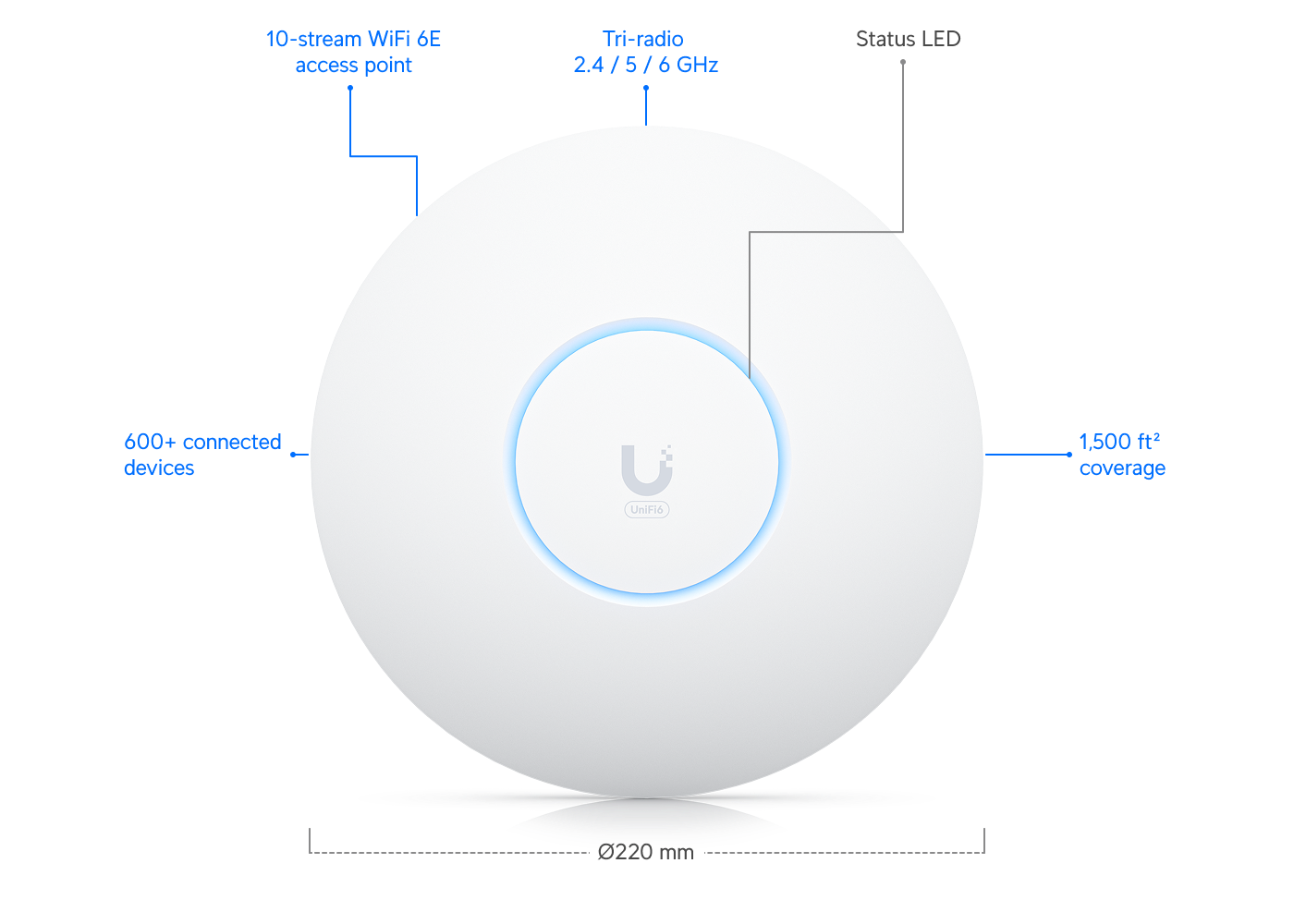

| Dimensions | ⌀220 x 48 mm (⌀8.7 x 1.9") |
| WiFi Standard | WiFi 6E |
| Spatial Streams | 10 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 600+ |
| Uplink | 2.5 GbE |

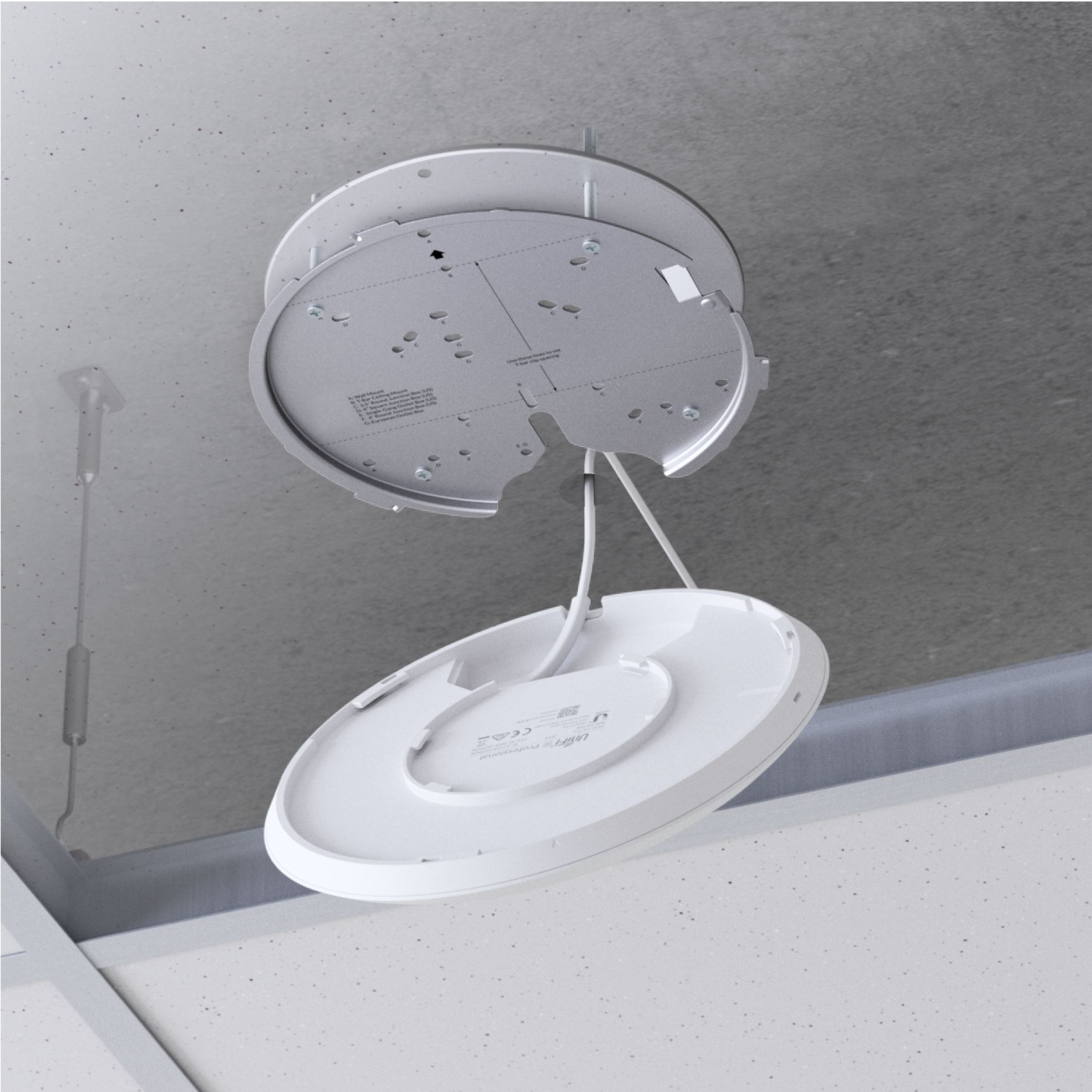

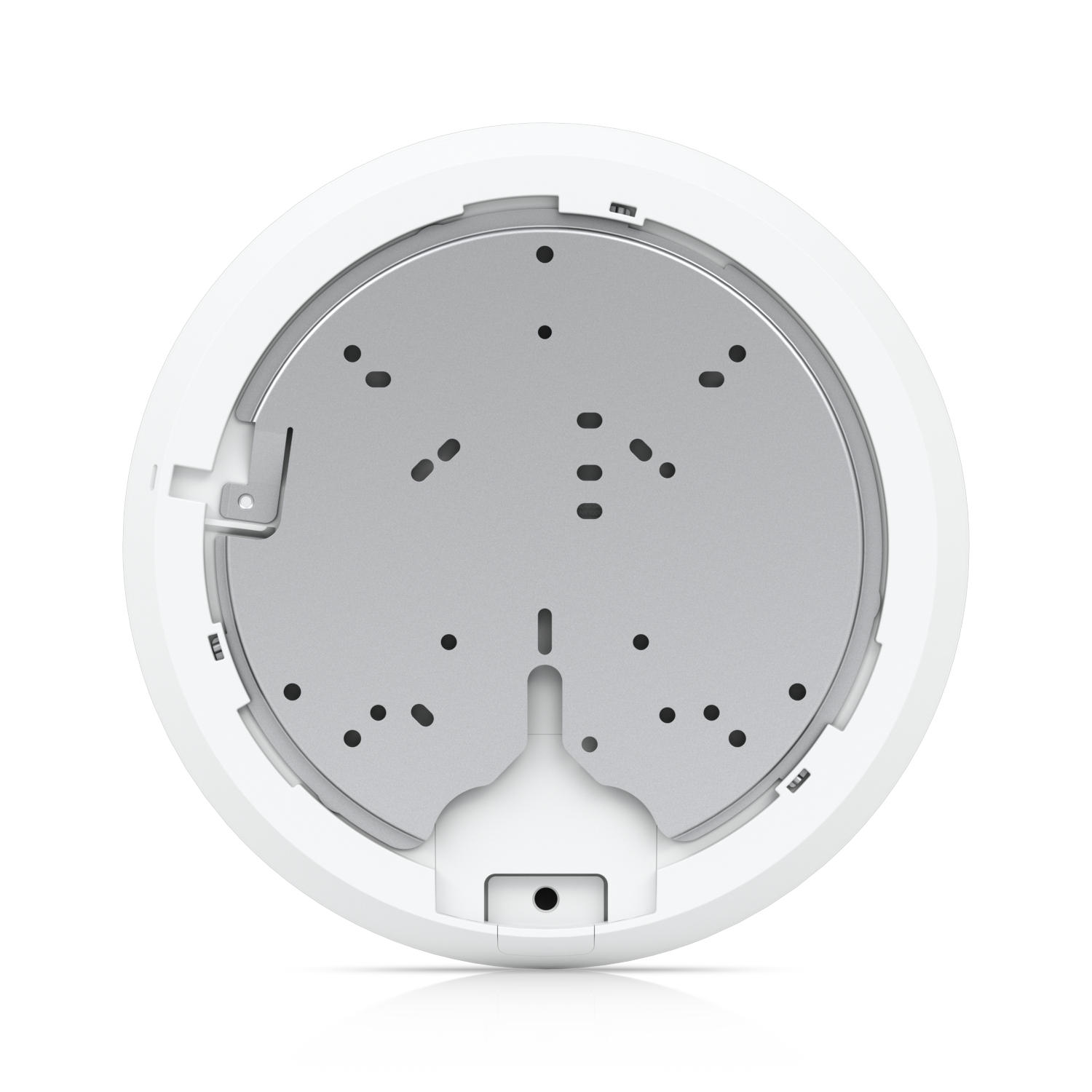

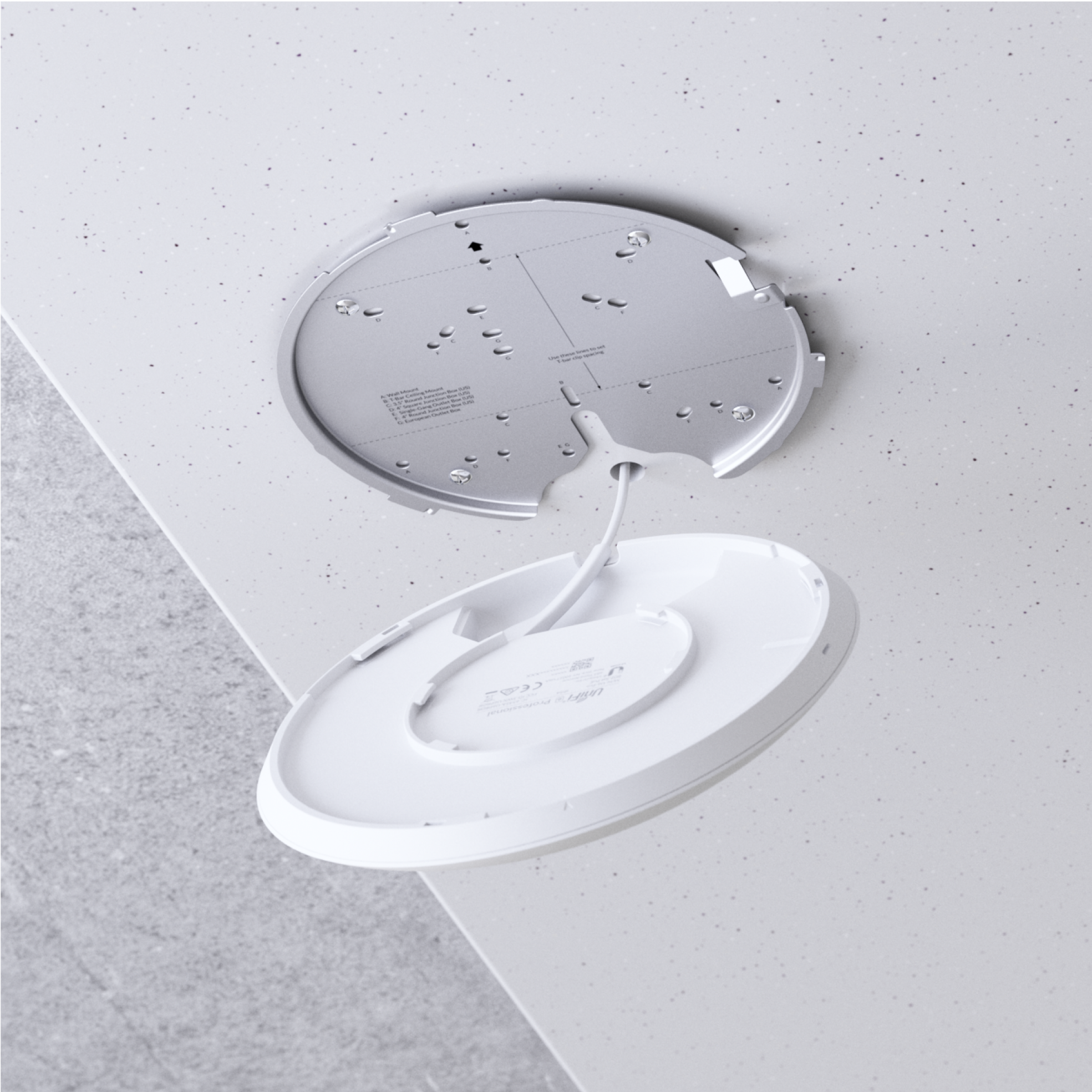

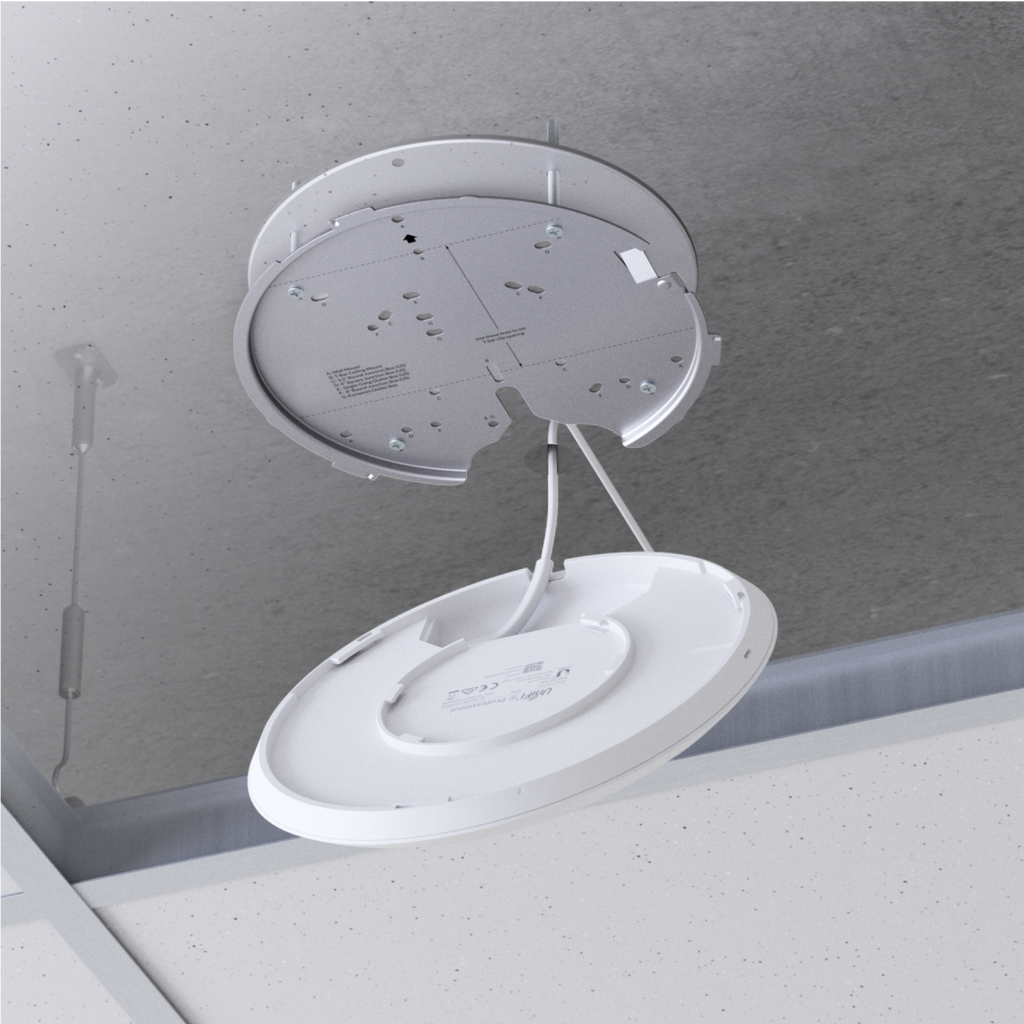

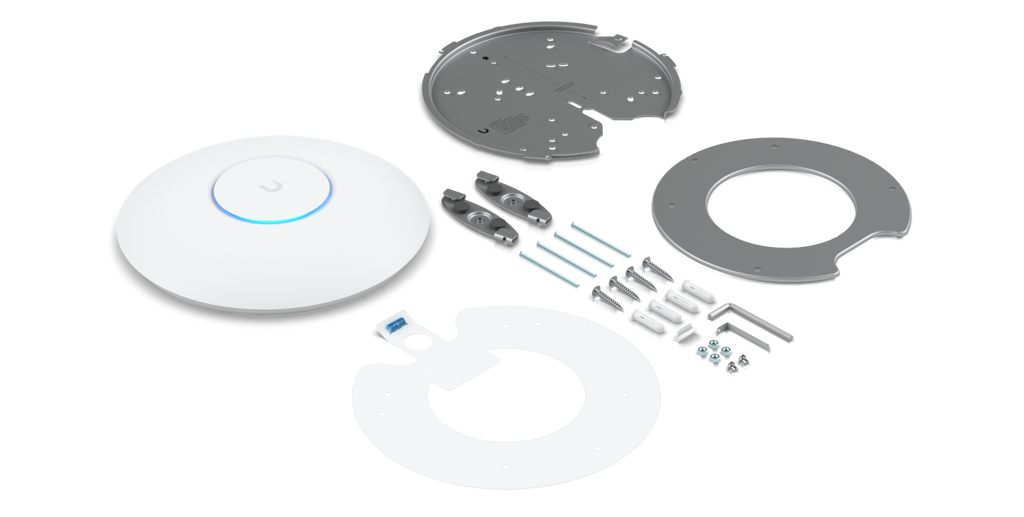

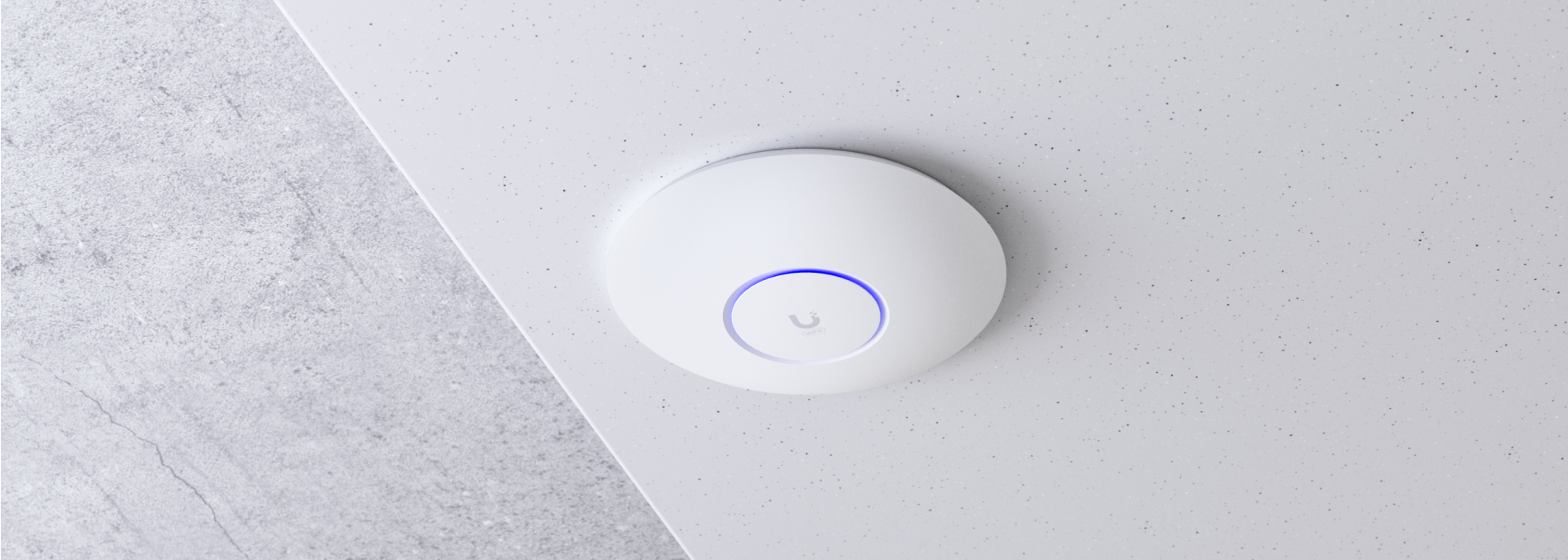

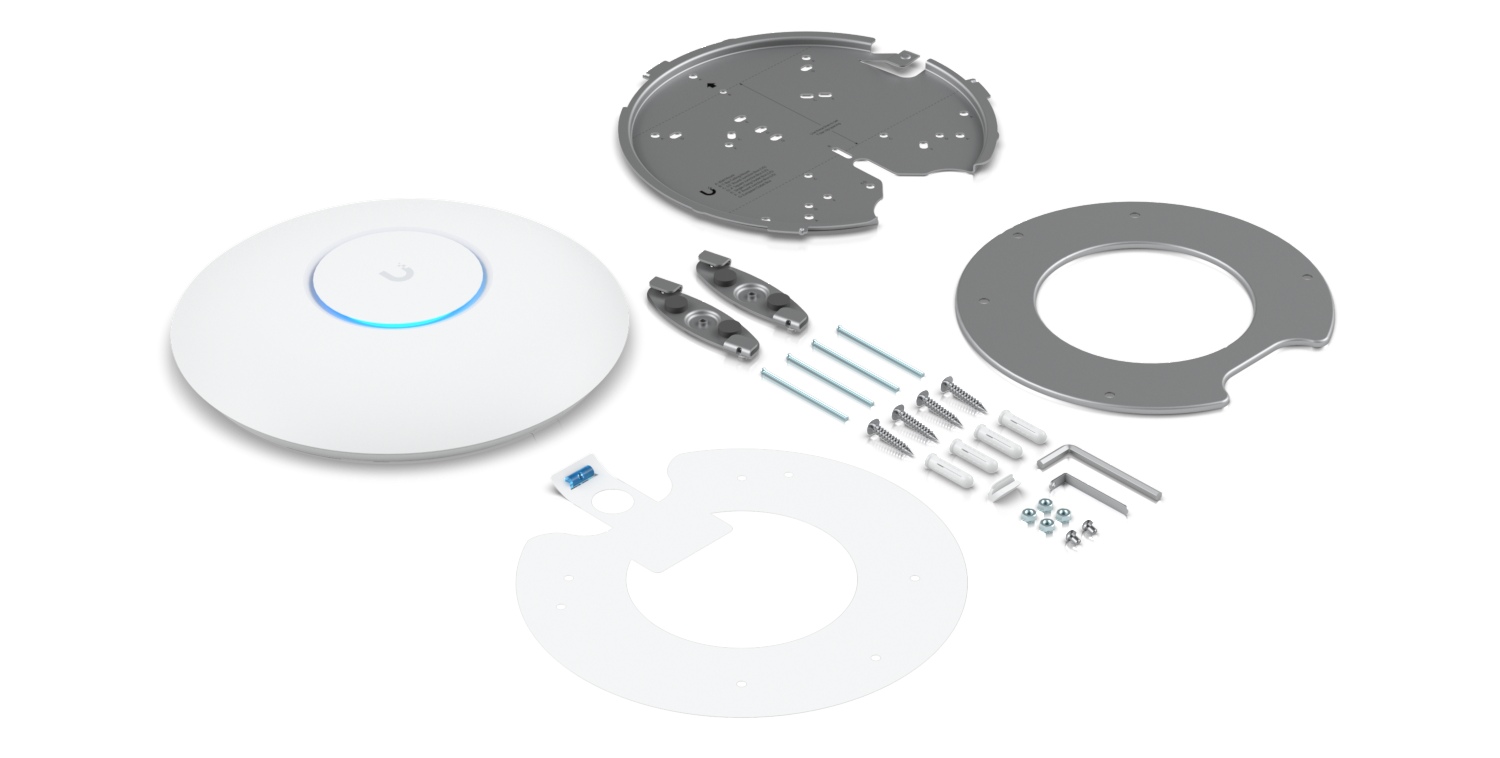

| Mounting | Ceiling, Wall (Pro Mount Included) |

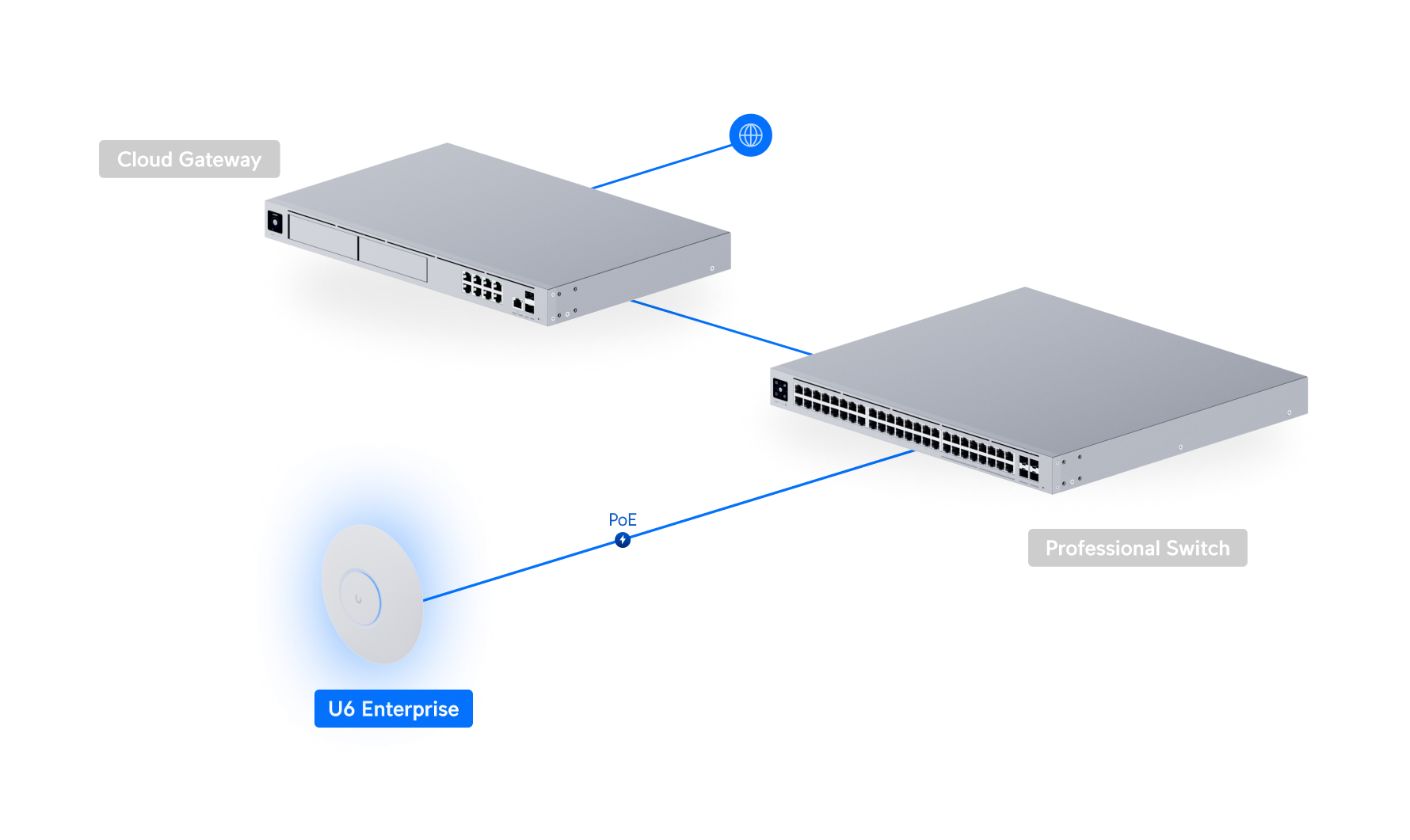

| Power Method | PoE+ |
Performance
| MIMO — 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO — 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO — 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate — 6 GHz | 4.8 Gbps (BW160) |
| Max. Data Rate — 5 GHz | 4.8 Gbps (BW160) |
| Max. Data Rate — 2.4 GHz | 573.5 Mbps (BW40) |
| Antenna Gain — 6 GHz | 6 dBi |
| Antenna Gain — 5 GHz | 5.3 dBi |
| Antenna Gain — 2.4 GHz | 3.2 dBi |
| Max. TX Power — 6 GHz | 26 dBm |
| Max. TX Power — 5 GHz | 26 dBm |
| Max. TX Power — 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates — 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates — 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates — 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Features
| Wireless Meshing | True |
| Band Steering | True |
| 802.11v BSS Transition Management | True |
| 802.11r Fast Roaming | True |
| 802.11k Radio Resource Management (RRM) | True |
| Advanced Radio Management | True |
| Passpoint (Hotspot 2.0) | True |
| Captive Hotspot Portal — Custom Branding Landing Page | True |
| Captive Hotspot Portal — Voucher Authentication | True |
| Captive Hotspot Portal — Payment-Based Authentication | True |
| Captive Hotspot Portal — External Portal Server Support | True |
| Captive Hotspot Portal — Password Authentication | True |
| Captive Hotspot Portal — Guest Network Isolation | True |
| Private Pre-Shared Key (PPSK) | True |
| WiFi Speed Limiting | True |
| Client Device Isolation | True |
| WiFi Schedules | True |
| RADIUS over TLS (RadSec) | True |
| Dynamic RADIUS-assigned VLAN | True |
Hardware
| Max. Power Consumption | 22W |
| Supported Voltage Range | 44–57V DC |

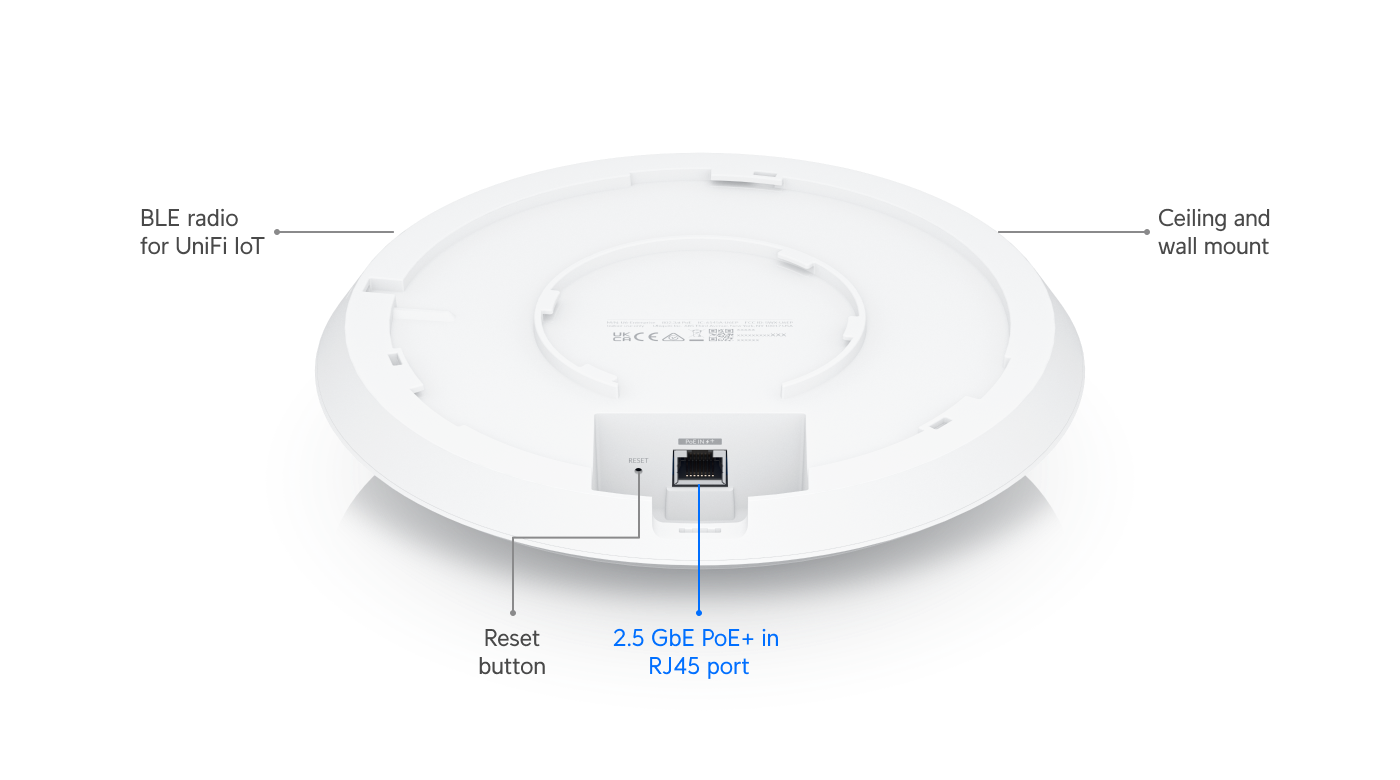

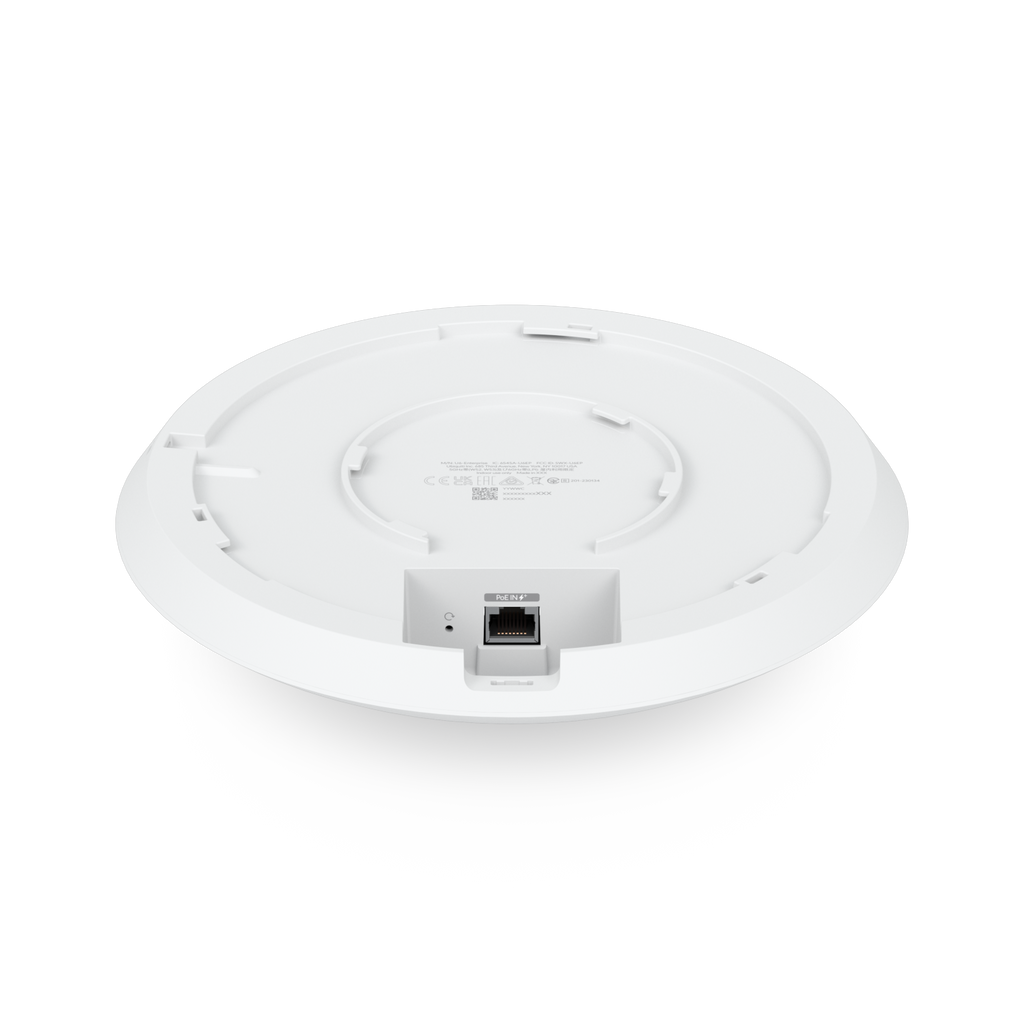

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | Device: 960 g (2.1 lb) With mount: 1.1 kg (2.4 lb) |
| Management | Ethernet Bluetooth |
| Enclosure Material | Polycarbonate, aluminum |

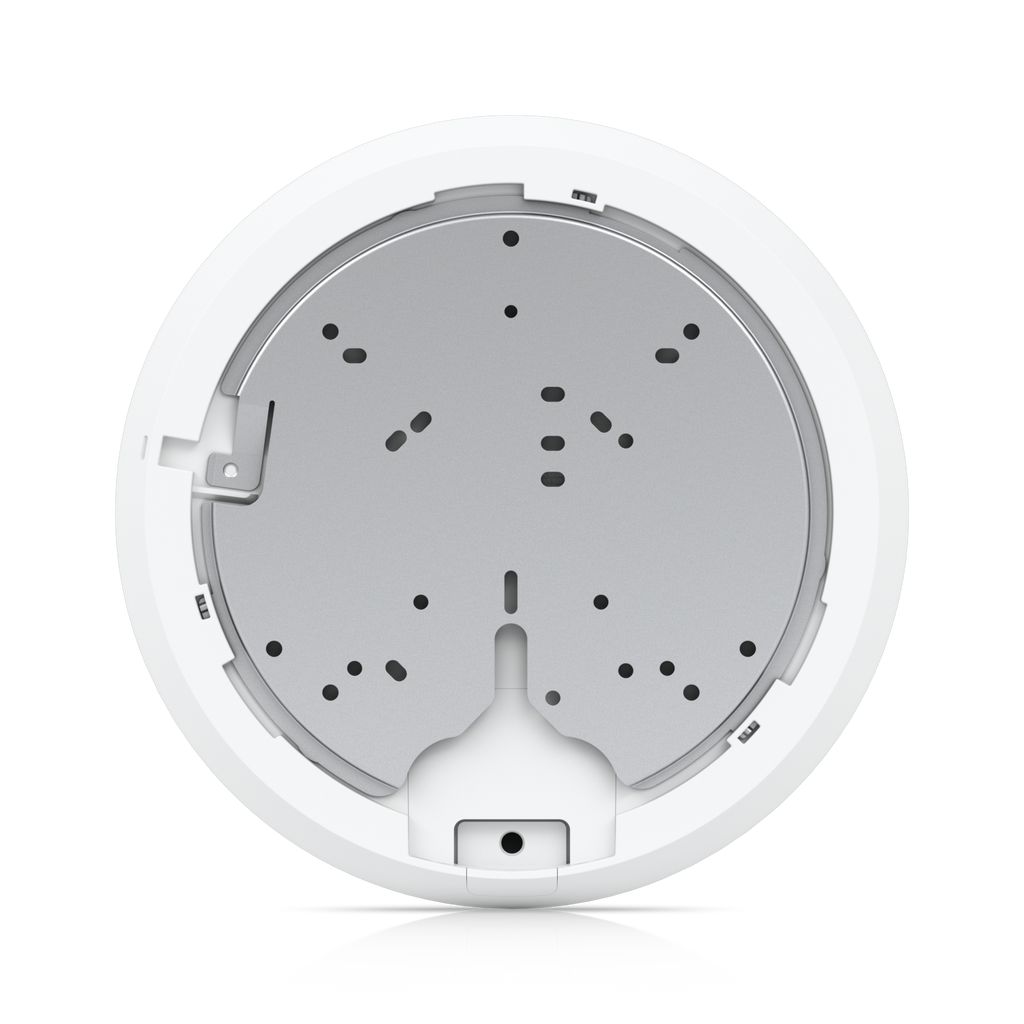

| Mount Material | Stainless steel (SUS304) |
| LEDs — System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 11933-22-08356 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 6100 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz (Depends on the regulatory region) |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| Application Requirements — UniFi Network | Version 6.0.45 and later |
