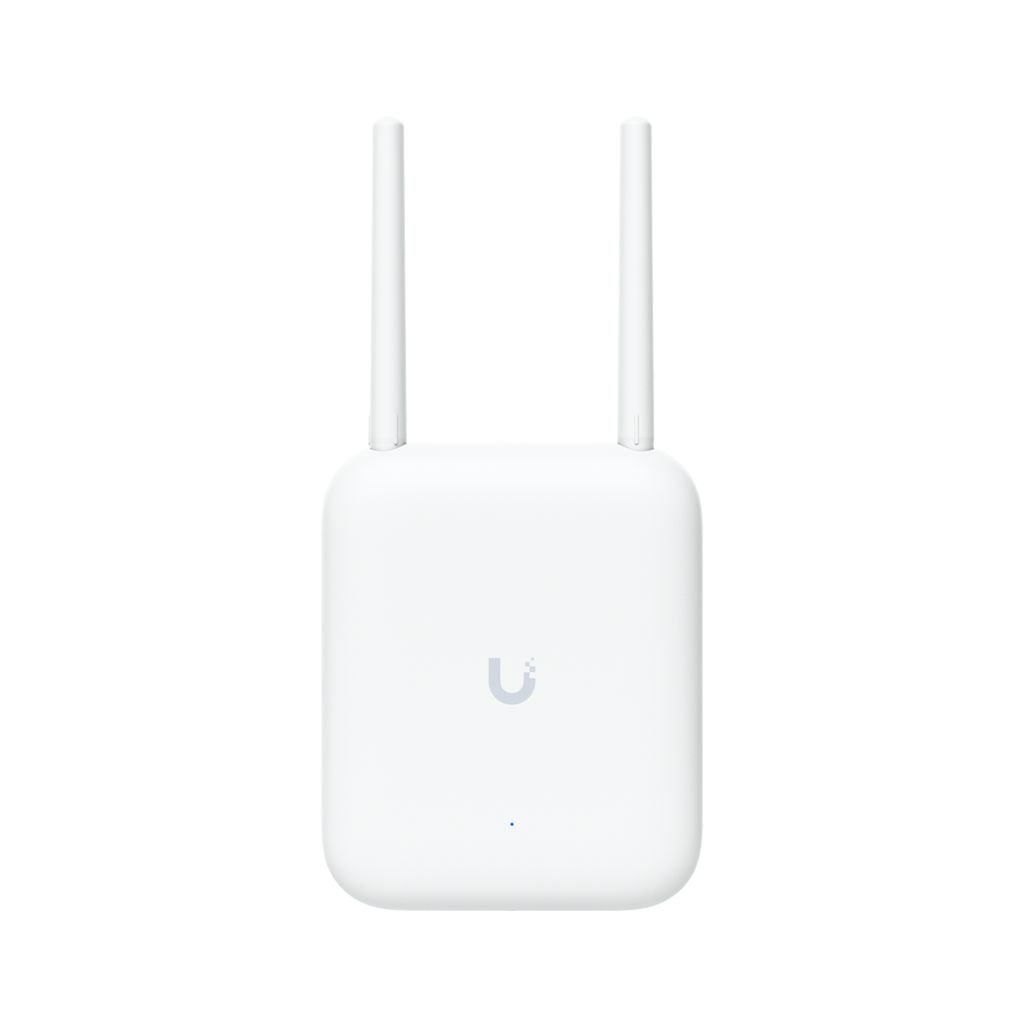

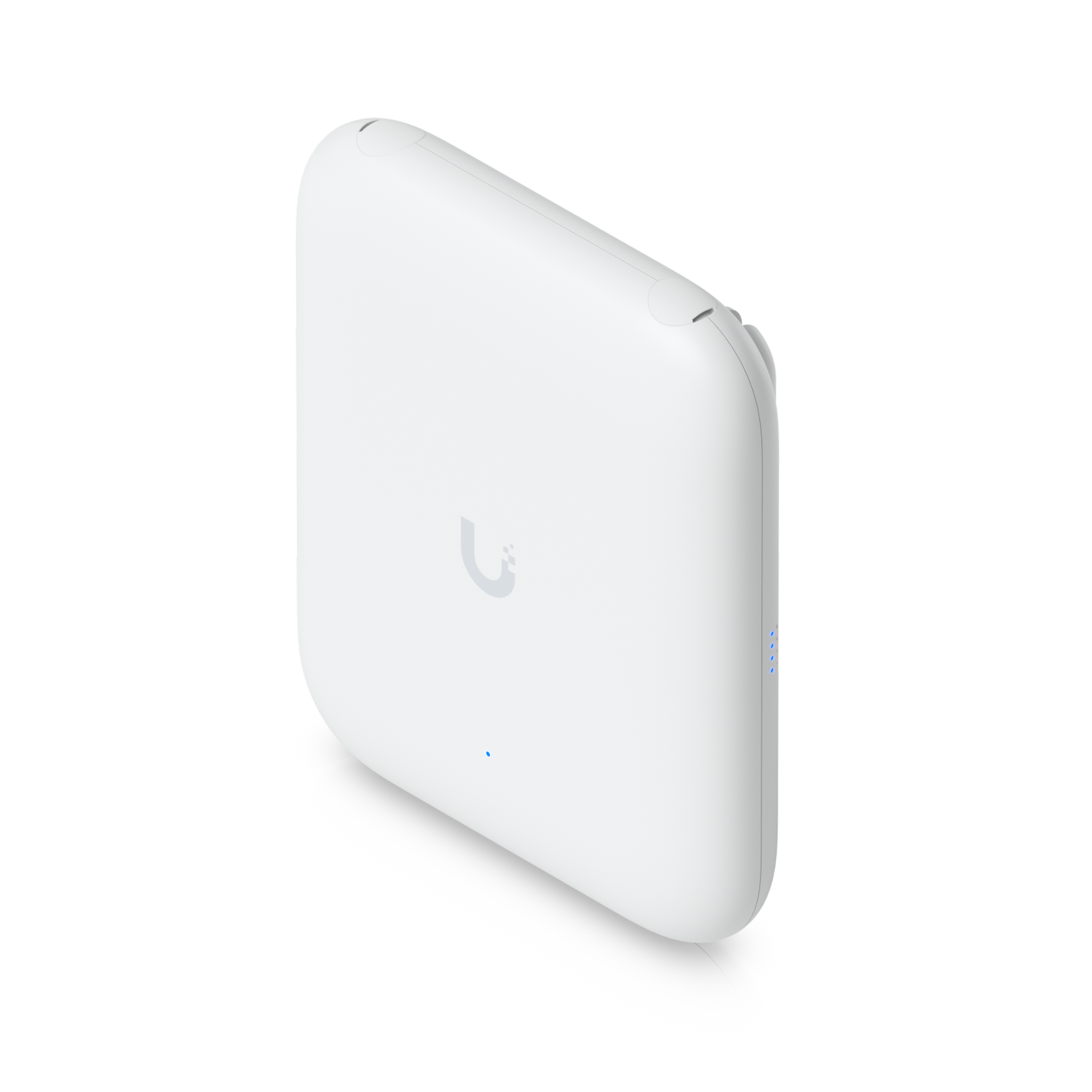

A WiFi 7 outdoor access point for courtyards, car parks and building exteriors where you need coverage beyond what an indoor AP can reach through glass and walls.
Why this one
- The integrated directional antenna — 12.5 dBi at 45° × 45° on 5 GHz — concentrates signal into the space you're covering rather than spilling it in all directions, which is why the spec sheet claims 465 m² from a single unit.
- WiFi 7 support with 240 MHz channel bonding on 5 GHz pushes aggregate throughput to 4.3 Gbps, so the bottleneck at a busy outdoor venue or sports facility stays at the internet connection, not the AP.
- IPX6 weatherproofing and a tested wind load of 74.6 N at 200 km/h means it stays operational in conditions that would damage an indoor AP pressed into service outside.
- The 2.5 GbE uplink matches the radio throughput ceiling — a gigabit port would become the constraint the moment WiFi 7 clients start connecting in numbers.

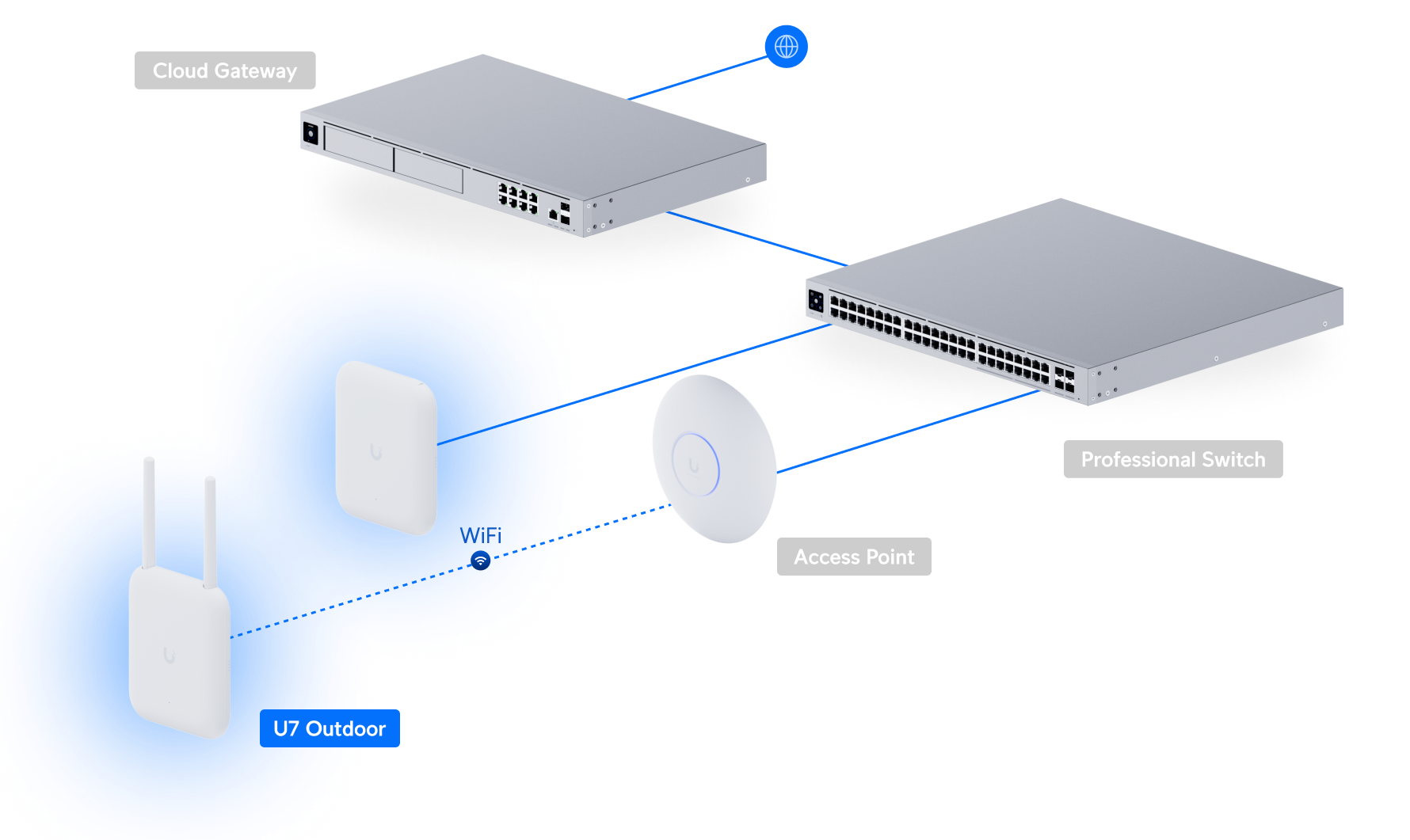

Good fit if you're extending a UniFi network onto a patio, loading dock, car park or open yard and need a single AP to handle a meaningful client count without a separate weatherproof enclosure.
Worth considering something else if you need full 360° coverage from a single pole-mounted unit — the directional antenna suits a defined coverage zone, and for a site perimeter or town-square deployment the omni antenna mode or a U6-MESH may serve the geometry better.
What you'll also need

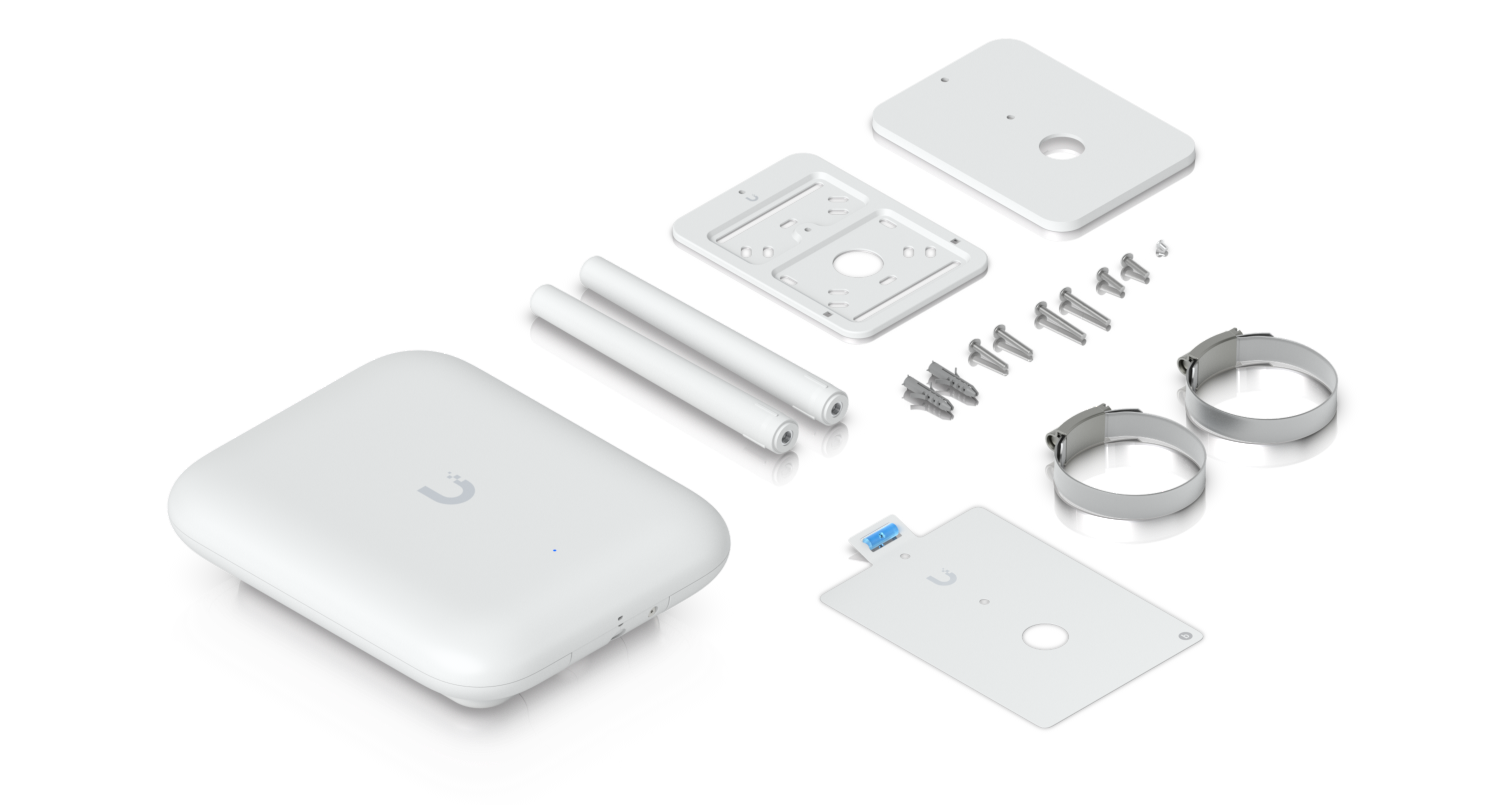

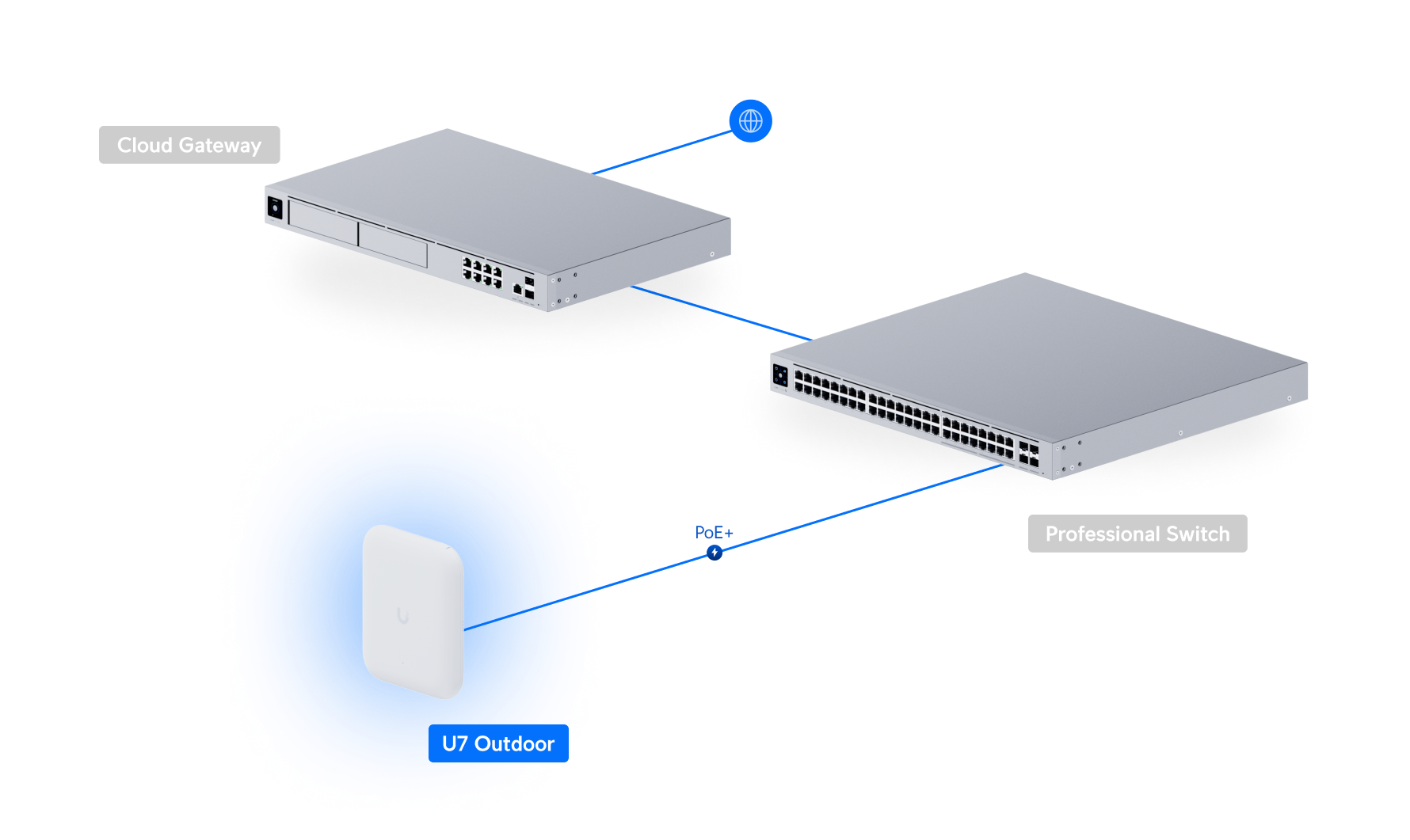

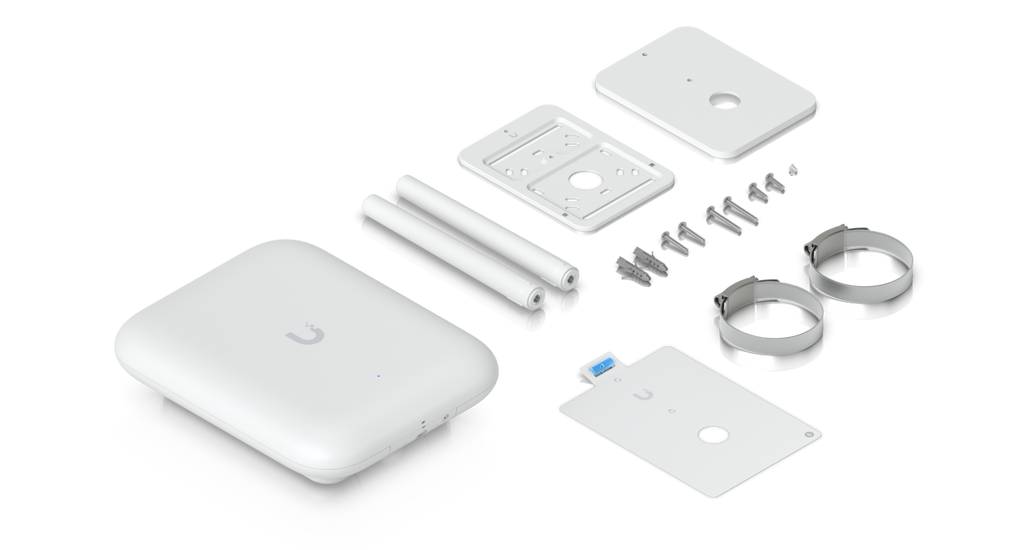

A PoE+ switch or injector (802.3at — the AP draws up to 19 W, so a standard 802.3af port won't do), outdoor-rated Cat5e or better to the mounting point, and a UniFi Network controller running version 8.2.93 or later; wall and pole mounts are included in the box.
Technical specifications
Overview

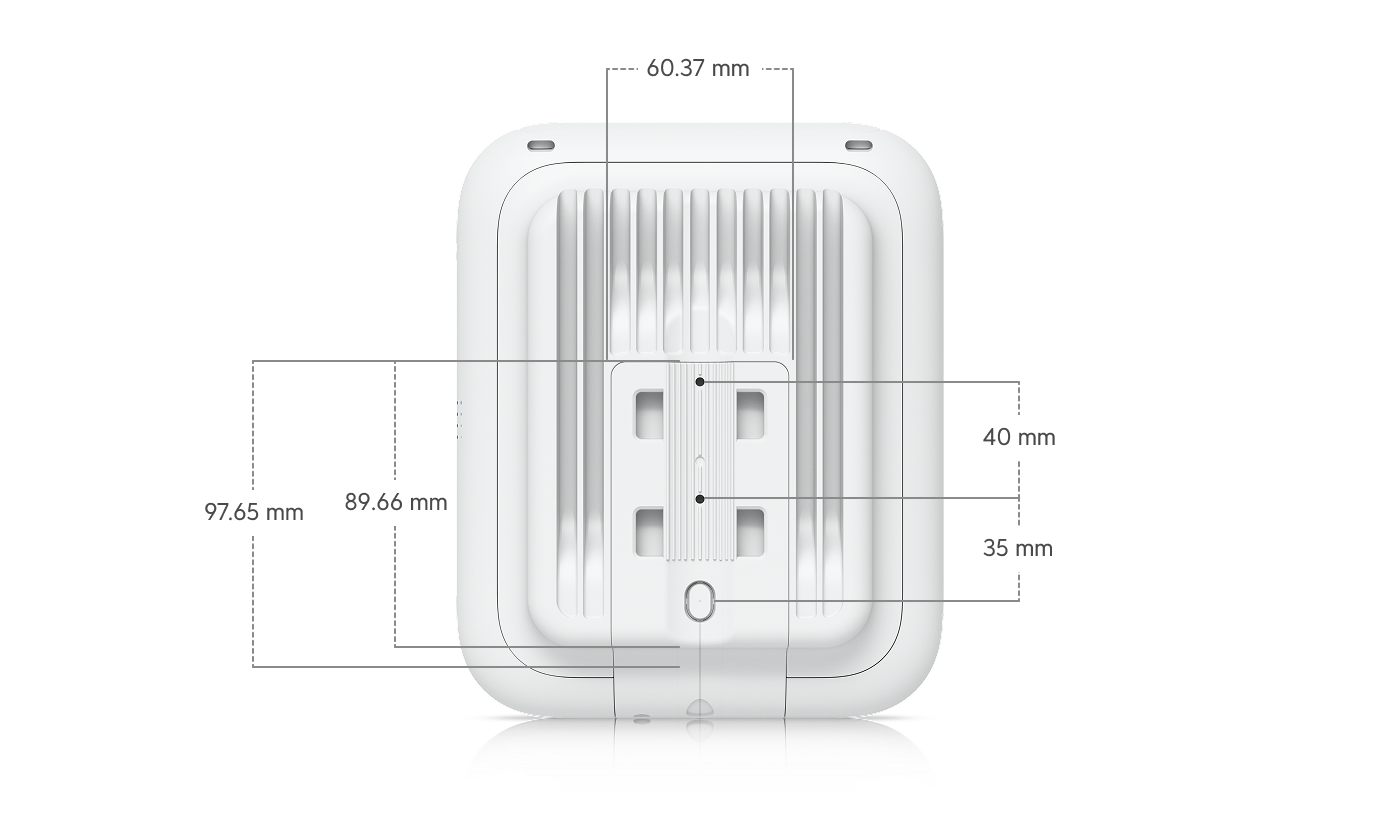

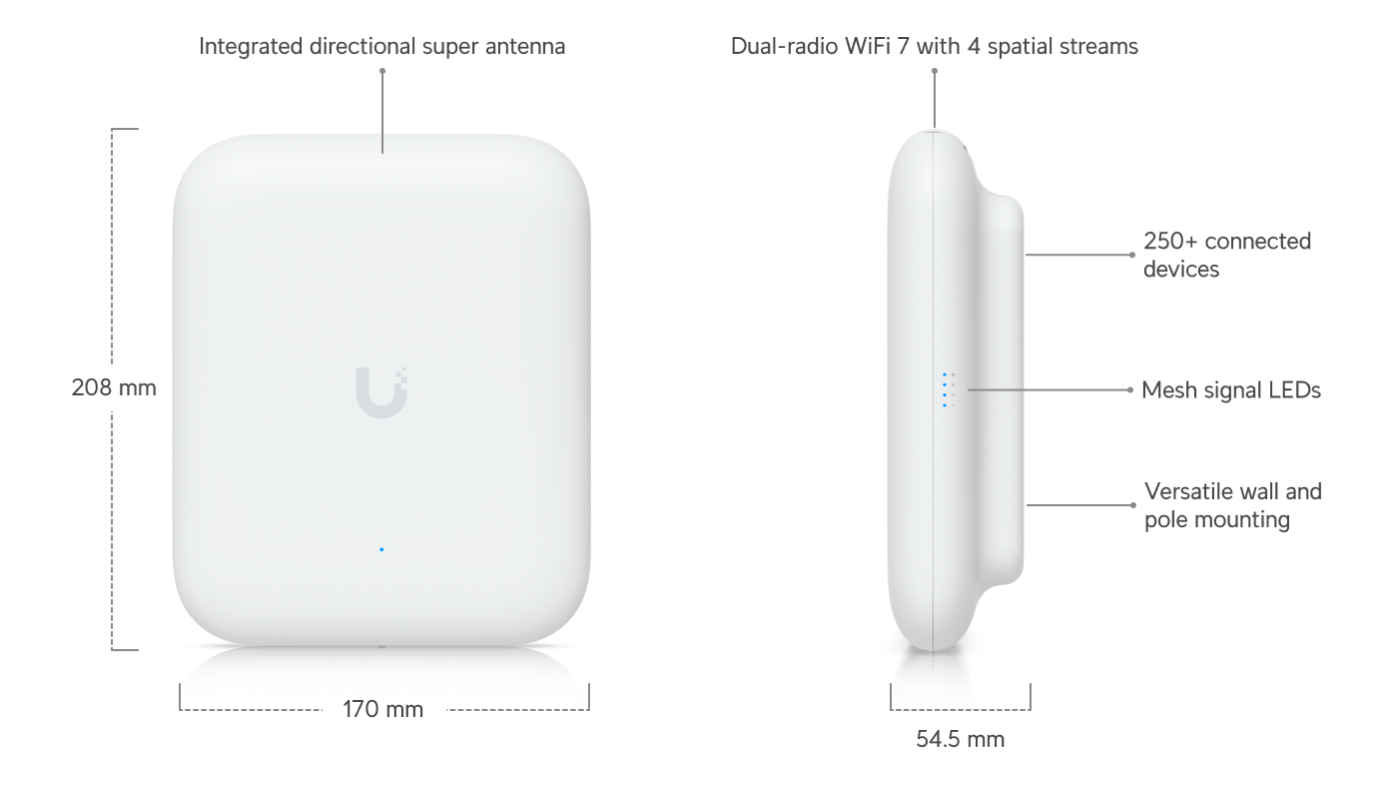

| Dimensions | 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 250+ |
| Uplink | 2.5 GbE |

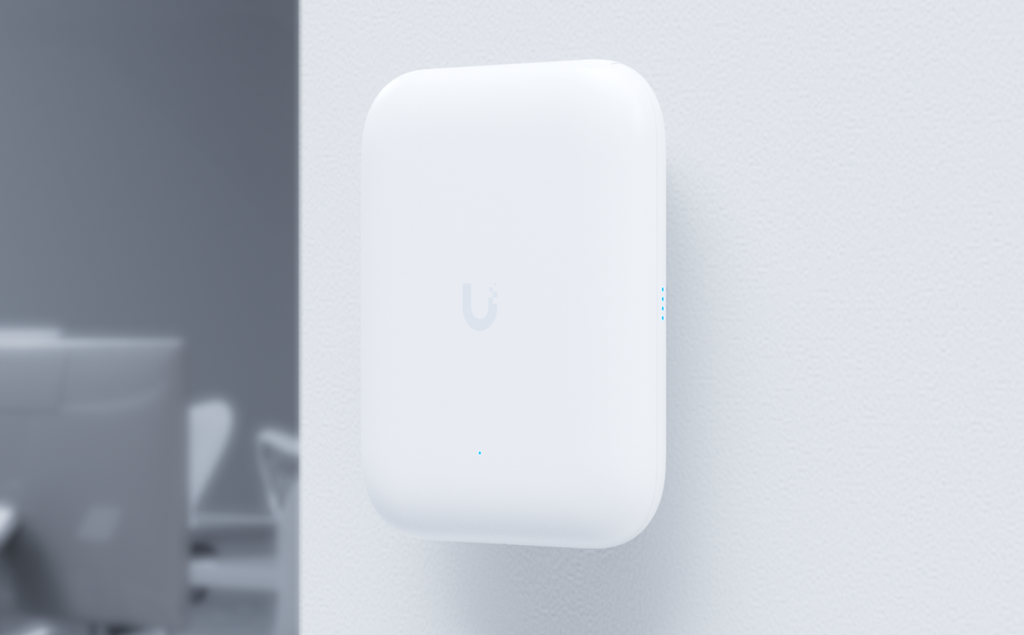

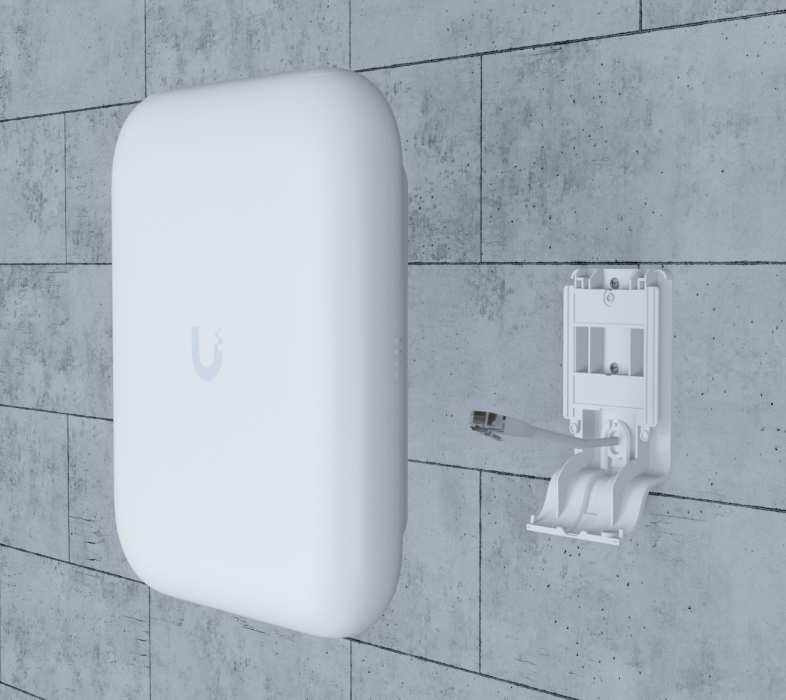

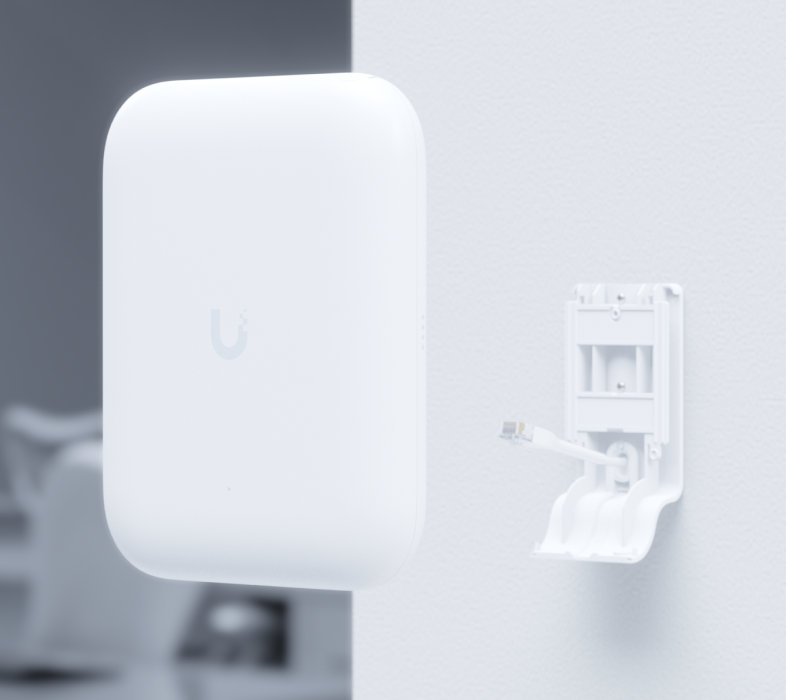

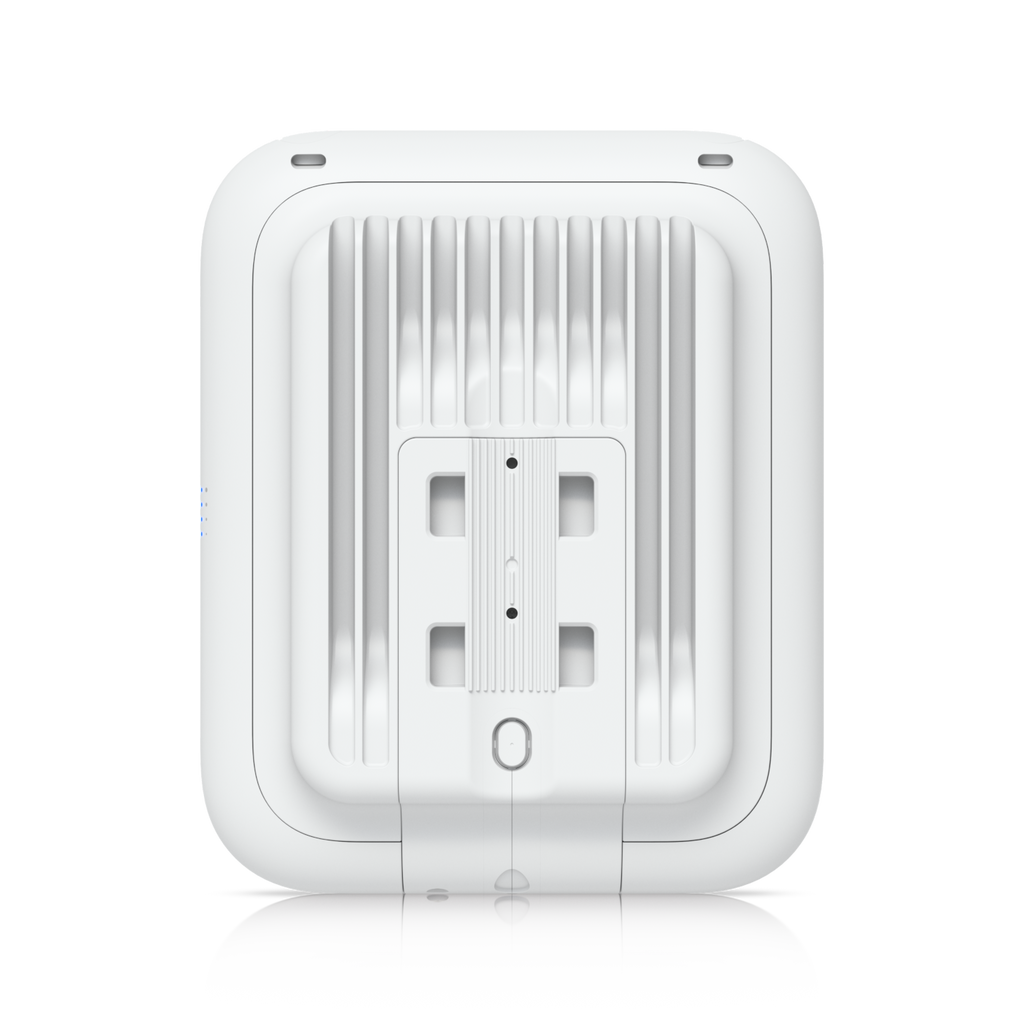

| Mounting | Wall, Pole (Mounts Included) |
| Weatherproofing | IPX6 |
| Power Method | PoE+ |
Performance
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 5 GHz | Directional internal: 12.5 dBi, 45° x 45° External omni: 4 dBi, 360° x 30° |
| 2.4 GHz | Directional internal: 8 dBi, 90° x 90° External omni: 3 dBi, 360° x 30° |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 19W |
| Supported Voltage Range | 42.5–57V DC |

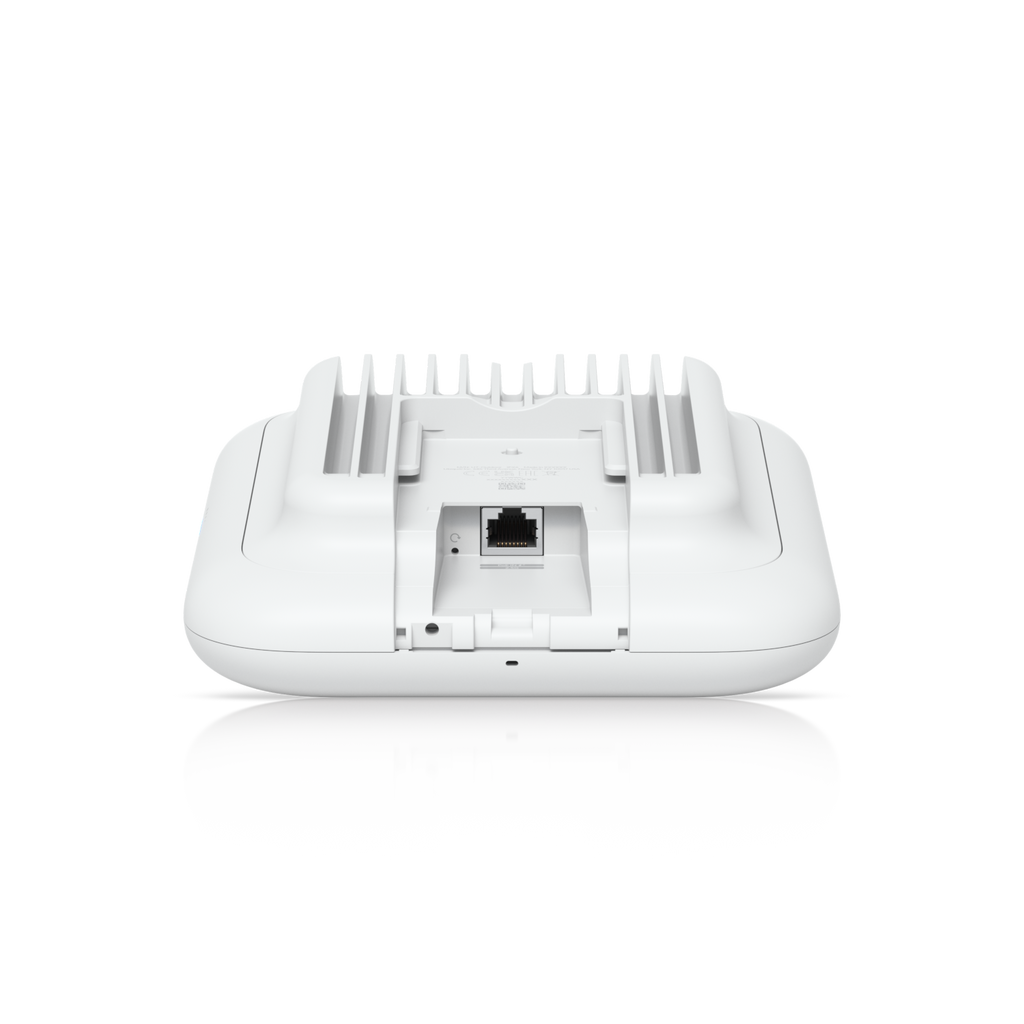

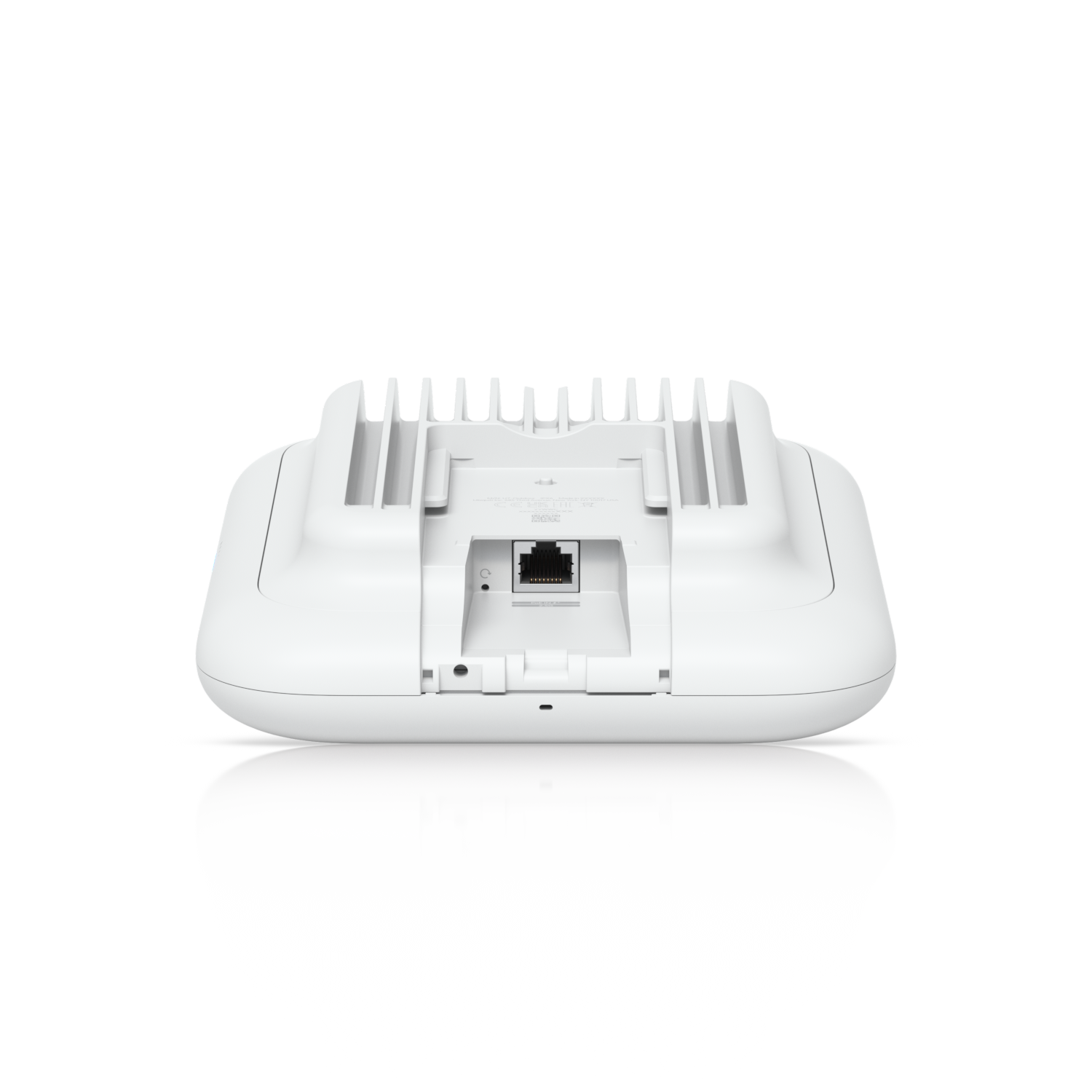

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 1.2 kg (2.6 lb) |
| Wind Loading | 74.6 N at 200 km/h (16.8 lbf at 125 mph) |

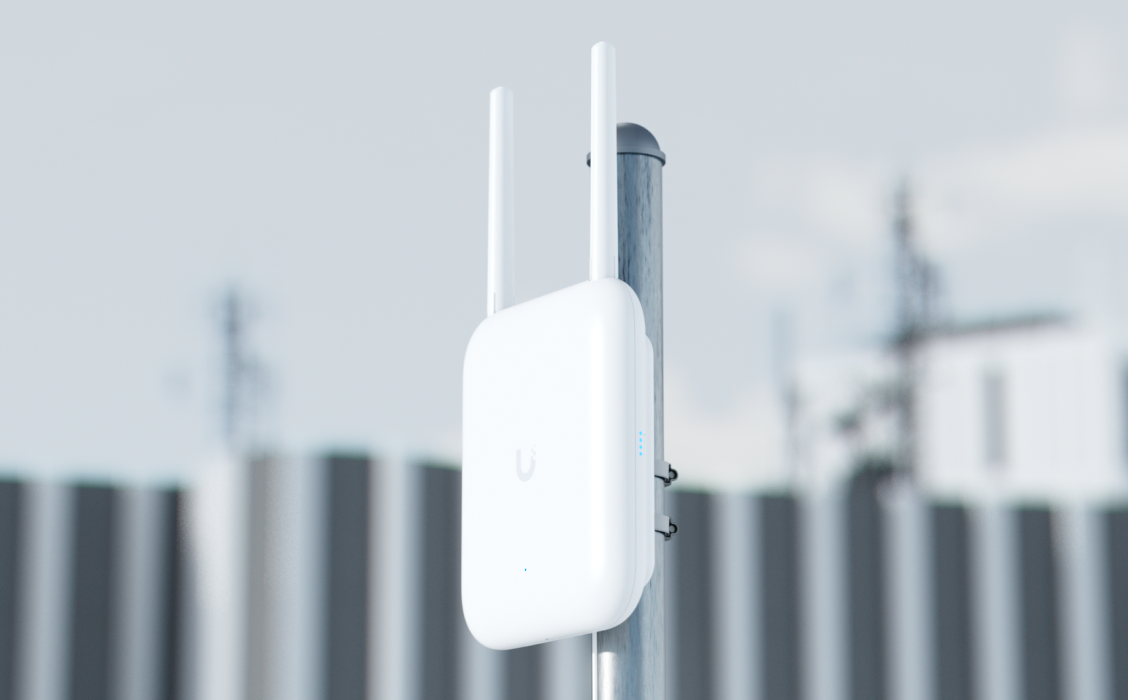

| Pole Mount Diameter | 1–2.36" (25–60 mm) |

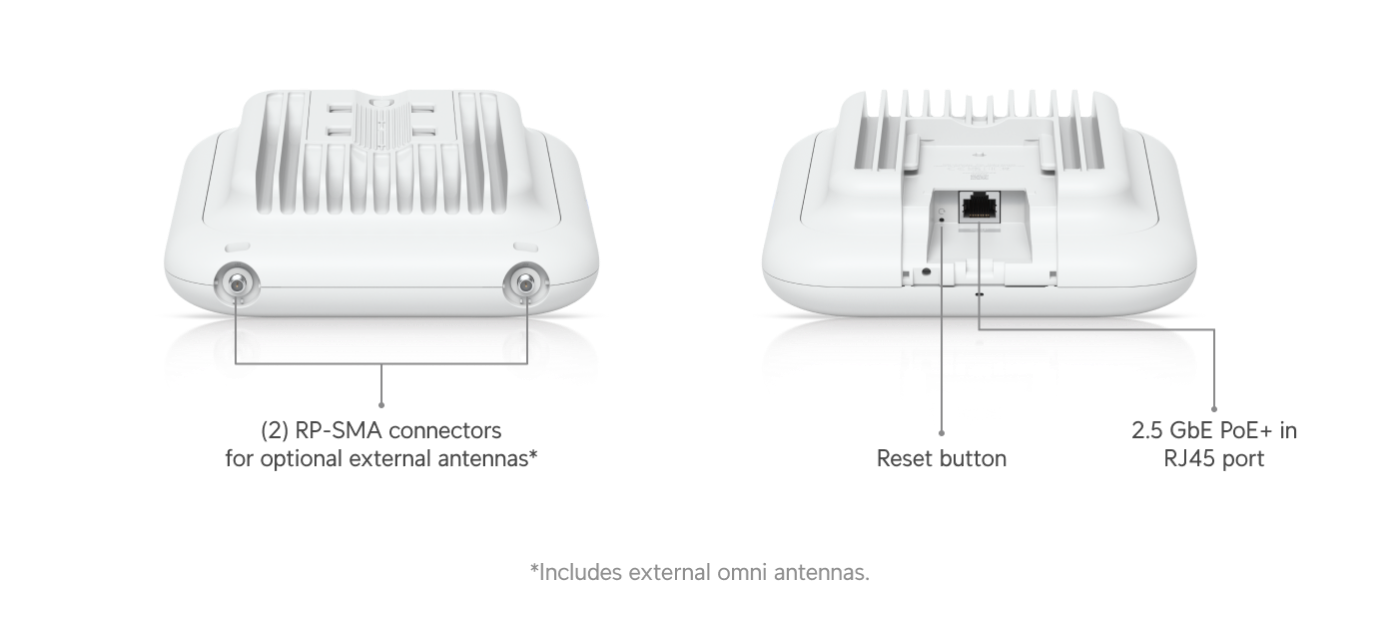

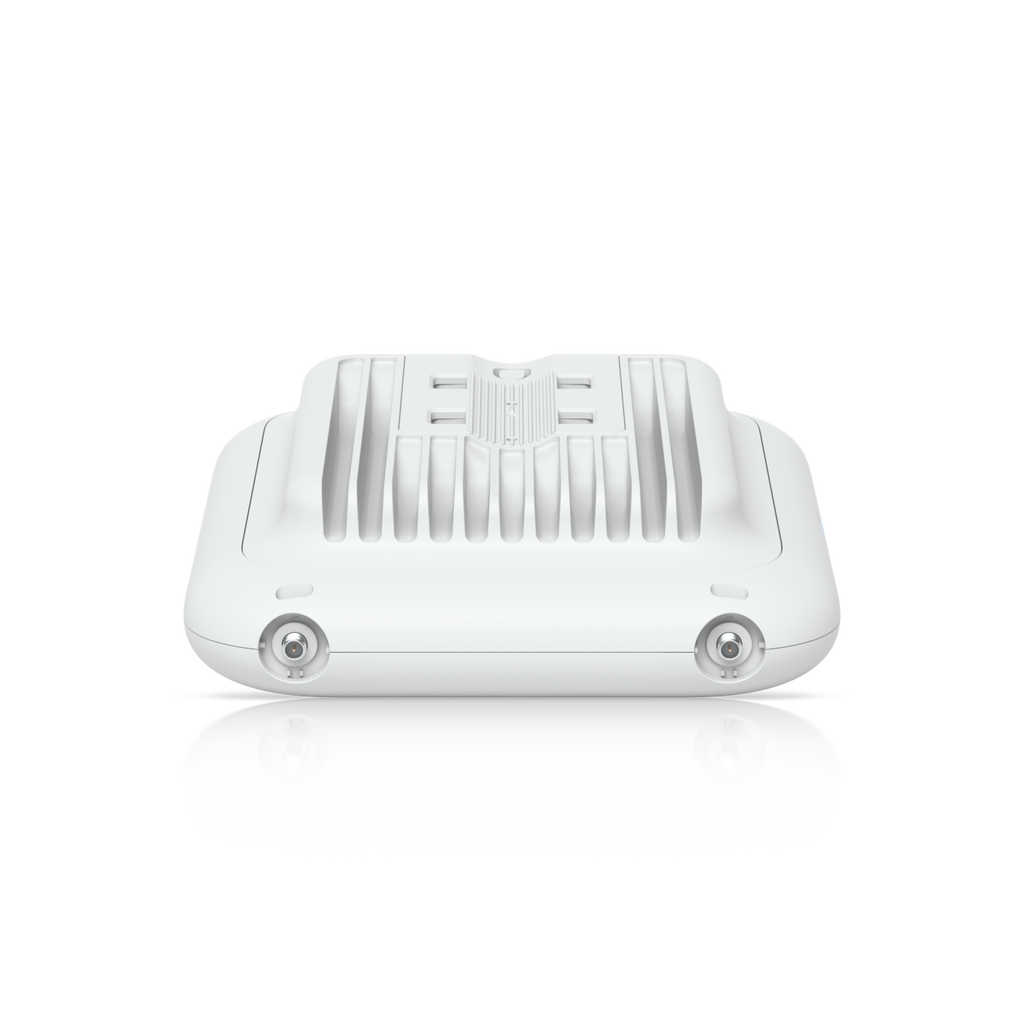

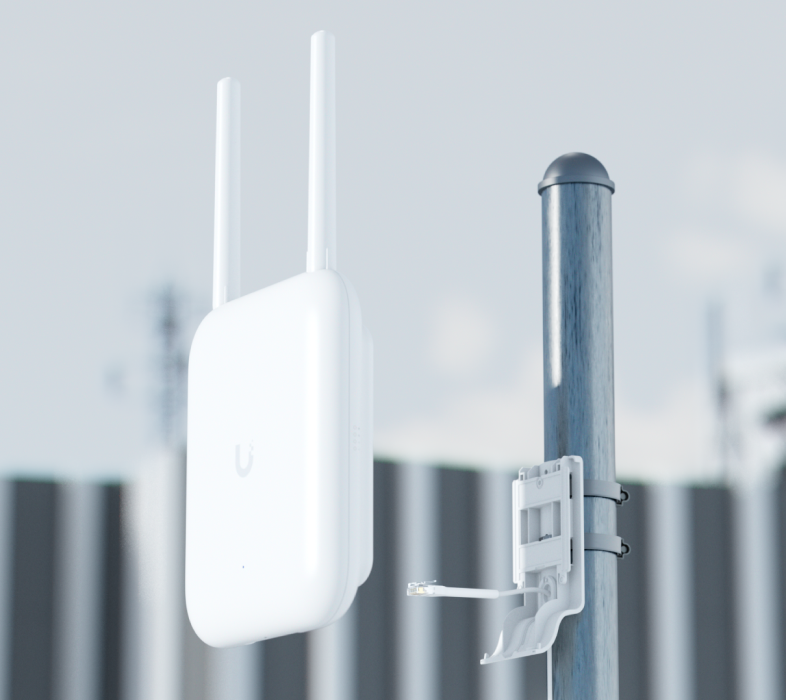

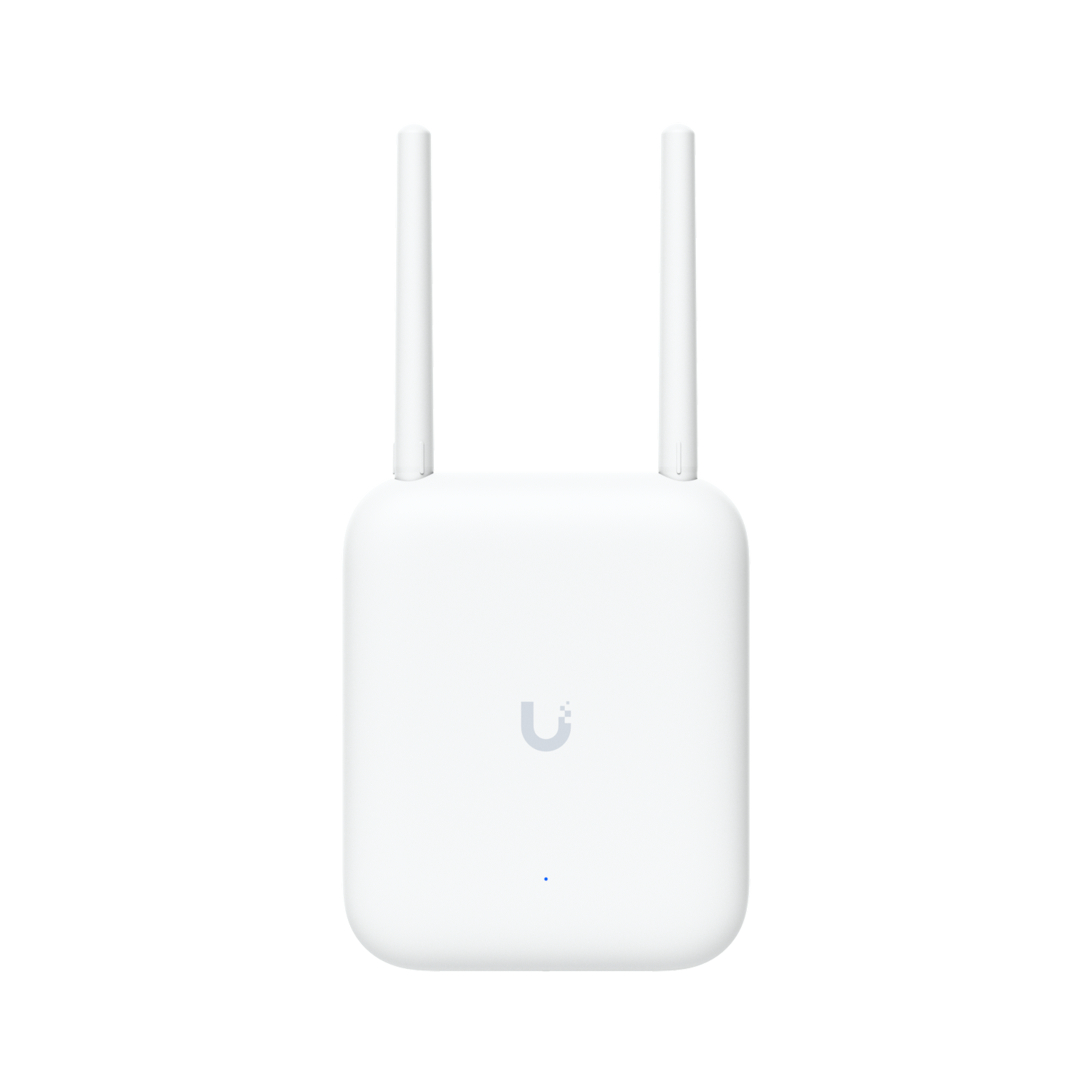

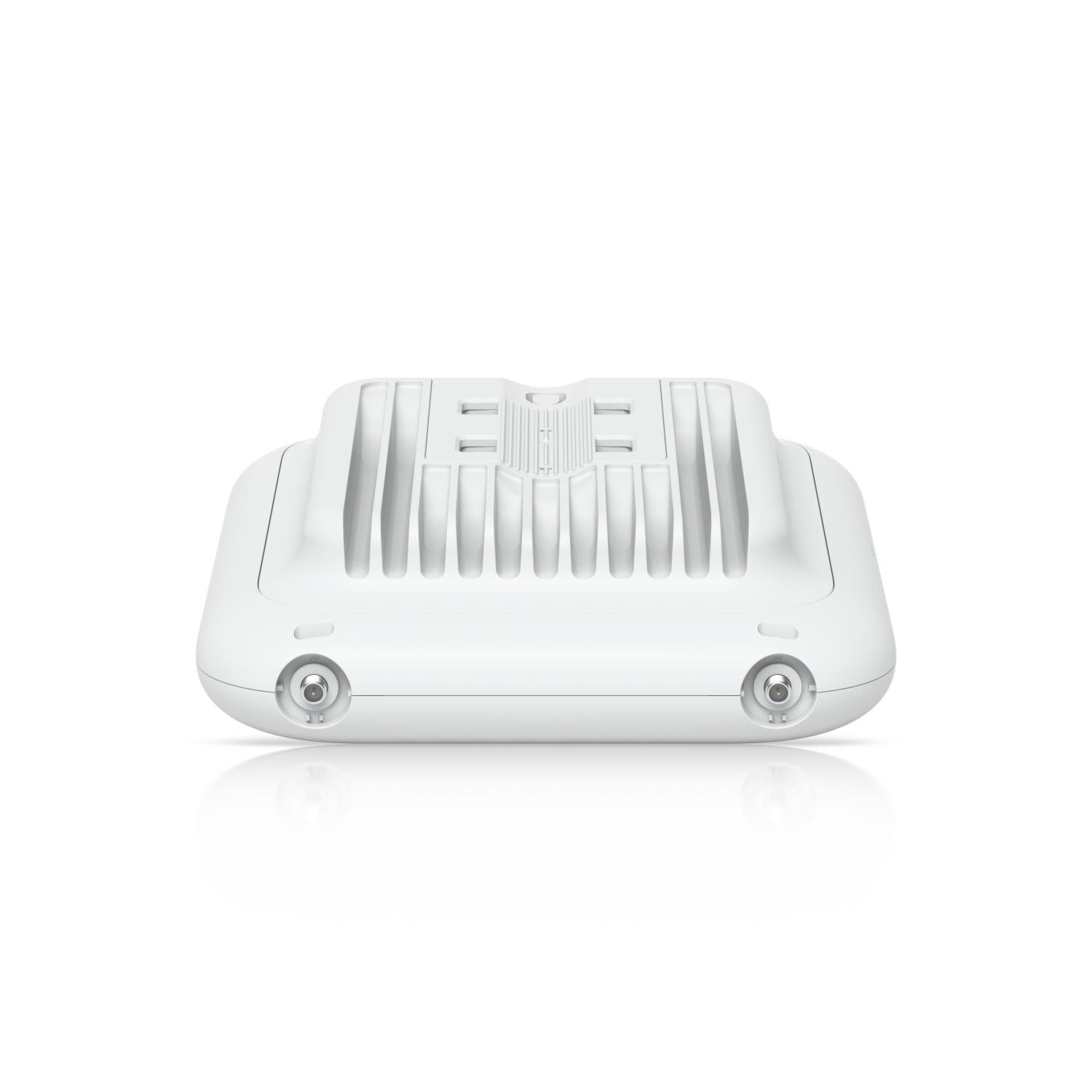

| Antennas | (1) Directional internal antenna (2) External omni antennas (2) RP-SMA connectors for external antenna |
| 5 GHz | 45° |
| 2.4 GHz | 90° |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, SGCC steel |

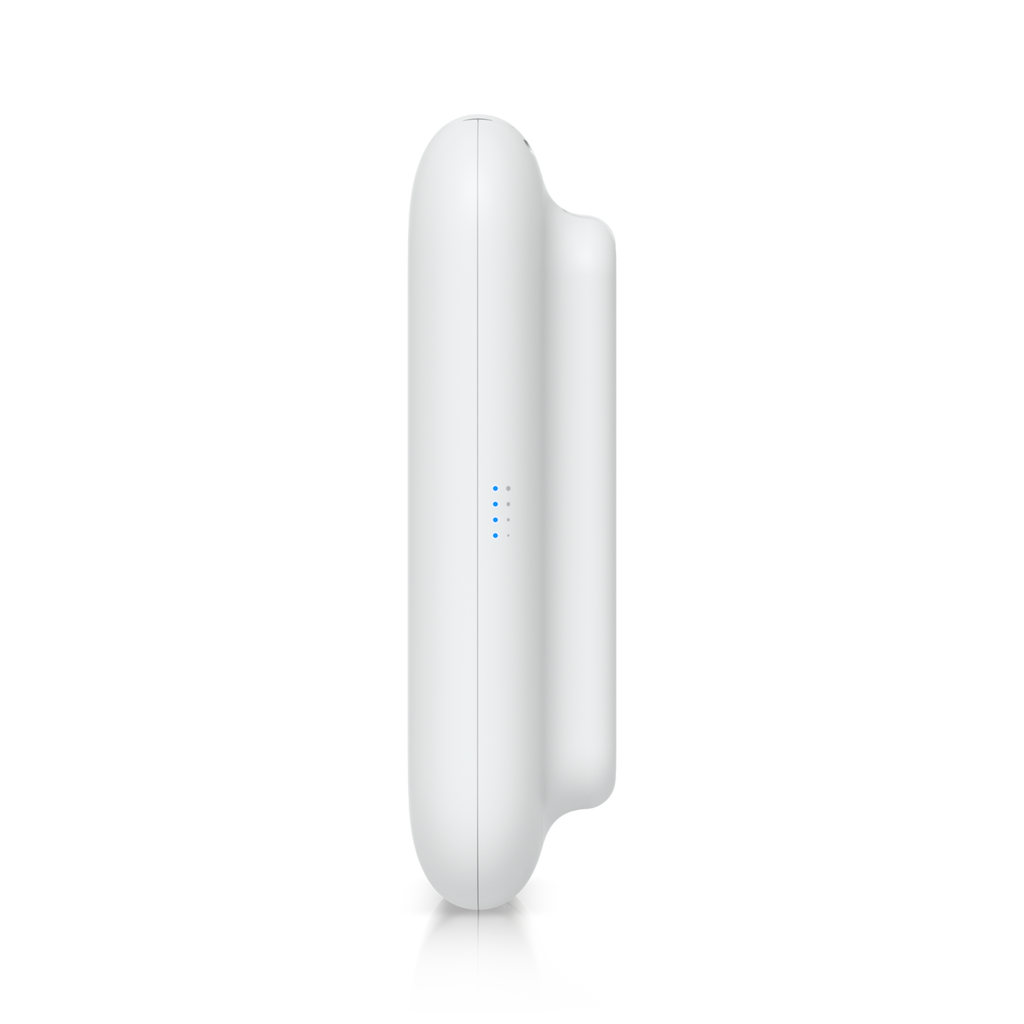

| System | (1) Power: White/Blue (1) System: White/Blue (4) Mesh Signal: Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 08999-24-08356 |
Software
| UniFi Network | Version 8.2.93 and later |
