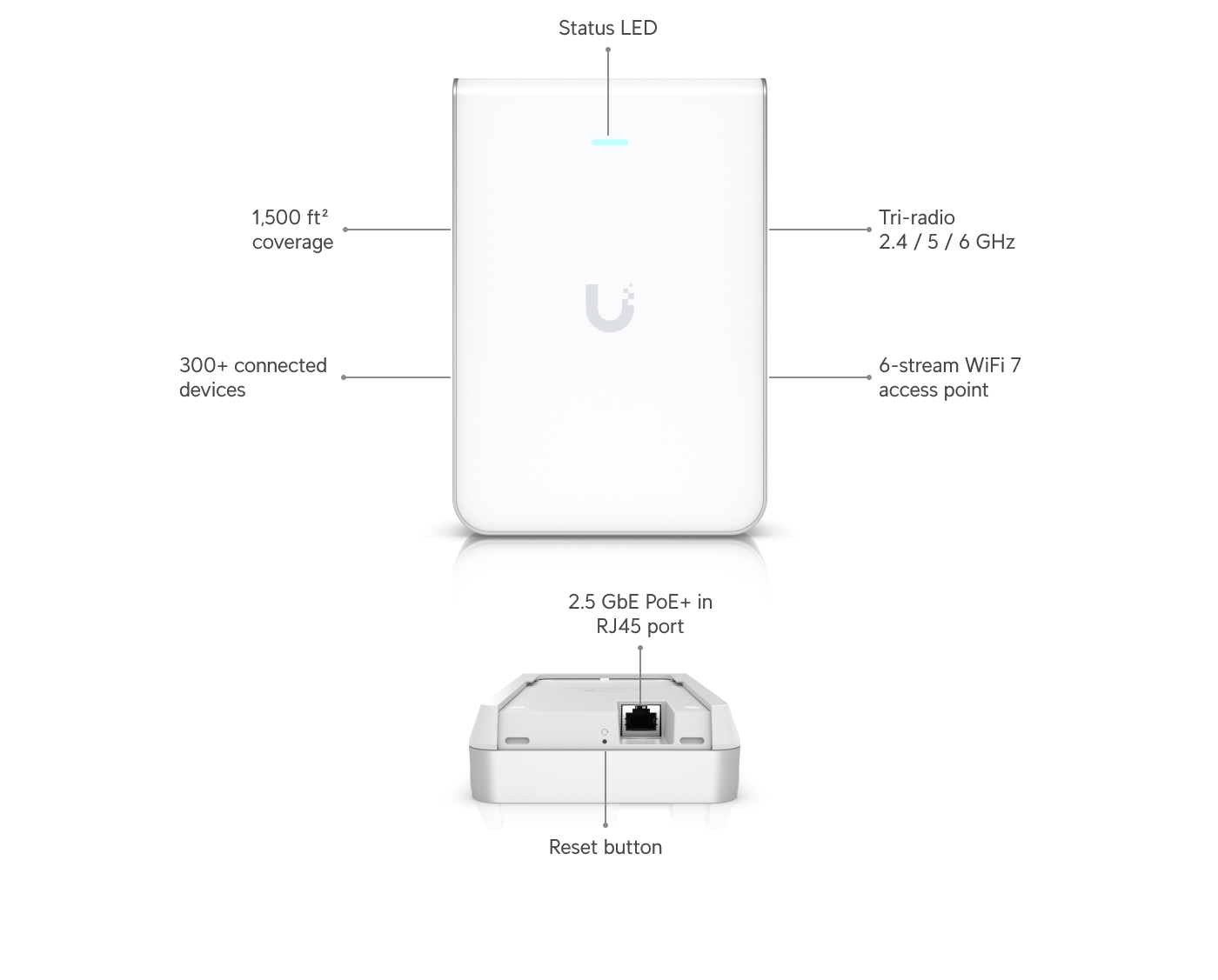

A wall-mounted WiFi 7 access point for homes and small offices where the cable run ends at the wall and a ceiling mount isn't practical.
Why this one
- WiFi 7 across all three bands — 6 GHz at up to 5.8 Gbps, 5 GHz at 4.3 Gbps — means the AP won't bottleneck a fast NBN connection or a dense mix of modern devices.
- The 2.5 GbE uplink matches what the radio hardware can actually push, so you're not squeezing multi-gigabit wireless through a 1 GbE cable neck.
- Rated to 140 m² and 300+ clients from a single unit, which covers most open-plan floors without a second AP cluttering the ceiling.

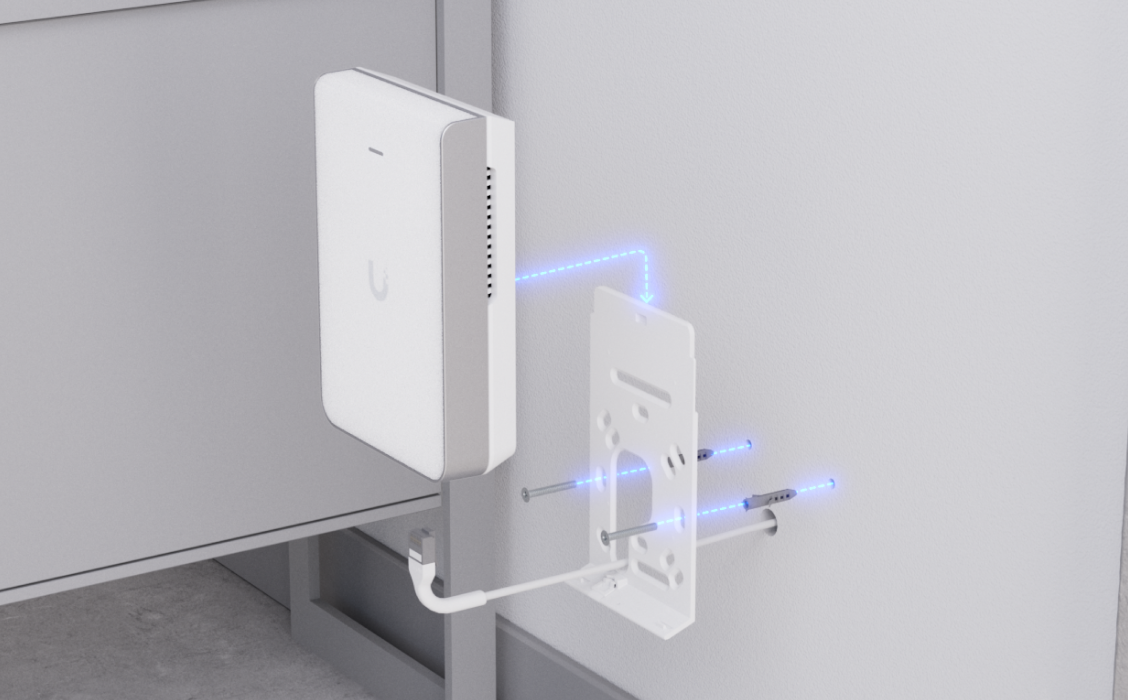

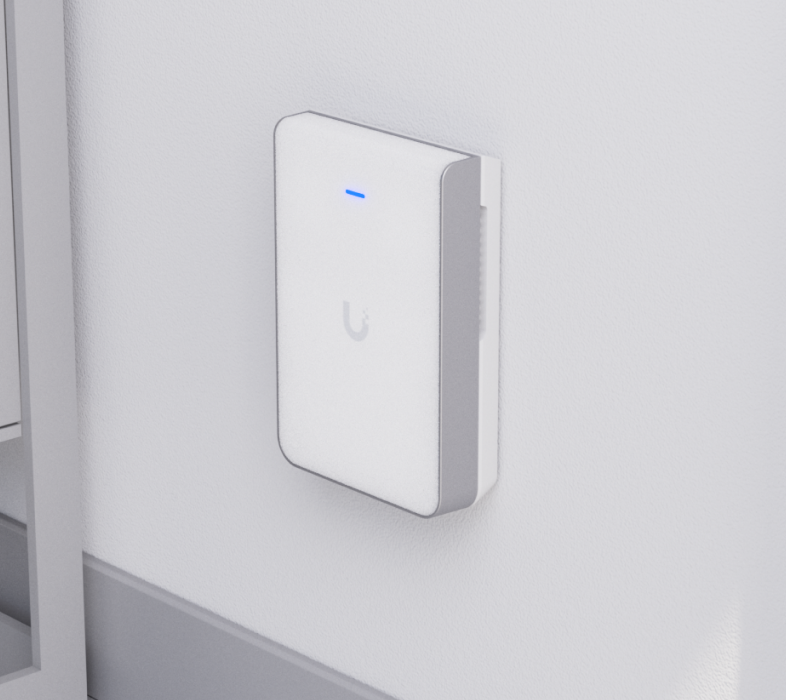

- Designed to sit flush against a wall plate rather than hang from a ceiling, so it suits new builds where ethernet runs terminate at wall outlets rather than roof voids.
Good fit if you're fitting out a new build or renovation where Cat6 runs to wall outlets, you want WiFi 7 with 6 GHz, and ceiling mounting isn't an option or isn't desirable.
Worth considering something else if your cable runs do reach the ceiling — the U7-PRO ceiling-mount model covers a wider area from a central overhead position, which typically gives more even coverage across an open floor plan than a wall-mounted unit can.
What you'll also need

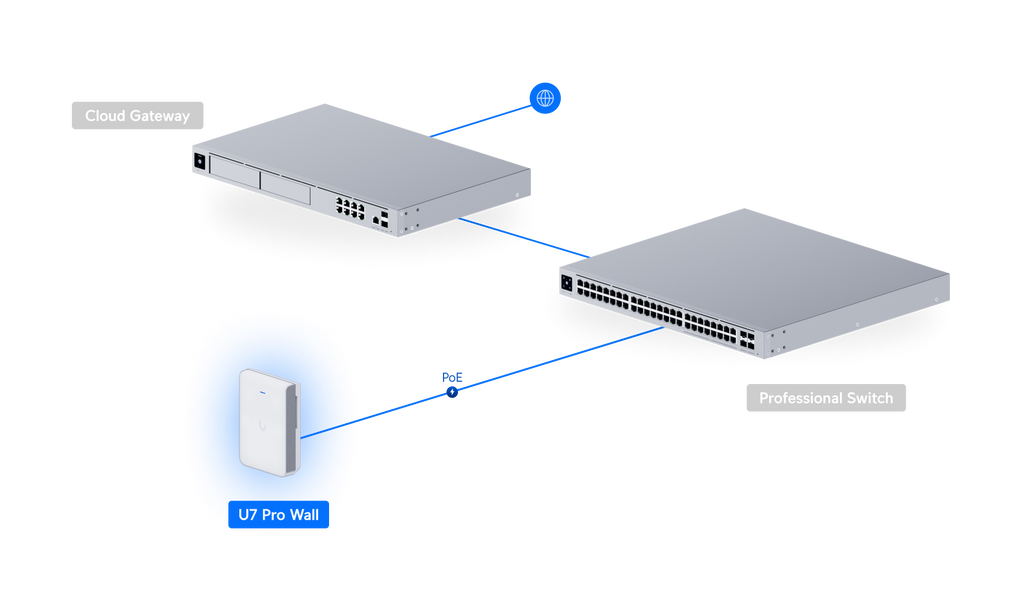

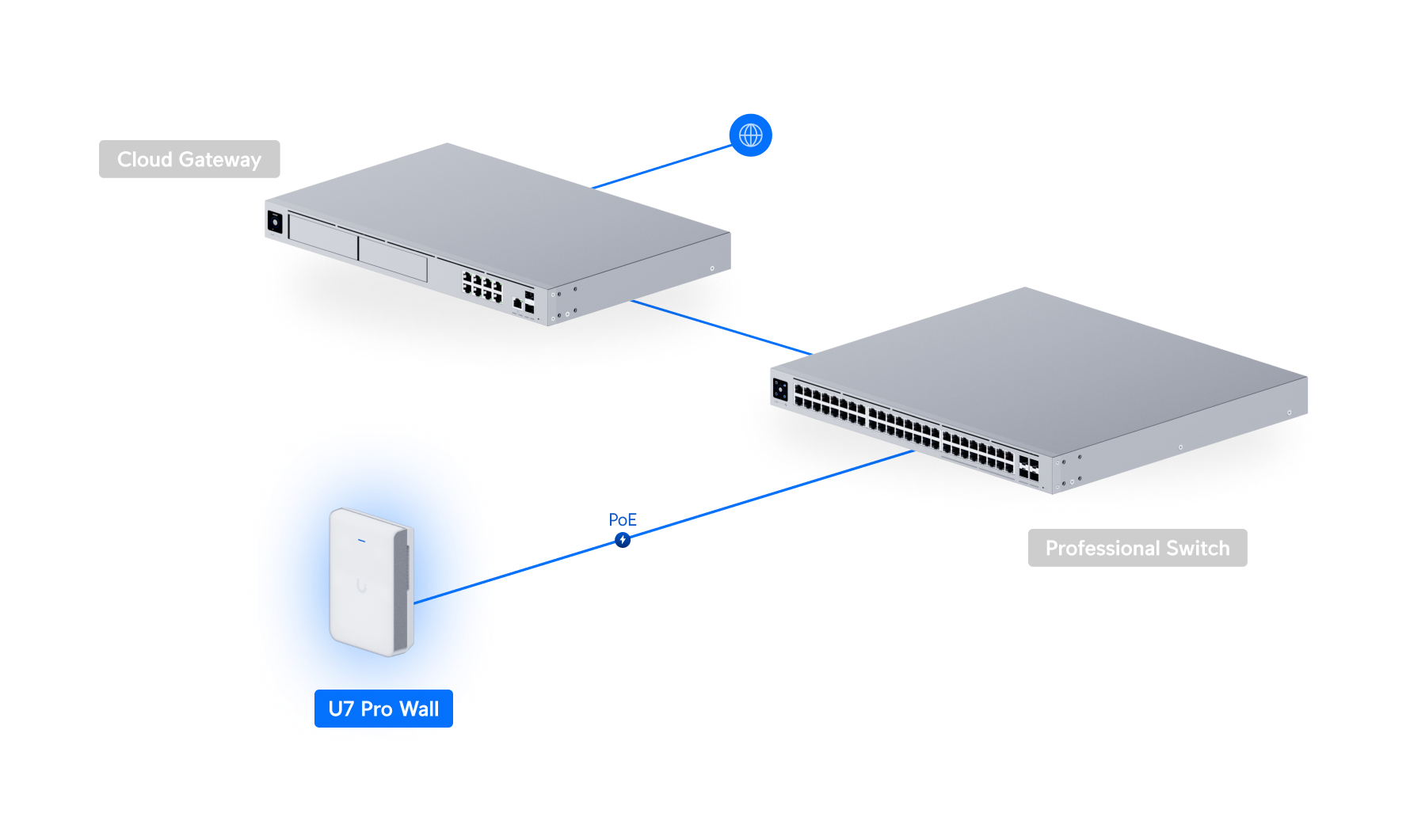

A PoE+ switch or injector to power the AP, and Cat5e or better to the wall outlet; the U7-PRO-WALL-COVER, U7-PRO-WALL-FM, and U7-PRO-WALL-TS are sold separately as finishing accessories for different wall configurations, and UniFi Network version 8.1.113 or later is required for management.
Technical specifications
Overview

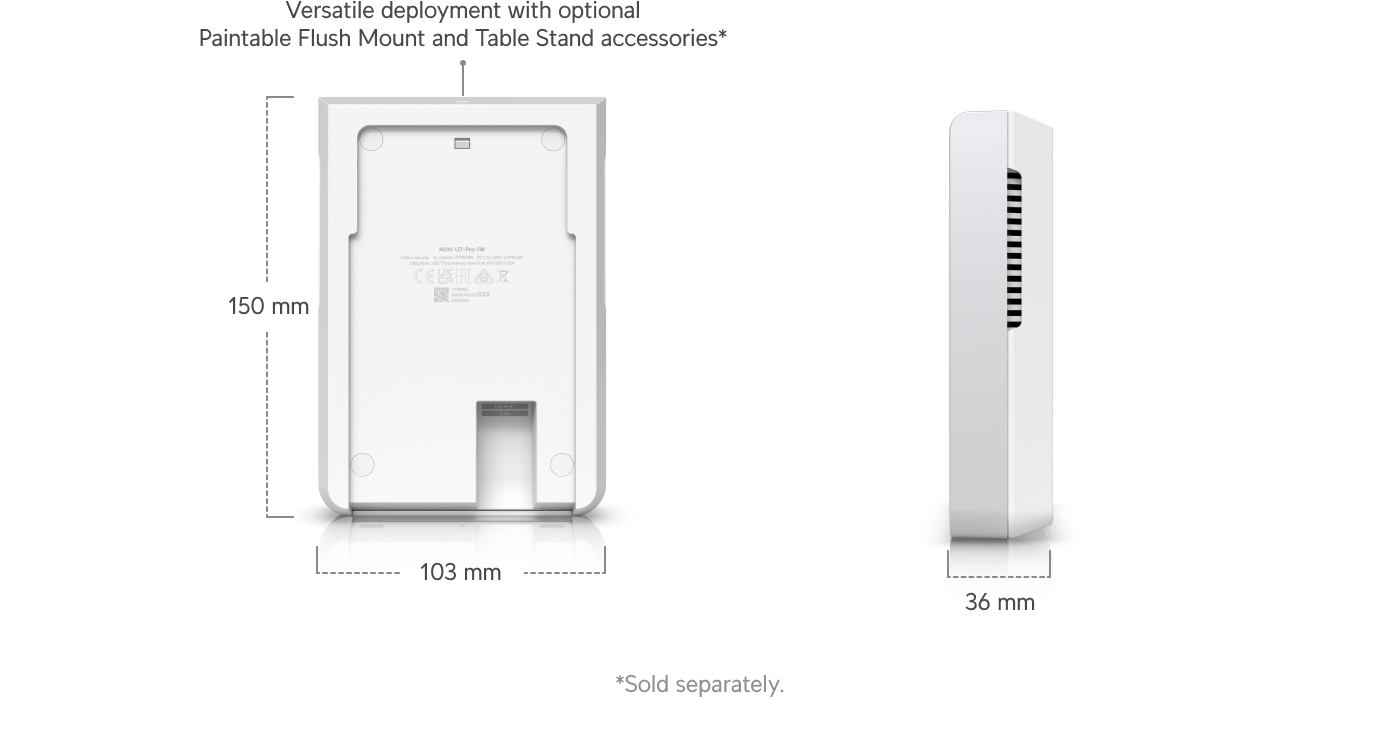

| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |

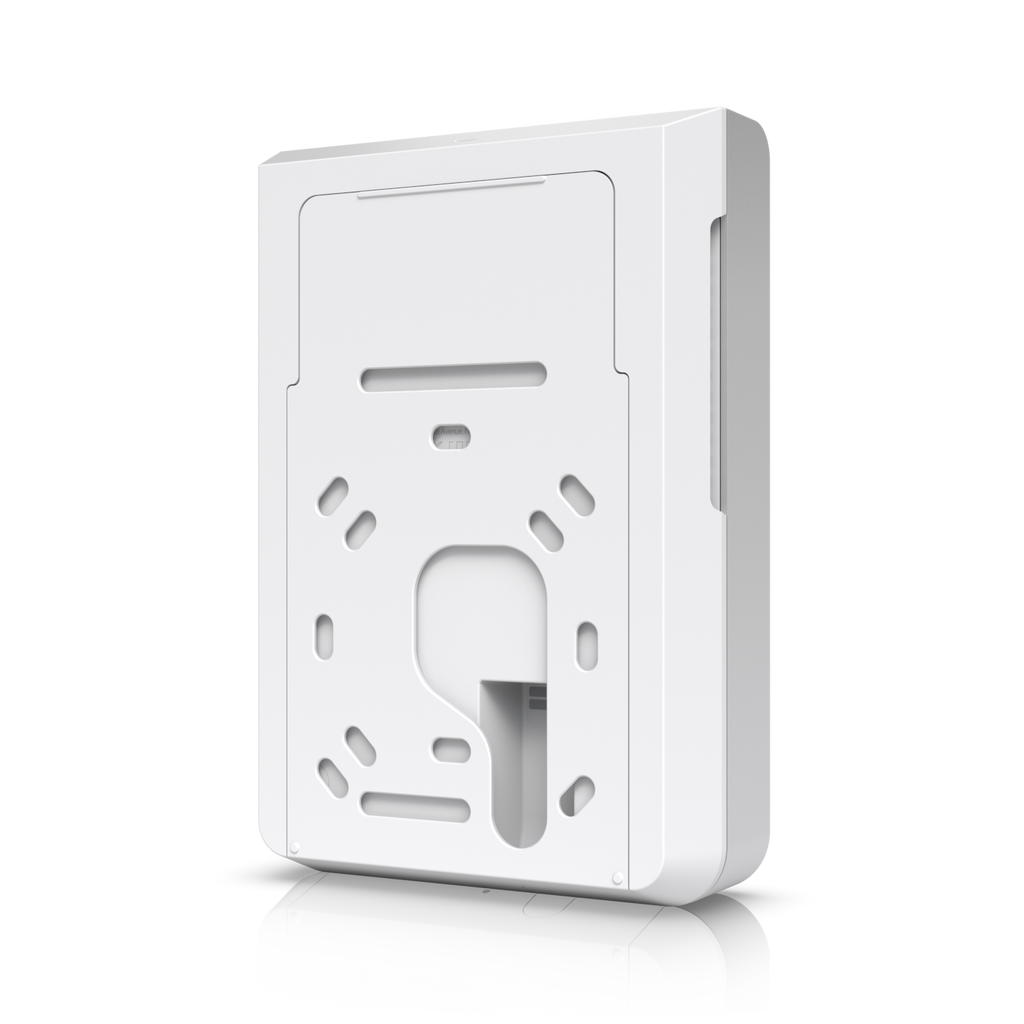

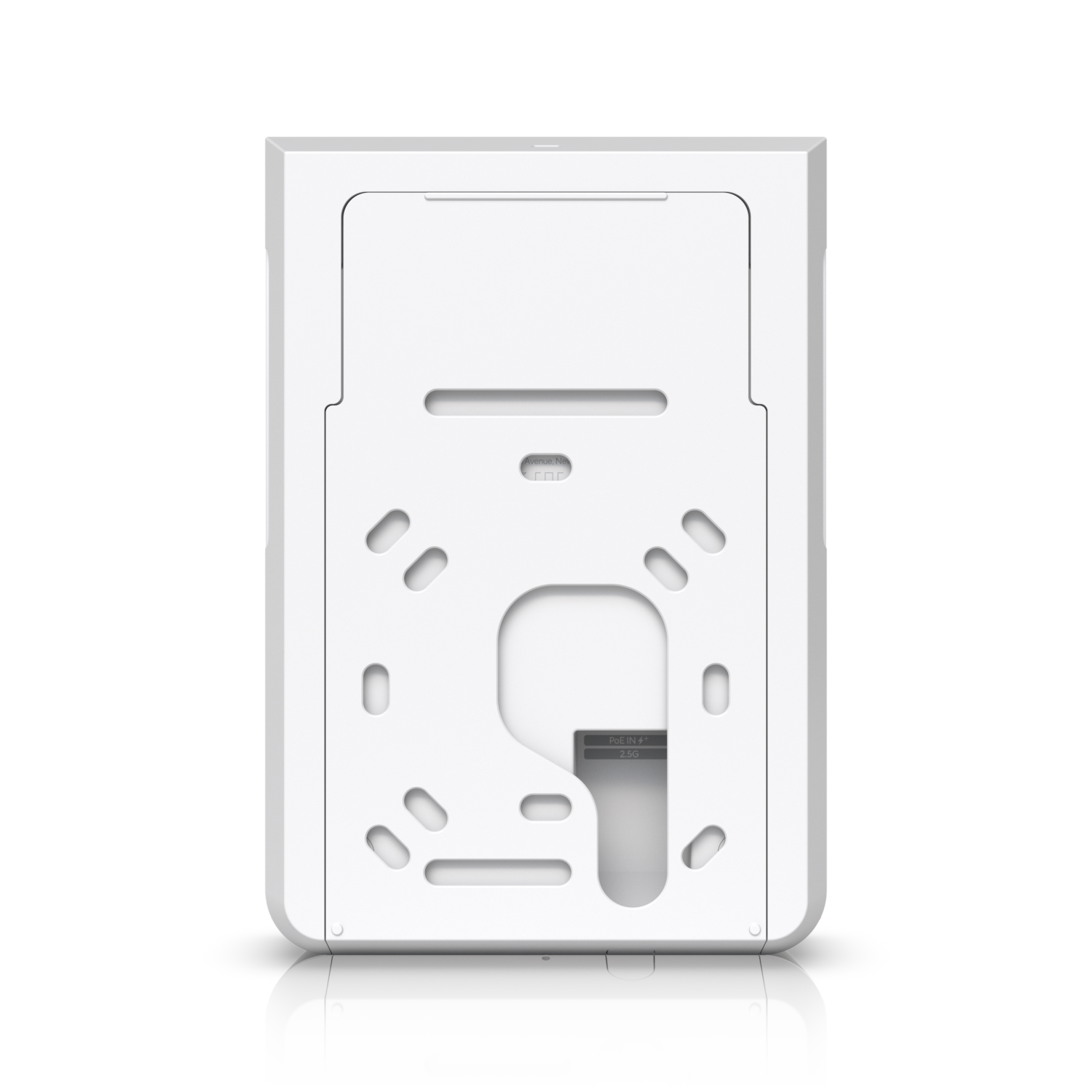

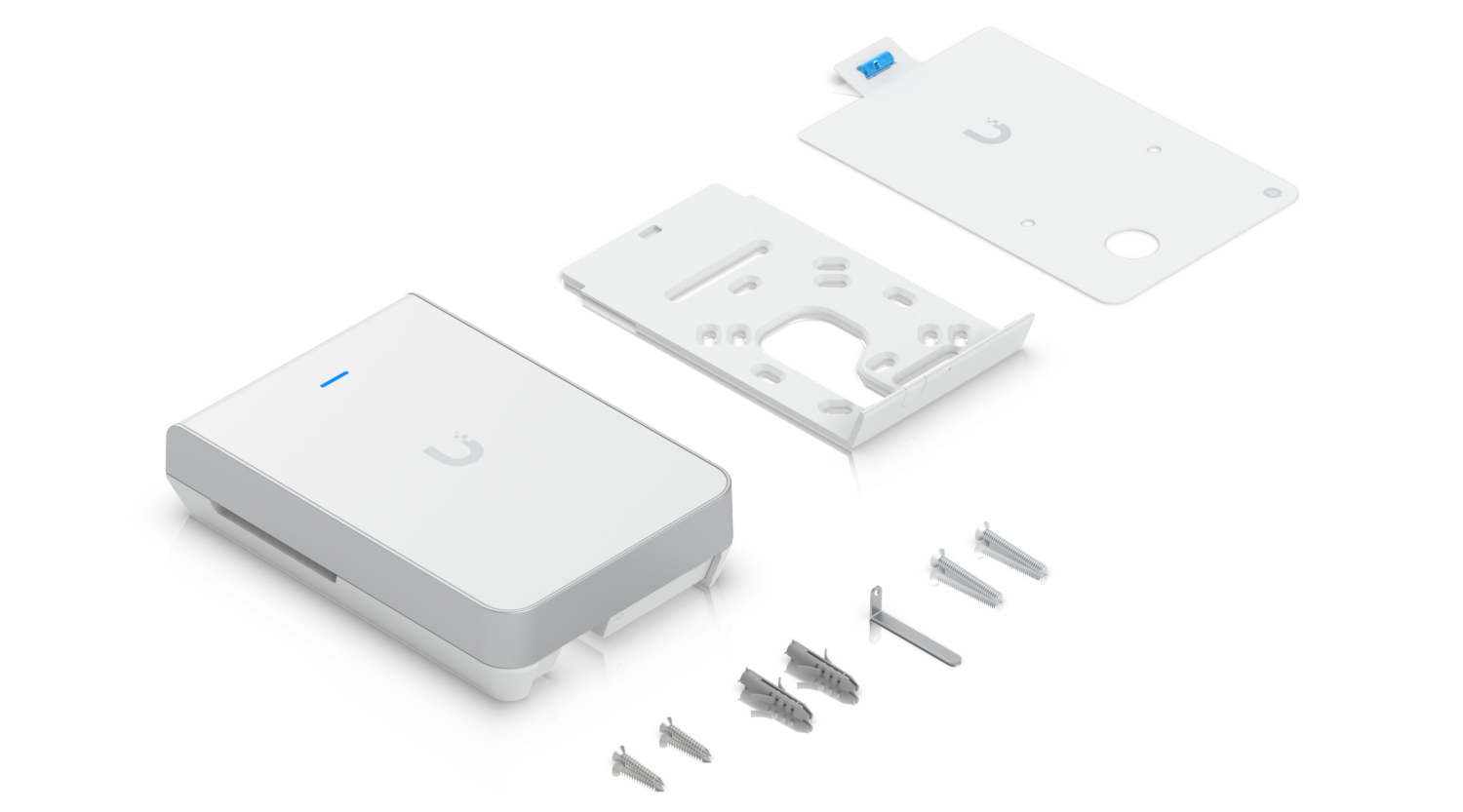

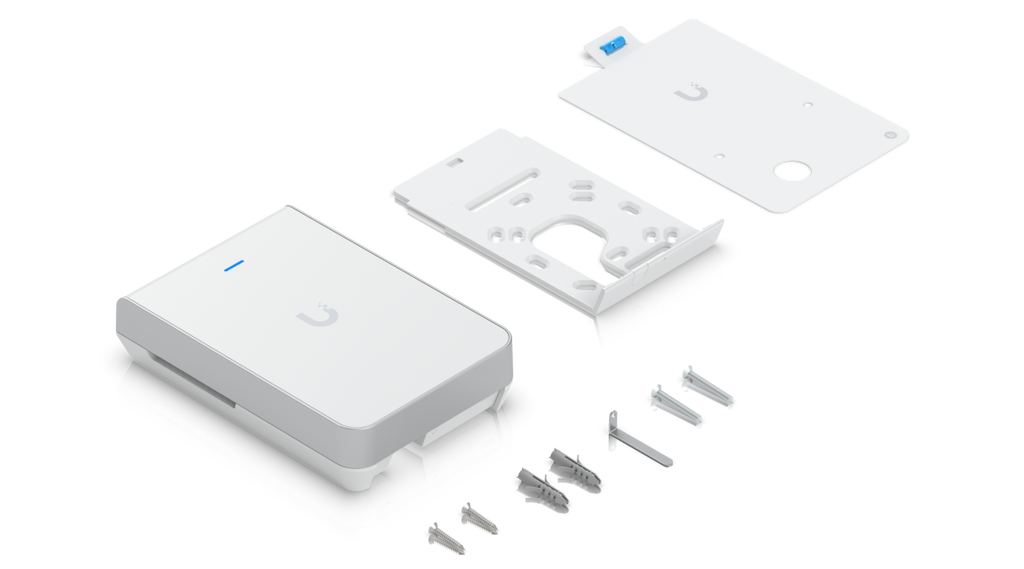

| Mounting | Wall (Mount Included) |
| Power Method | PoE+ |
Performance
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | 6 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 23 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 22W |
| Supported Voltage Range | 44–57V DC |

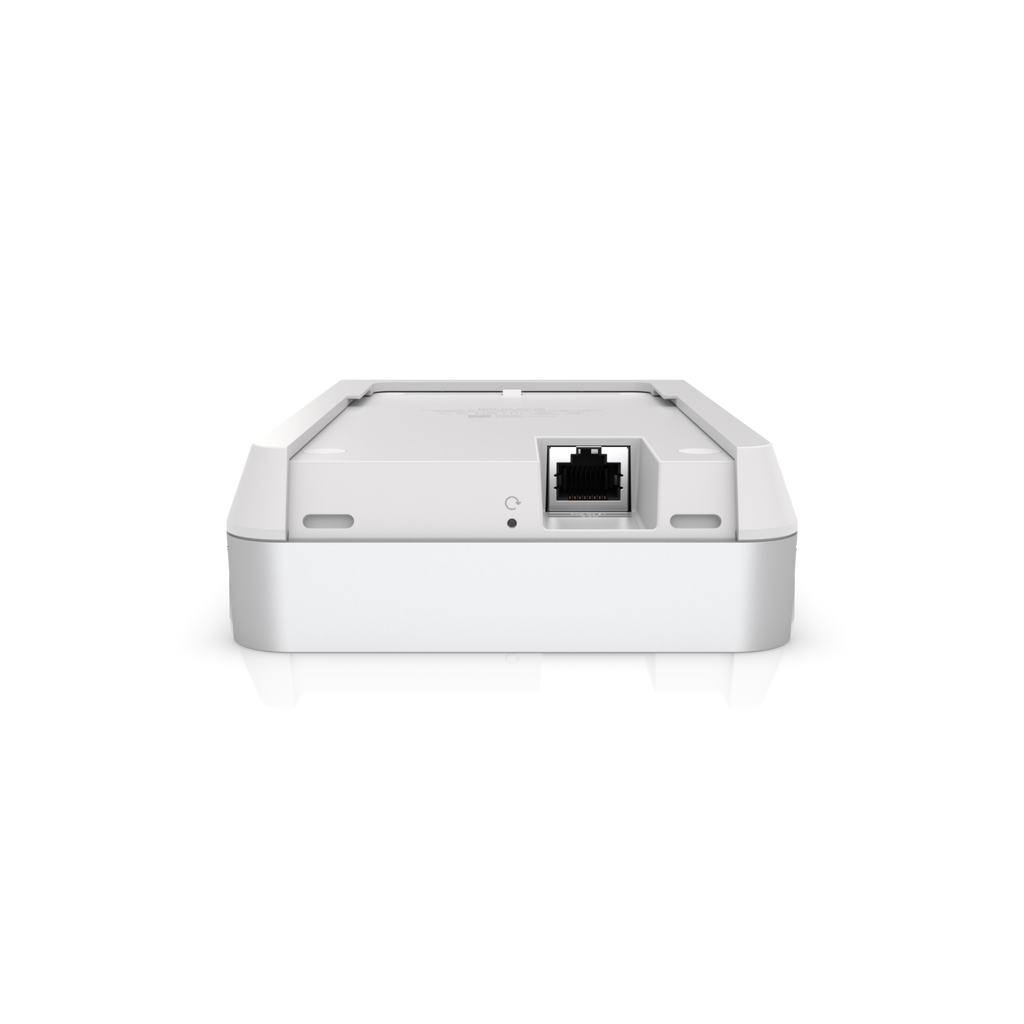

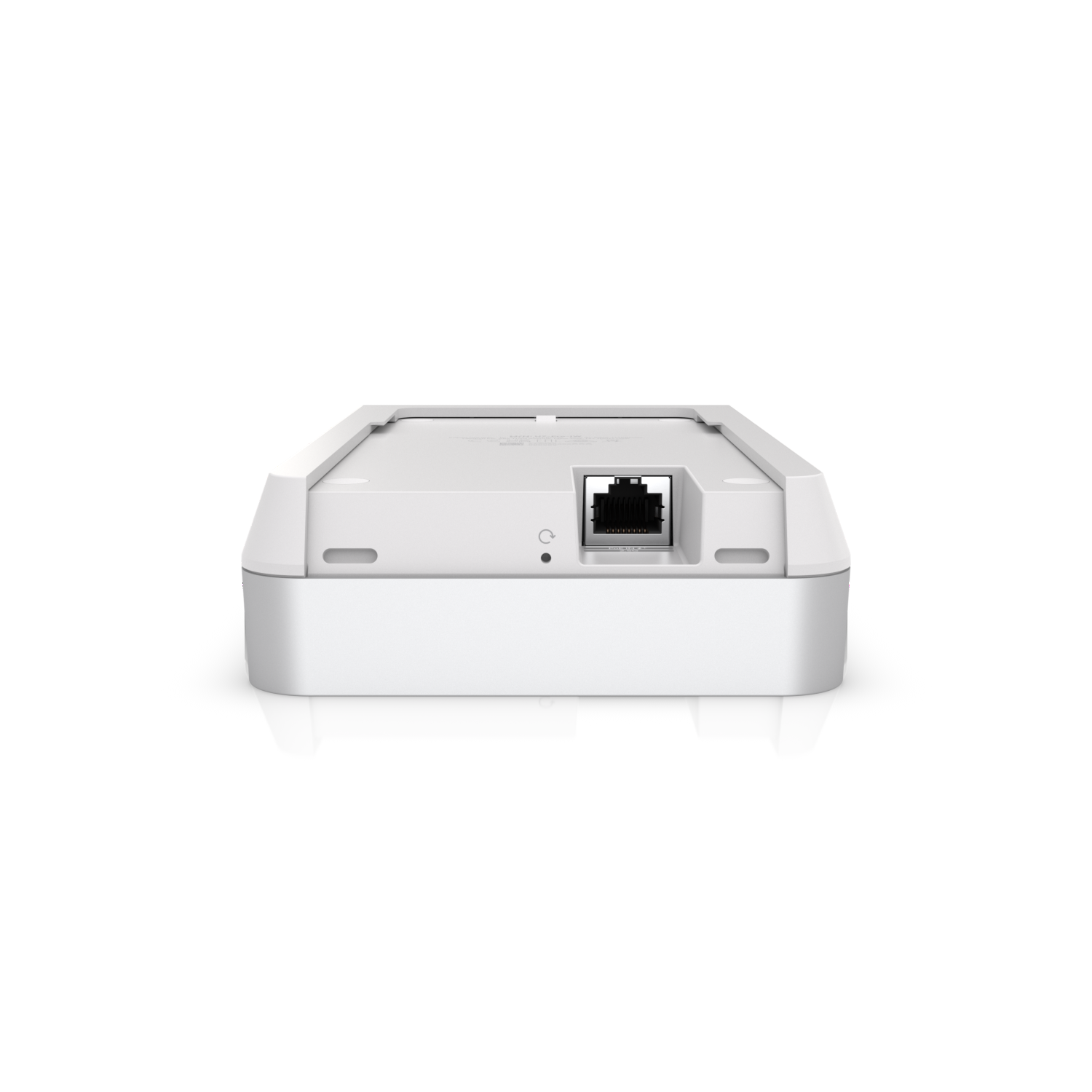

| Networking Interface | (1) 1/2.5 GbE RJ45 port |
| Weight | 580 g (1.3 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum |
| Mount Material | Aluminum |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 10022-24-08356 |
Software
| UniFi Network | Version 8.1.113 and later |
