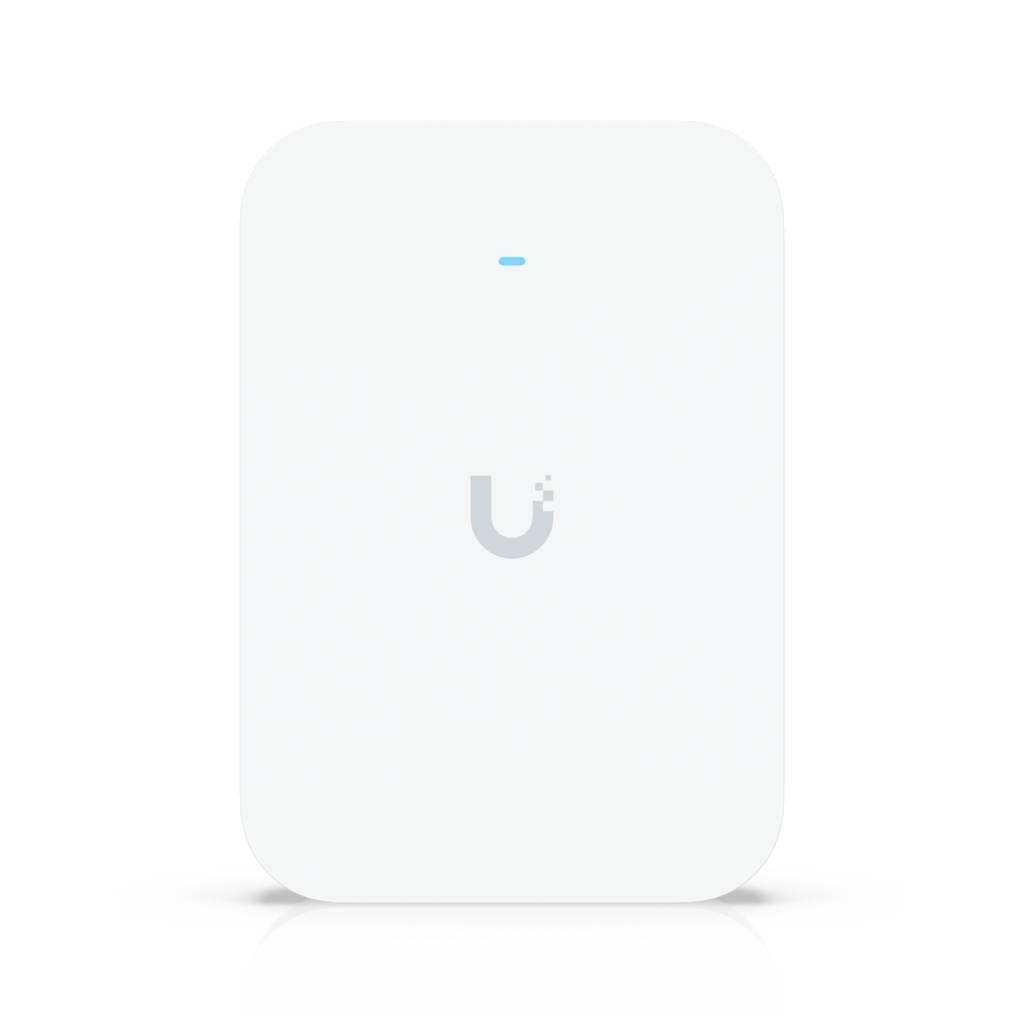

A wall-plate WiFi 7 access point with a 10 GbE uplink, built for conference rooms, hotel corridors, and open-plan offices where ceiling mounting isn't practical.
Why this one
- The 10 GbE uplink means the AP itself won't bottleneck a busy room — useful when you're aggregating traffic from 300+ clients across three simultaneous radio bands.
- 6 GHz support at up to 5.8 Gbps (BW320) gives modern WiFi 7 devices a clean, uncrowded band that legacy gear can't touch, which keeps latency predictable in dense environments.

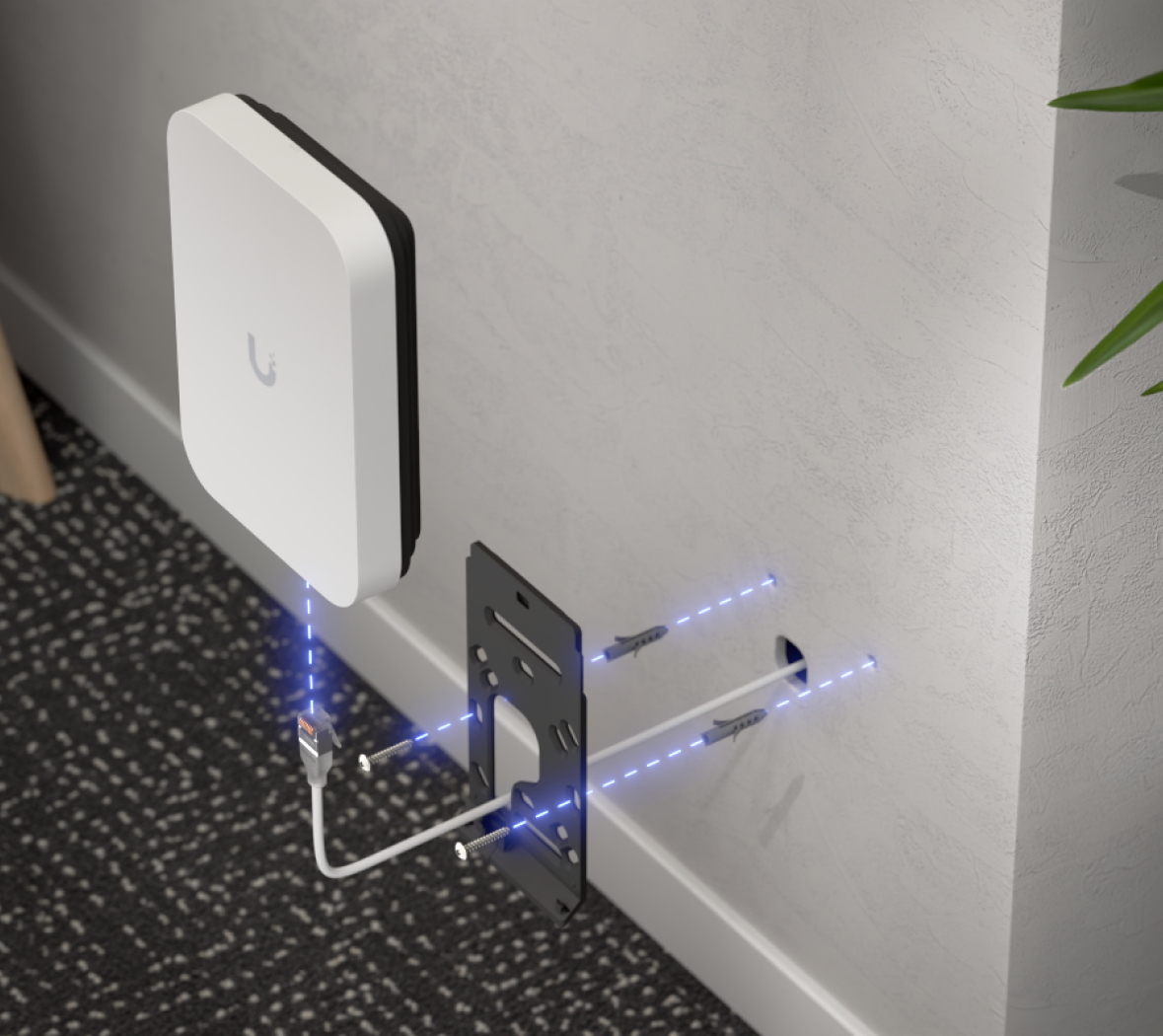

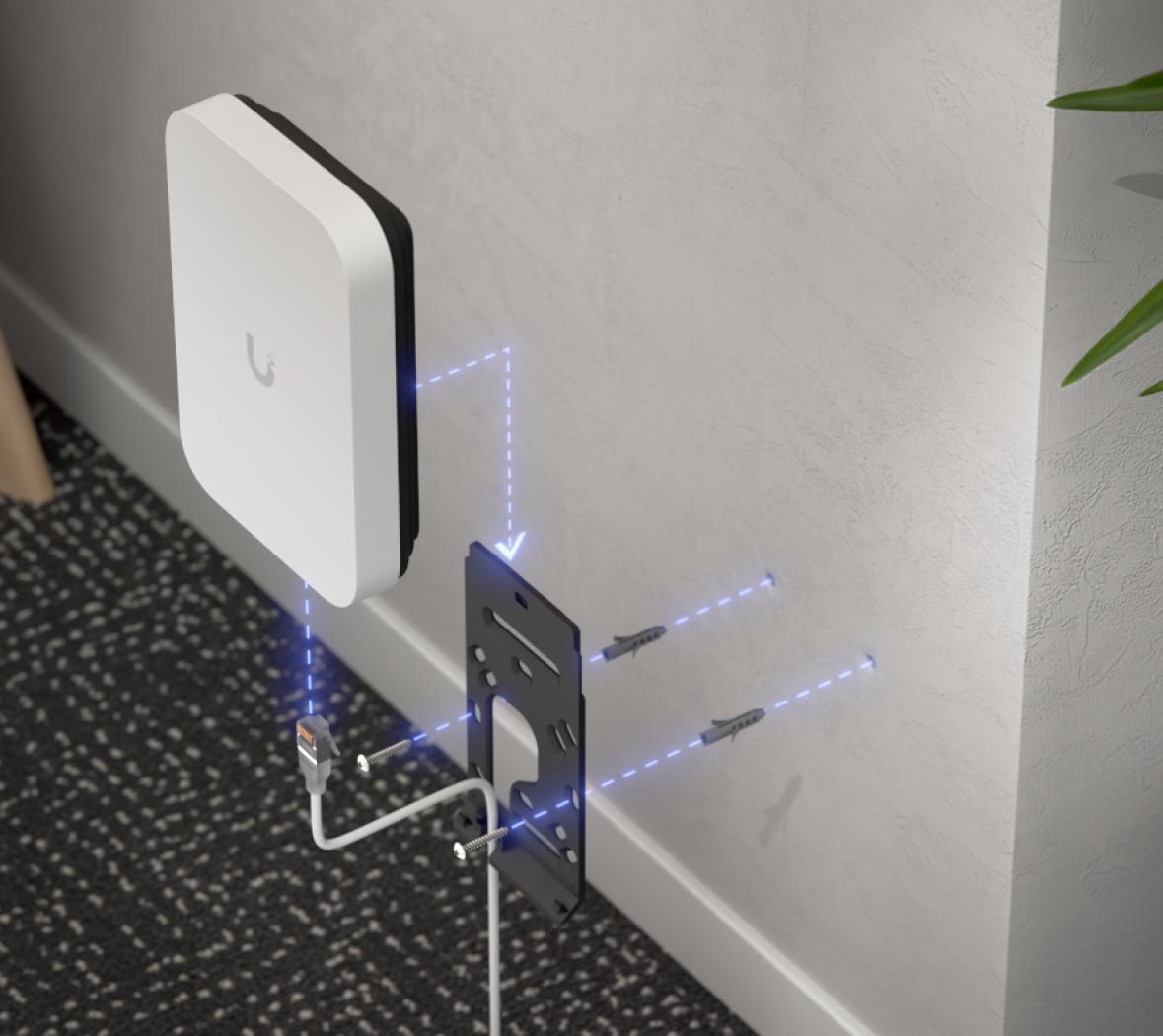

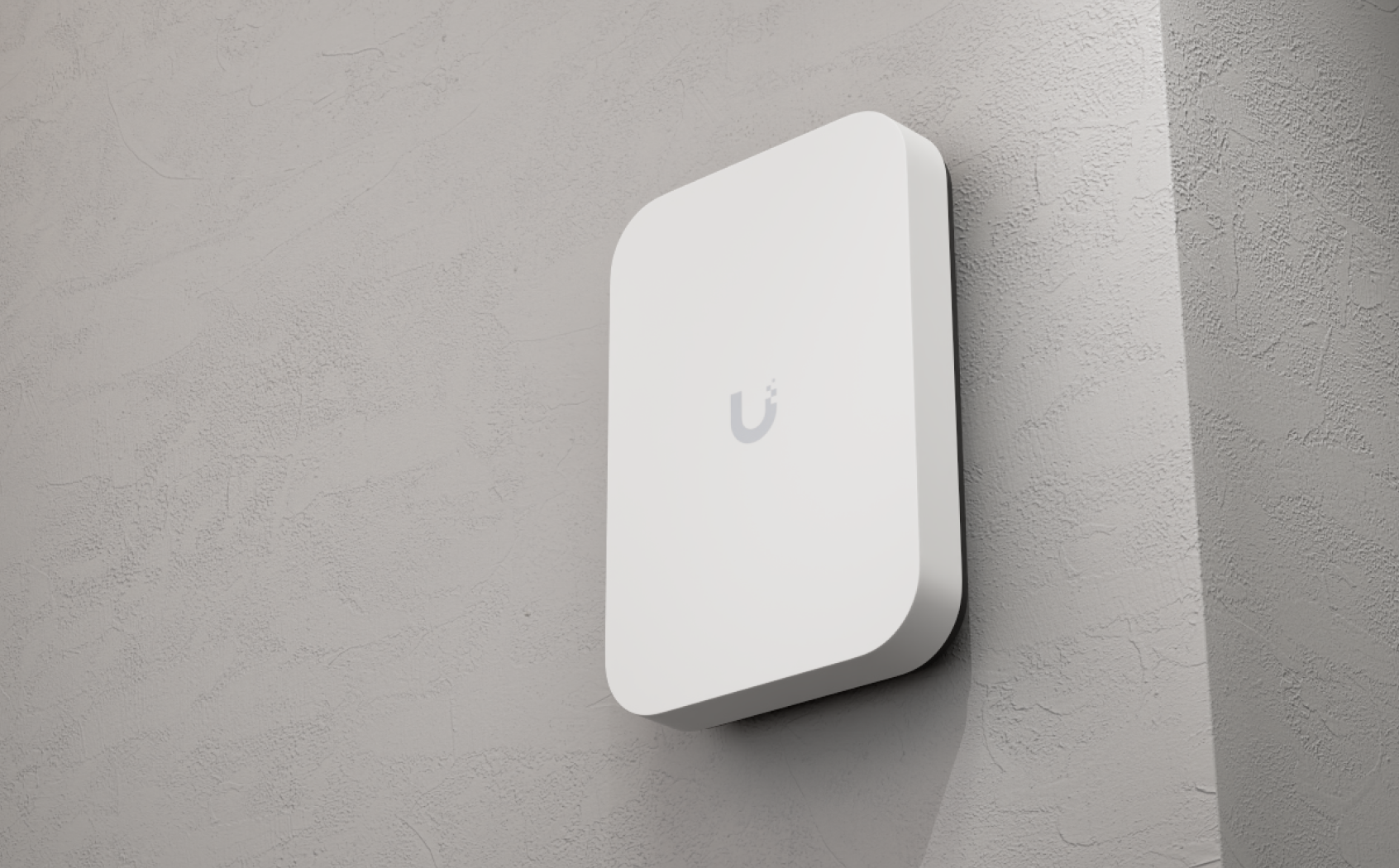

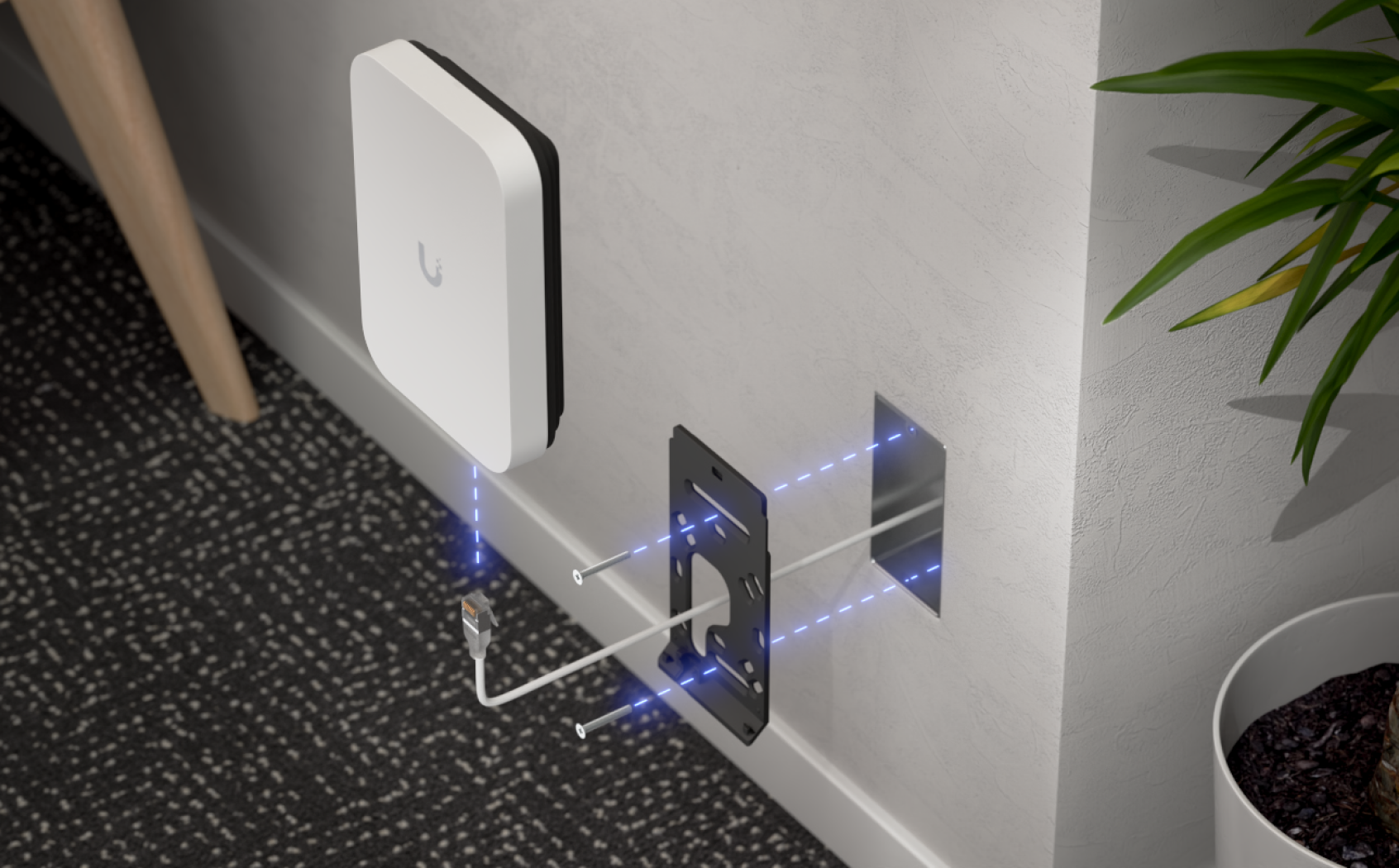

- Wall-plate form factor replaces a standard wall outlet, so cabling stays in the wall and there's nothing protruding from the ceiling — relevant in heritage buildings or anywhere aesthetics are managed.
- The -30 to 40°C operating range means it won't need special treatment in plant rooms, loading docks, or uninsulated corridors where temperatures swing.
Good fit if you're wiring individual rooms or spaces with Cat6A drops to the wall, need a tidy in-wall installation, and have a PoE+ switch (802.3at or better) capable of driving 10 GbE uplinks.
Worth considering something else if your switch infrastructure tops out at 1 GbE — the U7-PRO or U7-LR are ceiling-mount alternatives that run on standard PoE and cover comparable areas without requiring a 10 GbE port per drop.
What you'll also need

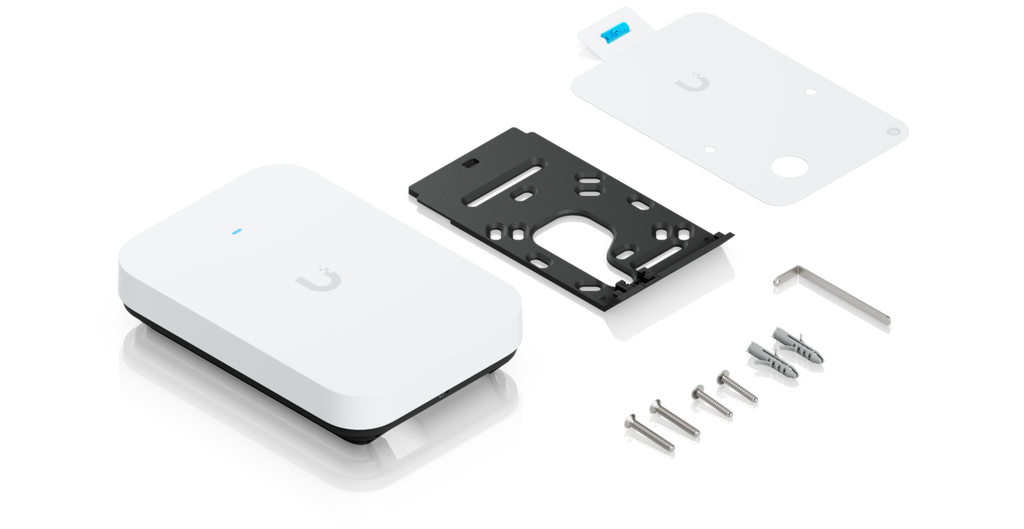

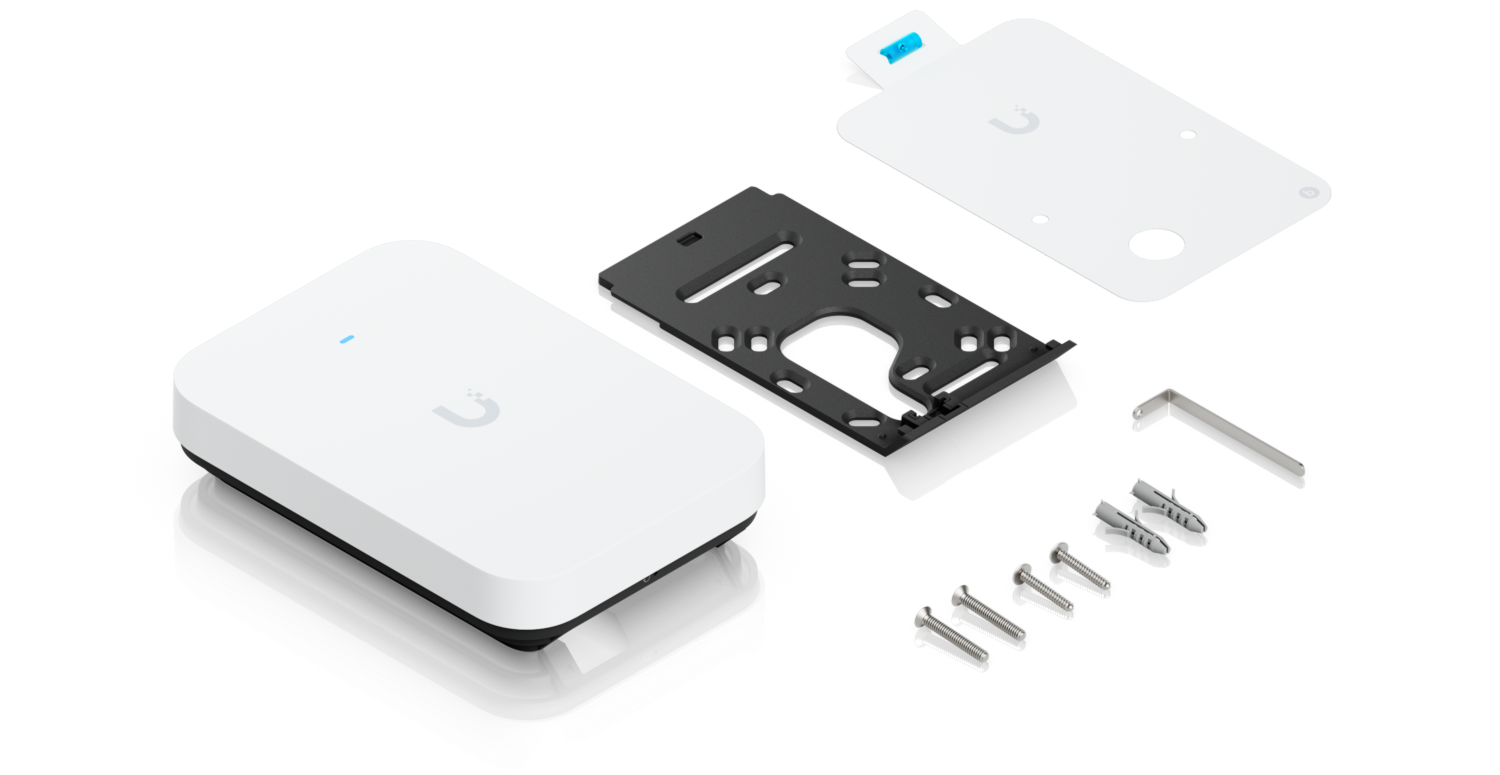

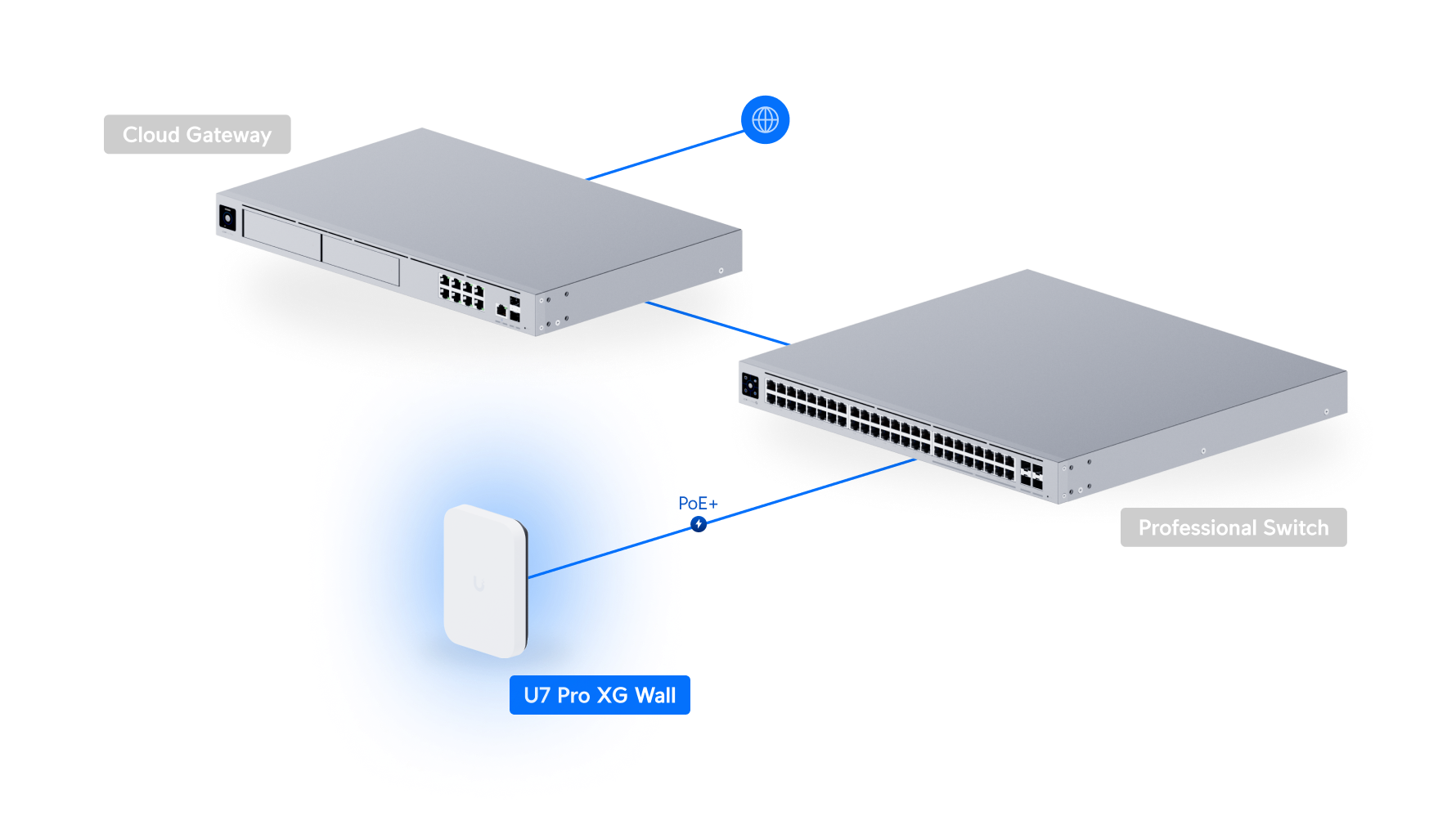

A UniFi Network controller (version 10.0 or later) running on any Dream Machine or Cloud Gateway, a PoE+ switch with a 10 GbE port per AP — the USW-ENT-24-POE or USW-PRO-HD-24-POE are catalogue options — Cat6A cabling to each wall plate, and the U7-PRO-XG-WALL-COVER decorative cover if you want a finished surround over the mounting frame.

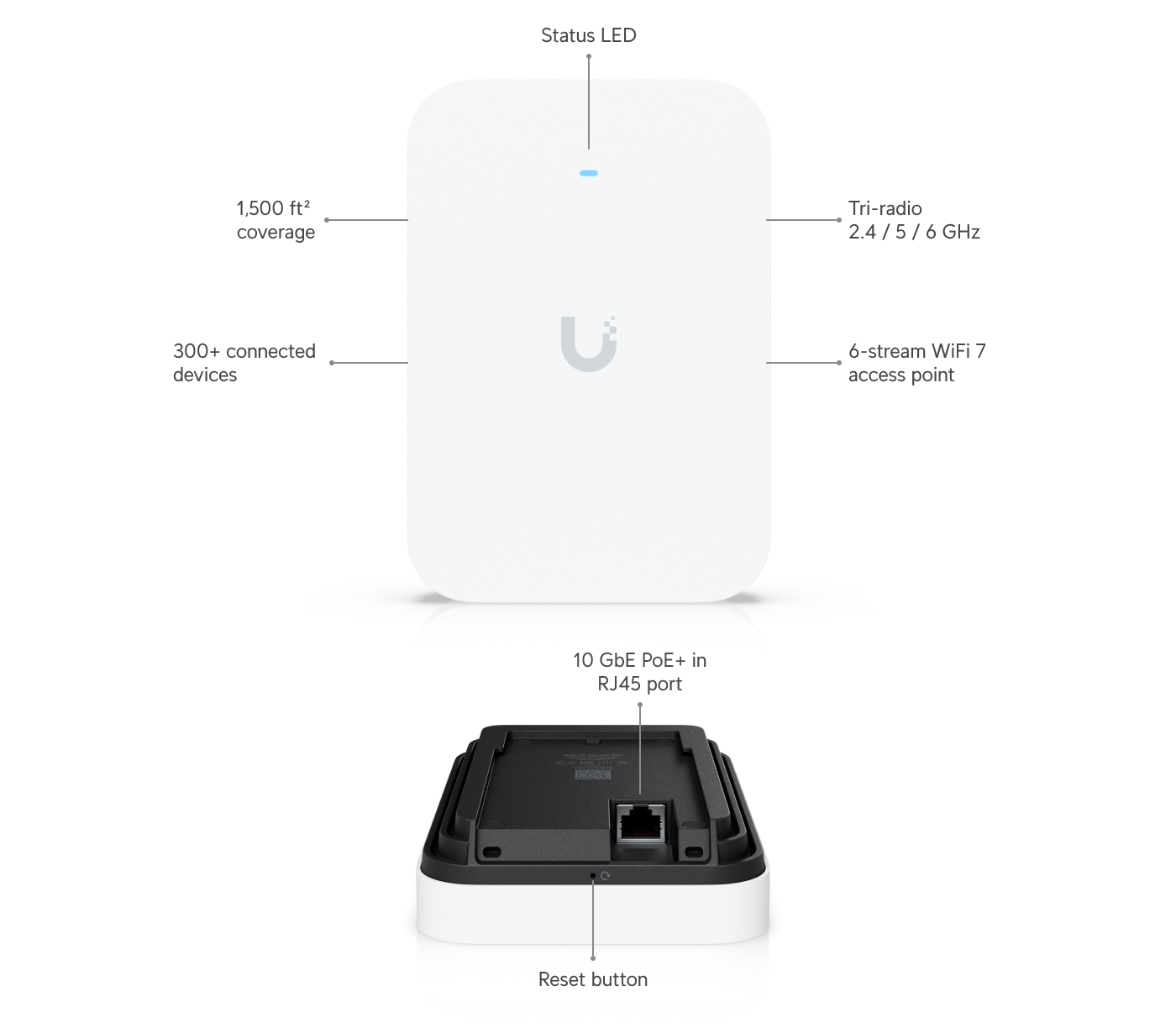

Technical specifications
Overview

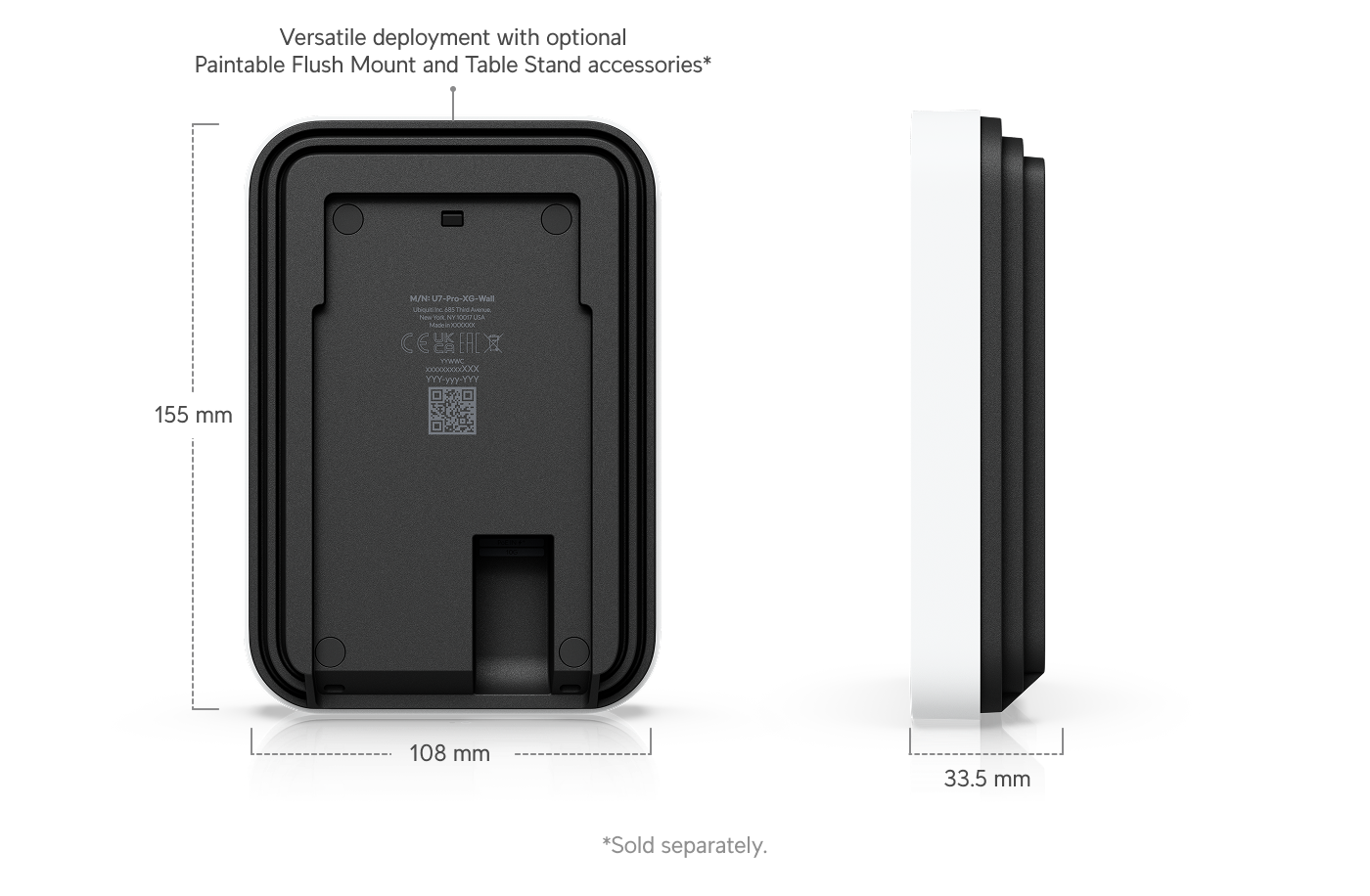

| Dimensions | 155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3'') |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Wall |
| Power Method | PoE+ |
Performance
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | 6 dBi |
| 5 GHz | 6 dBi |
| 2.4 GHz | 4 dBi |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5–57V DC |

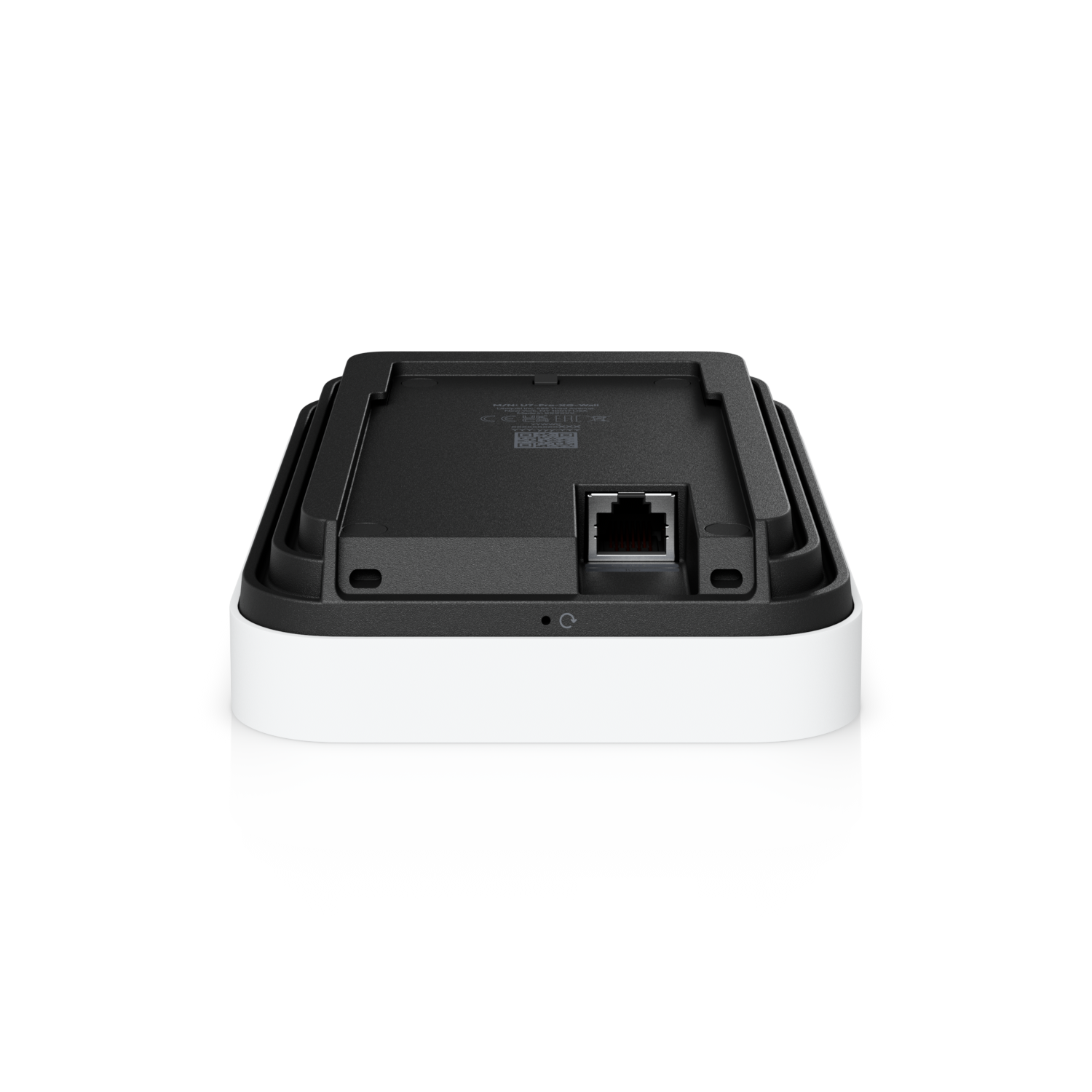

| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 505 g (1.1 lb) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| System | W/B |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Software
| UniFi Network | Version 10.0 and later |
| Mobile App | iOS™ version 10.29.3 and later Android™ version 10.31.1 and later |
