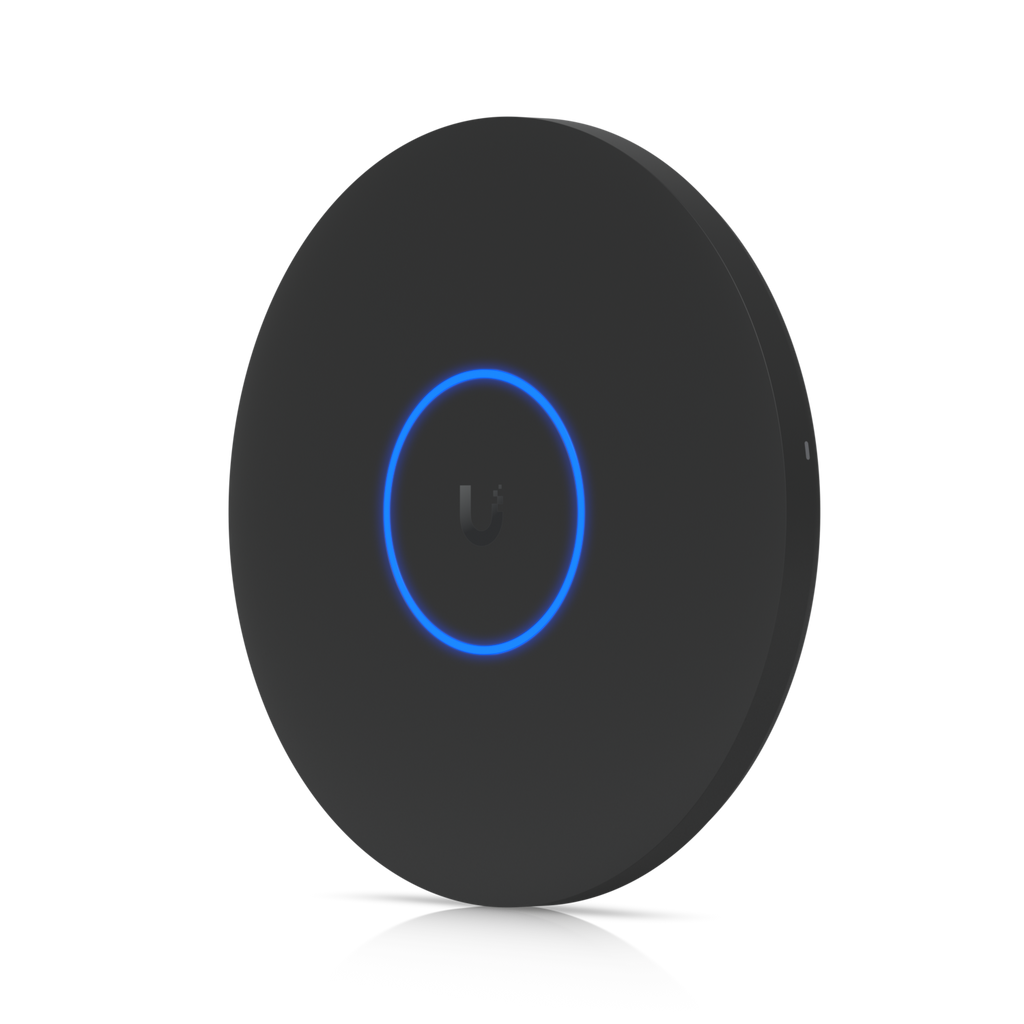

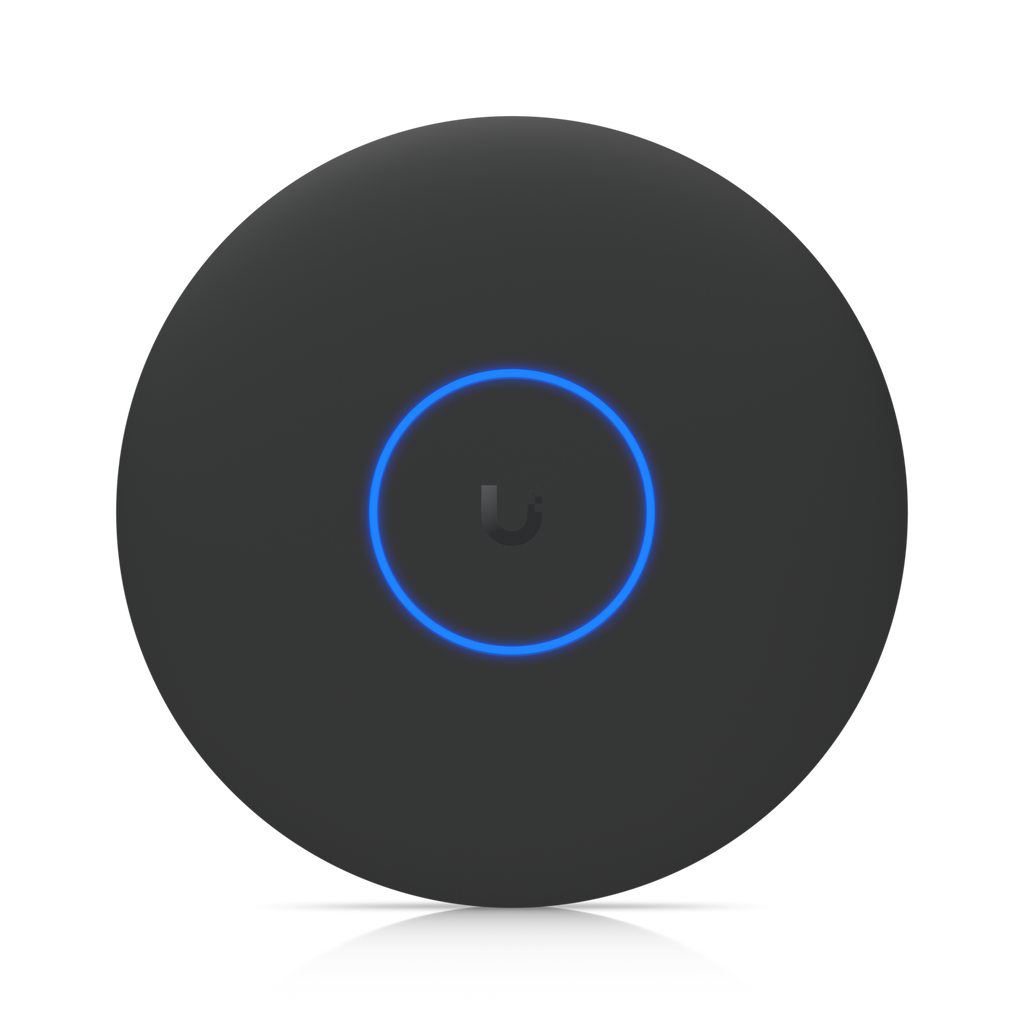

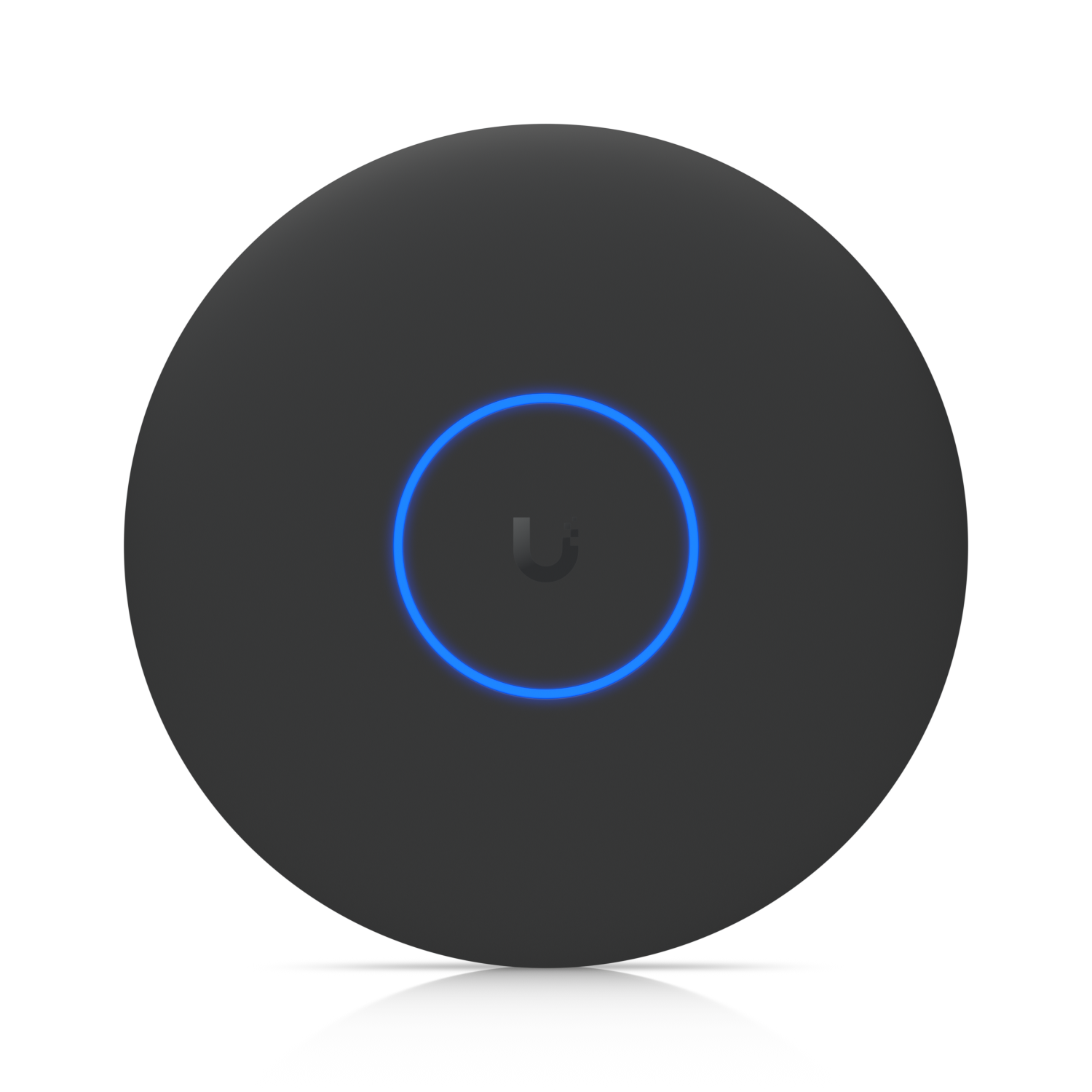

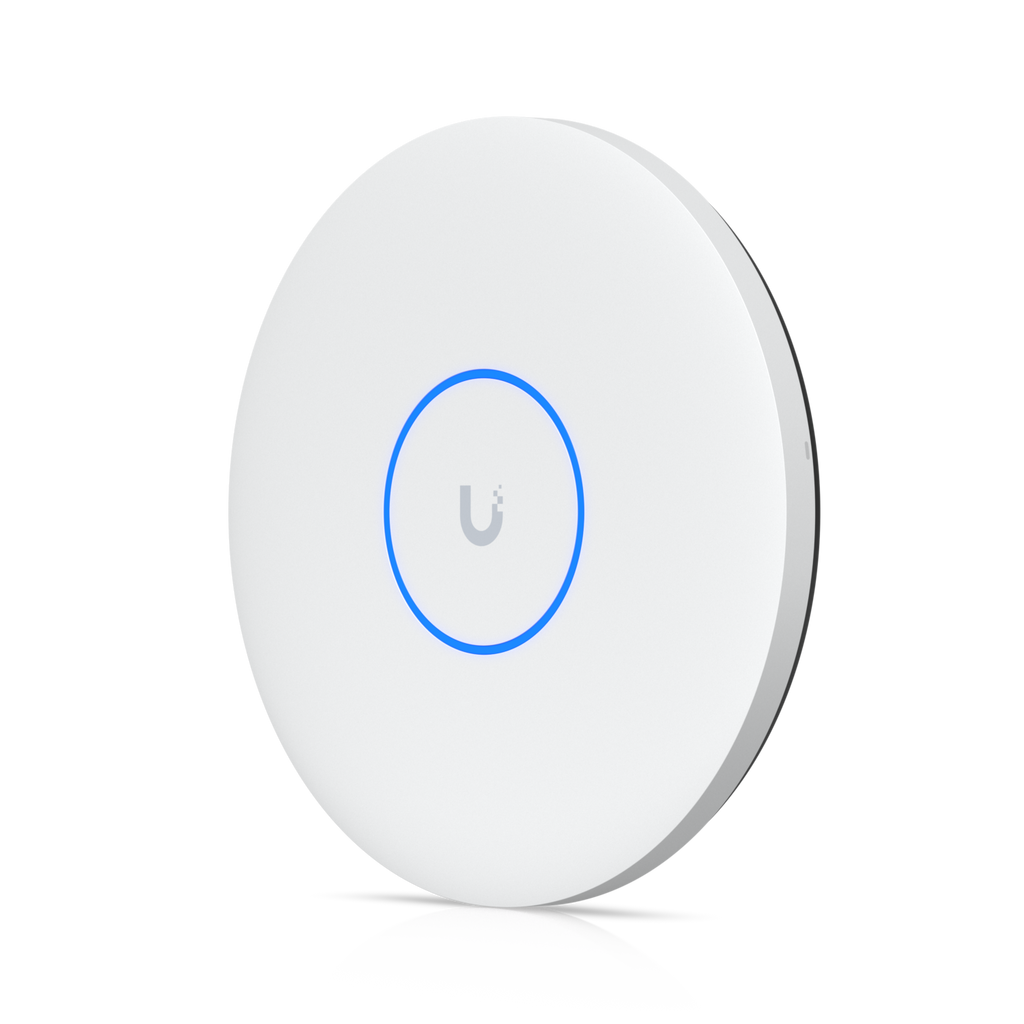

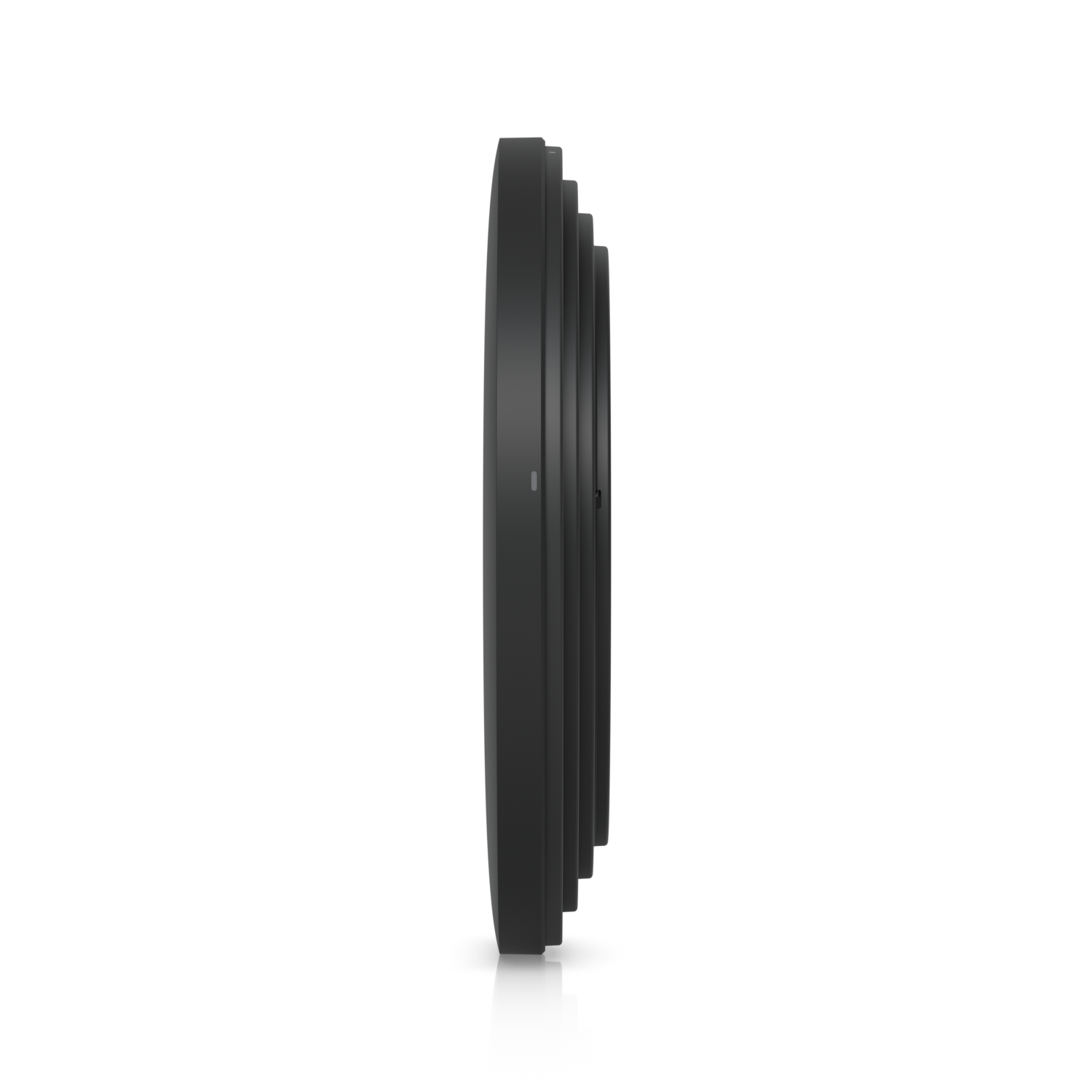

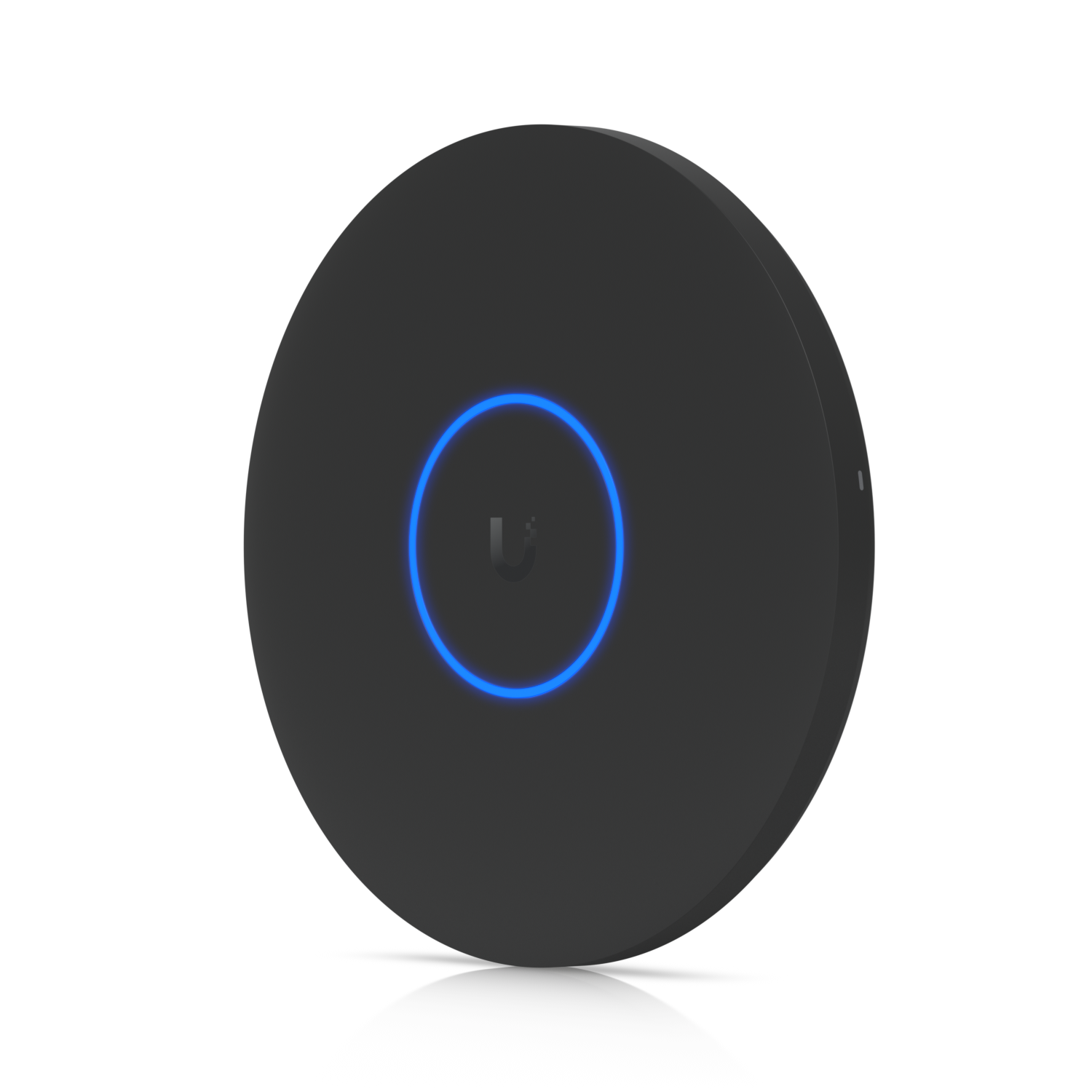

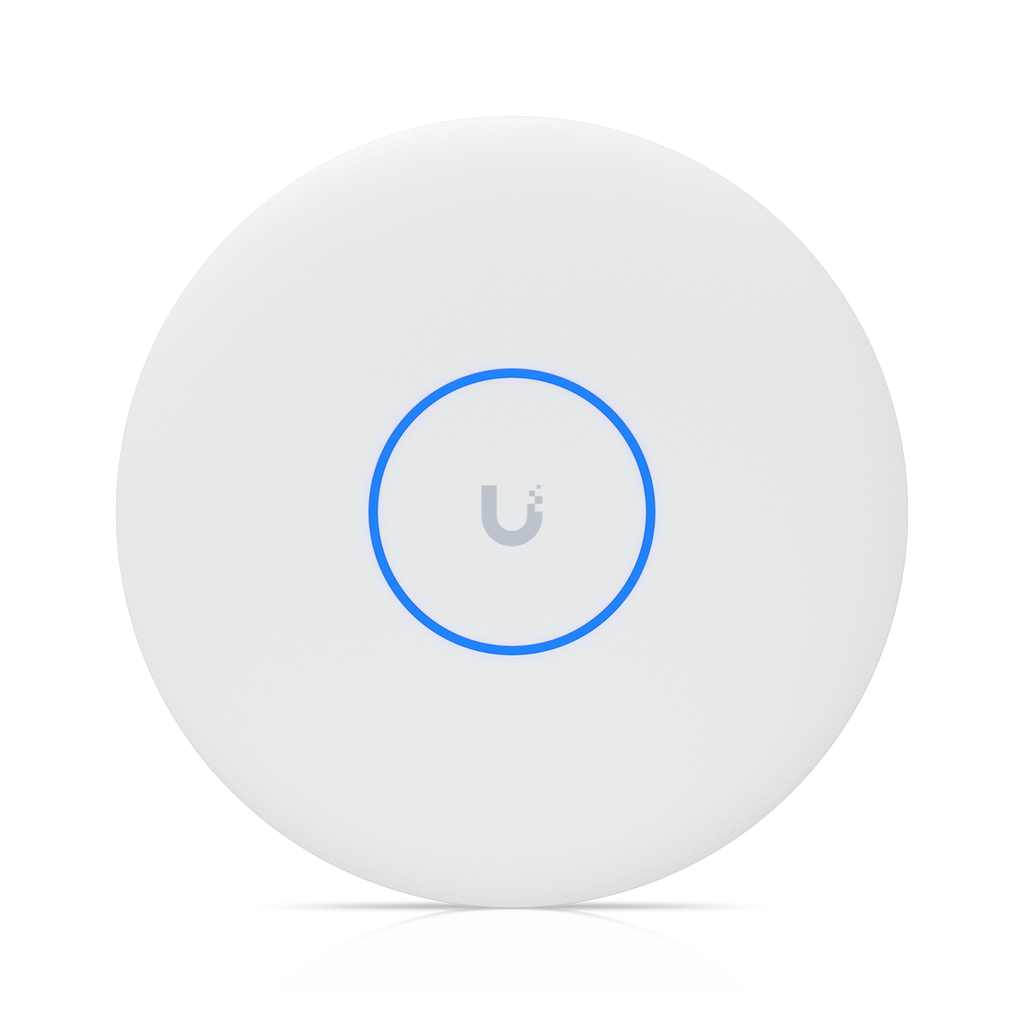

Ubiquiti U7-PRO-XGS | UniFi U7 Pro XGS | WiFi 7 | 10 GbE | PoE++
Black
$621.00
Ubiquiti U7-PRO-XGS | UniFi U7 Pro XGS | WiFi 7 | 10 GbE | PoE++
$621.00
UniFi U7 Pro XGS
Technical Specifications
Overview

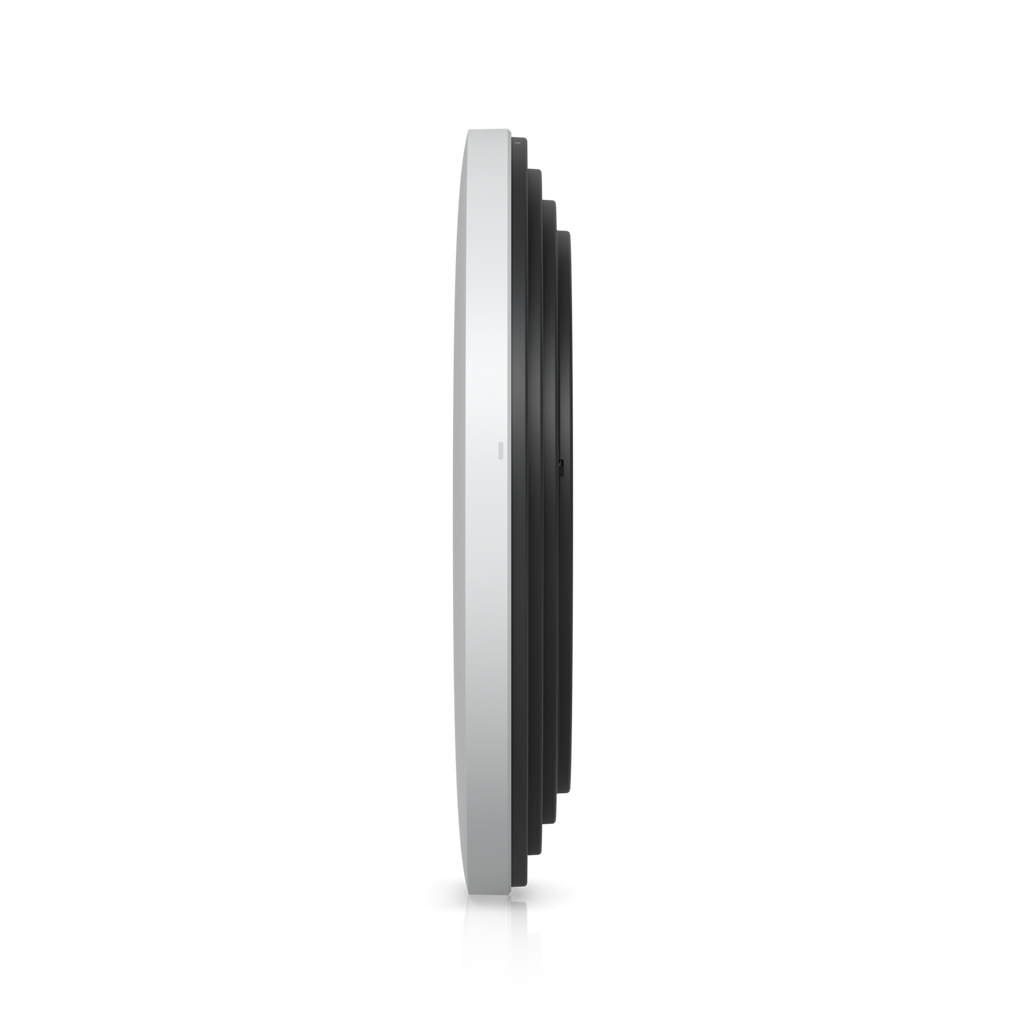

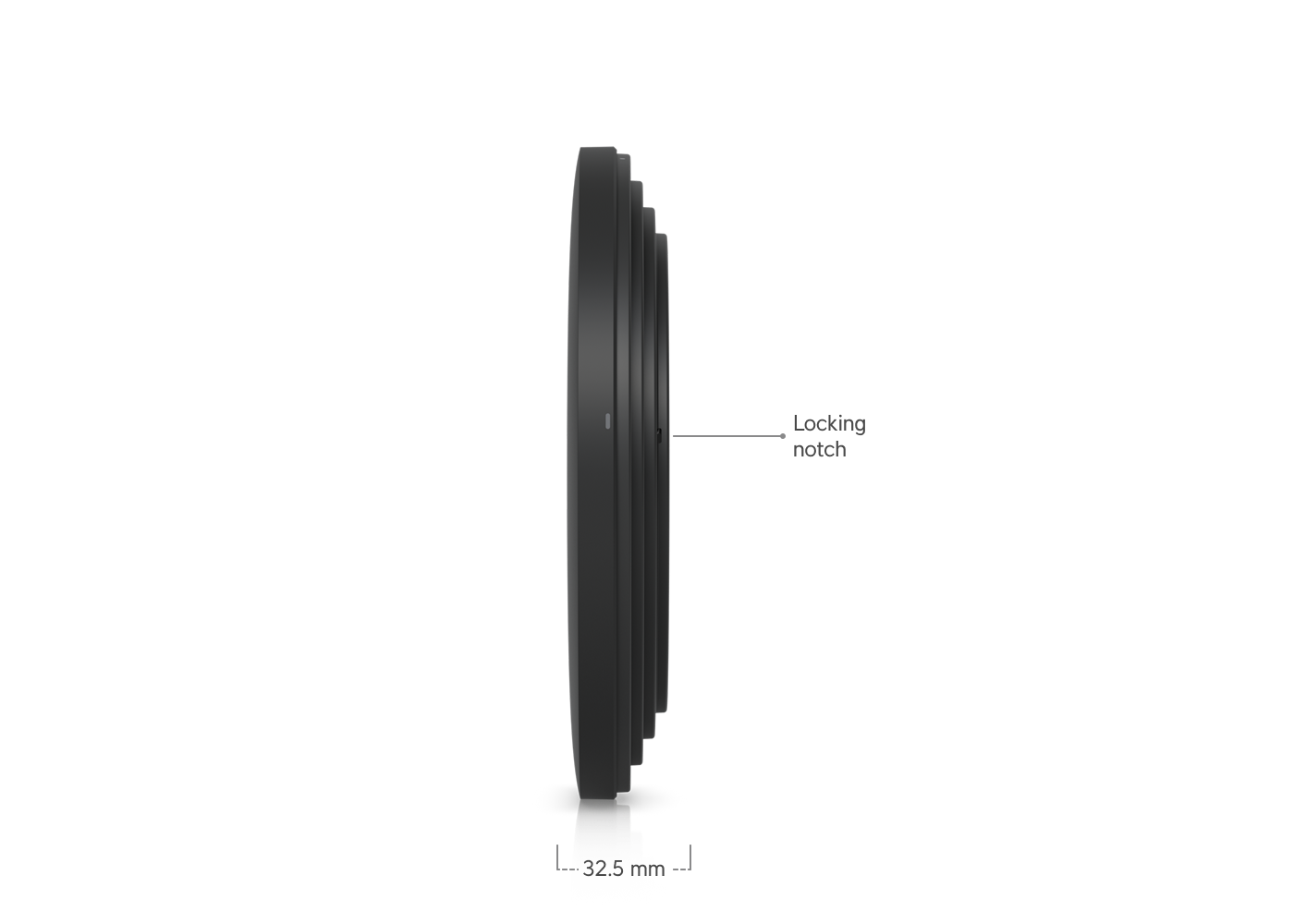

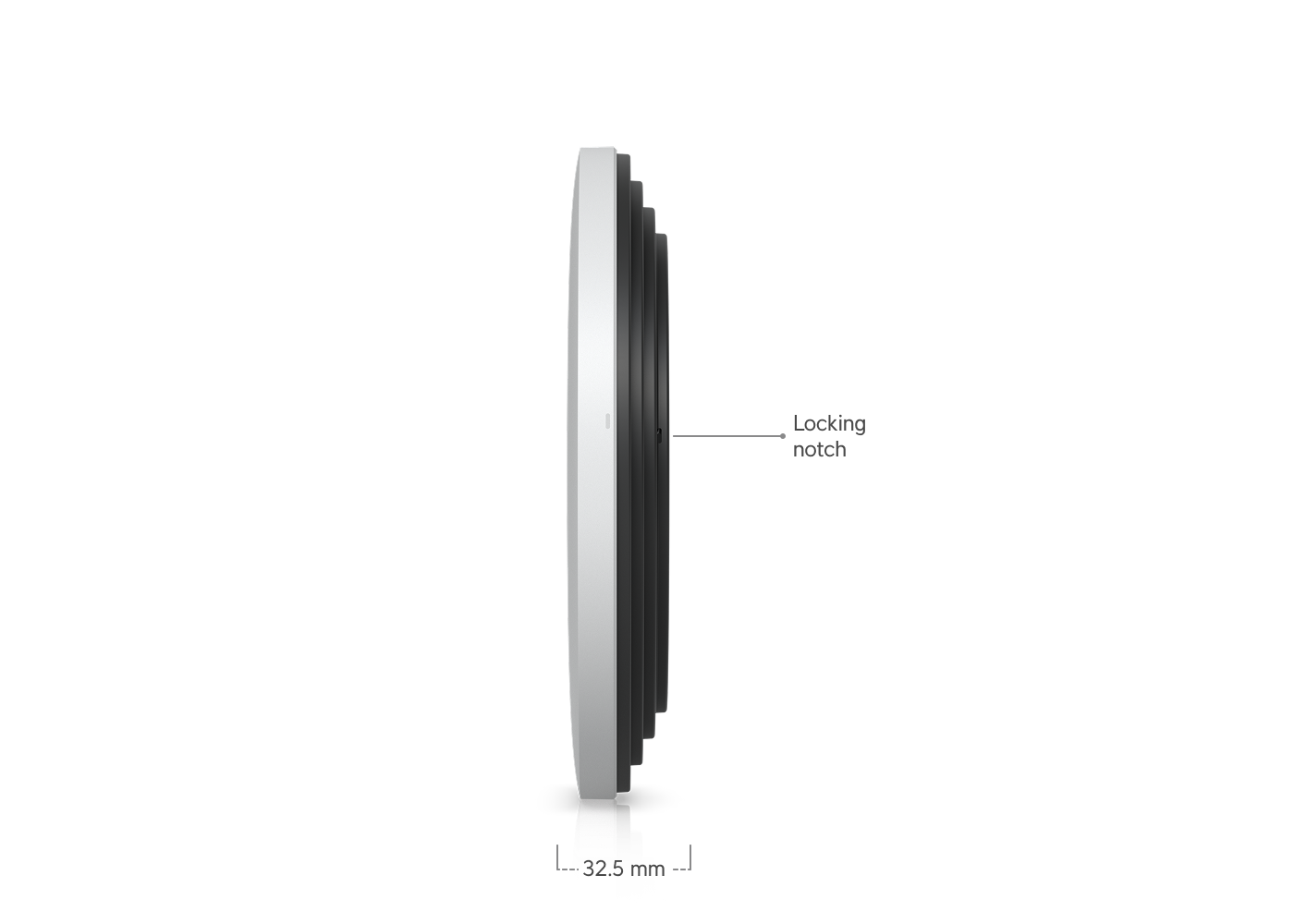

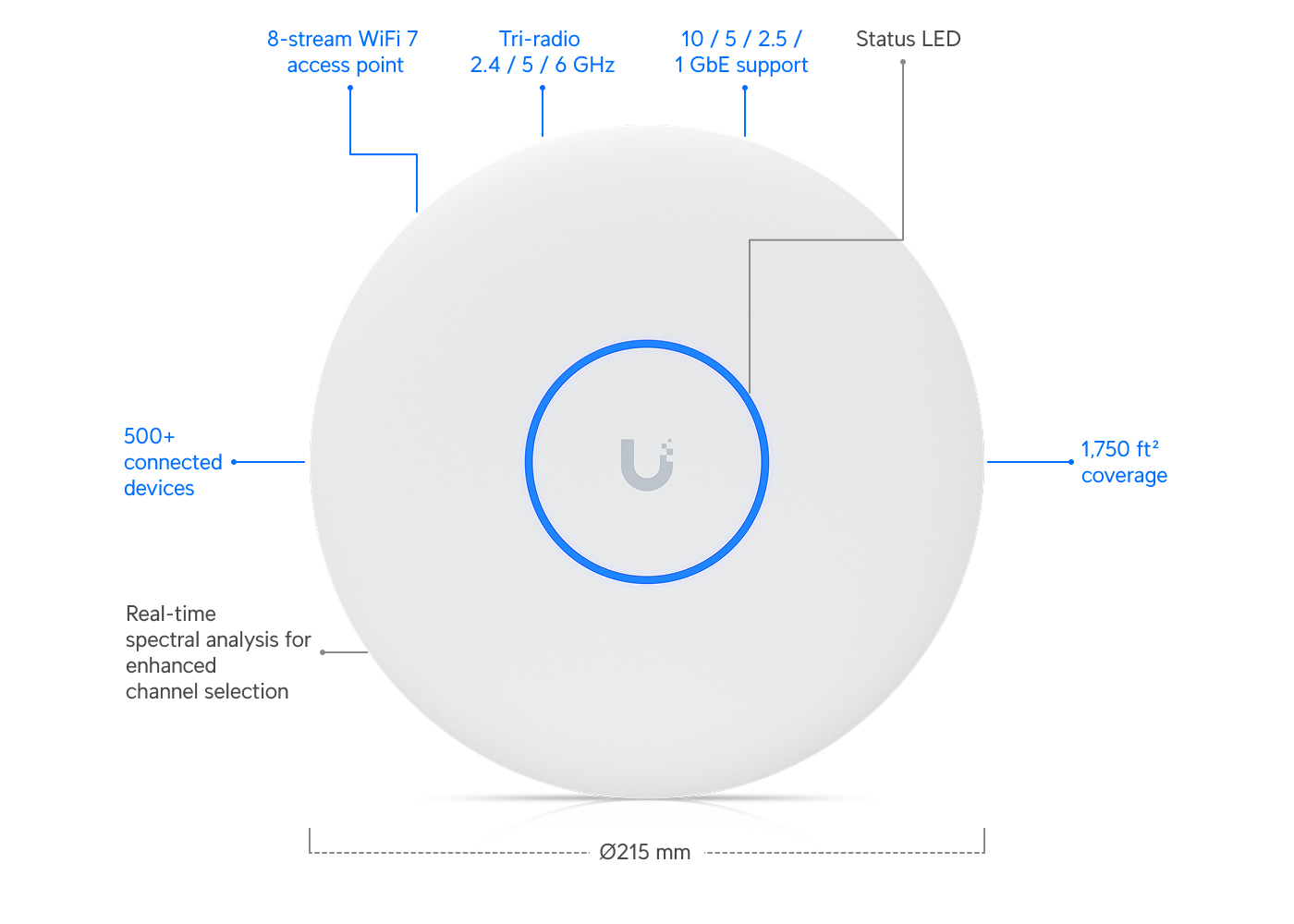

| Dimensions | ⌀215 x 32.5 mm (⌀8.5 x 1.3") |

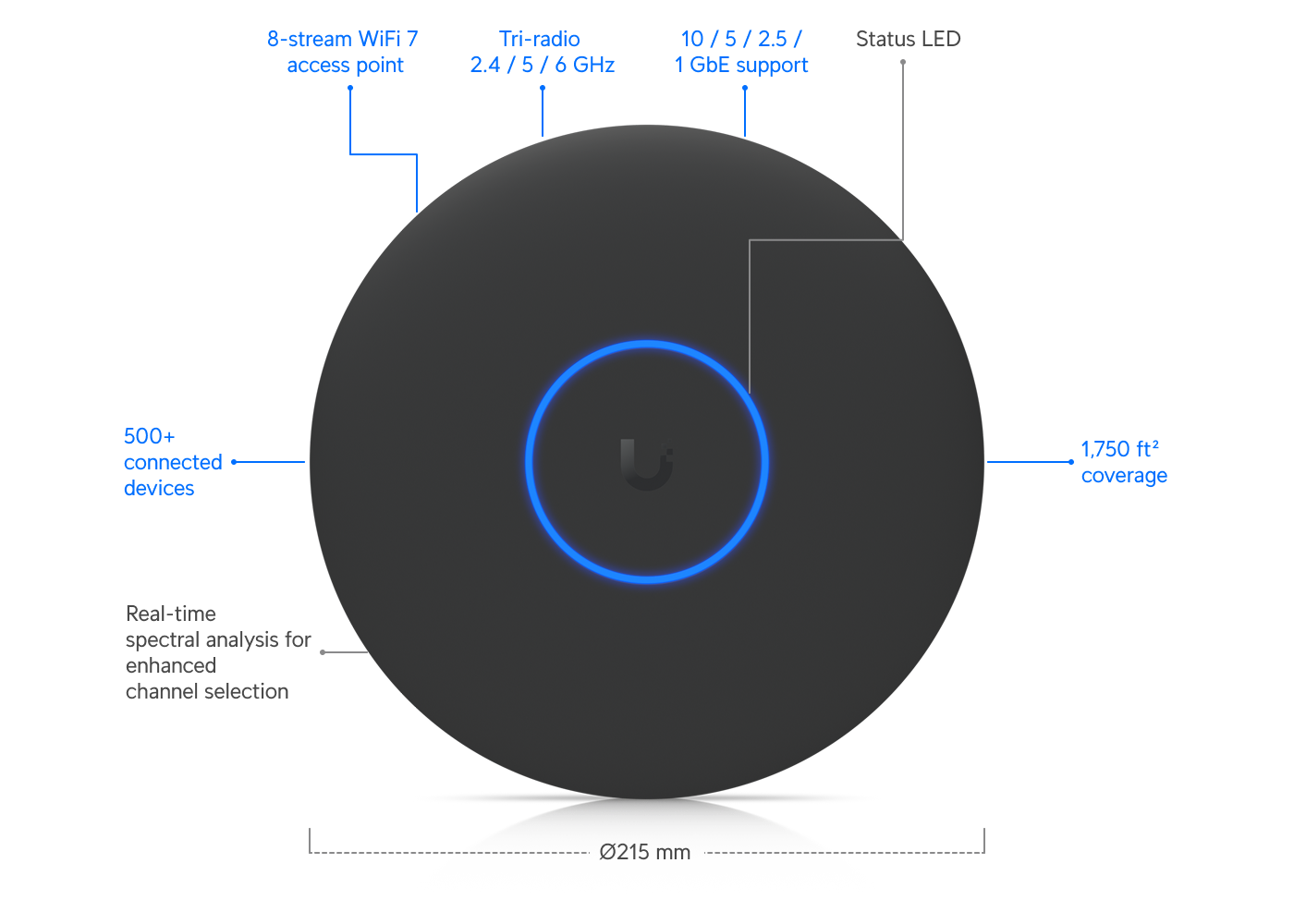

| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Uplink | 10 GbE |

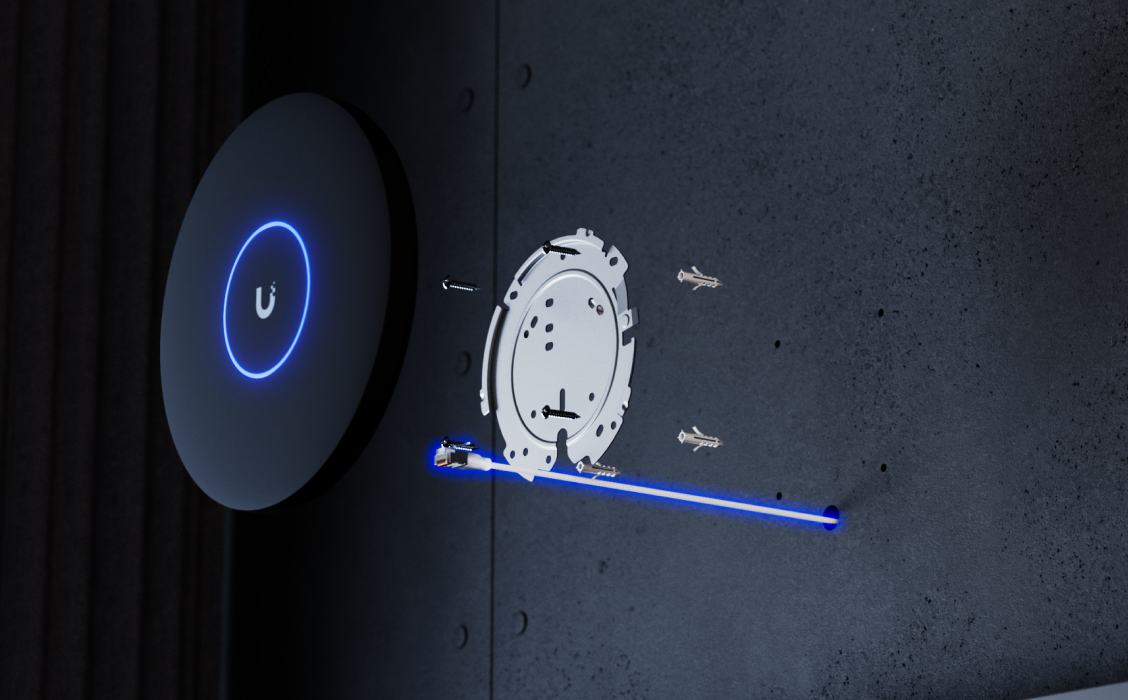

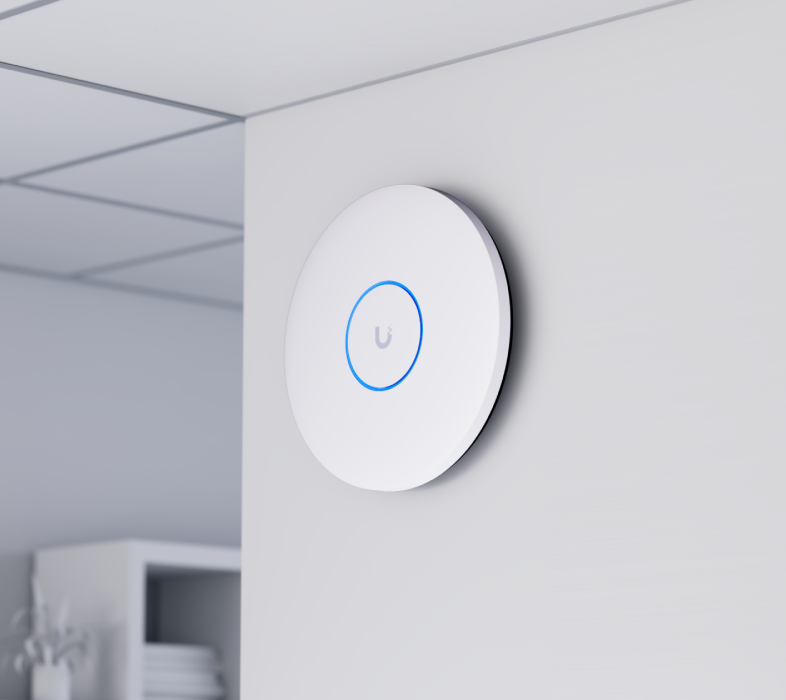

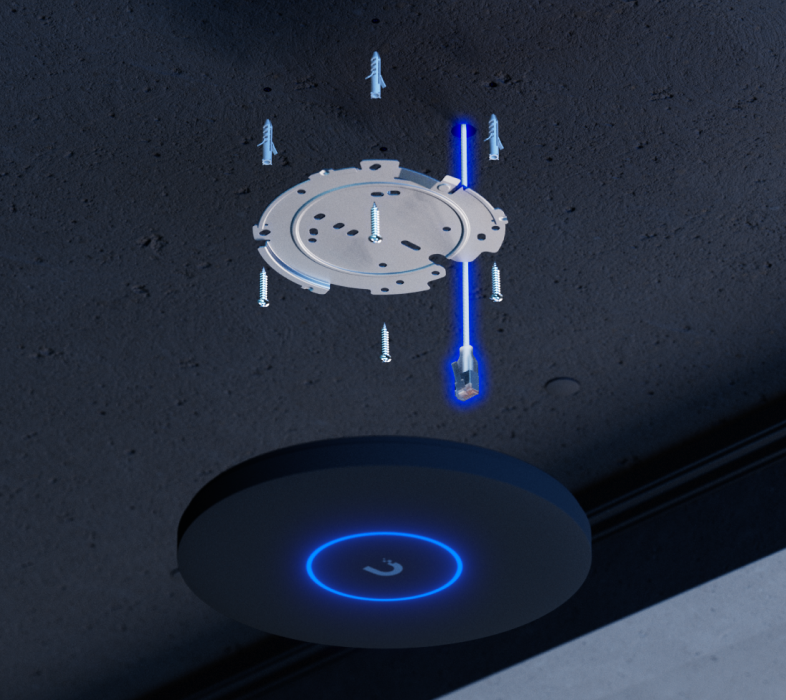

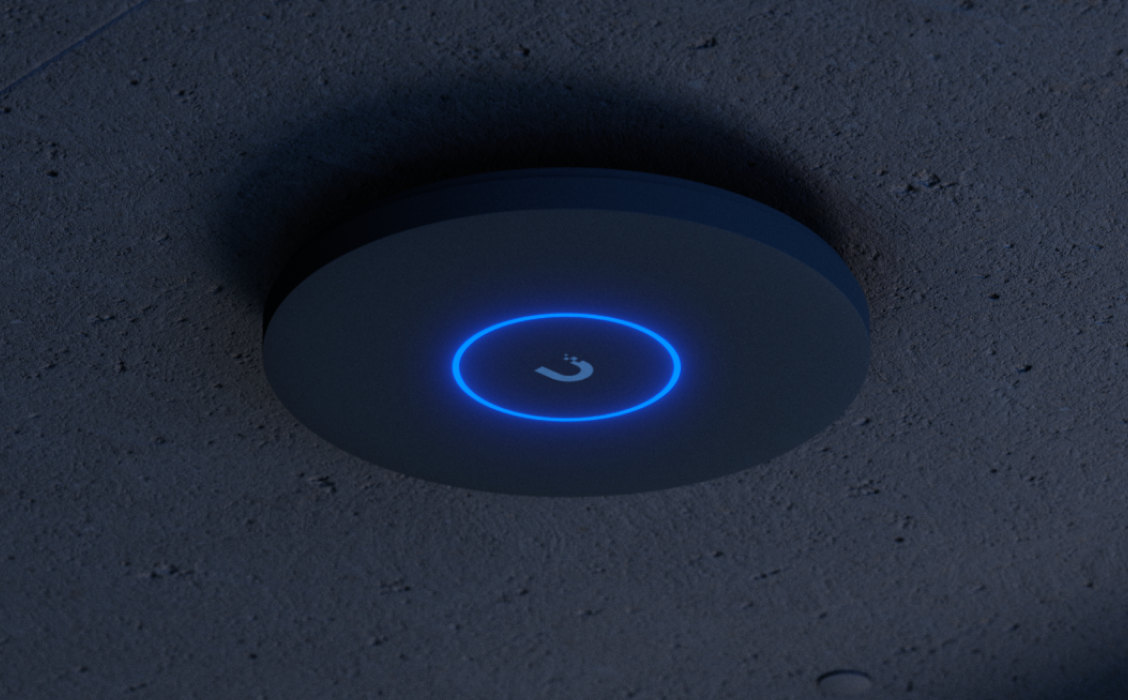

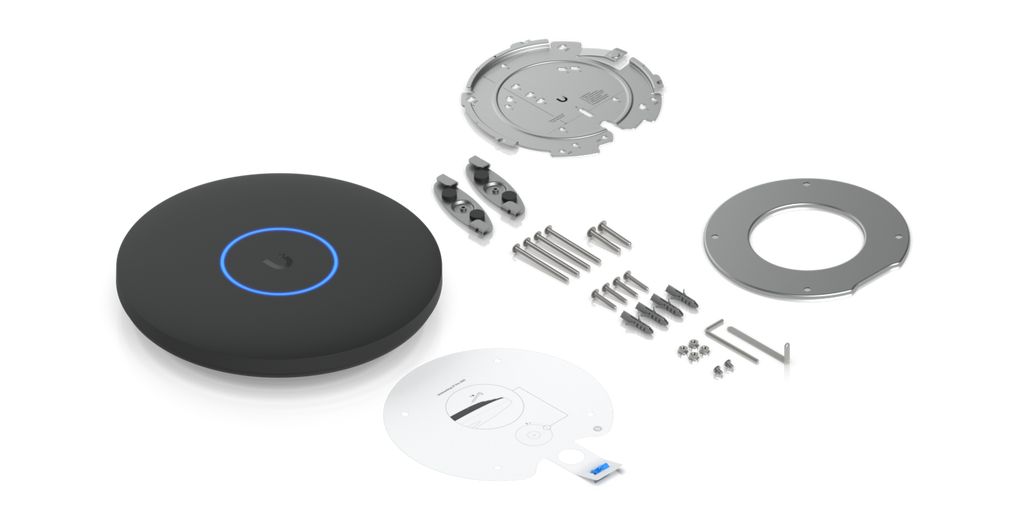

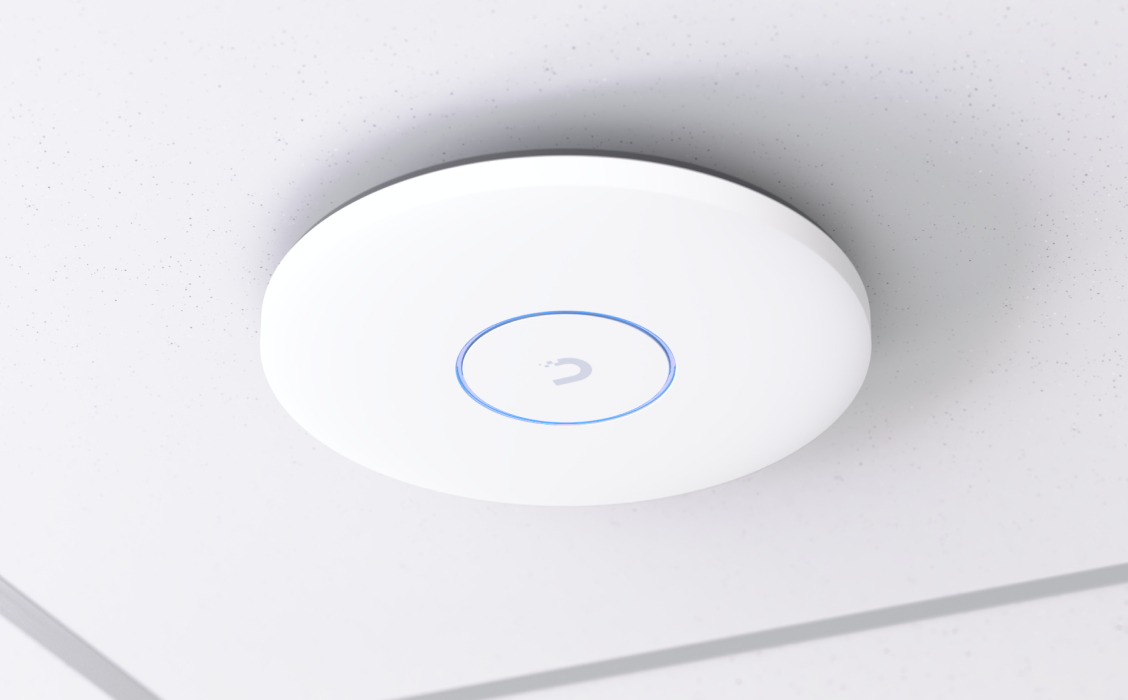

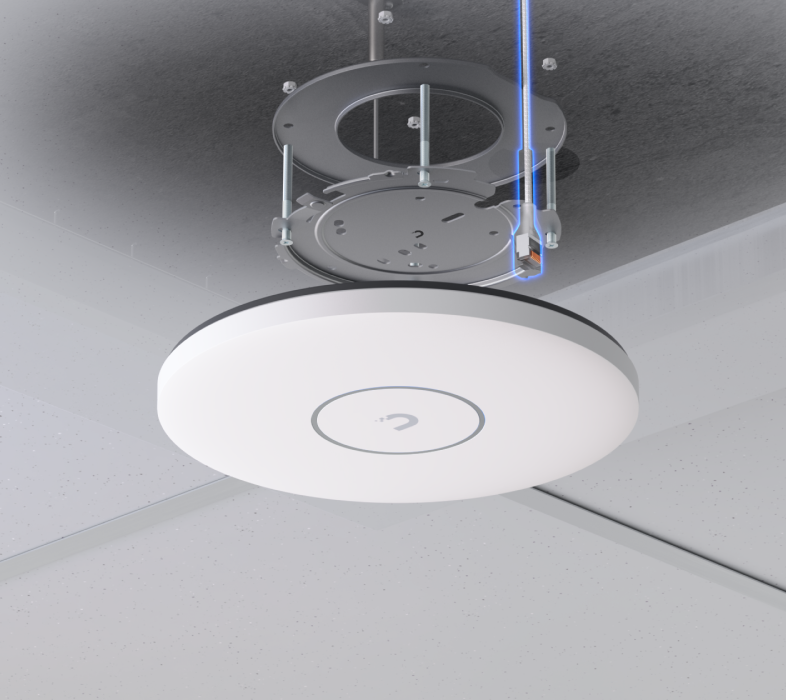

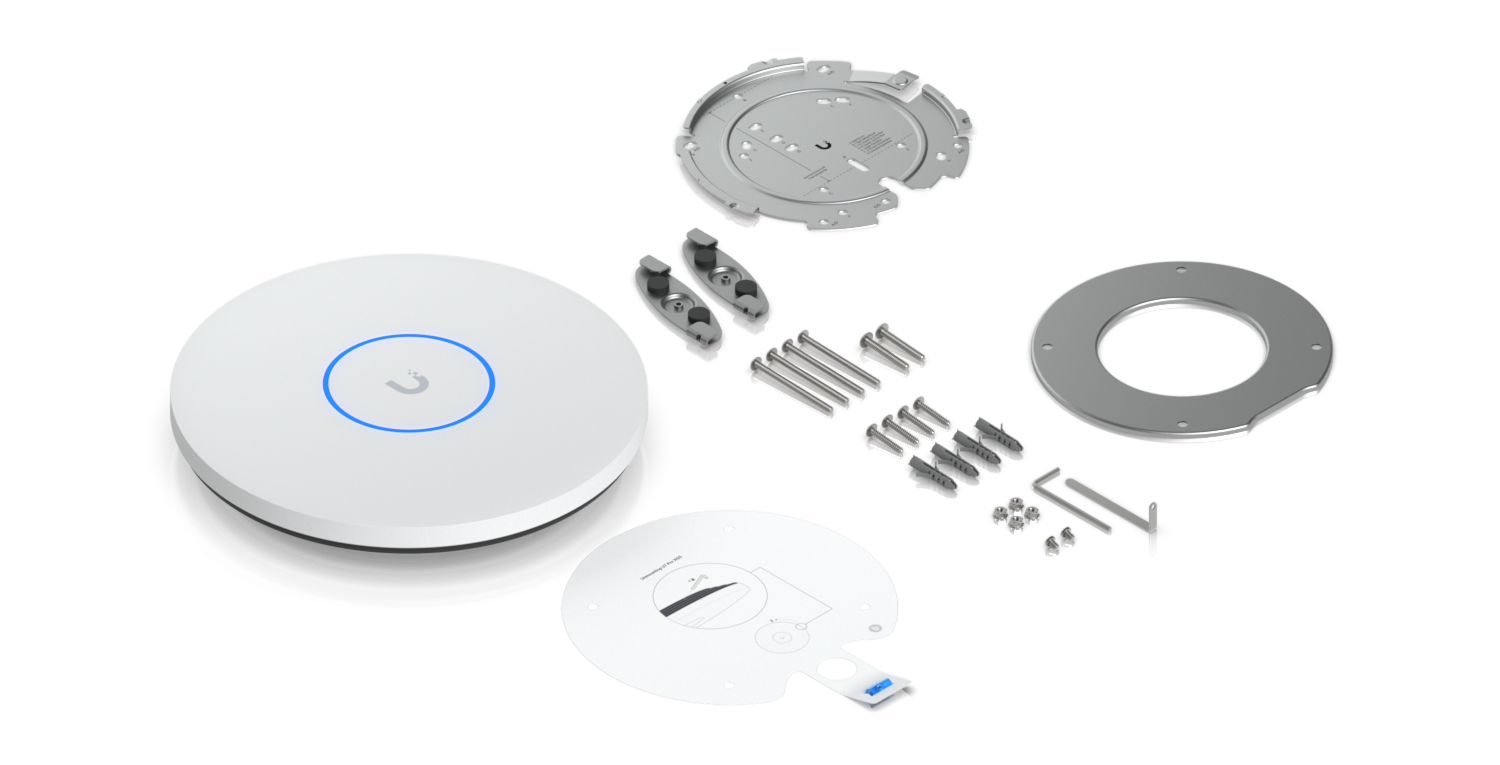

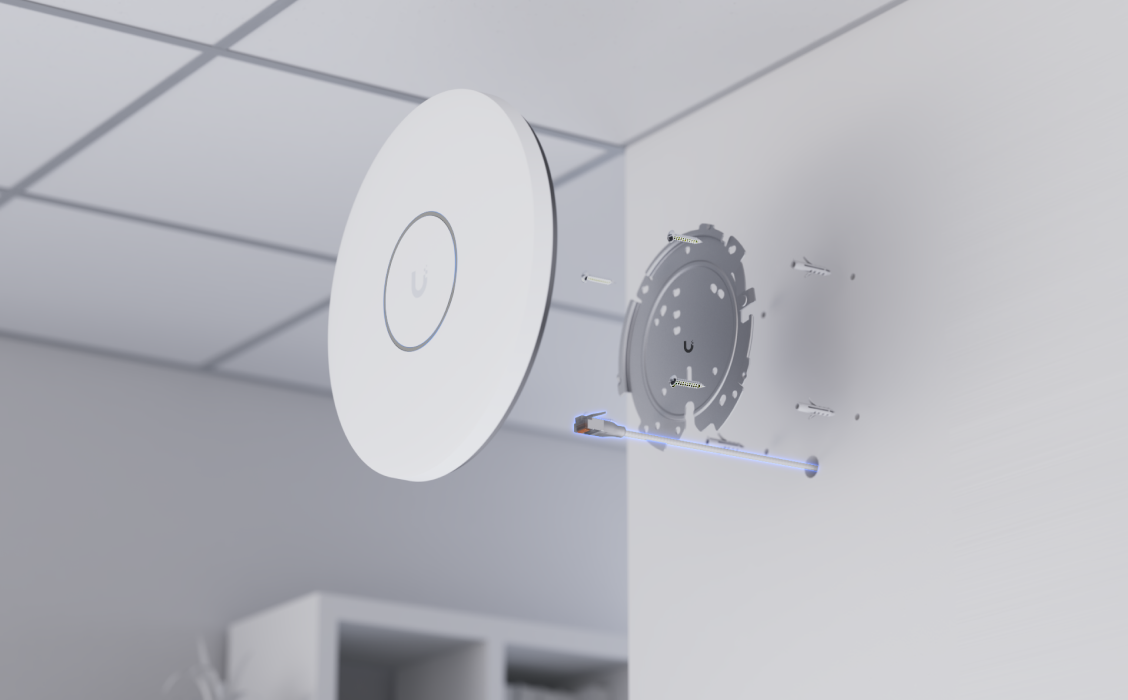

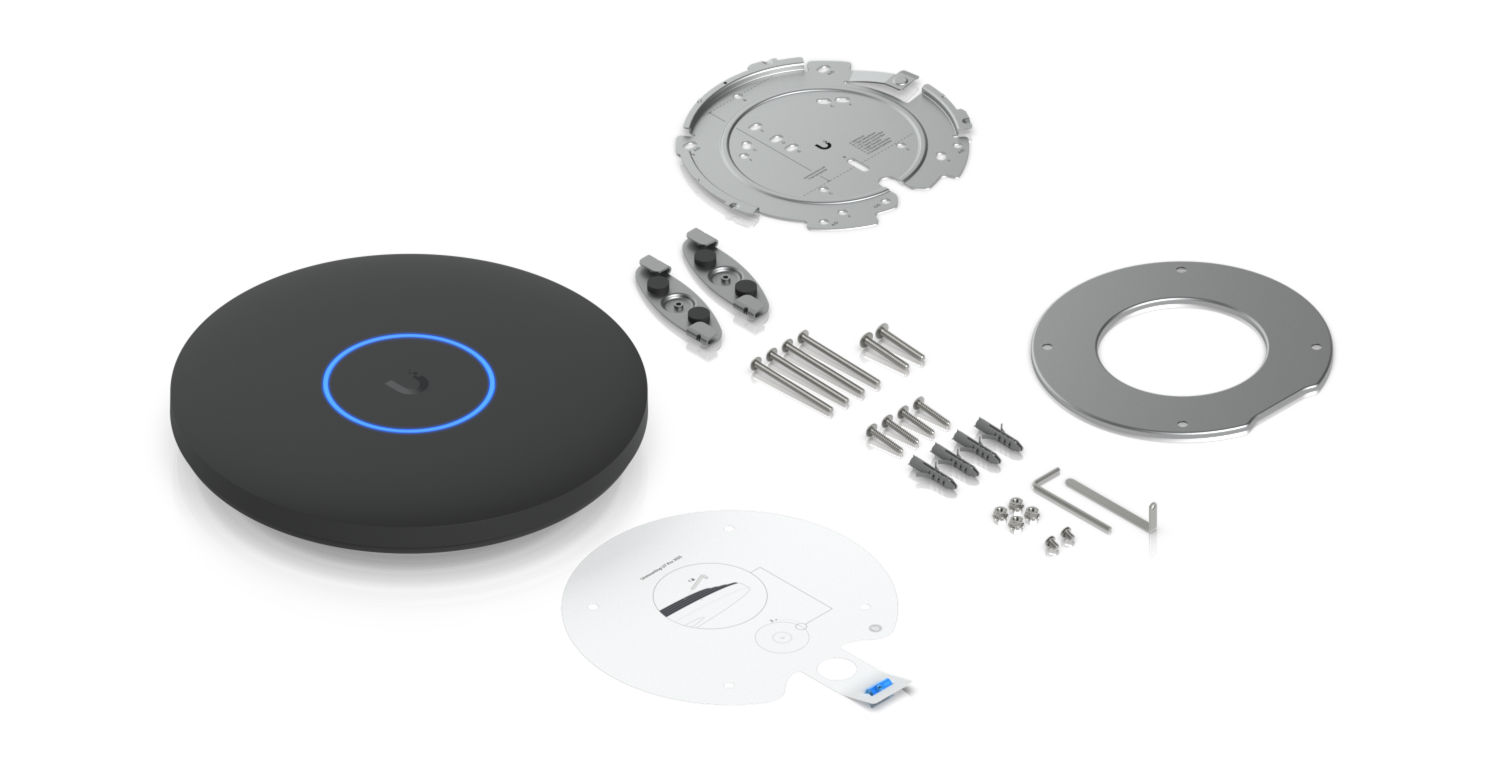

| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE++ |
Performance
| MIMO — 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO — 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| MIMO — 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate — 6 GHz | 5.8 Gbps (BW320) |
| Max. Data Rate — 5 GHz | 8.6 Gbps (BW240) |
| Max. Data Rate — 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain — 6 GHz | 6 dBi |
| Antenna Gain — 5 GHz | 6 dBi |
| Antenna Gain — 2.4 GHz | 4 dBi |
| Max. TX Power — 6 GHz | 24 dBm |
| Max. TX Power — 5 GHz | 29 dBm |
| Max. TX Power — 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates — 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| Supported Data Rates — 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| Supported Data Rates — 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| Supported Data Rates — 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Features
| Wireless Meshing | True |
| Band Steering | True |
| 802.11v BSS Transition Management | True |
| 802.11r Fast Roaming | True |
| 802.11k Radio Resource Management (RRM) | True |
| Zero-Wait DFS | True |
| Advanced Radio Management | True |
| Real-Time Spectral Analysis | True |
| Passpoint (Hotspot 2.0) | True |
| Captive Hotspot Portal — Custom Branding Landing Page | True |
| Captive Hotspot Portal — Voucher Authentication | True |
| Captive Hotspot Portal — Payment-Based Authentication | True |
| Captive Hotspot Portal — External Portal Server Support | True |
| Captive Hotspot Portal — Password Authentication | True |
| Captive Hotspot Portal — Guest Network Isolation | True |
| Private Pre-Shared Key (PPSK) | True |
| WiFi Speed Limiting | True |
| Client Device Isolation | True |
| WiFi Schedules | True |
| RADIUS over TLS (RadSec) | True |
| Dynamic RADIUS-assigned VLAN | True |
Hardware
| Max. Power Consumption | 29W |
| Supported Voltage Range | 42.5–57V DC |

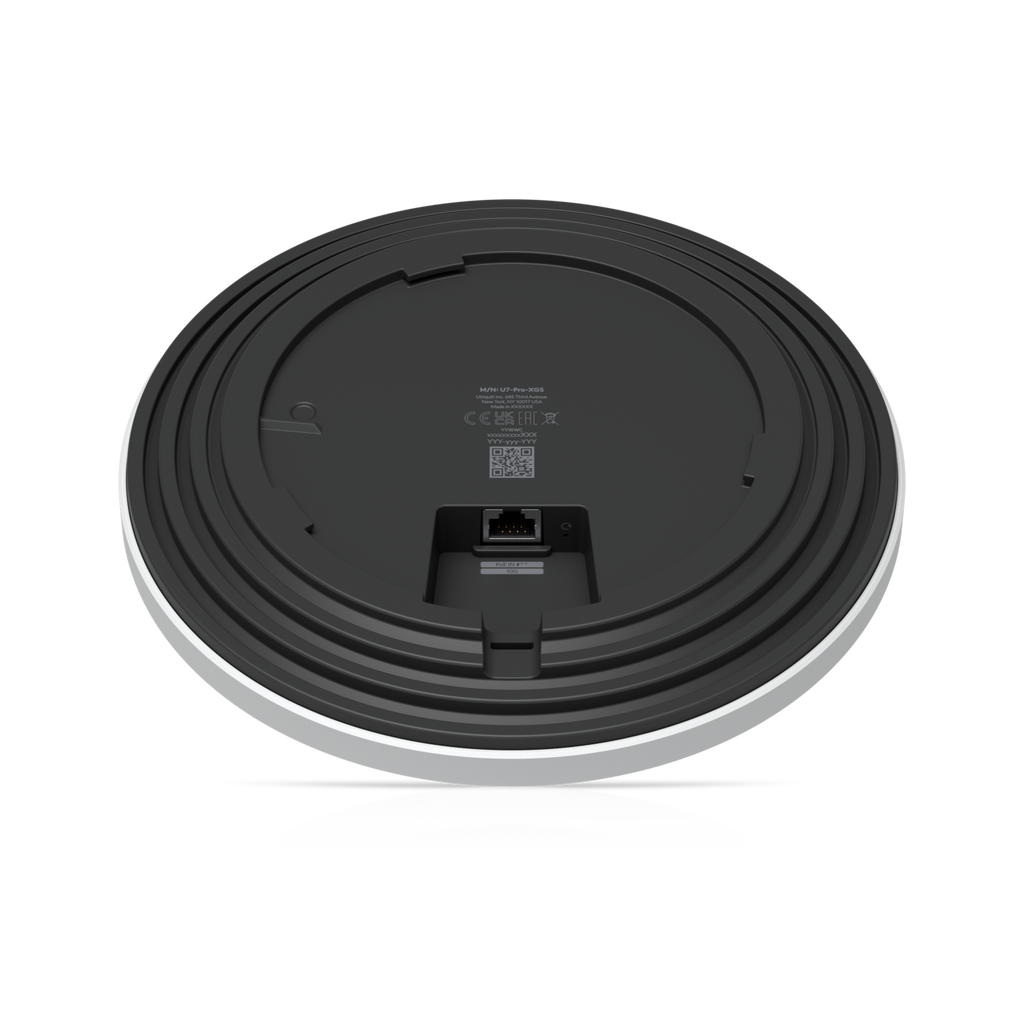

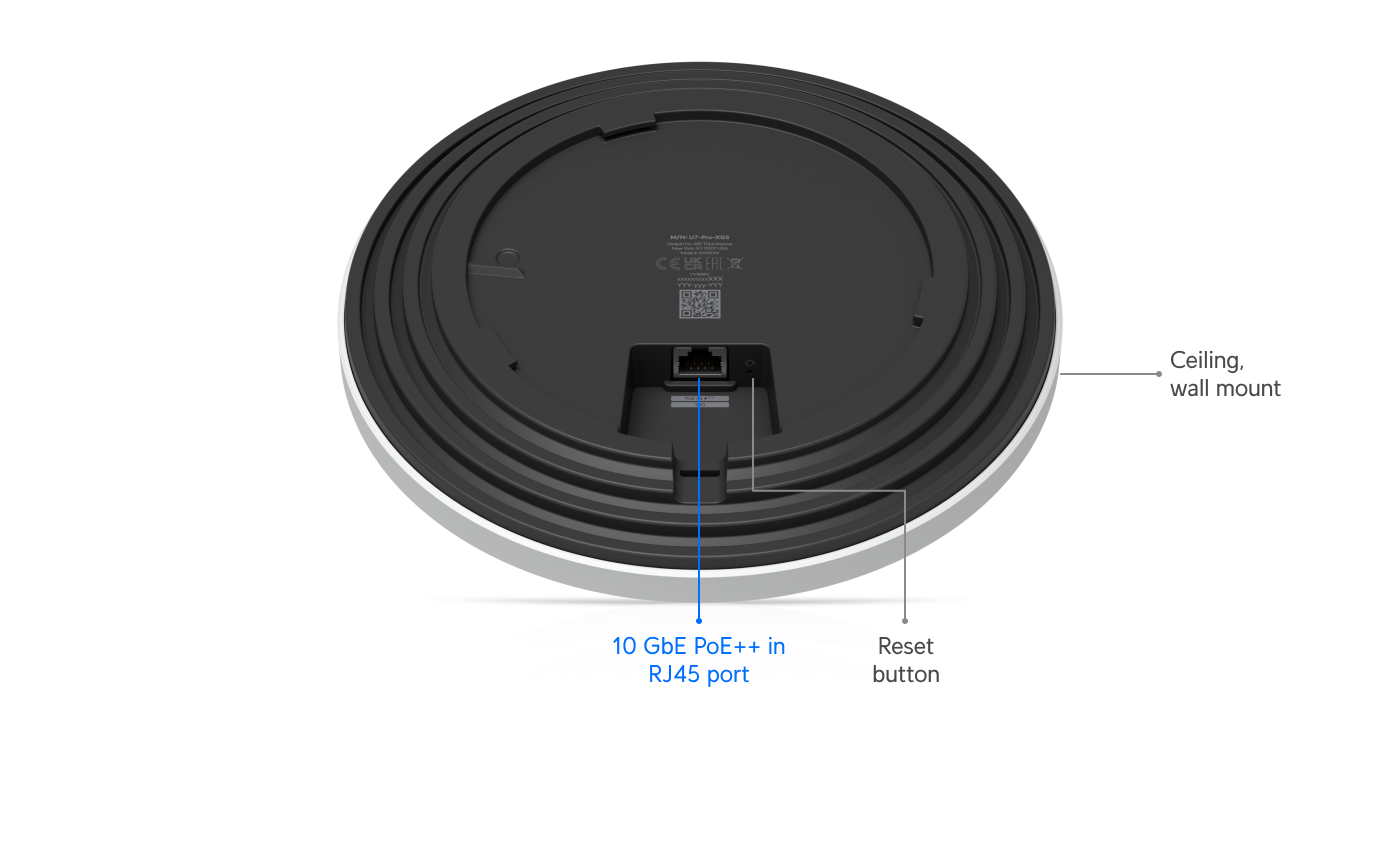

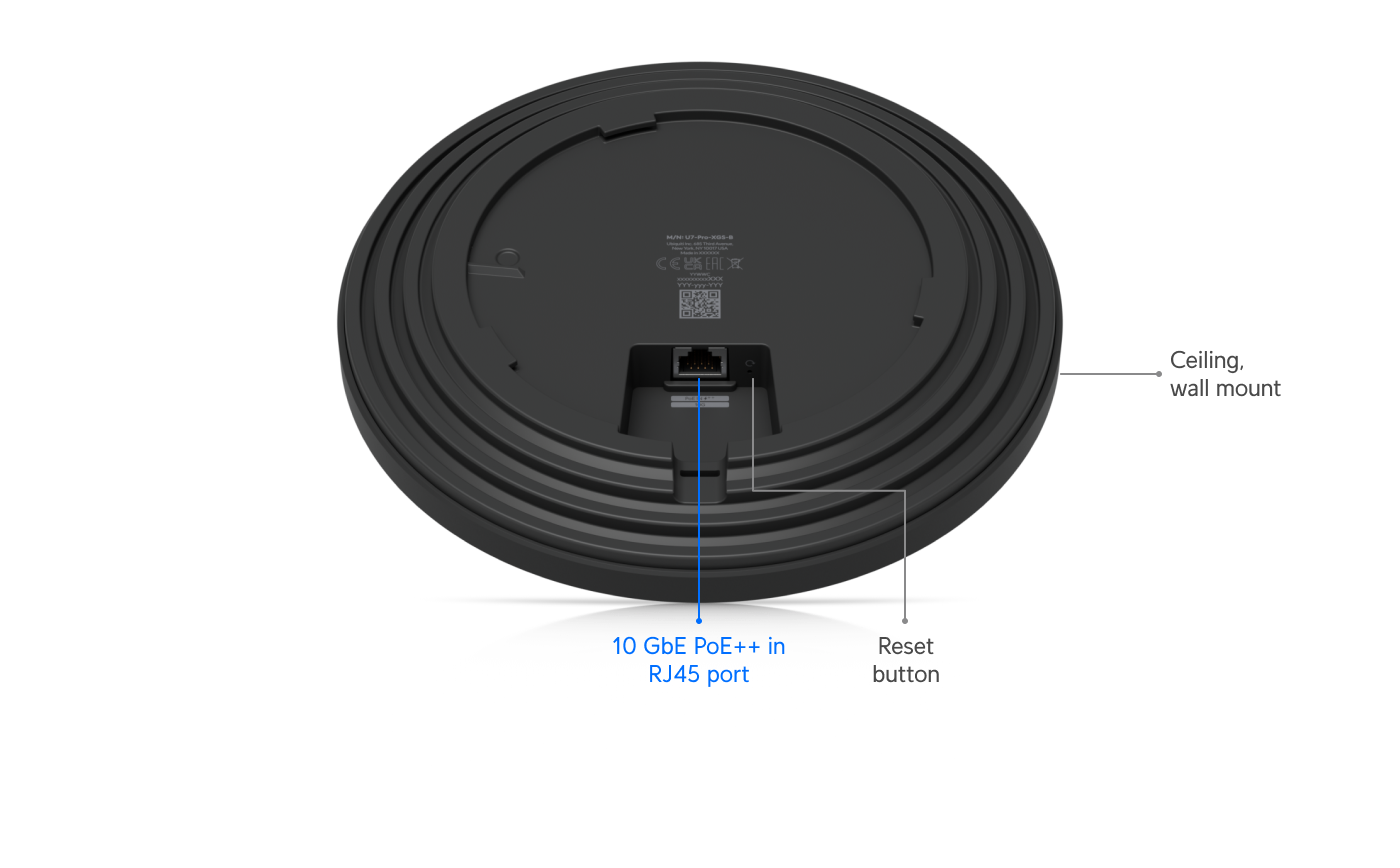

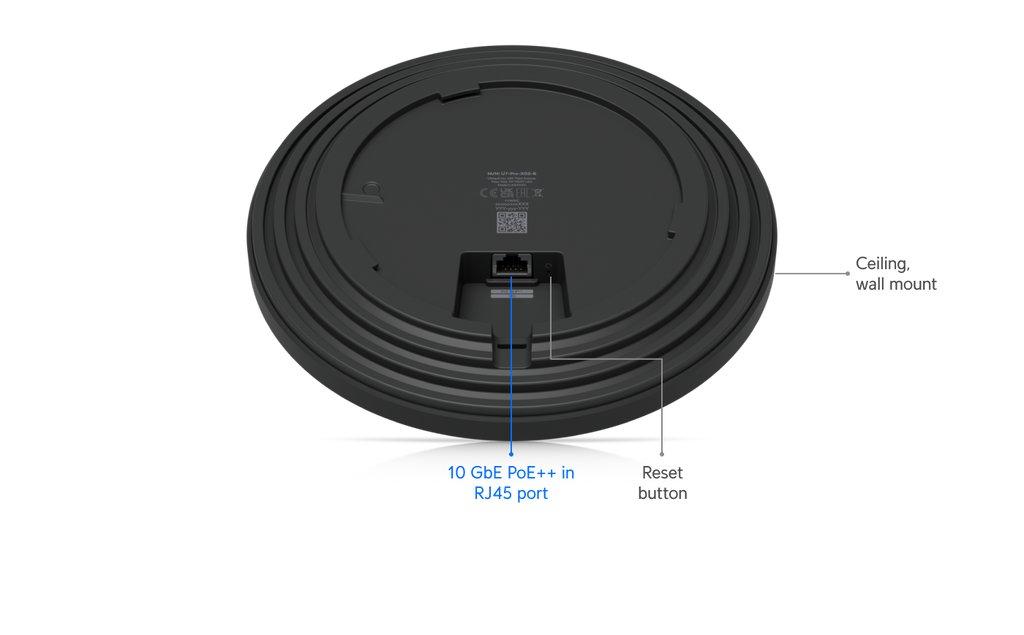

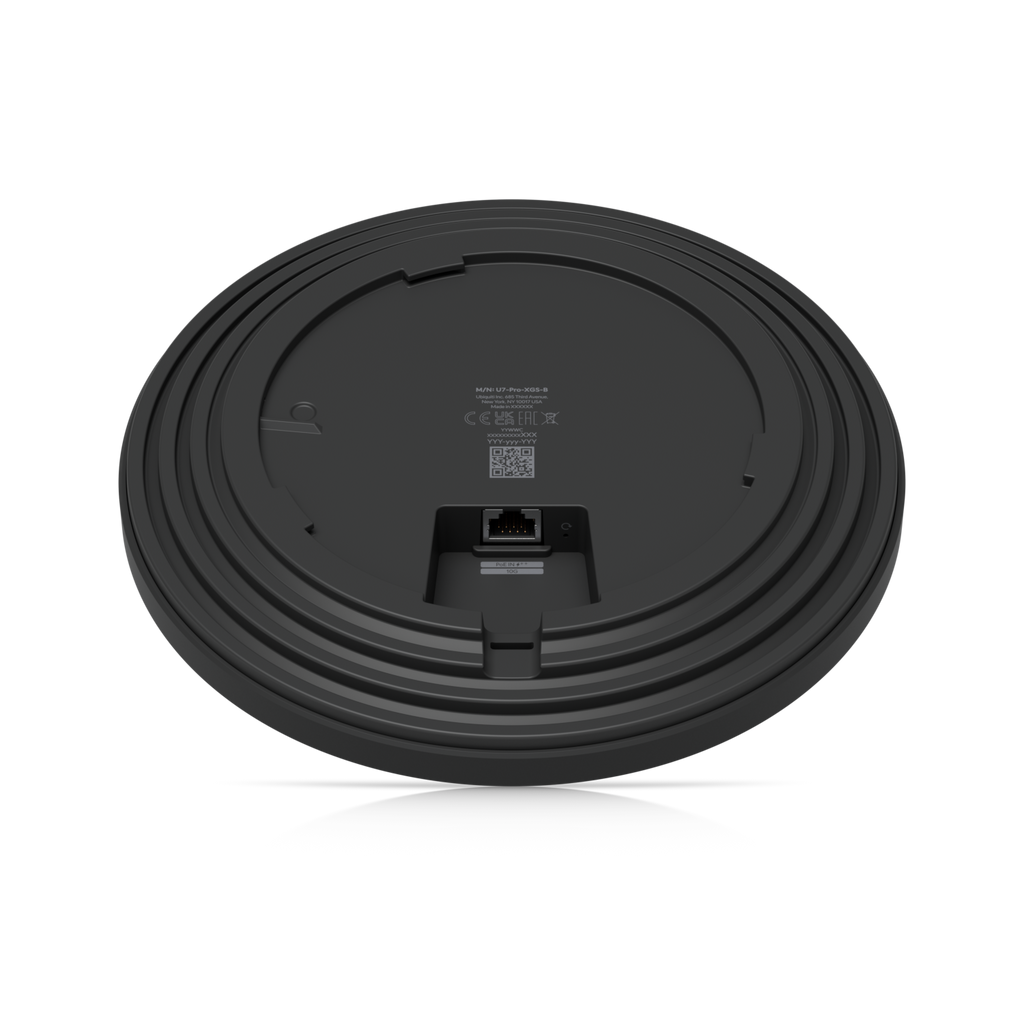

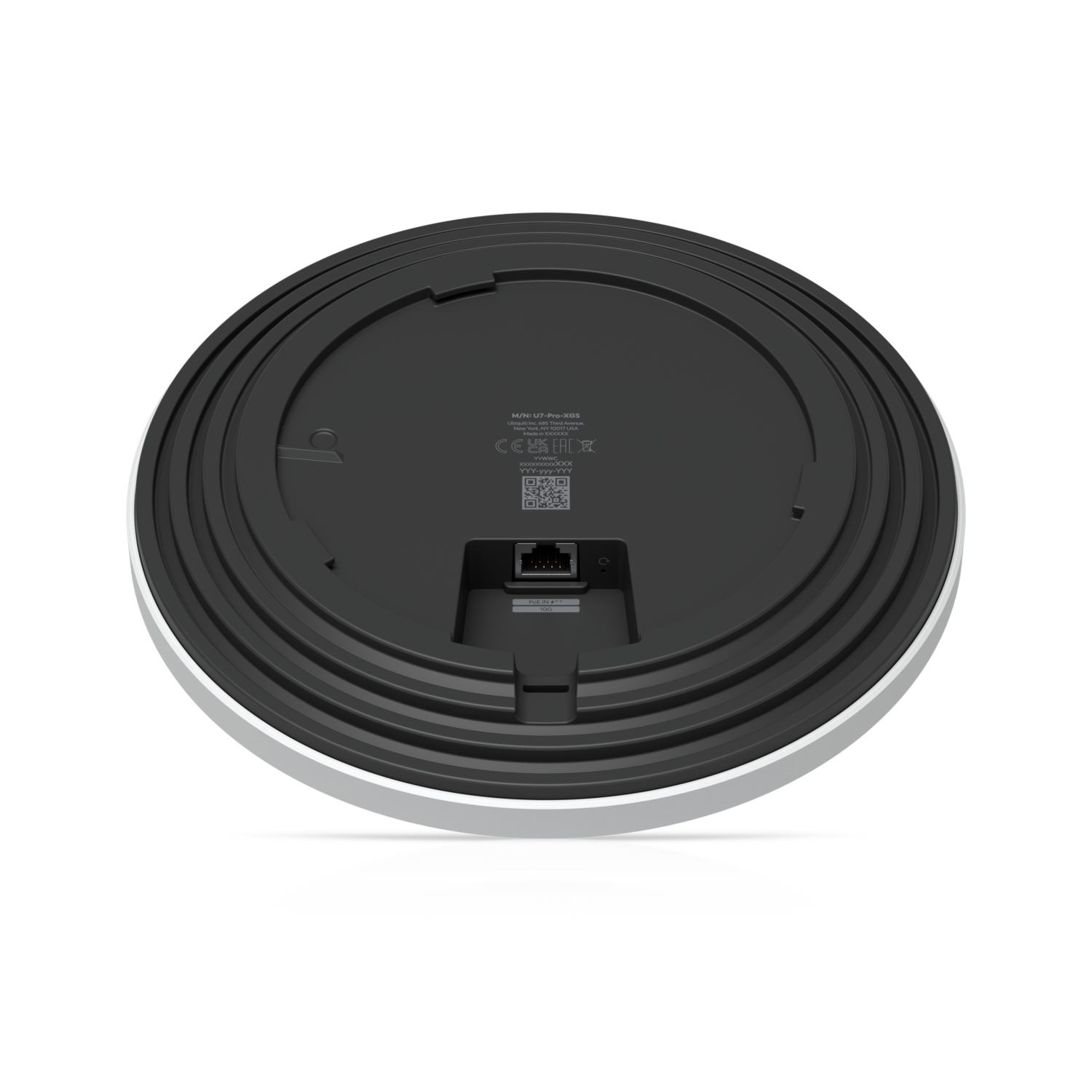

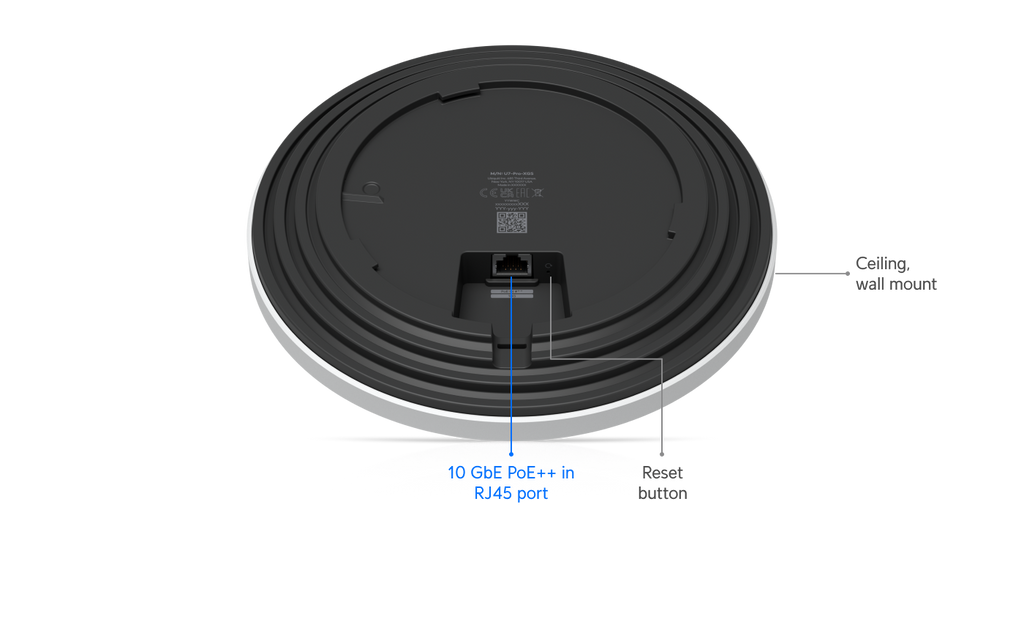

| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 800 g (1.8 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs — System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 05123-25-08356 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software

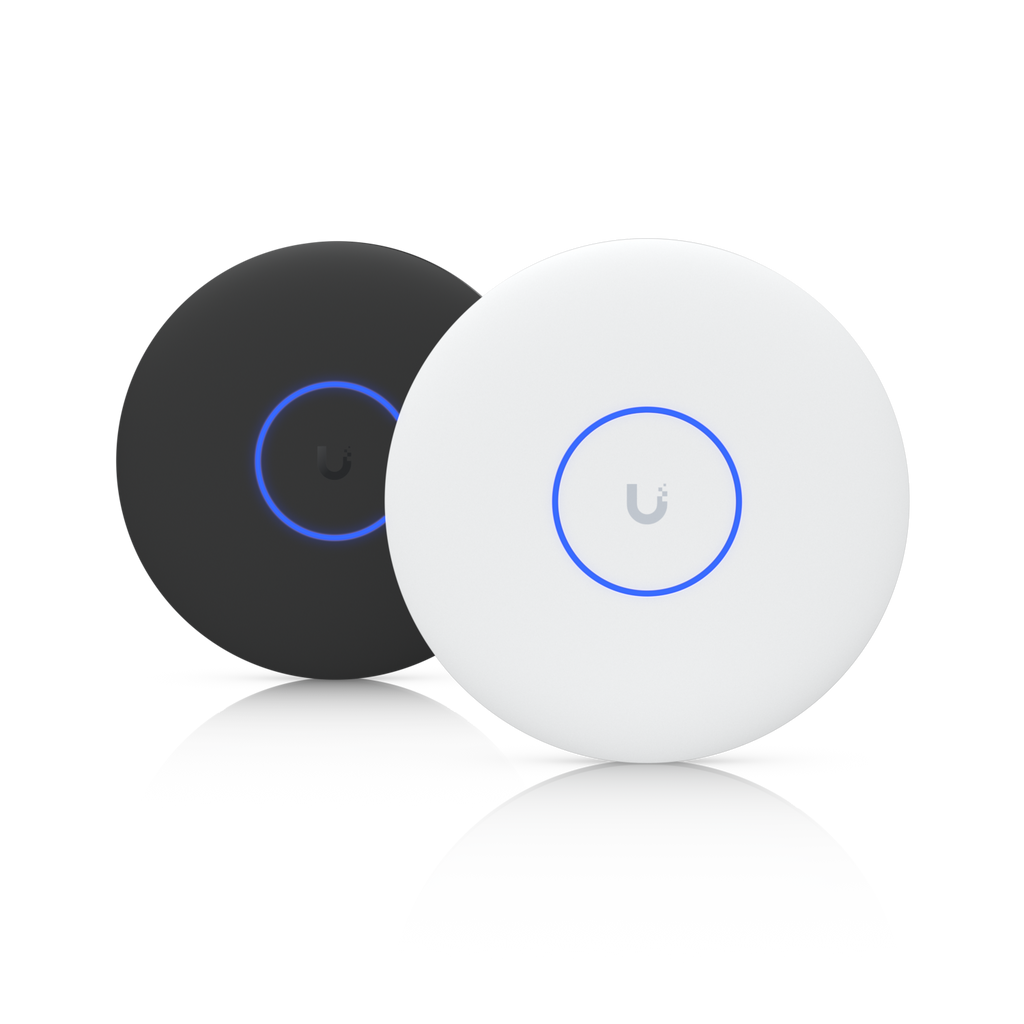

| Application Requirements — UniFi Network | Version 9.0.114 and later (U7 Pro XGS - White) Version 9.1.120 and later (U7 Pro XGS - Black) |
