Ubiquiti UA-G3-FLEX | UniFi Access Reader G3 Flex
White
$305.00
Ubiquiti UA-G3-FLEX | UniFi Access Reader G3 Flex
$305.00

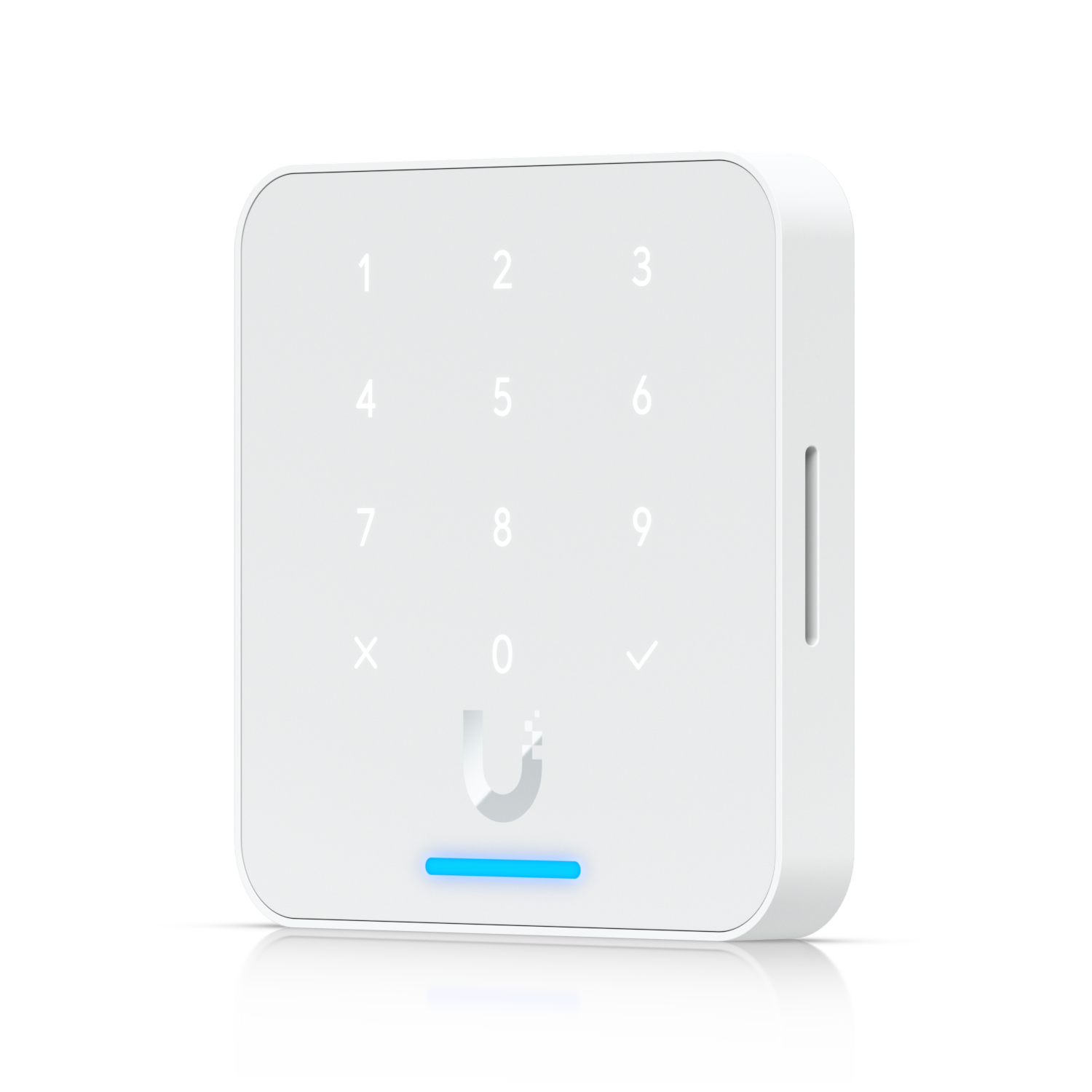

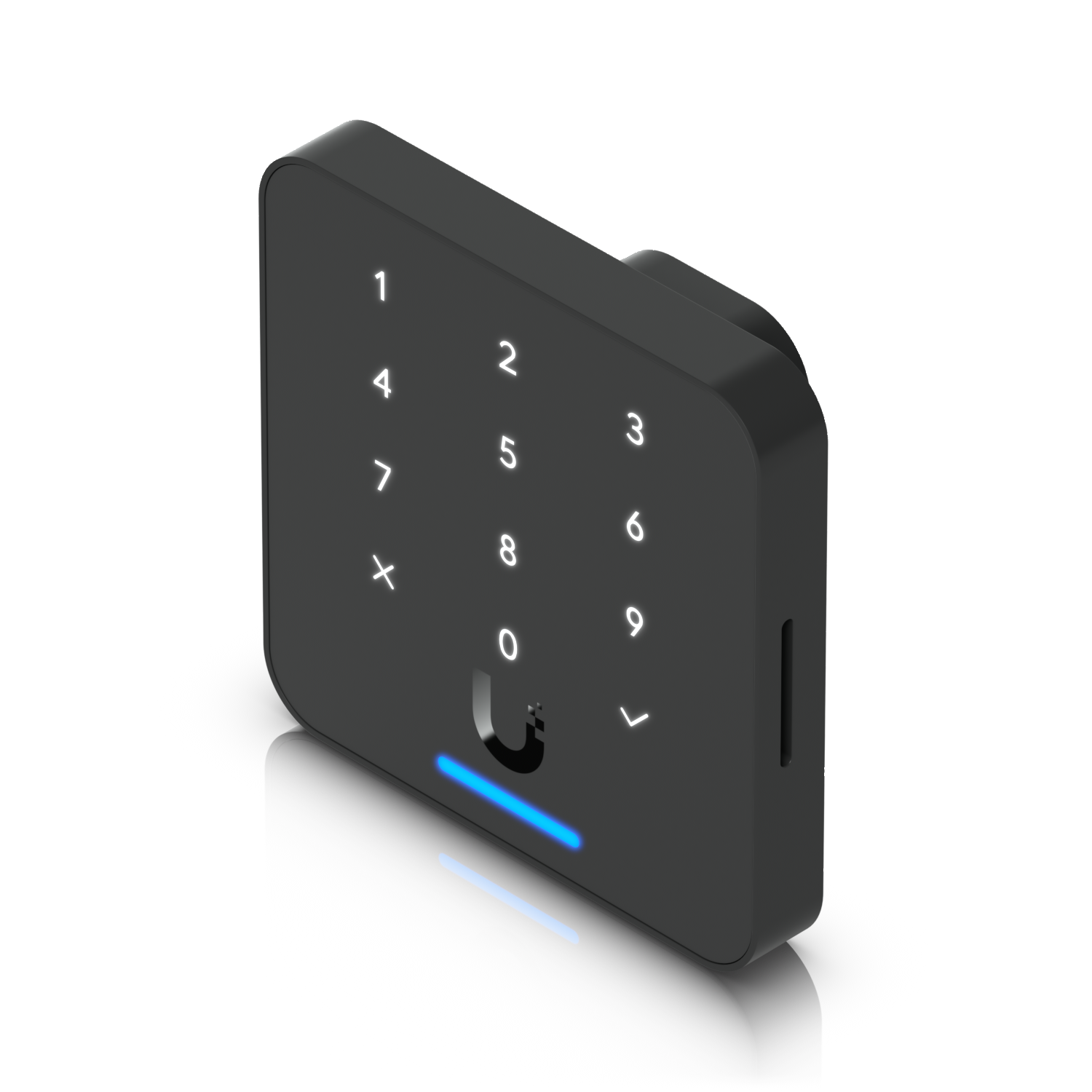

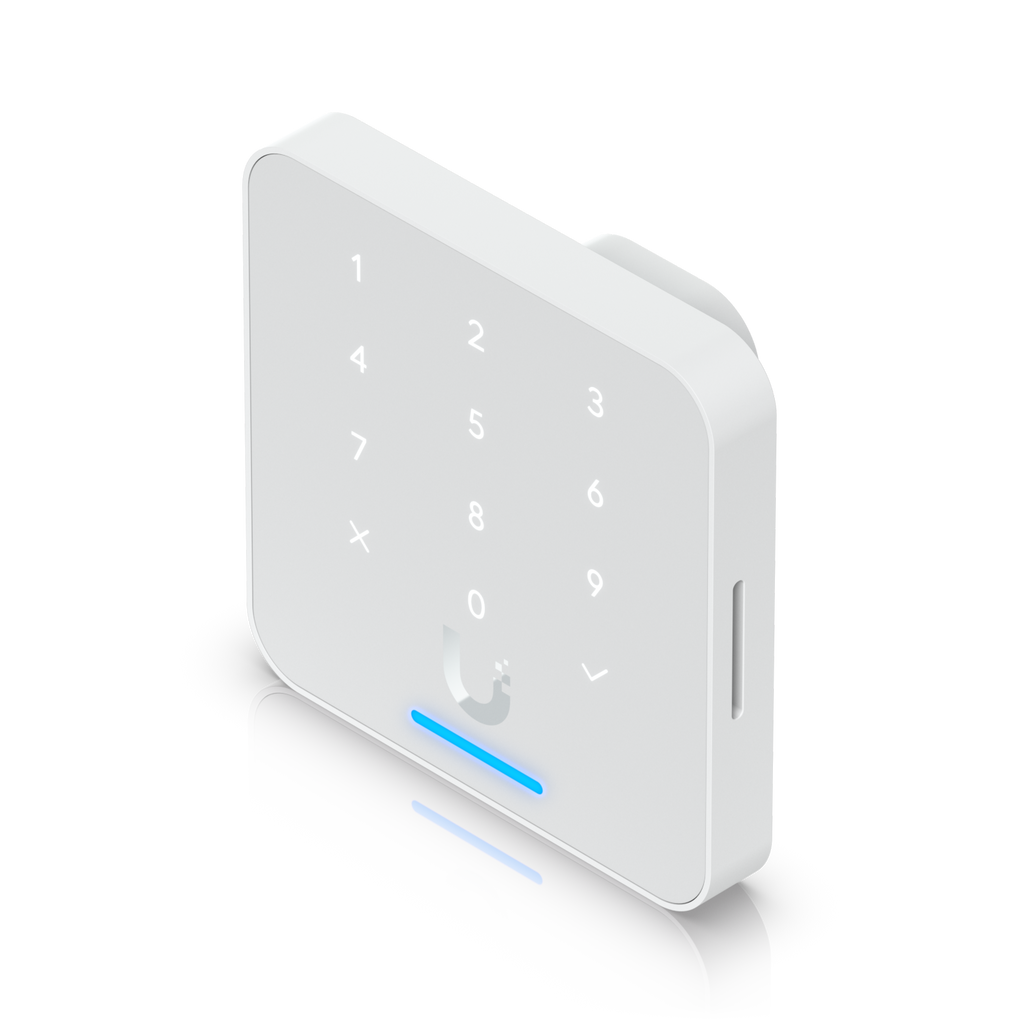

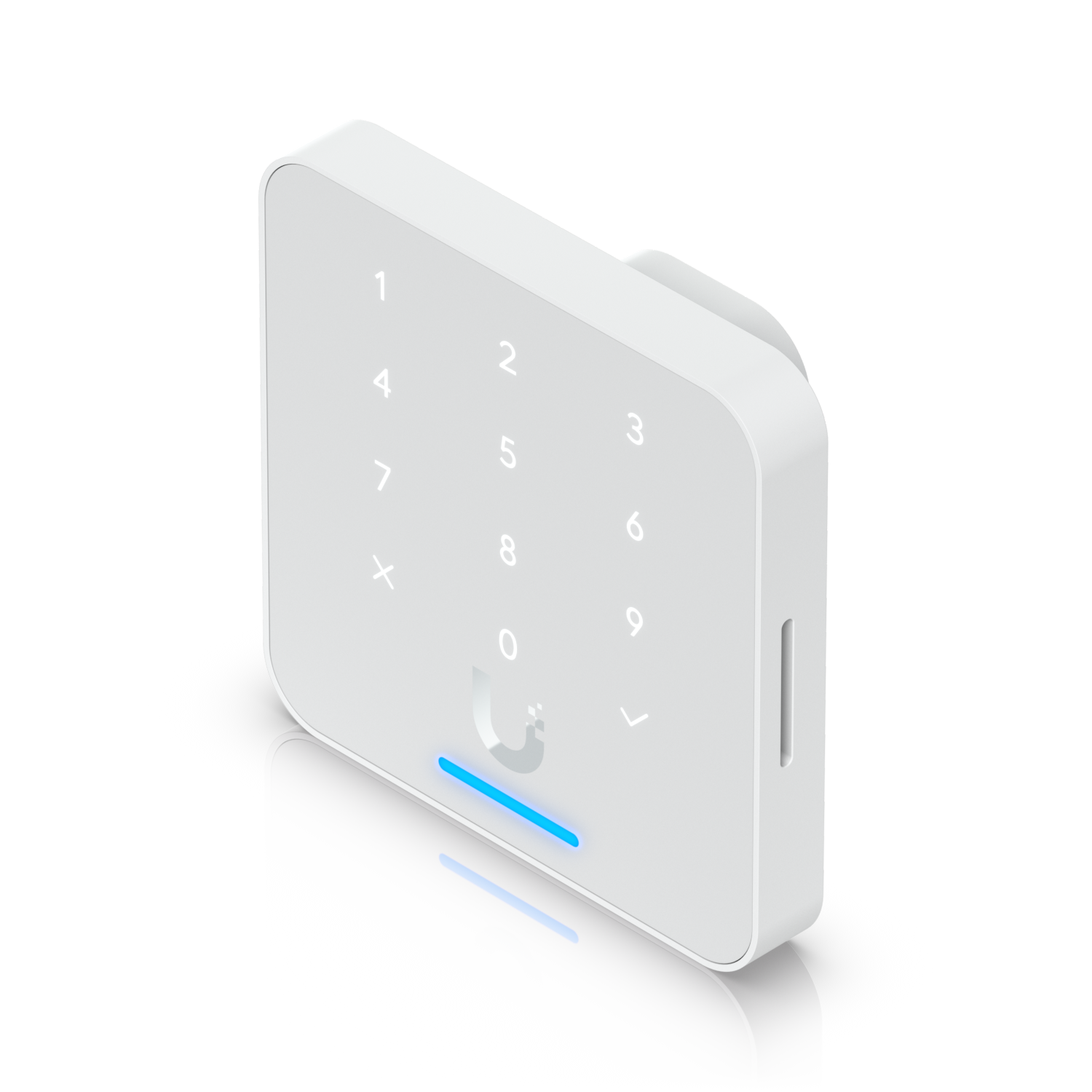

A third-generation NFC card reader with a PIN keypad for sites that need flexible credential options at an outdoor-rated entry point.
Why this one
- ECP 2.0 support means Apple Wallet passes work natively, so staff can tap in from an iPhone or Apple Watch without carrying a separate card.

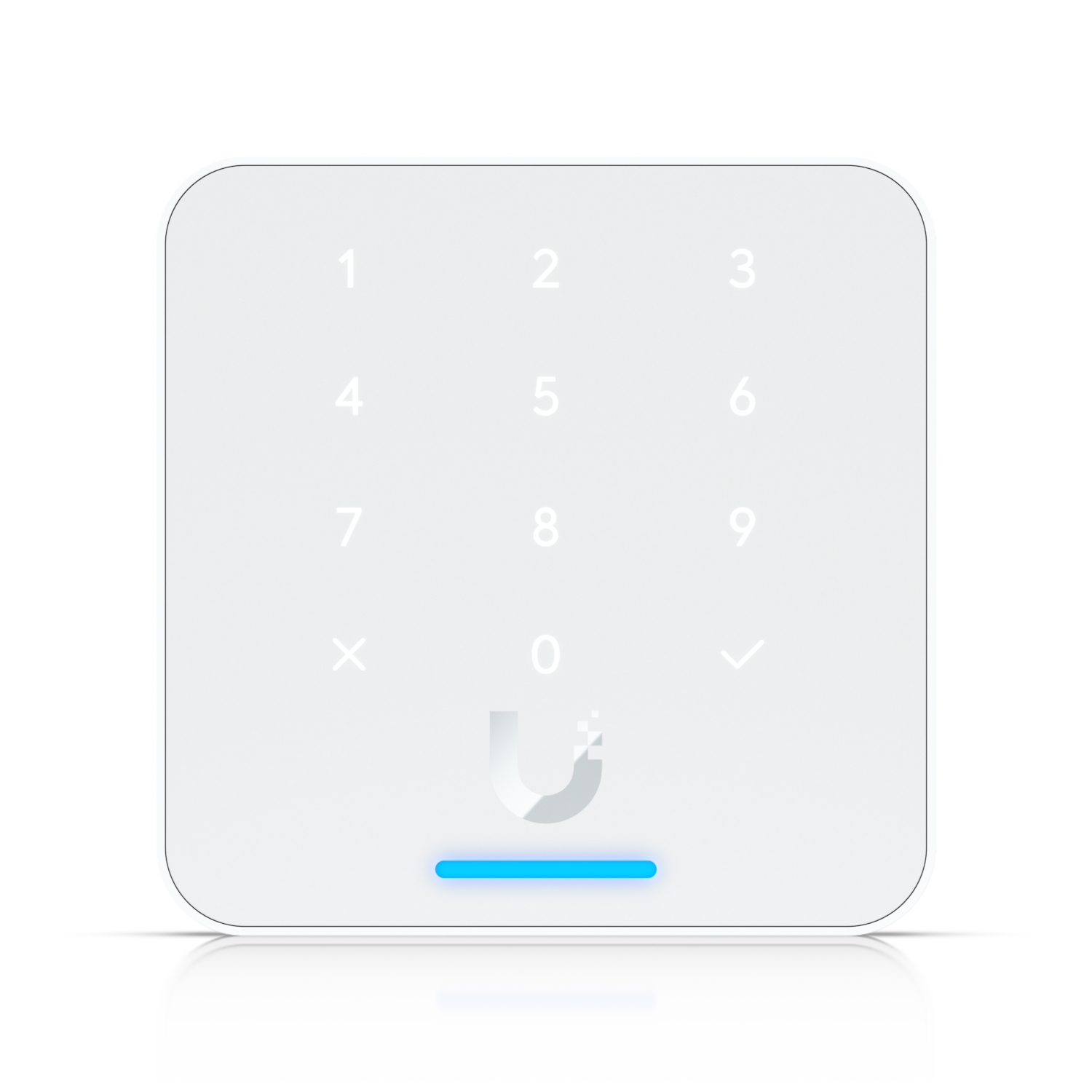

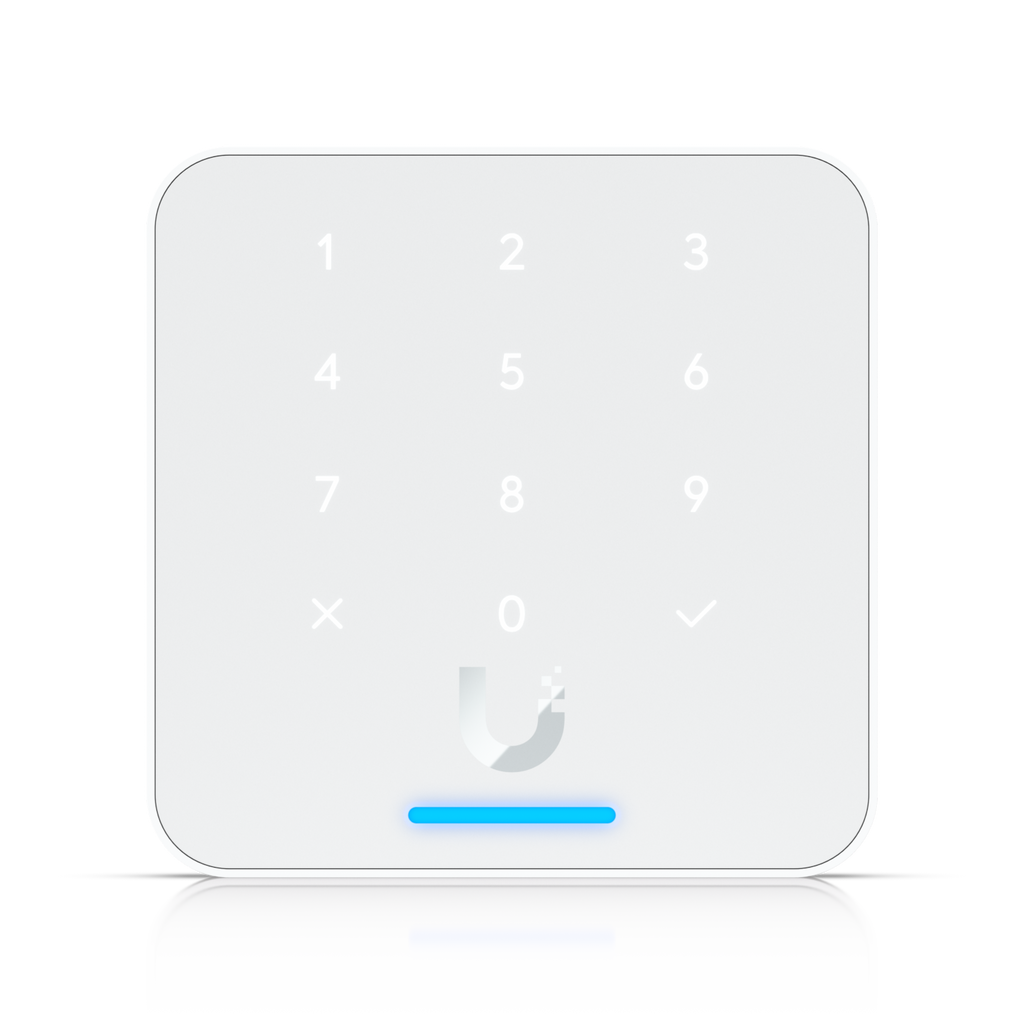

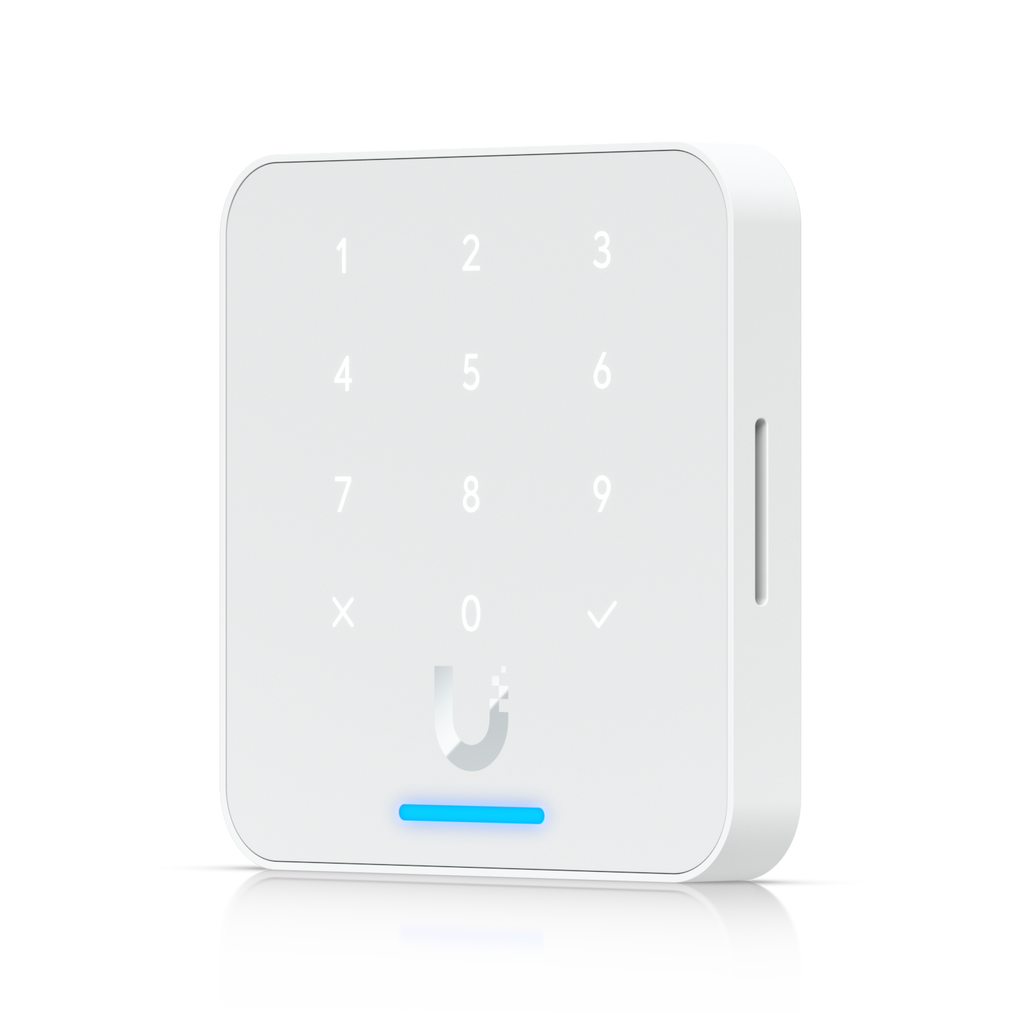

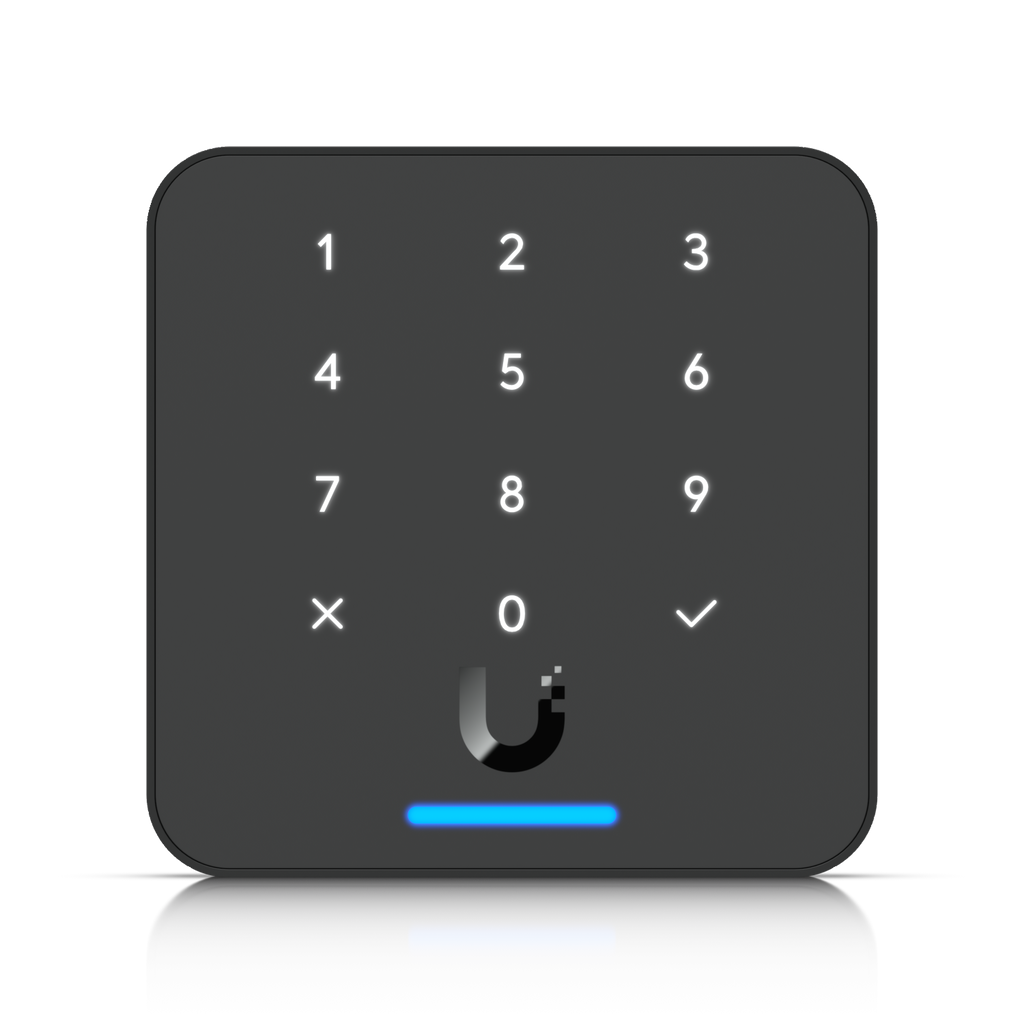

- The 12-button capacitive keypad adds PIN entry as a second factor or standalone credential — useful where card issuance isn't practical for every user.

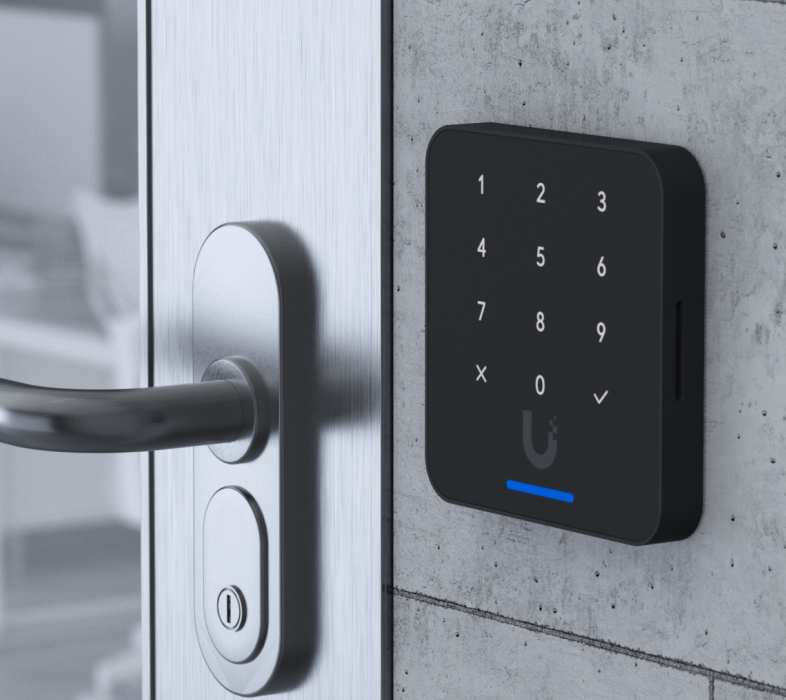

- IP55 weatherproofing and a –30 to 60 °C operating range mean it mounts directly to an external wall without a protective housing.
- At 5W draw over standard PoE, it runs from any 802.3af-capable port on a UniFi switch — no separate power run to the door frame.

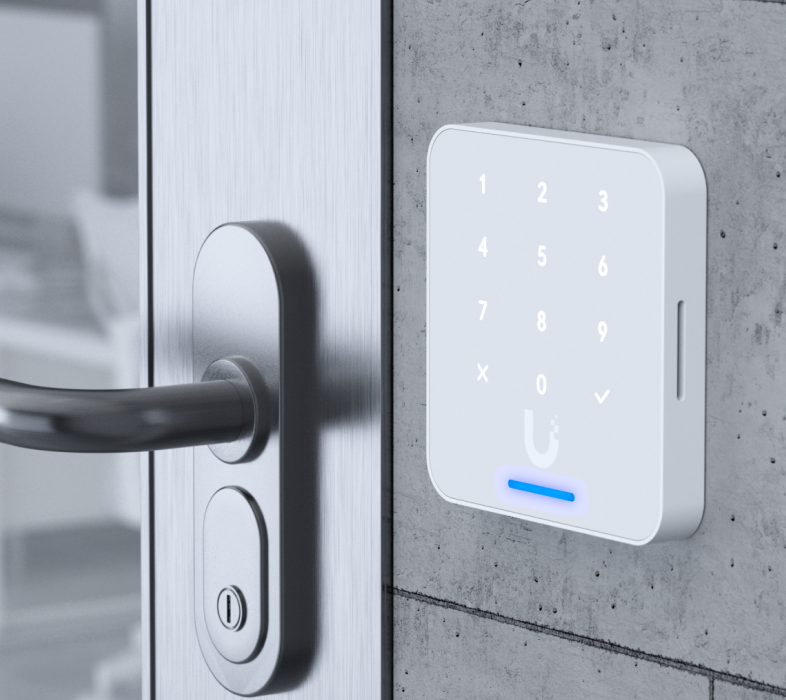

Good fit if you're running UniFi Access and need a door reader that handles NFC cards, Apple Wallet, and PIN entry at an outdoor or semi-exposed location.
Worth considering something else if you need a reader with a camera for visual identity verification at the entry point — the UA-G3-PRO (UA-G3-PRO-B or UA-G3-PRO-W) adds a built-in camera to the same form factor.
What you'll also need

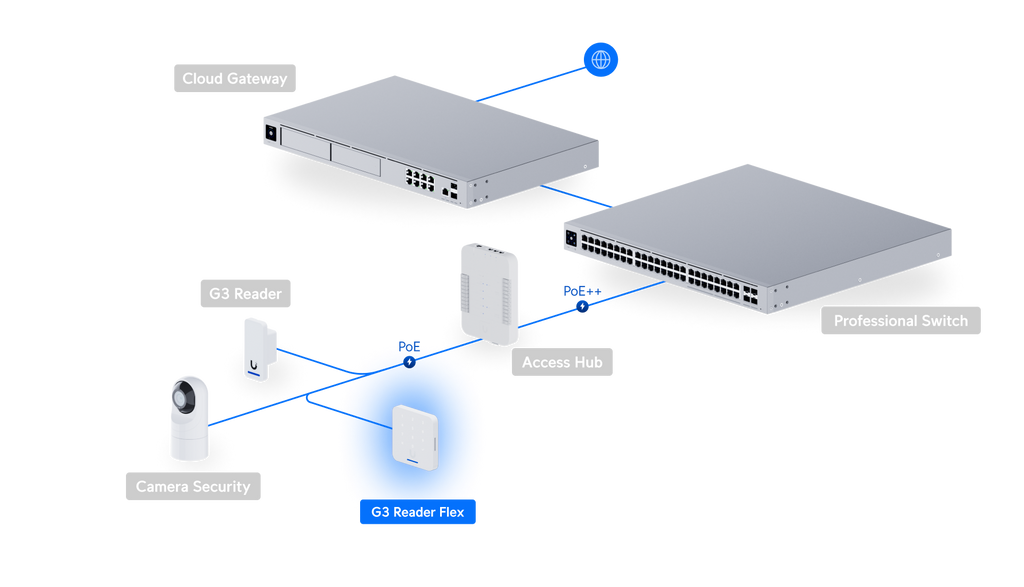

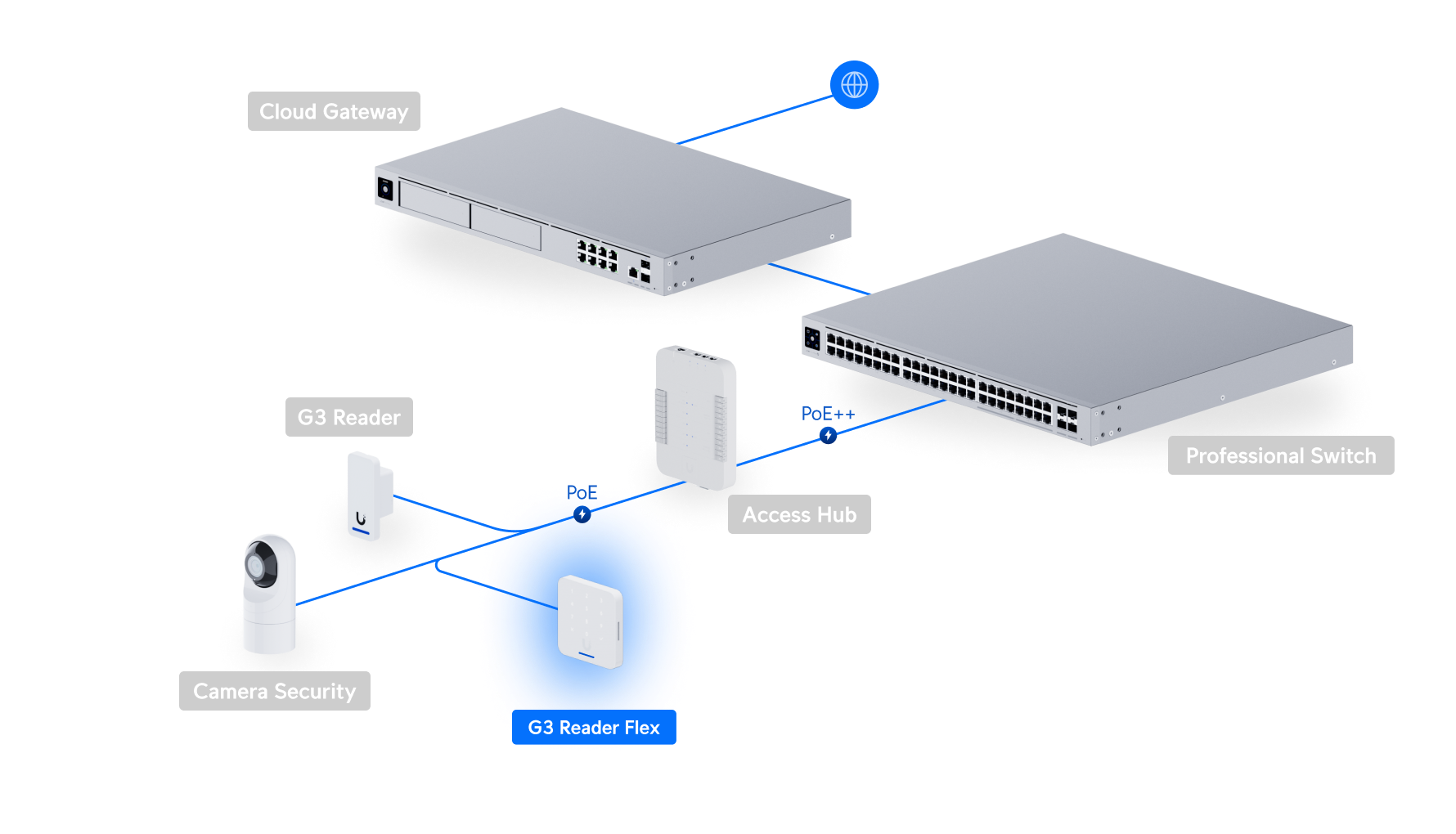

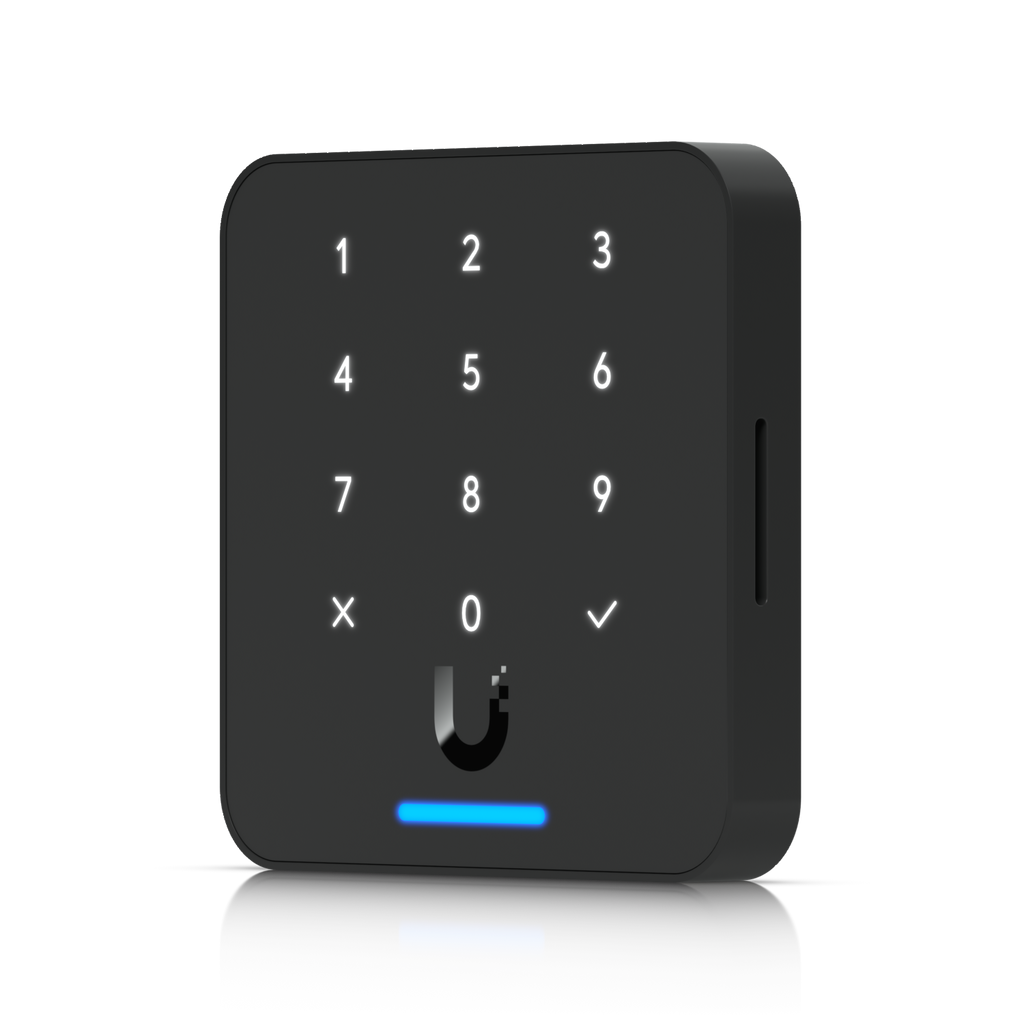

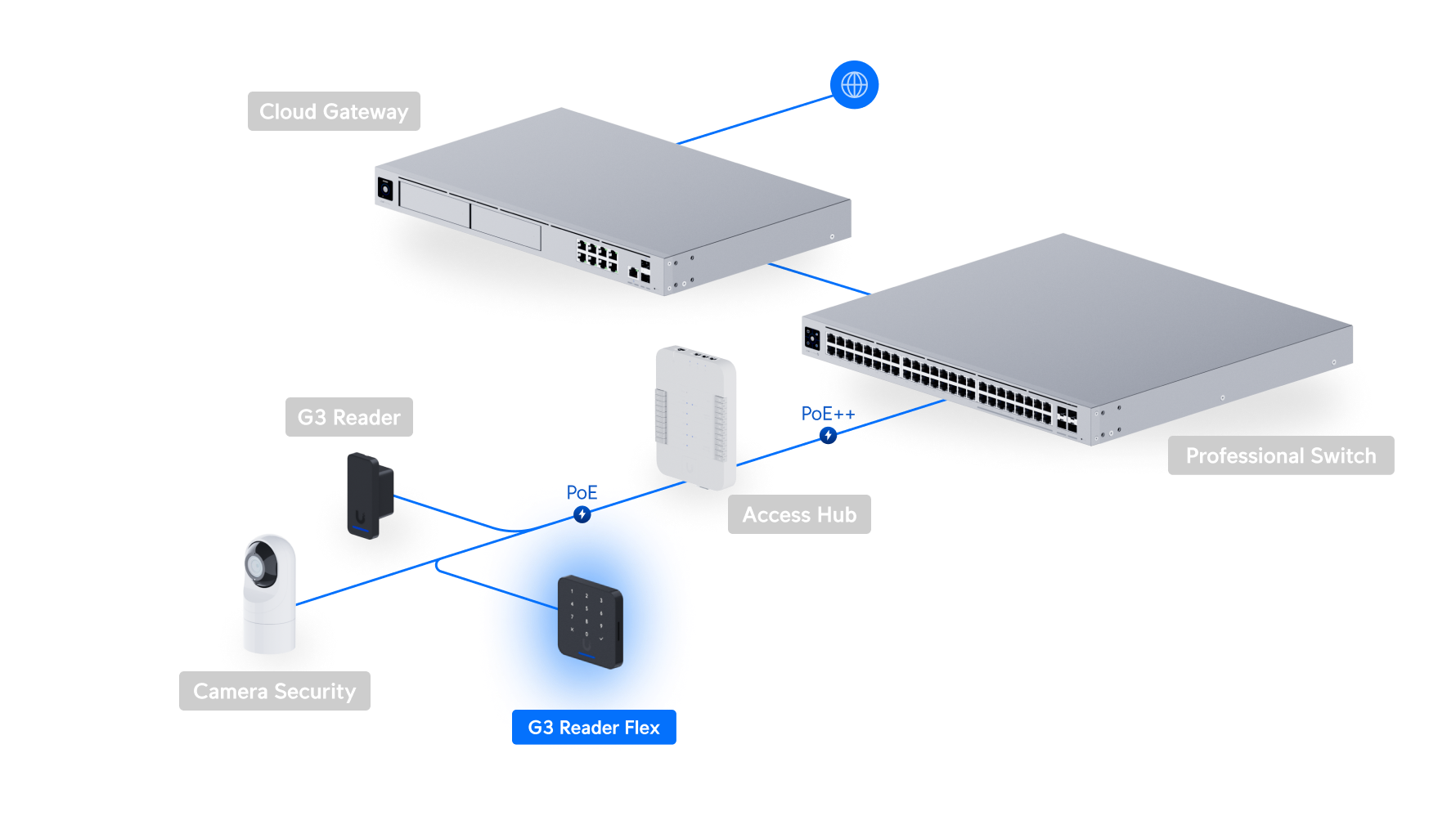

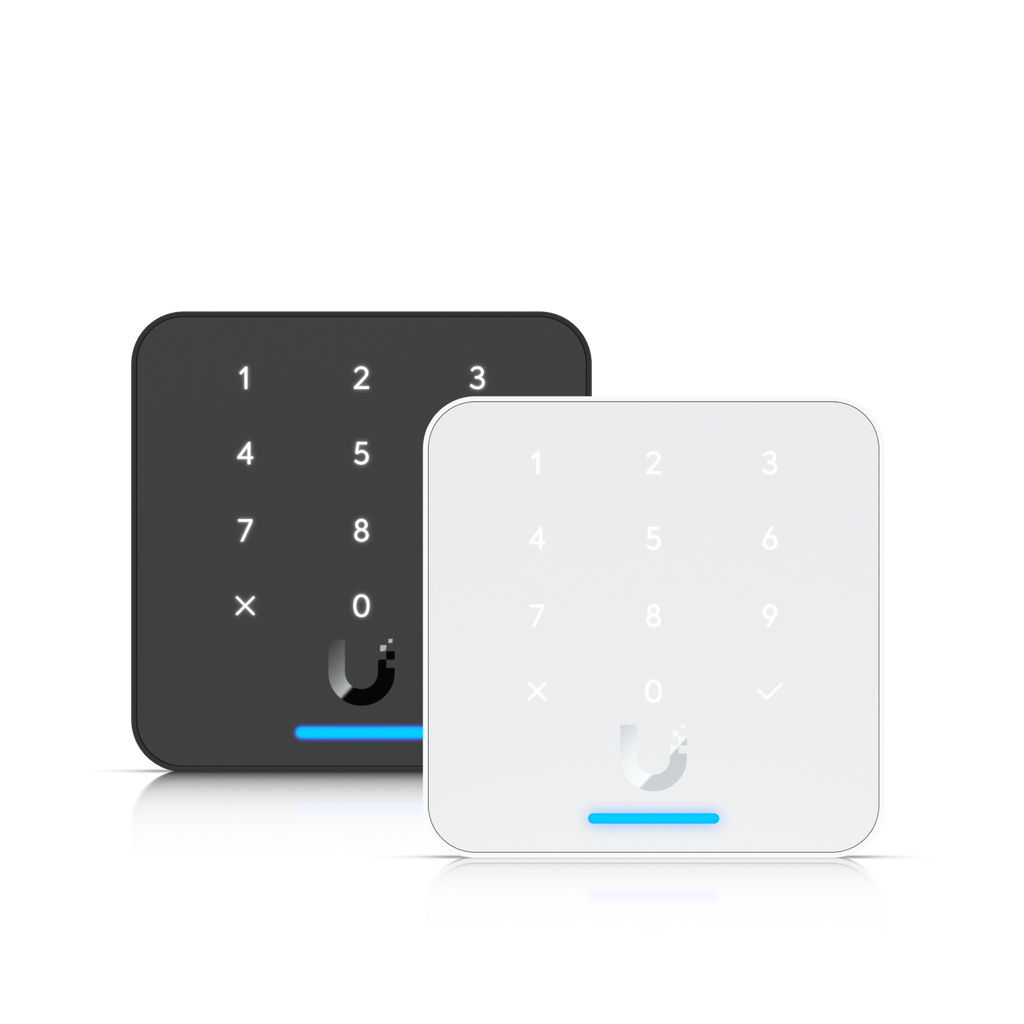

A UniFi Access hub or UA-G2-SK/UA-G3-SK starter kit to manage door control, a PoE switch or injector, Cat5e or better to the mounting point, and an electric strike or magnetic lock for the door itself. Available in white or black.
Technical specifications
Overview

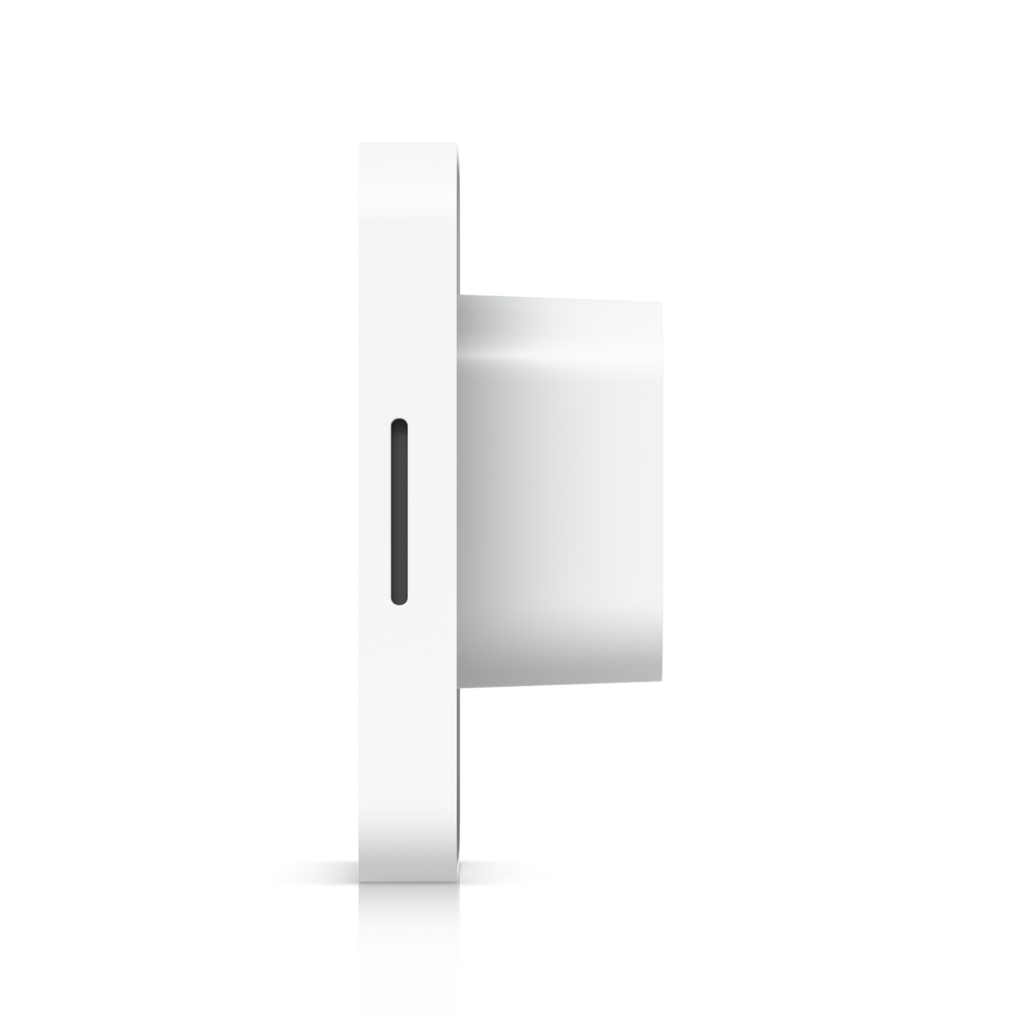

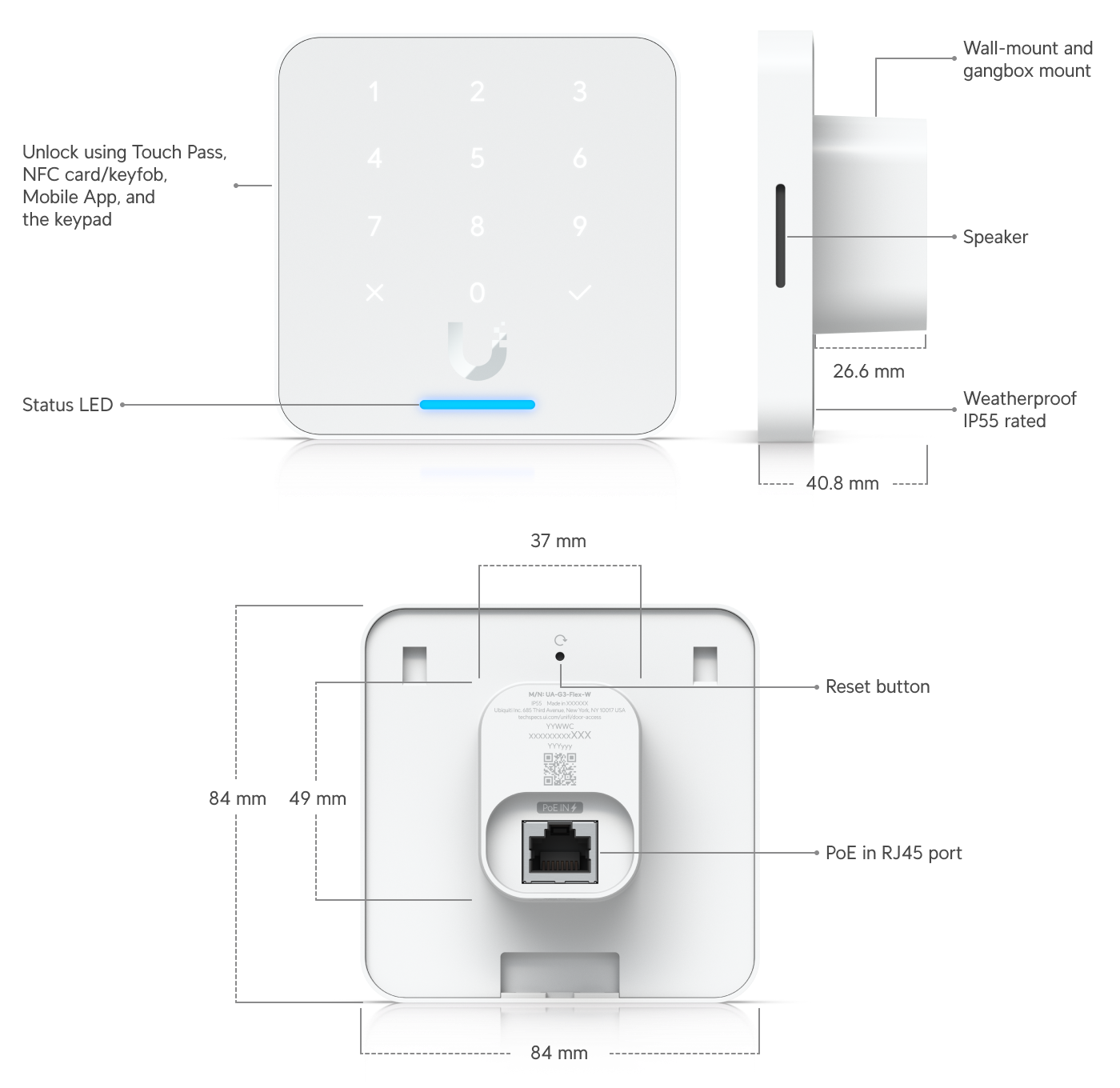

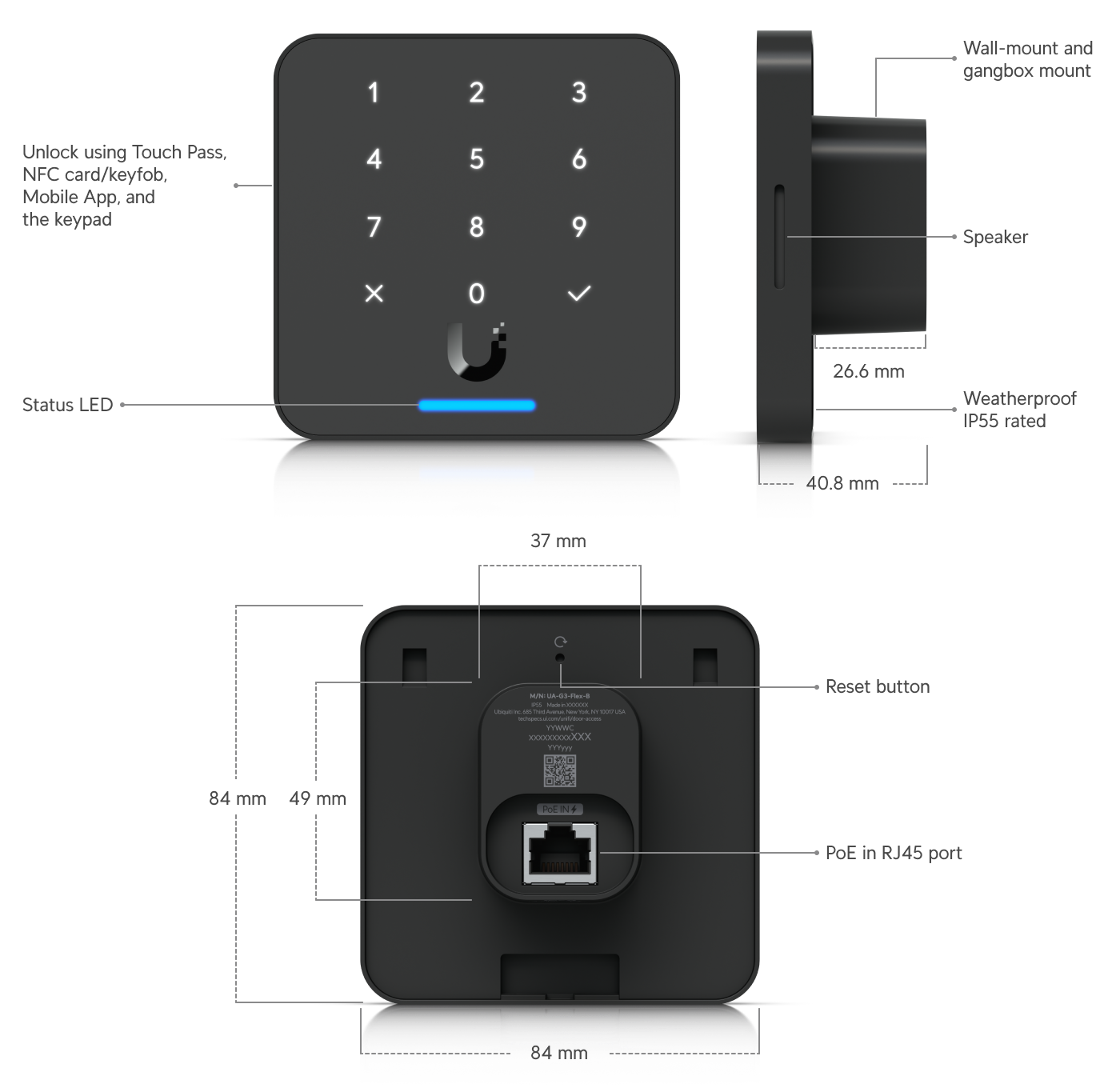

| Dimensions | 84 x 84 x 40.8 mm (3.3 x 3.3 x 1.6") |
| UniFi Application Suite | Access |
| Weatherproofing | IP55 |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
Mechanical
| Weight | 165 g (5.8 oz) |
| Enclosure Material | Polycarbonate, glass, aluminium alloy |
| Mount Material | Polycarbonate, aluminum alloy |

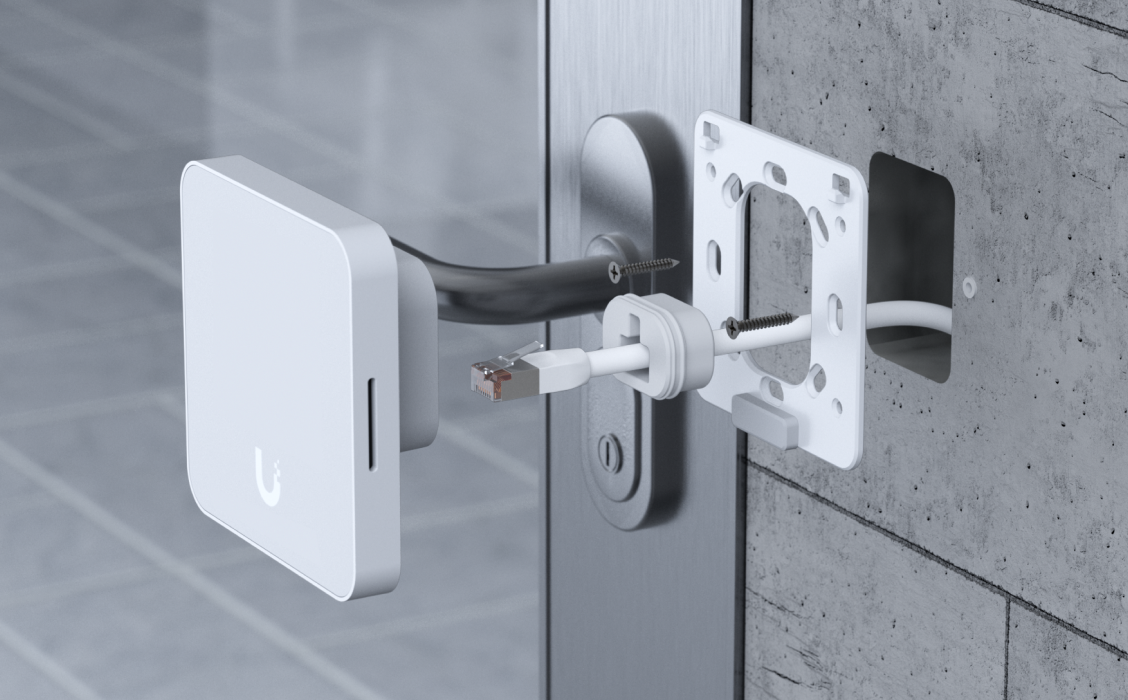

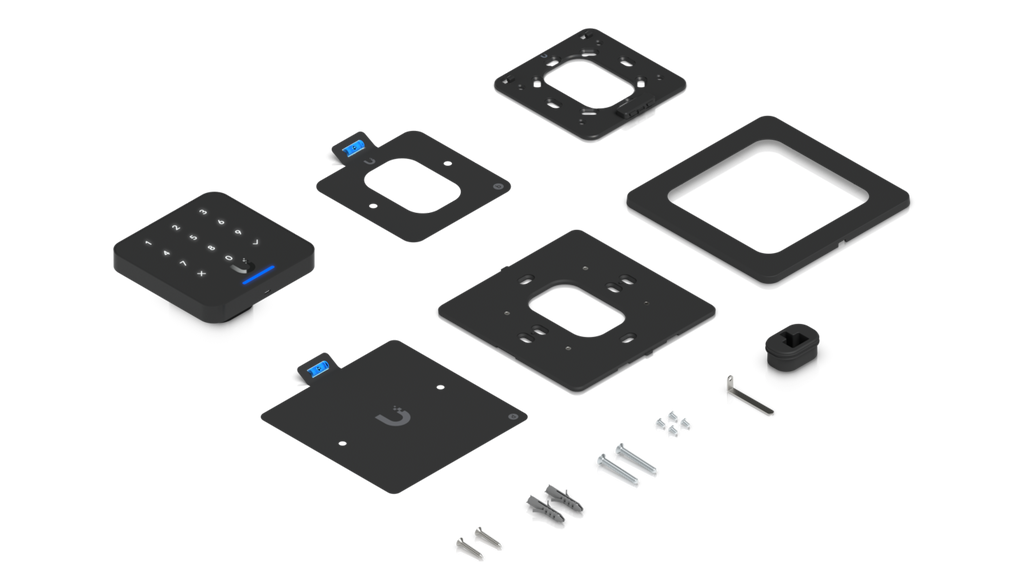

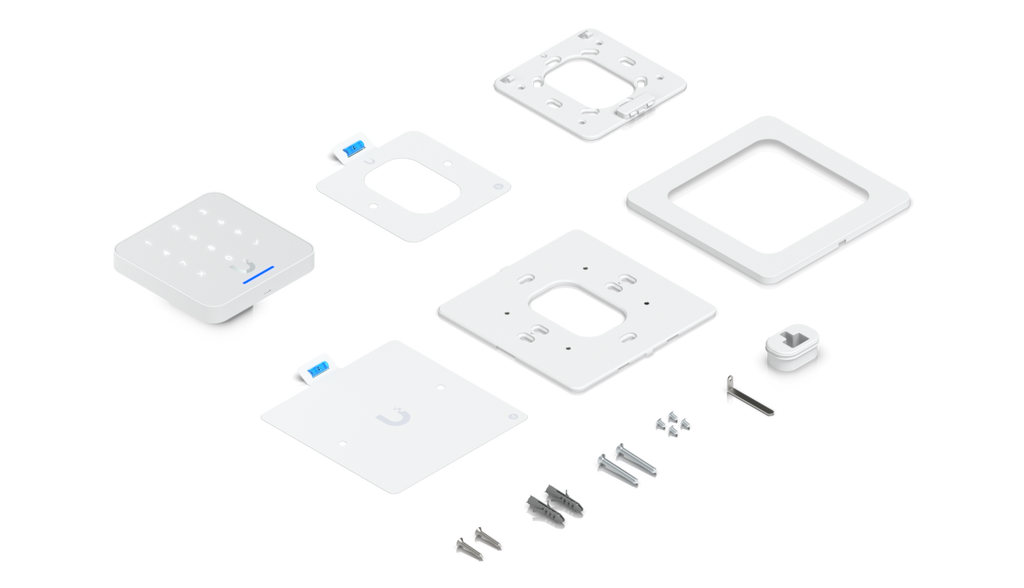

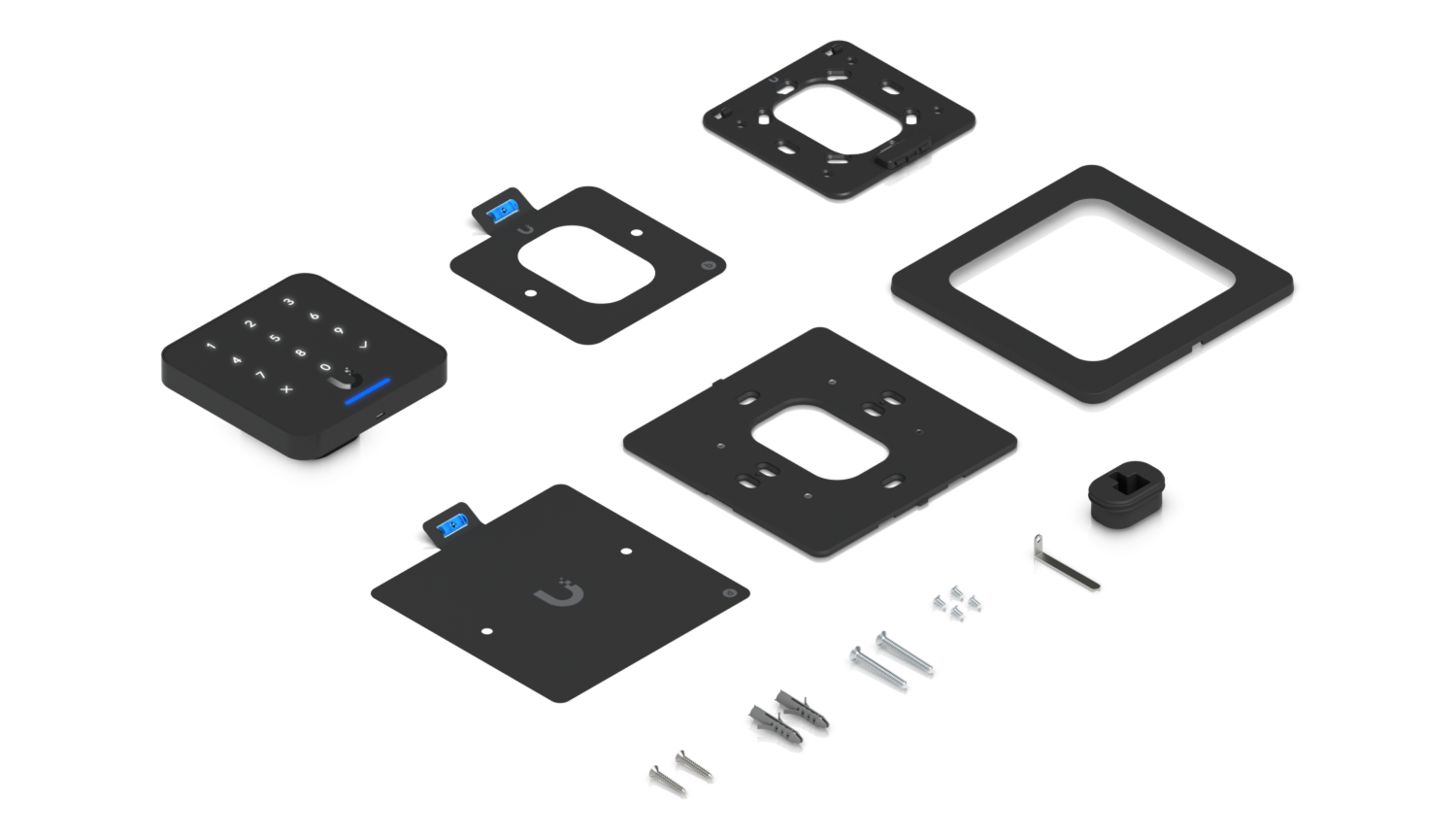

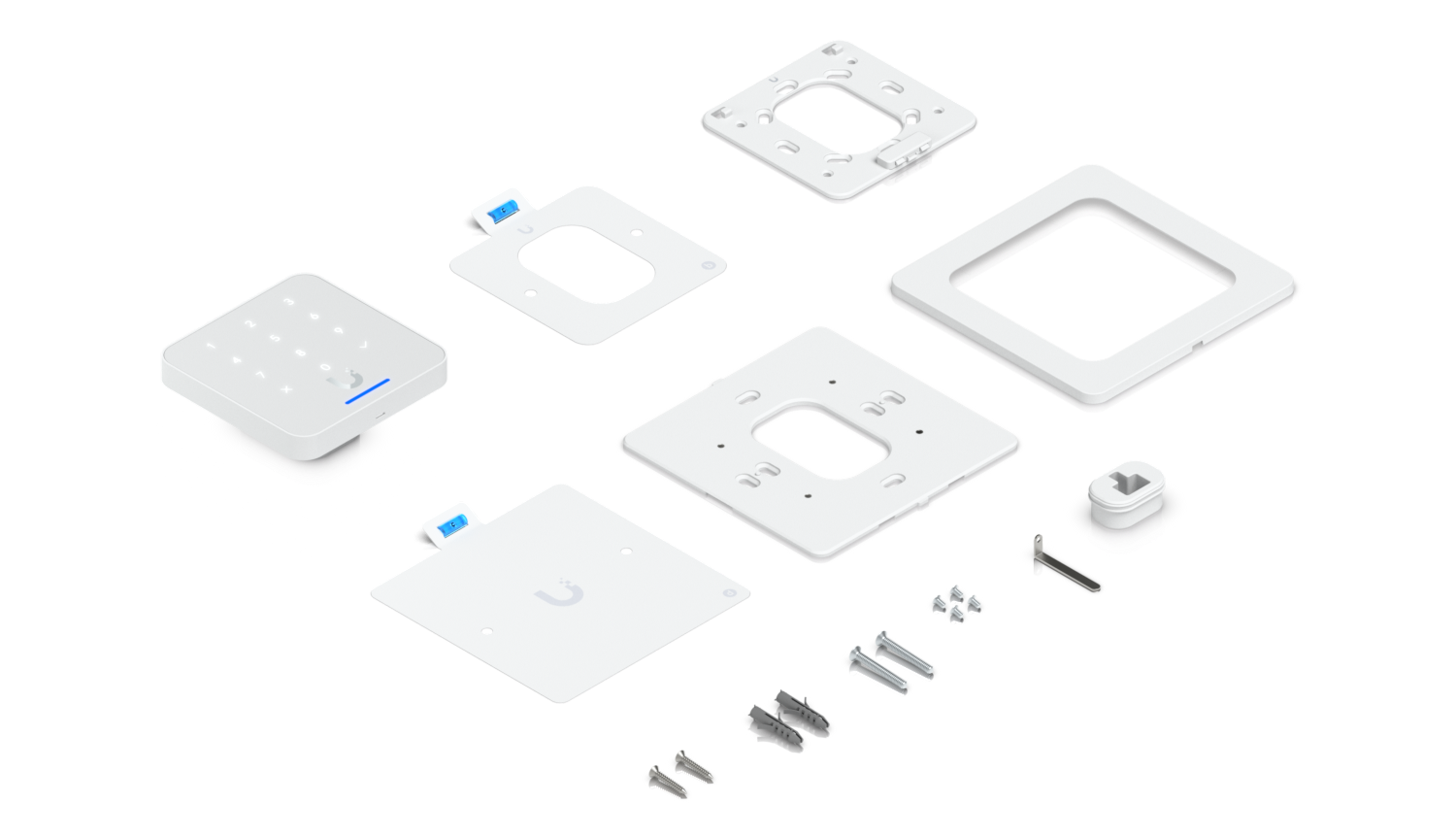

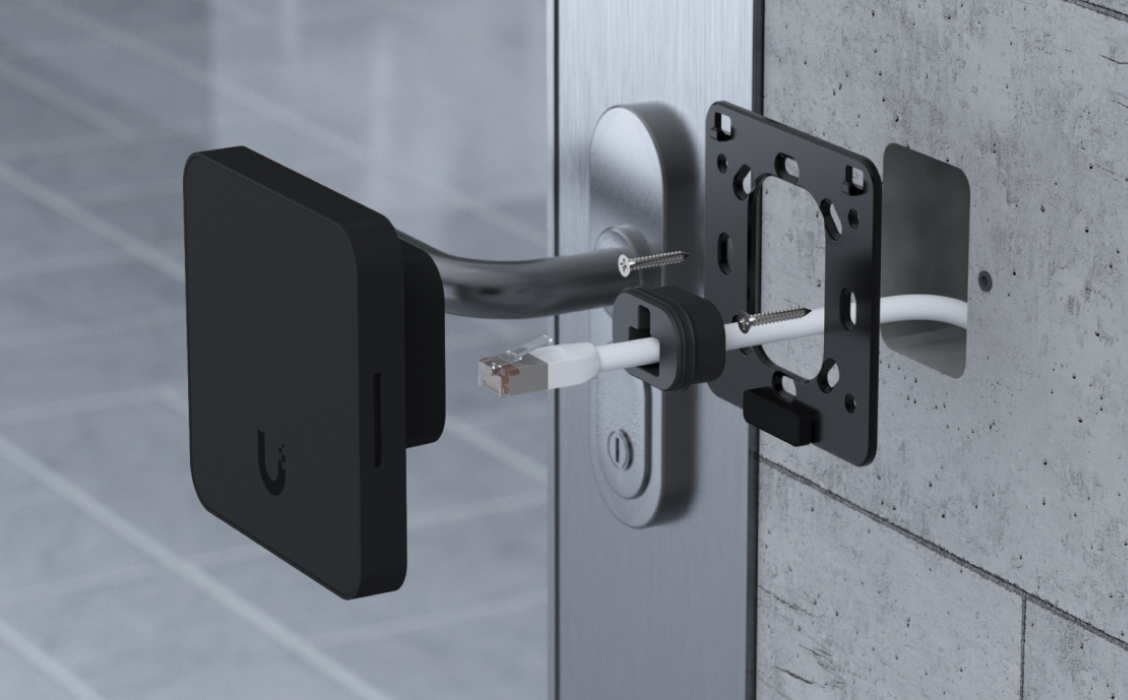

| Mounting | Wall (Included) Gang-box, junction box (Optional) |
Hardware
| Indoor and Outdoor Use | Yes |

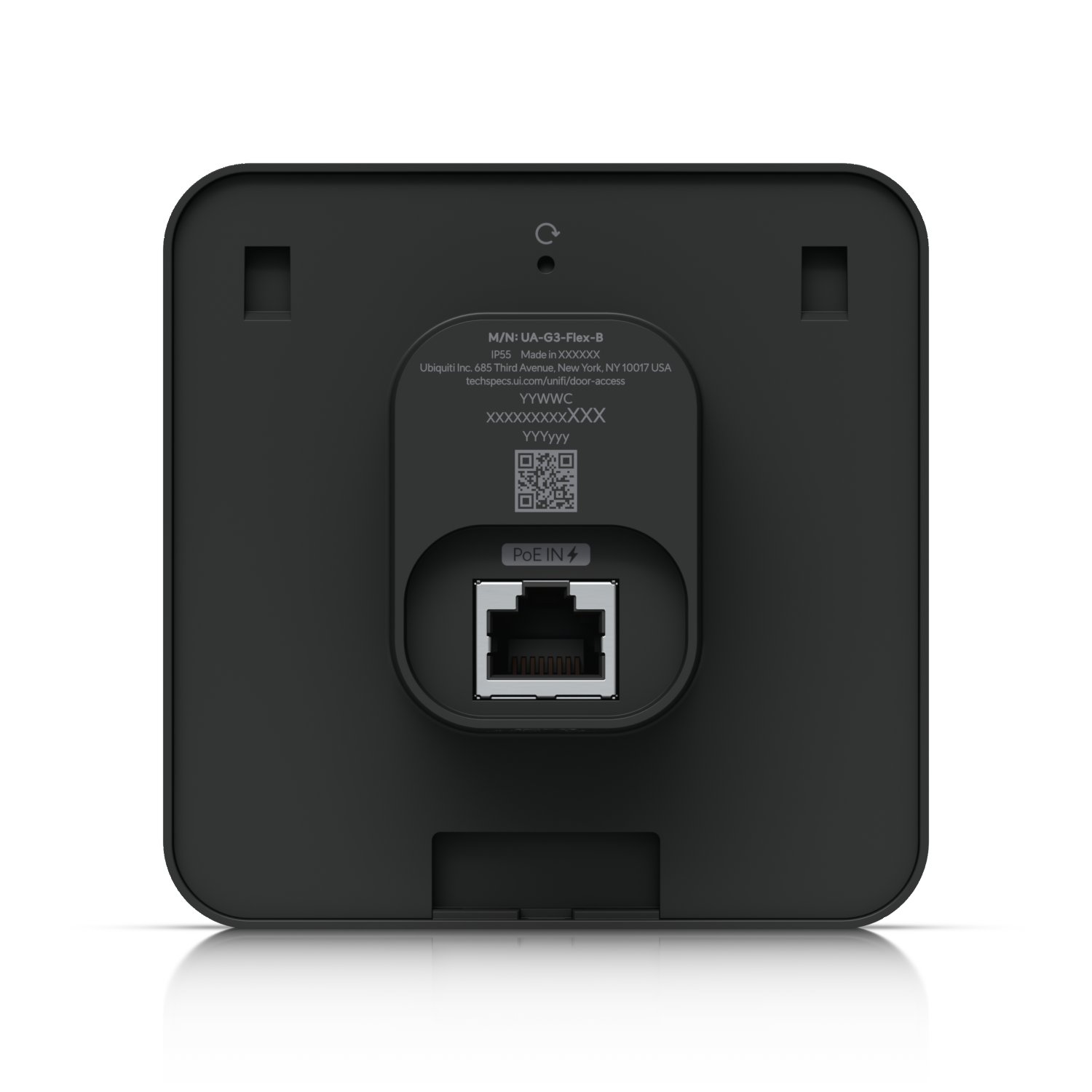

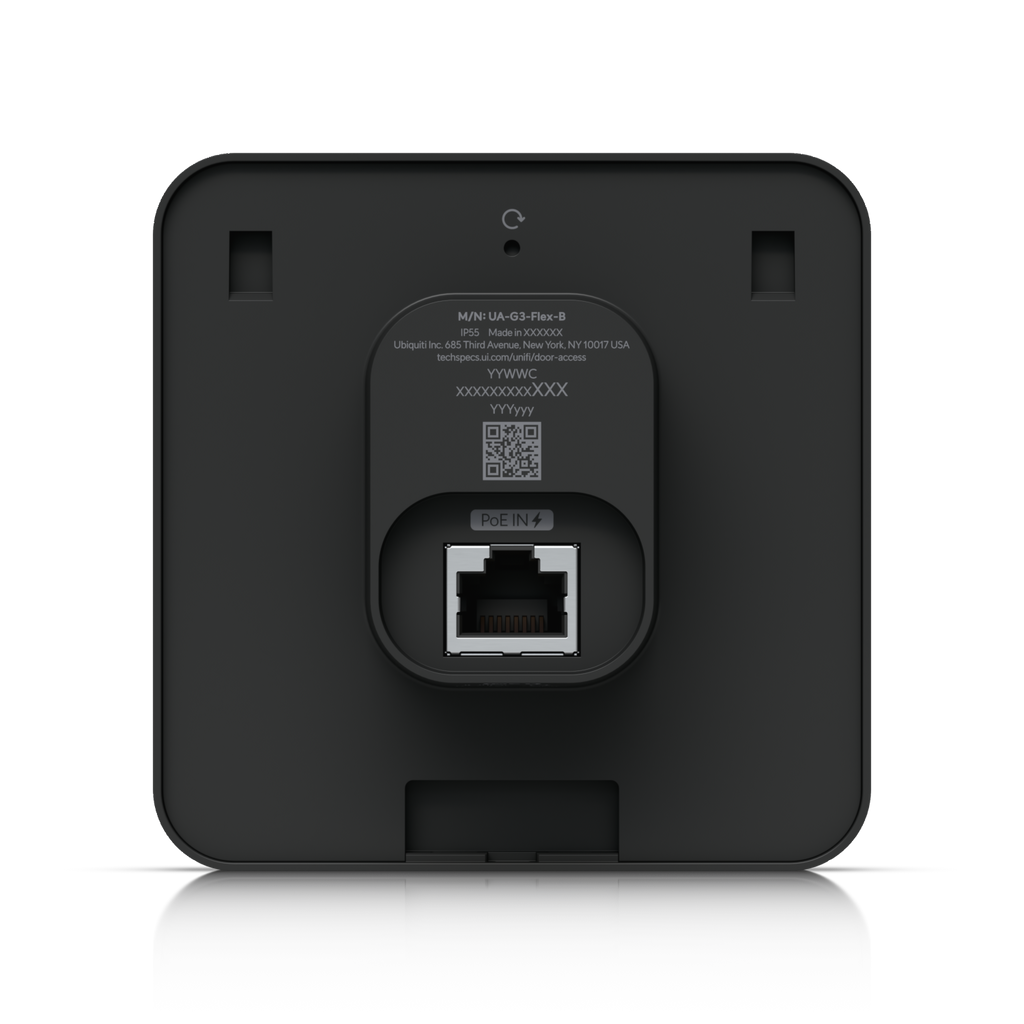

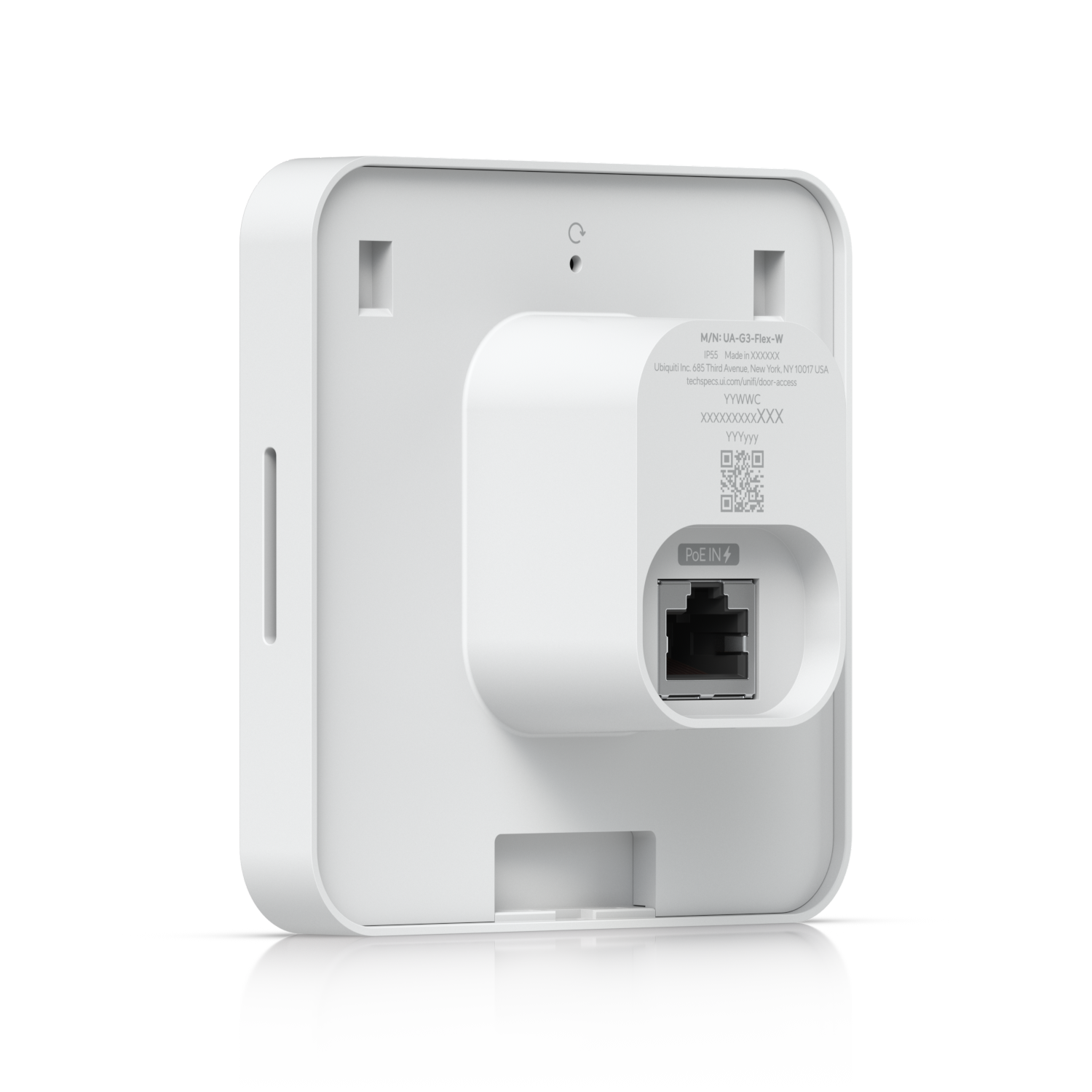

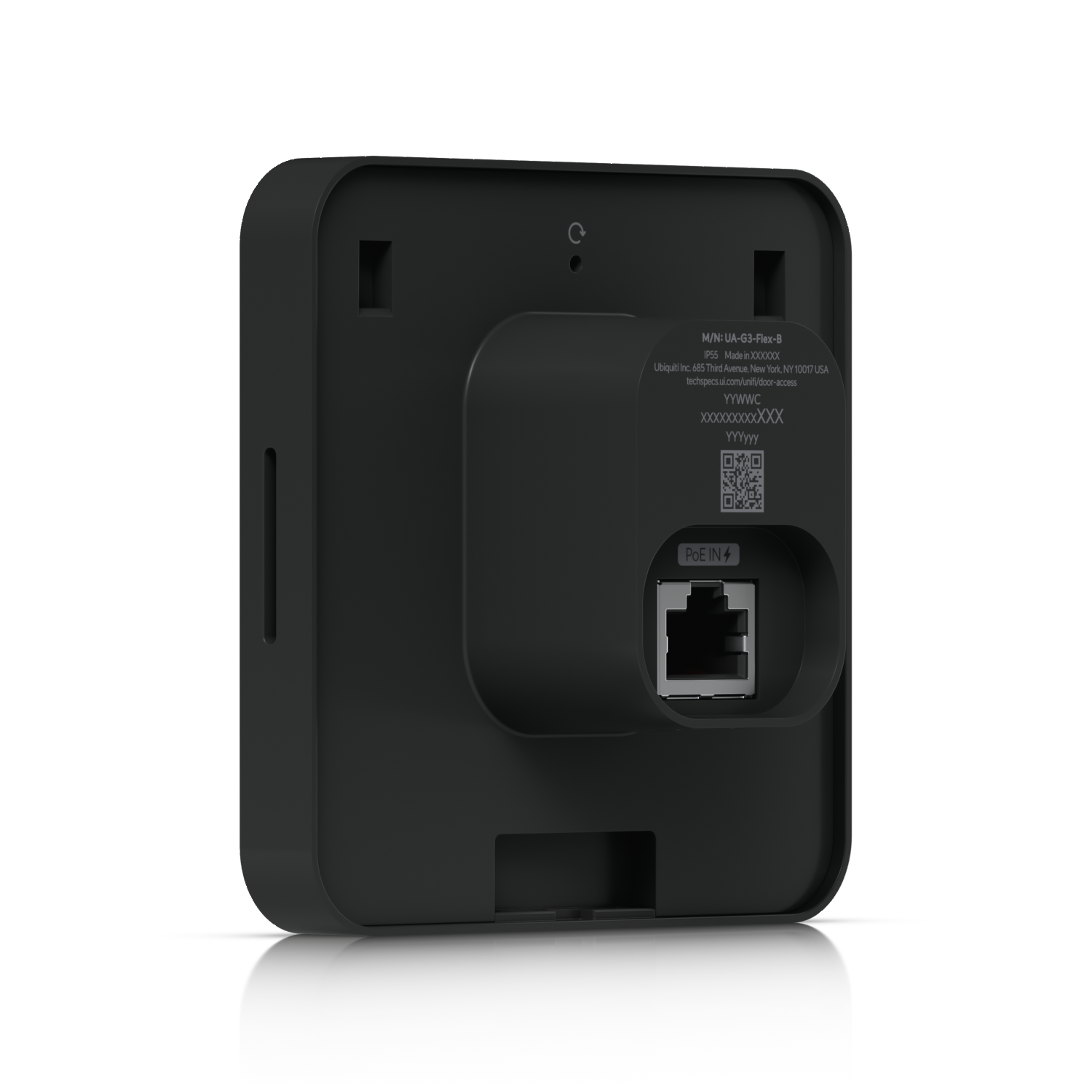

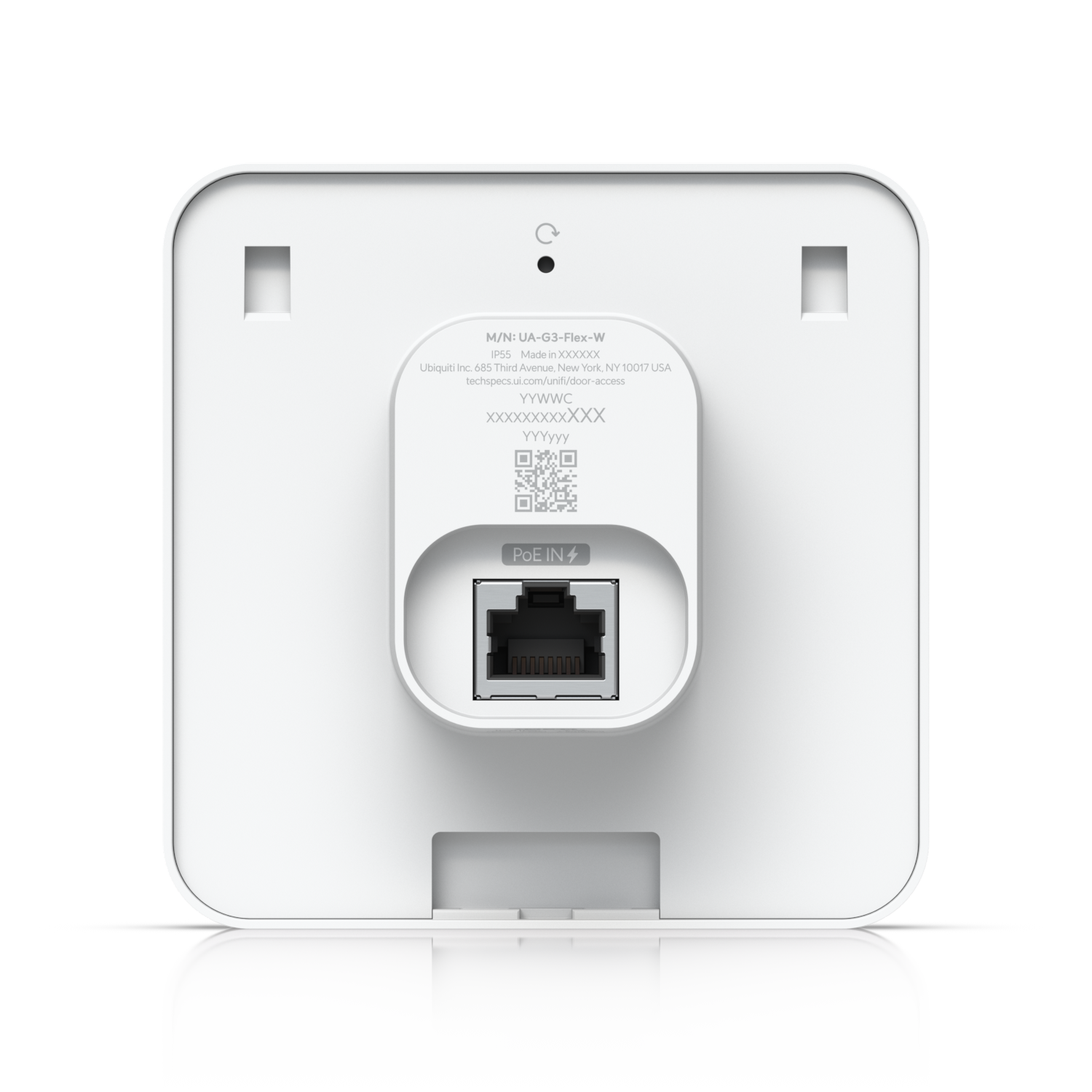

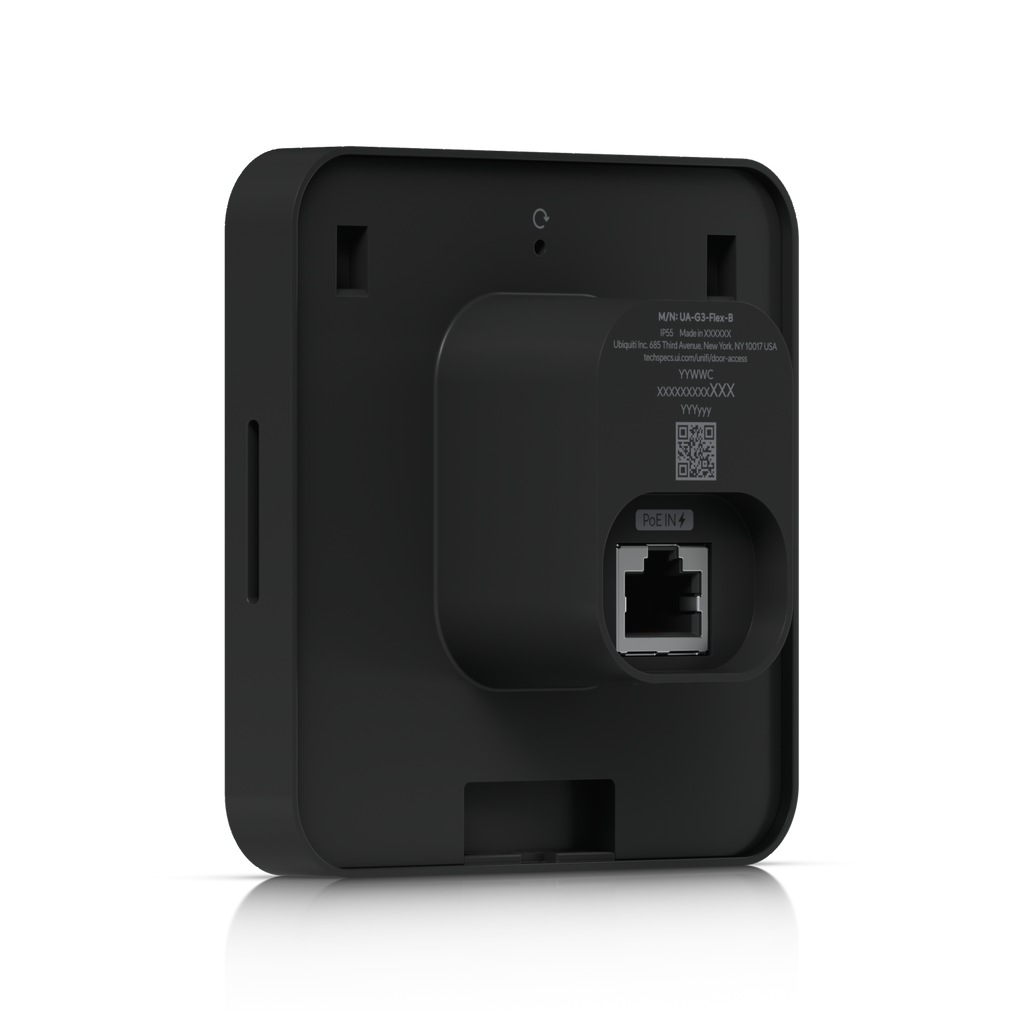

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.1 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 5W |
| Supported Voltage Range | 44–57V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Sensors | (12) Capacitive buttons |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |

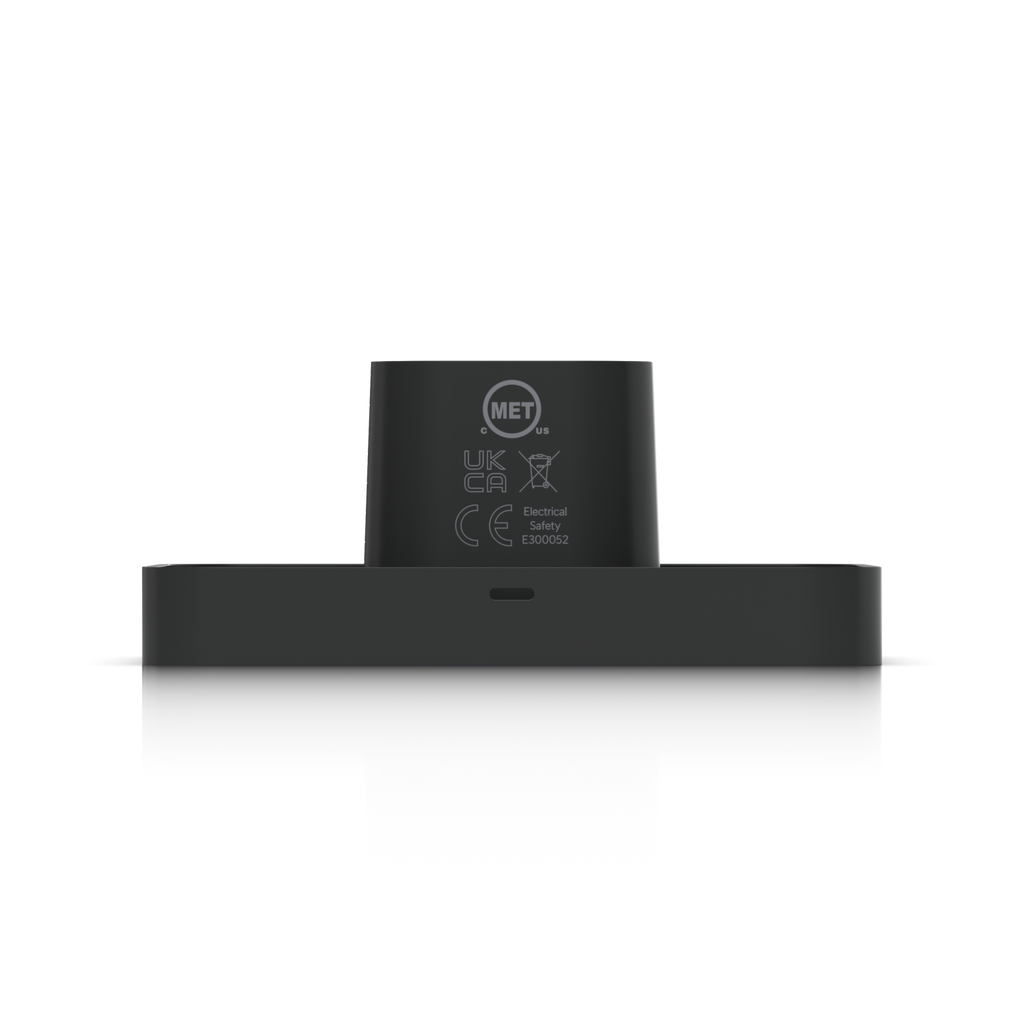

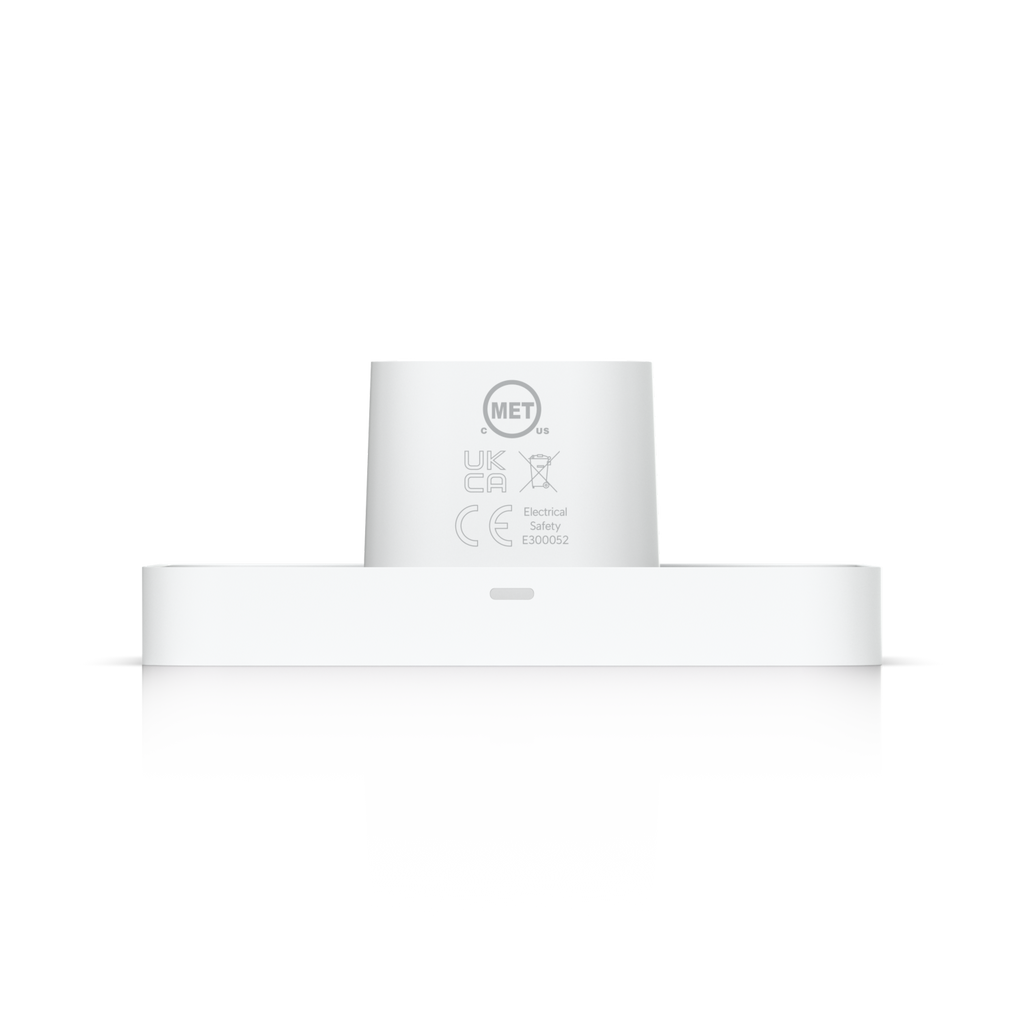

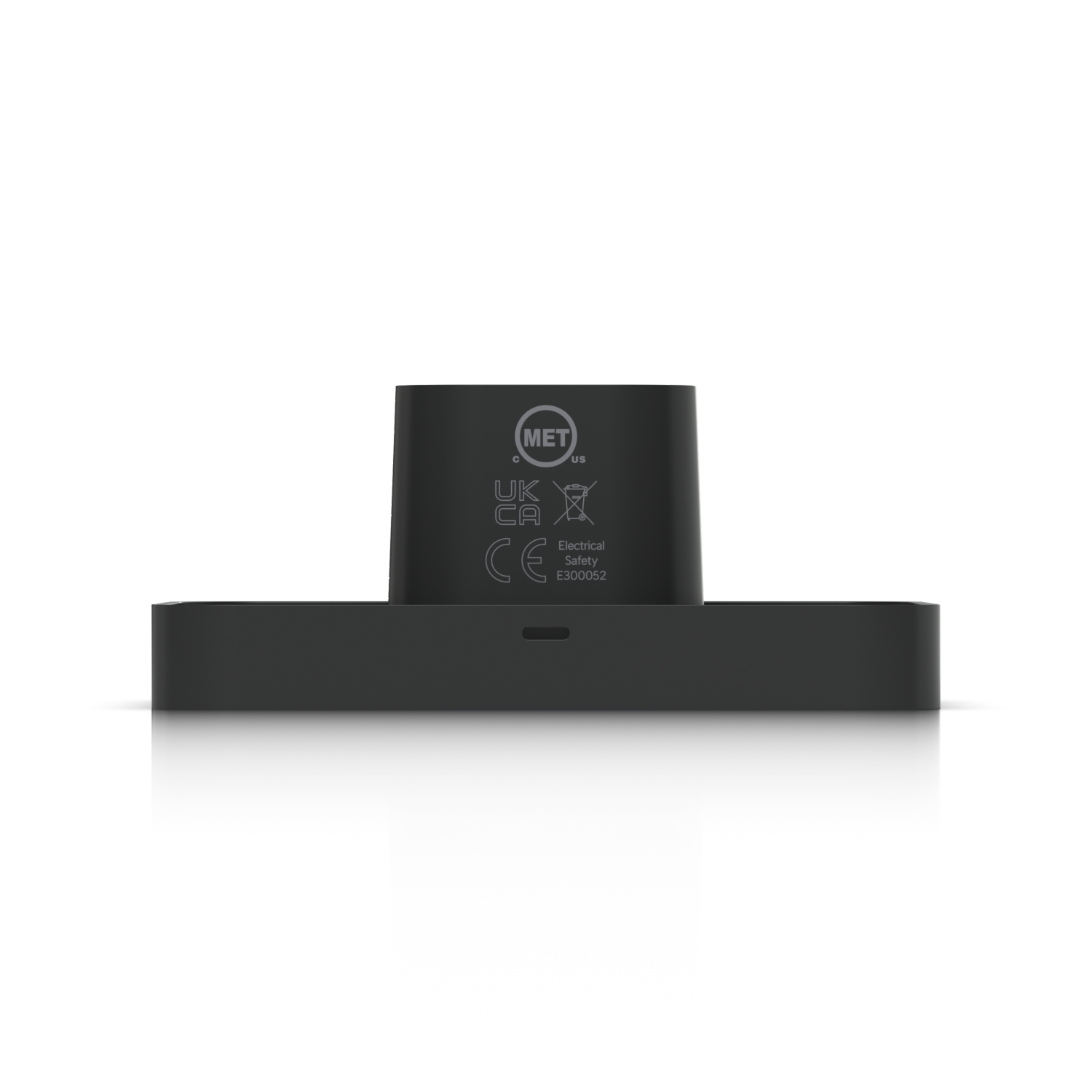

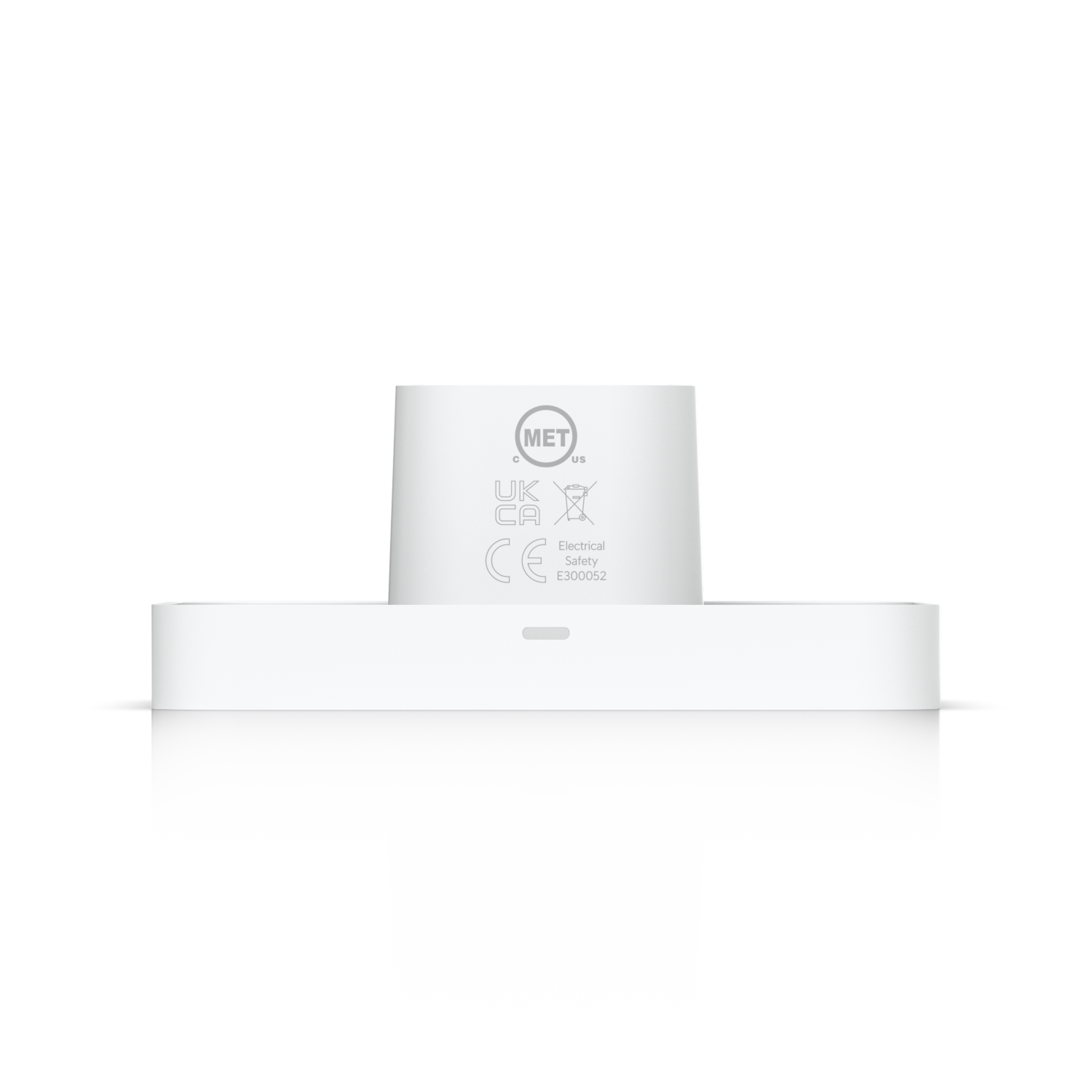

| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Flex V01 |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Software
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
