Ubiquiti UA-G3-INTERCOM | UniFi Access Intercom G3
$720.00
Ubiquiti UA-G3-INTERCOM | UniFi Access Intercom G3
$720.00

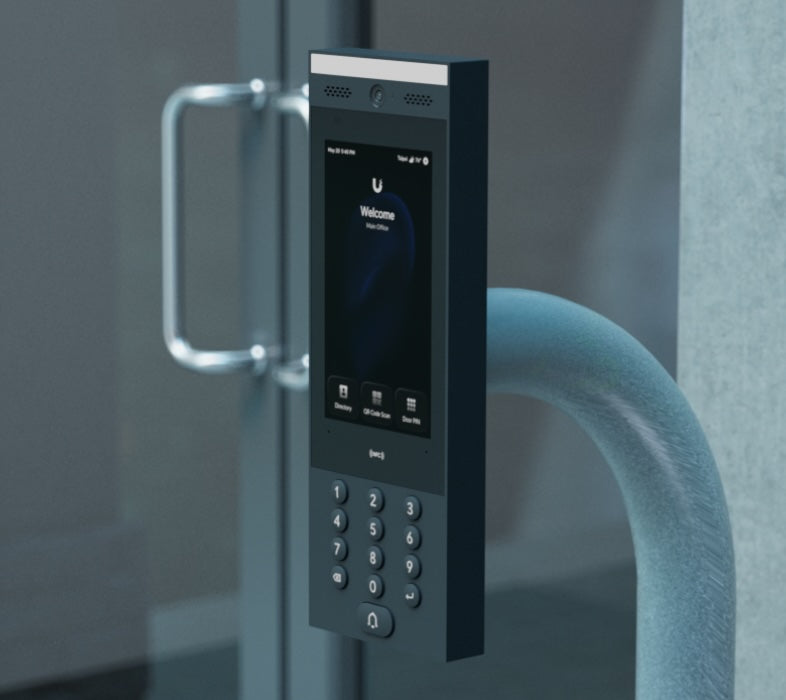

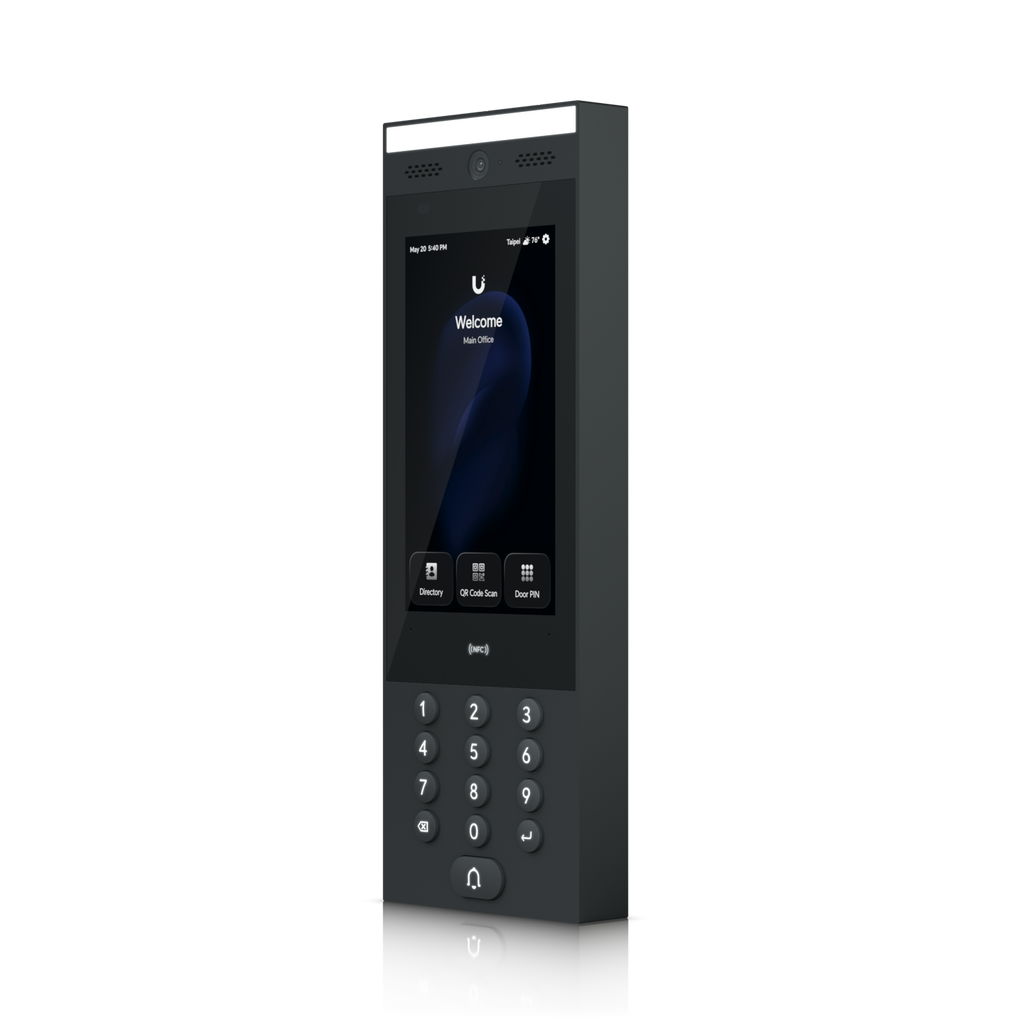

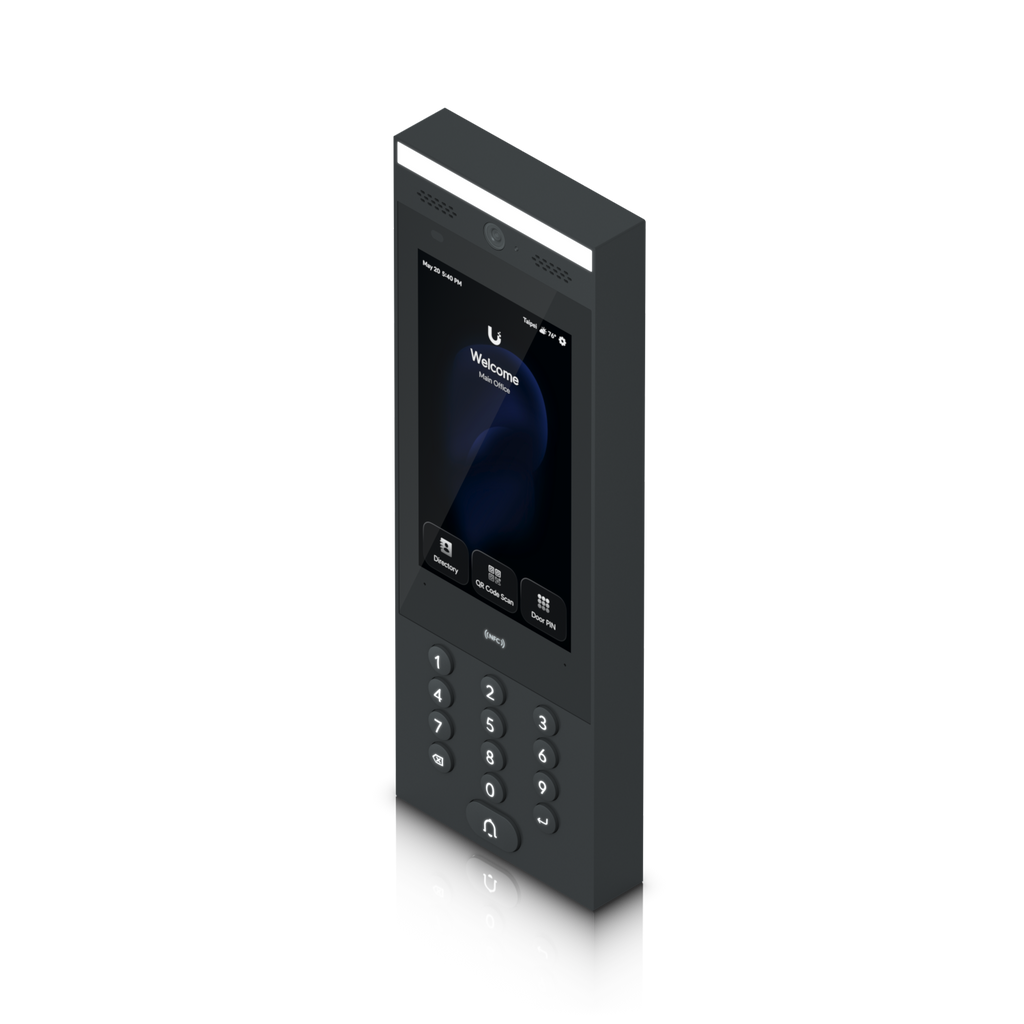

An IP65-rated outdoor intercom terminal with a 7" touchscreen, NFC, and BLE for managed building entry at sites already running UniFi Access.
Why this one

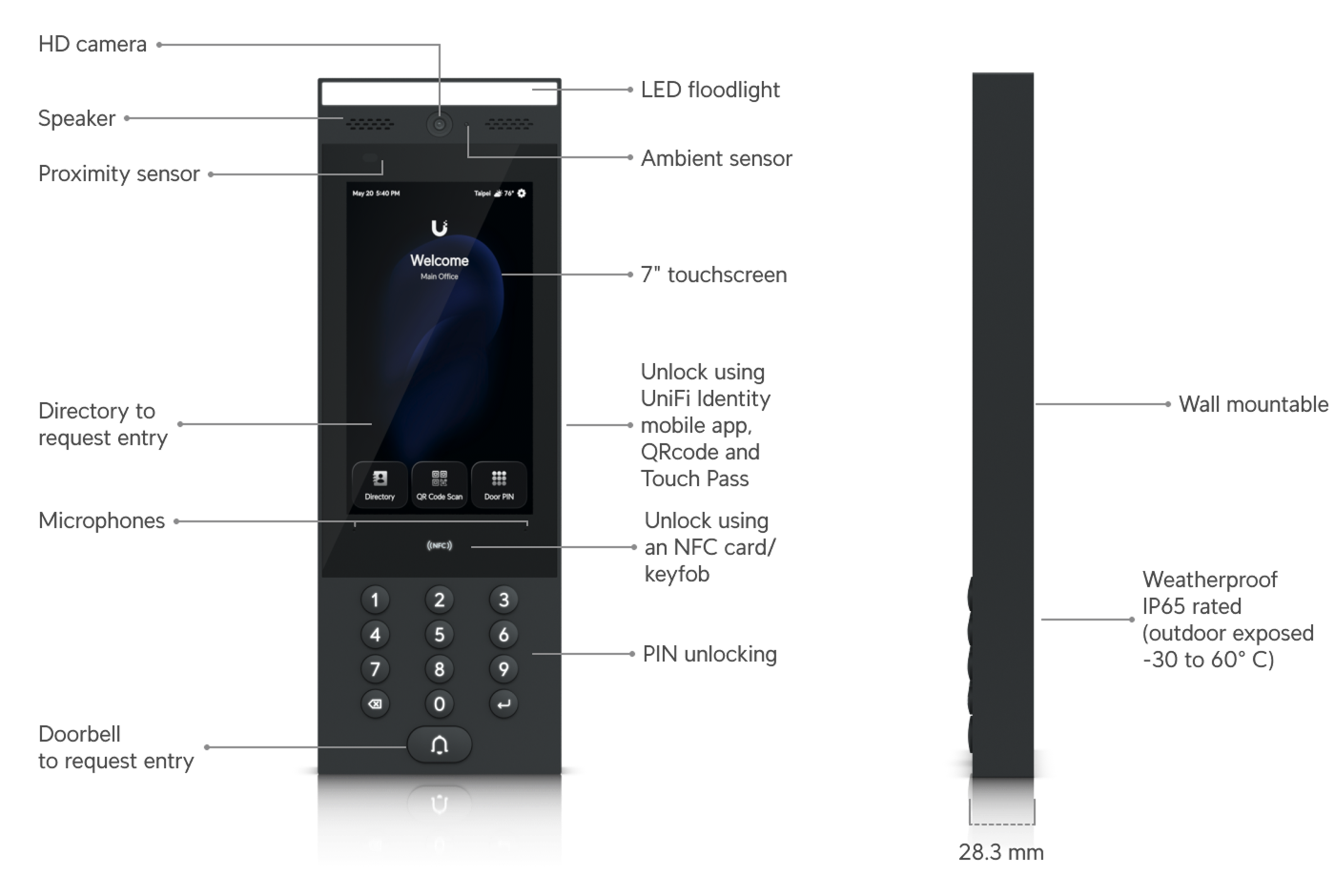

- The 8MP camera with a 118.2° diagonal field of view captures the full width of a doorway or gate approach, so you get a clear frame of who is there before a door is released.
- NFC at 13.56 MHz supports MIFARE, FeliCa, and Apple/Google ECP 2.0, meaning staff can tap in with an existing card, phone, or watch — no separate credential hardware needed at the entry point.
- IP65 weatherproofing and a -30 to 60°C operating range mean the unit runs through Australian summers and cold-climate winters without a protective housing over it.
- At 13W over PoE, it runs from a standard PoE port on any UniFi switch, so there's no separate power circuit to run to the mounting point.

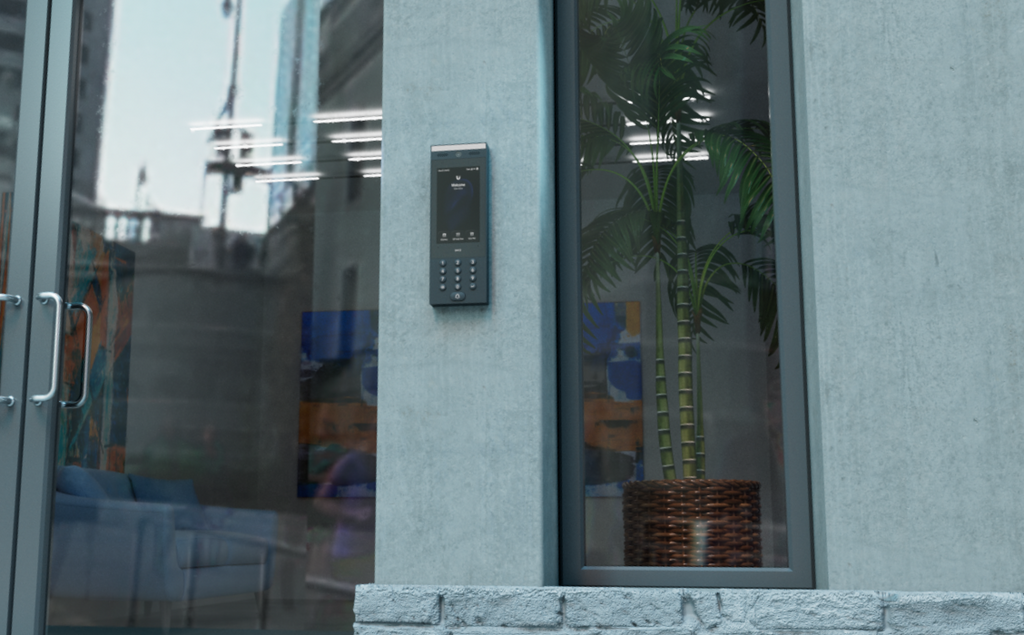

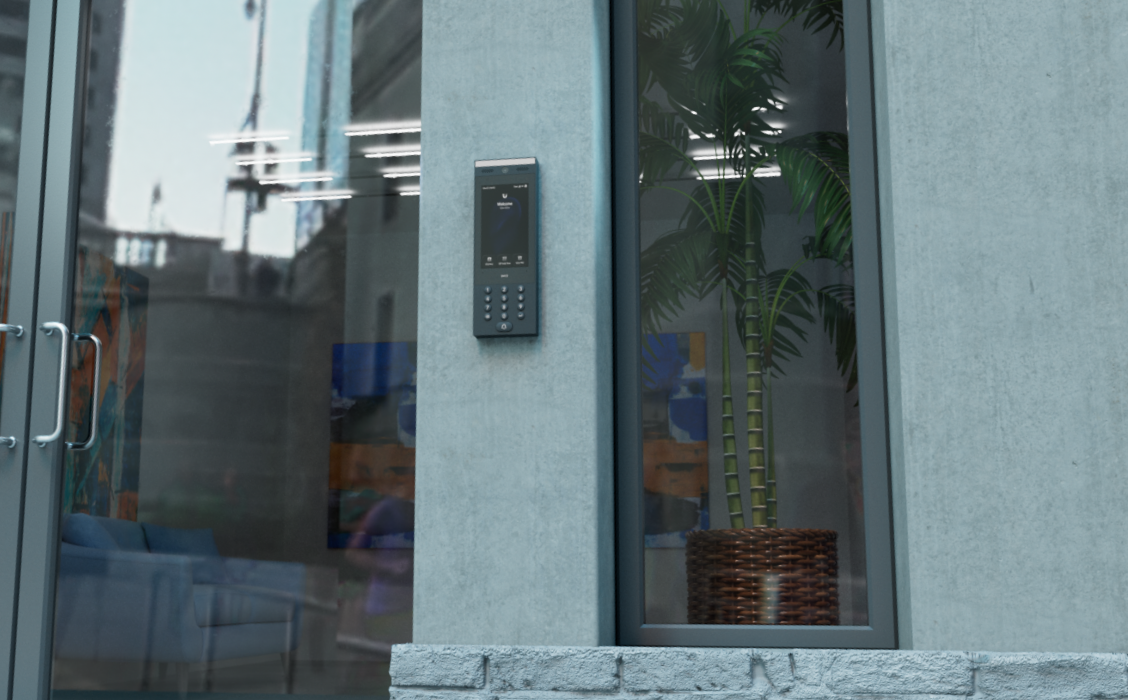

Good fit if you're managing entry to a commercial building, apartment complex, or secure facility that already uses UniFi Access — or is being set up with it — and you need visitor call, credential tap, and camera capture at a single entry point.
Worth considering something else if you only need card or mobile credential reading without a display or intercom function, in which case the UA-G3 or UA-G3-FLEX is a simpler fit and sits in a lower price band.
What you'll also need

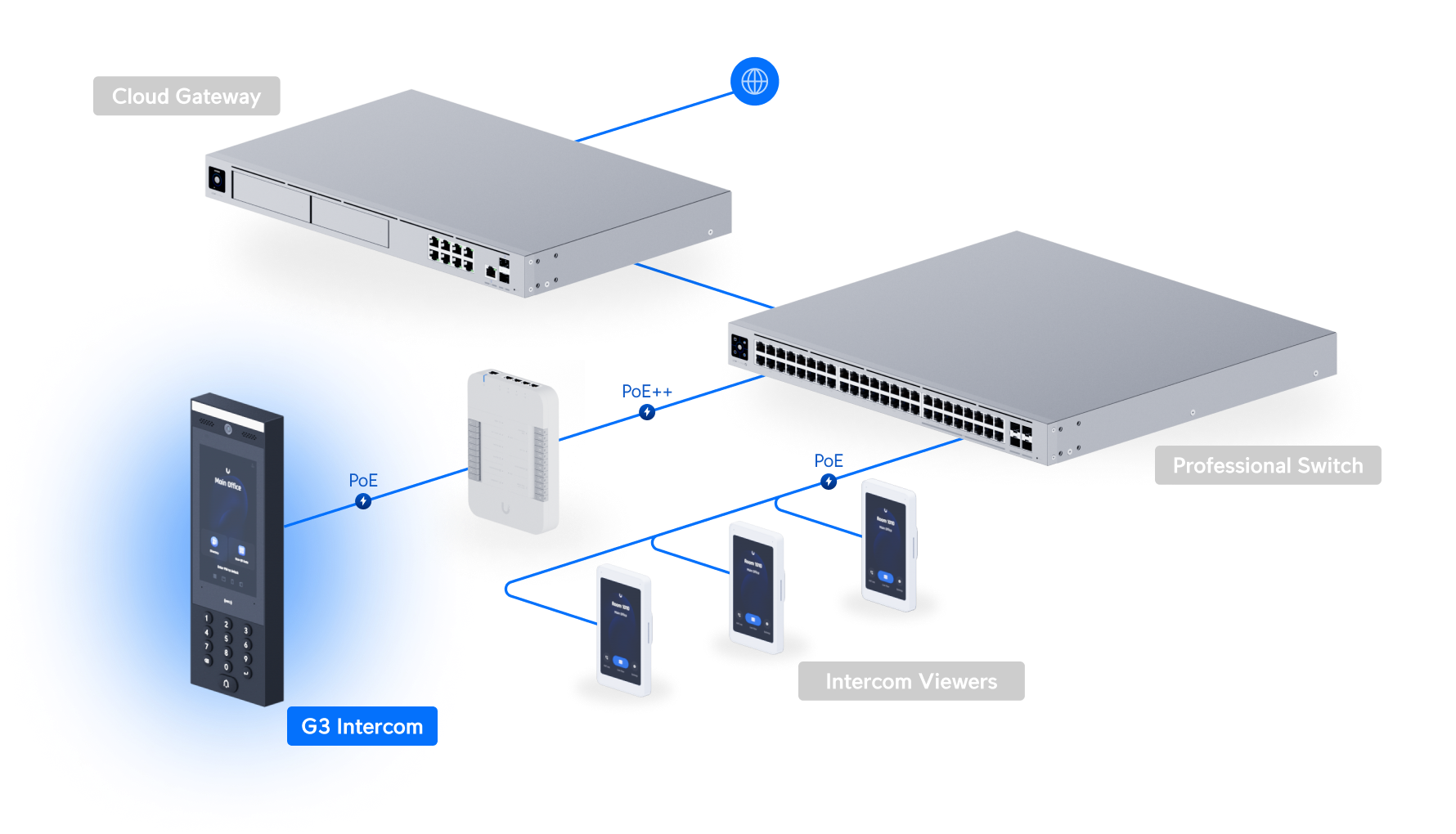

A UniFi Access controller (UA-G2-SK, UA-G3-SK, or a Dream Machine running the Access application), a PoE-capable switch or injector, and Cat5e or better to the mounting point; optional surface angle mount, flush mount, or sunshield accessories are sold separately.
Technical specifications
Overview

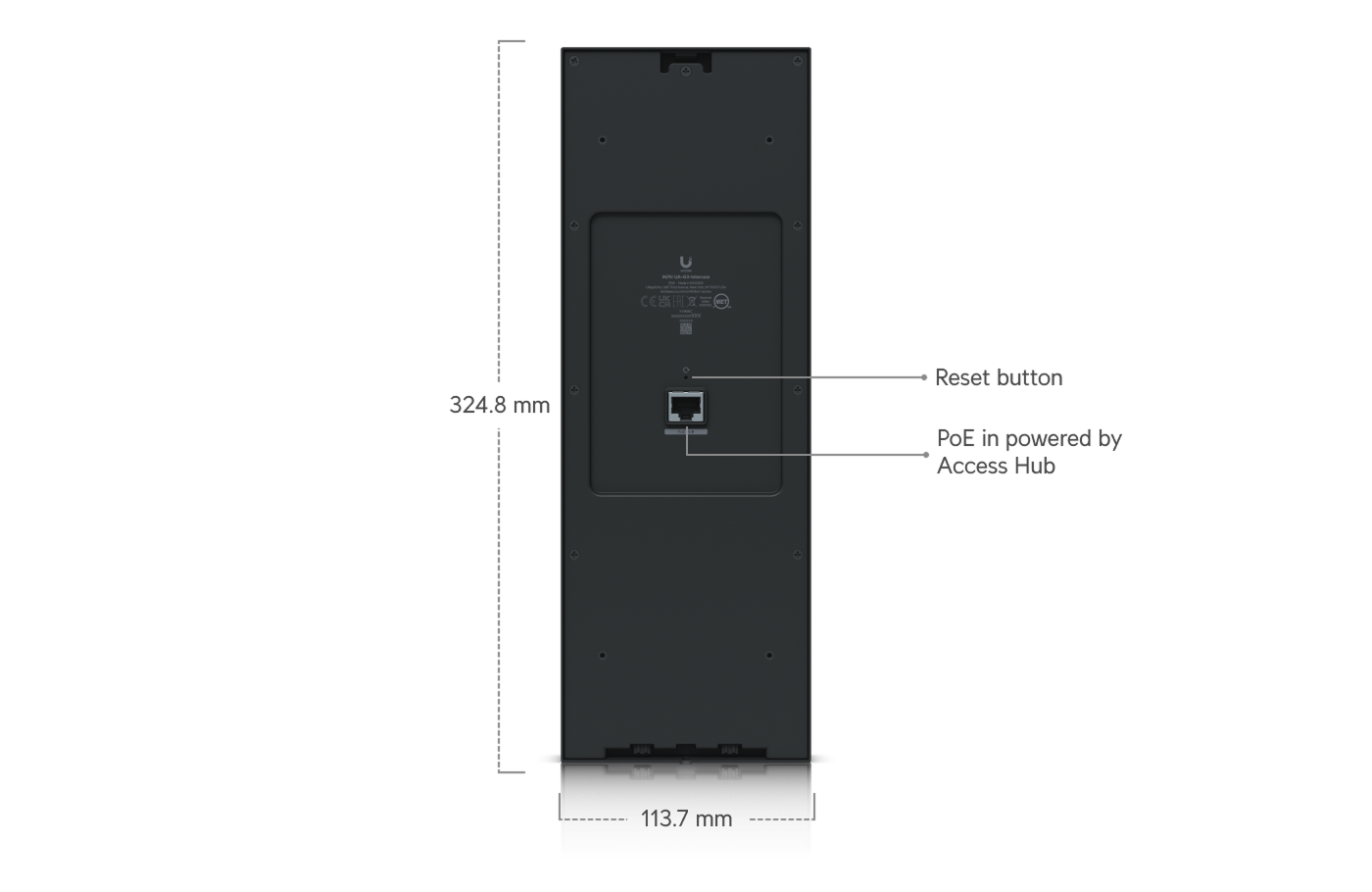

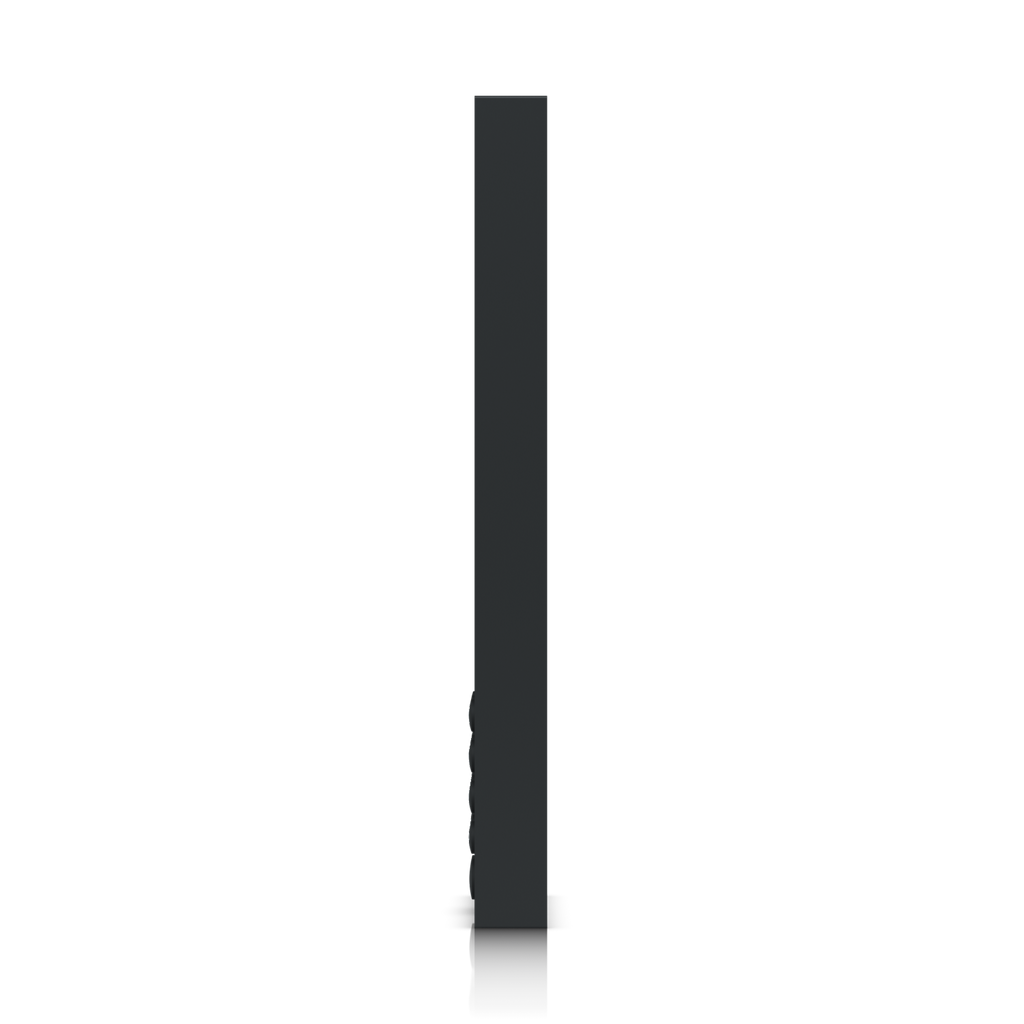

| Dimensions | 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1") |
| UniFi Application Suite | Access |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Weatherproofing | IP65 |
Mechanical
| Weight | Device: 965 g (2.1 lb) Bracket: 445 g (1 lb) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate, glass |
| Mount Material | Powder-coated stainless steel |

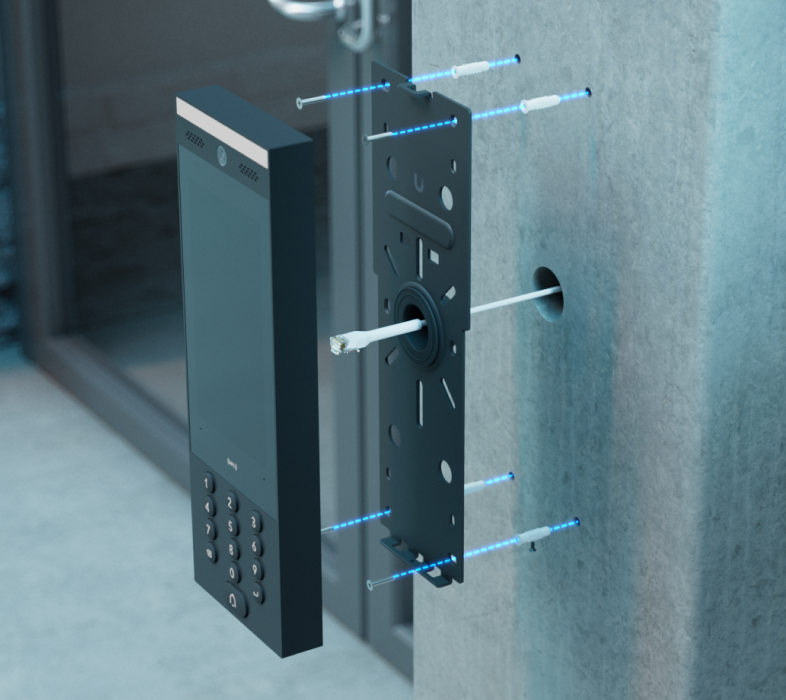

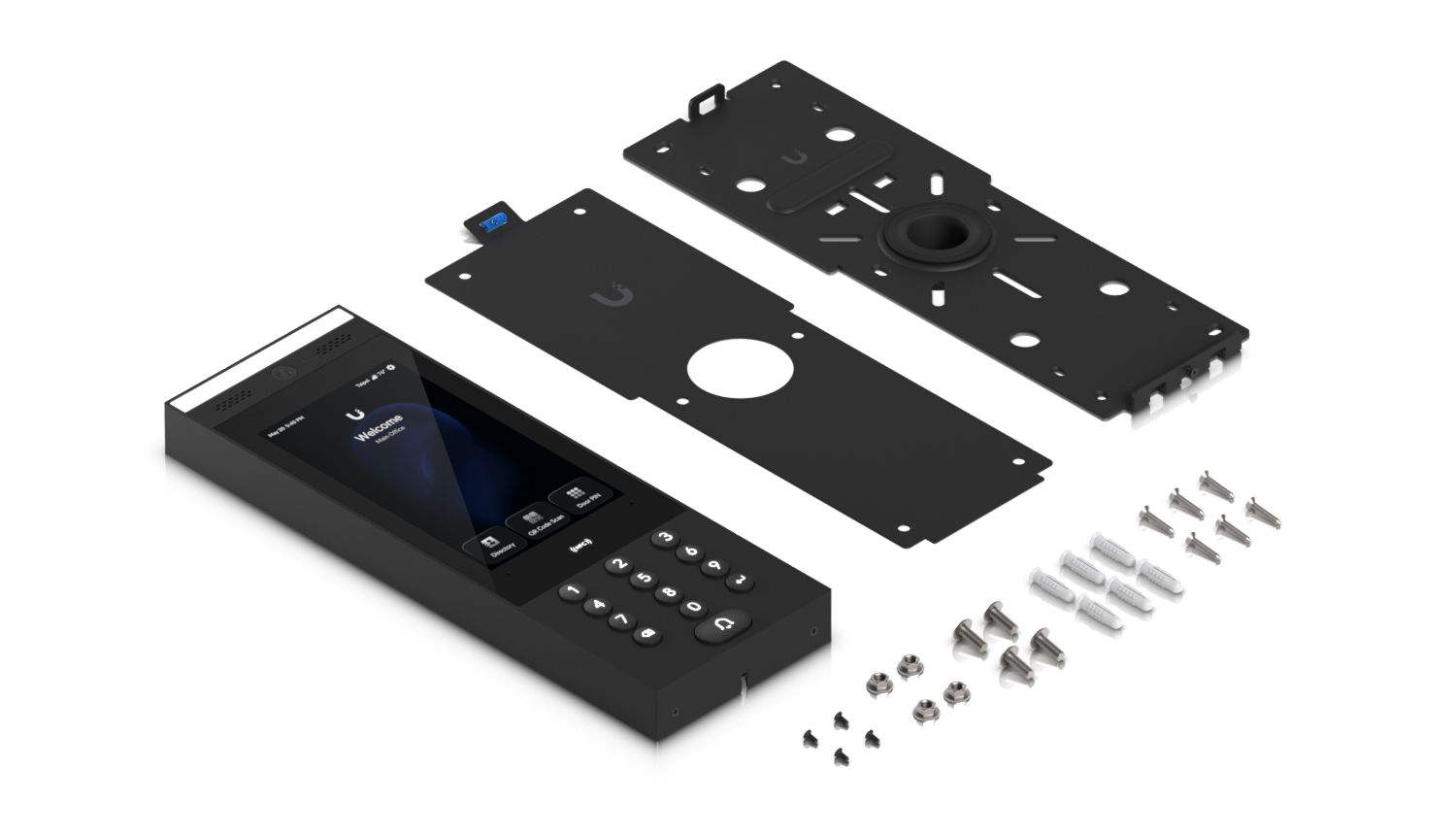

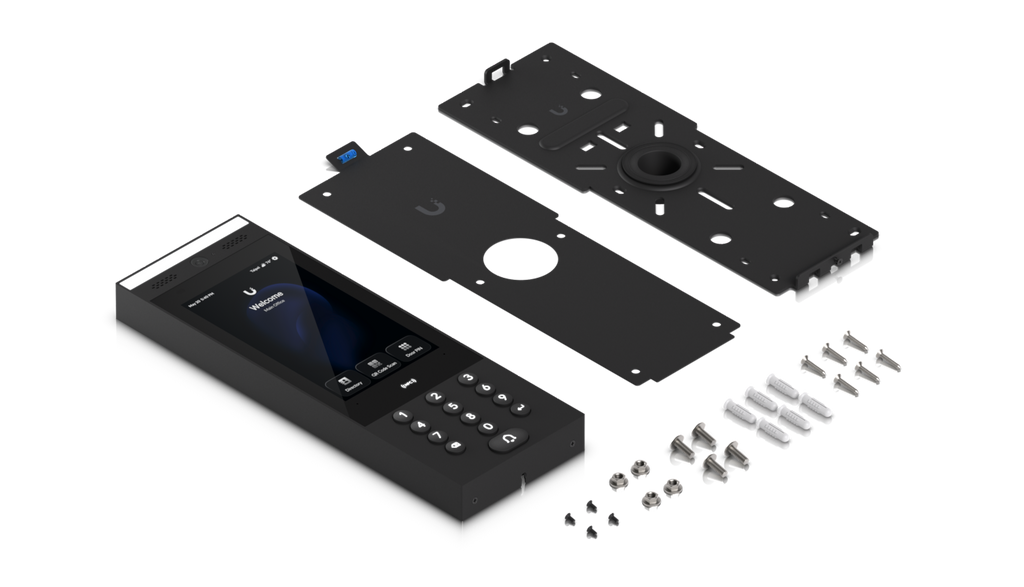

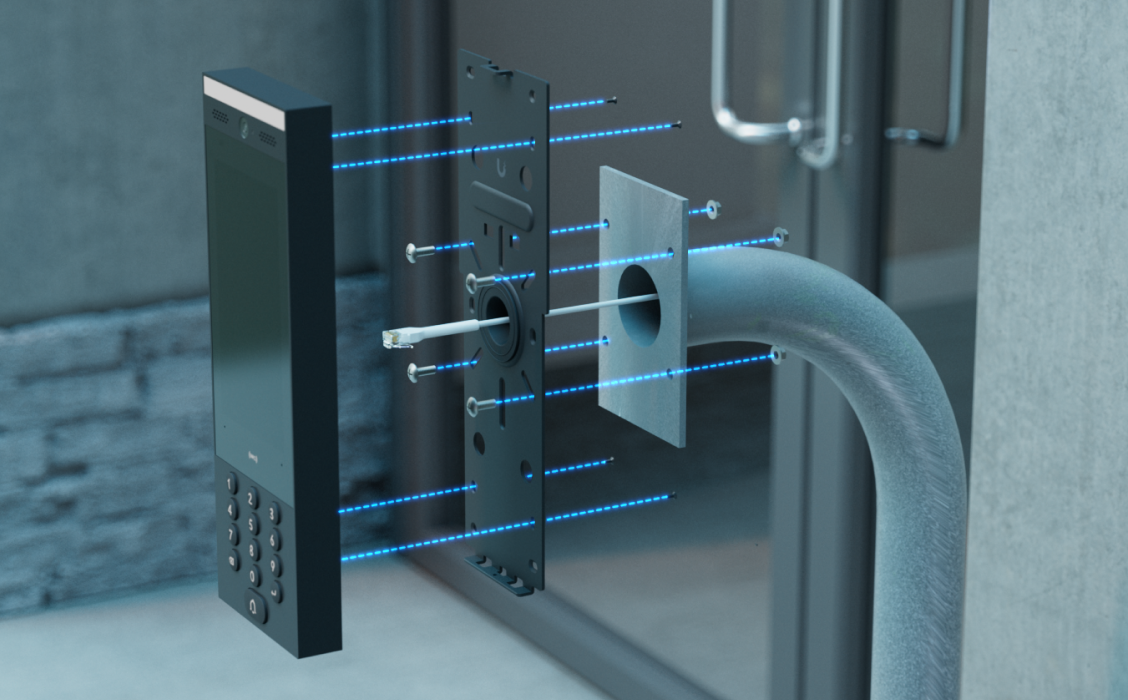

| Mounting | Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional) |
Hardware
| Indoor and Outdoor Use | Yes |

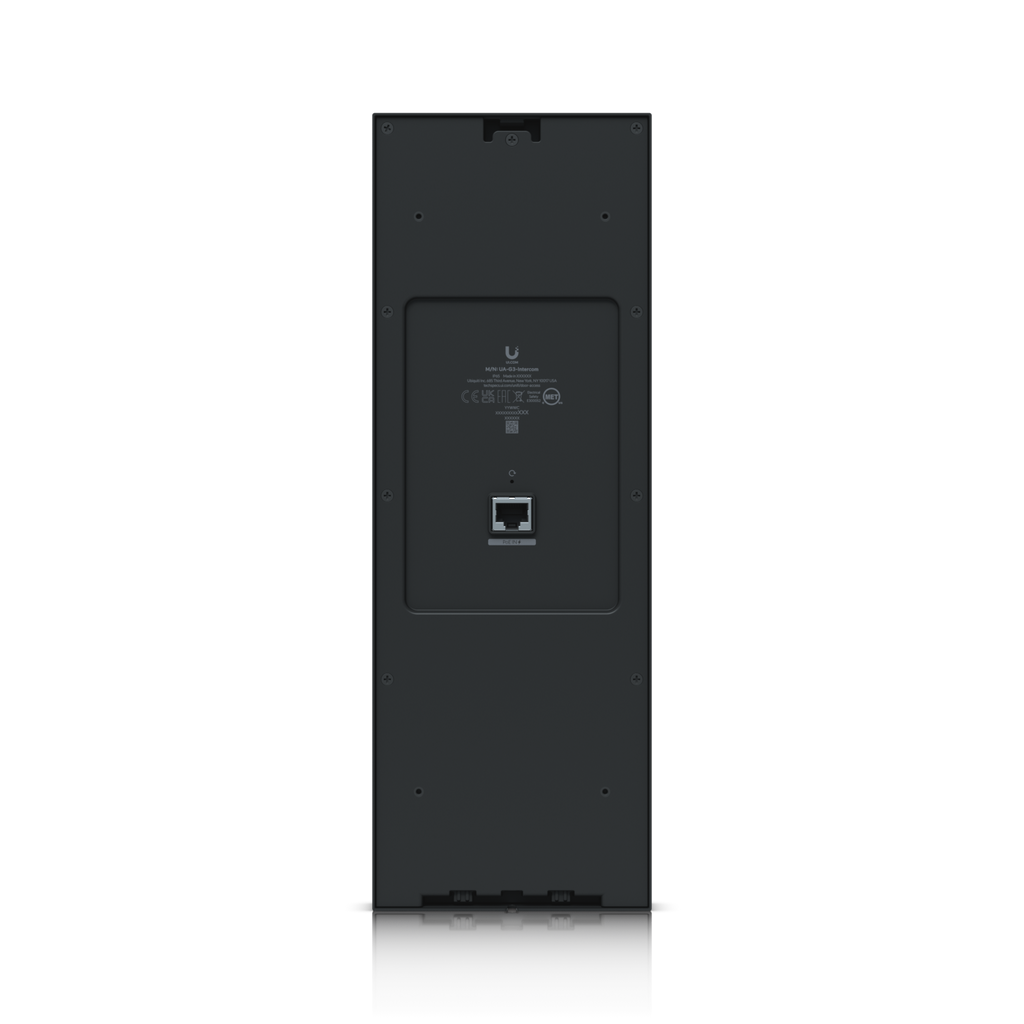

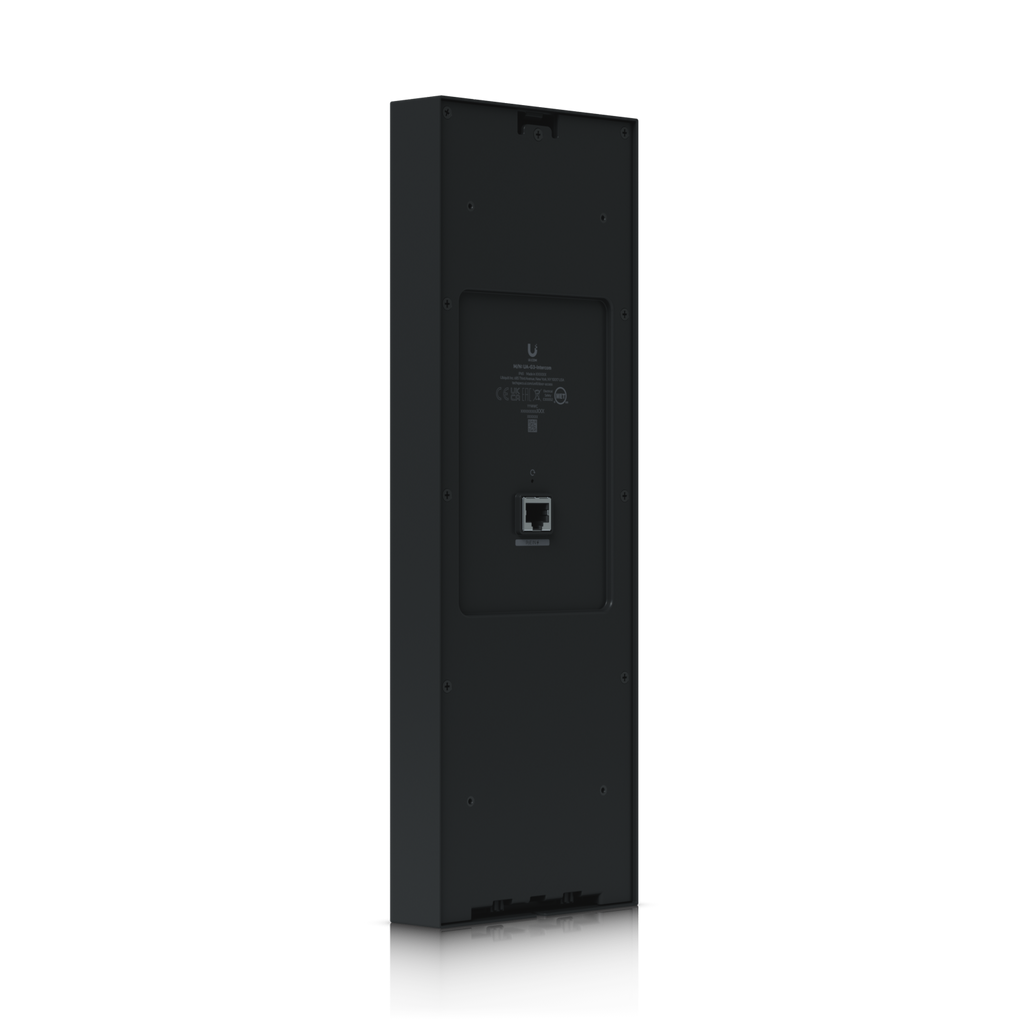

| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 48V DC |
| Max. Frame Rate | 30 FPS |
| Resolution | 2MP 1200 x 1600 (3:4) |
| Resolution | 8 MP (2448 × 3264) |
| Field of View | H: 79.4°, V: 97.5°, D: 118.2° |
| Sensors | Proximity sensor ALS sensor |

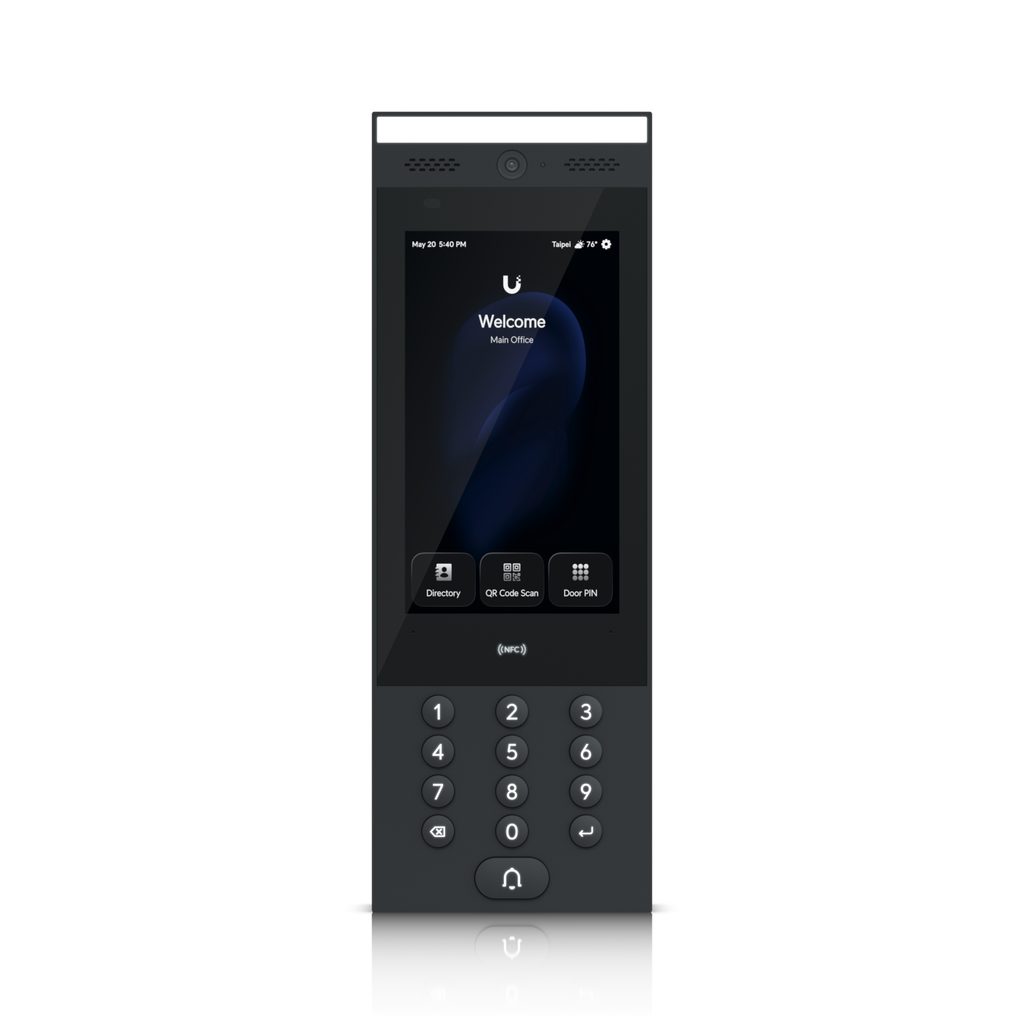

| Size | 177 mm (7") diagonal |
| Screen Technology | Capacitive multi-touch |
| Luminance | Max. 1000 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1024 x 600 px |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| LEDs | Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Buttons | (1) Factory reset |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Intercom, V01 |
| Ambient Operating Temperature | Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Software
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
