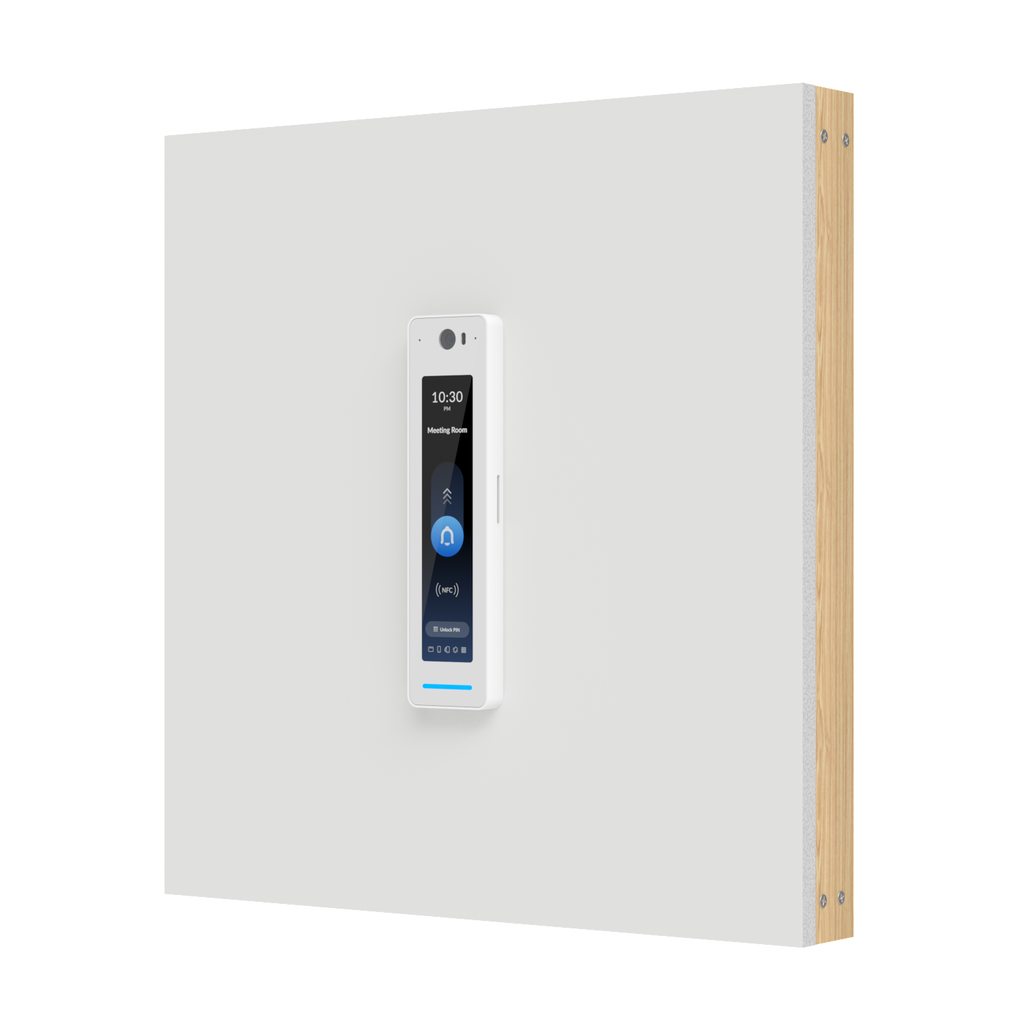

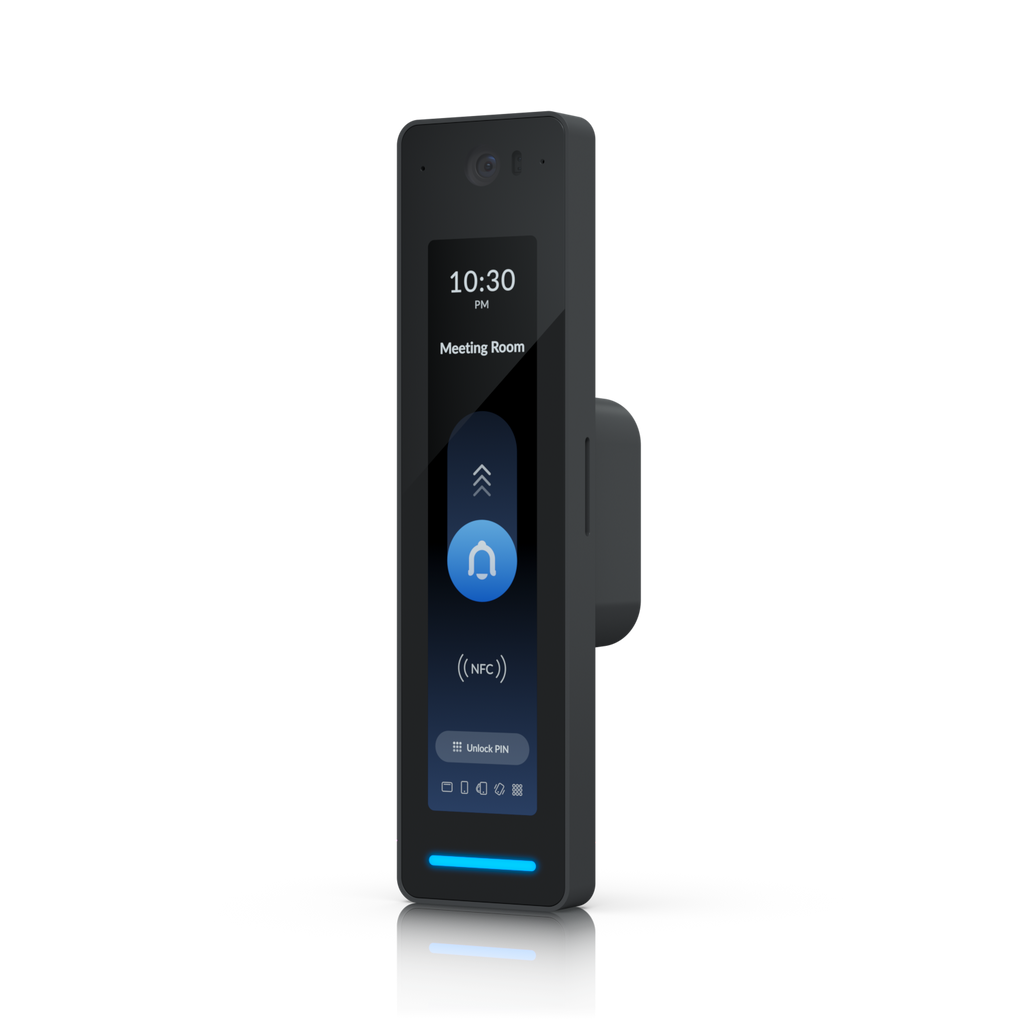

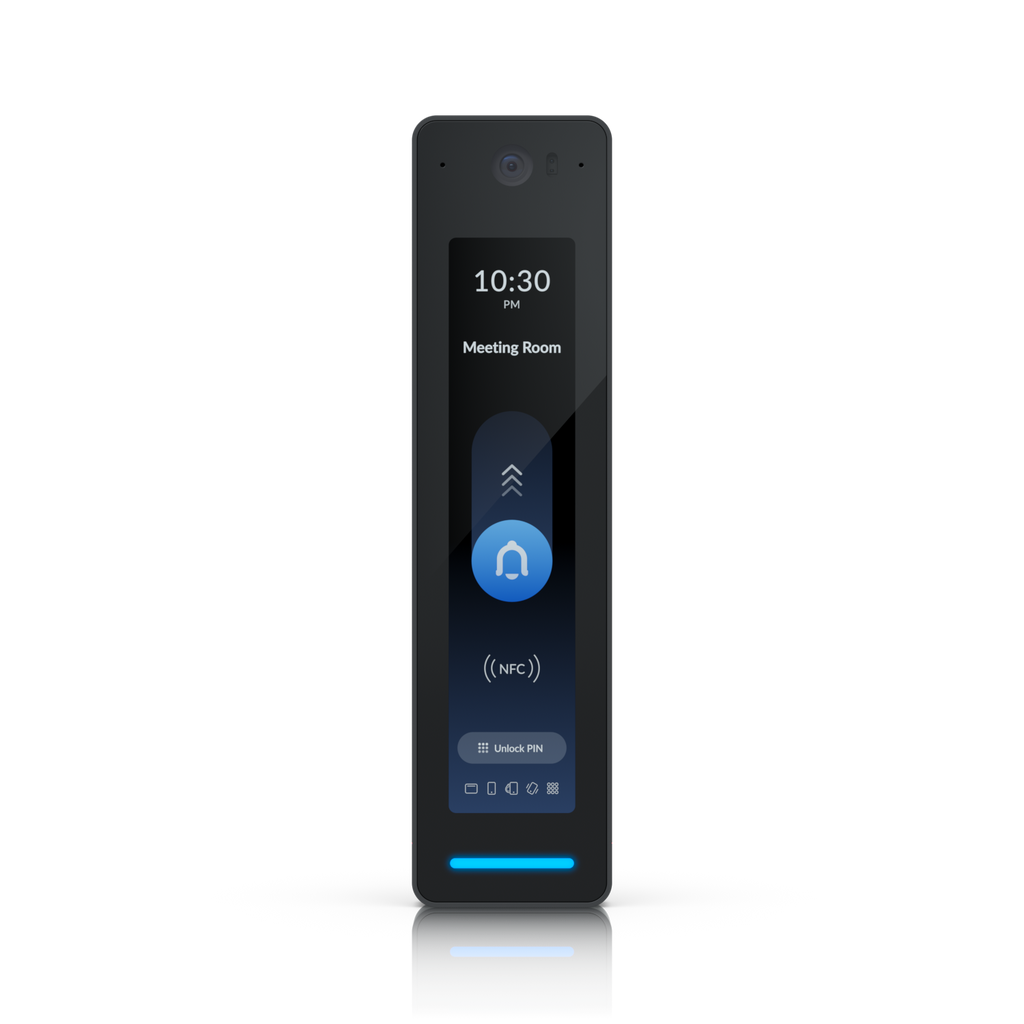

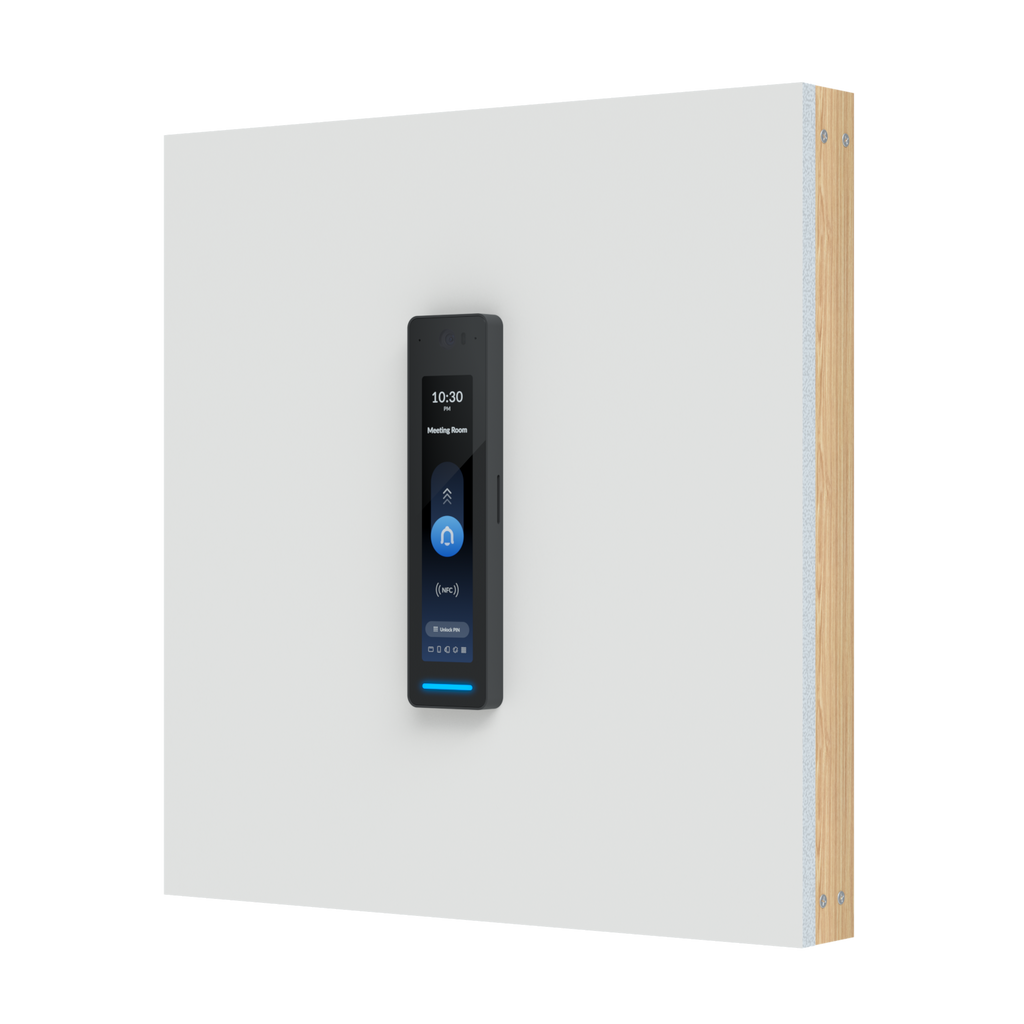

An indoor/outdoor NFC access reader with a built-in touchscreen, camera and two-way audio, for sites that need more than a tap-to-enter credential check at each door.
Why this one

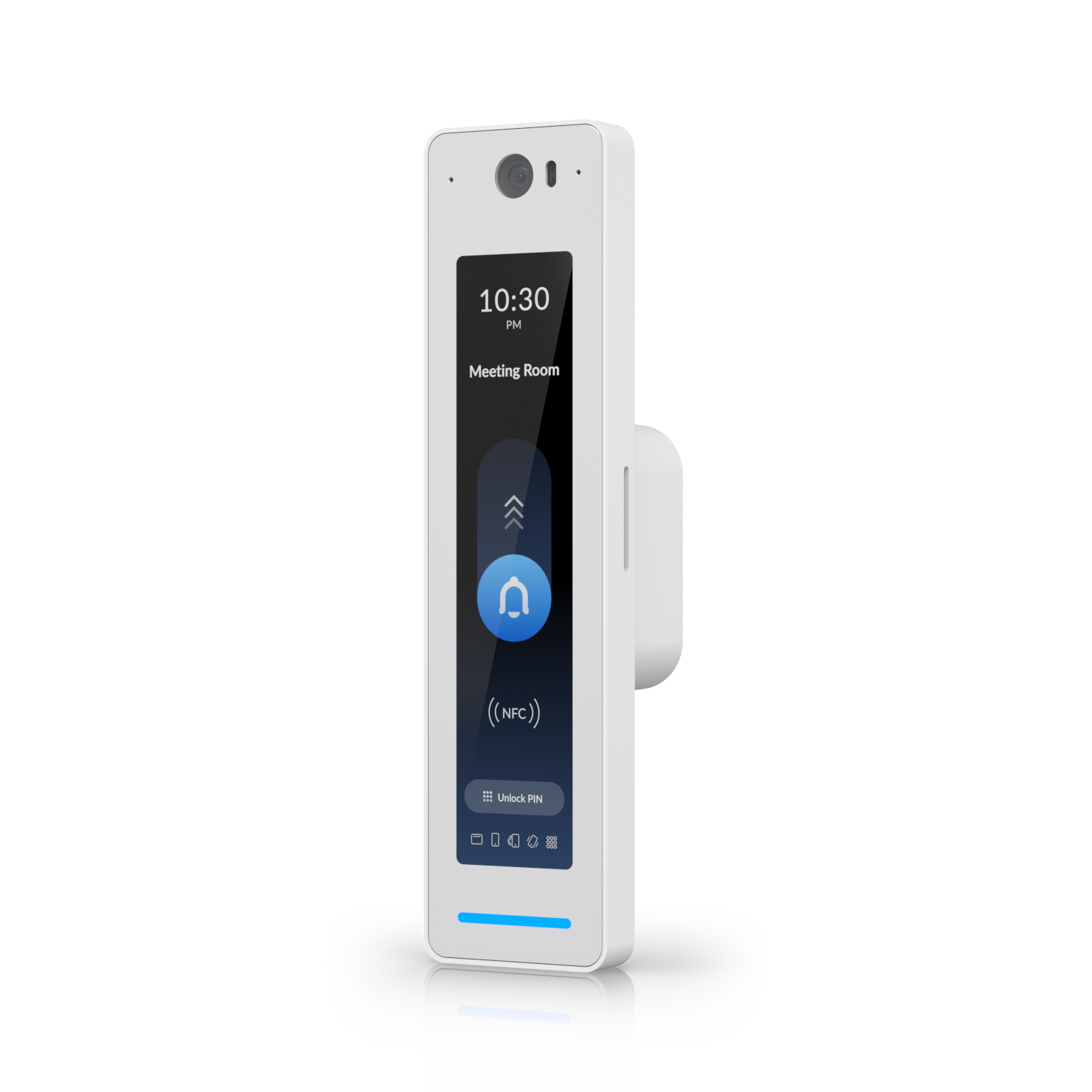

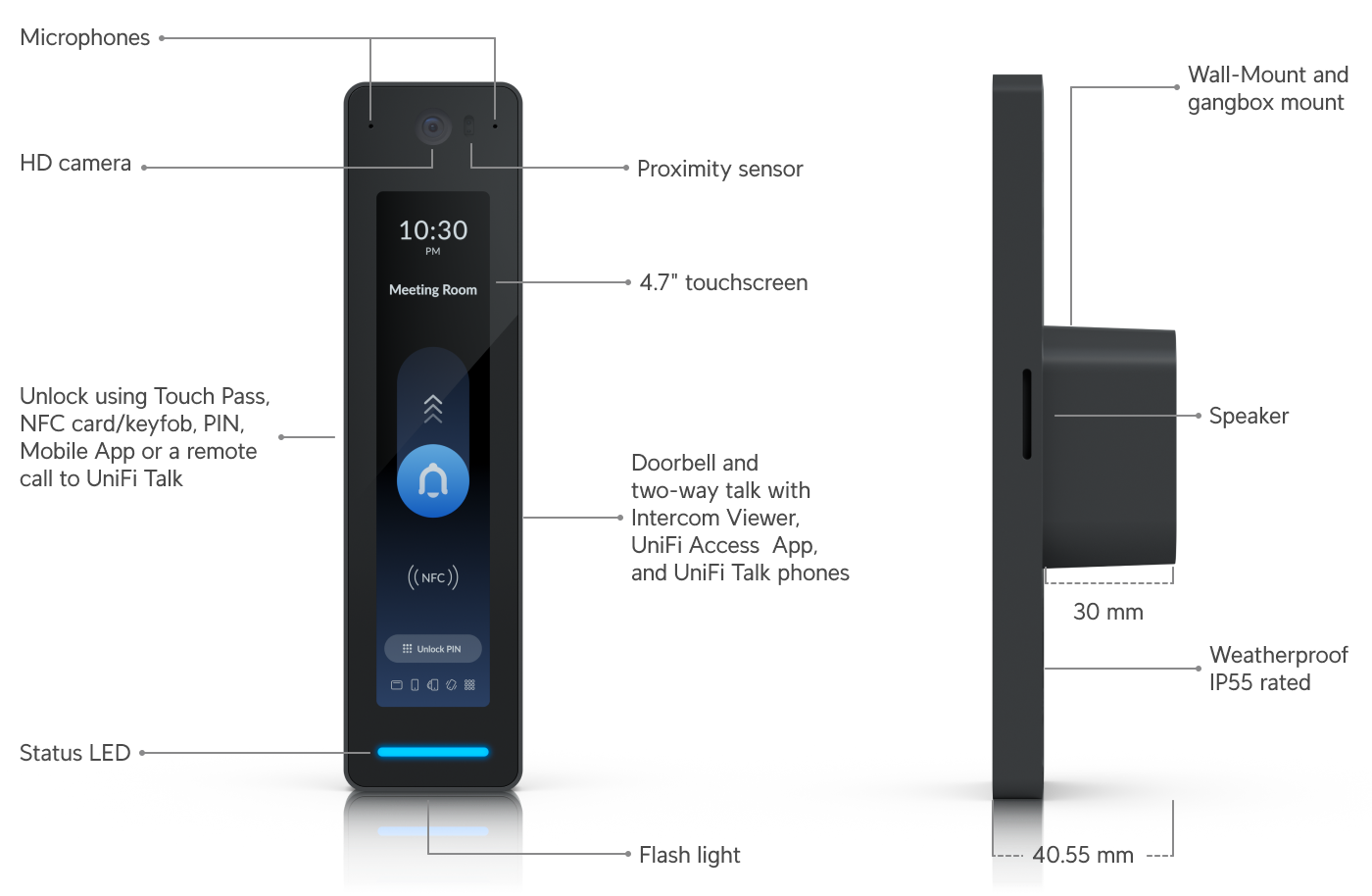

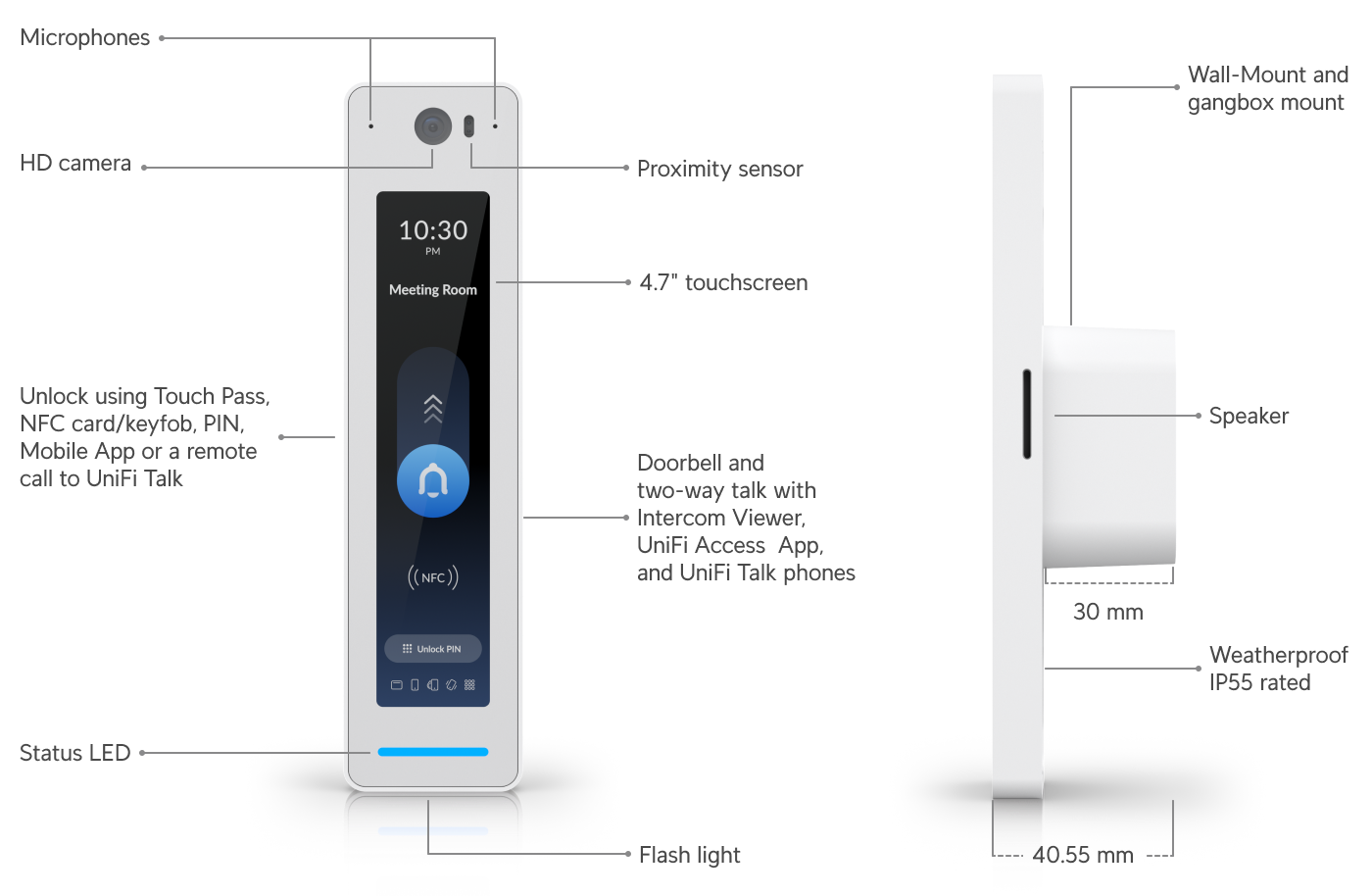

- The 120 mm capacitive touchscreen with a 12 MP camera and 157.8° diagonal field of view means the reader doubles as an entry intercom — visitors can be seen and spoken to without a separate device.
- ECP 2.0 support alongside standard NFC (ISO 14443A/B, MIFARE, FeliCa) means Apple Touch Pass works natively, so iPhone and Apple Watch users tap in without a separate card or fob.

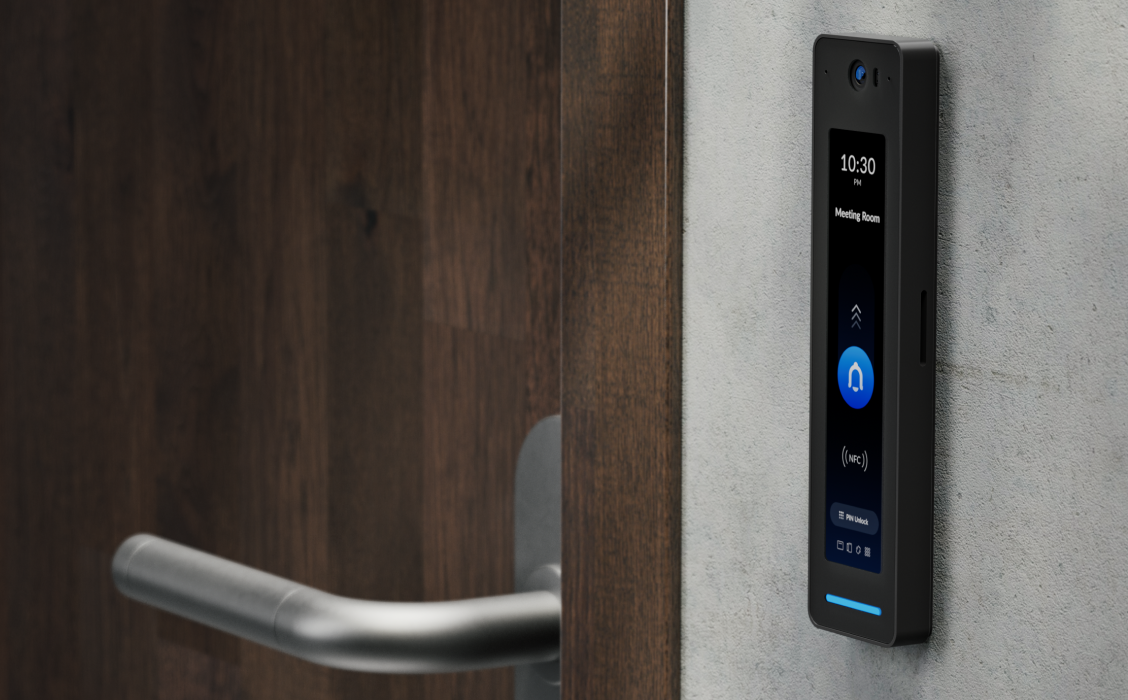

- IP55 weatherproofing and a rated operating temperature down to -30 °C let you mount it externally on a building entrance, not just inside a lobby.
- Draws 6 W over PoE on a single Cat 5e run, so no separate power cabling to the door frame — one cable carries data and power.

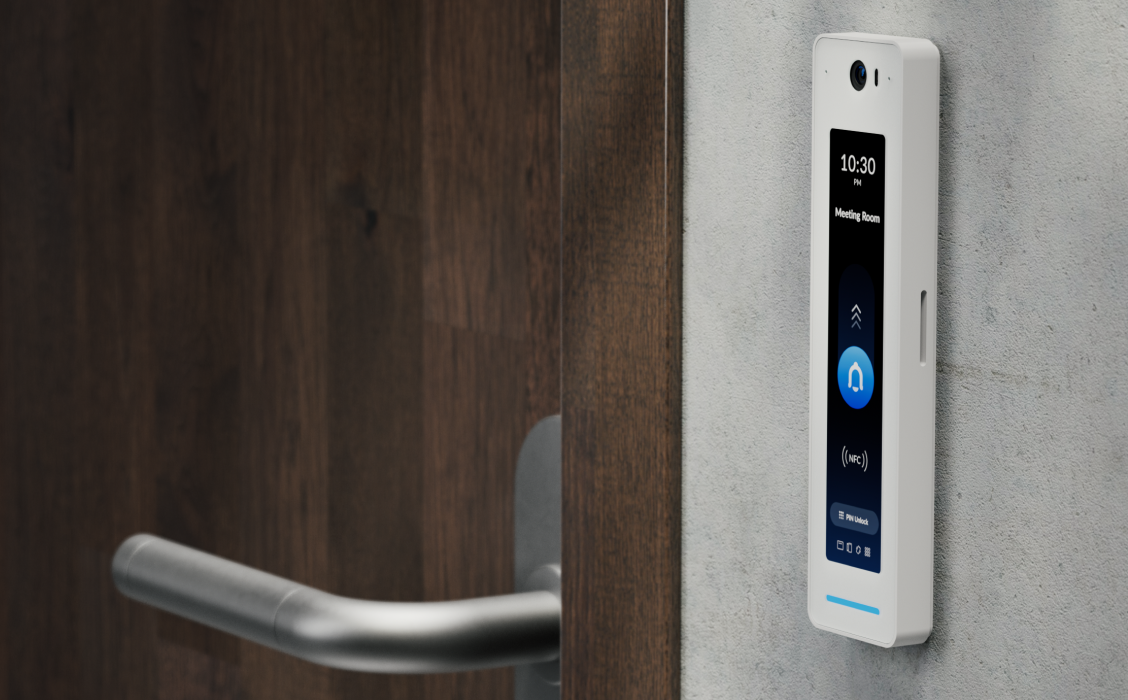

Good fit if you're running UniFi Access and need a reader at an entry point where visitors also need to interact — a reception door, a gate intercom, or any access point where visual verification and two-way audio matter alongside credential reading.
Worth considering something else if you're fitting internal doors where staff simply need to badge through — the UA-G3 covers that case without the screen and camera, and sits in a lower price band.
What you'll also need

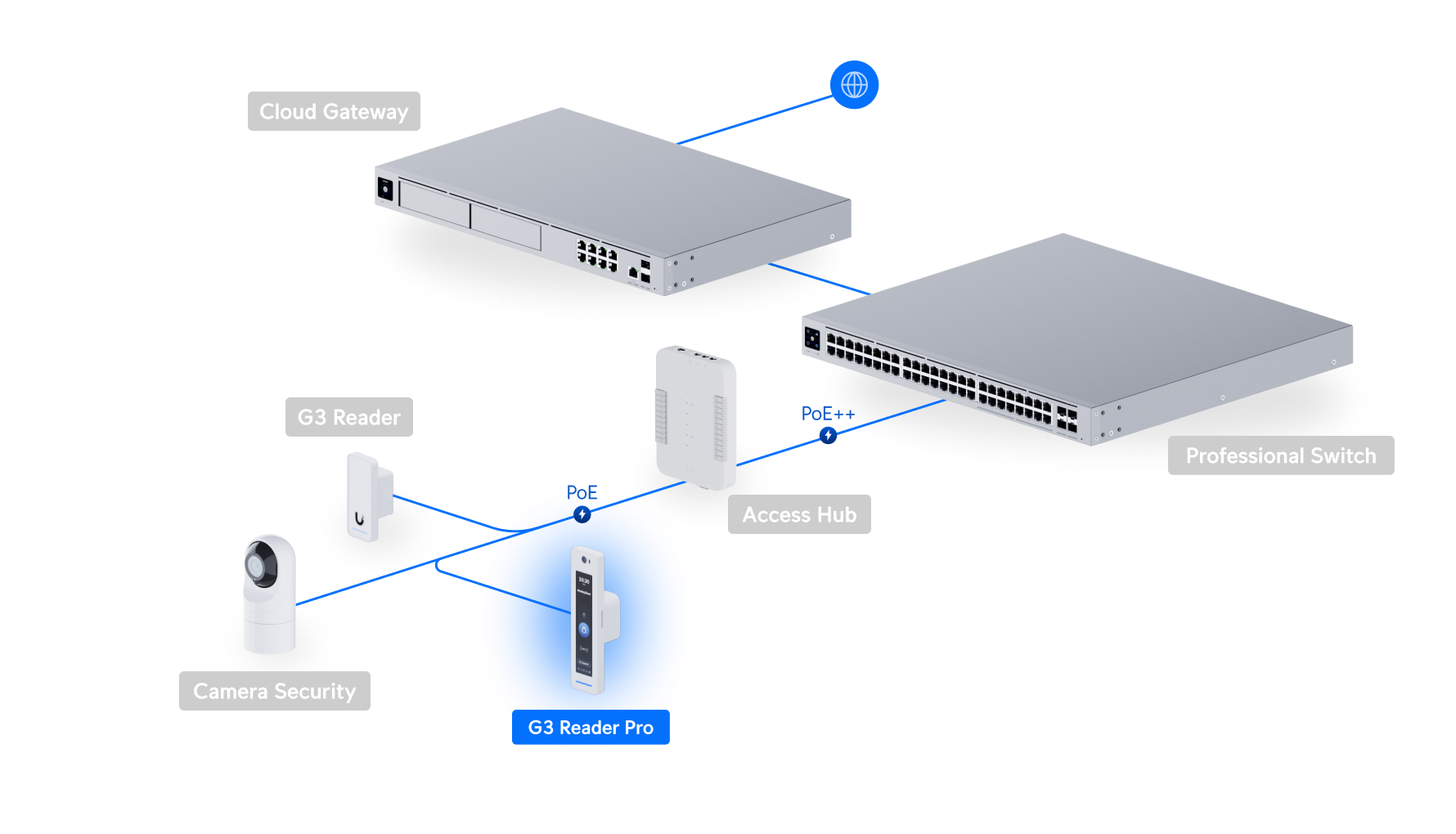

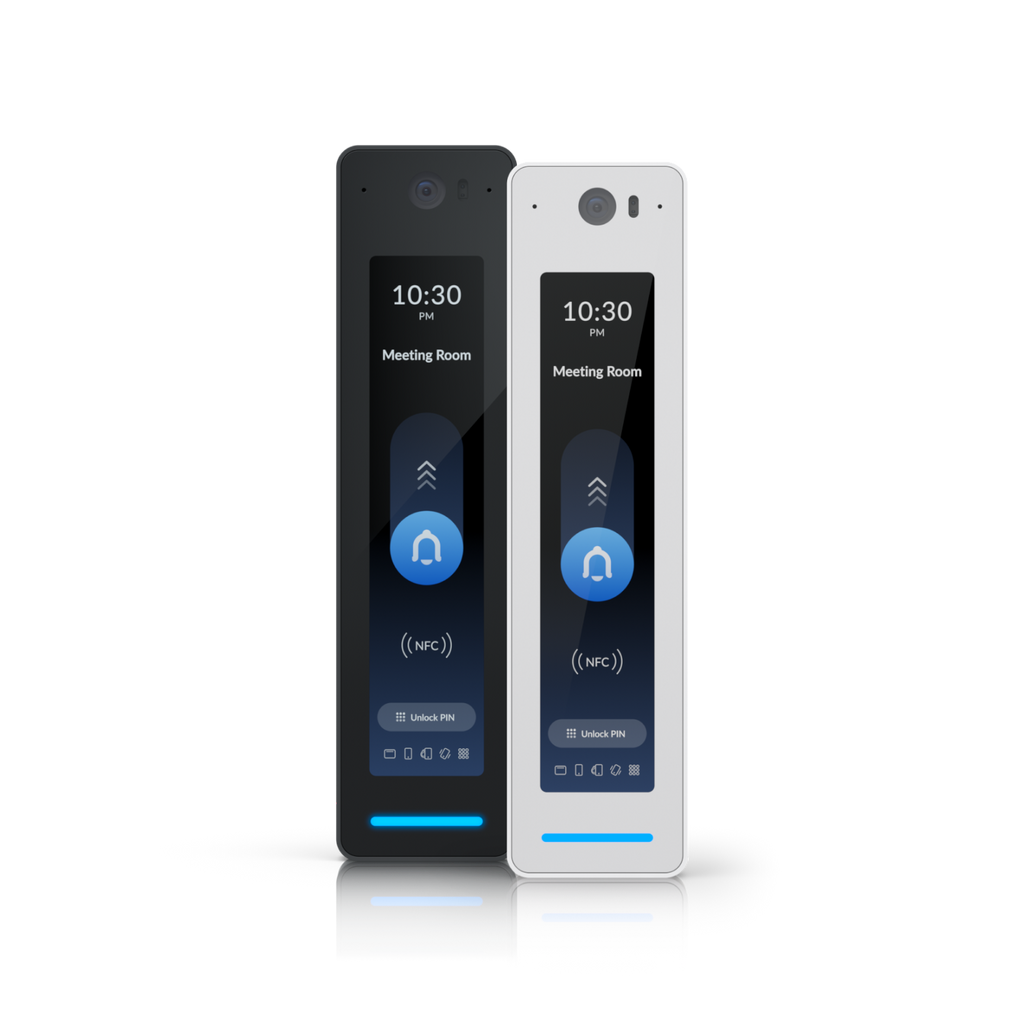

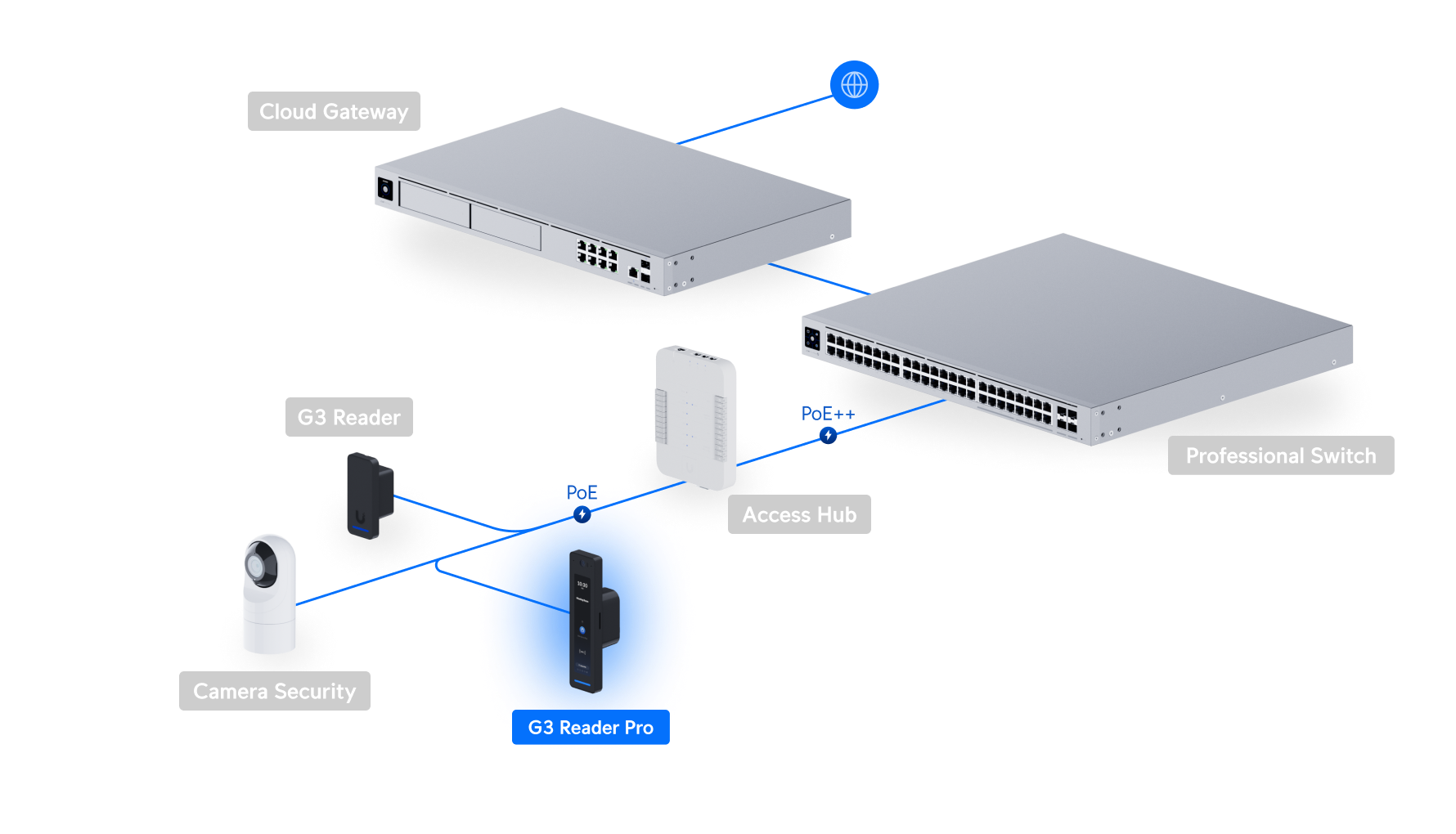

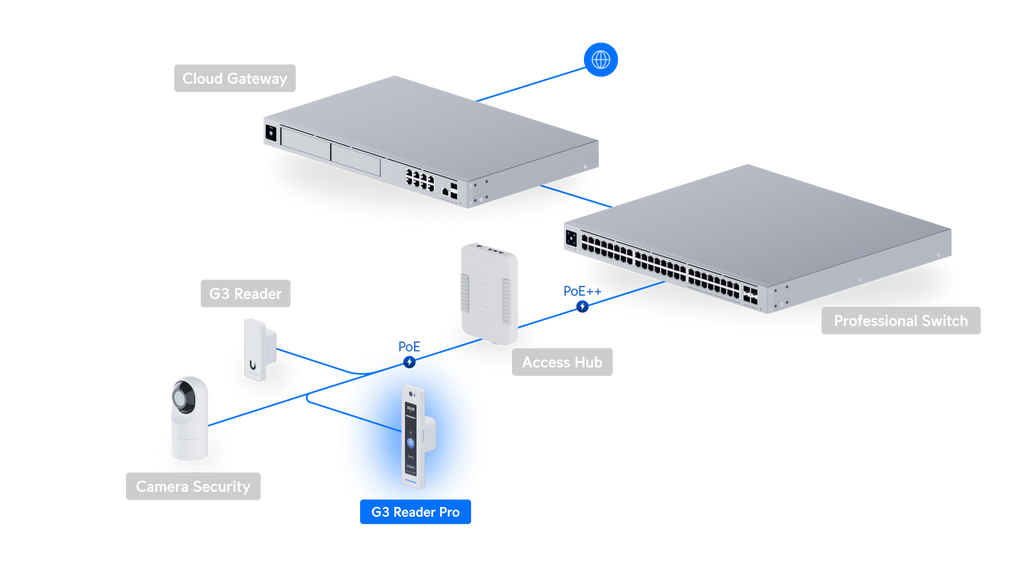

A UniFi Access controller to manage credentials and door locks, a PoE switch or injector supplying 48 V DC, Cat 5e or better to the mounting point, and a door lock wired through your access controller — the reader authenticates but does not directly control the latch; available in white or black.
Technical specifications
Overview

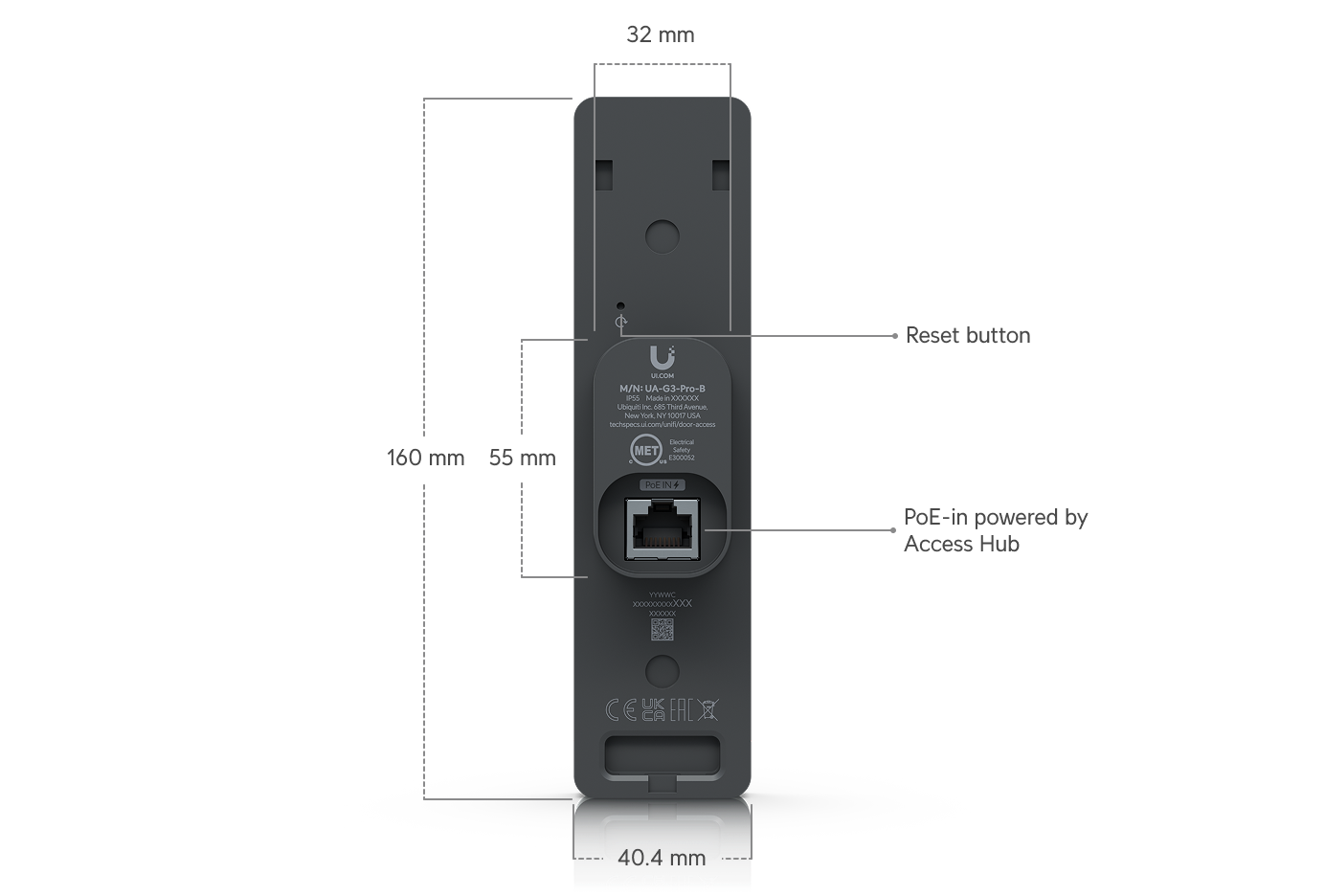

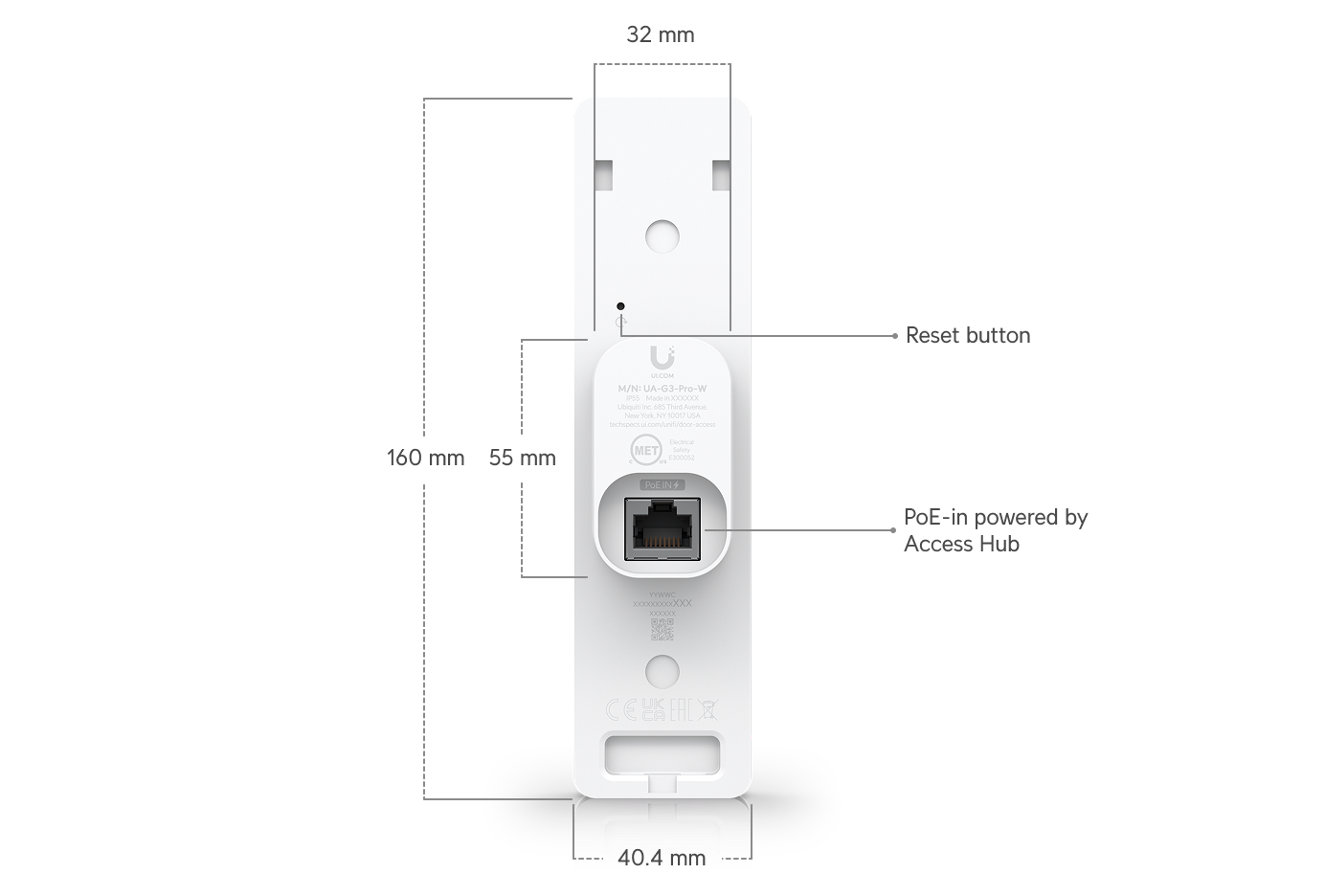

| Dimensions | 160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6") |
| UniFi Application Suite | Protect Access |
| Weatherproofing | IP55 |
| Audio | Two-way audio |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
Mechanical
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |

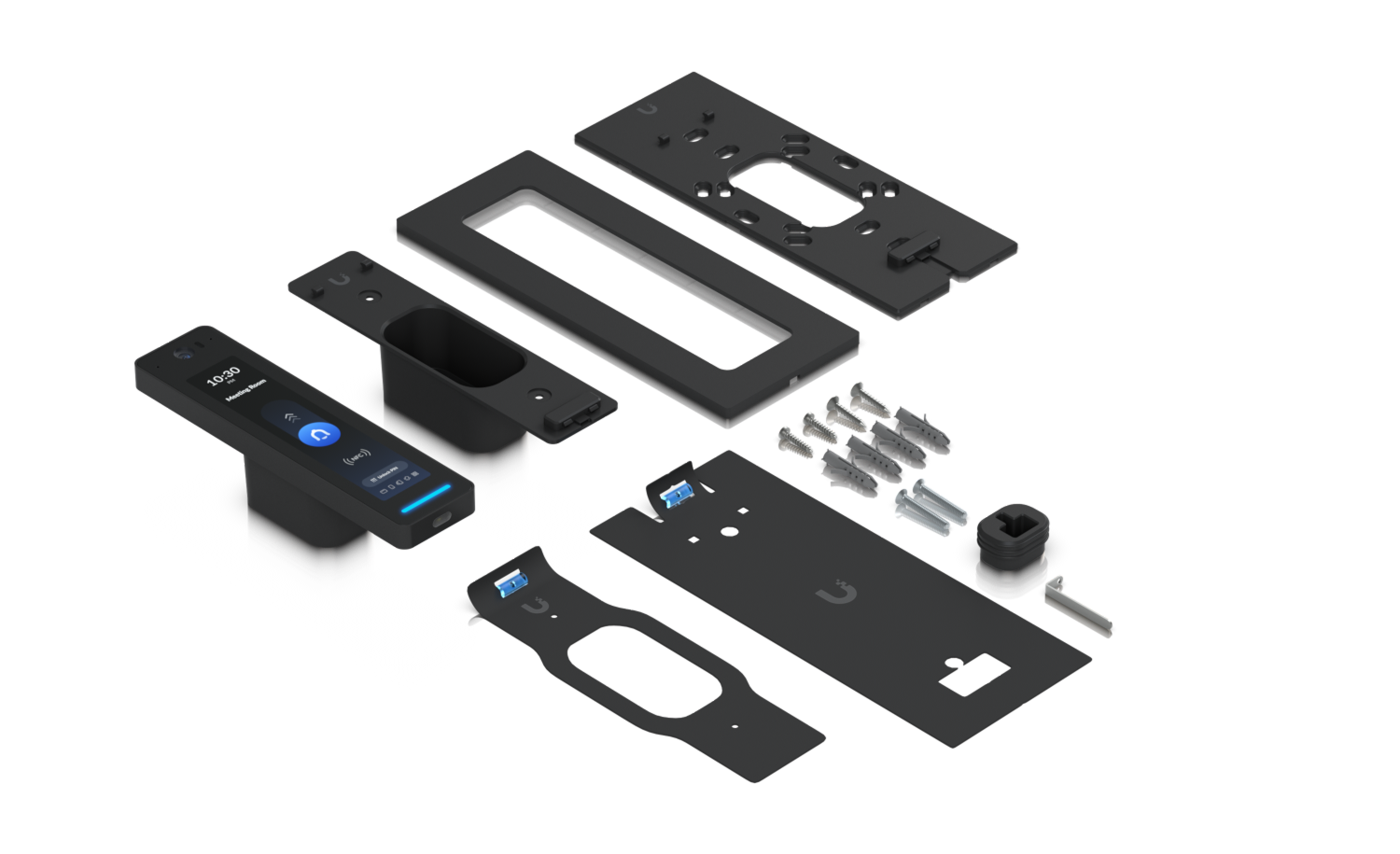

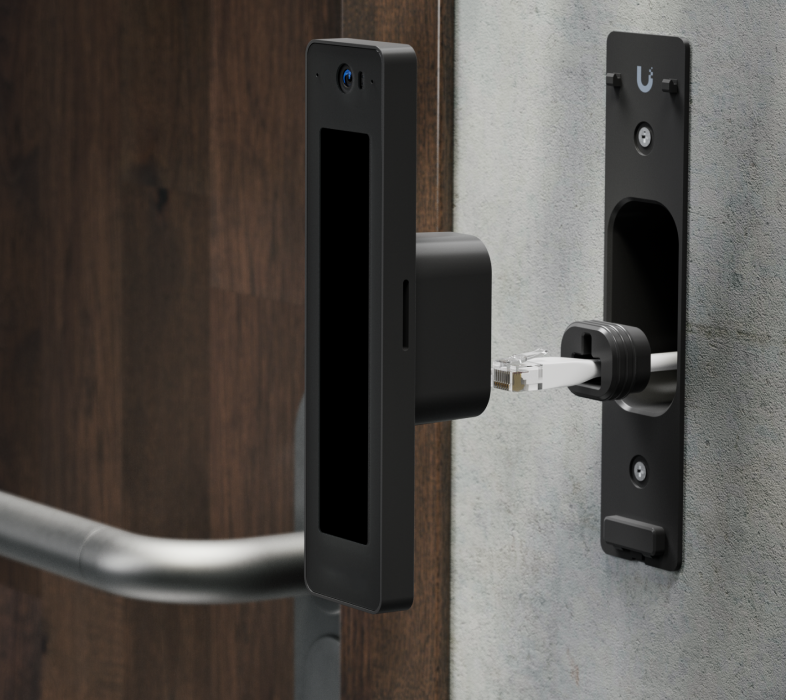

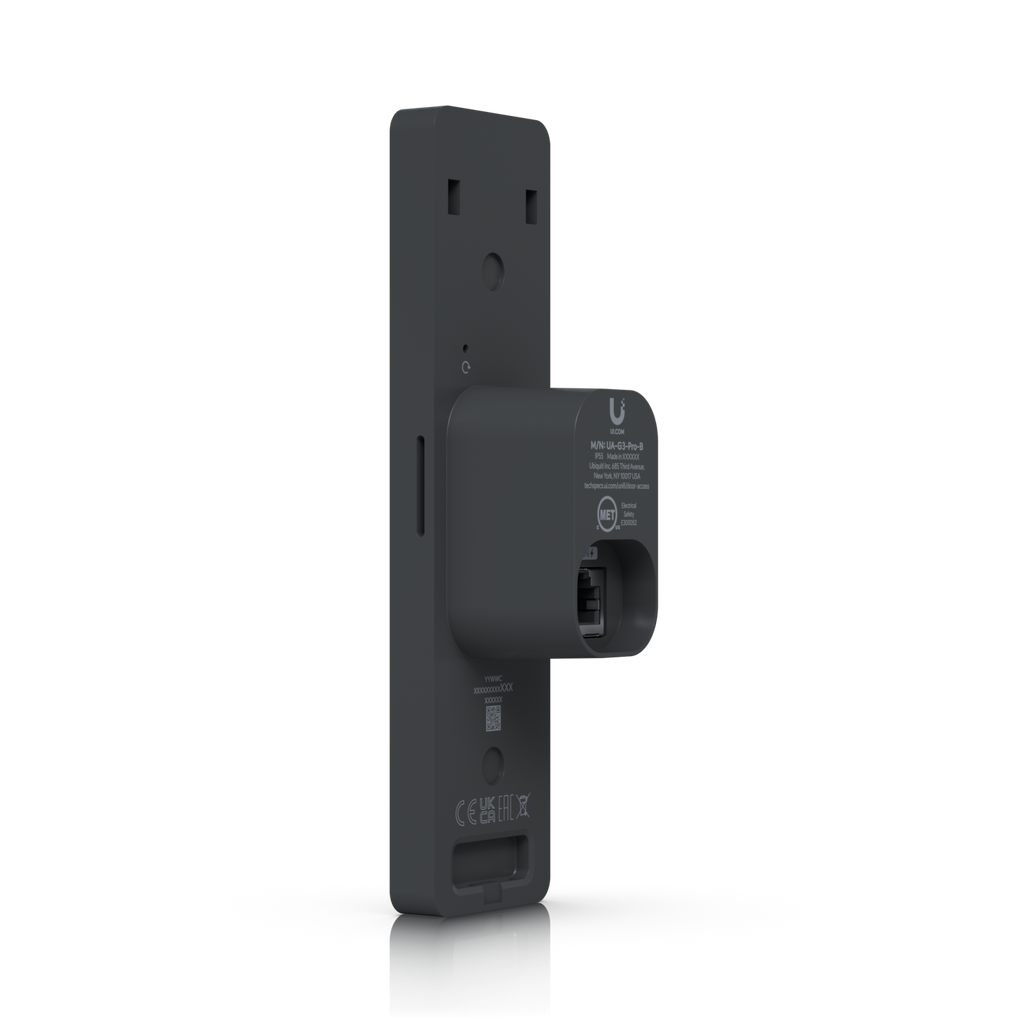

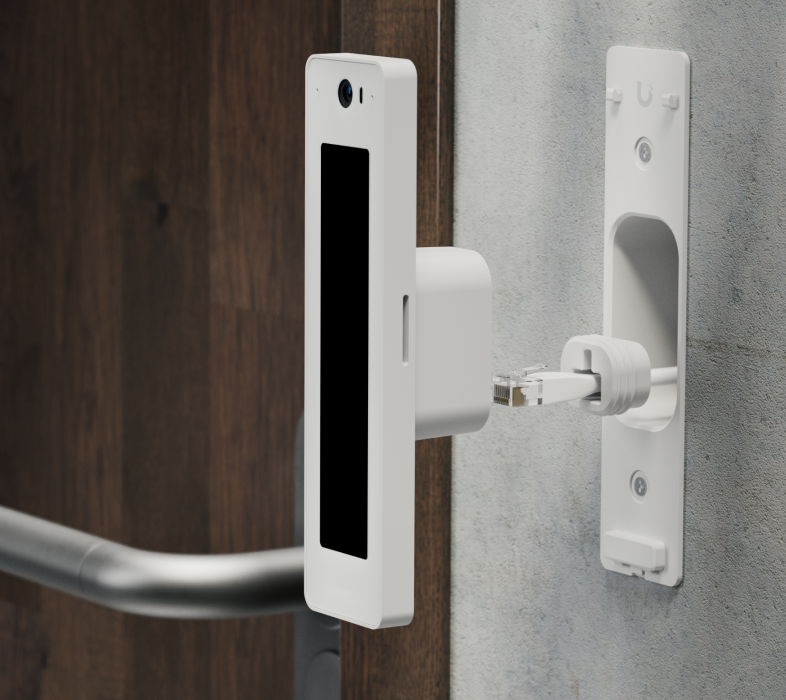

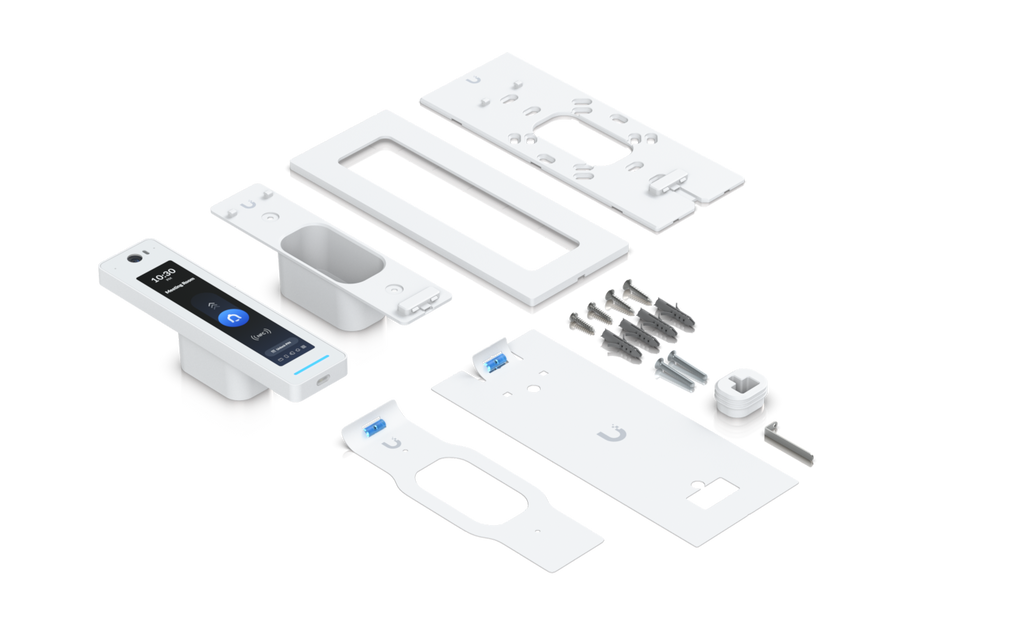

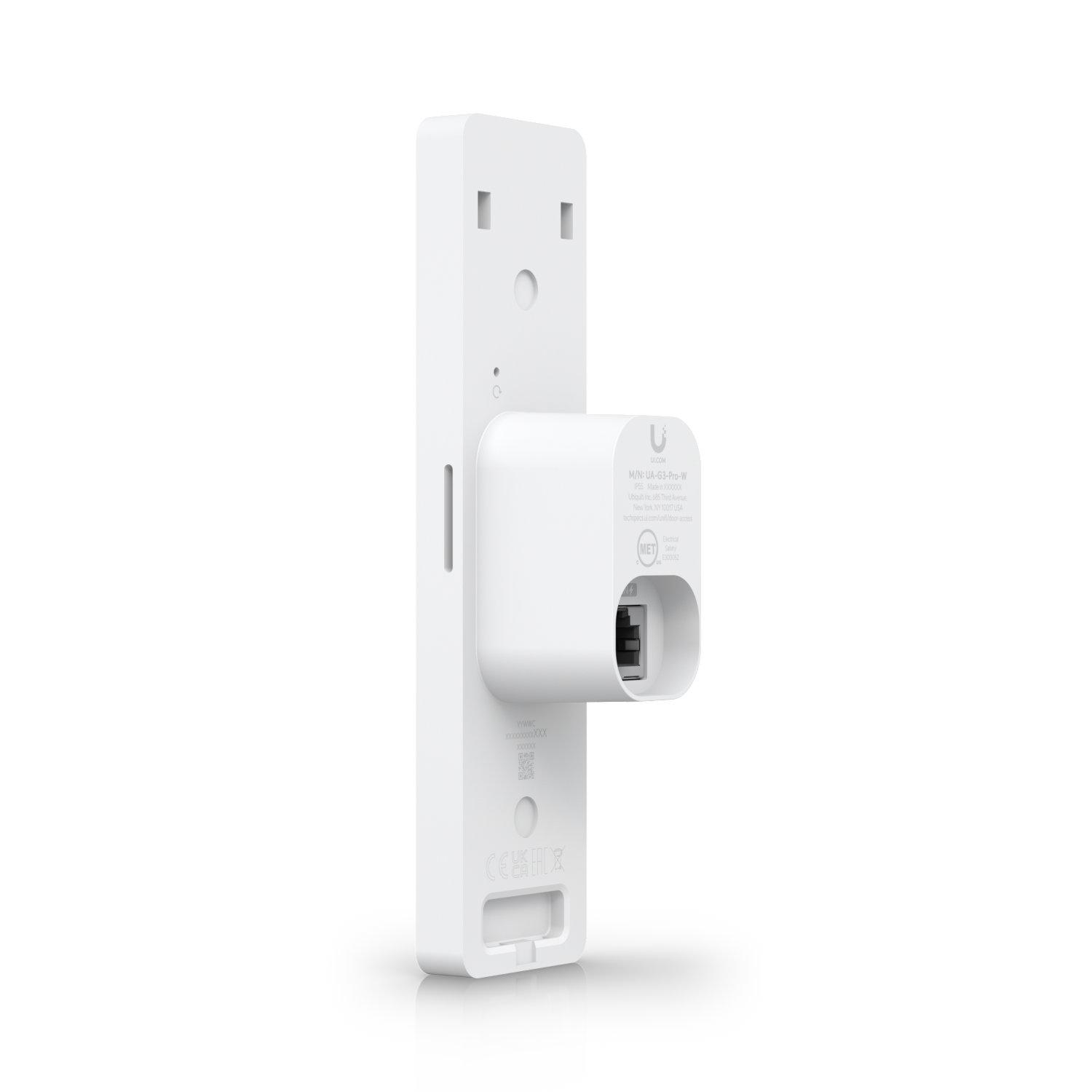

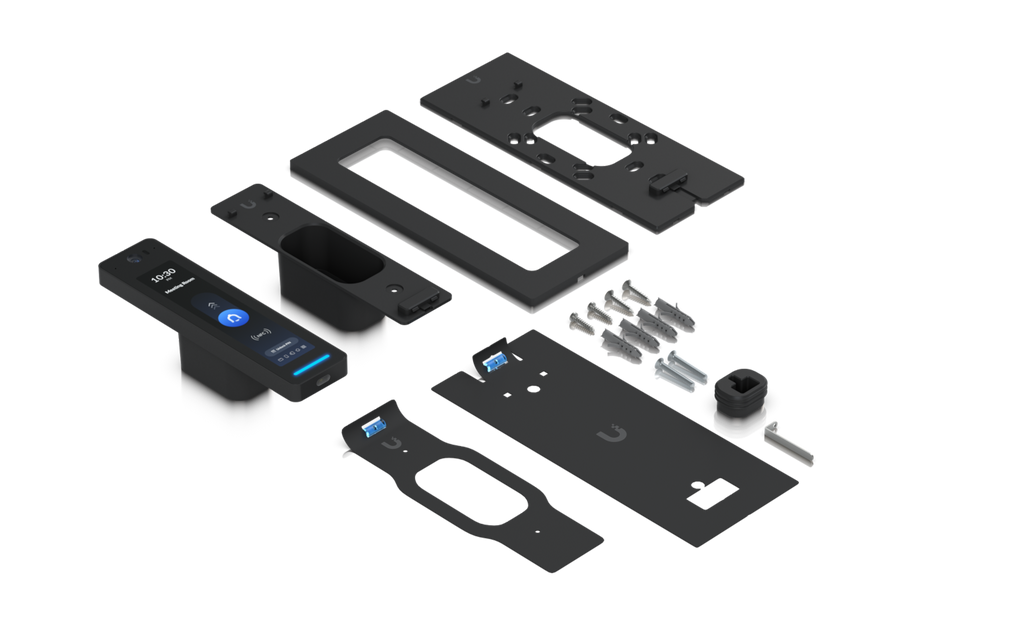

| Mounting | Wall, gang-box mount (Included) Angle mount, junction box (Optional) |
Hardware
| Indoor and Outdoor Use | Yes |

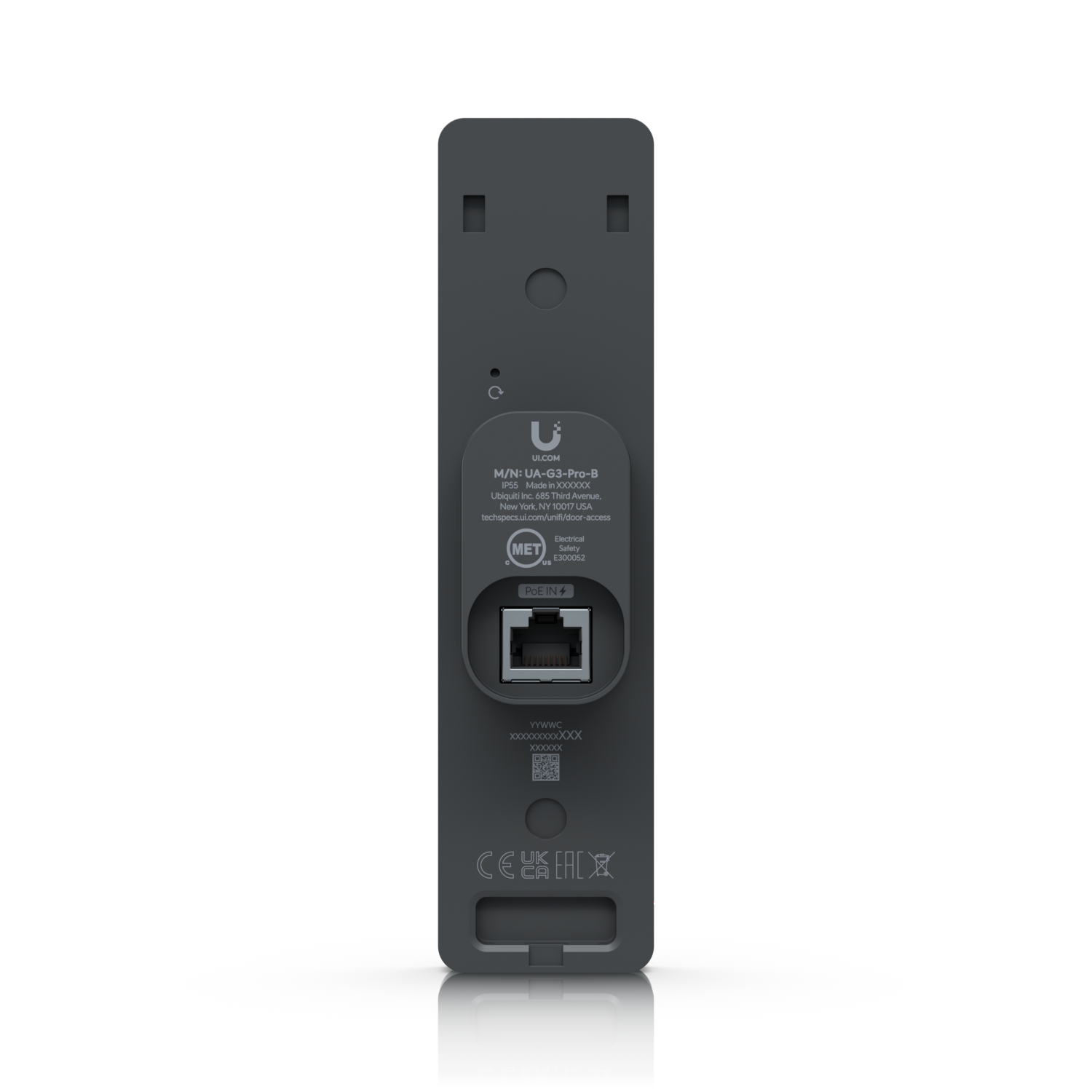

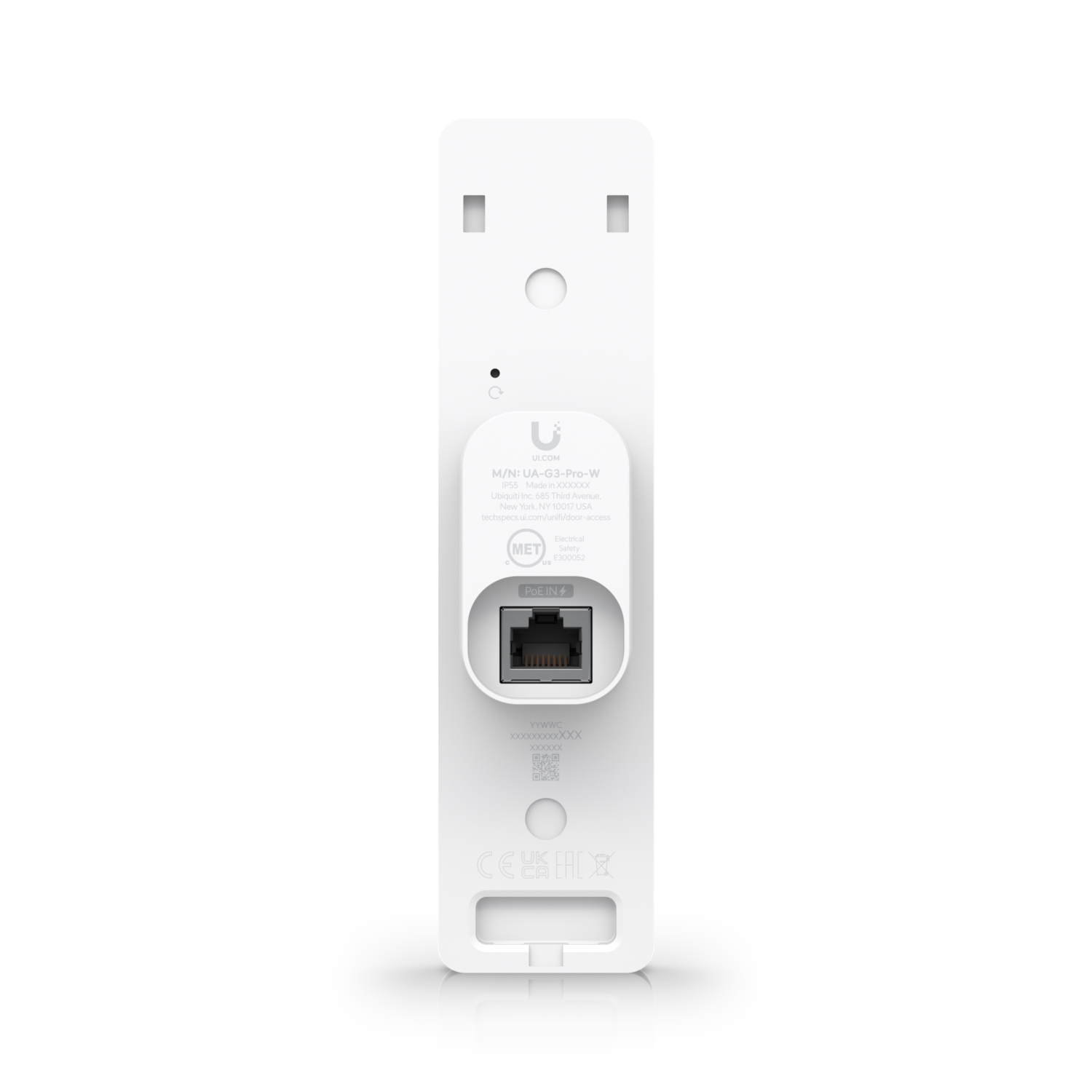

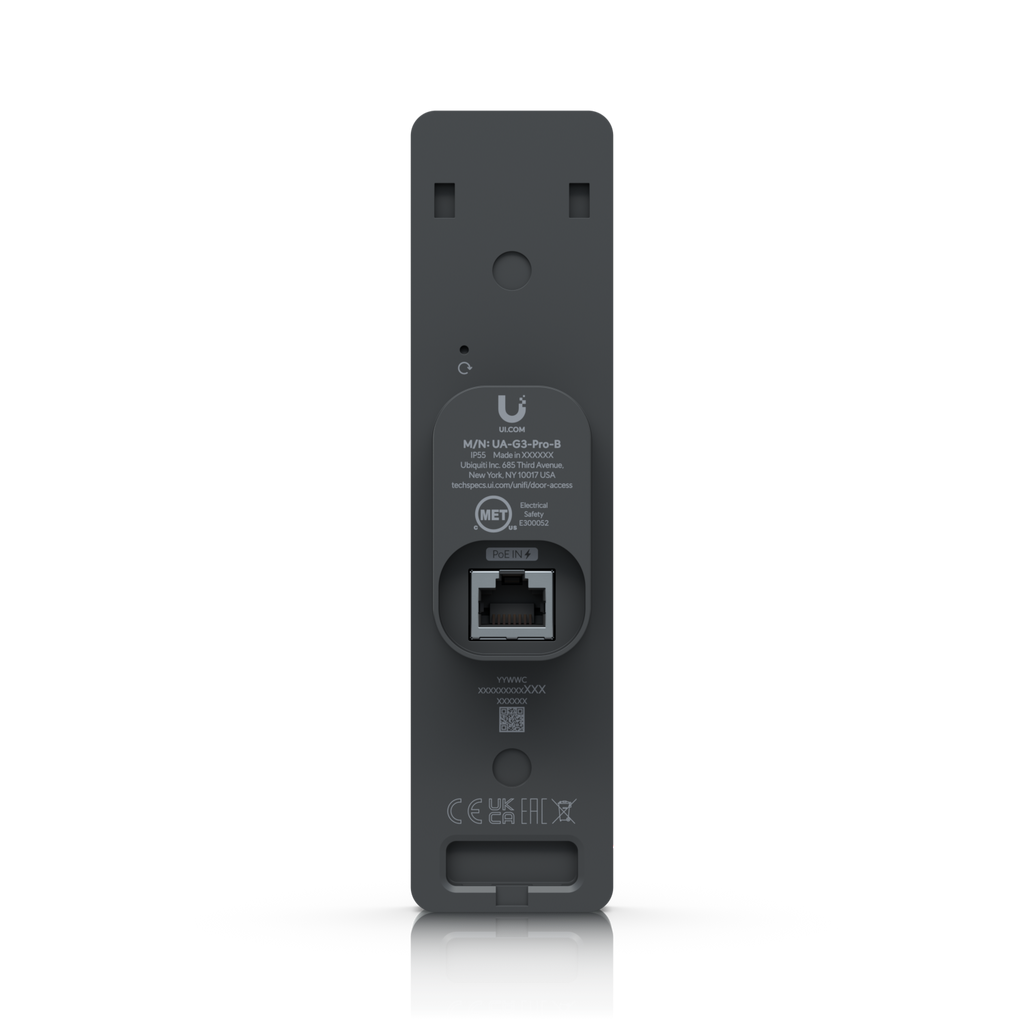

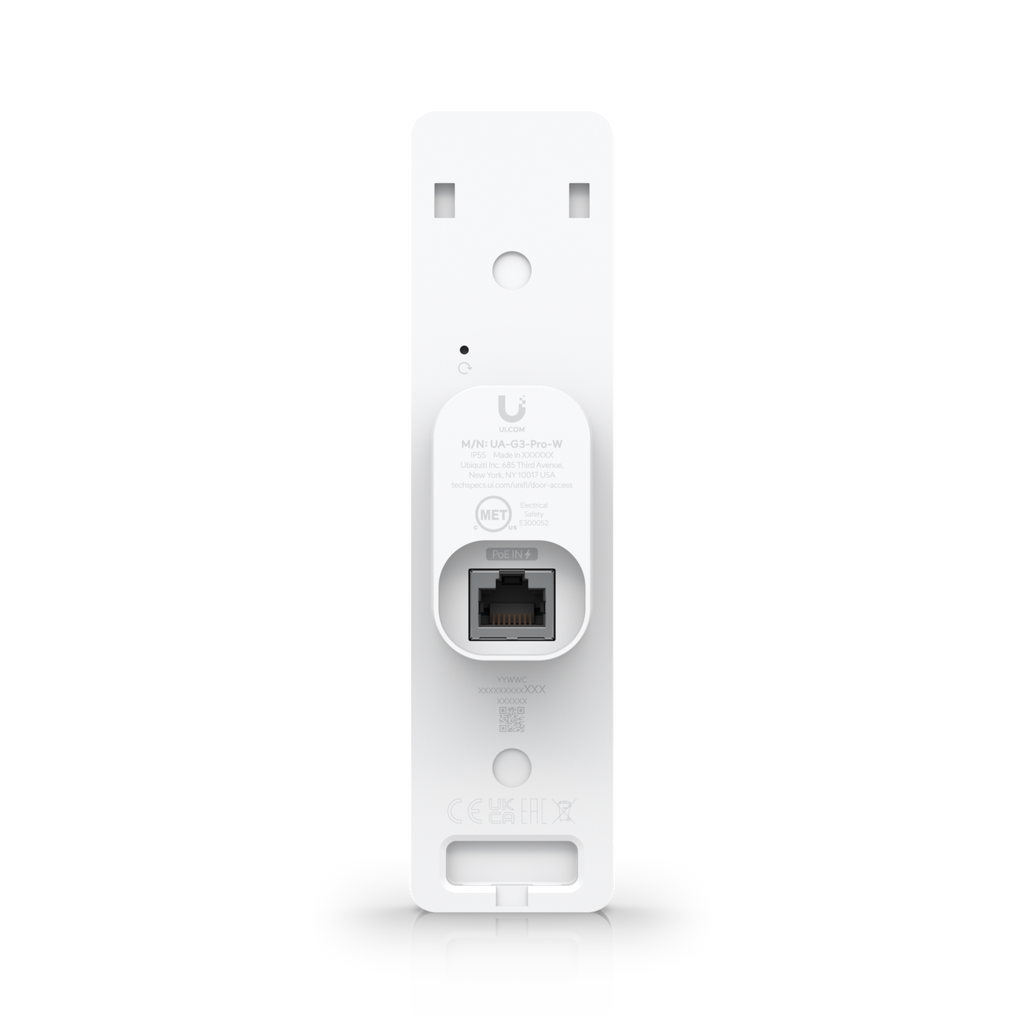

| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 NFC |
| Power Method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Max. Frame Rate | 30 FPS |
| Resolution | 2MP 1200 x 1600 (3:4) |
| Resolution | 12 MP (3072 × 4096) |
| Field of View | H: 98.6°, V: 125.7°, D: 157.8° |
| Sensors | Proximity sensor |

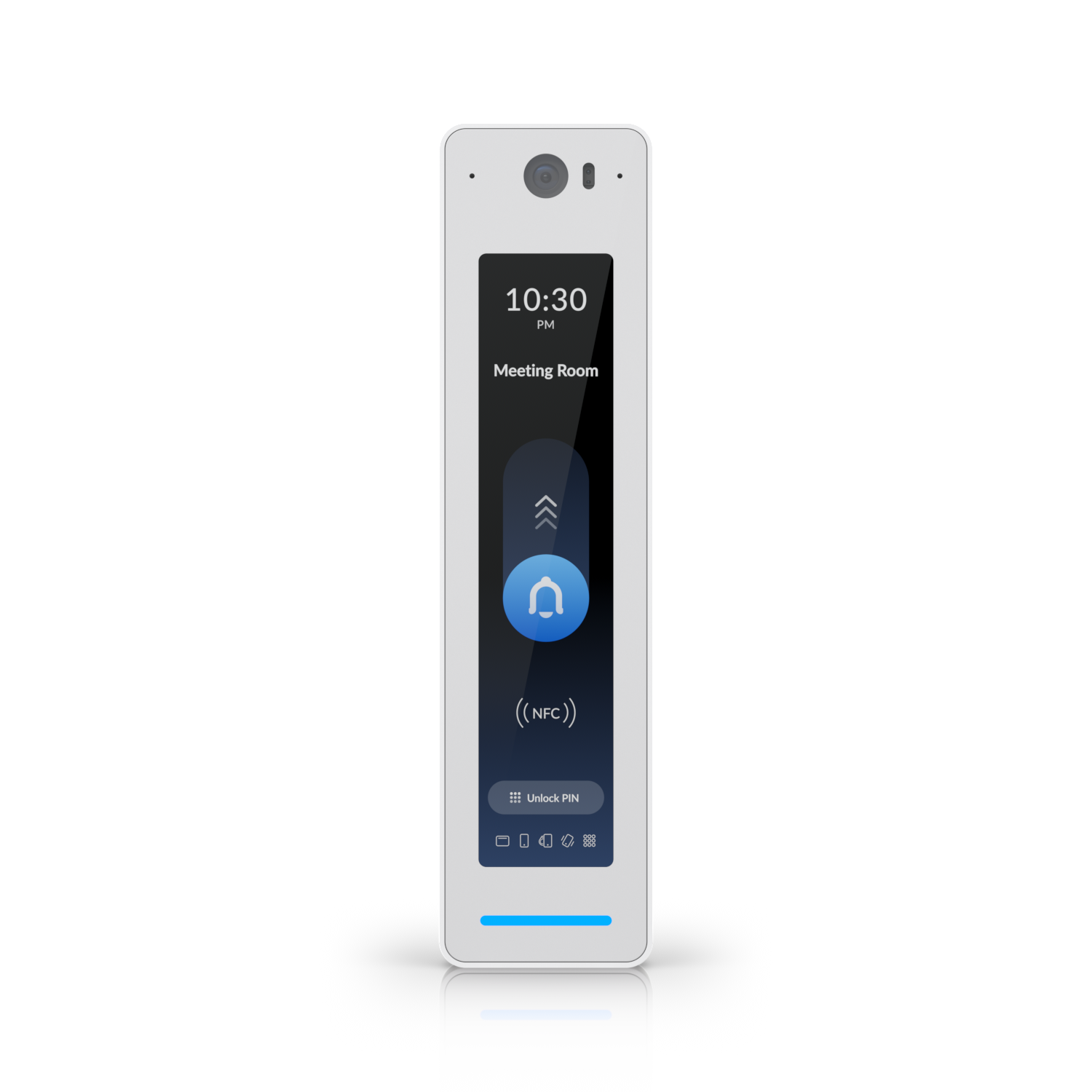

| Size | 120 mm (4.7") diagonal |
| Screen Technology | Capacitive touch |
| Luminance | 480 nits (Typical) |
| Screen Orientation | Portrait |
| Resolution | 1280 x 286 px |
| LEDs | R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0 |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G3-Pro-W/UA-G3-Pro-B, V01 |
| Ambient Operating Temperature | Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Software
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
