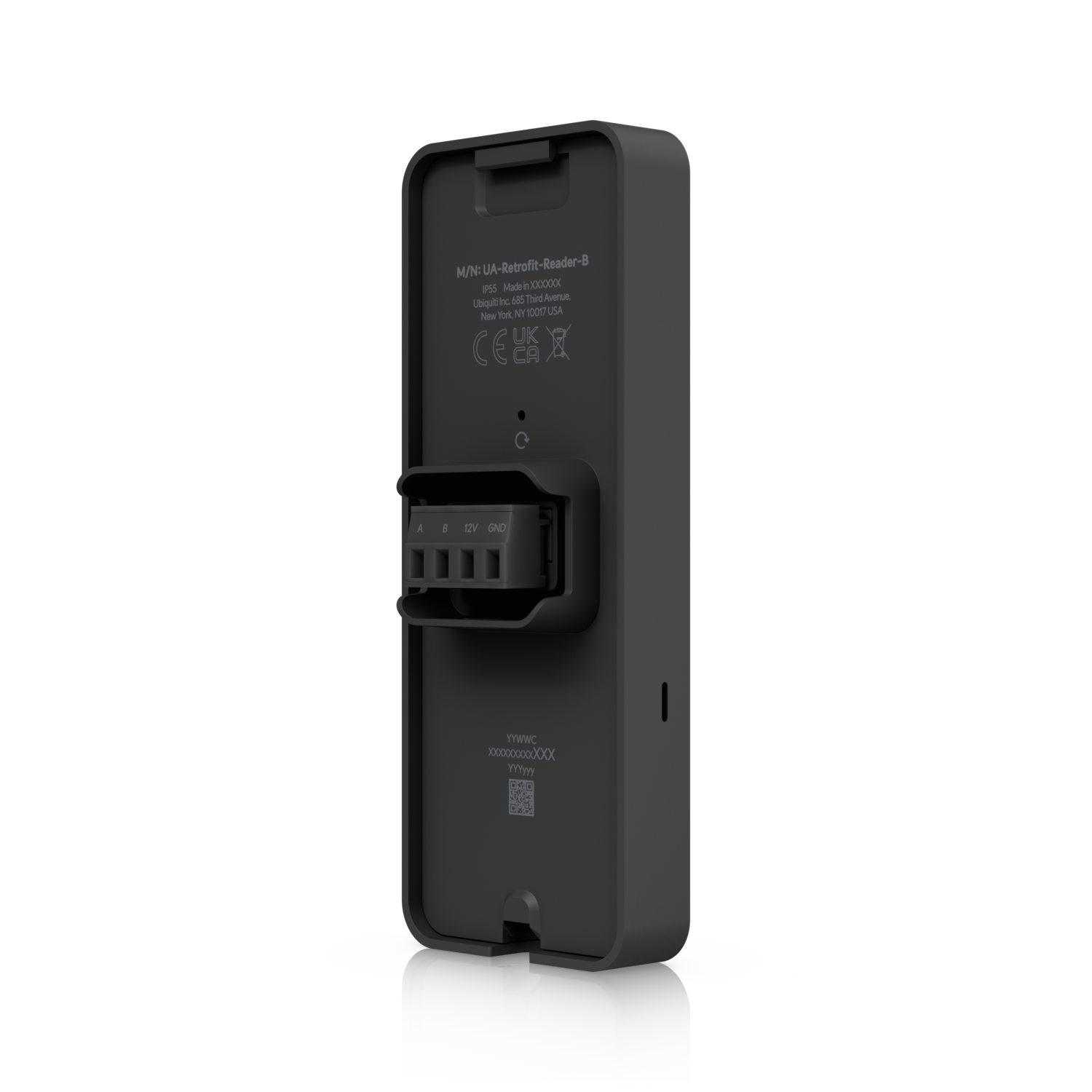

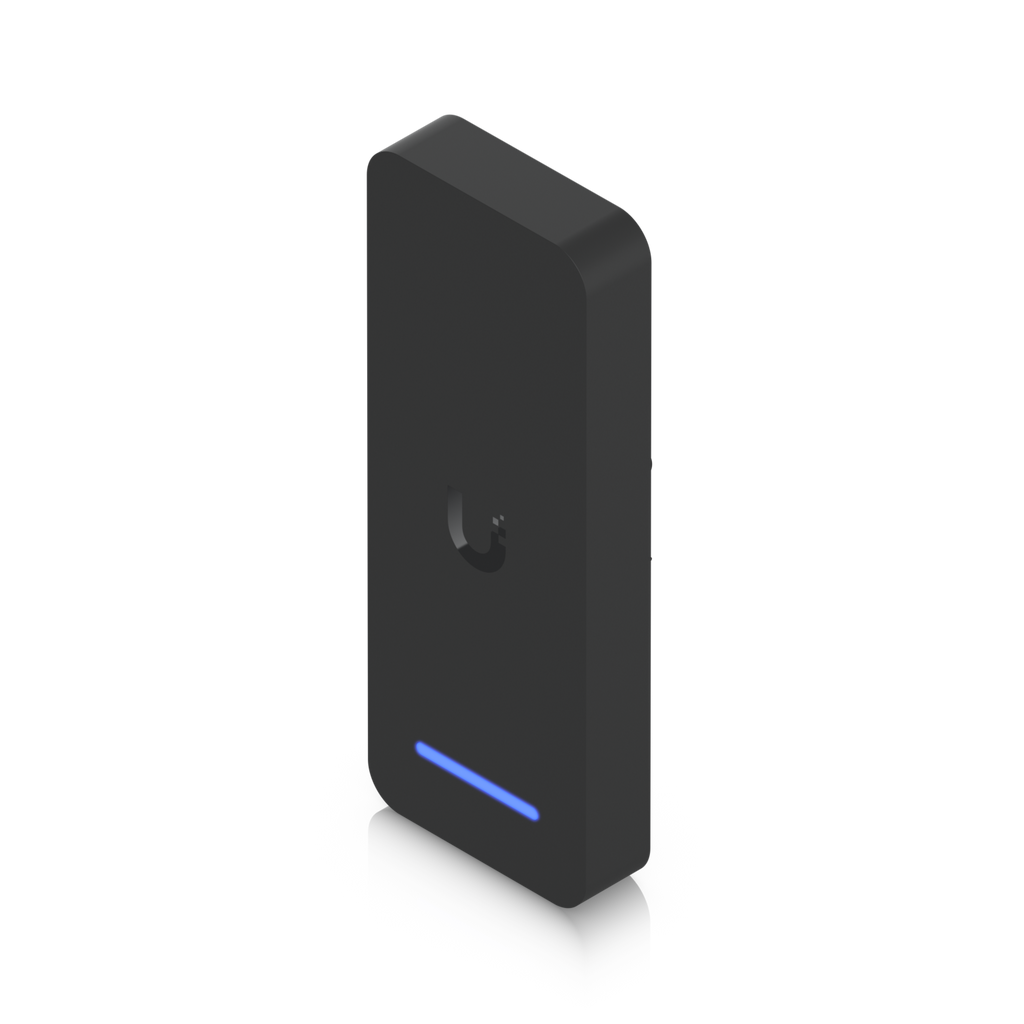

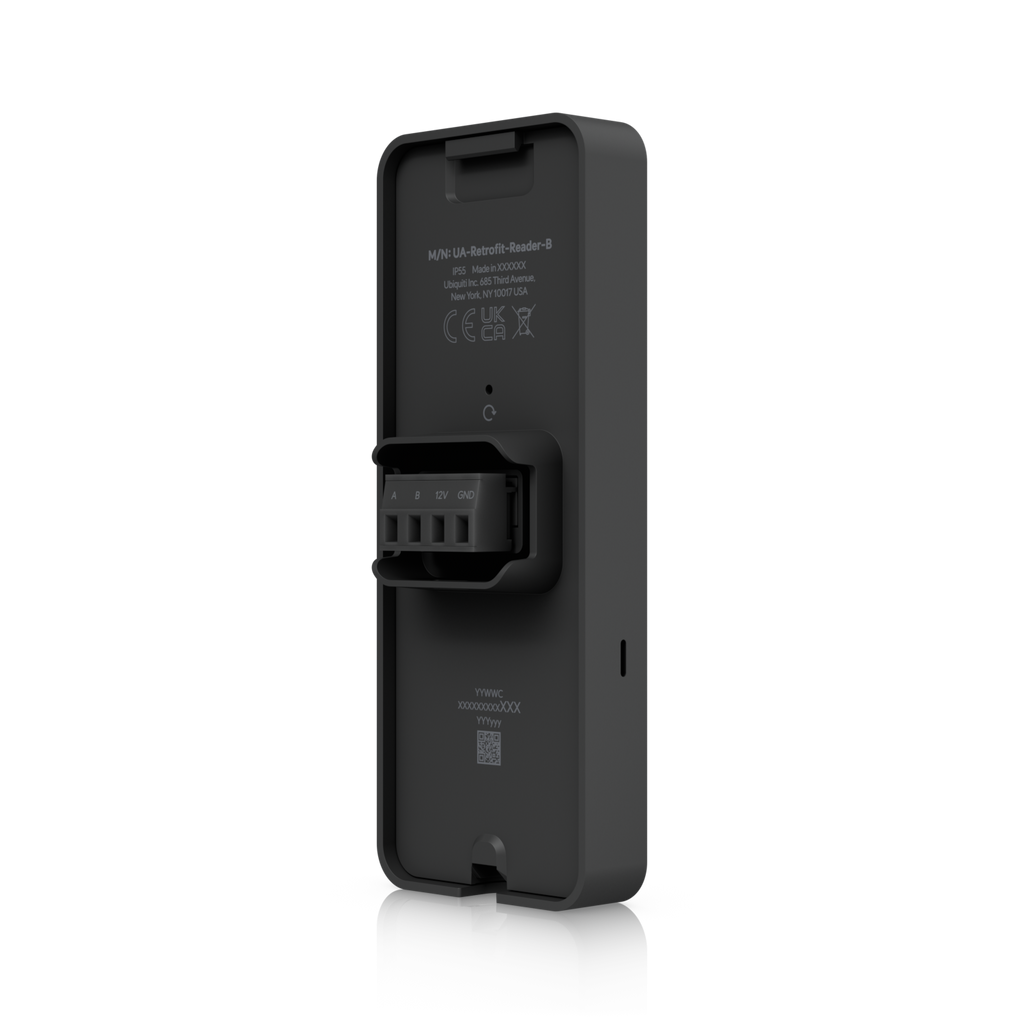

Ubiquiti UA-RETROFIT-READER | UniFi Retrofit Reader
White
$351.00
Ubiquiti UA-RETROFIT-READER | UniFi Retrofit Reader
$351.00

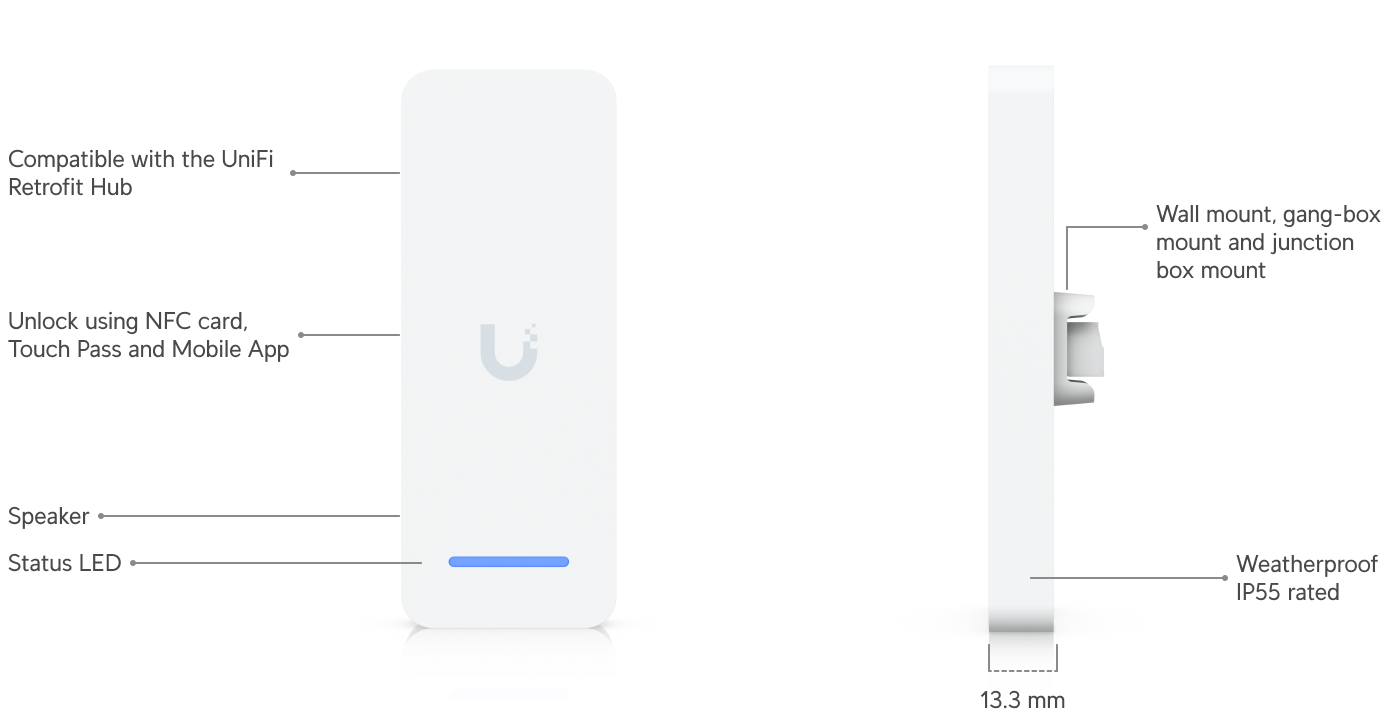

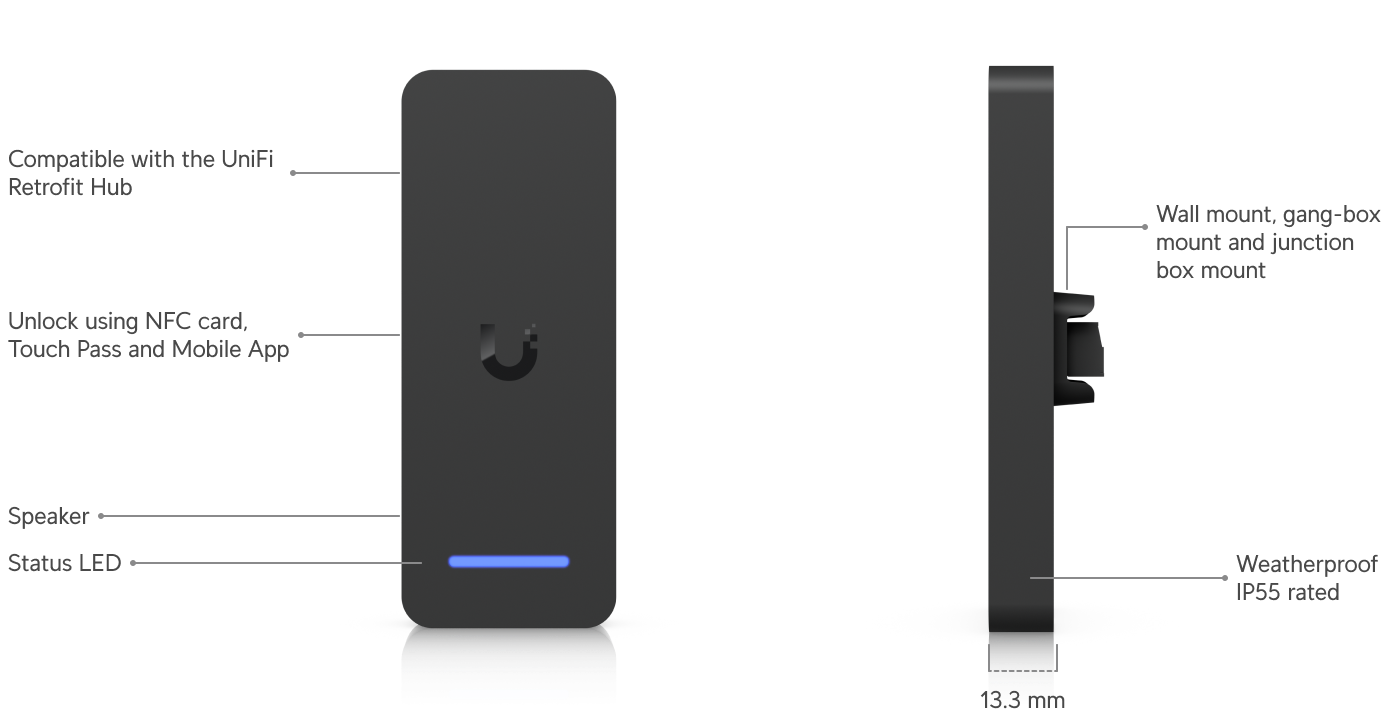

An OSDP card reader for sites that already have wired access control infrastructure and want to bring it under UniFi Access management without re-cabling.
Why this one

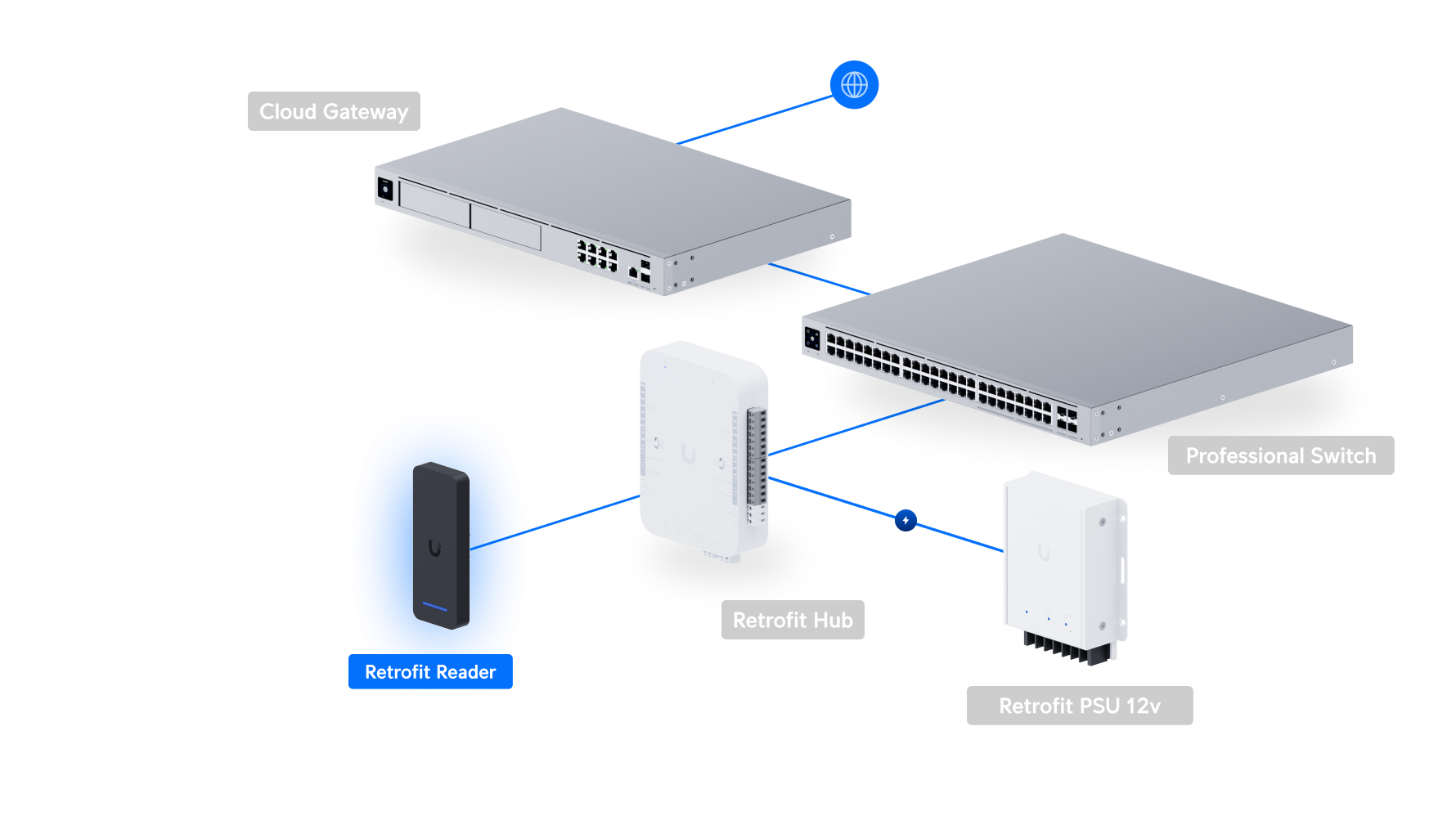

- It connects via RS-485 OSDP v2 to the UniFi Retrofit Hub, so your existing low-voltage wiring stays in place — no cable runs, no chasing walls.

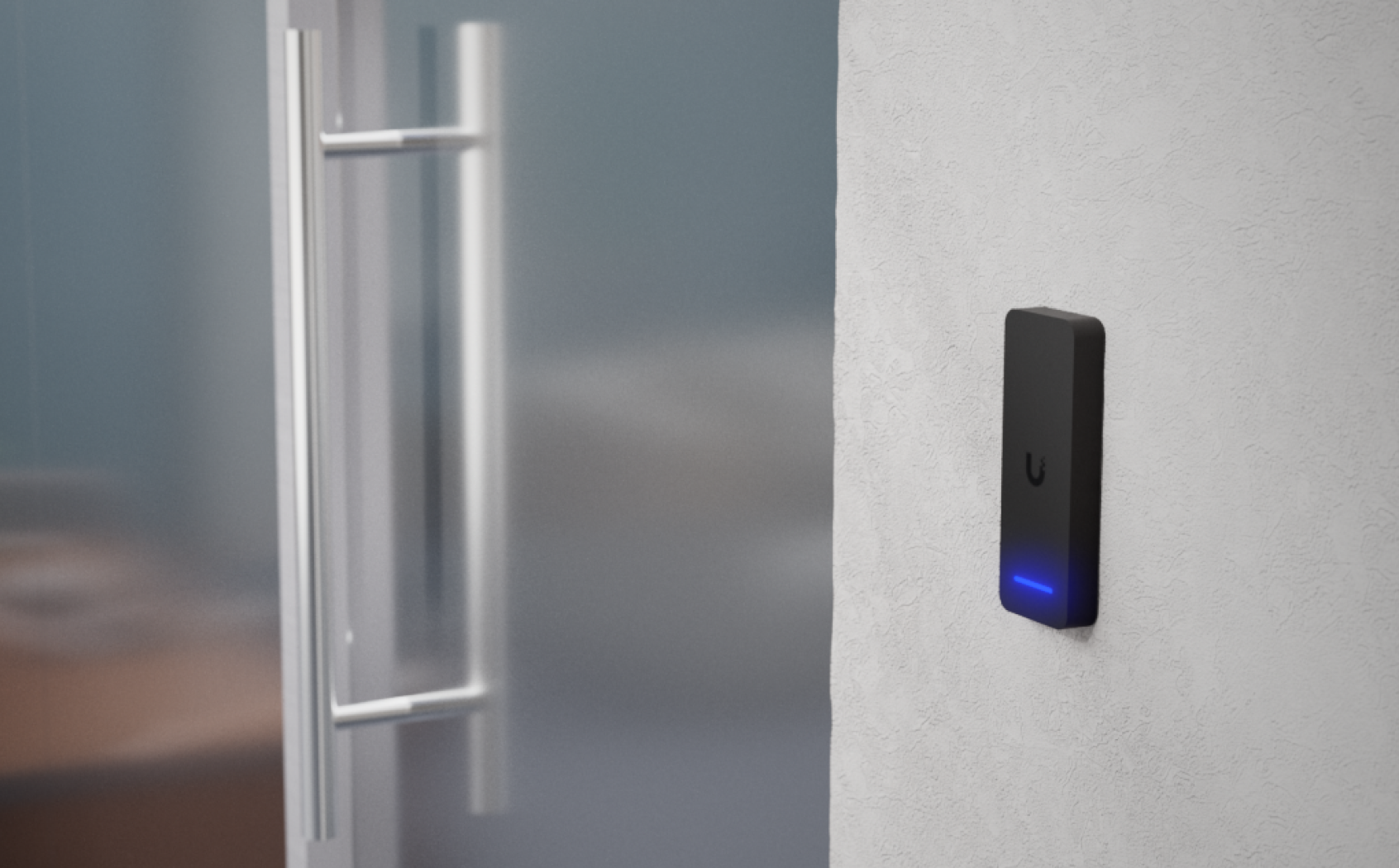

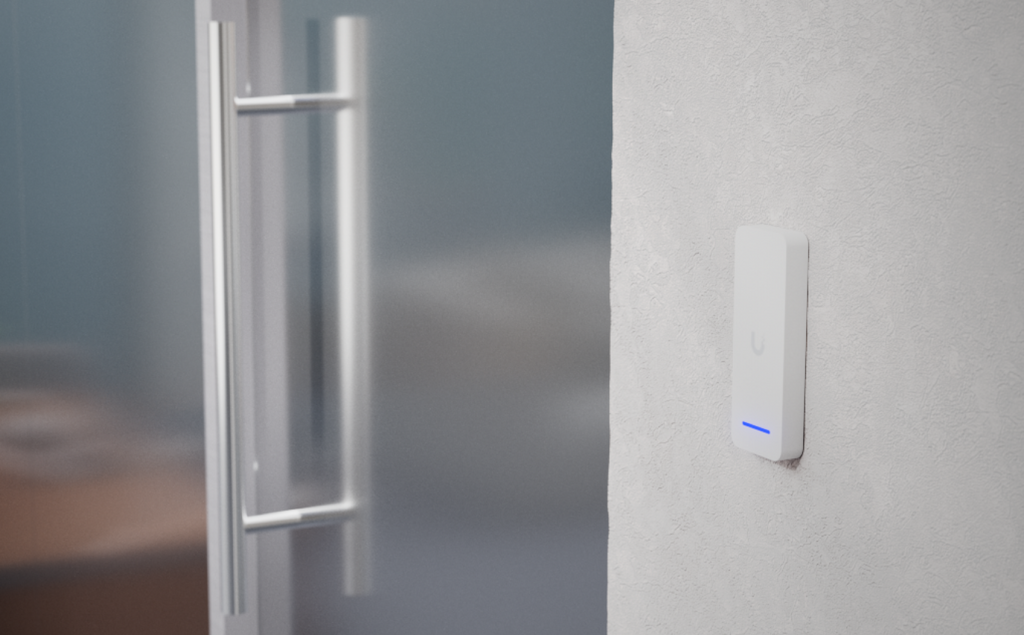

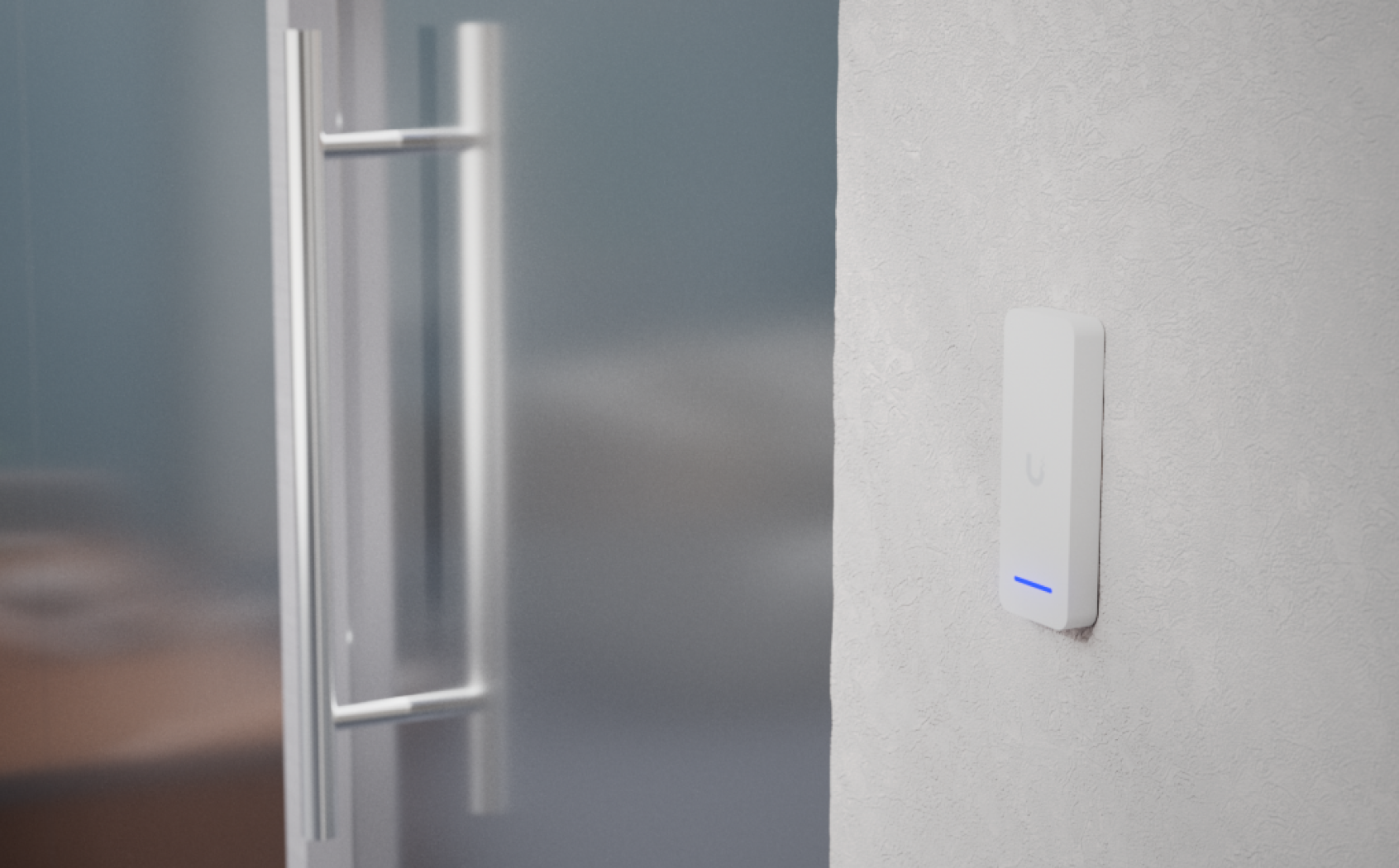

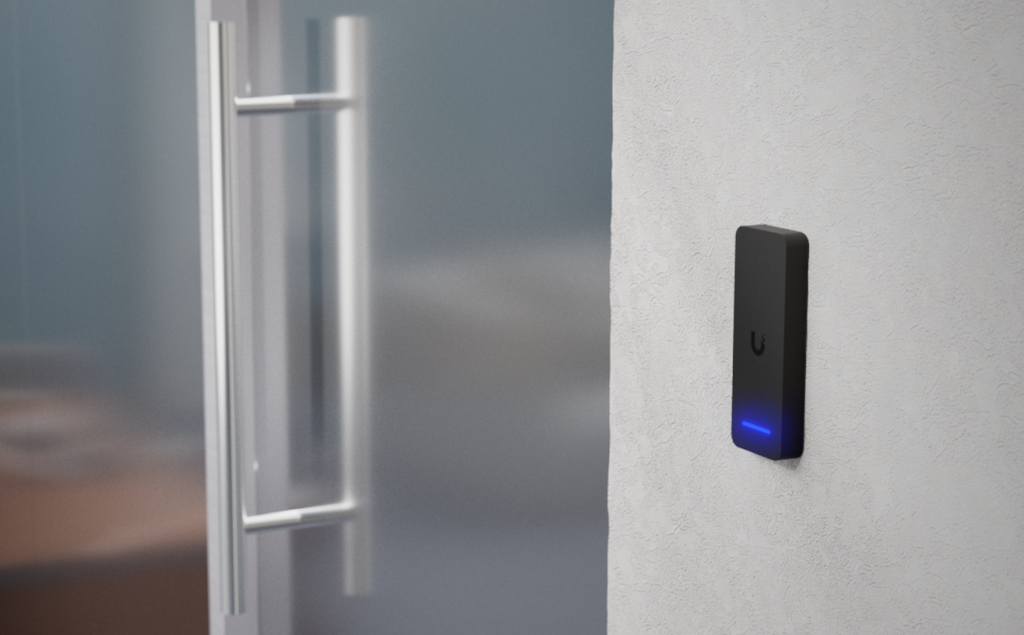

- IP55 weatherproofing and a -30 to 50°C operating range mean it mounts cleanly on an external door frame without a protective housing.
- NFC support covers ISO 14443A/B, 15693, and the full MIFARE family, so it reads the card stock most sites already carry rather than forcing a credential migration.
- Touch Pass via BLE 4.1 lets users present a mobile credential, which is useful on sites where lost physical cards are a recurring administration overhead.
Good fit if you have an existing wired access control system — Wiegand or RS-485 — and want UniFi Access management at the reader without replacing controllers, locks, or cable.
Worth considering something else if you're building a new door from scratch with no legacy wiring, where a native UniFi Access reader such as the UA-G3-FLEX pairs directly with a UniFi Access hub and avoids the need for a Retrofit Hub entirely.
What you'll also need

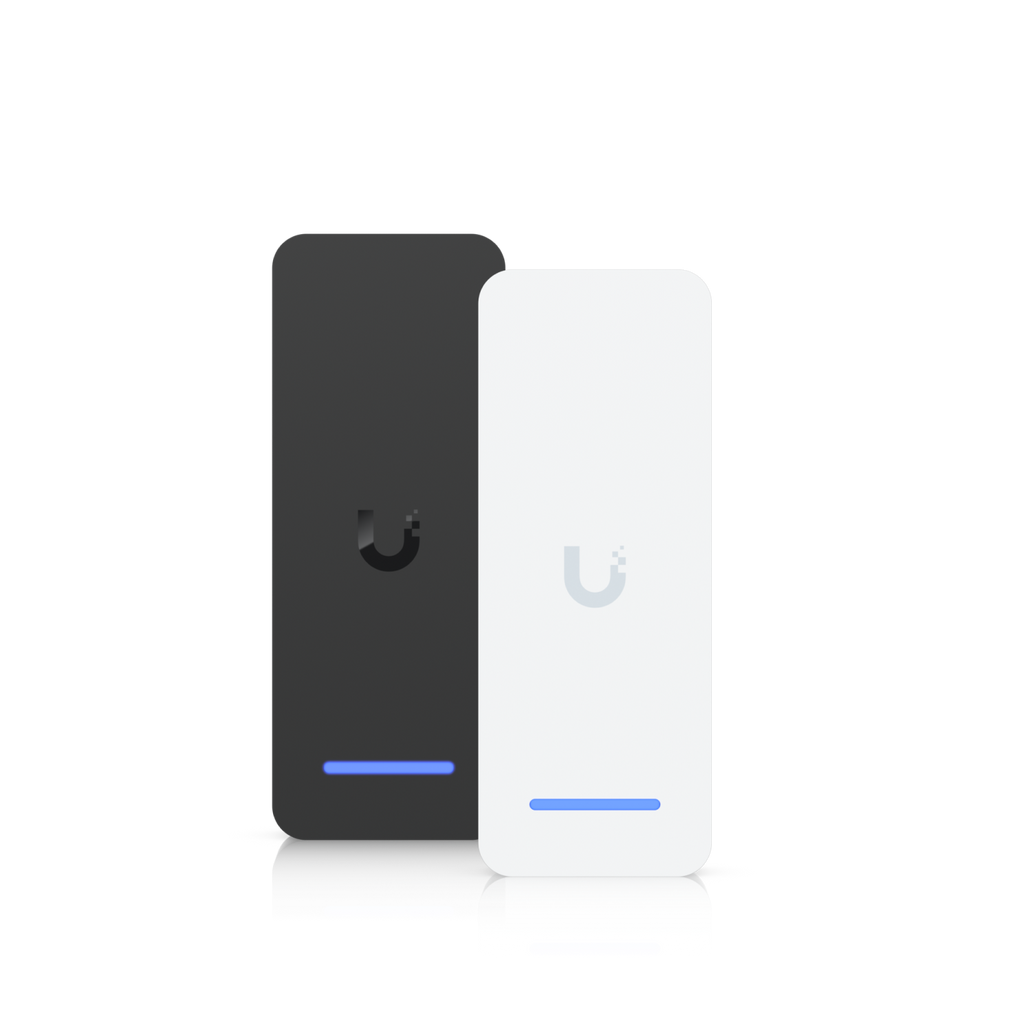

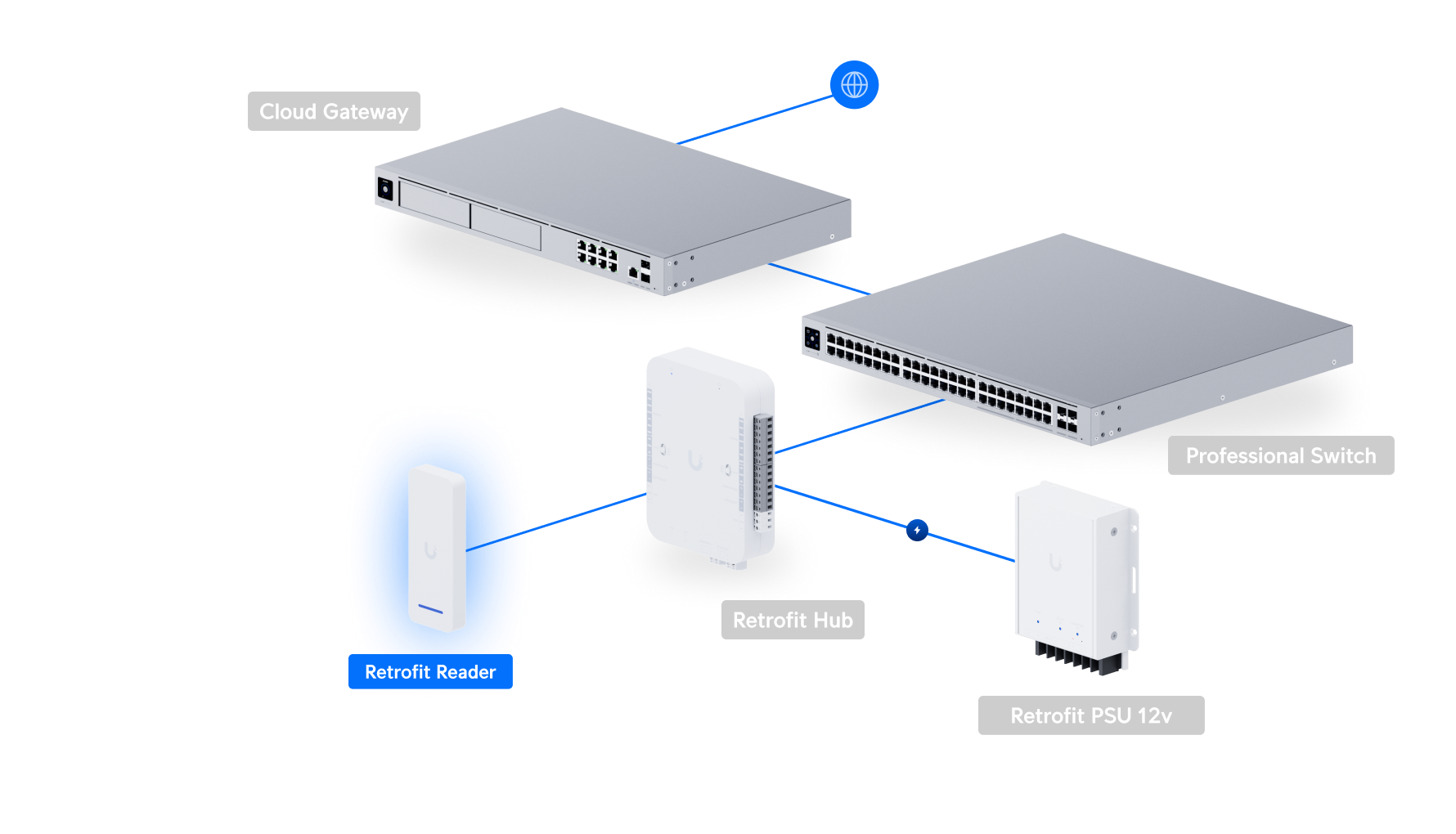

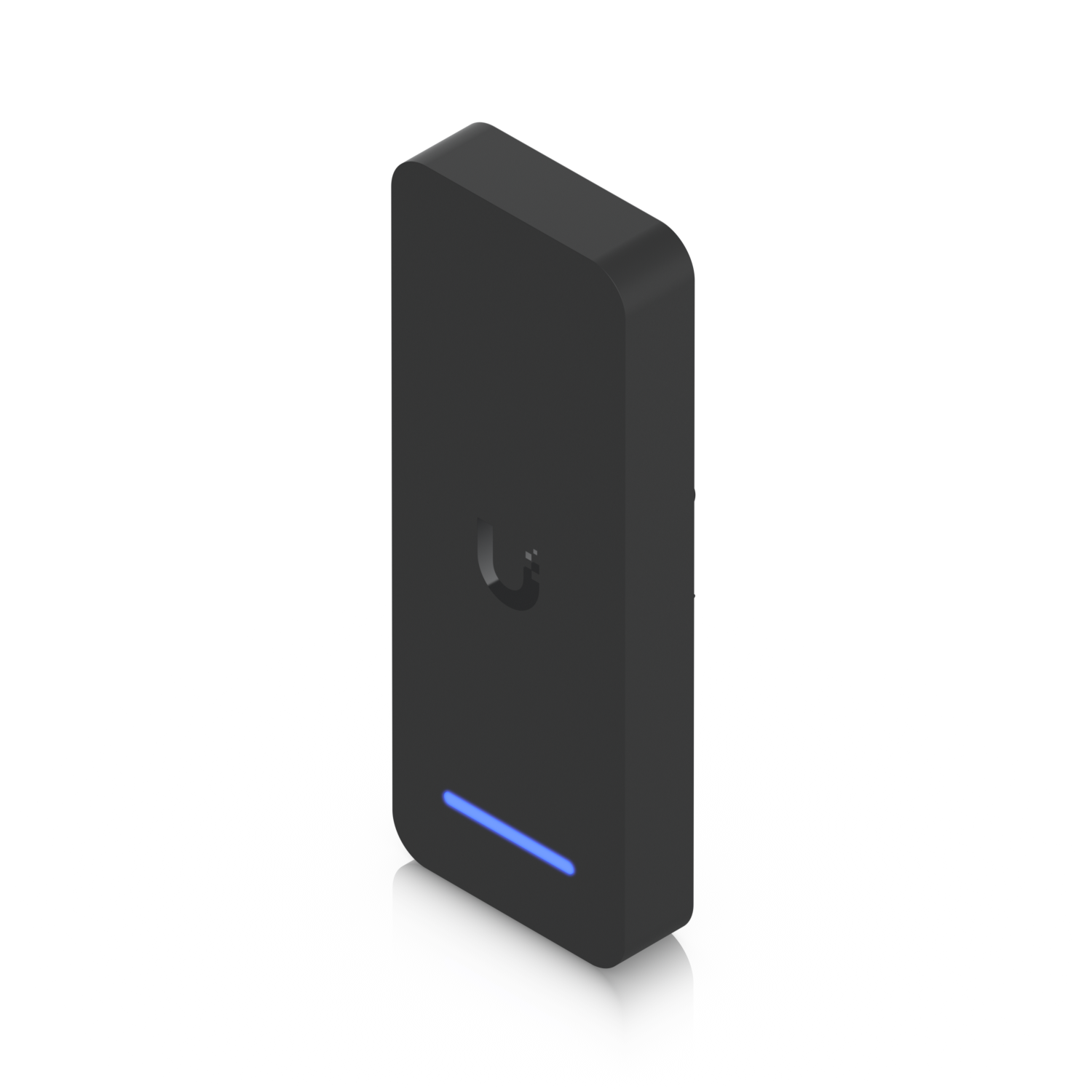

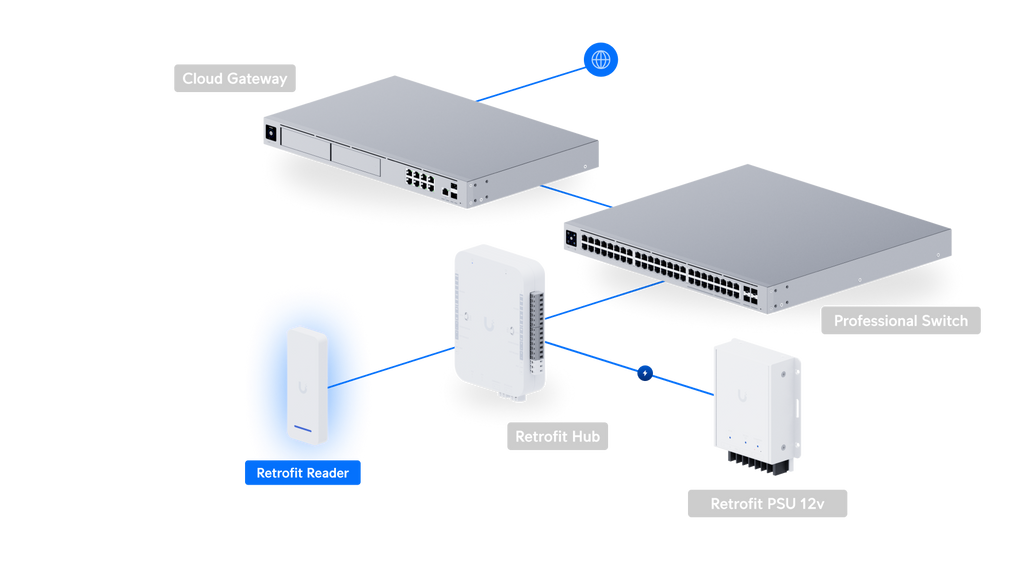

A UniFi Retrofit Hub (not included) to bridge the RS-485 connection into UniFi Access, plus a 12V DC power source at the reader location; available in white or black.
Technical specifications
Overview

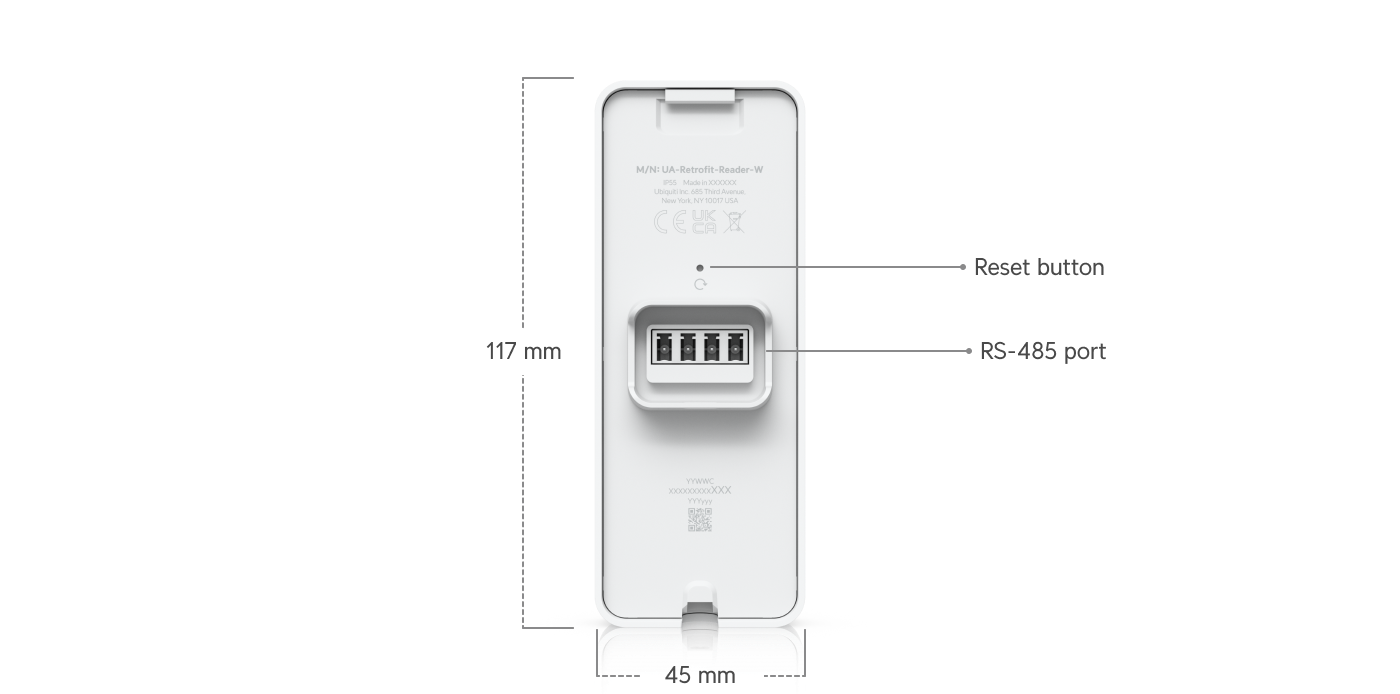

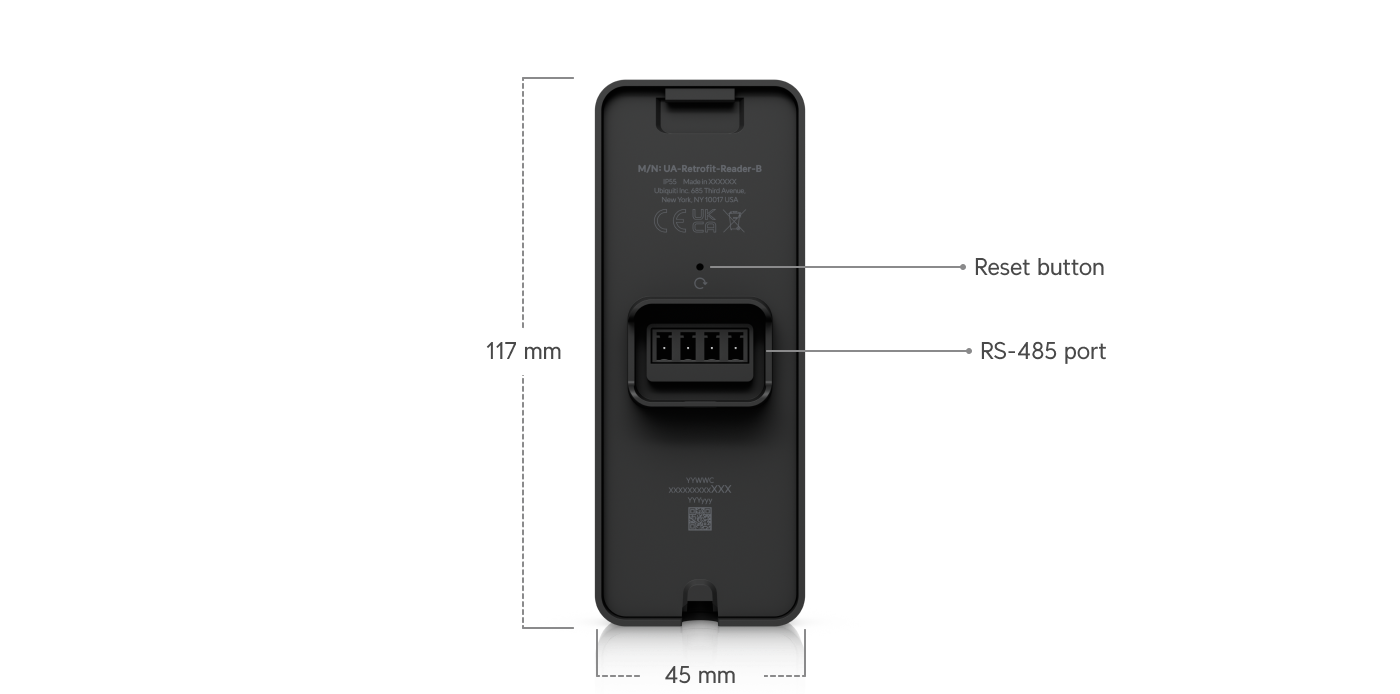

| Dimensions | 117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5") |
| UniFi Application Suite | Access |
| Weatherproofing | IP55 |
Mechanical
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |

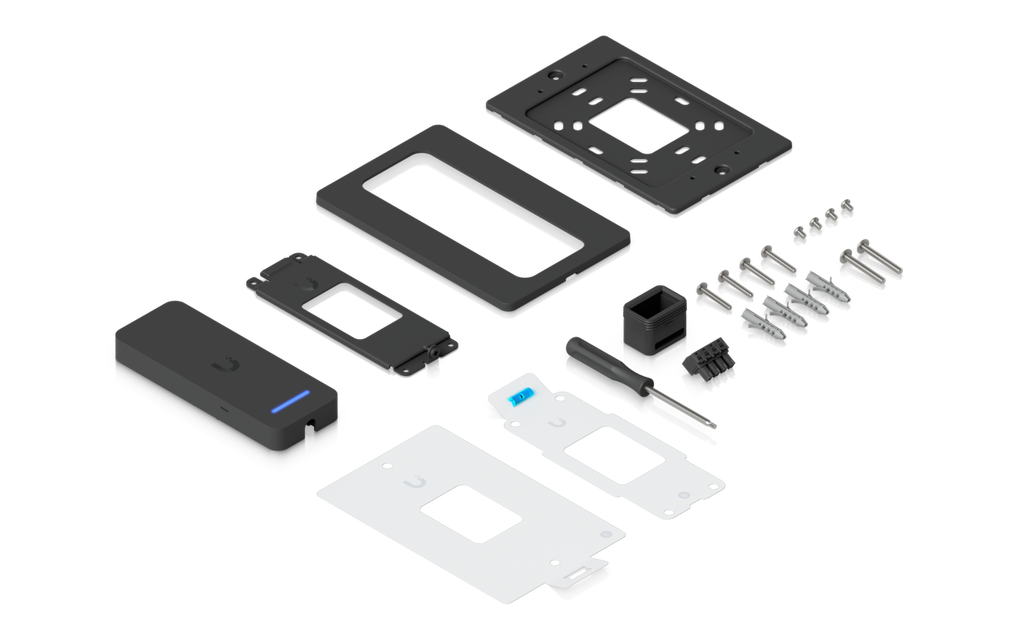

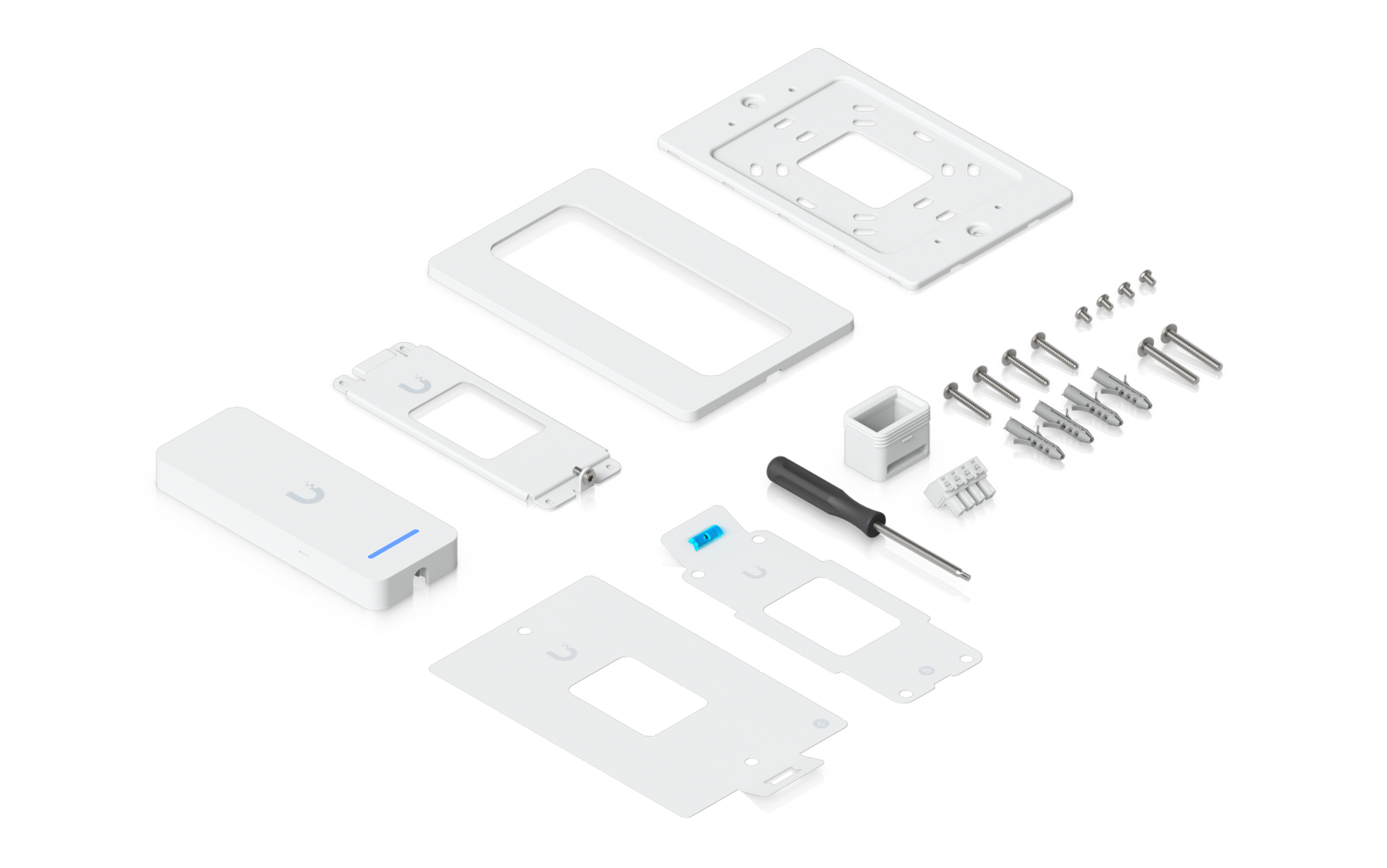

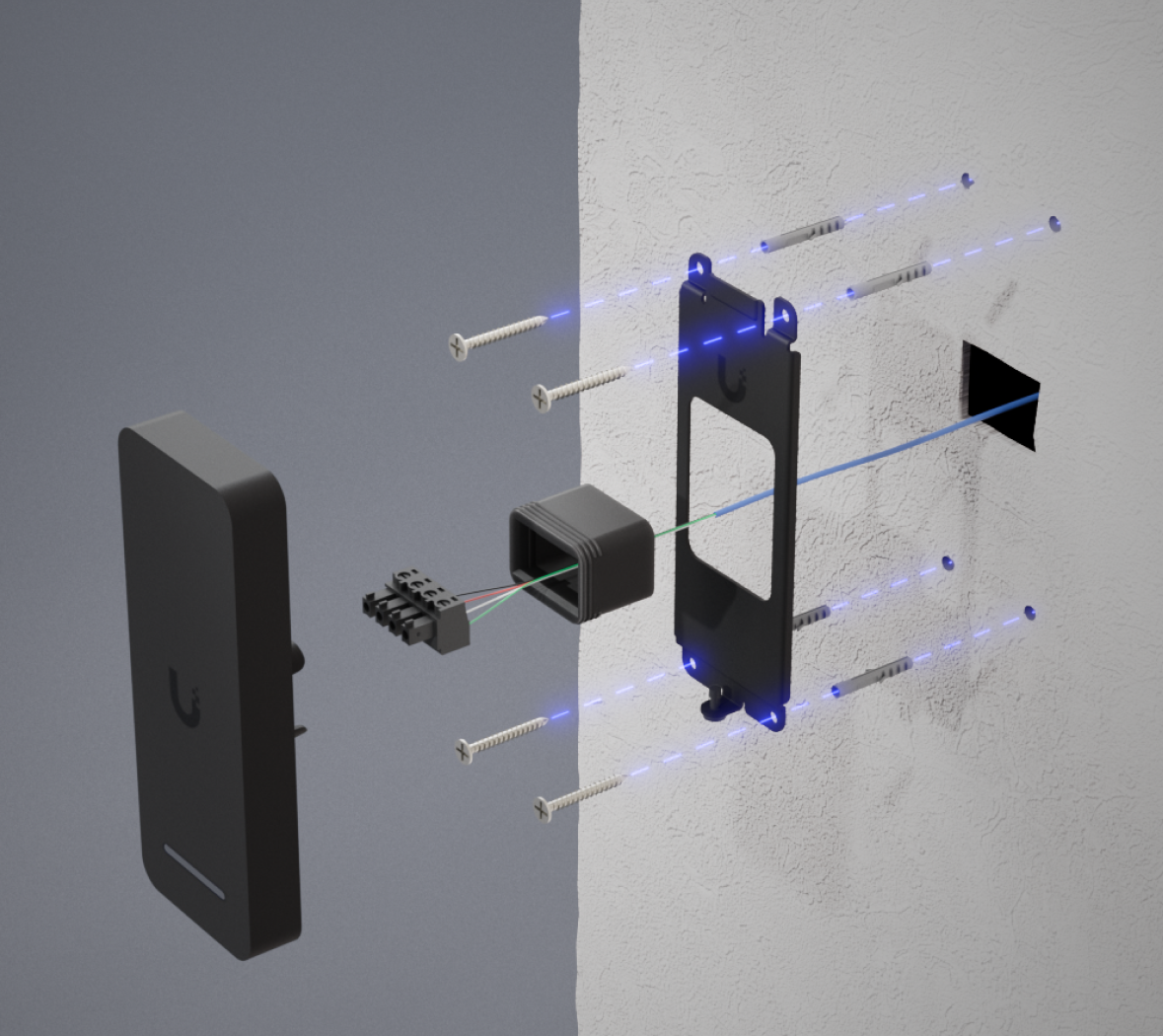

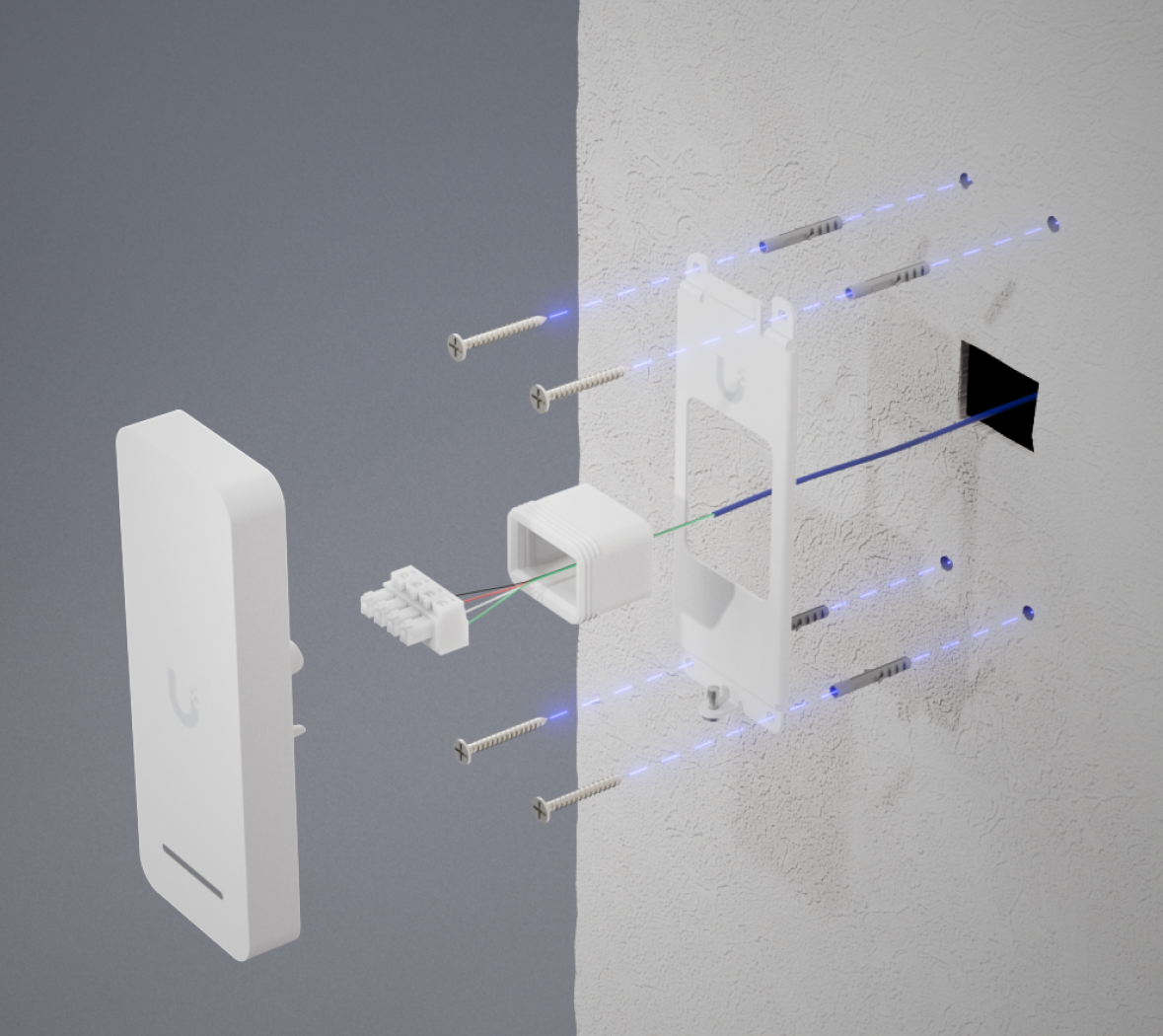

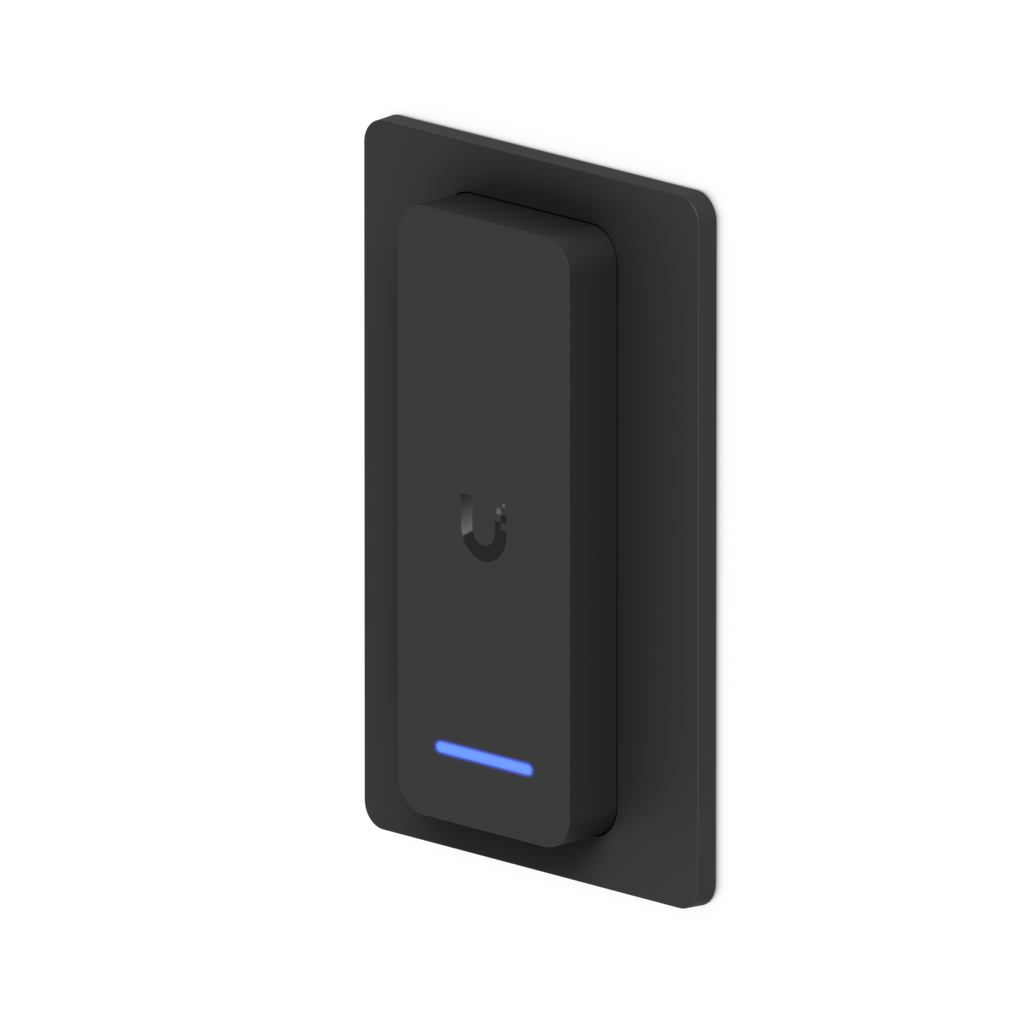

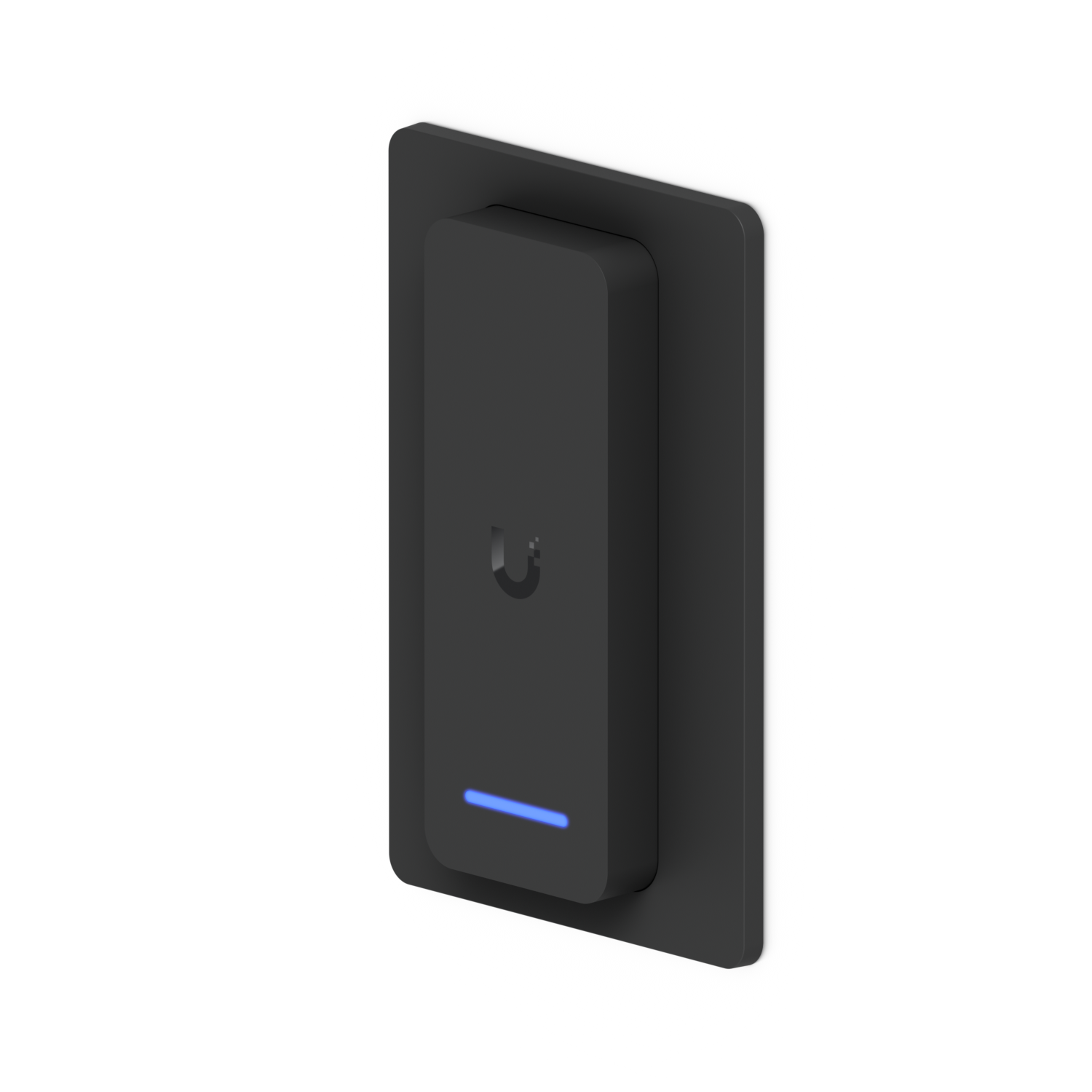

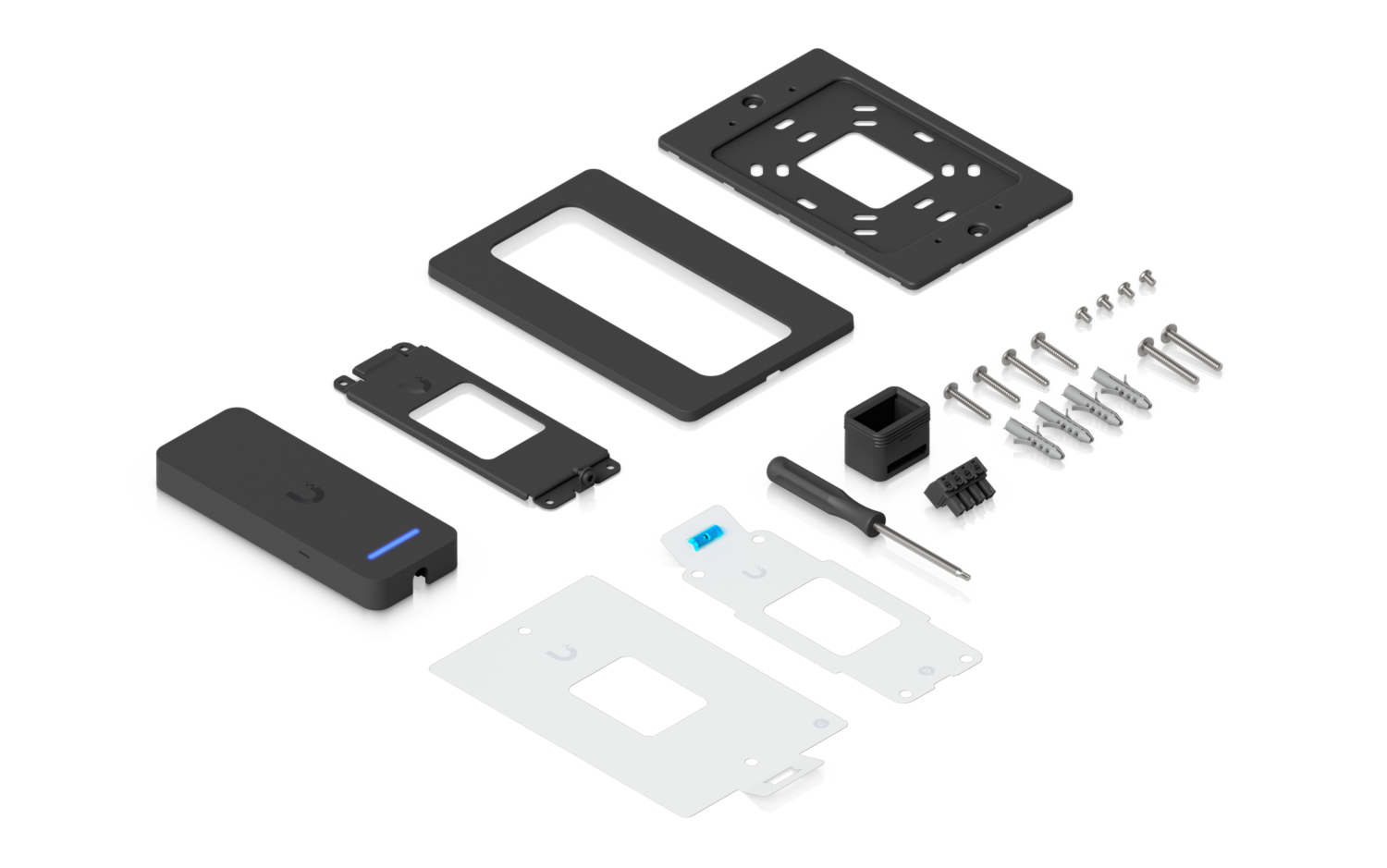

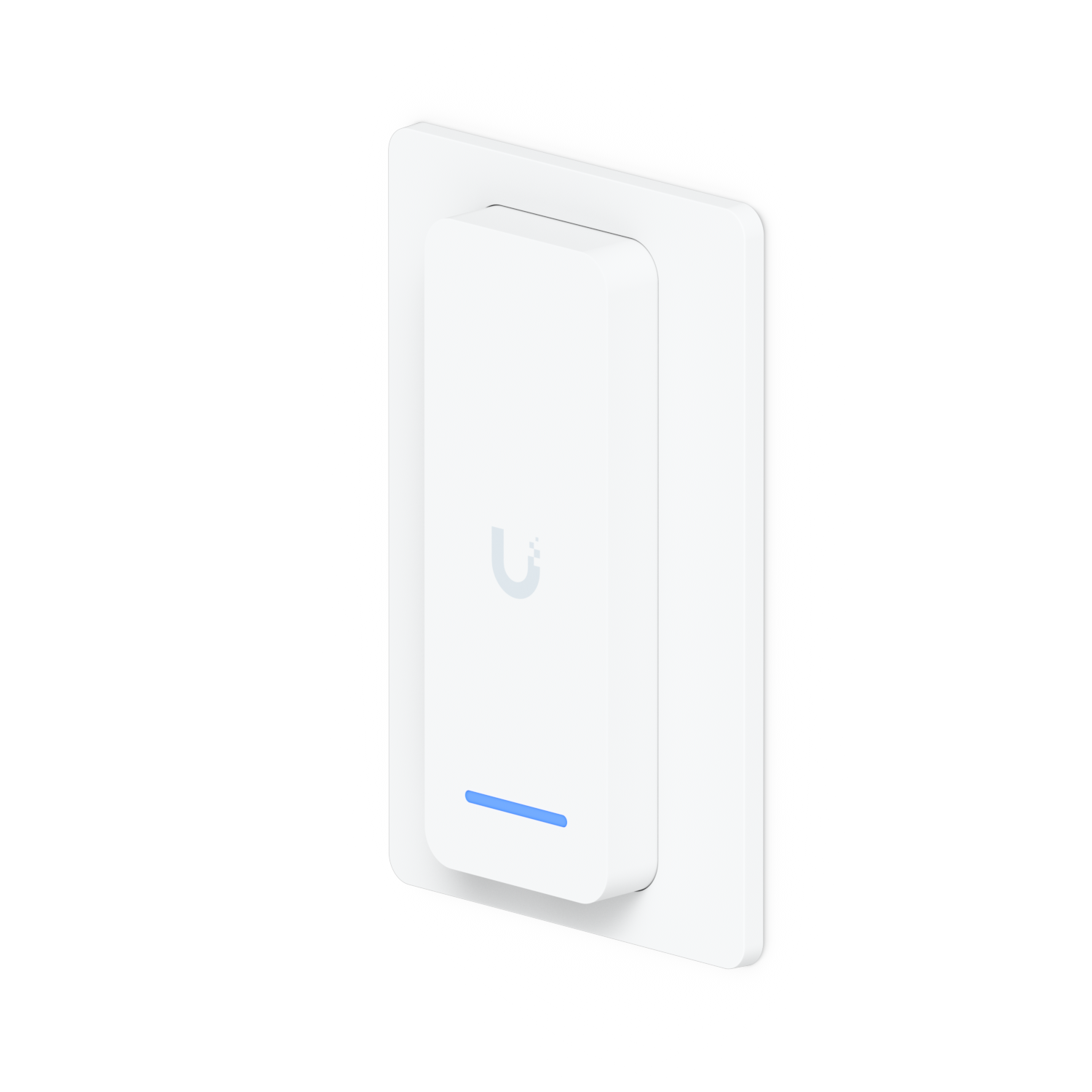

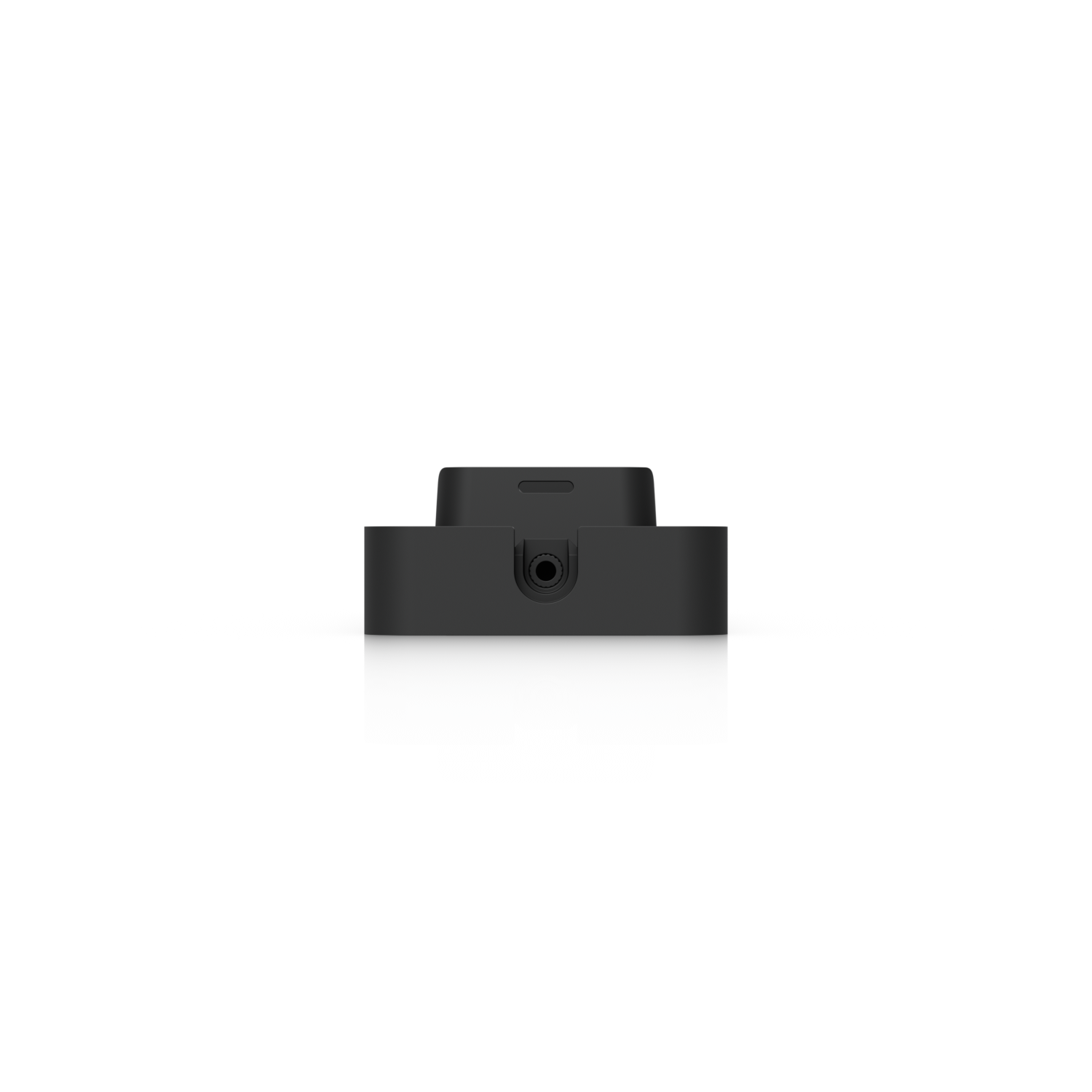

| Mounting | Wall, gang-box mount (Included) Junction box (Optional) |
Hardware
| Indoor and Outdoor Use | Yes |

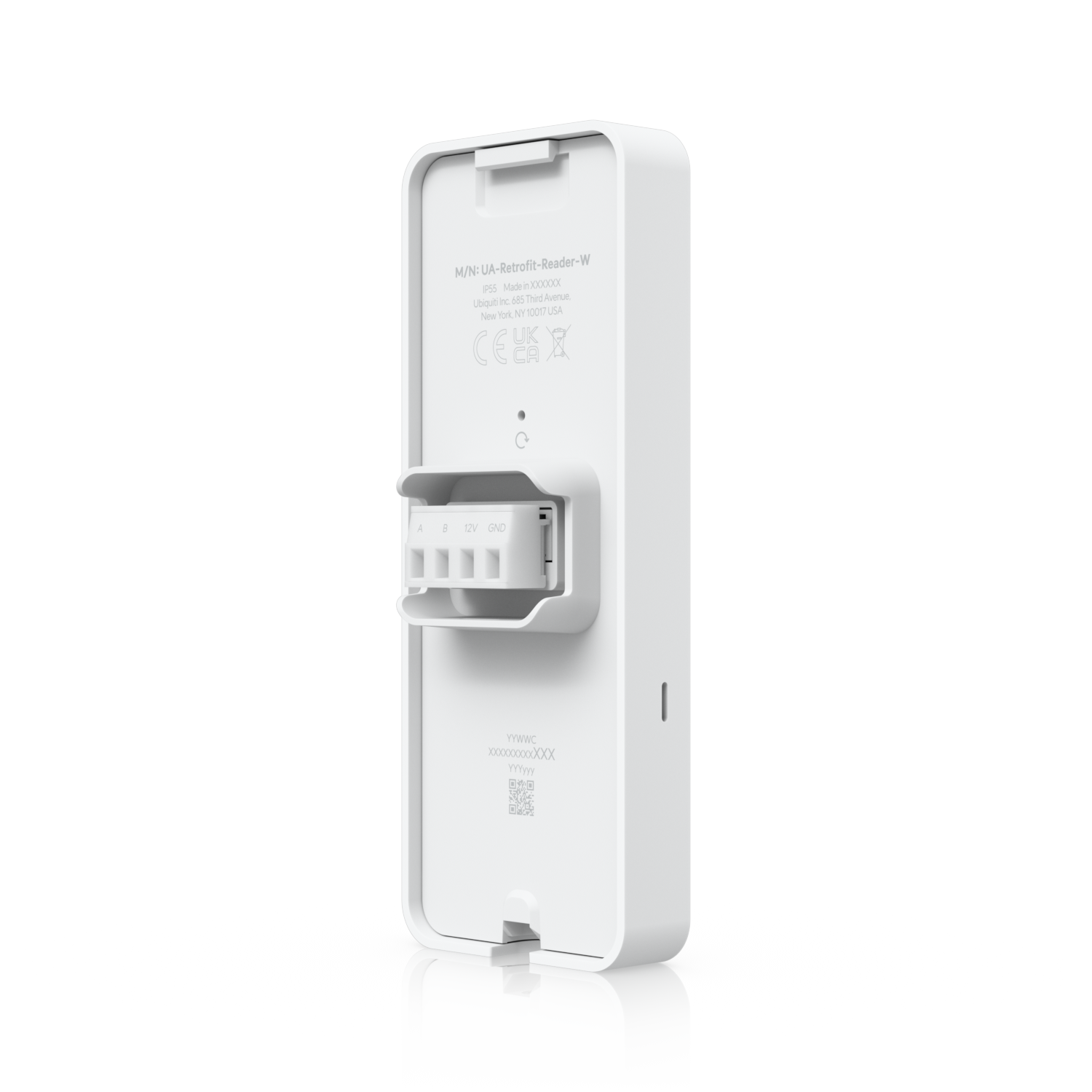

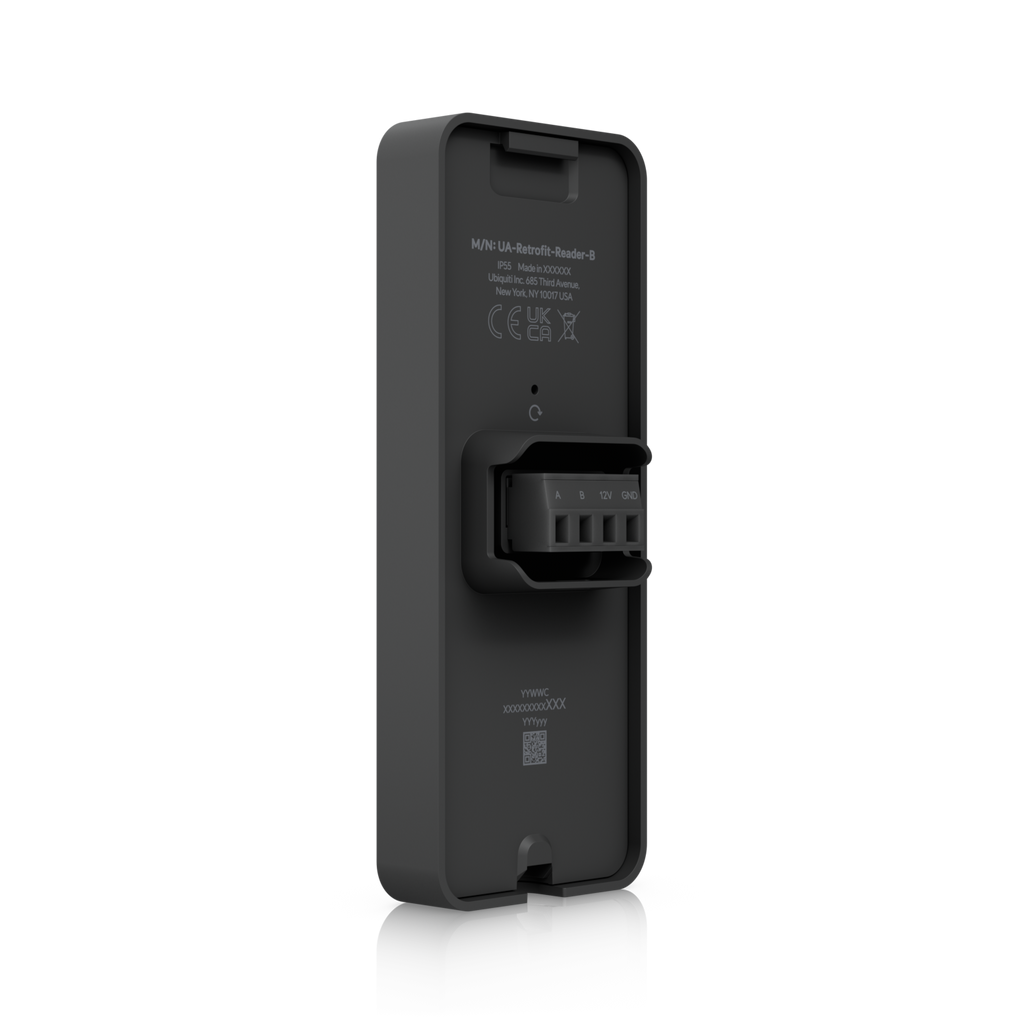

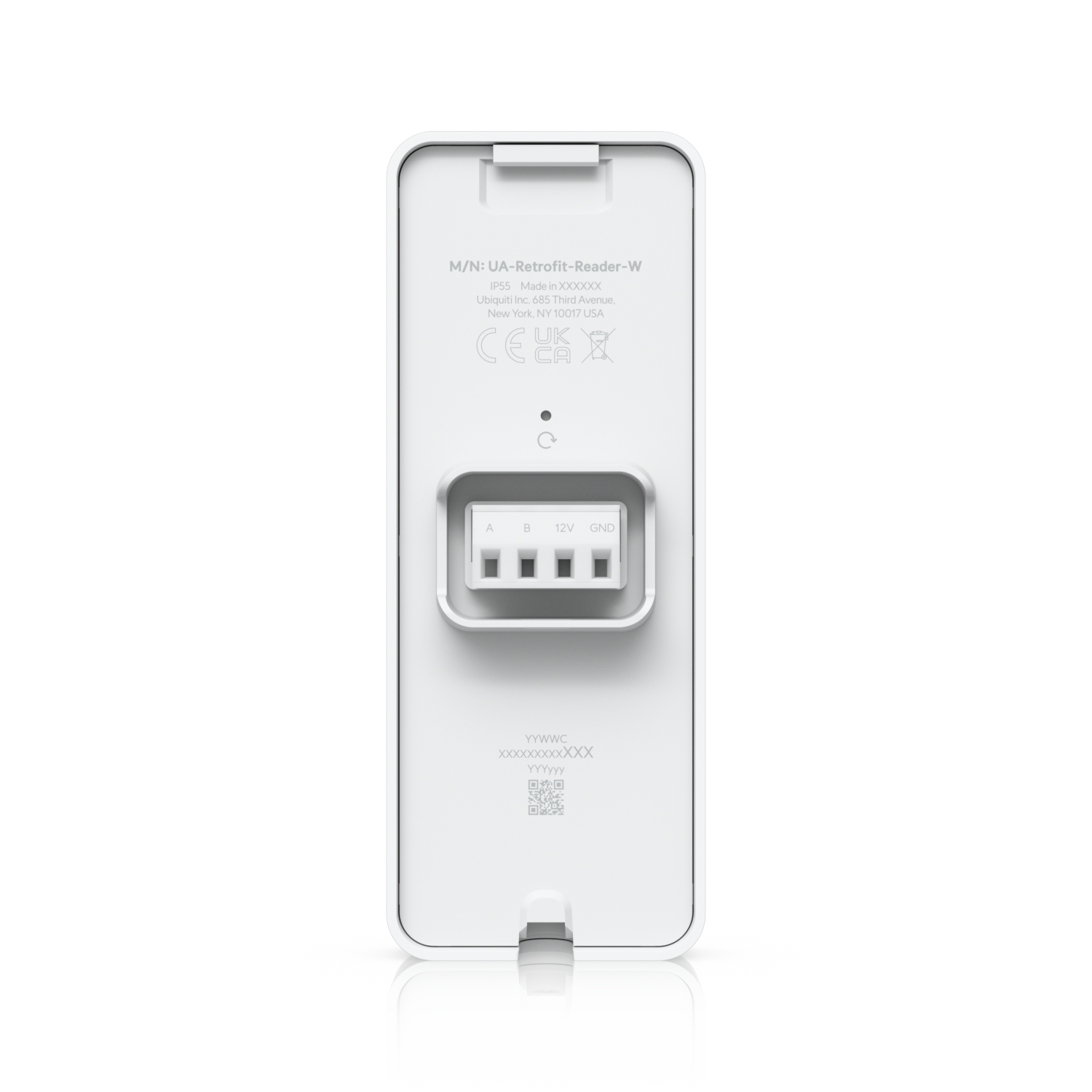

| Connectivity | RS-485 BLE 4.1 NFC |
| Security | OSDP v2 |
| Power Method | DC 12V |
| Max. Power Consumption | 2.5W |
| Supported Voltage Range | 12V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Software
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
