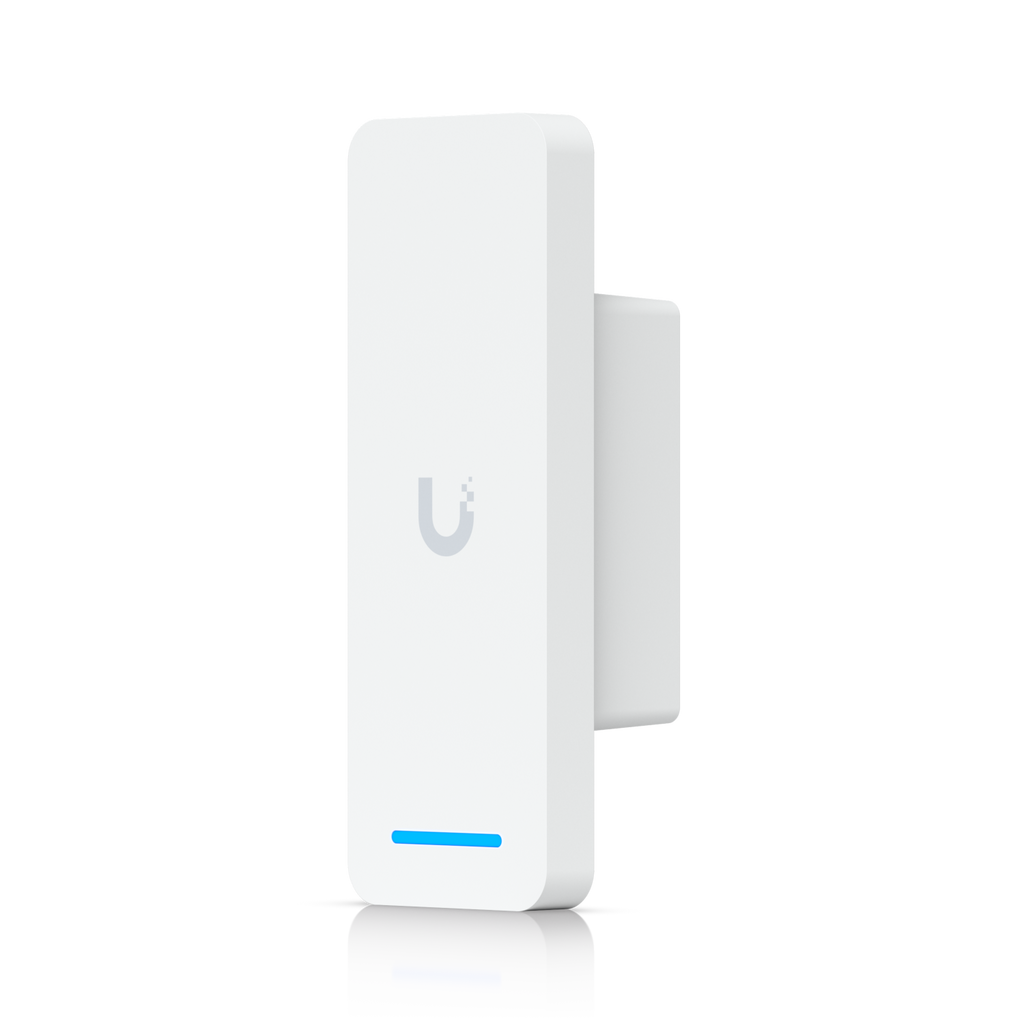

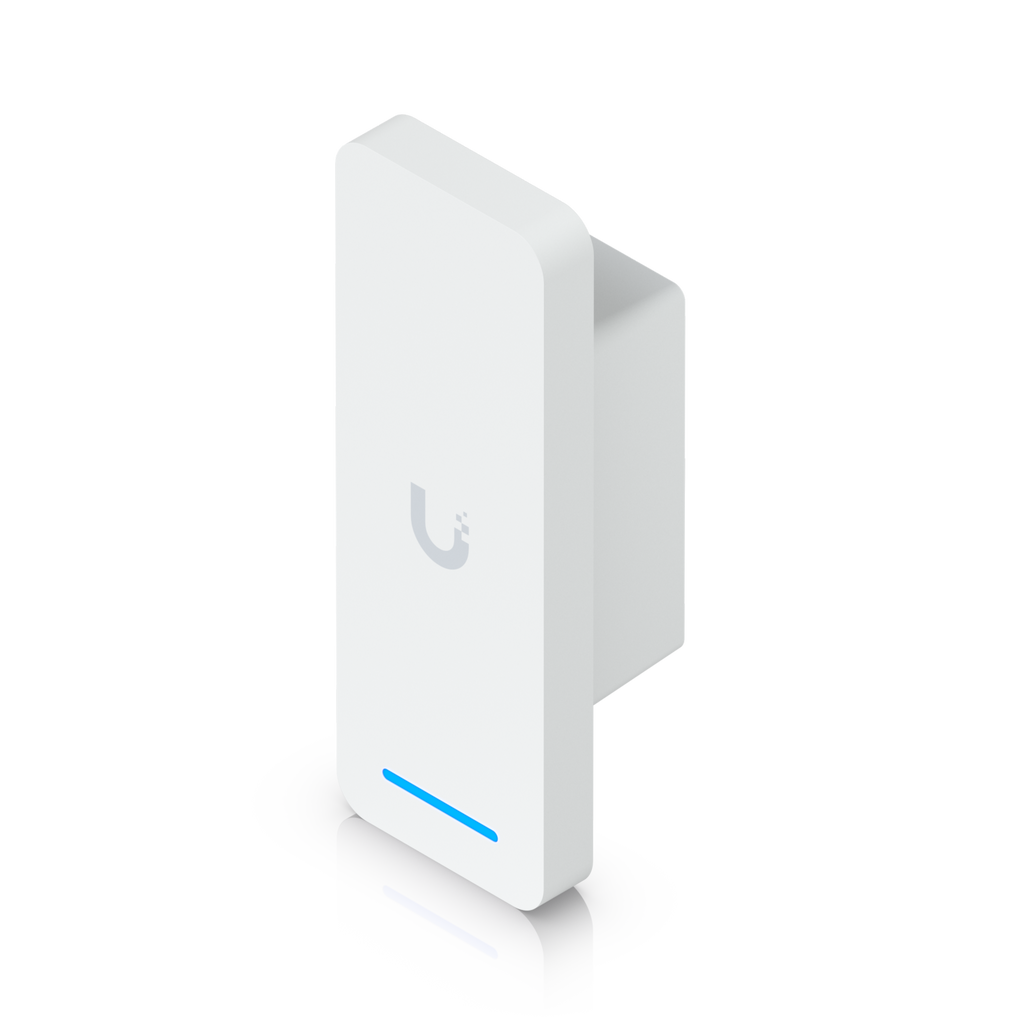

A single-device access reader and hub for one-door entry control, suited to small sites or individual doors that don't justify a separate access hub.
Why this one

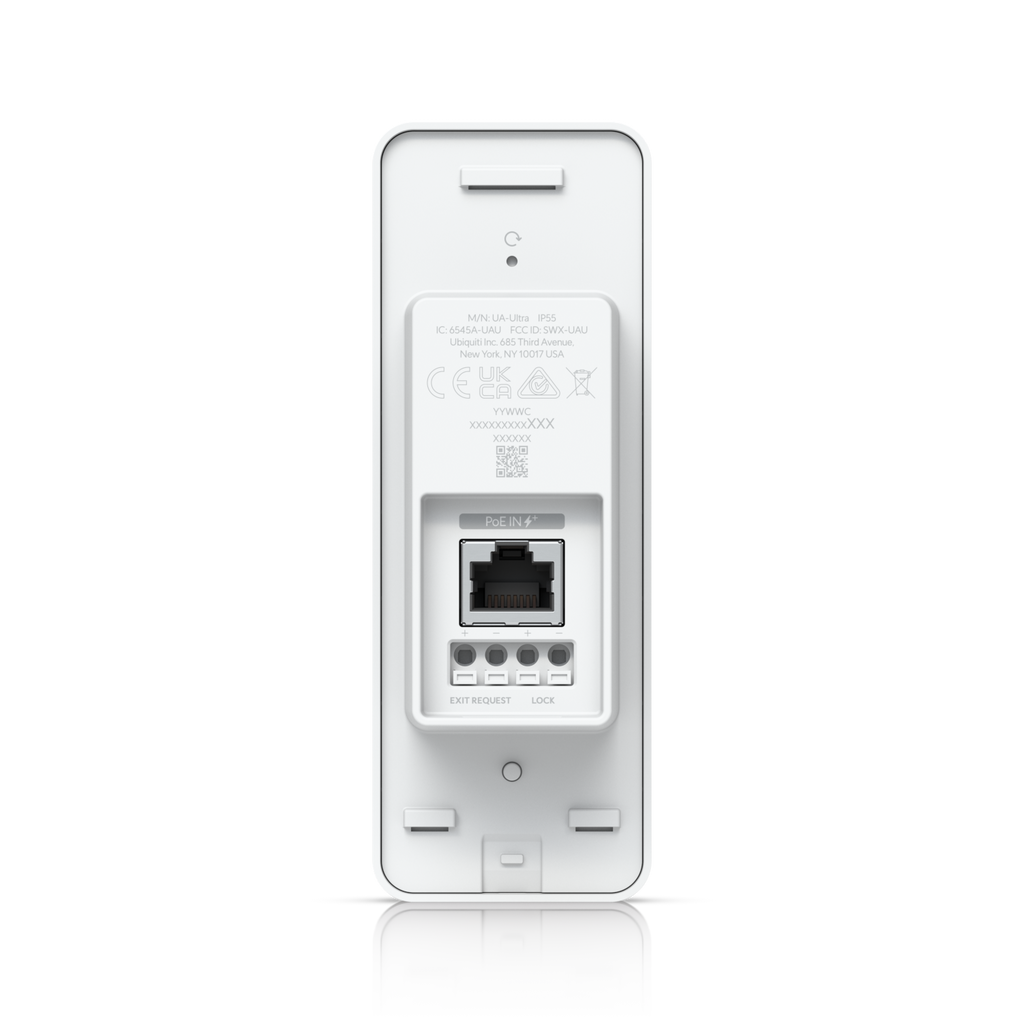

- The built-in hub means reader and controller arrive in one unit — you run a single Cat5e PoE+ cable to the door and the device manages the lock relay directly, without a separate UA-HUB on the network.
- The 12V/1A powered output relay drives a standard electric strike or magnetic lock directly from the device, so there's no separate lock power supply to wire in at the door frame.

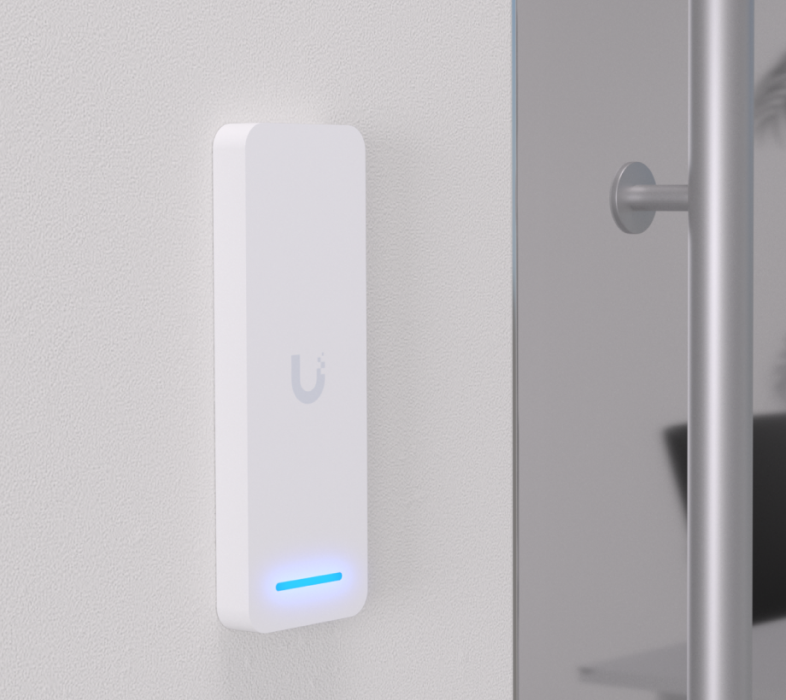

- IP55 weatherproofing and a –30 to 40°C operating range let it mount on an external wall or undercover entry without a protective enclosure.
- NFC reads MIFARE DESFire, Classic, Ultralight and ISO 14443/15693 cards at up to 50mm, plus BLE for mobile credentials — covering the card standards most commercial sites already use.
Good fit if you're adding access control to one or two doors and want to keep the hardware count low — a single PoE+ drop per door is all the infrastructure you need, and it manages up to 3,000 users through UniFi Access.
Worth considering something else if you're controlling multiple doors from one location, where a dedicated reader paired with a UA-G3-SK or UA-G3-SK-PRO starter kit gives you a proper hub-and-reader architecture that scales without replacing hardware at each door.
What you'll also need

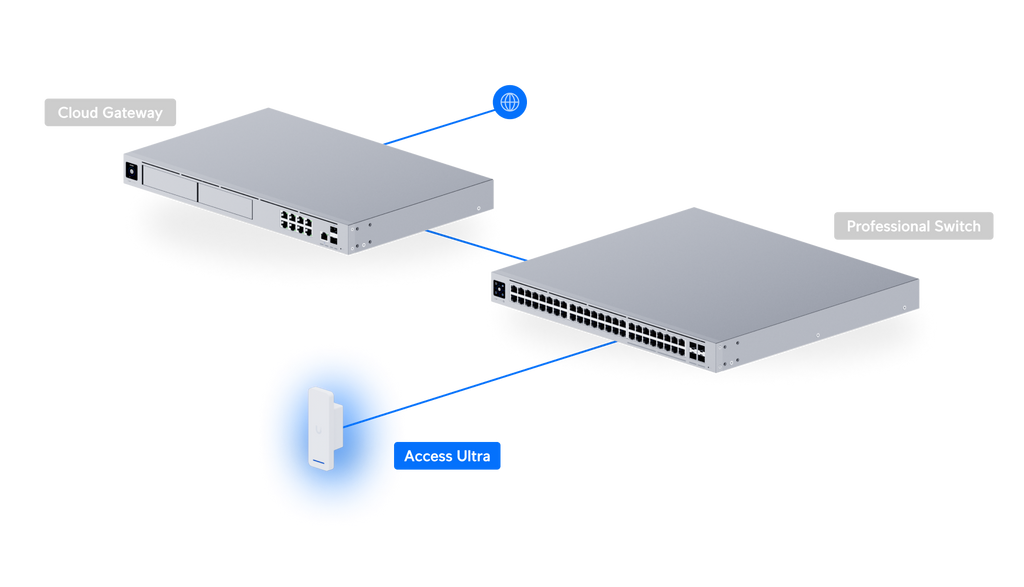

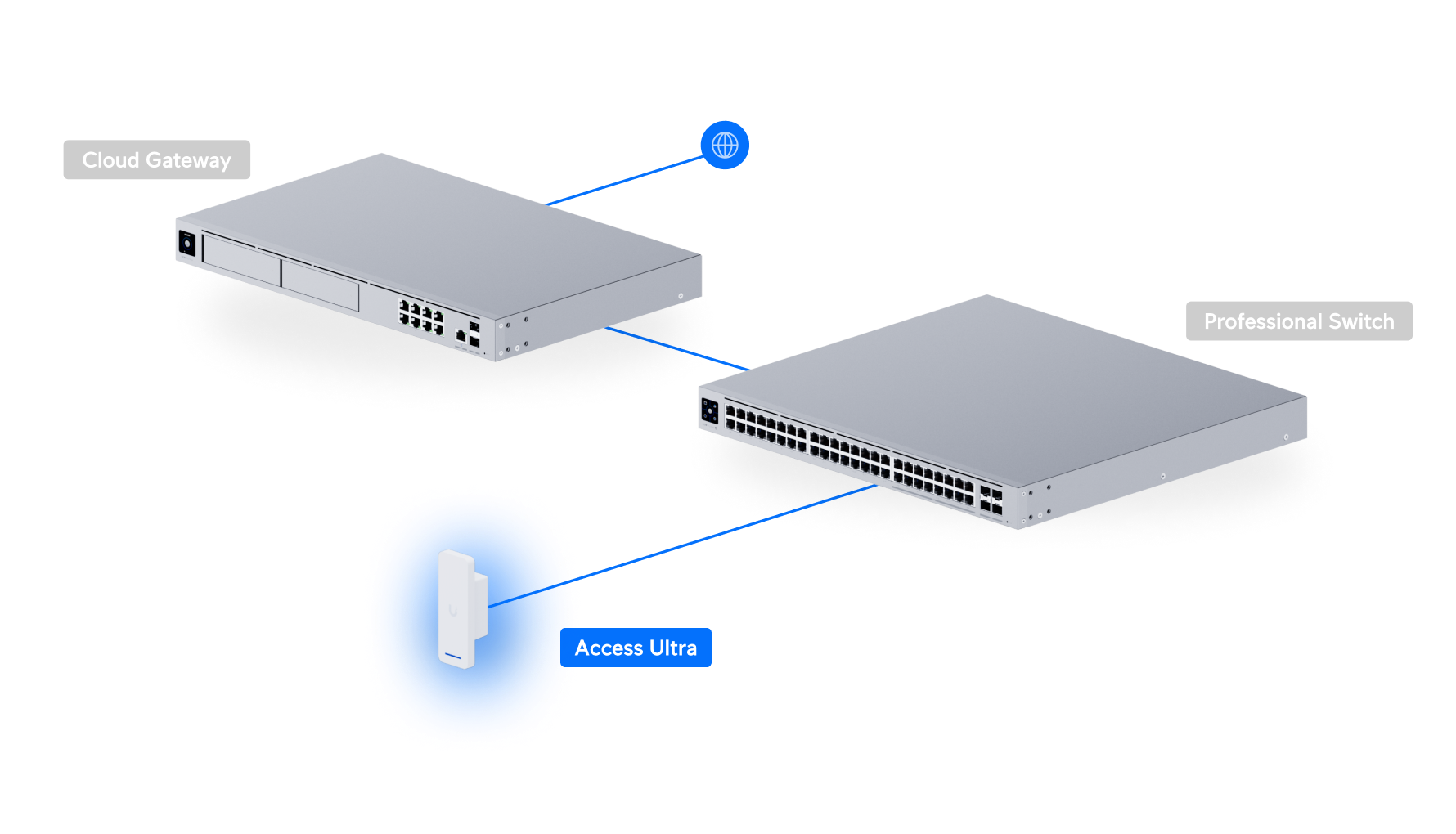

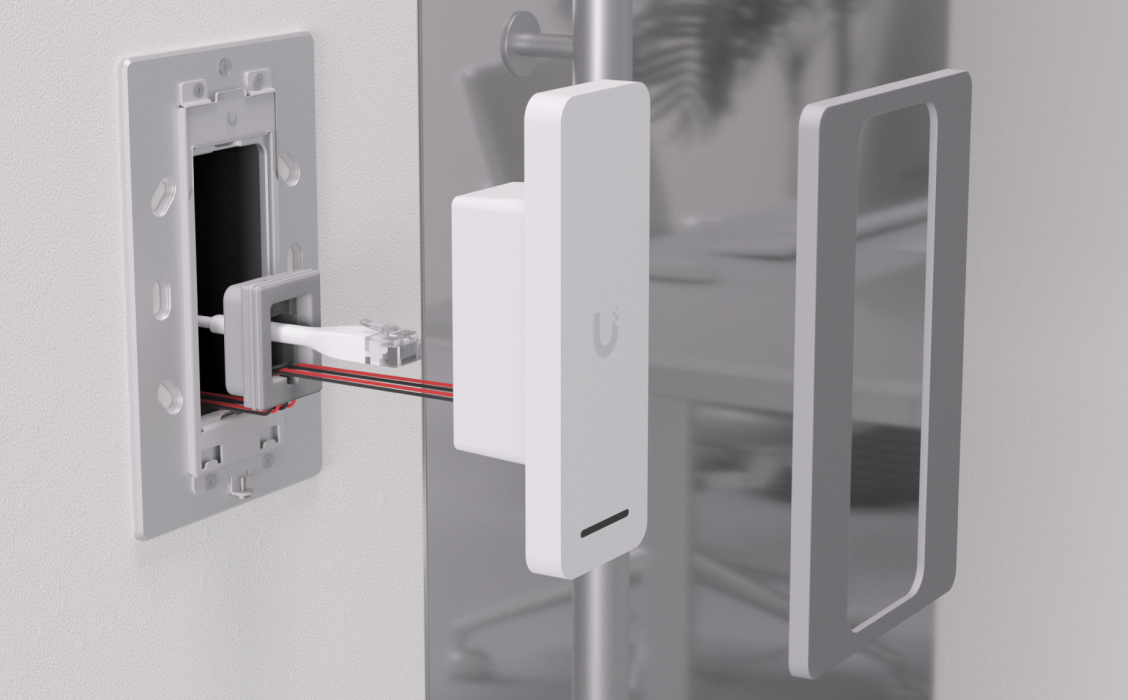

A UniFi Access controller (any Dream Machine running the Access application, or a Cloud Gateway with Access support), a PoE+ switch or injector, Cat5e or better to the mounting point, and a 12V electric strike or magnetic lock — wall-mount hardware is included, and a junction box is optional if you're mounting over a recessed box.
Technical specifications
Overview

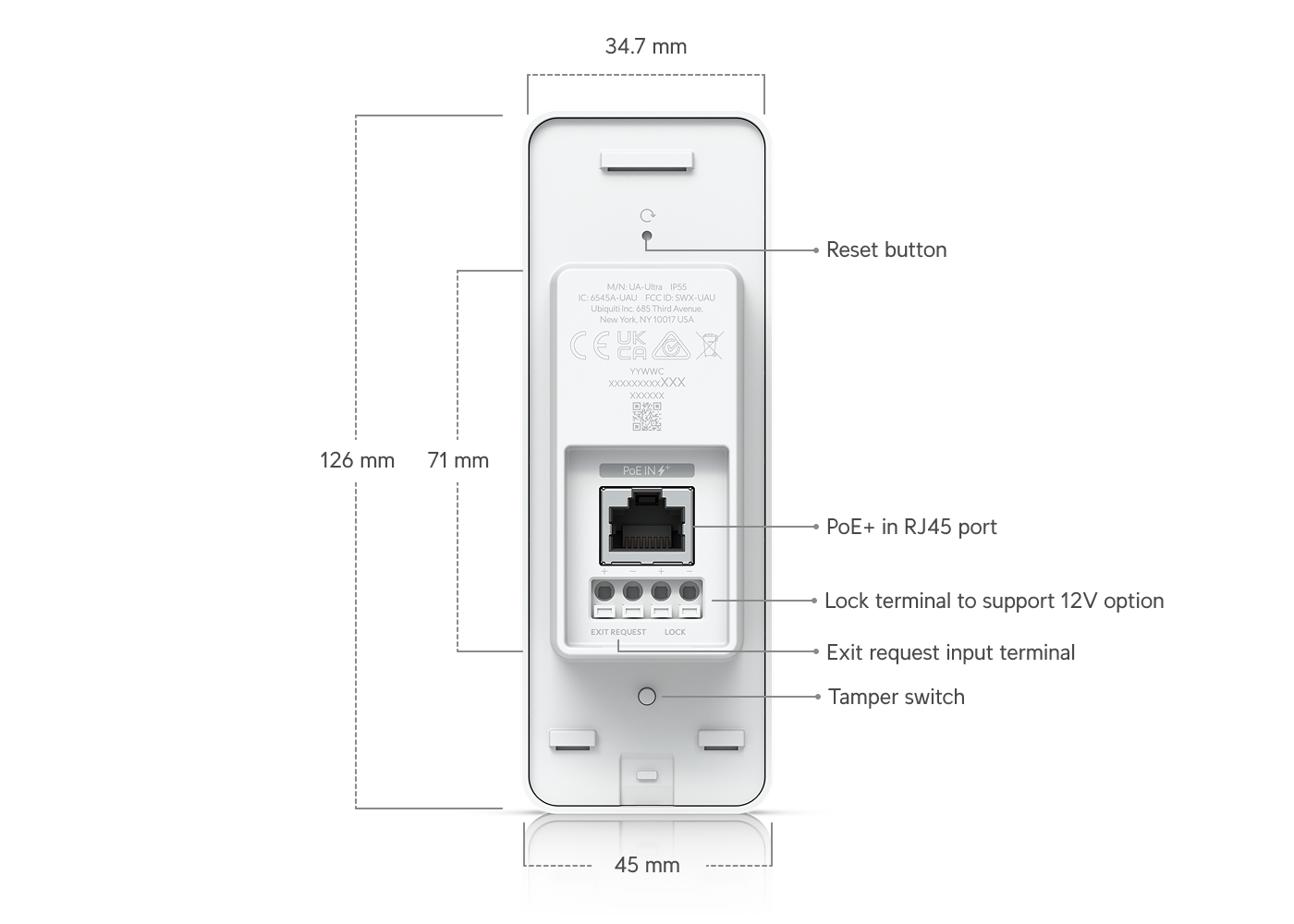

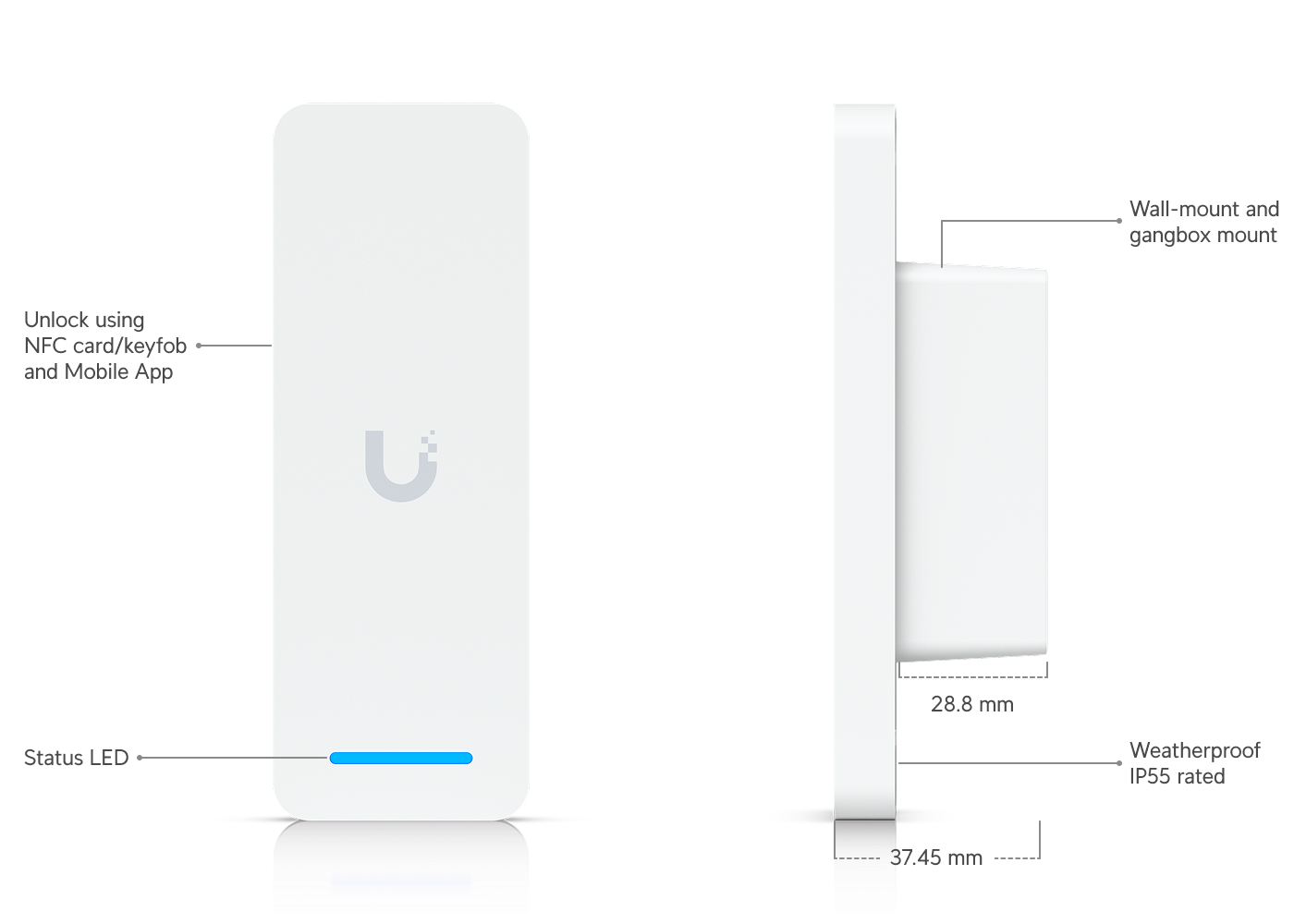

| Dimensions | 126 x 45 x 37.45 mm (4.9 x 1.8 x 1.5") |
| Weatherproofing | IP55 |
| Maximum User Count | 3,000 |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
Mechanical
| Weight | 140 g (4.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |

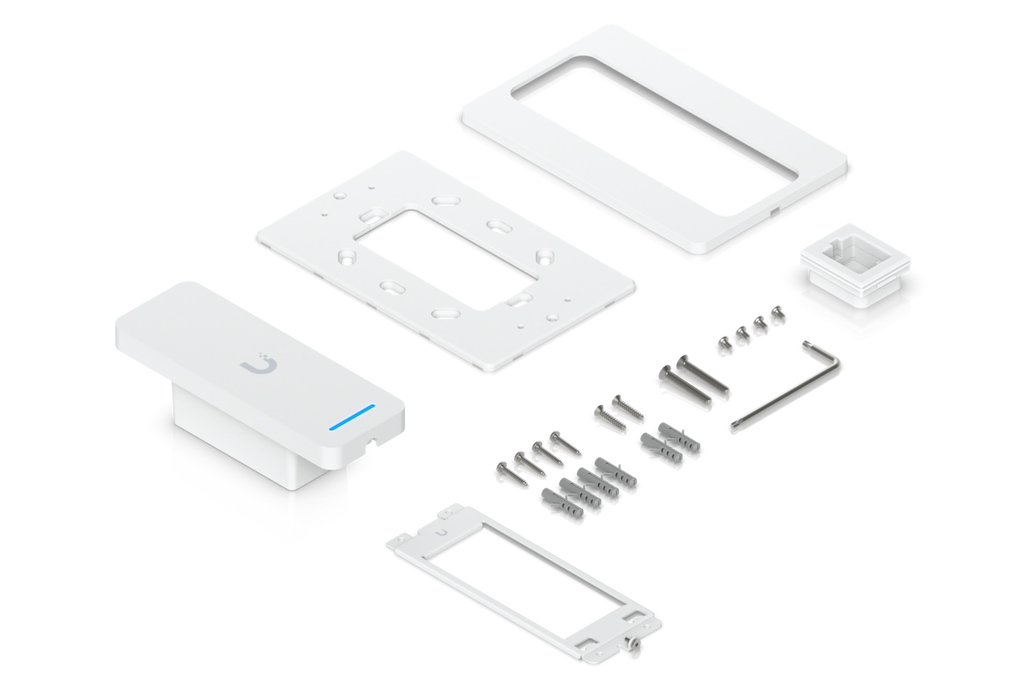

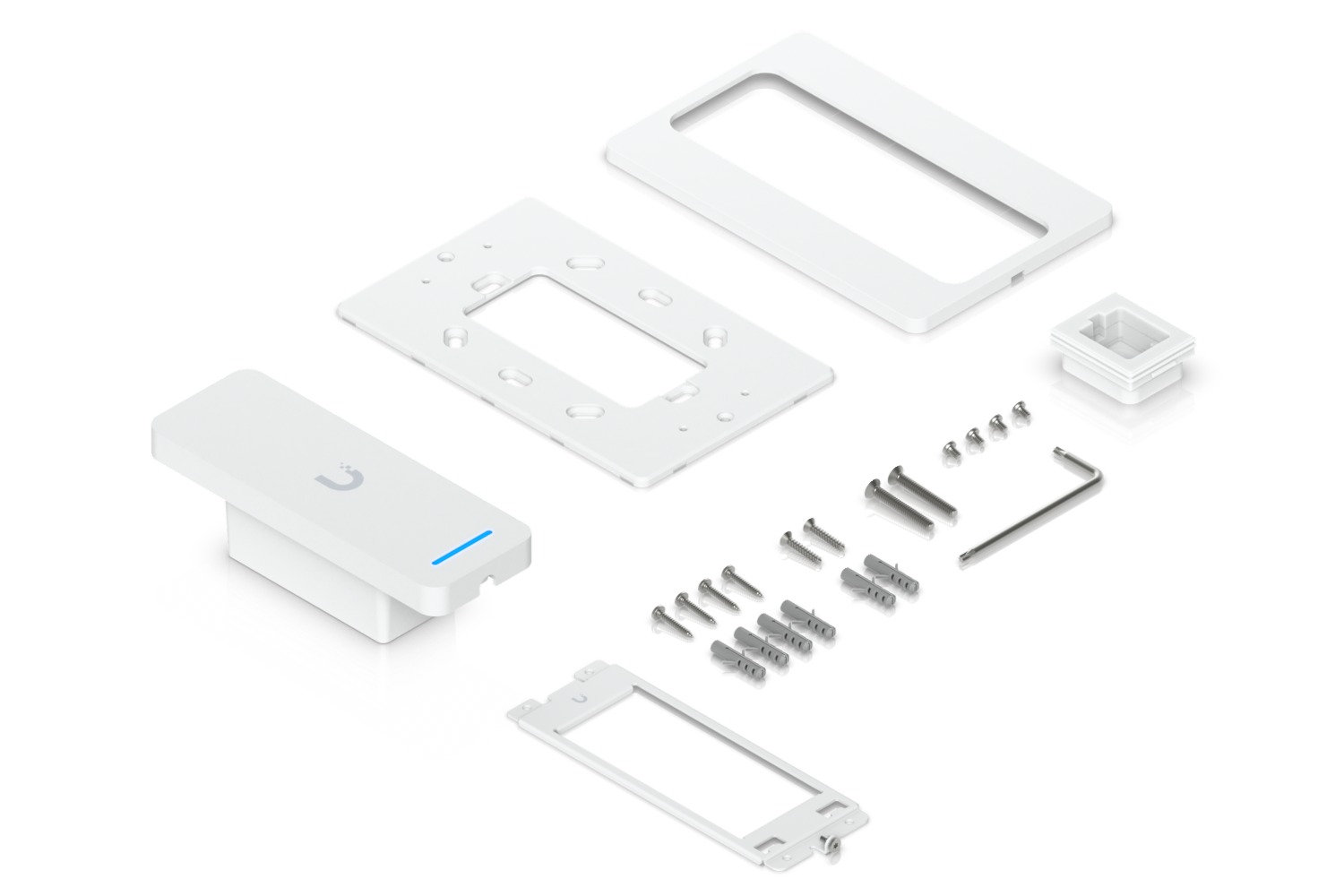

| Mounting | Wall mount, gang box mount (Included) Junction box (Optional) |
Hardware
| Indoor and Outdoor Use | Yes |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | BLE 4.2 Ethernet |
| Power Method | PoE+ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 18W |
| Supported Voltage Range | 44–57V DC |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Powered Output Relay | Lock: 12V DC, 1A |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 Mhz |
| NFC Read Range | < 50 mm (1.95'') |
| NFC Technology | ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, Anatel: 06371-24-08356, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Ultra, V01 |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Software
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
