Ubiquiti UACC-USL-ANT-HG | High‑Gain Antenna
Ubiquiti UACC-USL-ANT-HG | High‑Gain Antenna

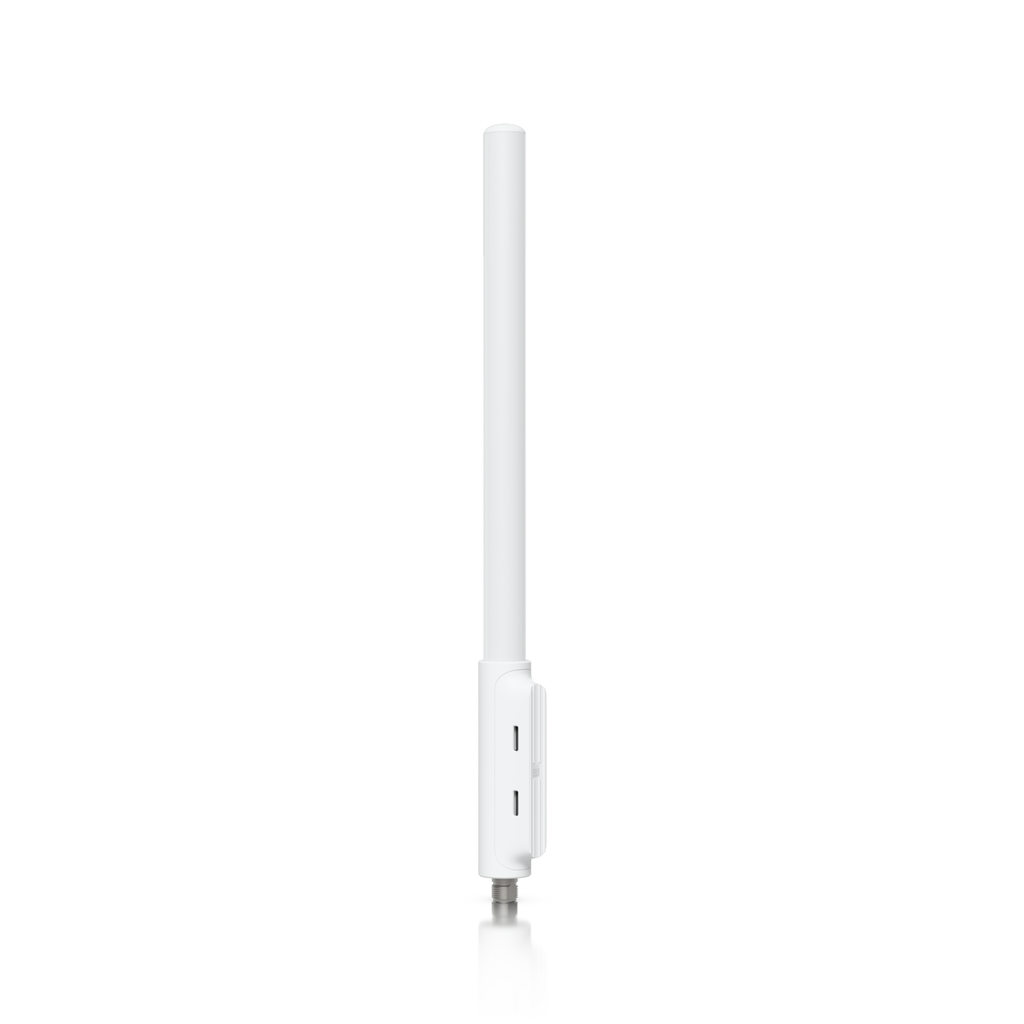

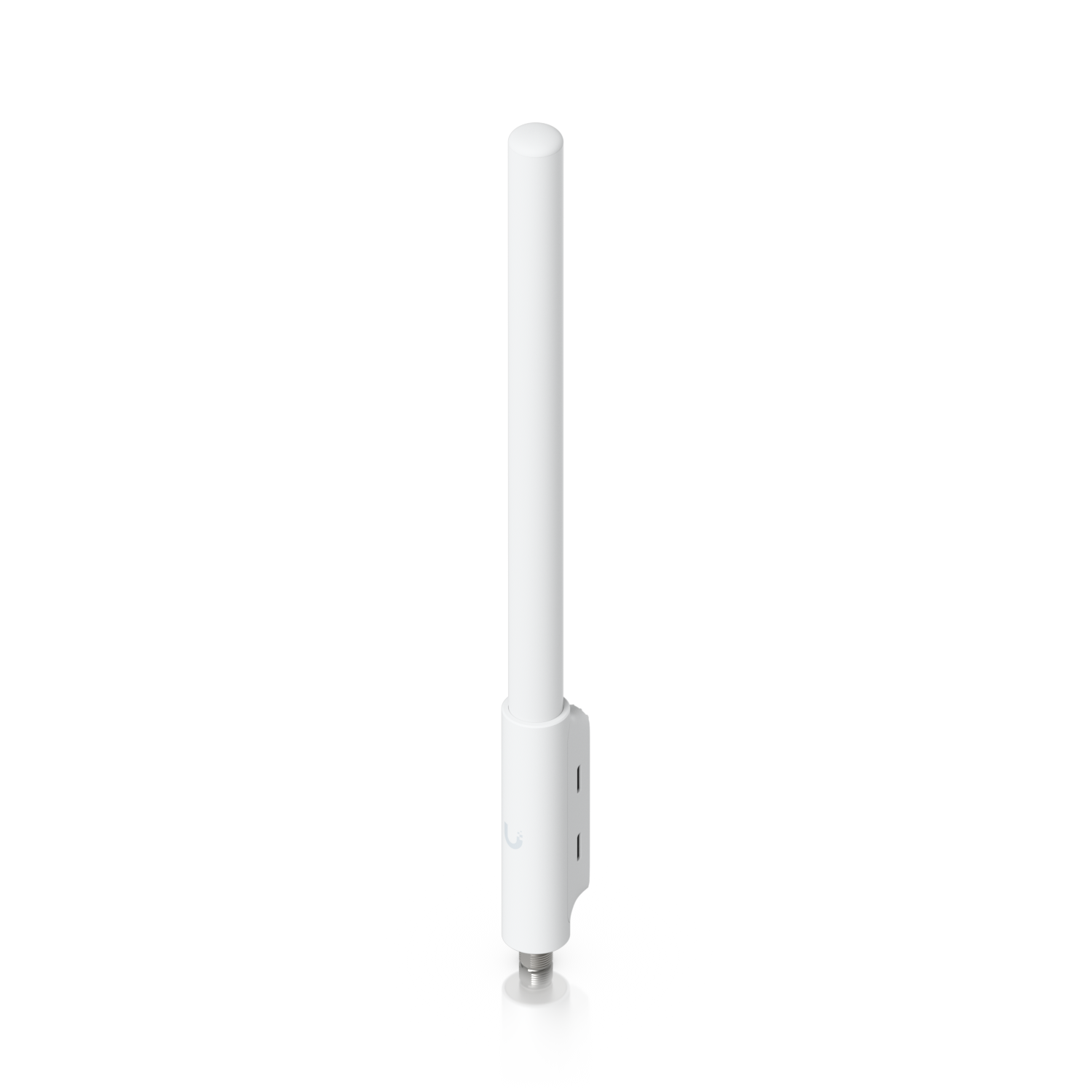

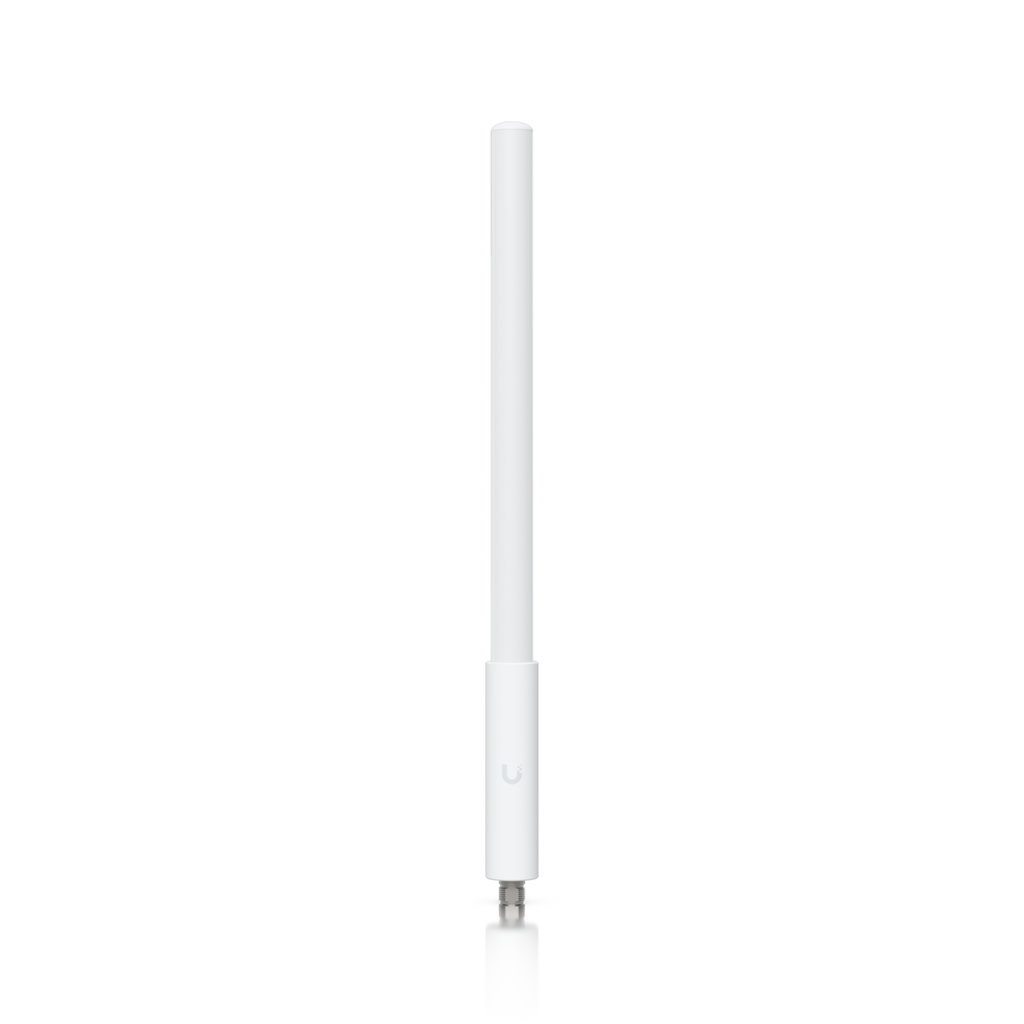

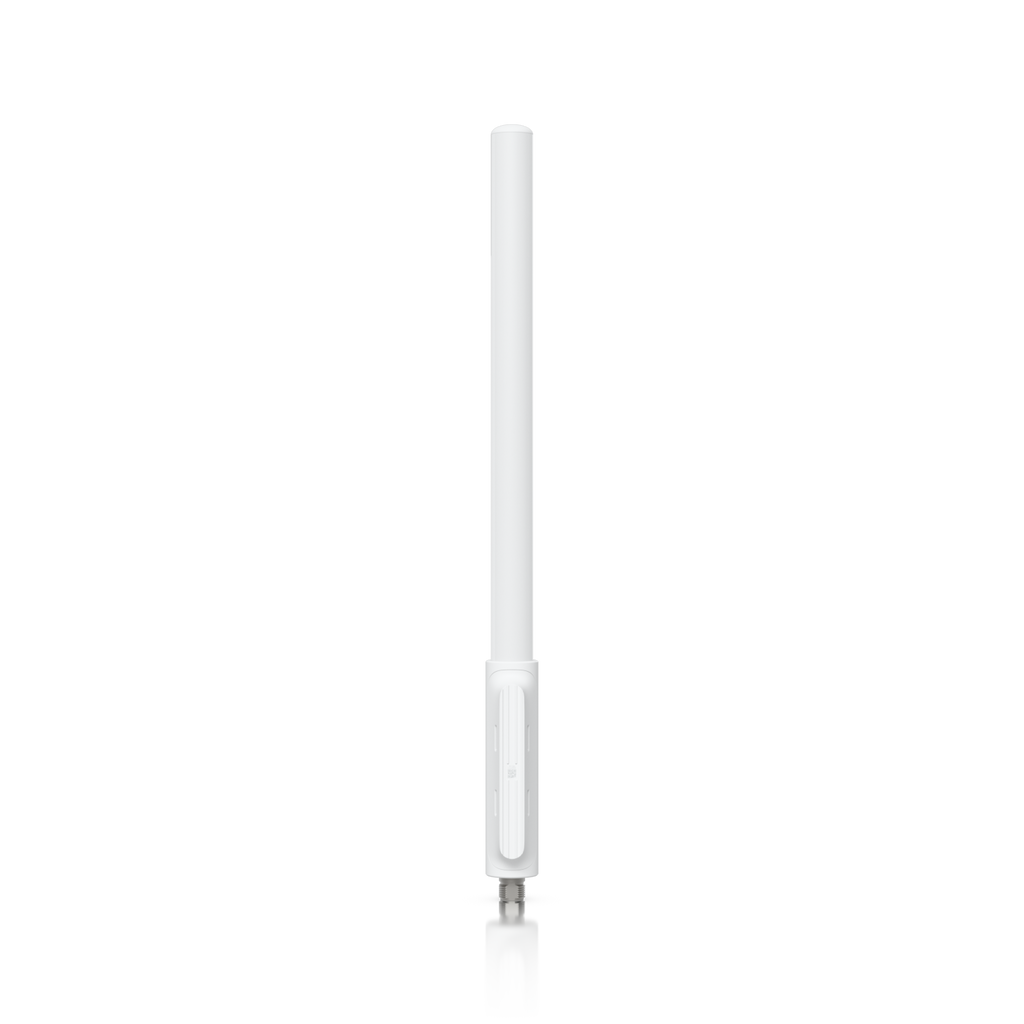

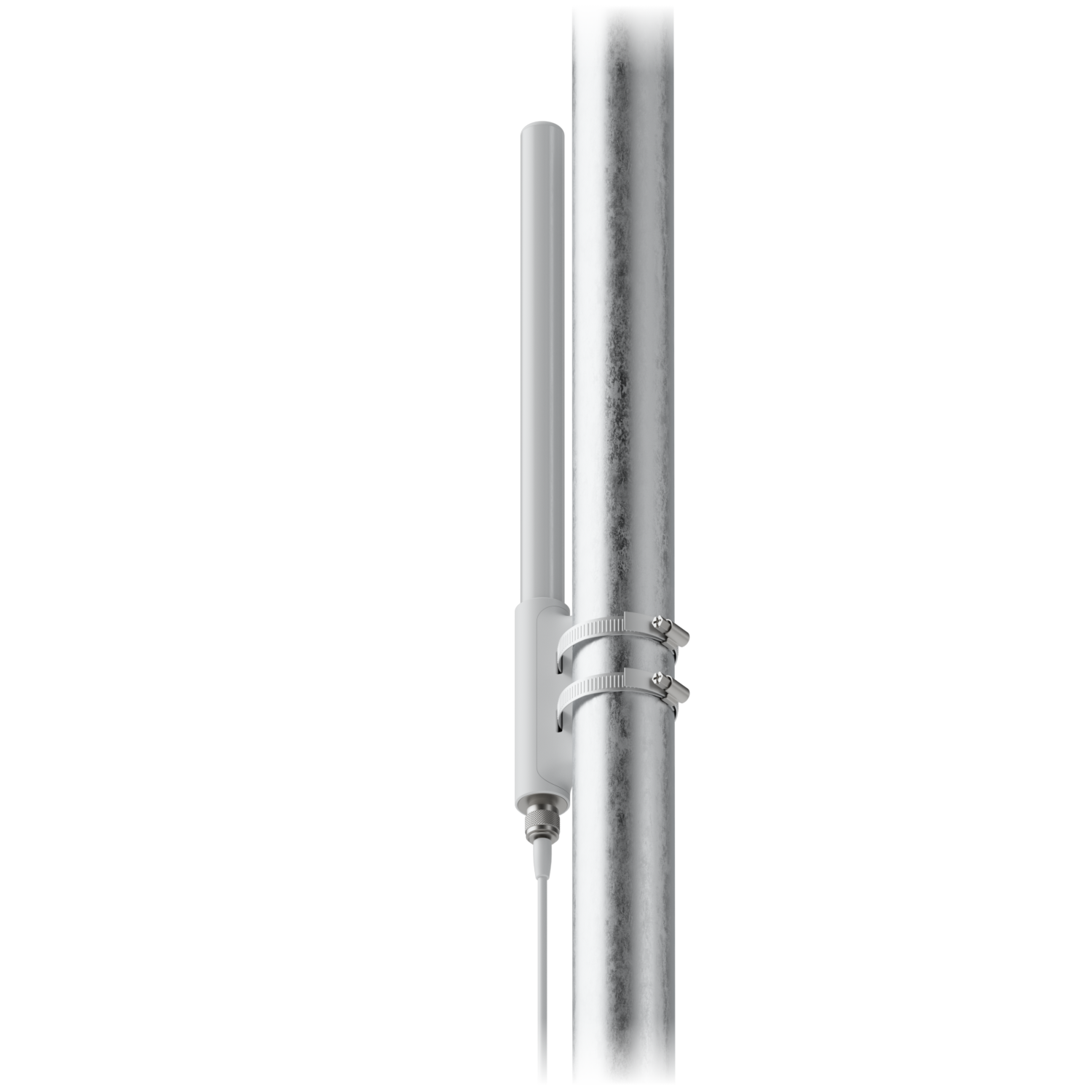

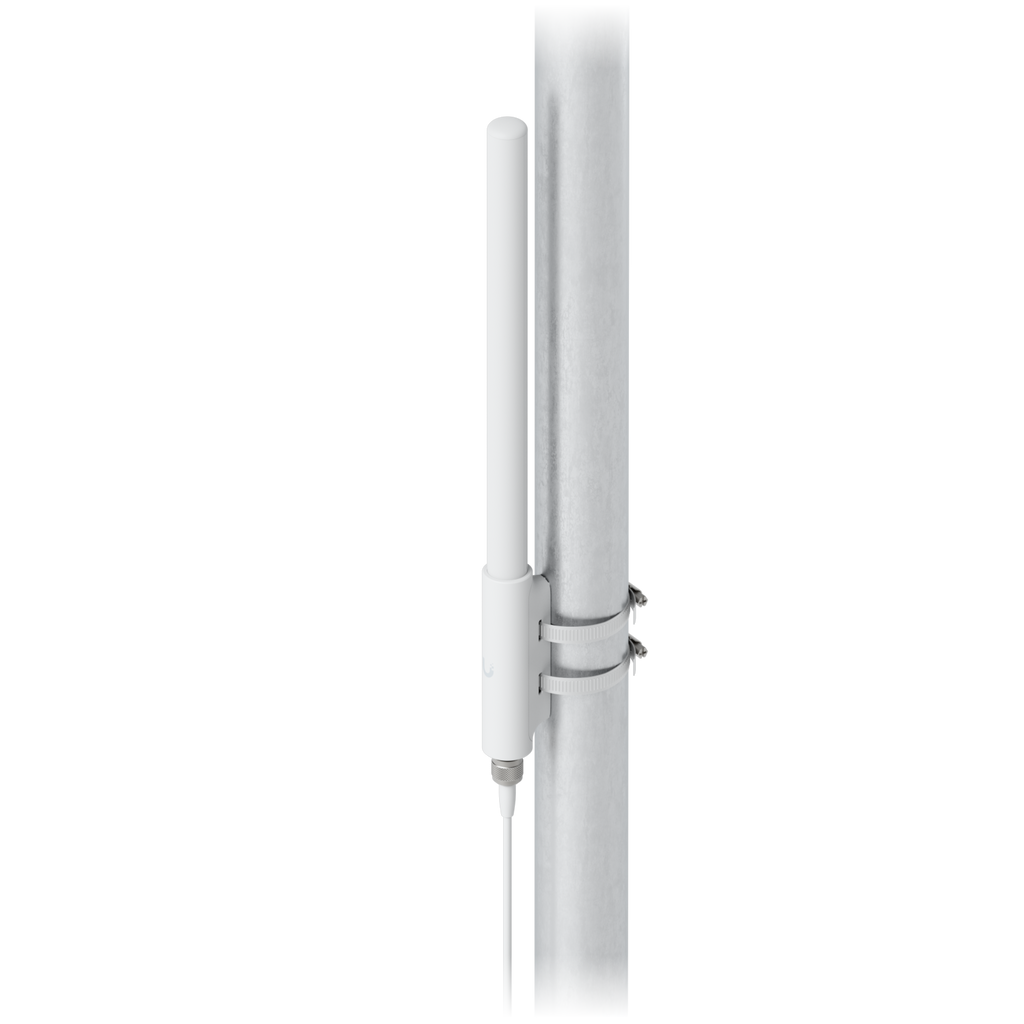

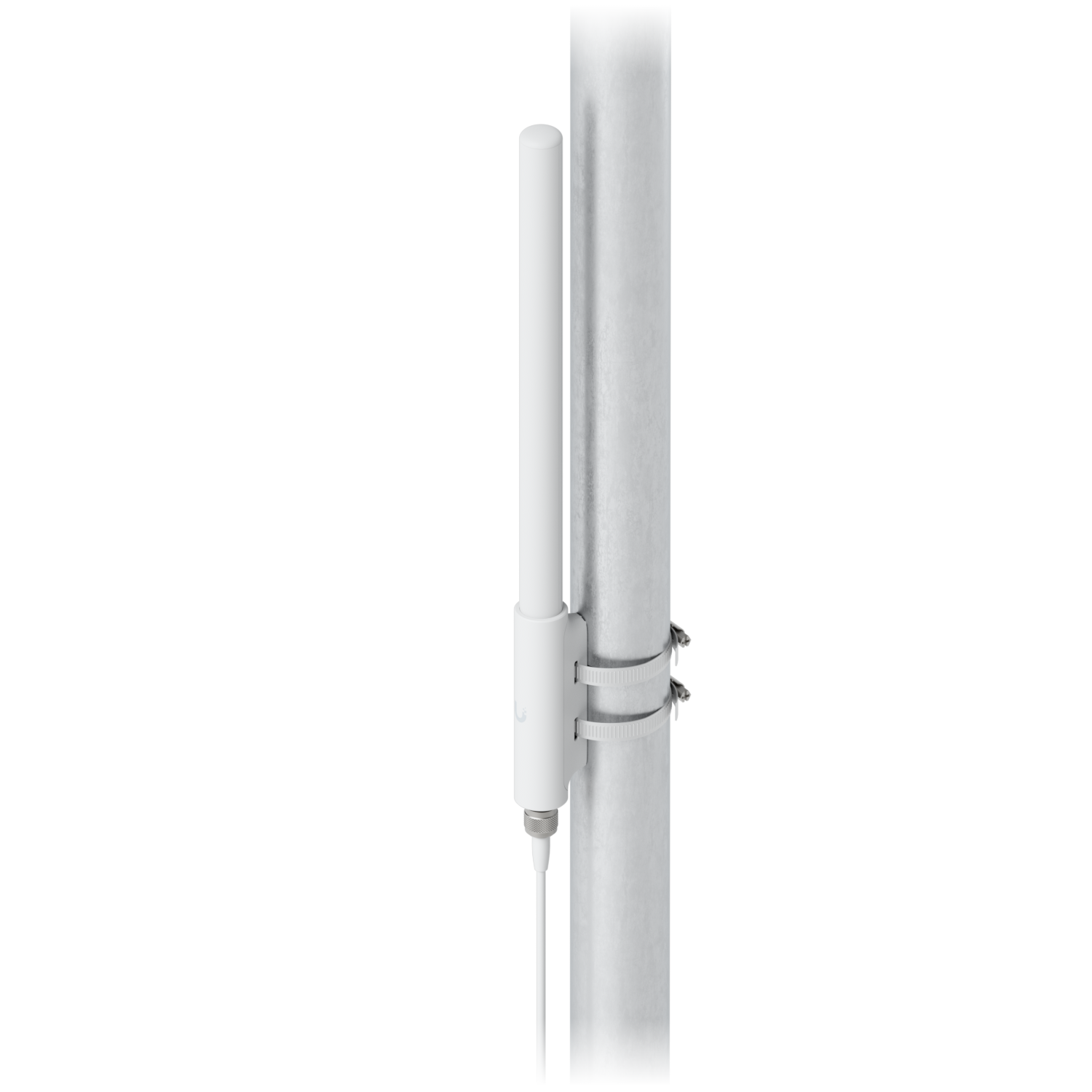

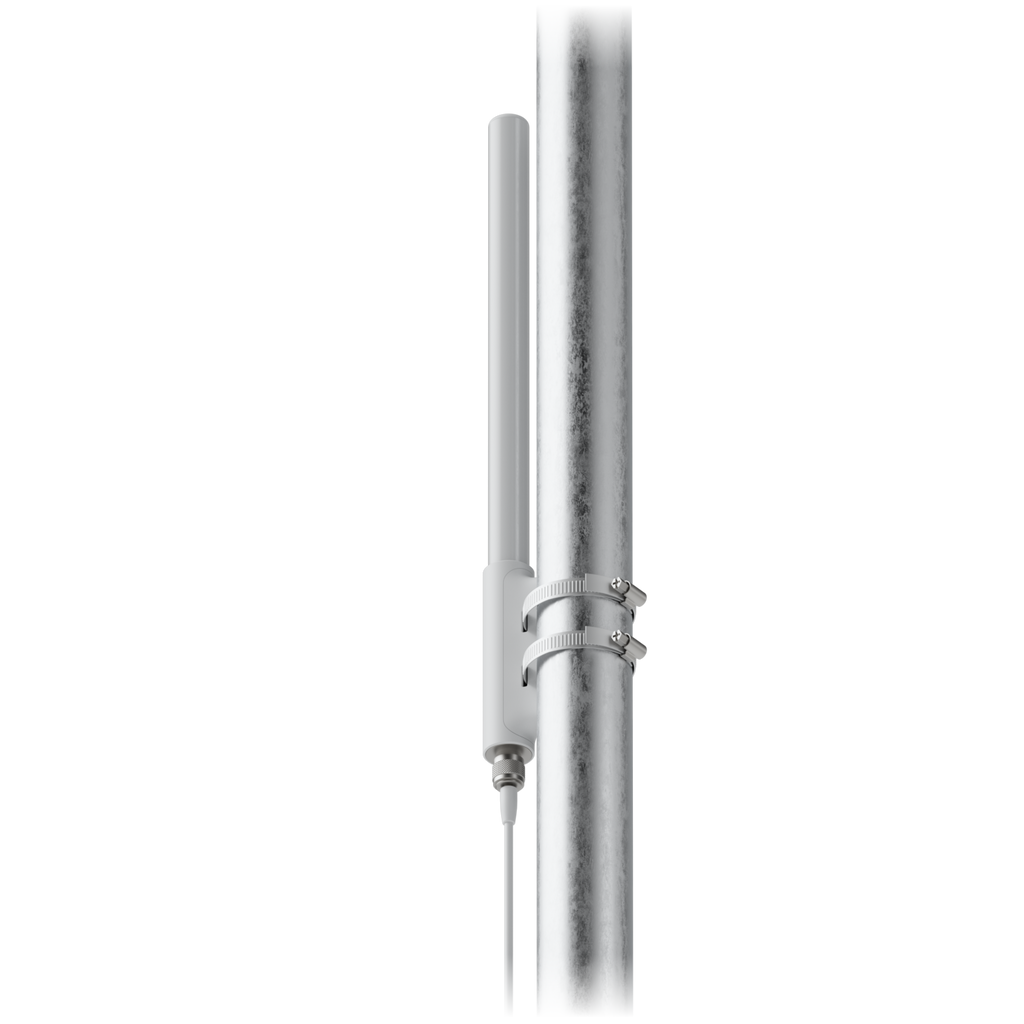

A pole-mounted outdoor antenna for extending SuperLink range to remote sensors or access points up to 5 km away under line-of-sight conditions.
Why this one
- The 7 dBi SuperLink gain pushes usable range to 5 km line-of-sight — a meaningful step up from the built-in antenna on a standard SuperLink device covering a large property or rural site.
- IP67 weatherproofing means the enclosure is fully dust-sealed and survives temporary submersion, so it holds up to coastal spray, driving rain, and anything Australian weather delivers.

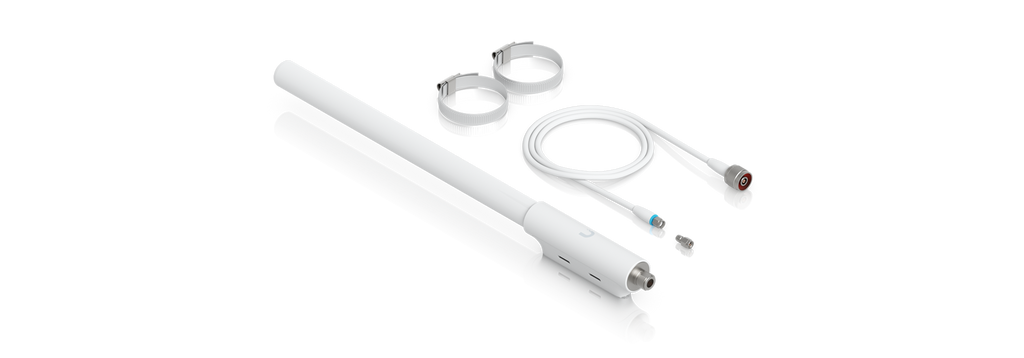

- Rated to 200 km/h wind loading at 25.4 N, with a stainless-steel mount, so it stays on the mast without needing custom hardware.

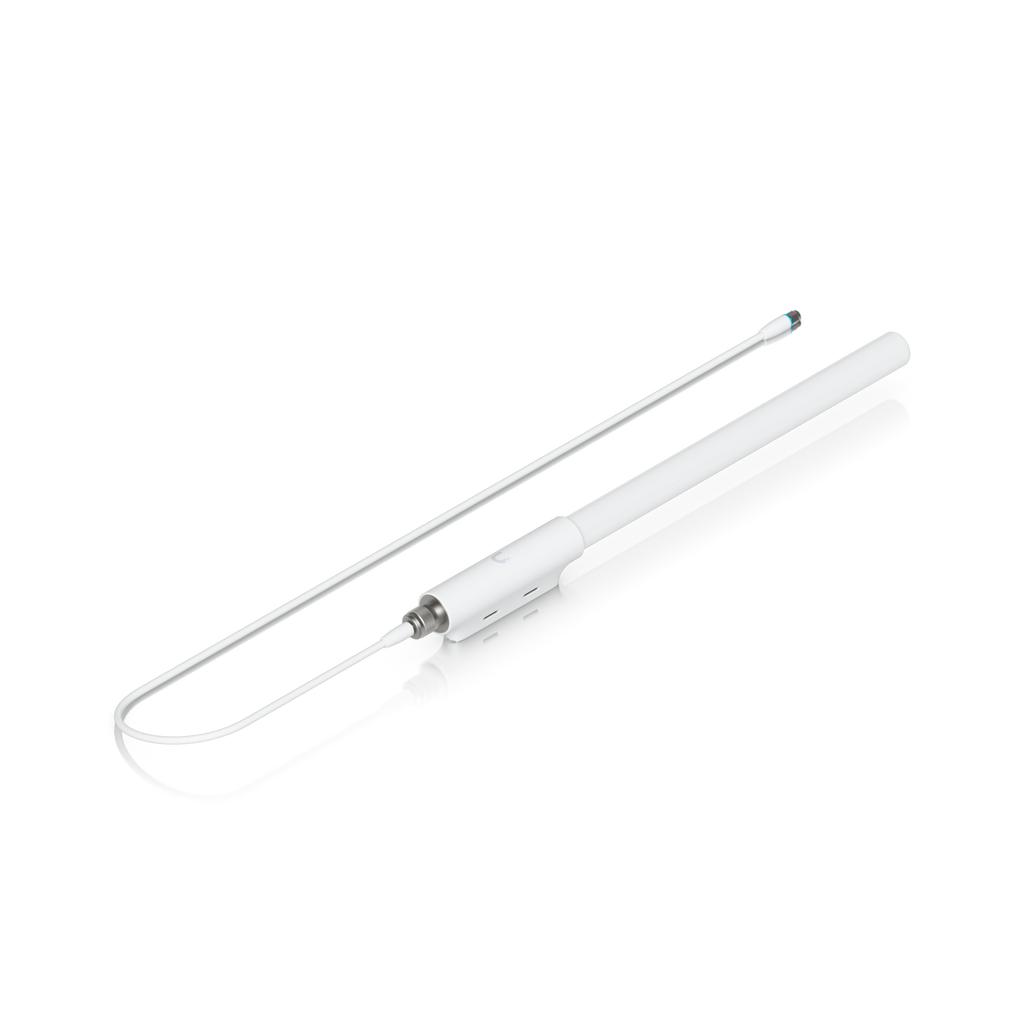

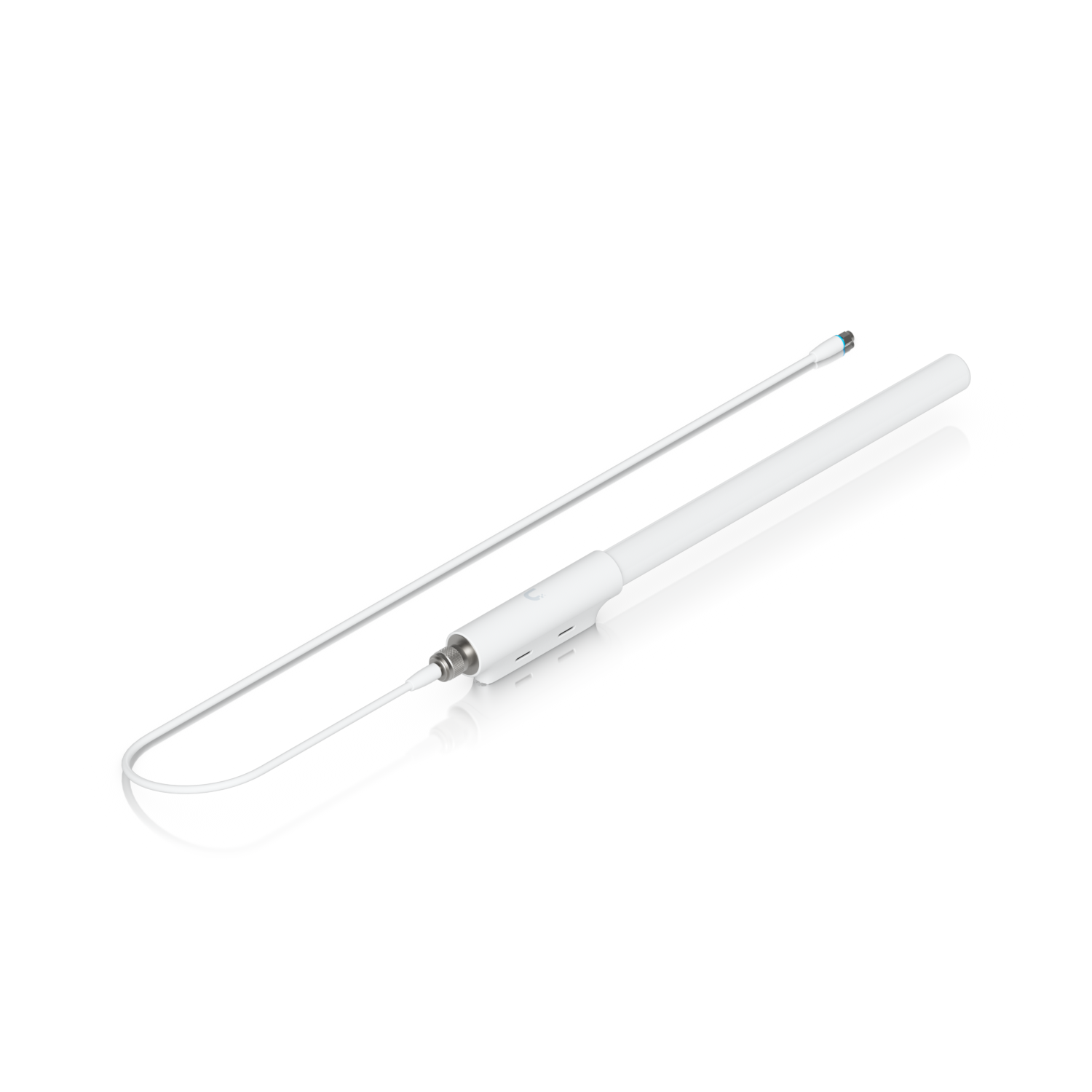

- The 1-metre cable with RP-SMA and RP-N connectors gives you enough reach to route cleanly to the SuperLink device without forcing a junction at the mast head.
Good fit if you're running UniFi Protect SuperLink across a large site — a farm, remote gate, carpark, or building-to-building run — where the built-in antenna can't reliably cover the distance.
Worth considering something else if your SuperLink devices are within close range of each other indoors or in a compact yard, where the built-in antenna is sufficient and the pole-mount hardware adds unnecessary complexity.
What you'll also need

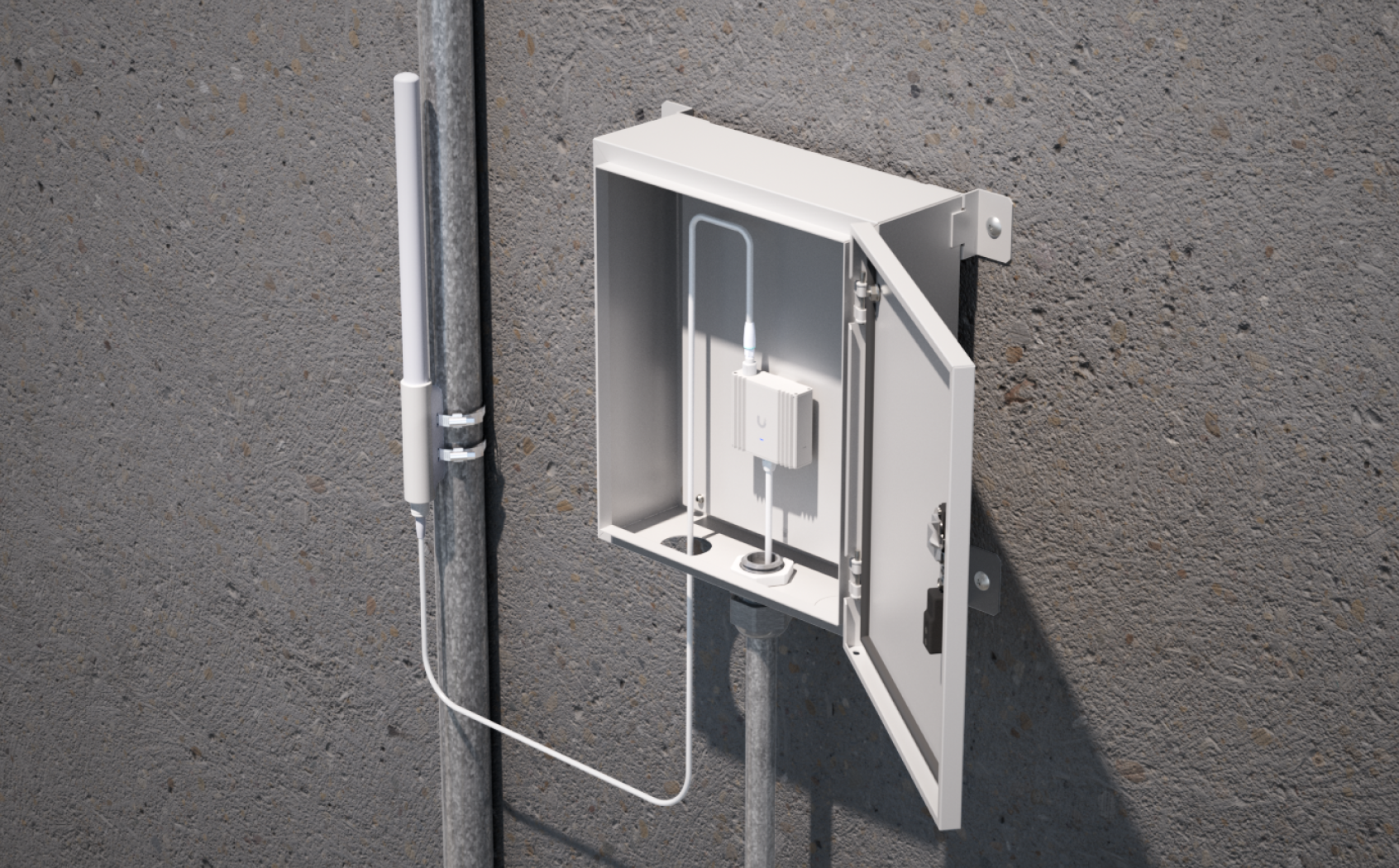

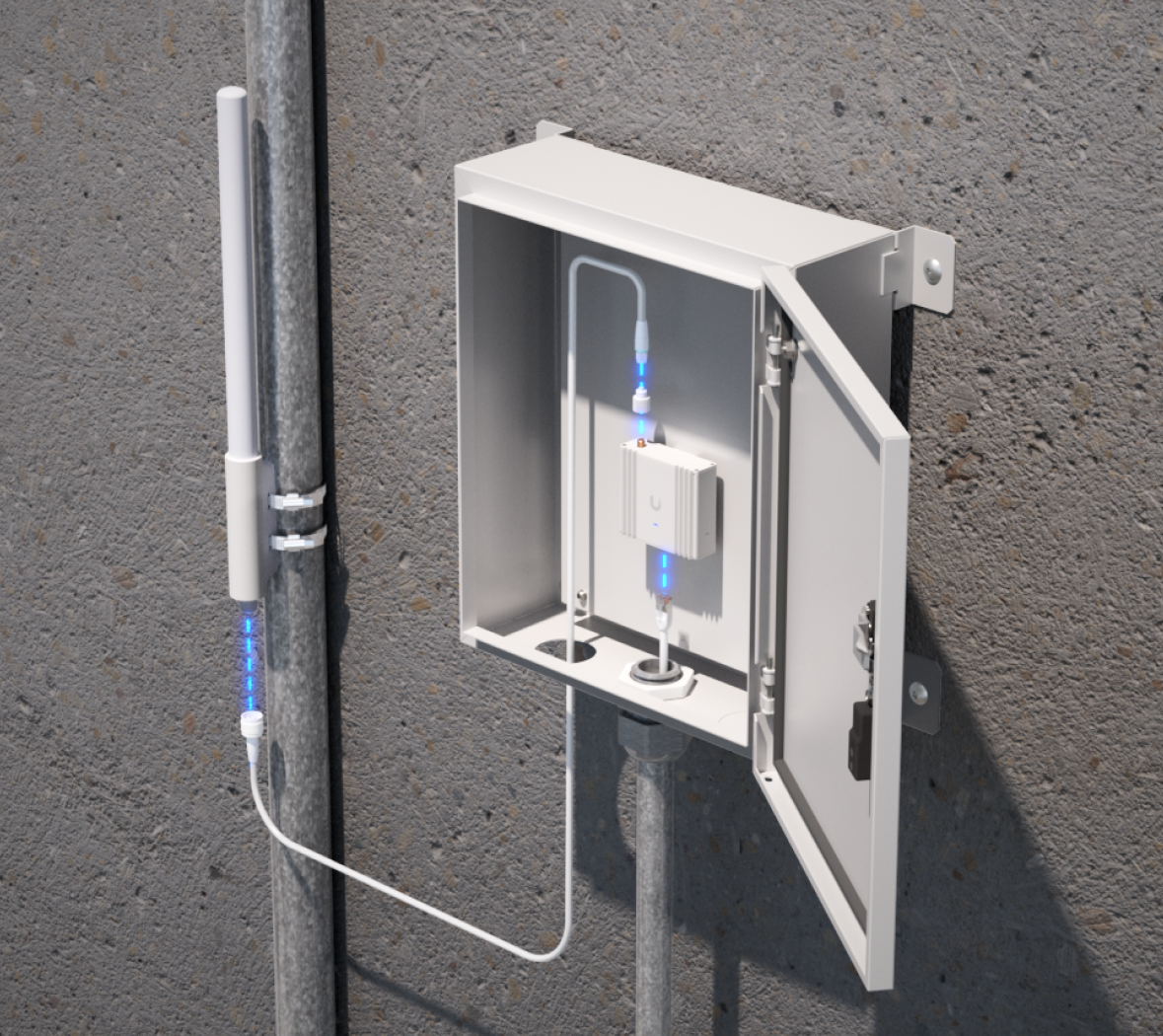

A compatible SuperLink-enabled UniFi Protect device to connect this antenna to, a suitable pole or mast at the mounting point, and outdoor-rated cabling to bridge from the antenna to the device enclosure if it's not co-located on the mast.
Technical specifications
Overview
| Dimensions | Device: 468.9 x 31.8 x 44.1 mm (18.5 x 1.3 x 1.7") With cable: 1458.4 x 31.8 x 44.1 mm (57.4 x 1.3 x 1.7") Cable: ⌀5.2 x 1000 mm (⌀0.2 x 39.4") |
| Weatherproofing | IP67 |
| Mounting | Pole mount |
| Pole Mount Diameter | 1–2.17" (25–55 mm) |
| Wind Loading | 25.4 N at 200 km/h (5.7 lbf at 125 mph) |
| UniFi Application Suite | Protect |
Performance
| US | 860–930 MHz |
| EU | 860–930 MHz |
| Bluetooth | 2400–2480 MHz |
| Bluetooth | 4 dBi |
| SuperLink | 7 dBi |
| Bluetooth | Up to 100 m (328 ft) |
| SuperLink | 5 km (3.1 mi) |
Hardware
| Weight | Device: 275 g (9.7 oz) Cable: 65 g (2.3 oz) |
| Enclosure Material | Polycarbonate, glass fiber |
| Mount Material | Stainless steel |
| Antenna Connector | (1) RP-N Female |
| Antenna Cable | (1) RP-SMA Male (1) RP-N Male |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE |
