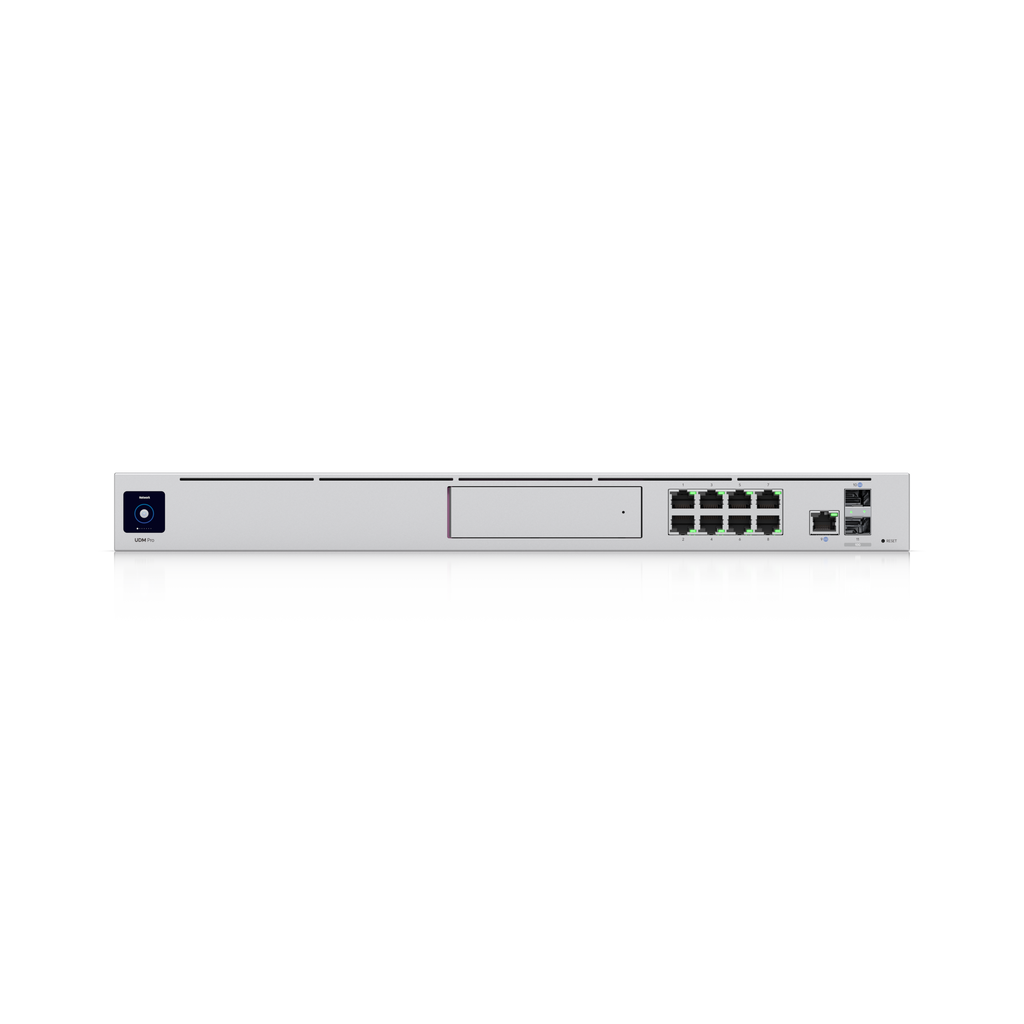

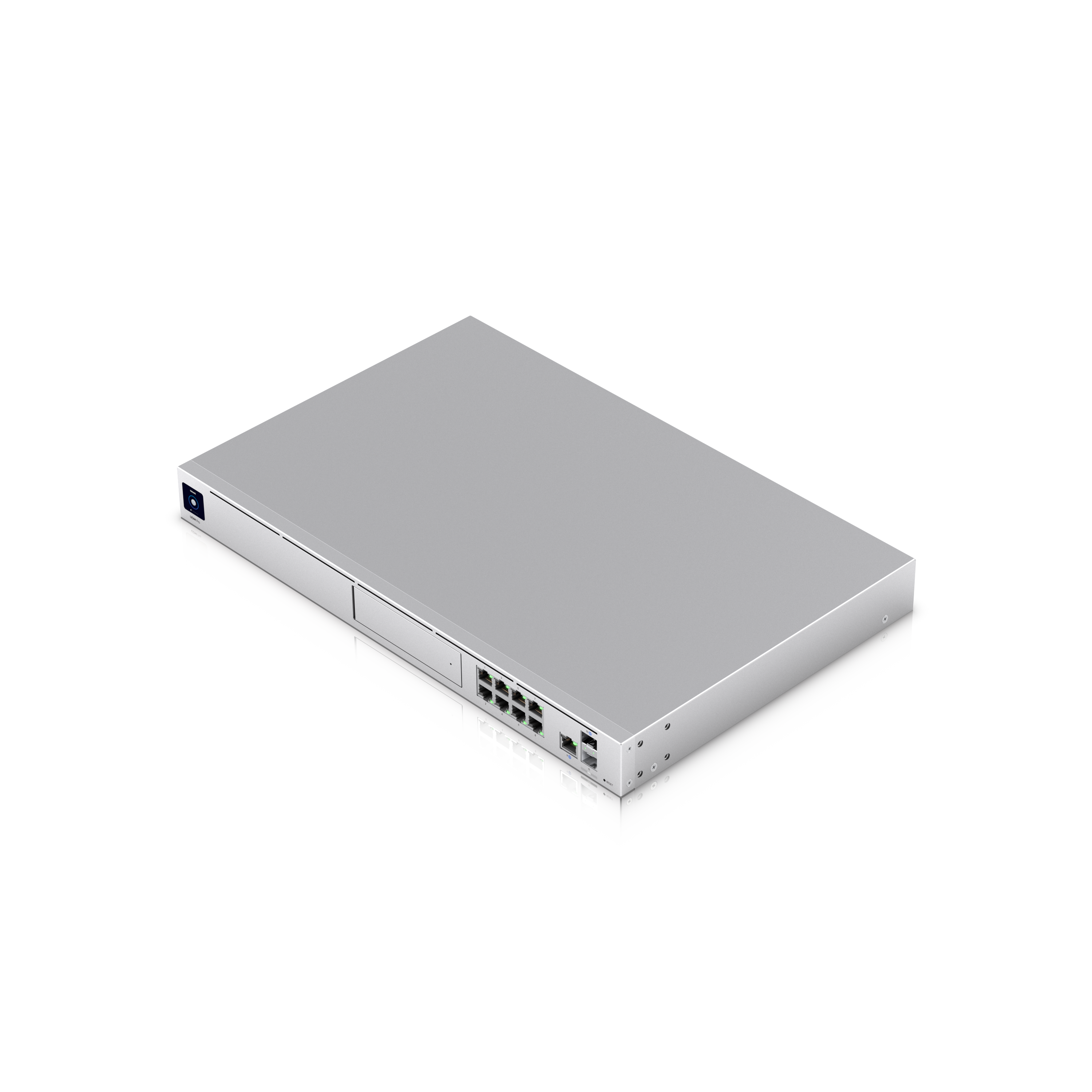

UniFi Dream Machine Pro
Technical Specifications
Overview

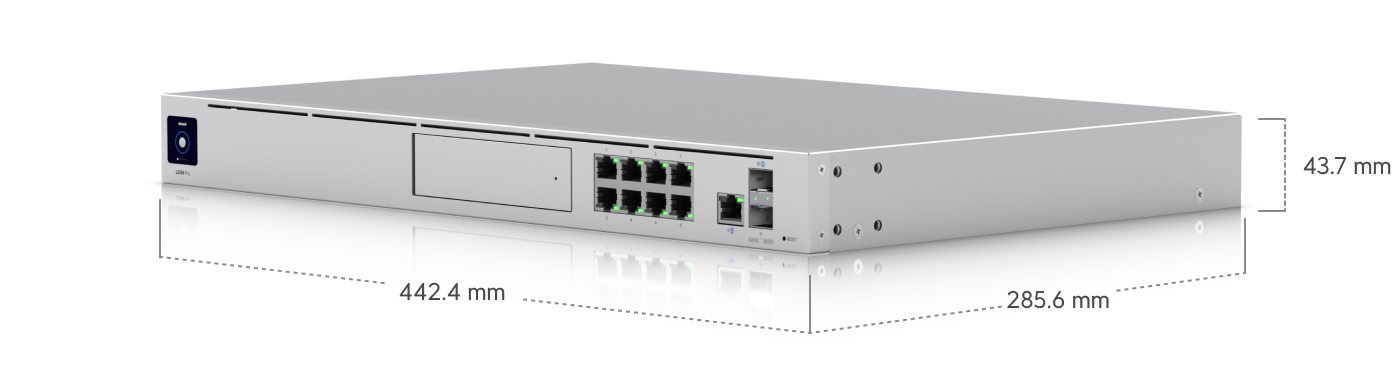

| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2") |
| UniFi Application Suite — Network | True |
| UniFi Application Suite — Protect | True |
| UniFi Application Suite — Access | True |
| UniFi Application Suite — Talk | True |
| UniFi Application Suite — Connect | True |
| Managed UniFi Devices | 100+ |
| Managed Cameras | (24) HD (14) 2K (8) 4K |
| Managed Access Hubs | 150 |
| Simultaneous Users Connected | 1,000+ |
| Max. WAN Port Count | 8 |

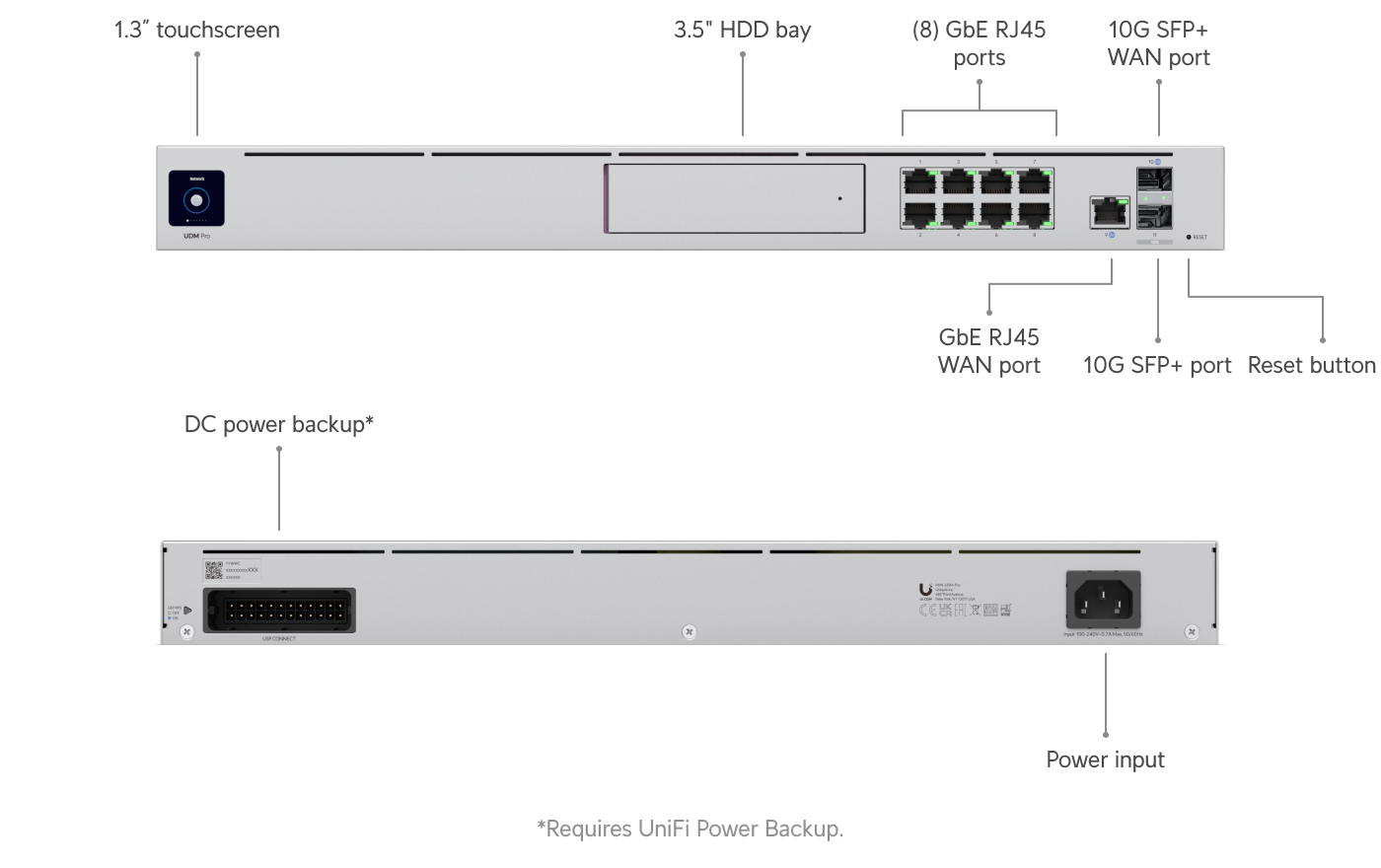

| Default WAN Ports | (1) 10G SFP+ (1) GbE RJ45 |
| Port Layout — 1 GbE RJ45 | 9 (1G/100M/10M) |
| Port Layout — 10G SFP+ | 2 (10G/1G) |
| IDS/IPS Throughput | 3.5 Gbps |

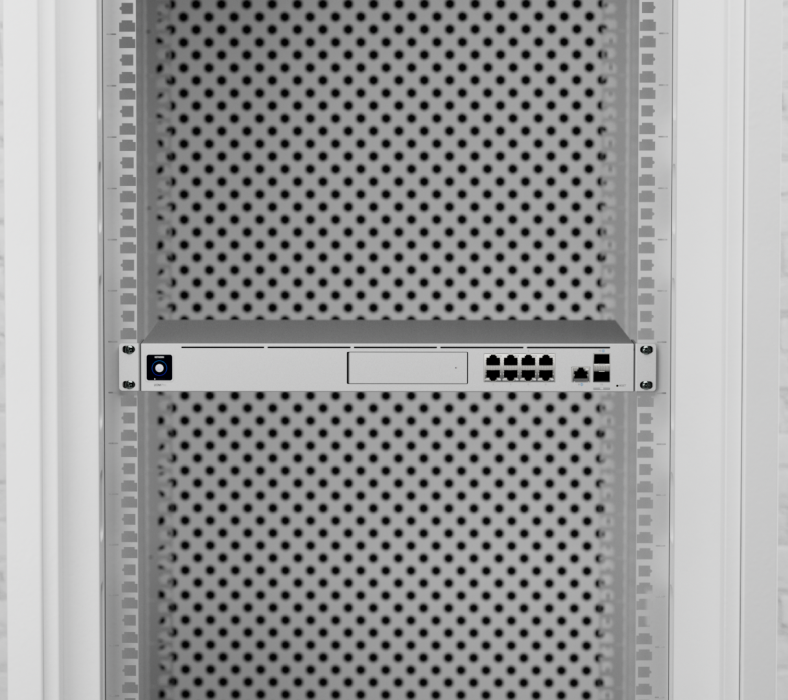

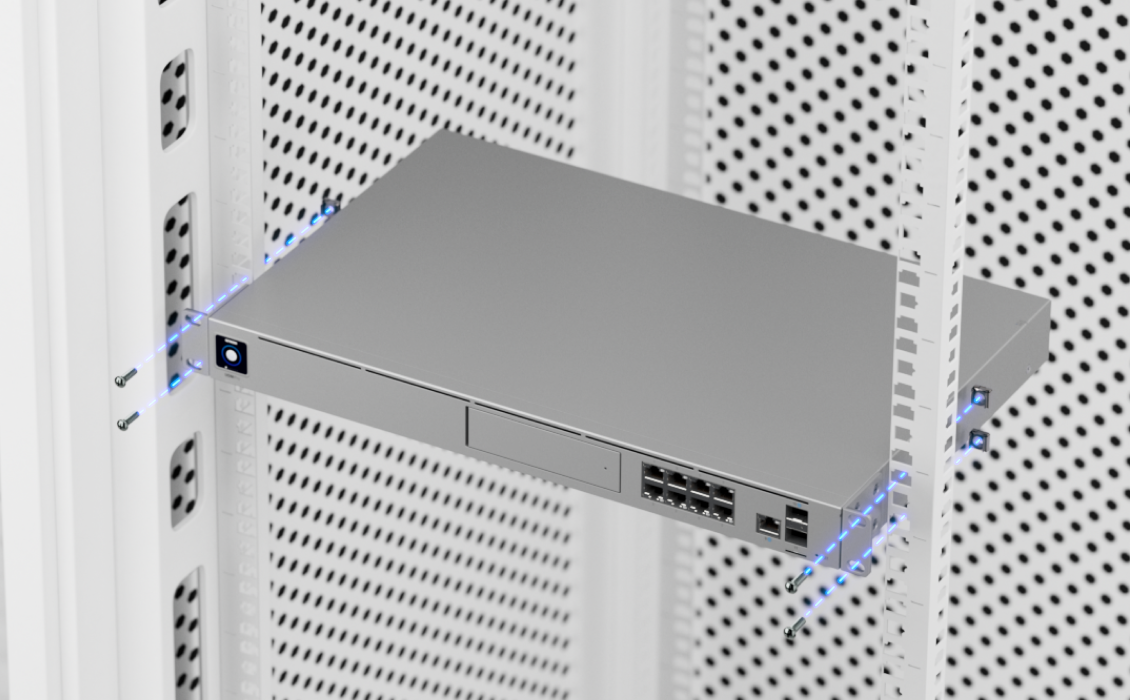

| Form Factor | Rack mount (1U) |
| Redundancy | Shadow Mode (VRRP) Gateway Failover DC Power Backup |
Security
| Stateful Firewall | True |
| Application-Aware Layer 7 Firewall | True |
| DPI & Traffic Identification | True |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | True |
| Content Filtering | True |
| Intrusion Prevention (IPS/IDS) | True |
| Ad Blocking | True |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | True |
VPN & SD-WAN
| License-Free SD-WAN | True |
| Site-to-Site VPN — Site Magic | True |
| Site-to-Site VPN — IPsec | True |
| Site-to-Site VPN — OpenVPN | True |
| VPN Server — Identity Endpoint One-Click VPN | True |
| VPN Server — Teleport Zero-Configuration VPN | True |
| VPN Server — WireGuard | True |
| VPN Server — OpenVPN | True |
| VPN Server — L2TP | True |
| VPN Client — OpenVPN | True |
| VPN Client — WireGuard | True |
Networking
| Multi-WAN Load Balancing | True |
| Shadow Mode (VRRP) High Availability | True |
| LACP Port Aggregation | True |
| Dynamic Routing — OSPF | True |
| Dynamic Routing — BGP | True |
| Advanced QoS | True |
| Multicast DNS (mDNS) | True |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | True |
| Integrated RADIUS Server | True |
| RADIUS over TLS (RadSec) | True |
| Additional Internet Failover with UniFi LTE Backup | True |
| Internet Quality and Outage Reporting | True |
| MAC Address Table Size | 4,000 |
| Policy-based WAN and VPN Routing | True |
| Customizable DHCP Server | True |
| IPv6 ISP Support | True |
| IGMP Proxy | True |
| Virtual Network Override | True |
| All Traffic Flows | True |
Hardware
| NVR Storage | (1) 3.5" NVR HDD bay |
| Max. Power Consumption | 33W |

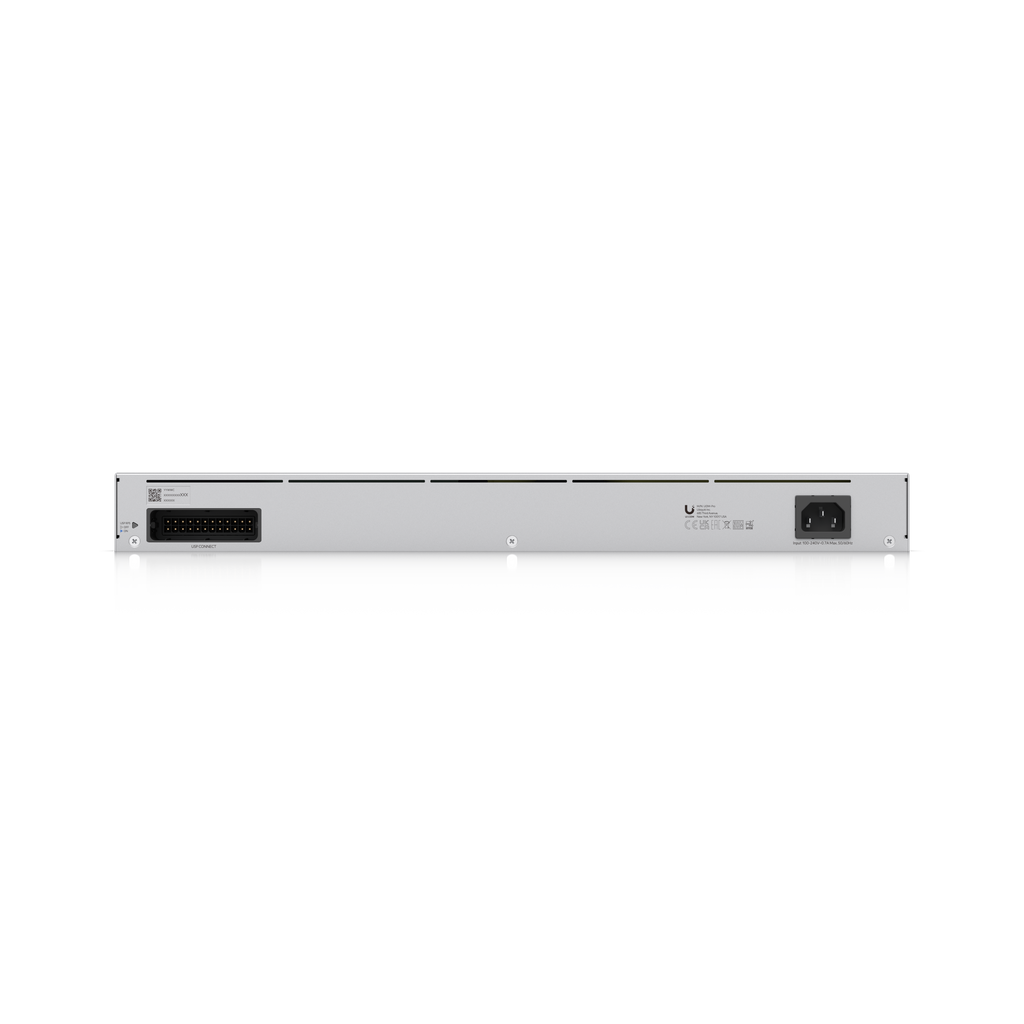

| Power Method | (1) Universal AC input, 100–240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power Supply | AC/DC, internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 112 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory | 4 GB |
| On-board Storage | 16 GB |
| Weight | 3.9 kg (8.6 lb) |
| Enclosure Material | Aluminium CNC, SGCC steel |
| Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| Management | Ethernet Bluetooth |
| LEDs — Ethernet | True |
| LEDs — SFP+ | True |
| LEDs — RPS | True |
| LEDs — PSU | True |
| LEDs — HDD | True |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 01136-20-08356, SRRC |
