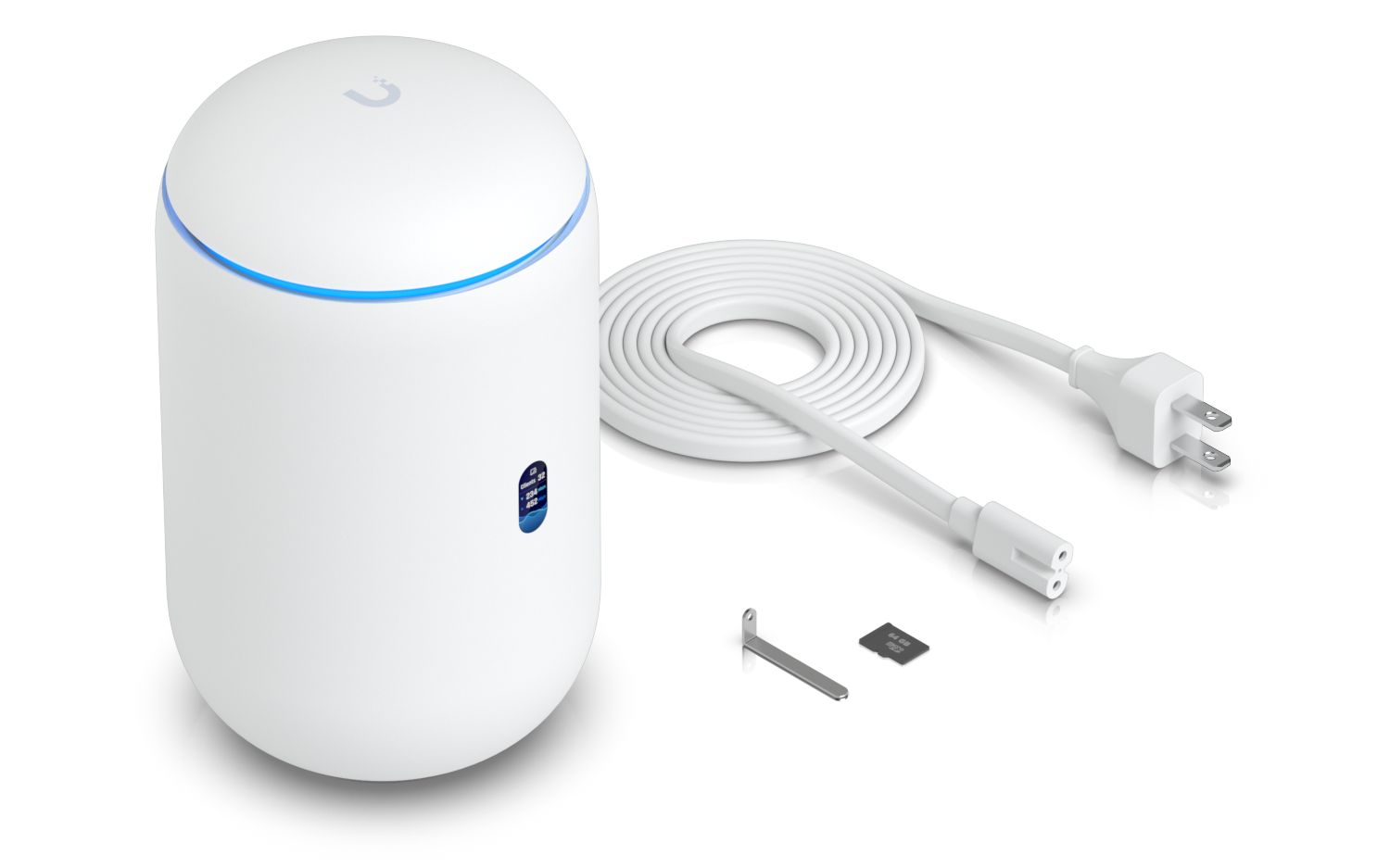

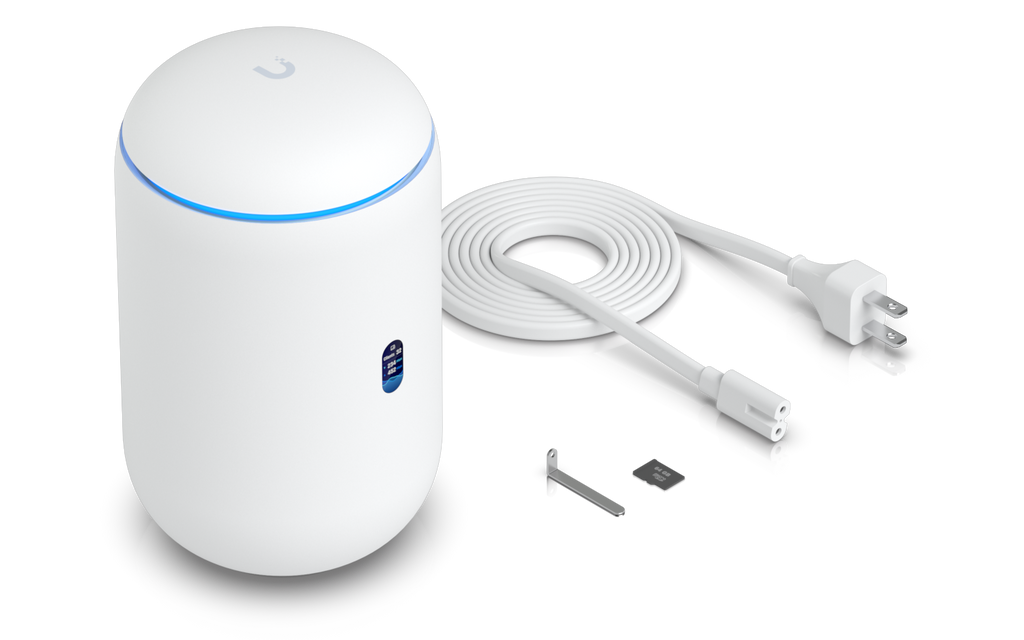

Ubiquiti UDR7 | UniFi Dream Router 7 | (1) 10G SFP+
$638.00
Ubiquiti UDR7 | UniFi Dream Router 7 | (1) 10G SFP+
$638.00
UniFi Dream Router 7
Technical Specifications
Overview

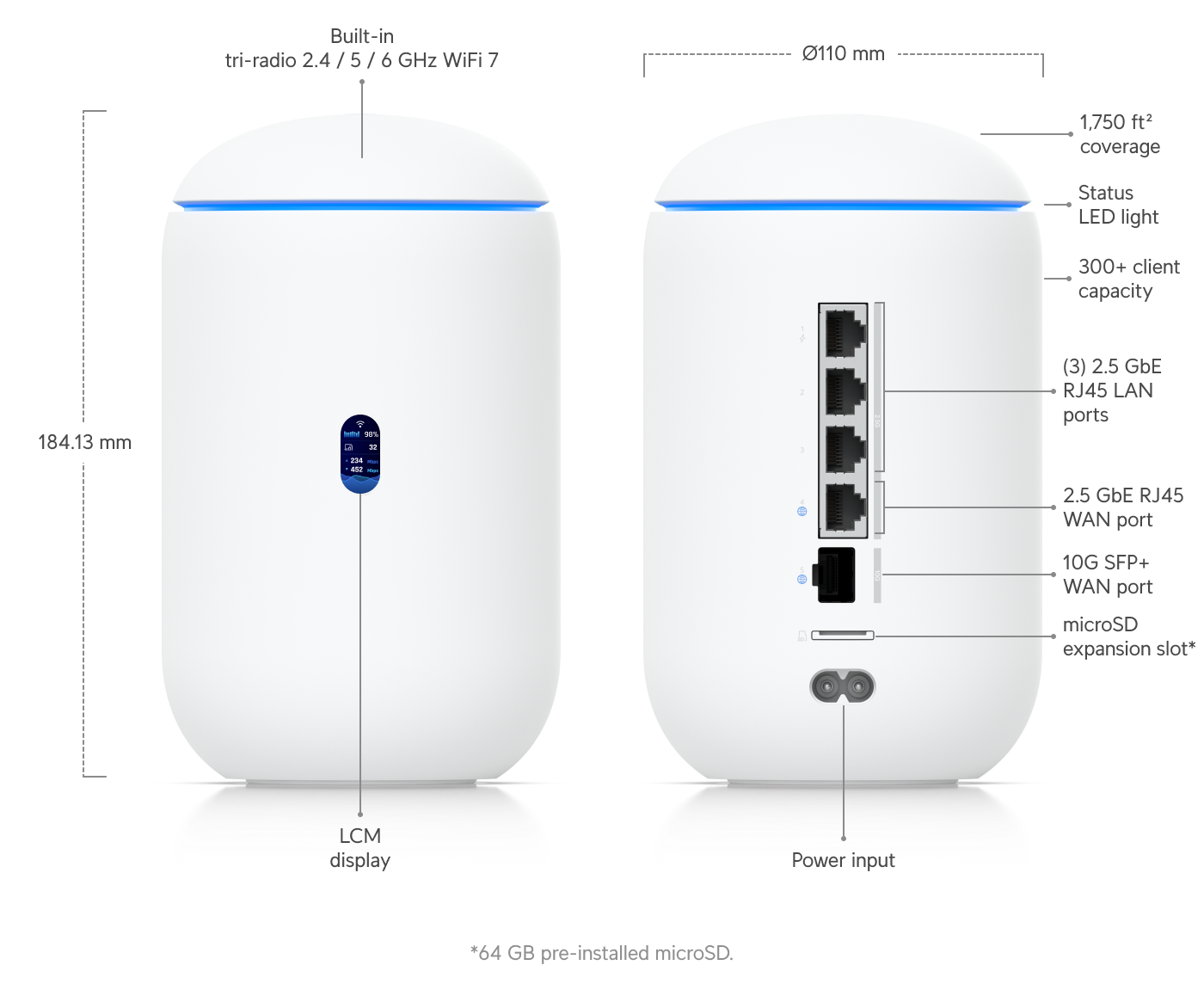

| Dimensions | ⌀110 x 184.1 mm (⌀4.3 x 7.3") |
| UniFi Application Suite — Network | True |
| UniFi Application Suite — Protect | True |
| UniFi Application Suite — Access | True |
| UniFi Application Suite — Talk | True |
| UniFi Application Suite — Connect | True |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD (2) 2K (1) 4K |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |

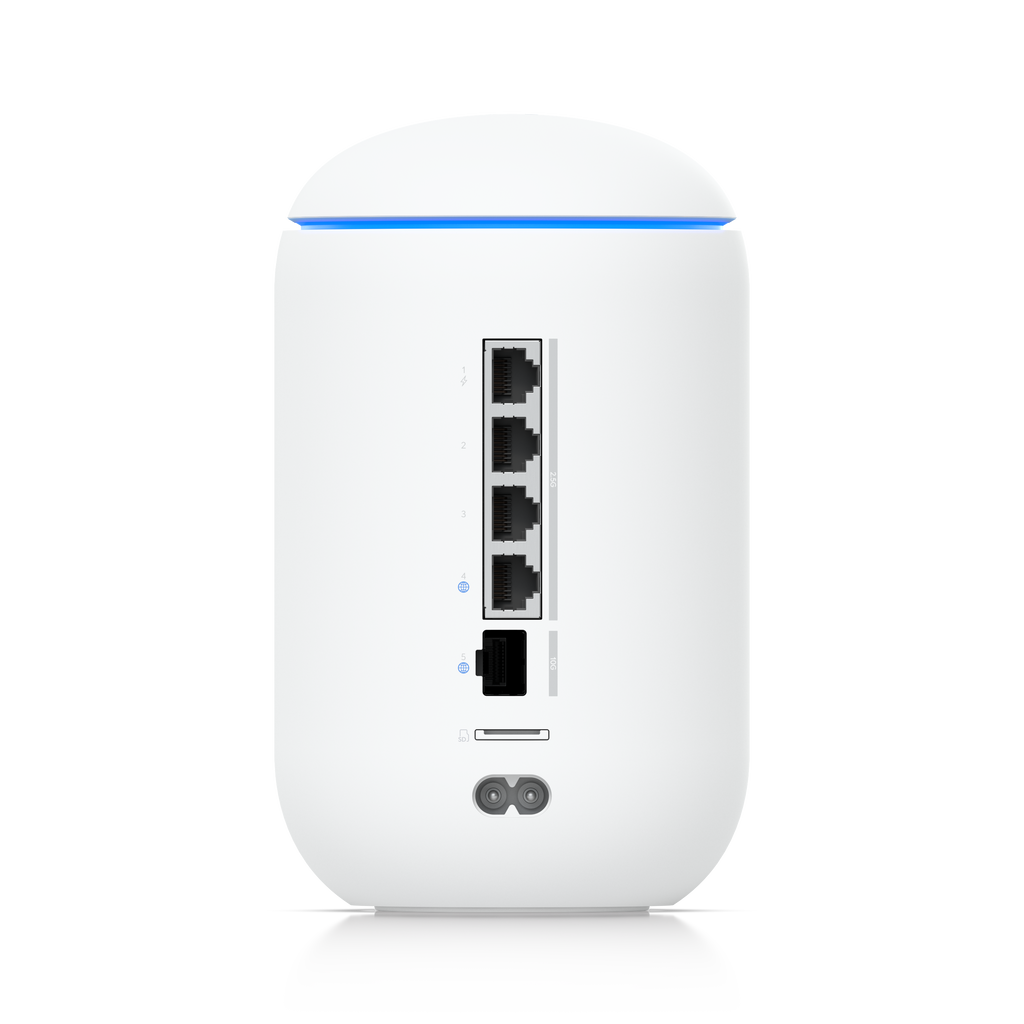

| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
| Port Layout — 2.5 GbE RJ45 | 4 (1 PoE) (2.5G/1G/100M/10M) |
| Port Layout — 10G SFP+ | 1 (10G/1G) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² (1,750 ft²) |
Security
| Stateful Firewall | True |
| Application-Aware Layer 7 Firewall | True |
| DPI & Traffic Identification | True |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | True |
| Content Filtering | True |
| Intrusion Prevention (IPS/IDS) | True |
| Ad Blocking | True |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | True |
VPN & SD-WAN
| License-Free SD-WAN | True |
| Site-to-Site VPN — Site Magic | True |
| Site-to-Site VPN — IPsec | True |
| Site-to-Site VPN — OpenVPN | True |
| VPN Server — Identity Endpoint One-Click VPN | True |
| VPN Server — Teleport Zero-Configuration VPN | True |
| VPN Server — WireGuard | True |
| VPN Server — OpenVPN | True |
| VPN Server — L2TP | True |
| VPN Client — OpenVPN | True |
| VPN Client — WireGuard | True |
Networking
| Multi-WAN Load Balancing | True |
| Dynamic Routing — OSPF | True |
| Advanced QoS | True |
| Multicast DNS (mDNS) | True |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | True |
| Integrated RADIUS Server | True |
| RADIUS over TLS (RadSec) | True |
| Additional Internet Failover with UniFi LTE Backup | True |
| Internet Quality and Outage Reporting | True |
| MAC Address Table Size | 2,000 |
| Policy-based WAN and VPN Routing | True |
| Customizable DHCP Server | True |
| IPv6 ISP Support | True |
| IGMP Proxy | True |
| Virtual Network Override | True |
Integrated WiFi
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput — 6 GHz | 5.7 Gbps |
| Throughput — 5 GHz | 4.3 Gbps |
| Throughput — 2.4 GHz | 688 Mbps |
| MIMO — 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO — 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO — 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain — 6 GHz | 6 dBi |
| Antenna Gain — 5 GHz | 7 dBi |
| Antenna Gain — 2.4 GHz | 5 dBi |
| Max. TX Power — 6 GHz | 24 dBm |
| Max. TX Power — 5 GHz | 26 dBm |
| Max. TX Power — 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio |
| Supported Data Rates — 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Supported Data Rates — 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates — 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates — 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates — 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates — 802.11b | 1, 2, 5.5, 11 Mbps |
| Supported Data Rates — 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Hardware
| NVR Storage | Pre-installed 64GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | 15.4W |
| Max. PoE Wattage per Port by PSE — PoE | 15.4W |
| Voltage Range PoE Mode | 44-57V |
| Max. Power Consumption | 26W (Excluding PoE output) |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 89 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |

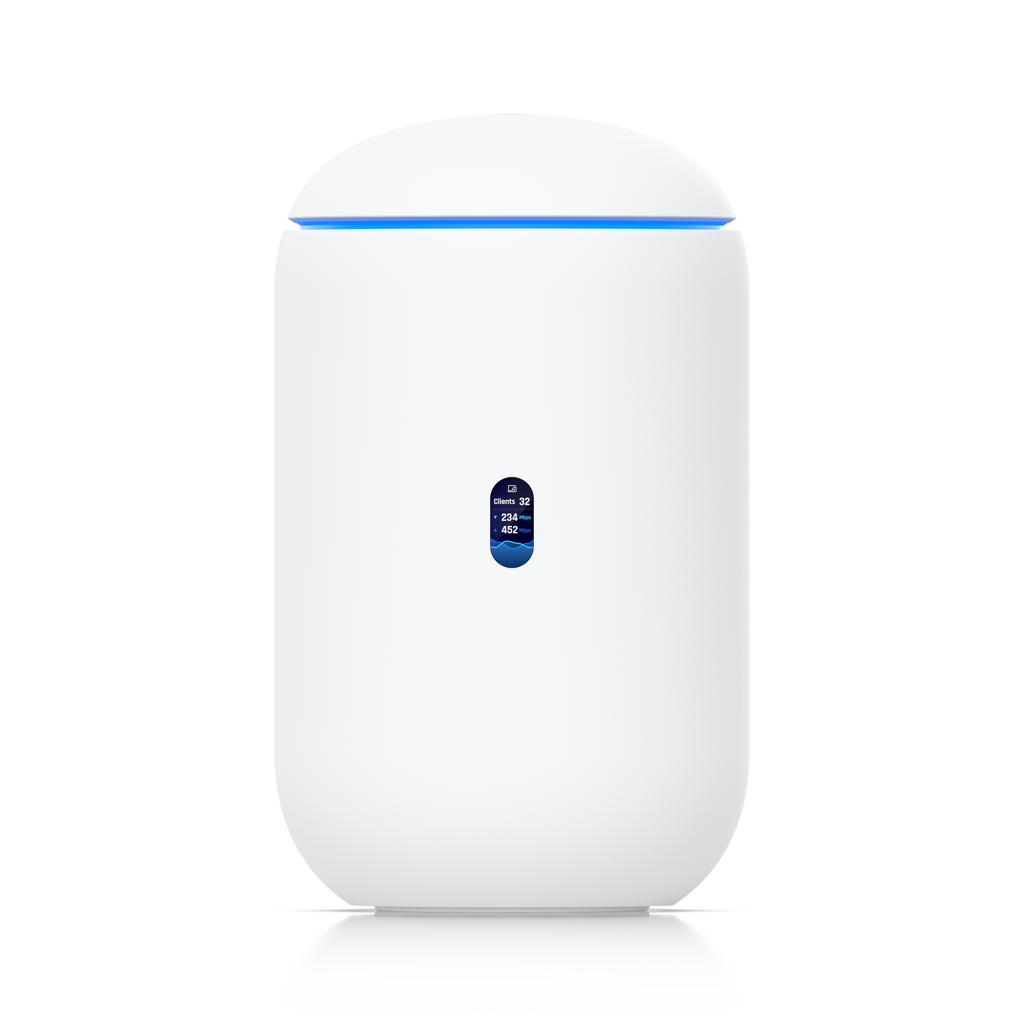

| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| LEDs — System | True |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 05650-25-08356 |
Software
| VLAN | 802.1Q |
| Guest Traffic Isolation | True |
| Application Requirements — UniFi Network | Version 9.0.108 and later |
