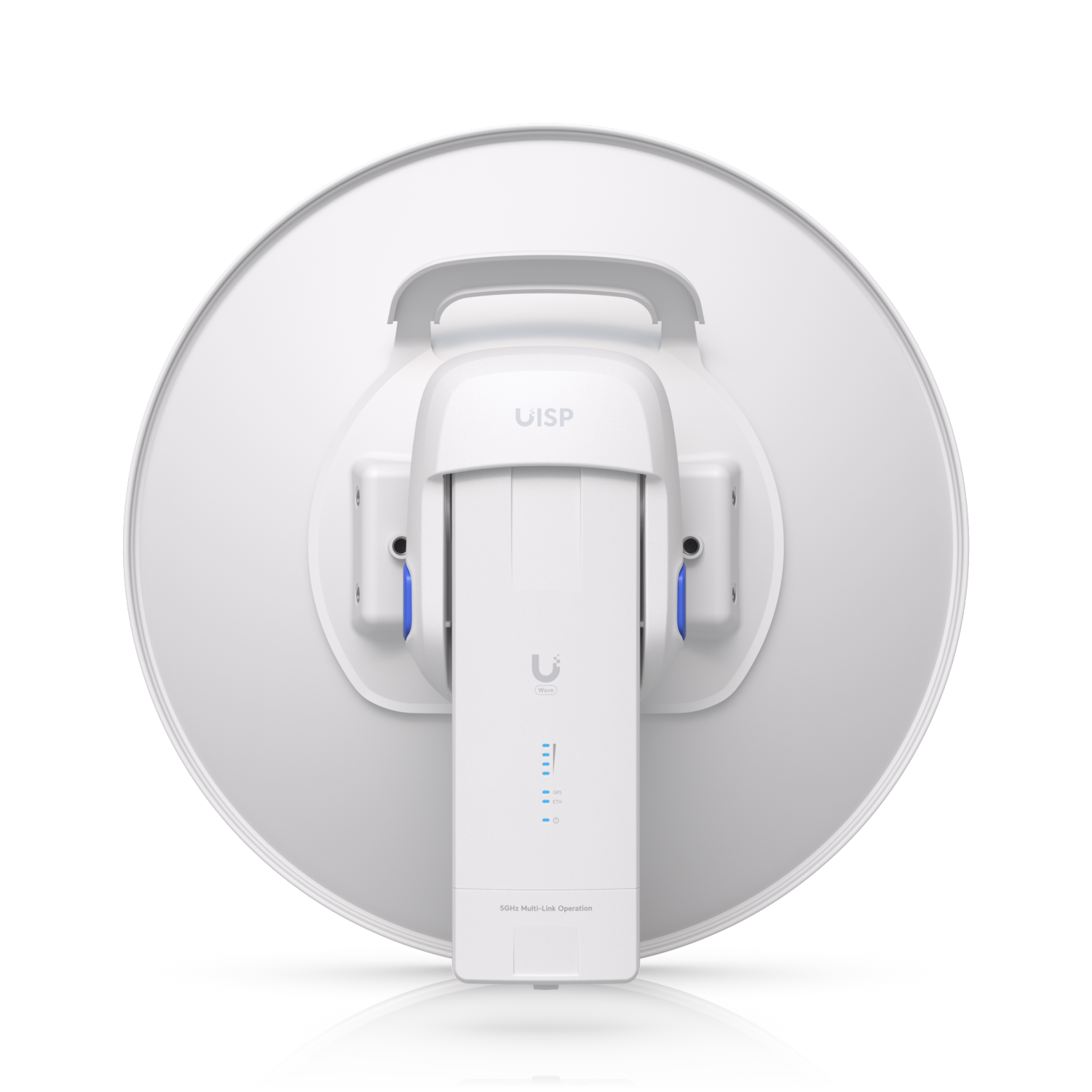

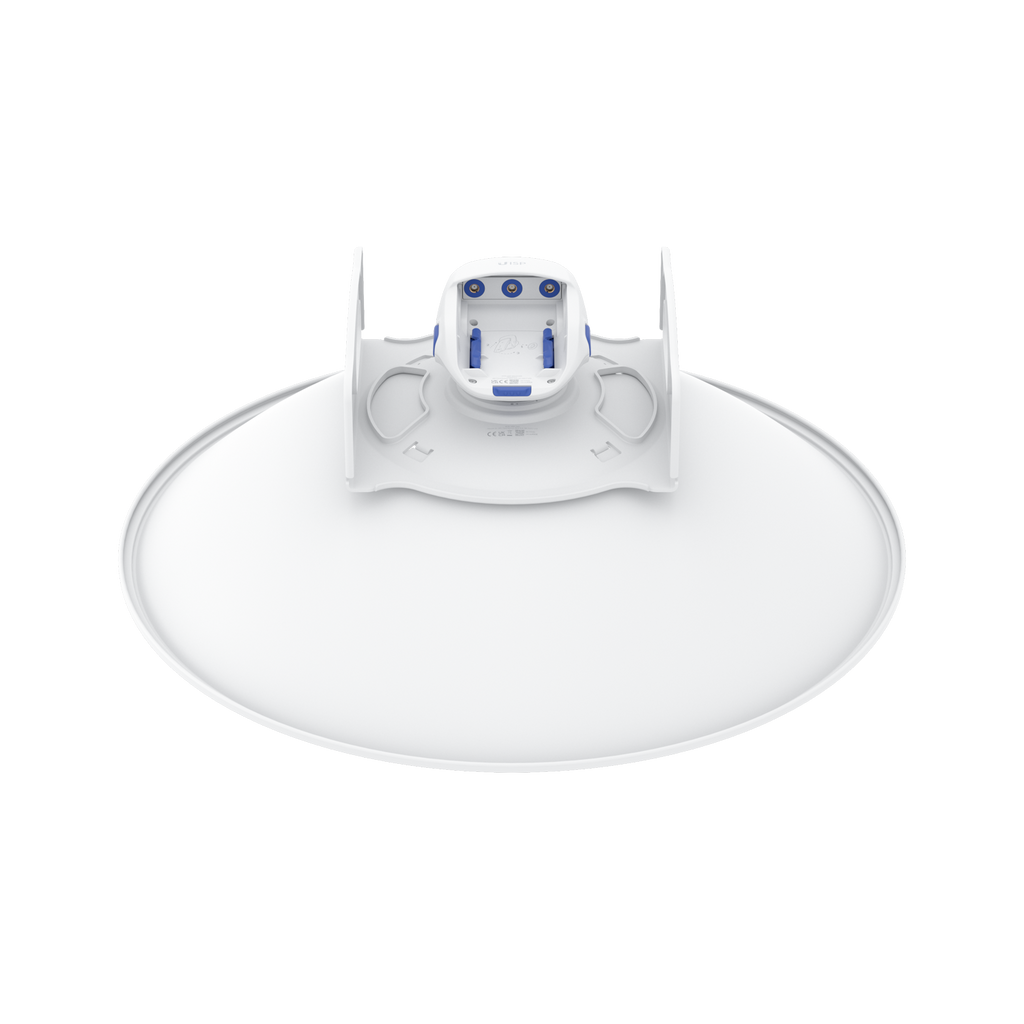

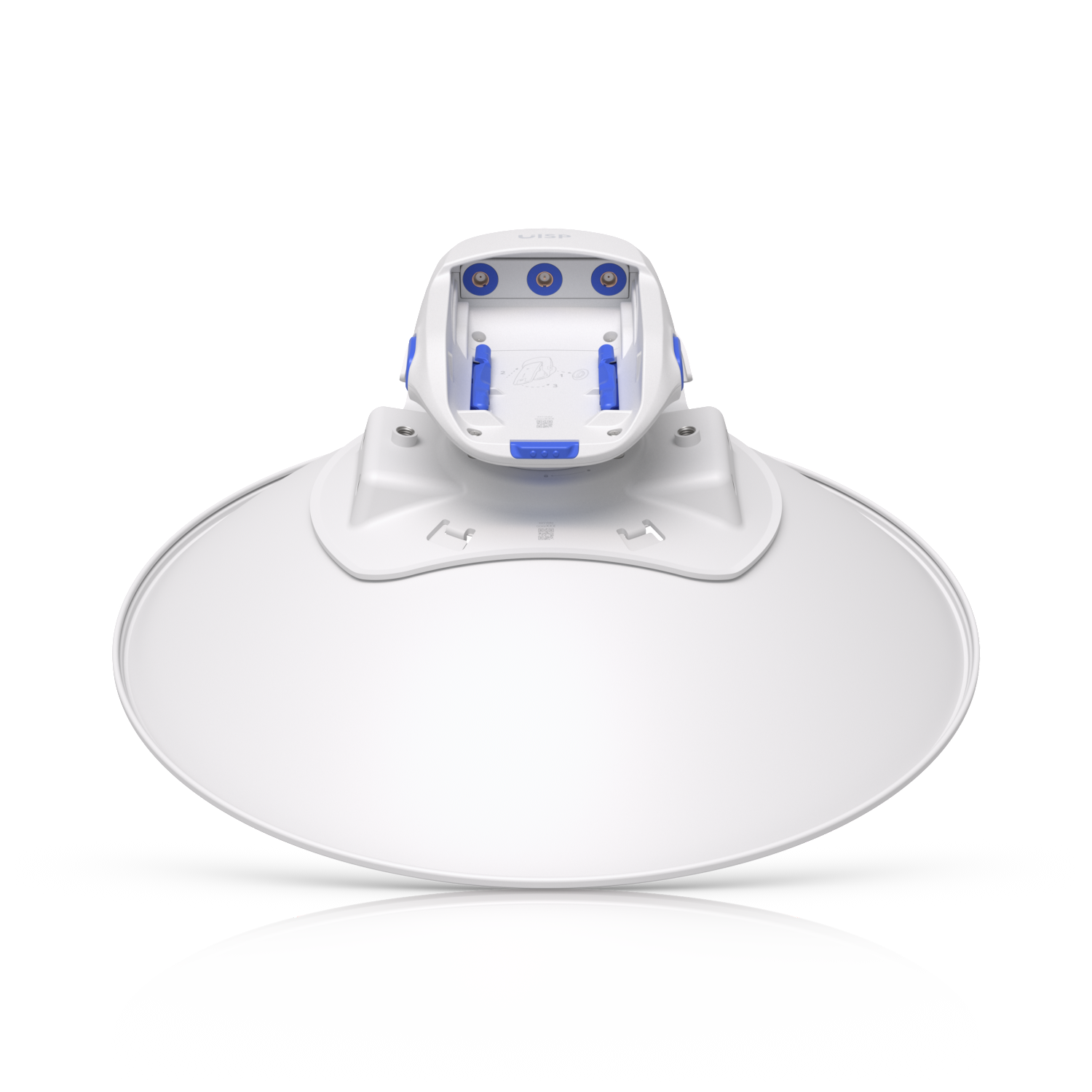

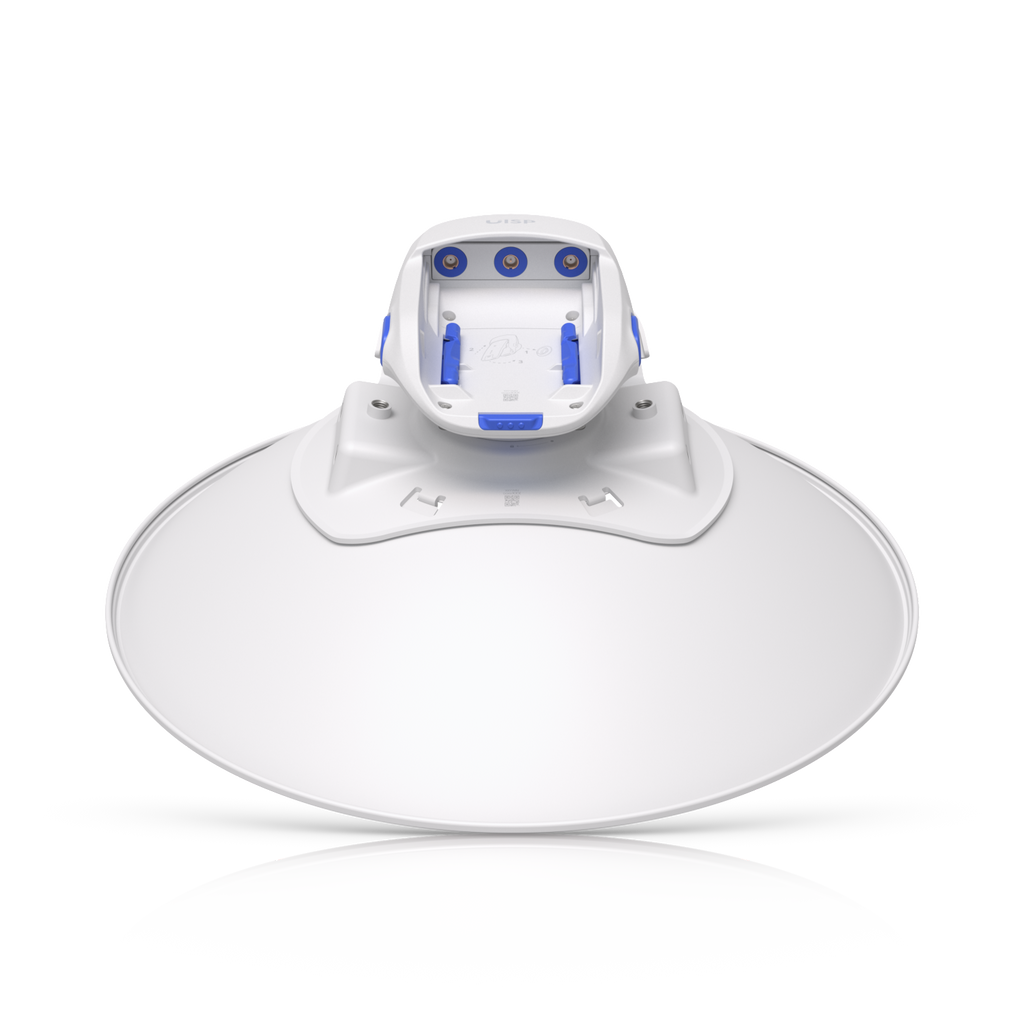

UISP Dish
Technical Specifications
Mechanical

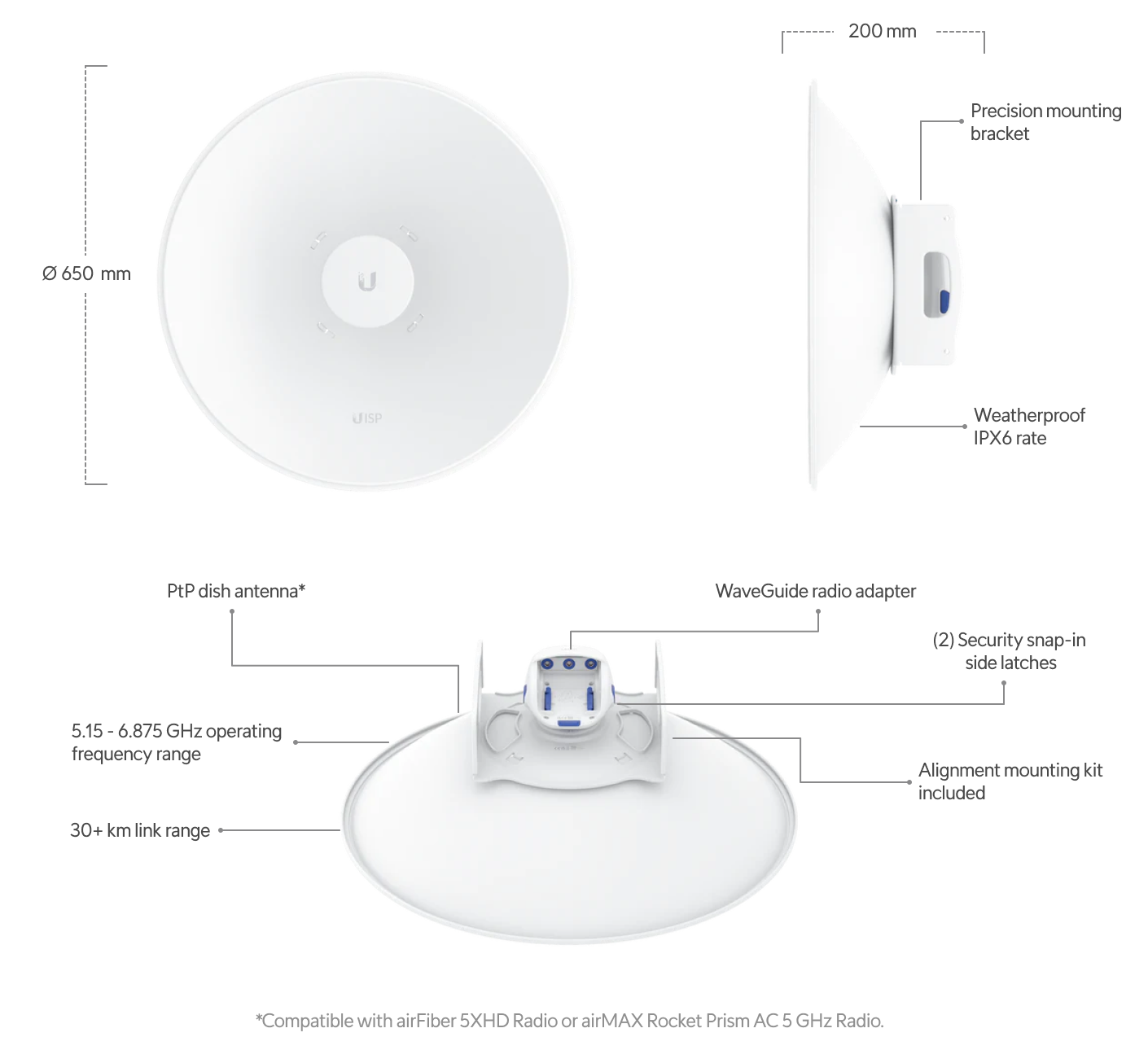

| Dimensions | ⌀650 x 200 mm (⌀25.6 x 7.9") |
| Weight | Device: 4.54 kg (10 lb) Mount: 3.1 kg (6.8 lb) |
| Enclosure Material | Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy |
| Wind Survivability | Up to 200 km/h (124 mph) |
| Wind Loading | 860 N at 200 km/h (193 lbf at 124 mph) |

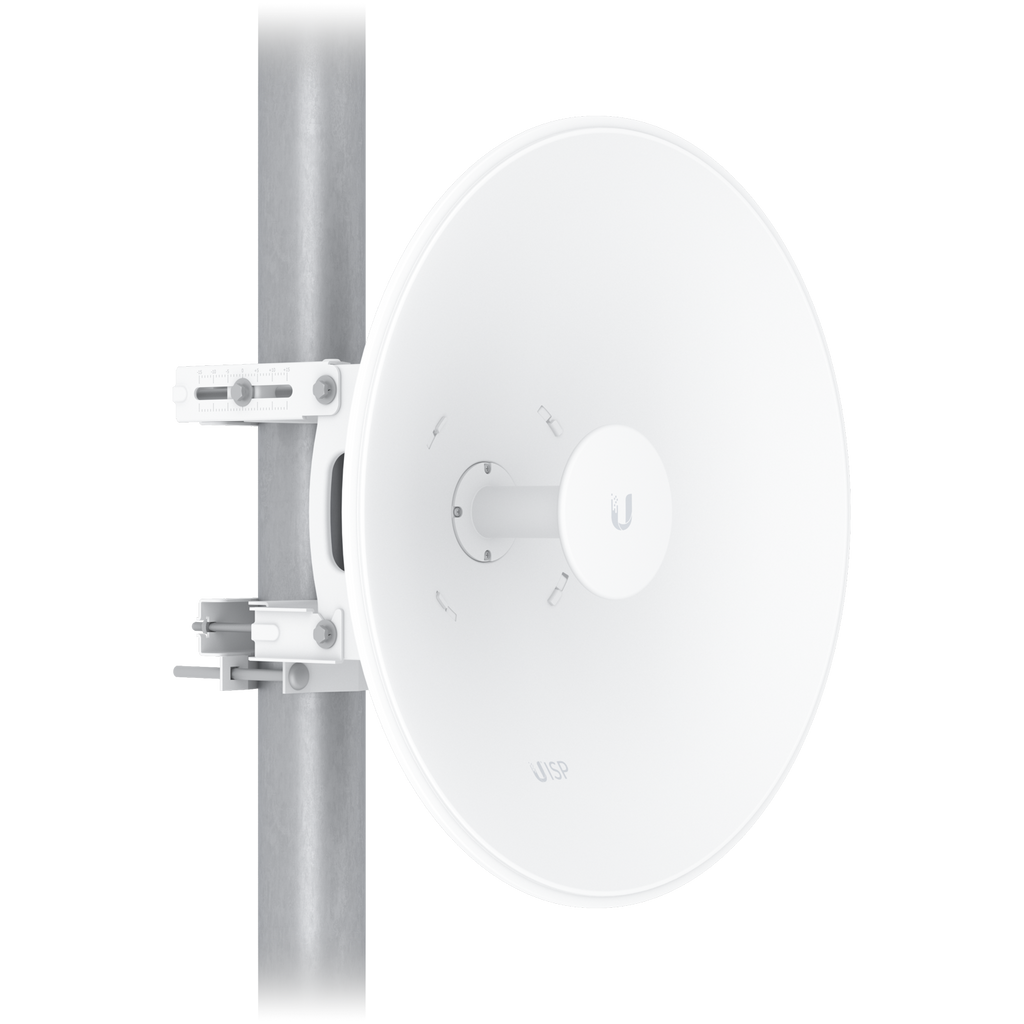

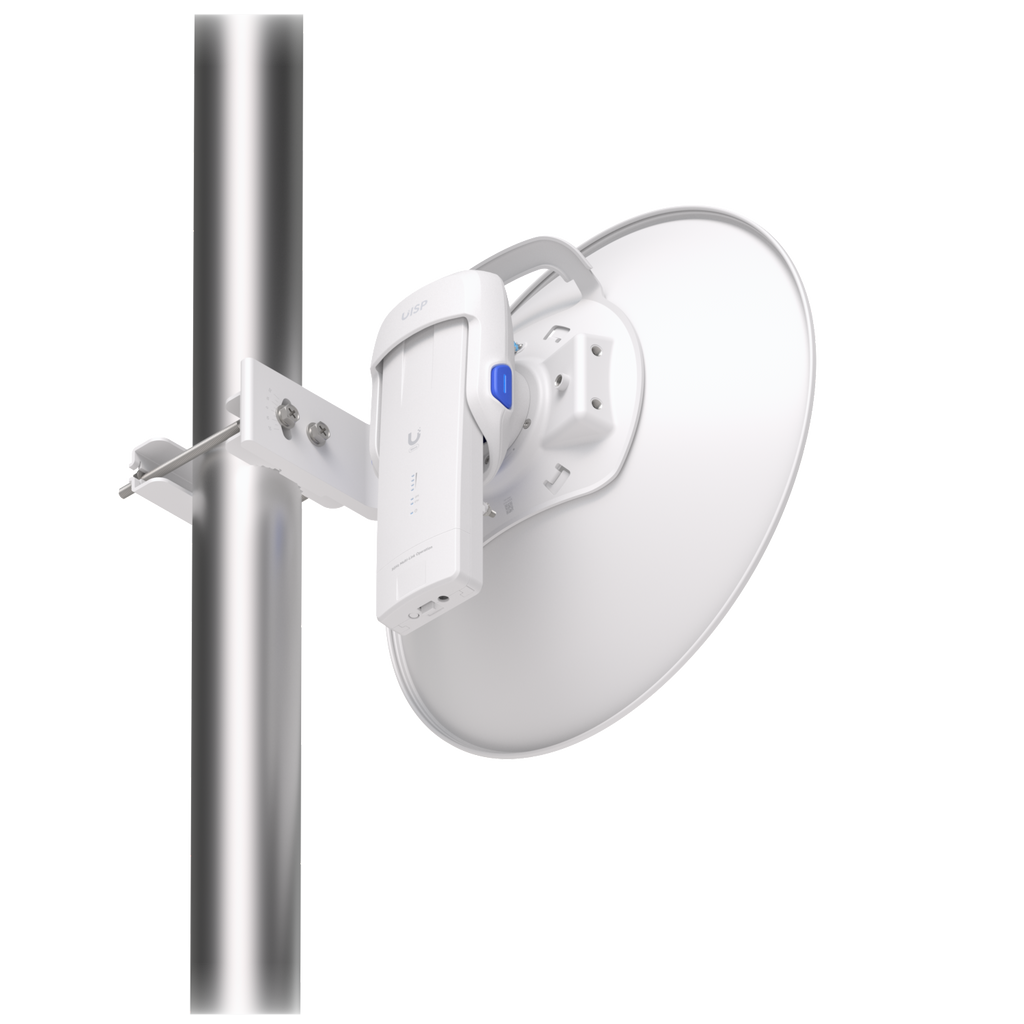

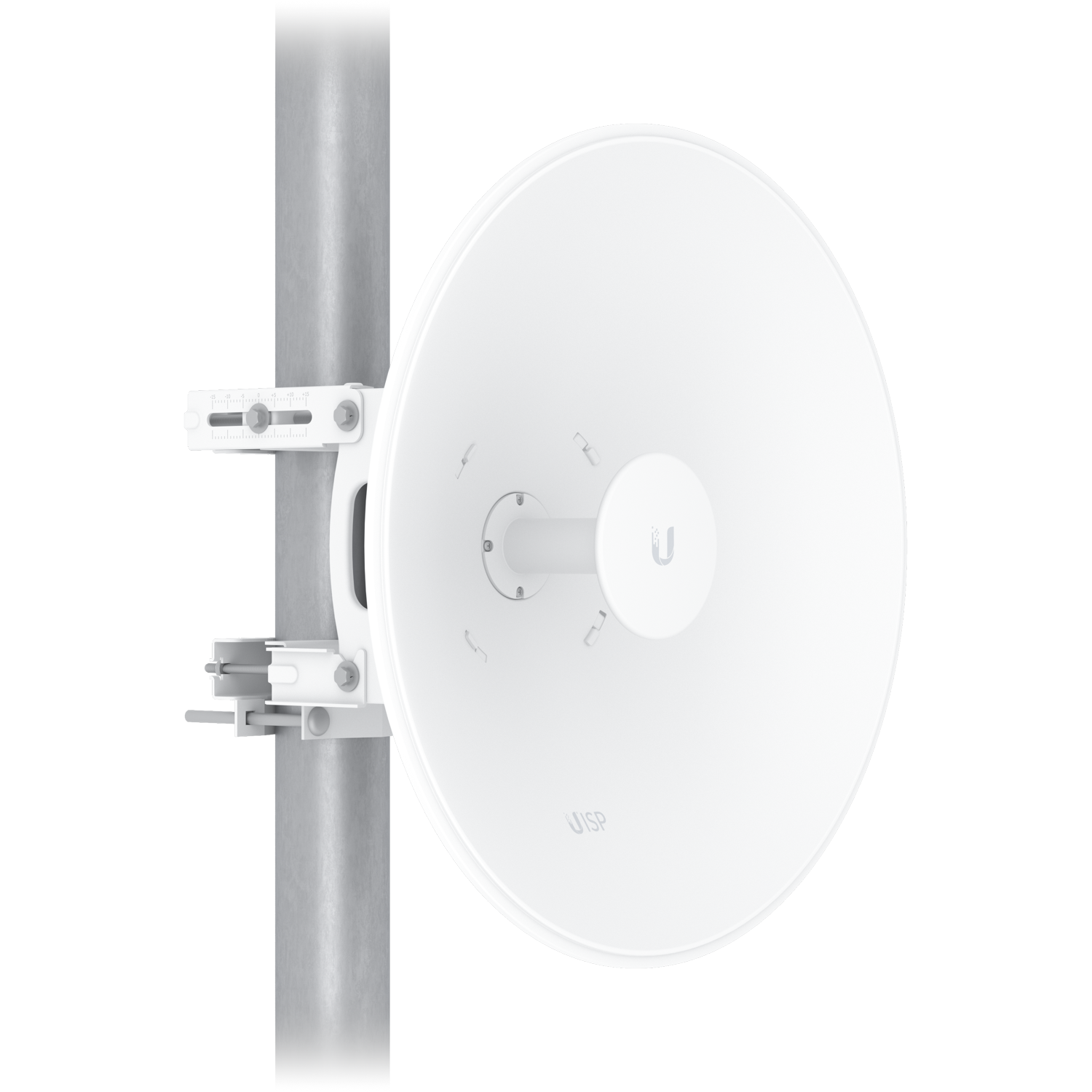

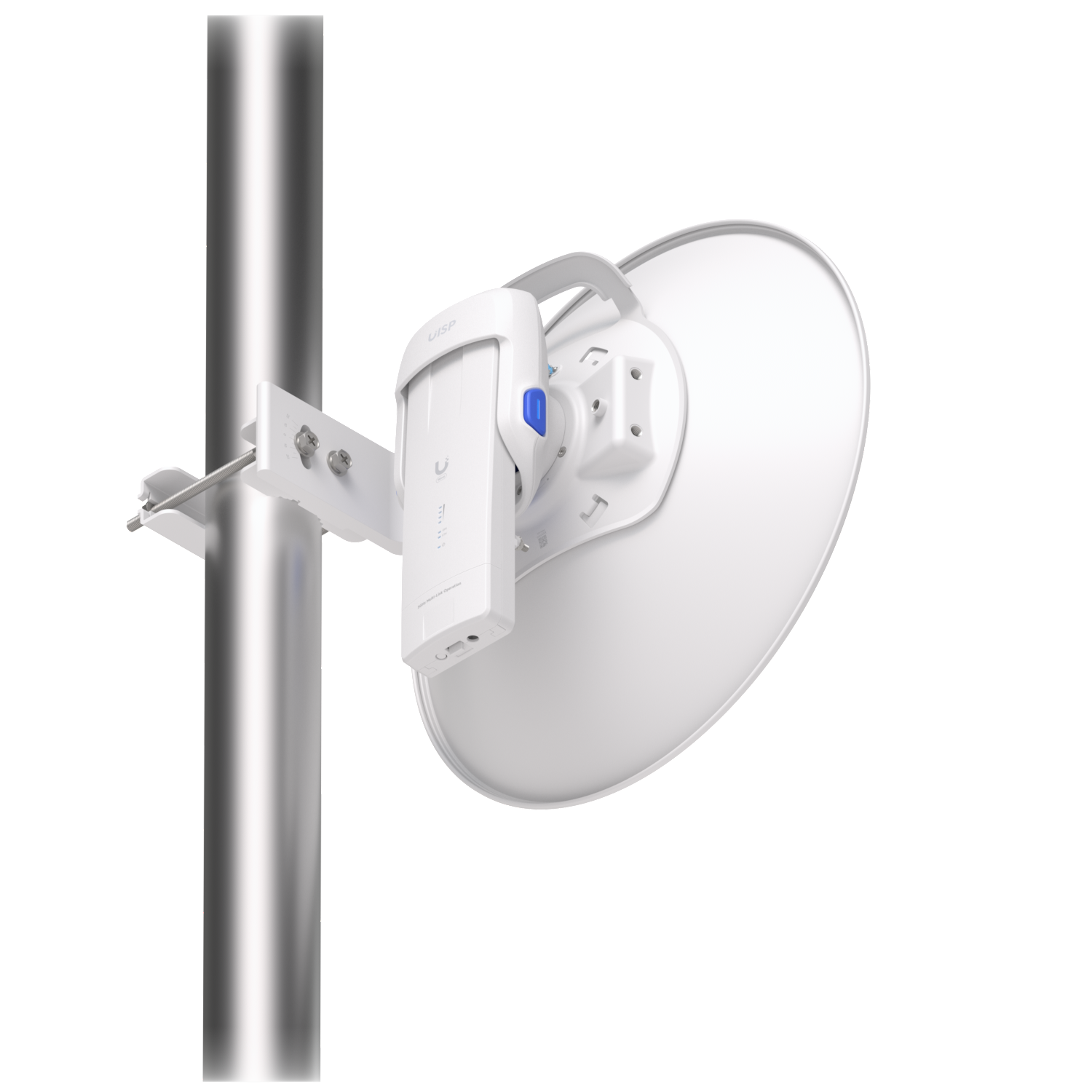

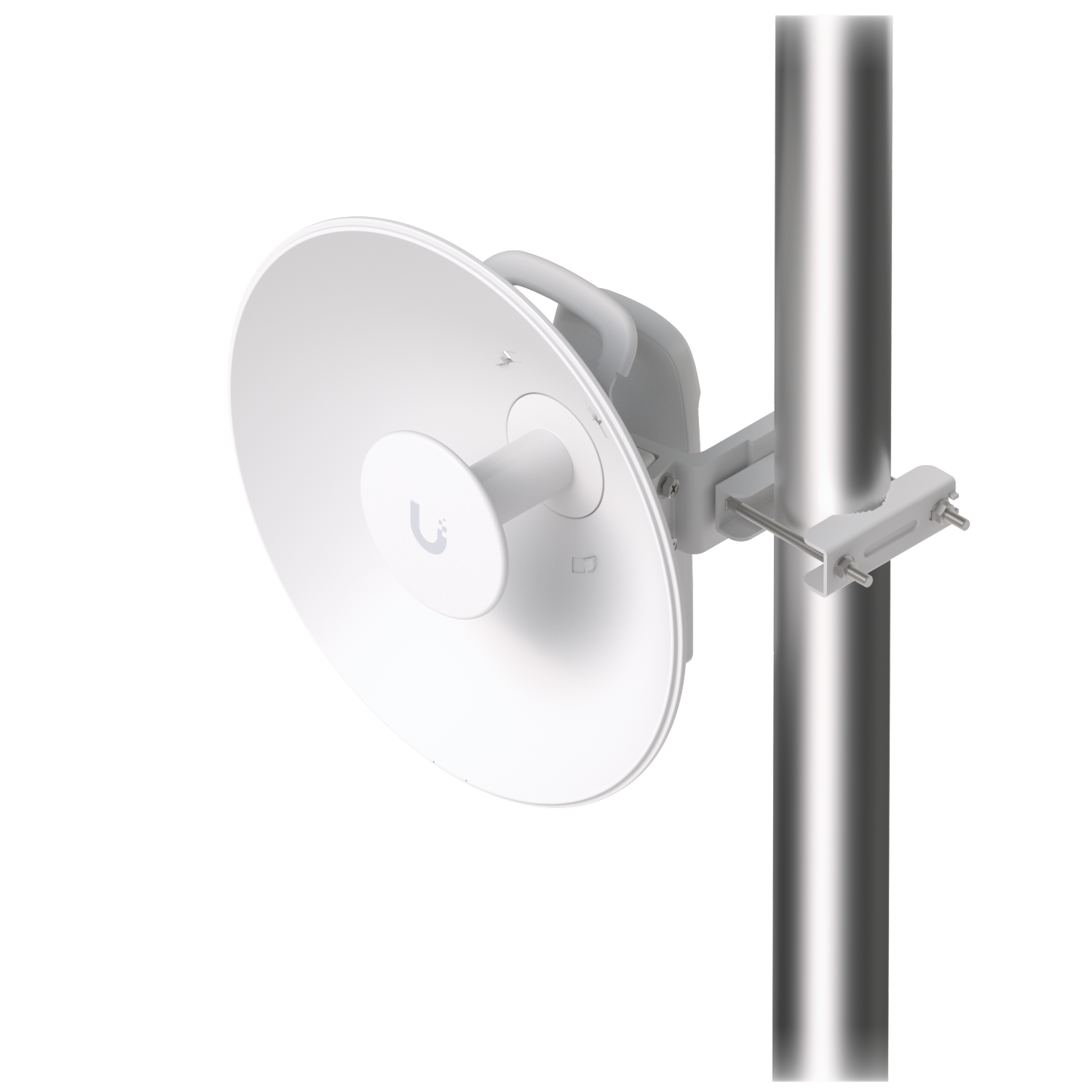

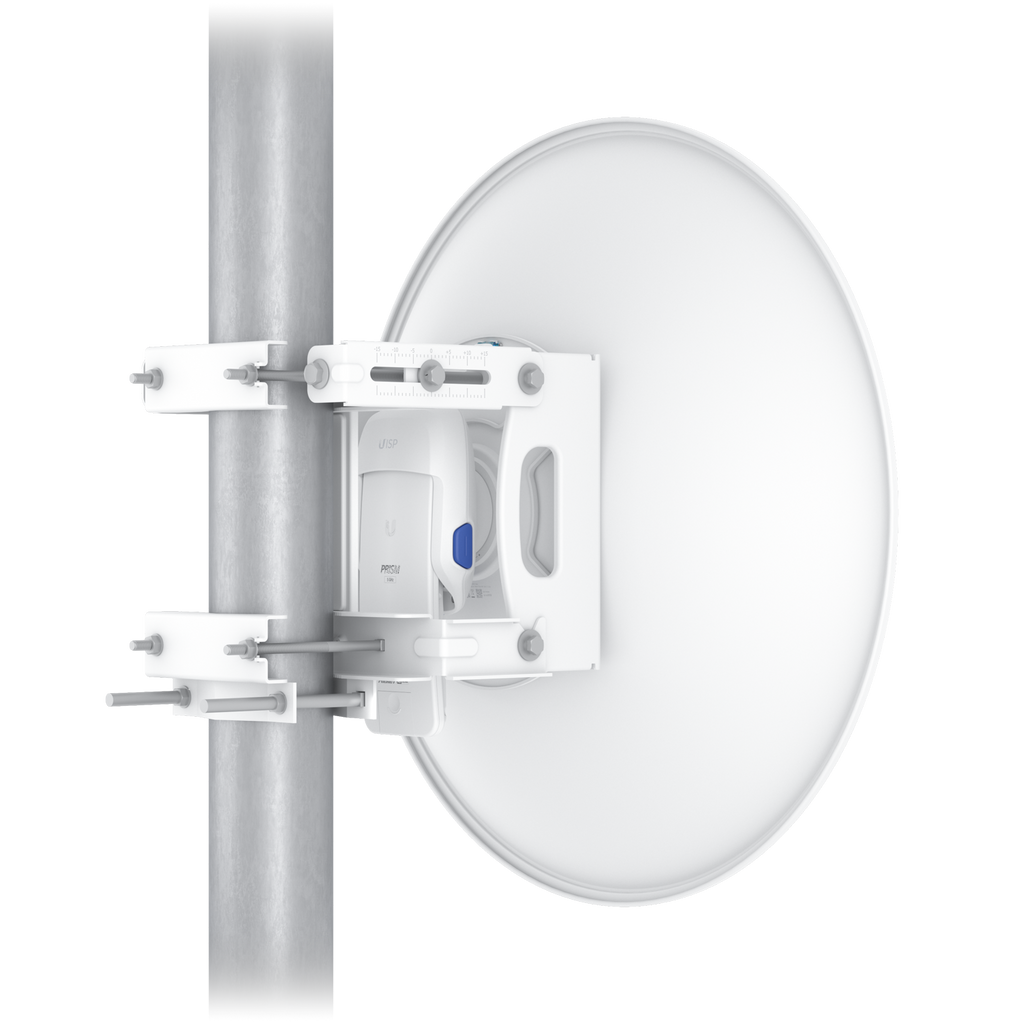

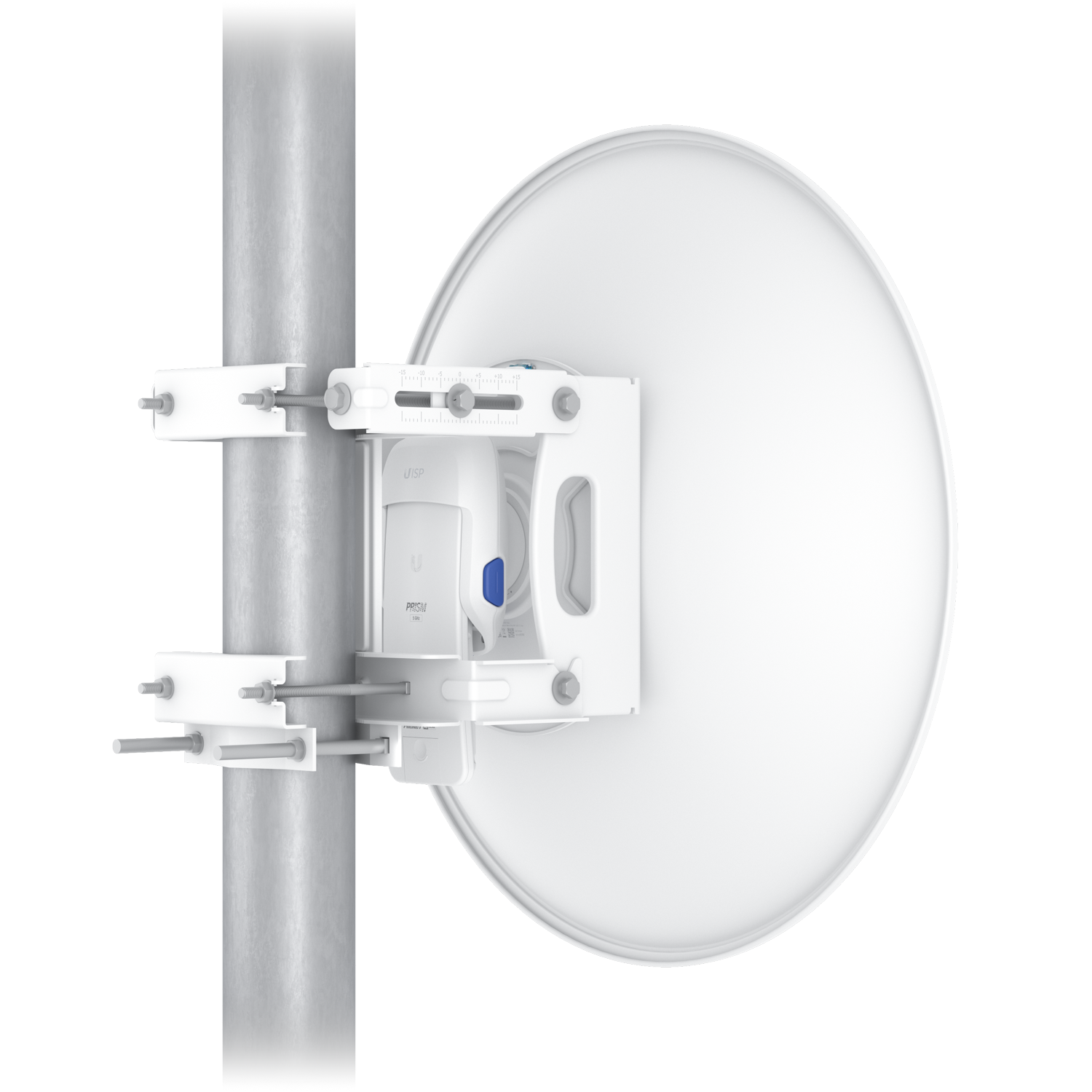

| Mounting | Pole Mount Alignment Mount Included) Mechanical adjustment: ±15° elevation |
| Pole Mount Diameter | ⌀1.57 to 3.5" (⌀40 to 90 mm) |
| Weatherproofing | IPX6 |
Hardware
| Frequency Range | 5.15 to 6.875 GHz |
| Gain | 30 dBi |
| Beamwidth | Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) |
| Electrical Downtilt | 0° |
| Electrical Beamwidth | 2:1 |
| Polarization | Dual-linear |
| Cross-Pol Isolation | 20 dB |
| NDAA Compliant | True |
