Ubiquiti UK-ULTRA | UniFi UK Ultra
Ubiquiti UK-ULTRA | UniFi UK Ultra

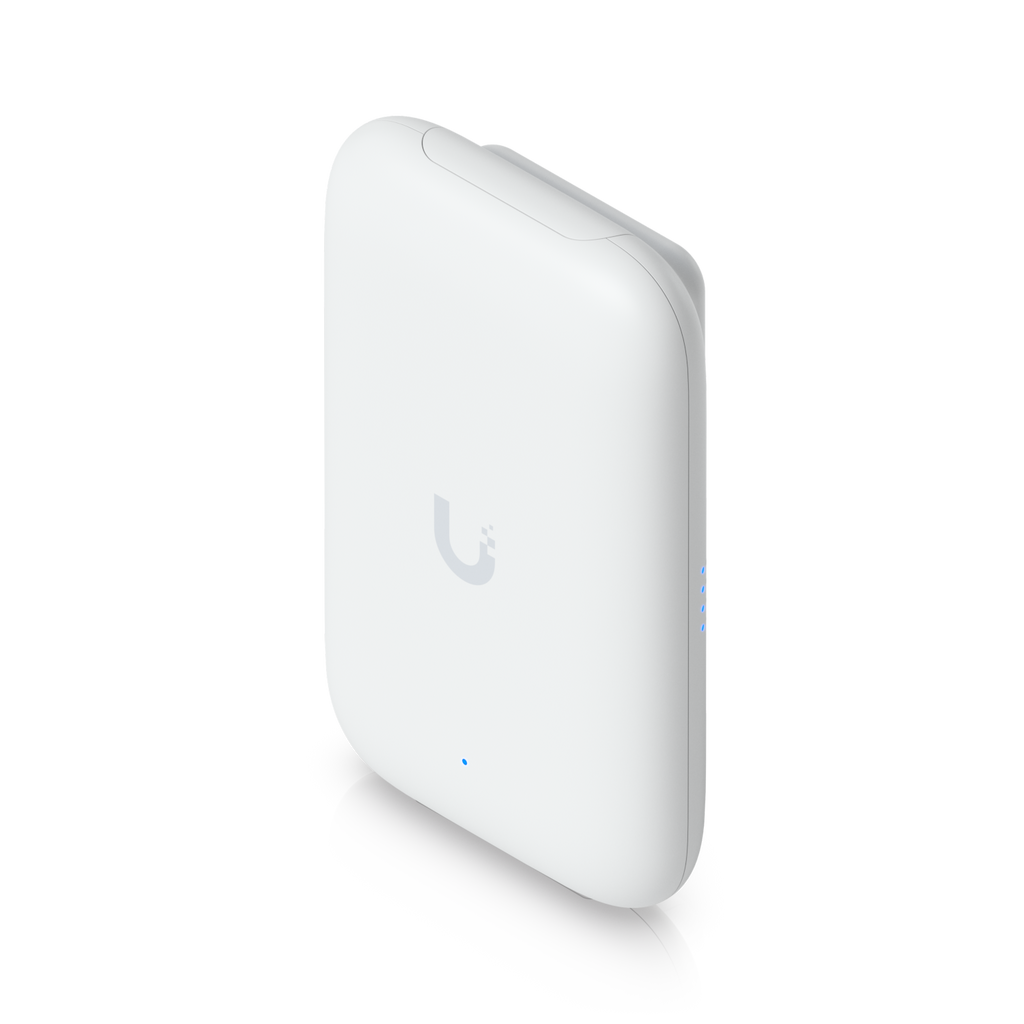

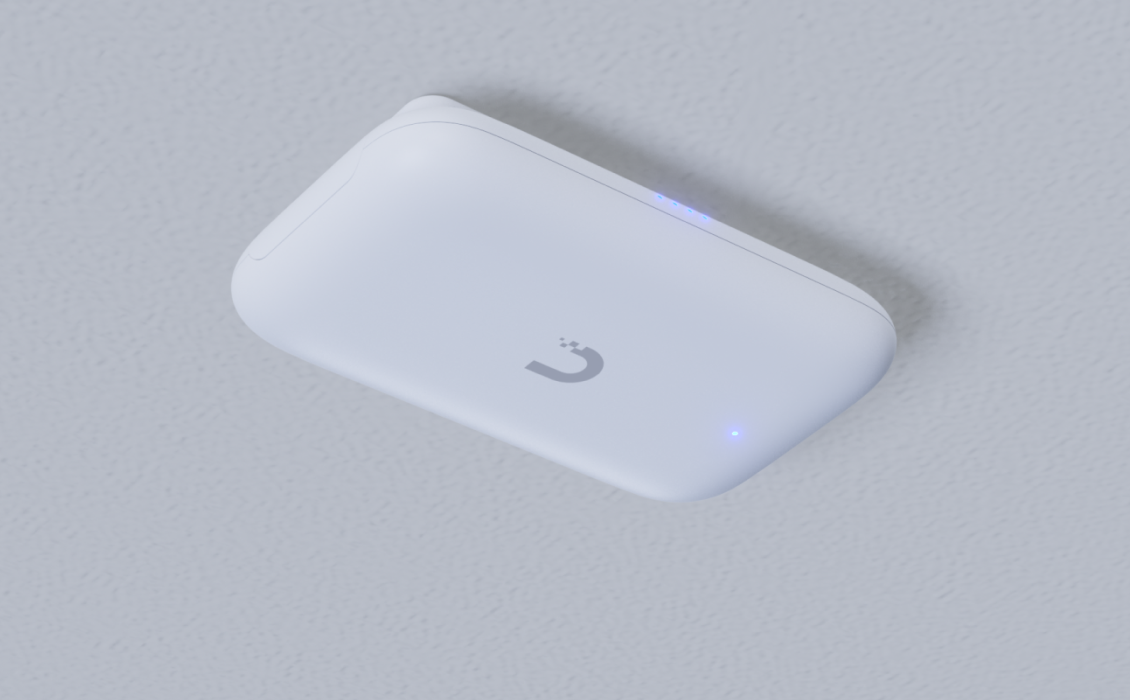

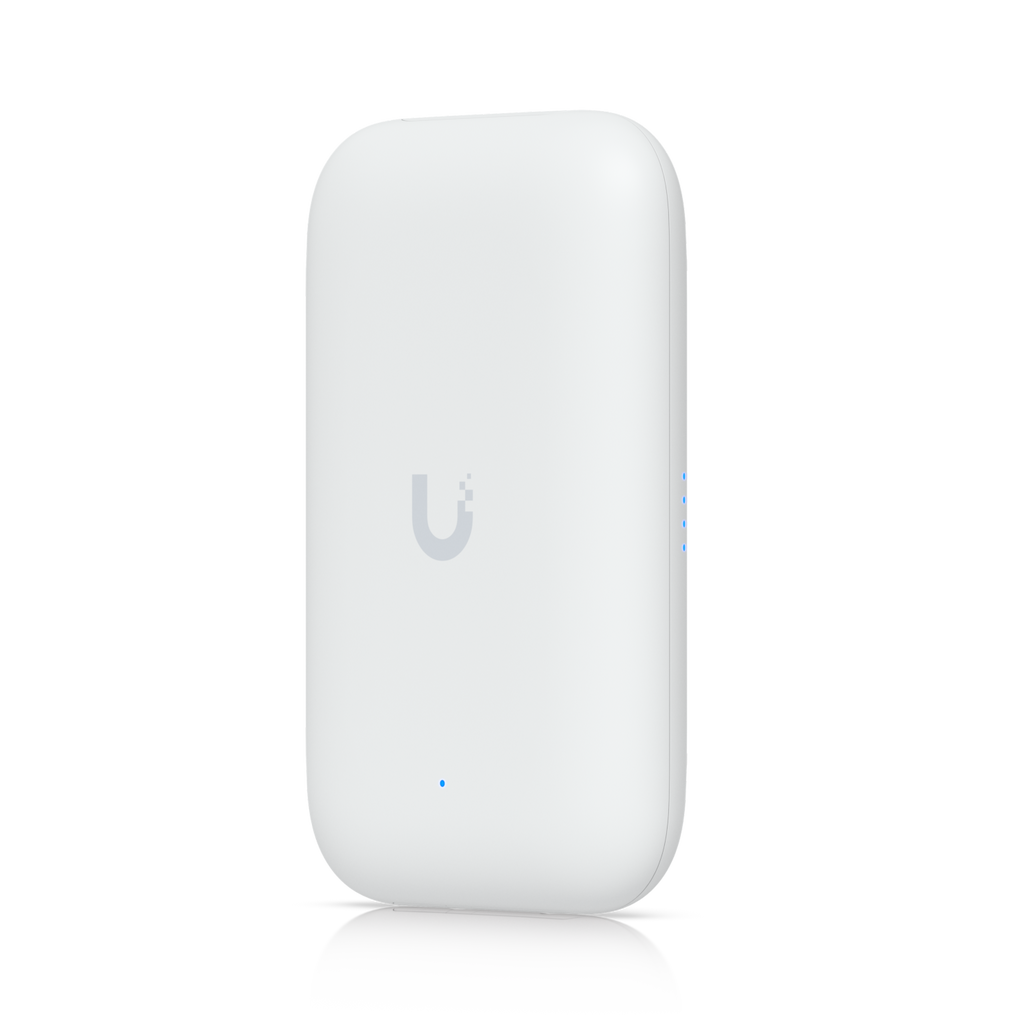

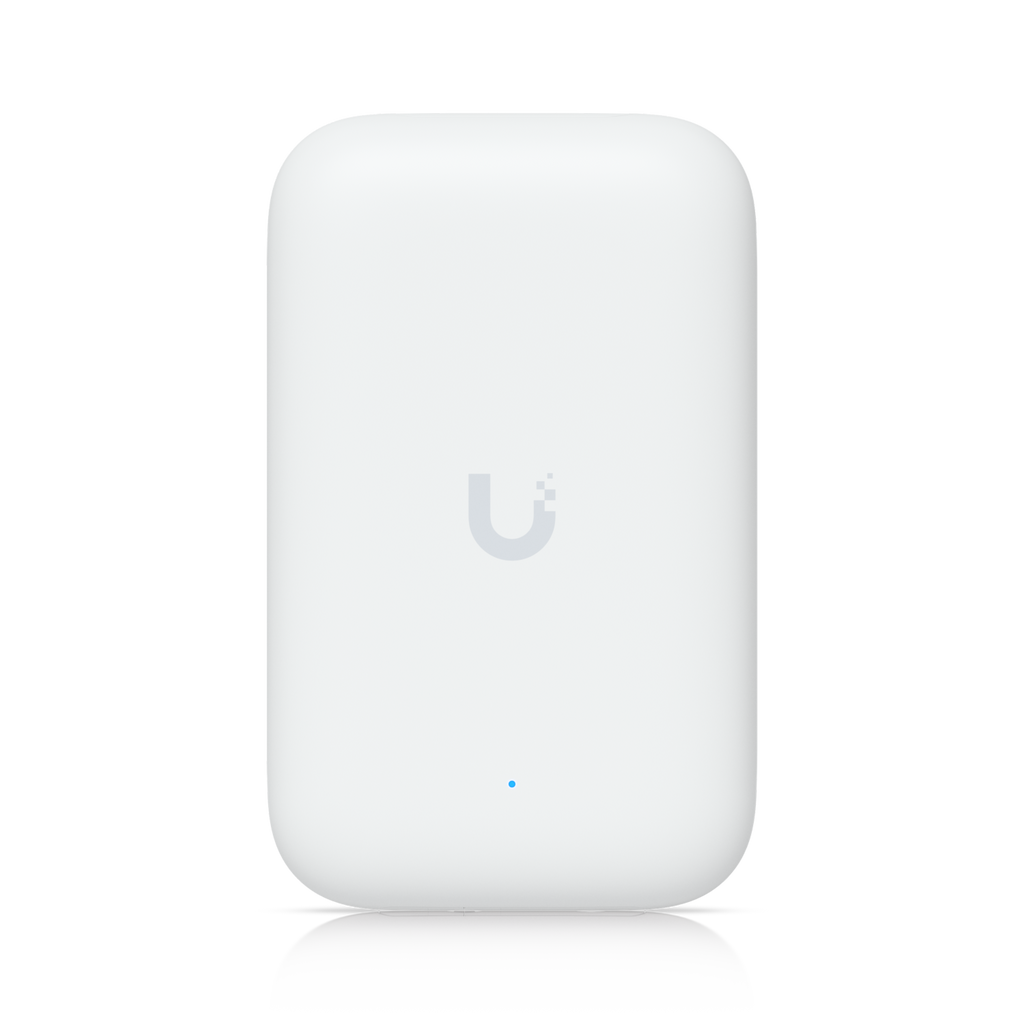

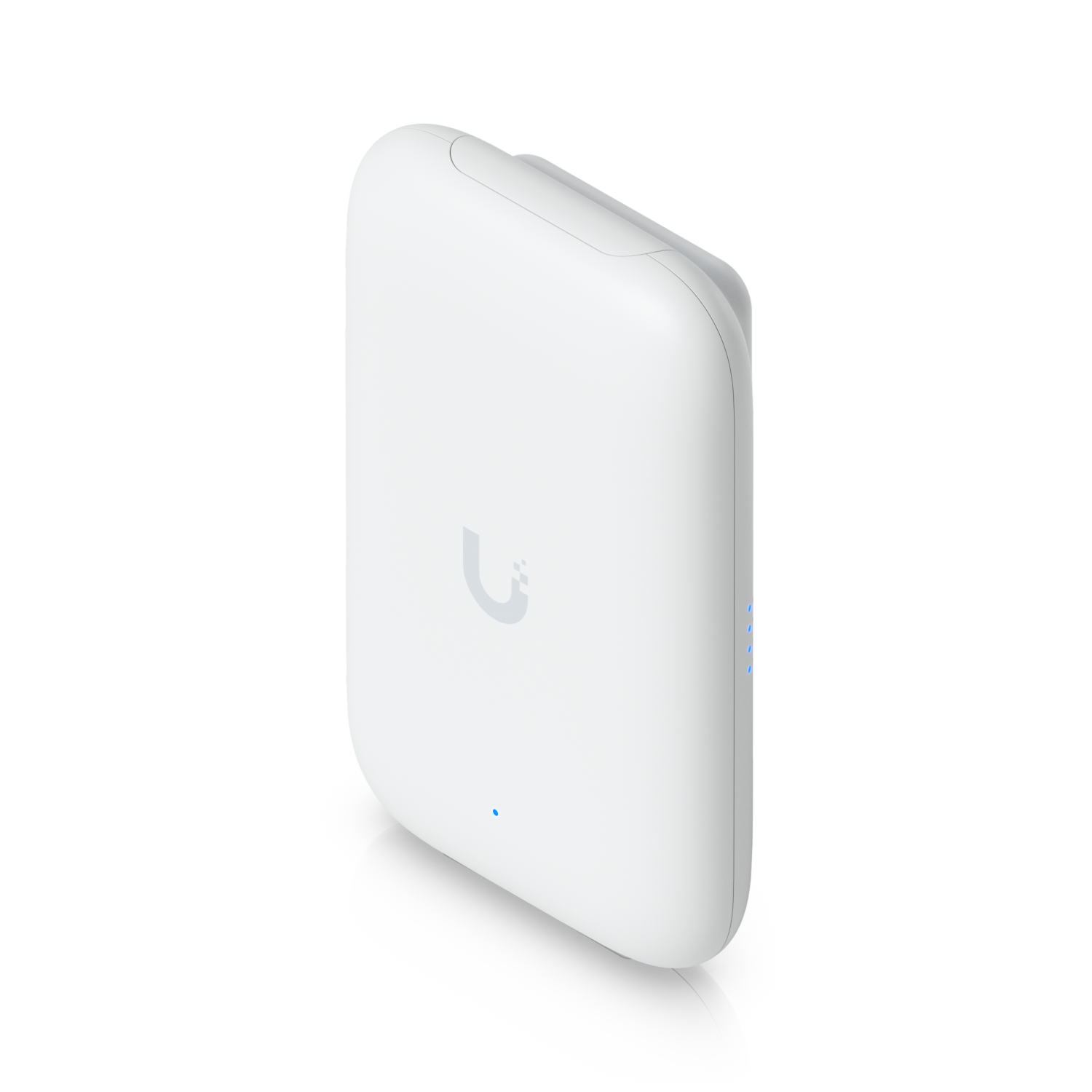

A compact WiFi 5 access point that mounts to ceilings, walls, or poles indoors or out, for sites where coverage reach matters more than maximum throughput.
Why this one
- IPX6 weatherproofing and a -40 to 60 °C operating range mean it survives a sheltered outdoor spot — an eave, a covered loading dock, a carport — without a separate enclosure.

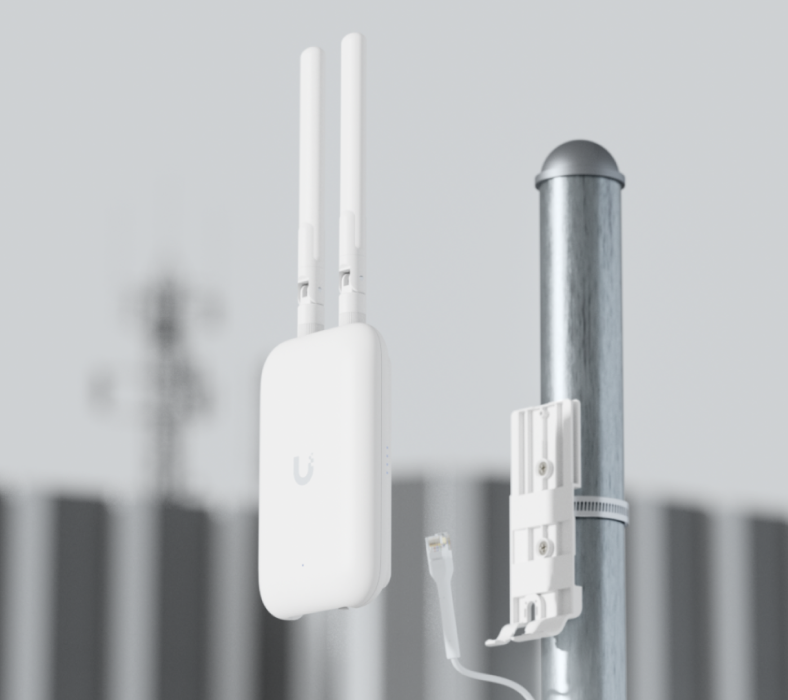

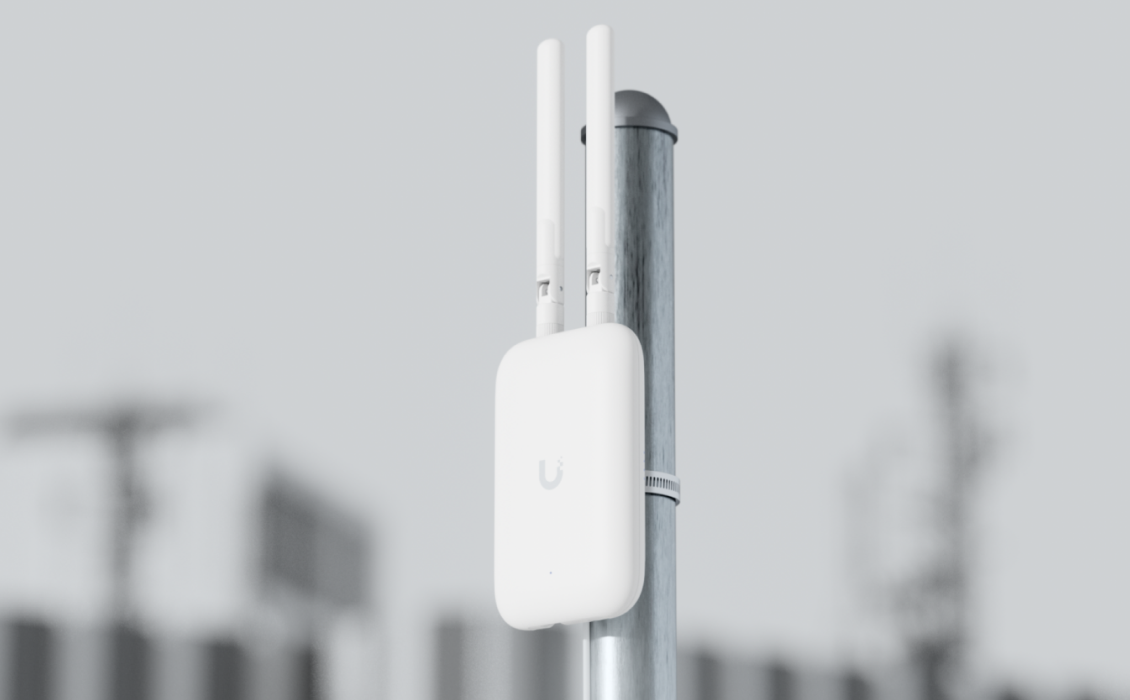

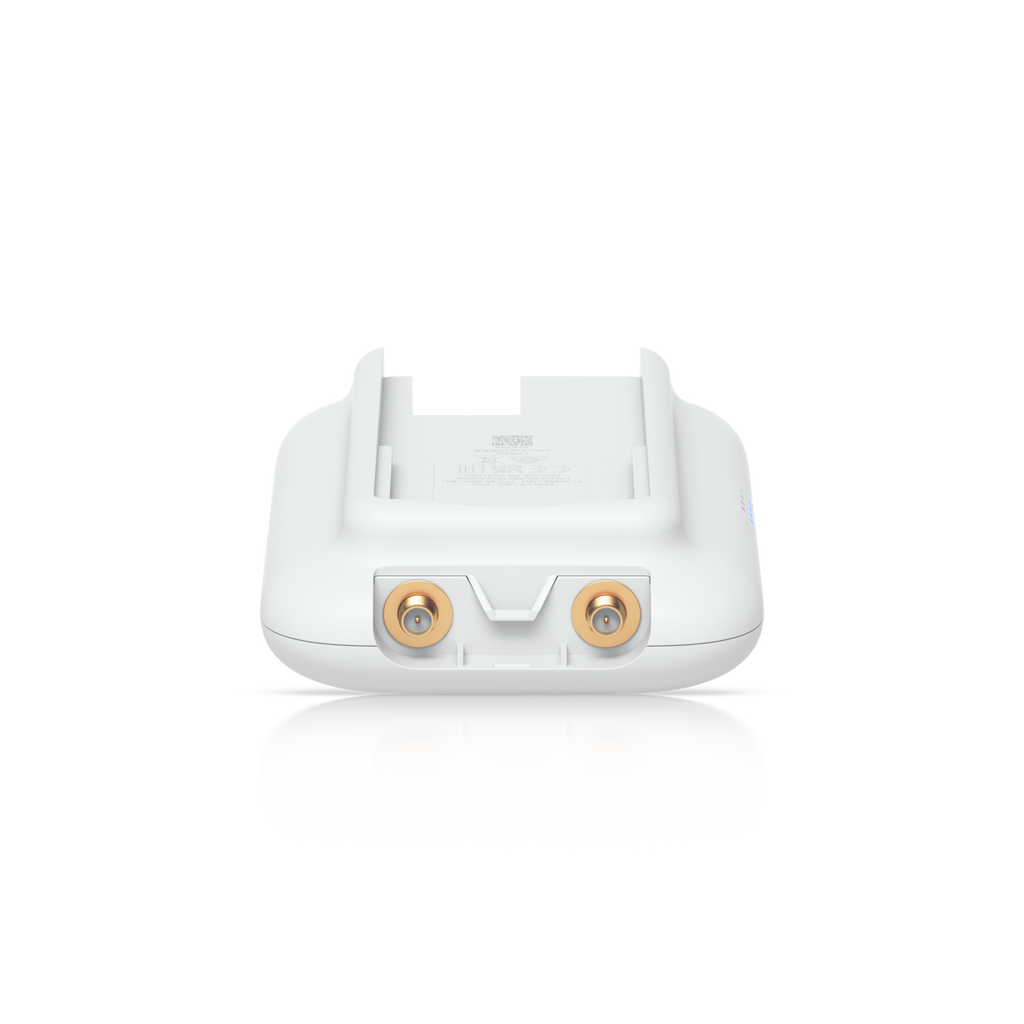

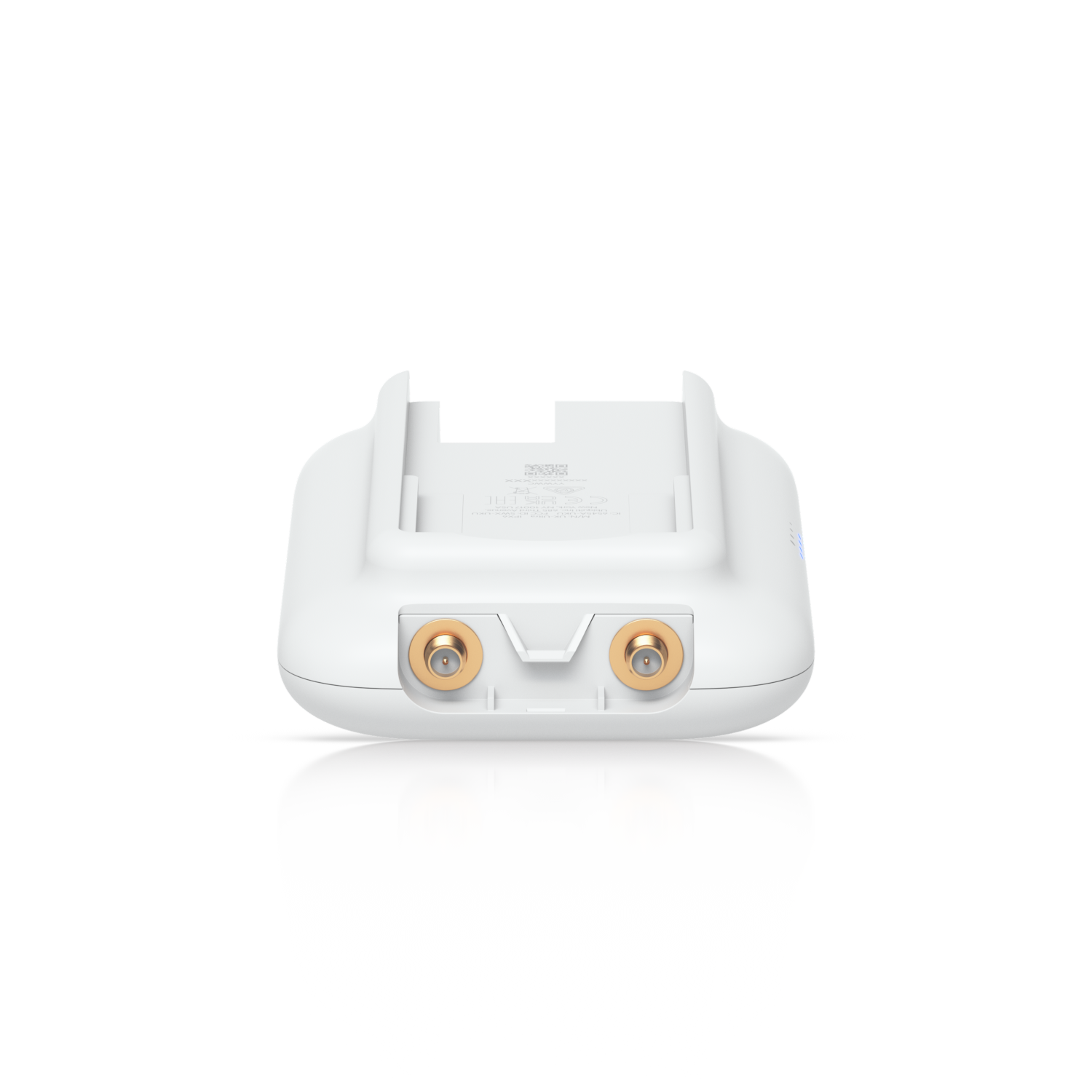

- Two RP-SMA connectors let you swap the internal antenna for a high-gain external, which is useful when you're trying to push coverage down a long corridor or across a narrow yard rather than radiating in all directions.
- At 8W max draw it runs on standard 802.3af PoE, so any port on a UniFi PoE switch powers it without checking the switch's per-port budget first.

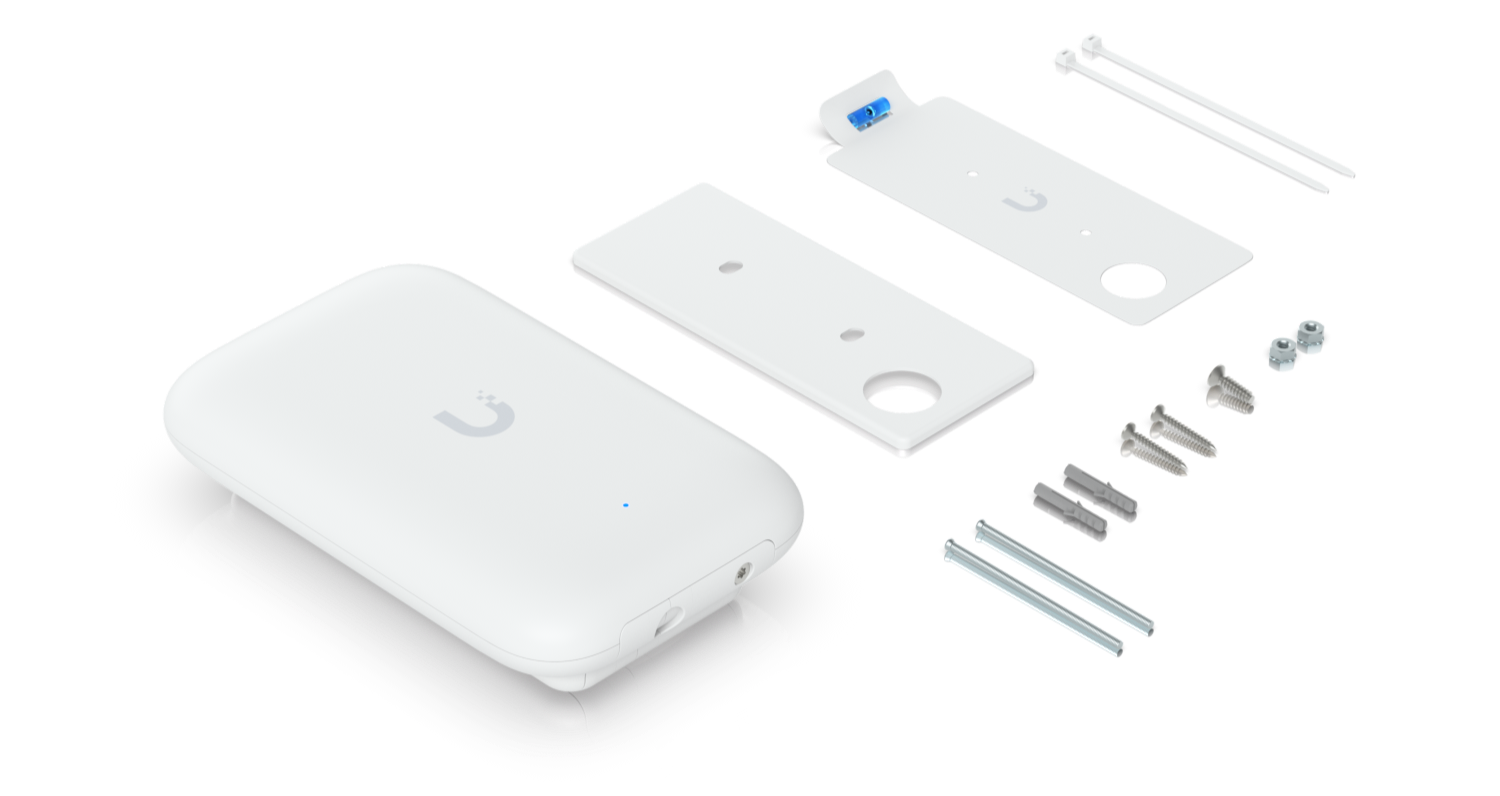

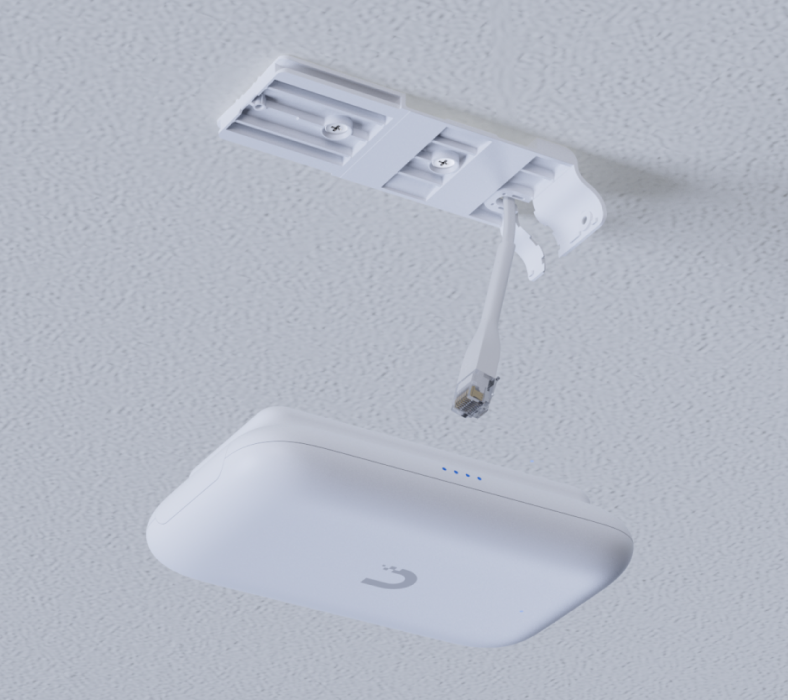

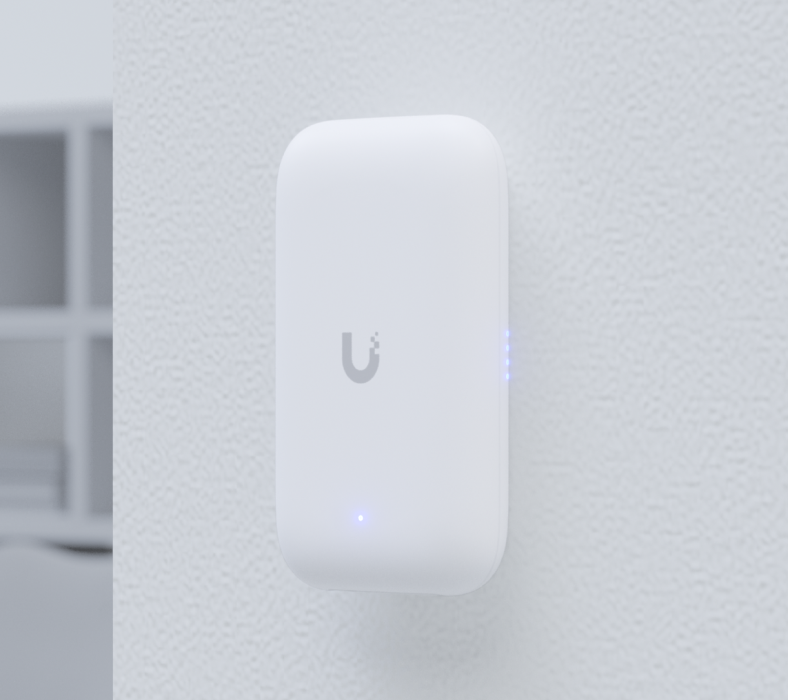

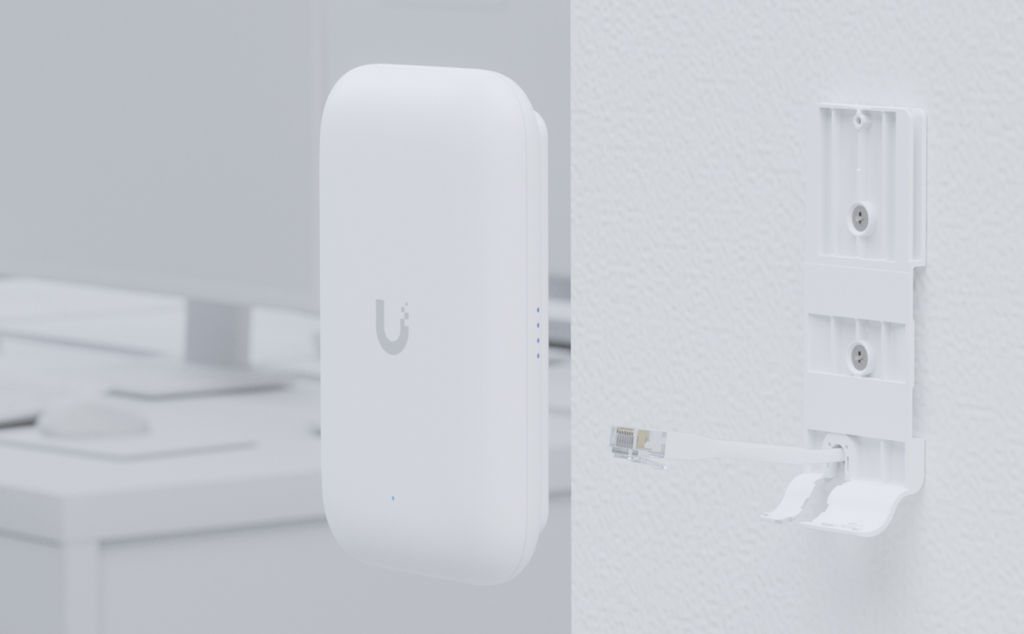

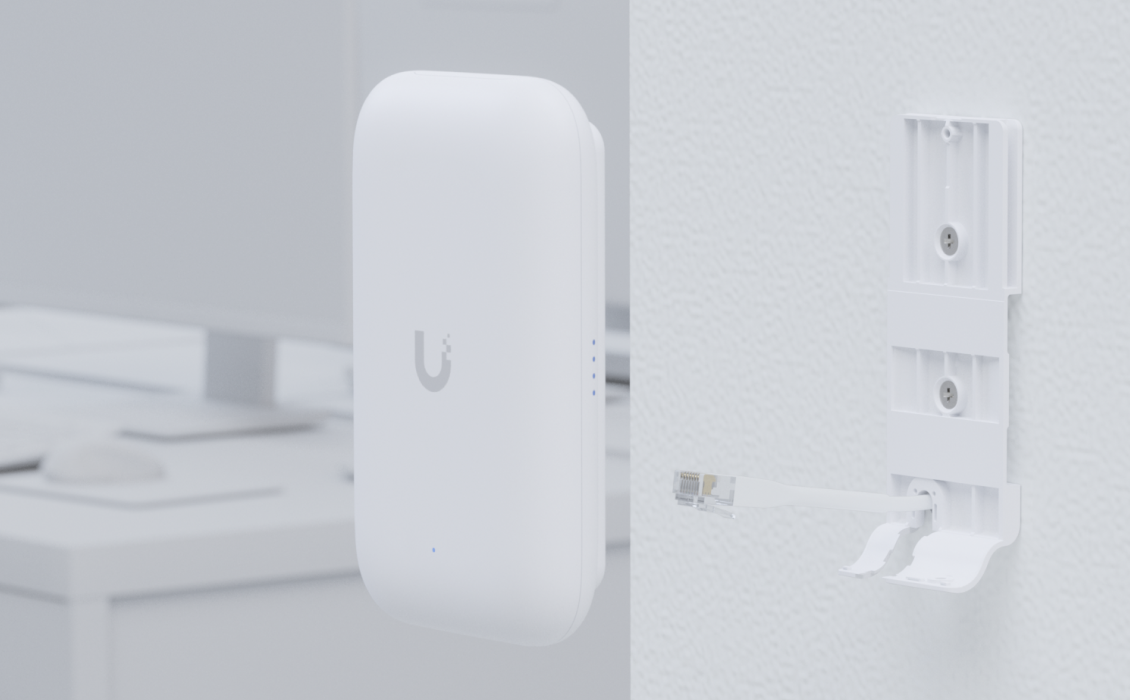

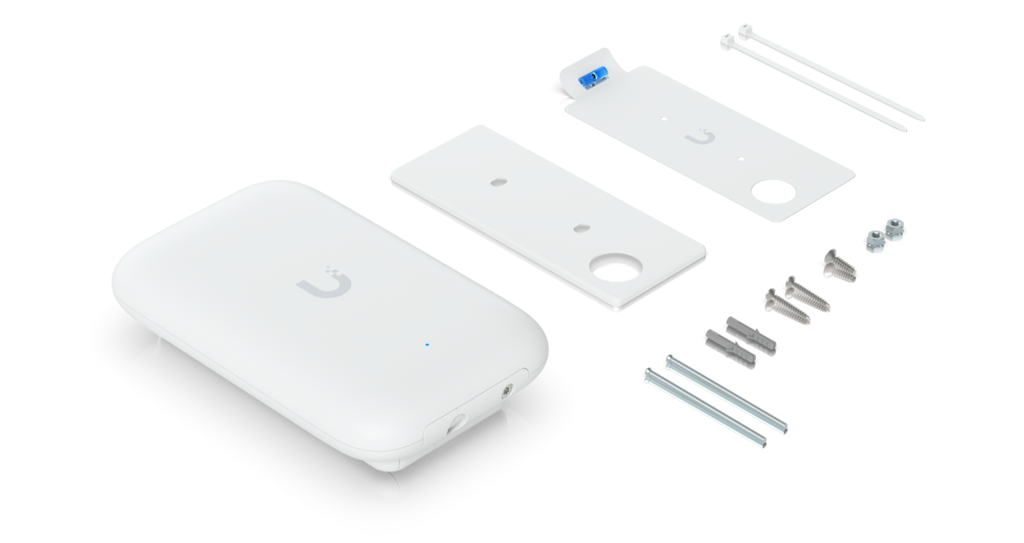

- Ceiling, wall, and pole mounts are all included in the box, so you're not ordering hardware before you've decided where it's going.
Good fit if you need a single AP for a small area — up to roughly 115 m² — in a location that's awkward for a standard ceiling unit, particularly anywhere exposed to weather or where an external antenna would improve directionality.
Worth considering something else if you're covering a busy open-plan office or warehouse where client density and throughput are the priority — the U6-MESH or U7-LITE offer WiFi 6 and WiFi 7 respectively, which handle more concurrent clients more efficiently on the same PoE budget.
What you'll also need

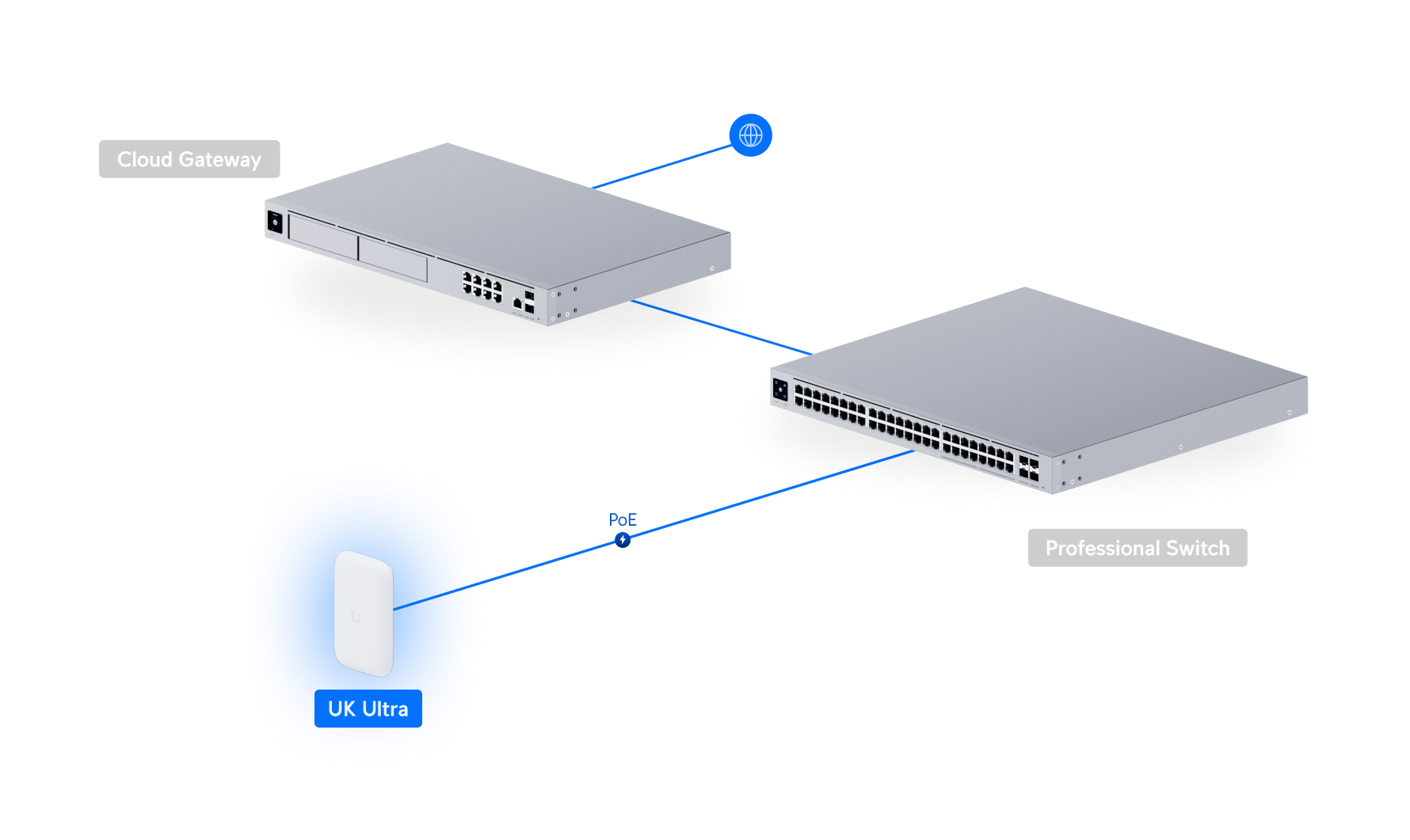

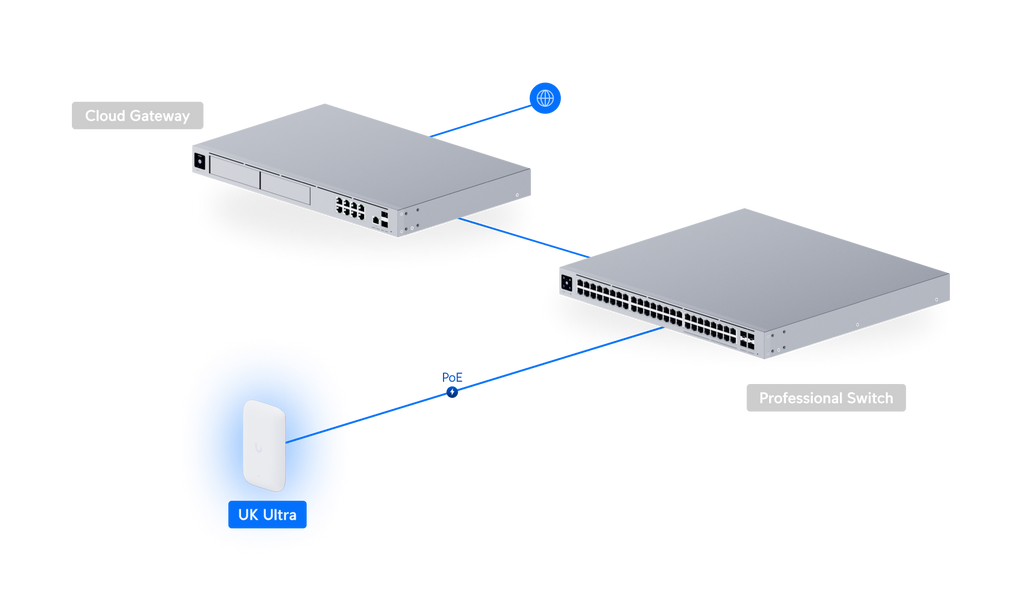

A UniFi controller (any Cloud Gateway or Dream Machine running UniFi Network 7.5.187 or later), a PoE switch or injector, and Cat5e or better to the mounting point; an external antenna with RP-SMA connectors is optional but worth considering if you need directed coverage rather than the built-in omni pattern.
Technical specifications
Overview

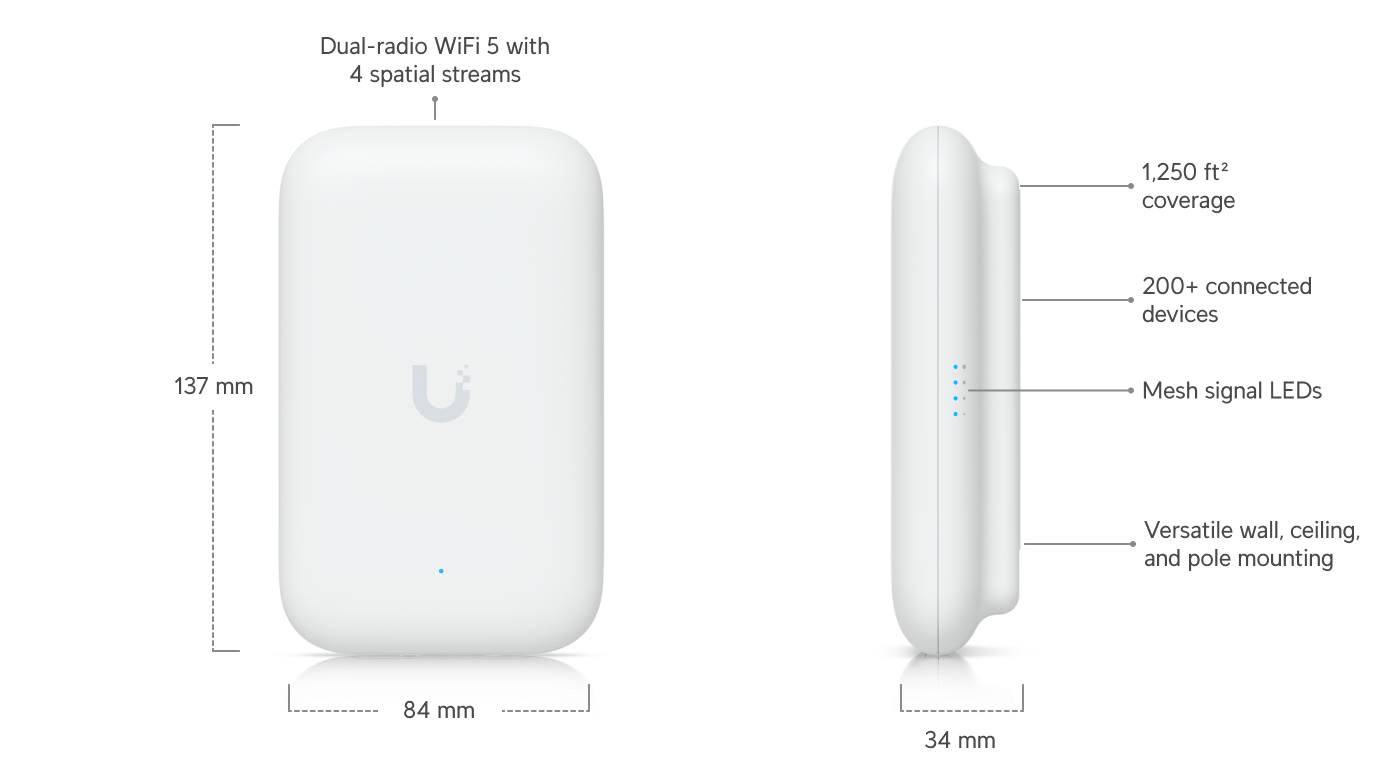

| Dimensions | 137 x 84 x 34 mm (5.4 x 3.3 x 1.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | GbE |

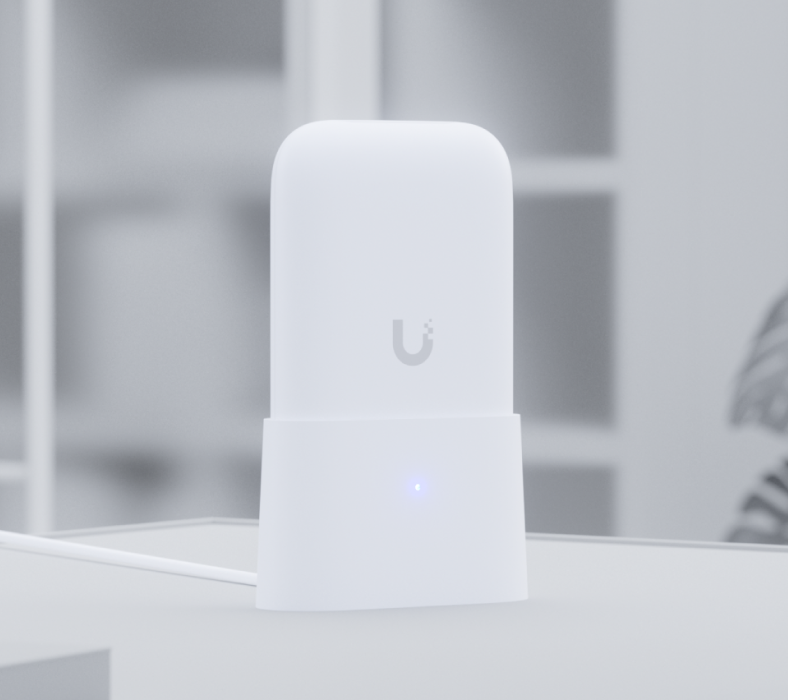

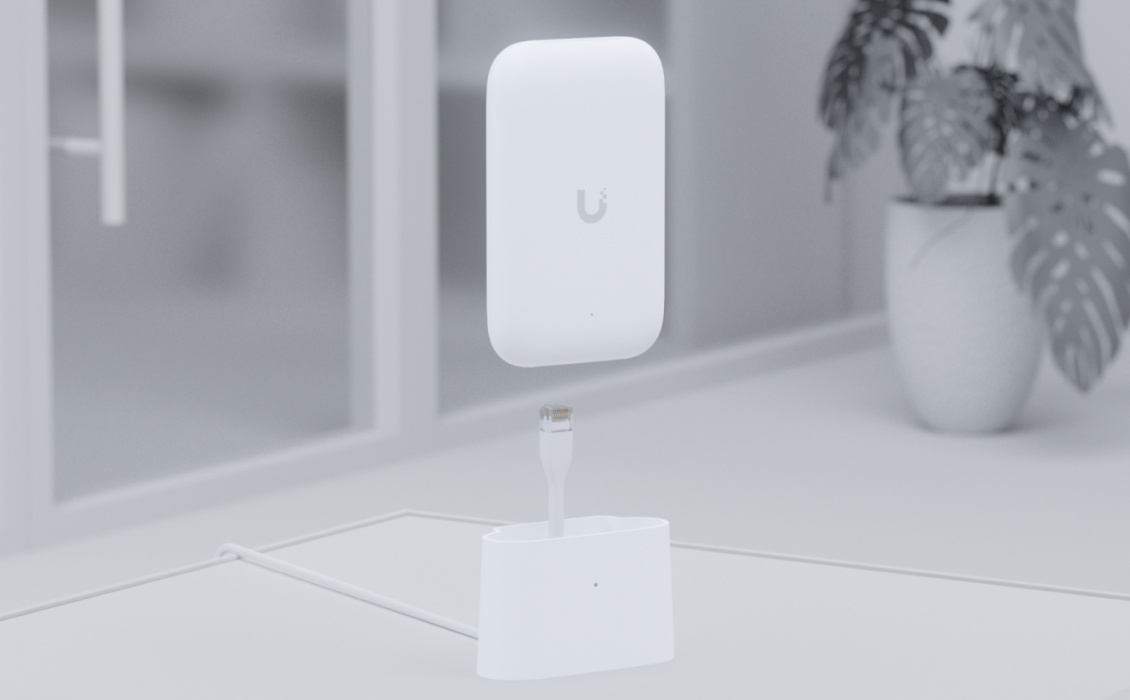

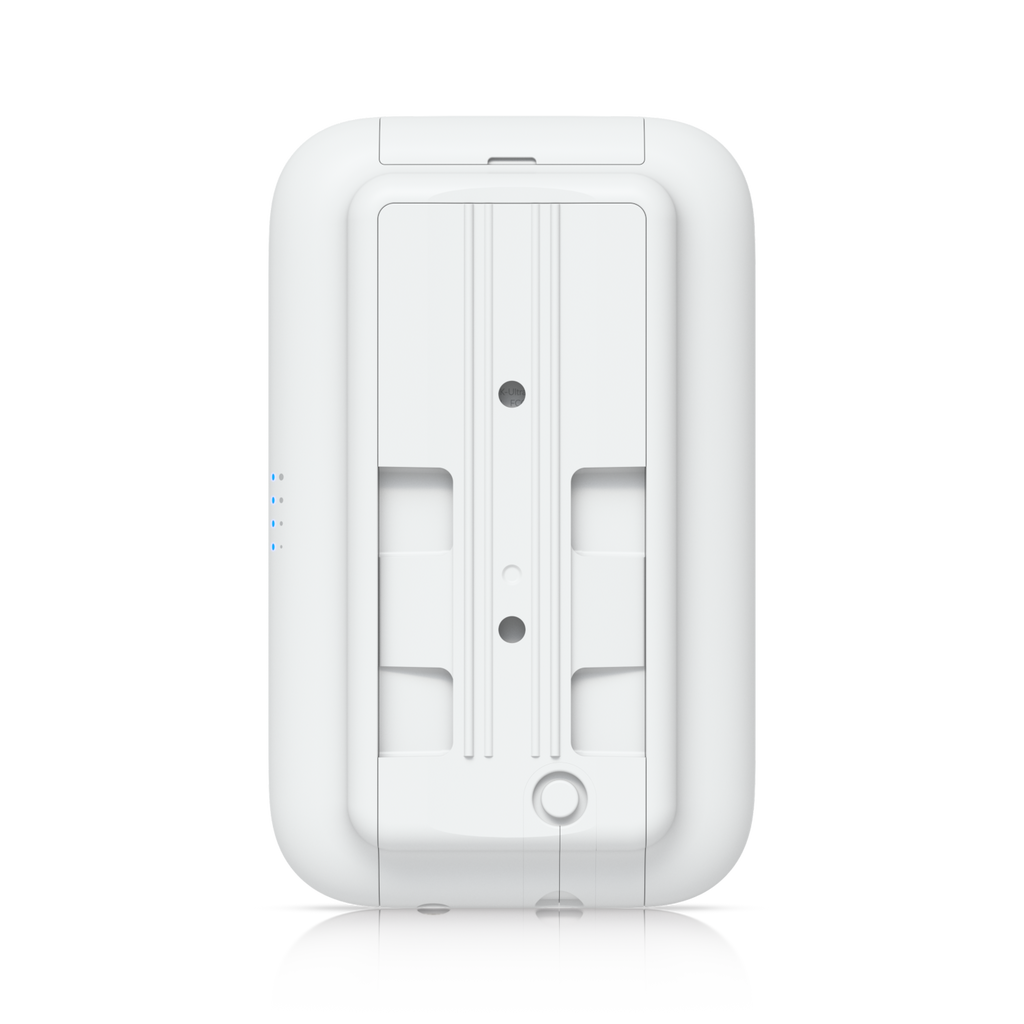

| Mounting | Ceiling, Wall, Pole, Table (With Accessory) (Mounts Included) Desktop Stand (Optional) |
| Weatherproofing | IPX6 |
| Power Method | PoE |
Performance
| 5 GHz | 2 x 2 (DL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL MU-MIMO) |
| 5 GHz | 866.7 Mbps (BW80) |
| 2.4 GHz | 300 Mbps (BW40) |
| 5 GHz | 6.1 dBi |
| 2.4 GHz | 4.7 dBi |
| 5 GHz | 20 dBm |
| 2.4 GHz | 20 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ac (WiFi 5) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
Hardware
| Max. Power Consumption | 8W |
| Supported Voltage Range | 44–57V DC |

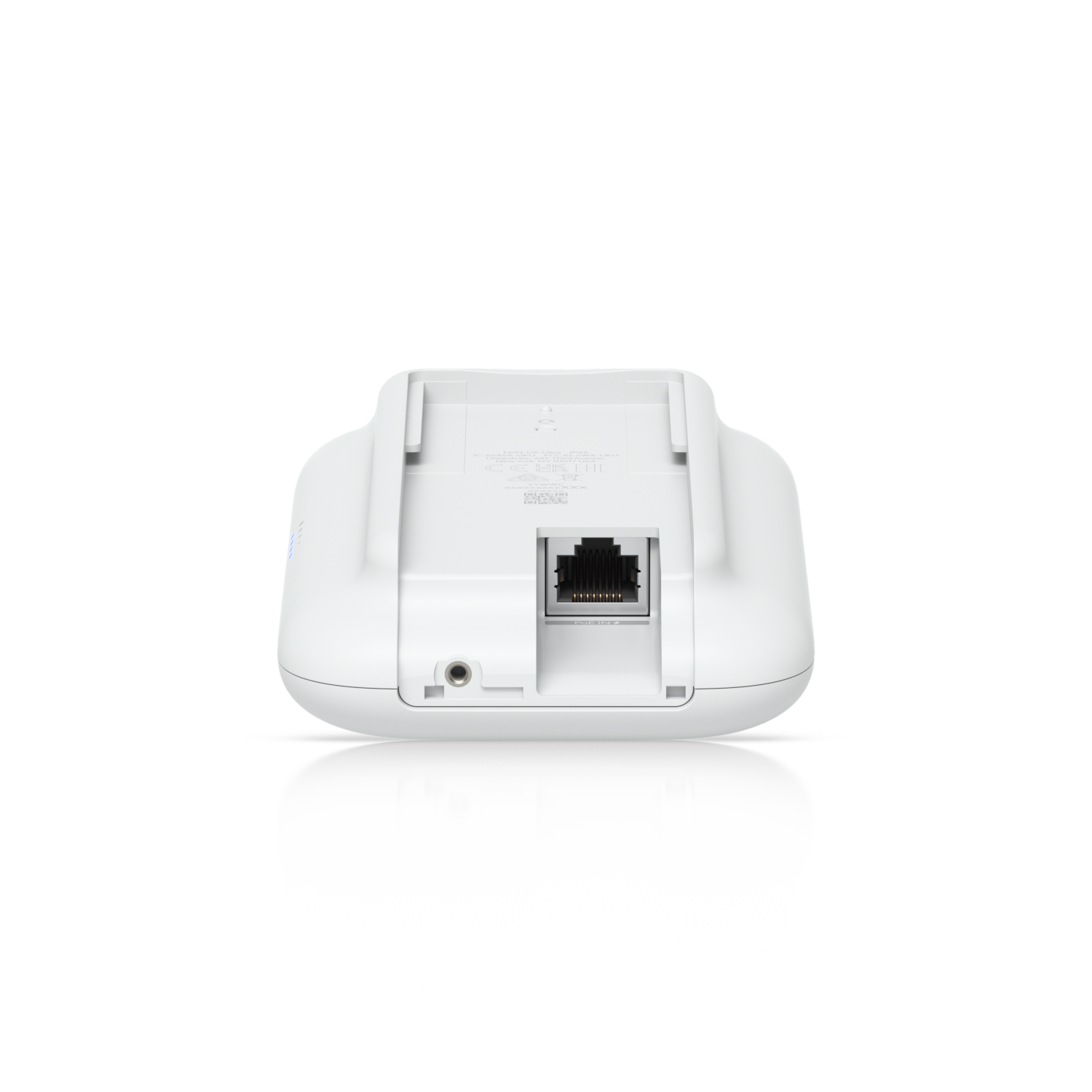

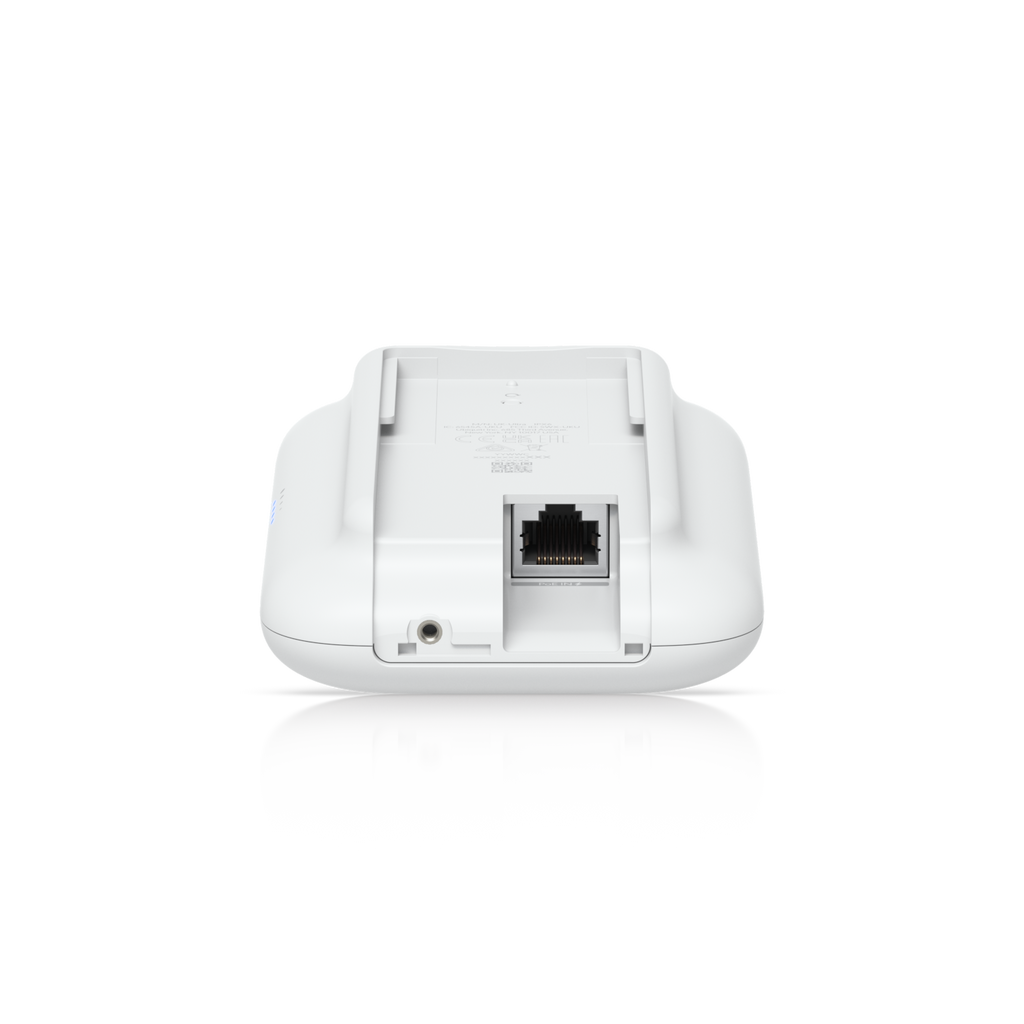

| Networking Interface | (1) GbE RJ45 port |
| Weight | 173 g (6.1 oz) |
| Wind Loading | 33.2 N at 200 km/h (7.5 lbf at 125 mph) |
| Pole Mount Diameter | 1~2" (25–50 mm) |

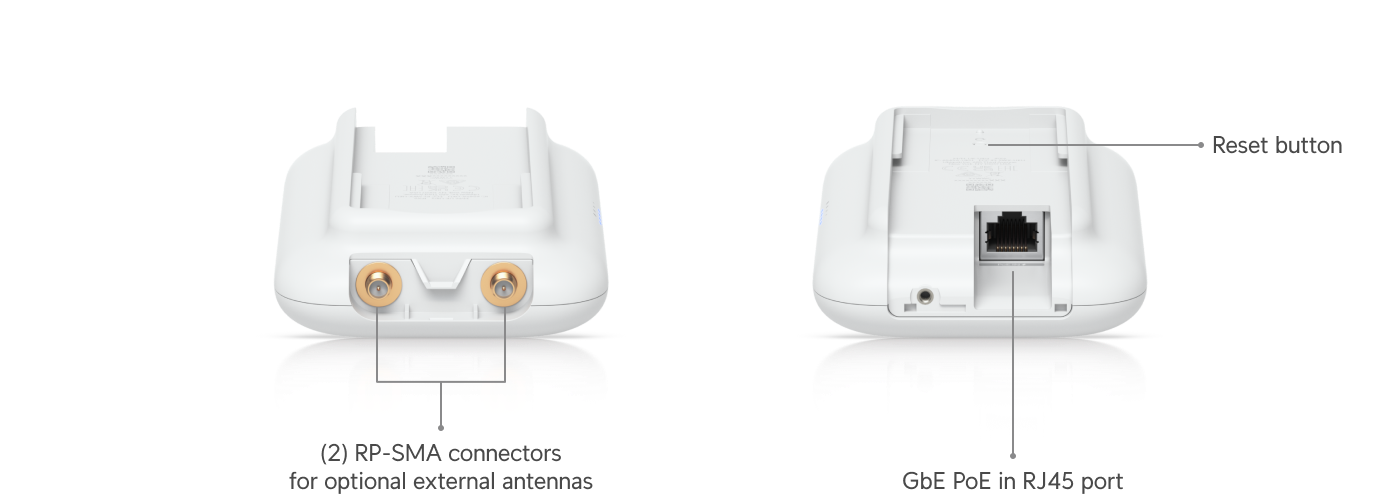

| Antennas | (1) Internal antenna (2) RP-SMA connectors |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | Polycarbonate, SGCC steel, plastic |

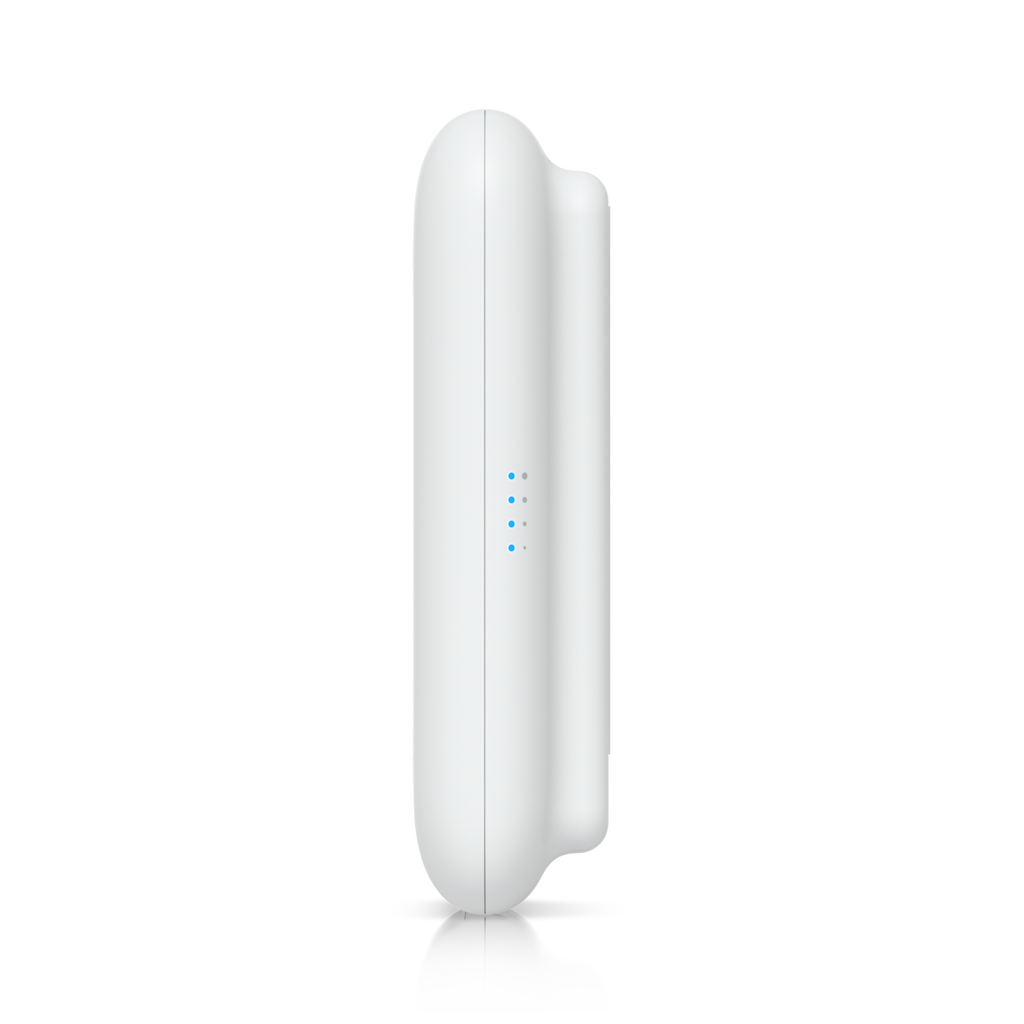

| System | (1) Power: White/Blue (4) Mesh Signal: Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80 |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06237-24-08356 |
Software
| UniFi Network | Version 7.5.187 and later |
