UniFi Switch 48 PoE
Technical Specifications
Overview

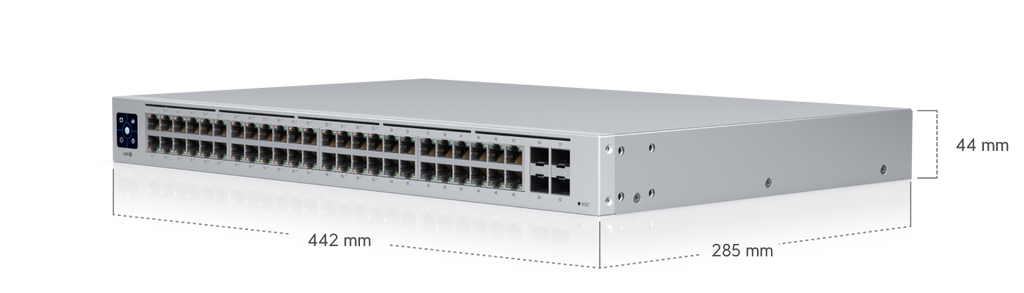

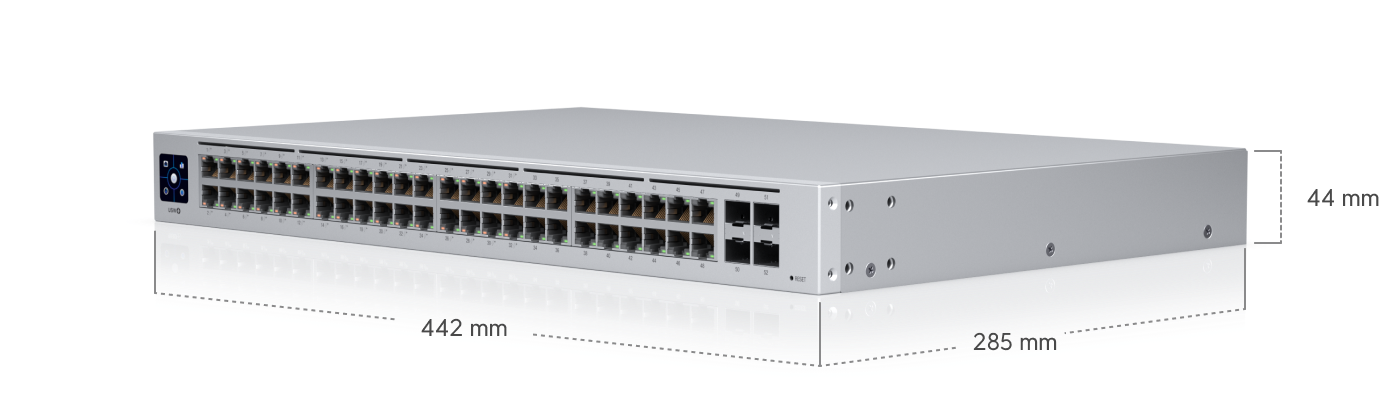

| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |

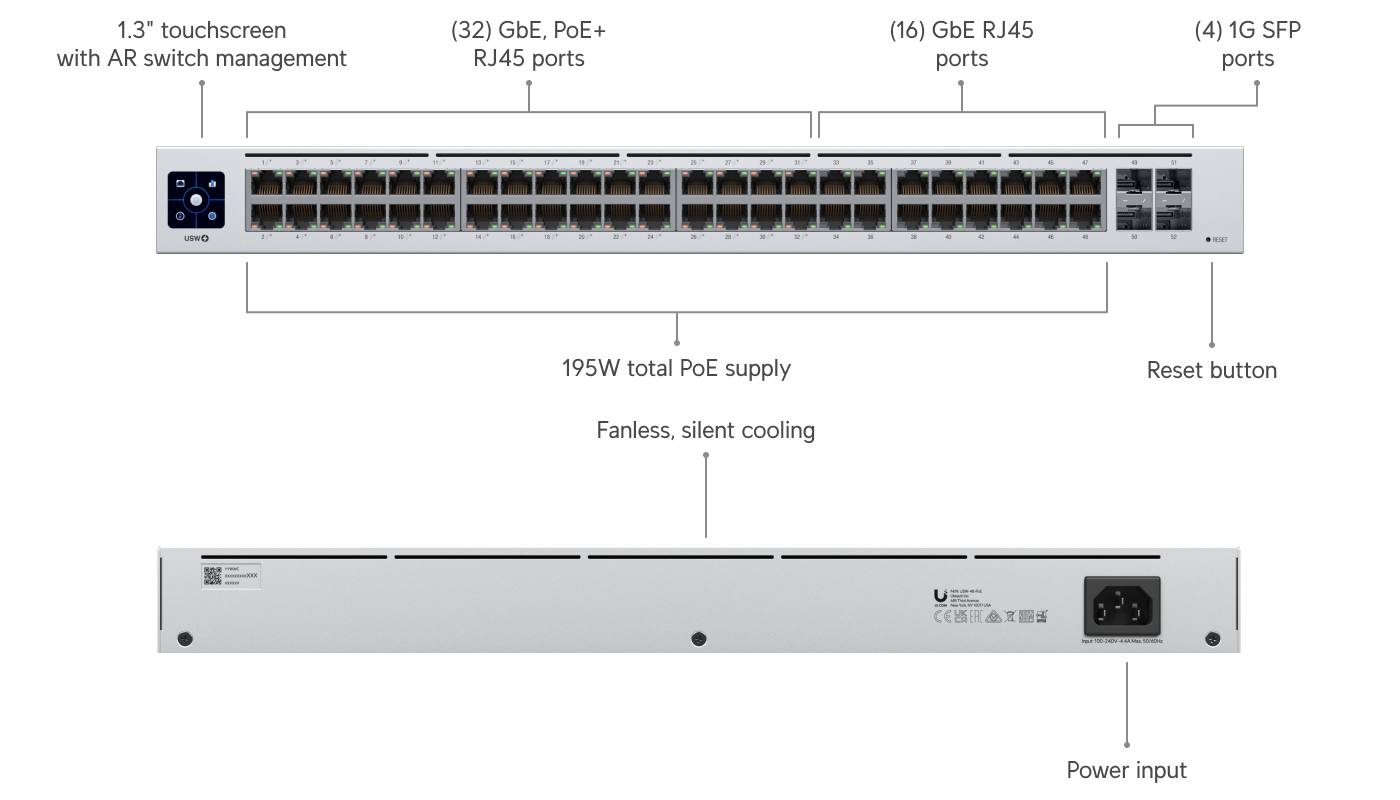

| Port Layout — 1 GbE RJ45 | 48 (32 PoE+) (1G/100M/10M) |
| Port Layout — 1G SFP | 4 (1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 195W |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 104 Gbps |
| Total Non-Blocking Throughput | 52 Gbps |
| Forwarding Rate | 77 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| Packet Buffer Size | 1.5 MB |
| Access Lists — IPv4 | 128 |
| Access Lists — MAC | 128 |
Layer 2 Features
| LACP Port Aggregation | True |
| STP & RSTP | True |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | True |
| IGMP Snooping | True |
| 802.1X Control | True |
| MAC-Based ACLs & Device Isolation | True |
| DHCP Snooping & Guarding | True |
| Egress Rate Limit | True |
| Flow Control | True |
| Storm Control | True |
| Multicast & Broadcast Rate Limiting | True |
| MAC Address Blocking | True |
| IP-Based ACLs & Network Isolation | True |
| MAC-Based Port Restriction | True |
| Port Isolation | True |
| Port Mirroring | True |
| Jumbo Frames | True |
| LLDP-MED | True |
| Voice VLAN | True |
| Loop Protection | True |
| Virtual Network Override | True |
Hardware
| PoE Ports — PoE+ | 32 |
| Max. PoE Wattage per Port by PSE — PoE | 15.4W |
| Max. PoE Wattage per Port by PSE — PoE+ | 32W |
| Max. Power Consumption | 45W (Excluding PoE Output) 240W (Including PoE Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 153.5 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 4.5 kg (10 lb) With mounting brackets: 4.6 kg (10.2 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 00593-21-08356 |
Software
| Application Requirements — UniFi Network | Version 7.2.94 and later |
