UniFi Enterprise 48 PoE
Technical Specifications
Overview

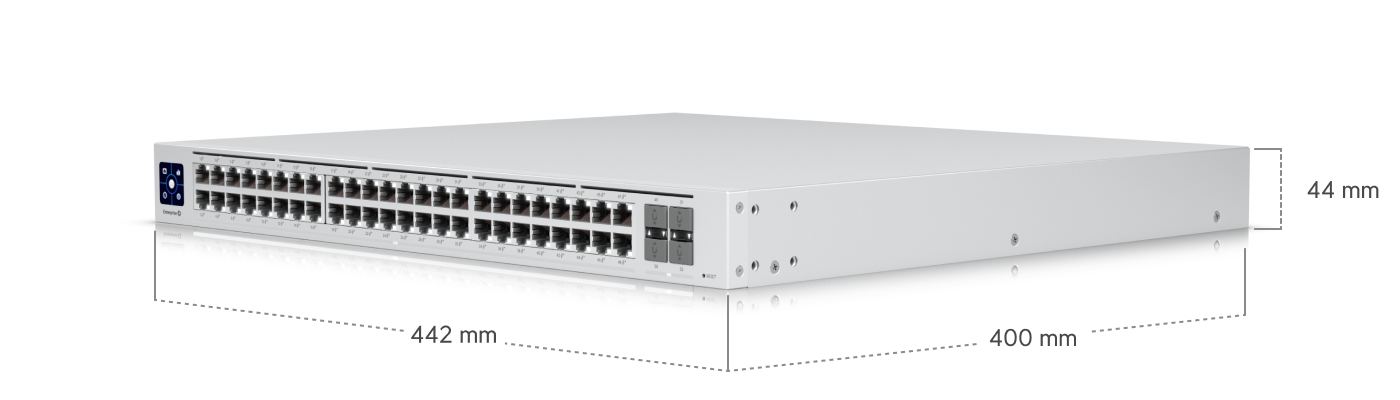

| Dimensions | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |

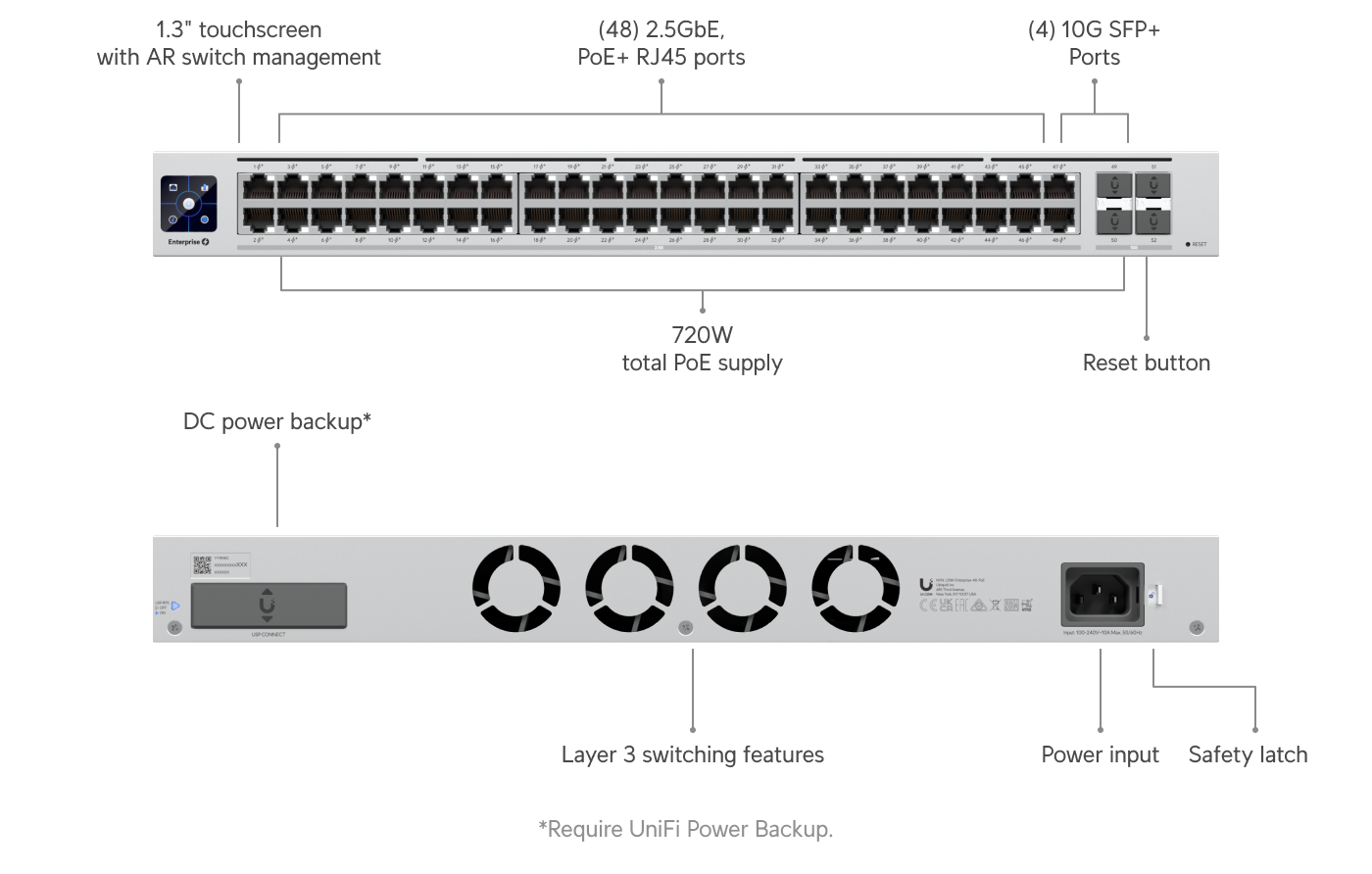

| Port Layout — 2.5 GbE RJ45 | 48 (All PoE+) (2.5G/1G/100M/10M) |
| Port Layout — 10G SFP+ | 4 (10G/1G) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup |
| Layer 3 | True |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 160 Gbps |
| Total Non-Blocking Throughput | 160 Gbps |
| Forwarding Rate | 238 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size — ARP Entries | 16,000 |
| L3 Table Size — IPv4 Routes | 16,000 |
| L3 Table Size — IPv4 Static Routes | 256 |
| Packet Buffer Size | 4 MB |
| Access Lists — IPv4 | 128 |
| Access Lists — MAC | 128 |
Layer 3 Features
| DHCP Server (Local Networks) | True |
| DHCP Relay | True |
| Inter-VLAN Routing (Local Networks) | True |
| Static Routing (Local Networks) | True |
Layer 2 Features
| LACP Port Aggregation | True |
| STP & RSTP | True |
| QoS (DSCP) | True |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | True |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | True |
| IGMP Snooping | True |
| 802.1X Control | True |
| MAC-Based ACLs & Device Isolation | True |
| DHCP Snooping & Guarding | True |
| Egress Rate Limit | True |
| Flow Control | True |
| Storm Control | True |
| Multicast & Broadcast Rate Limiting | True |
| MAC Address Blocking | True |
| IP-Based ACLs & Network Isolation | True |
| MAC-Based Port Restriction | True |
| Port Isolation | True |
| Port Mirroring | True |
| Jumbo Frames | True |
| LLDP-MED | True |
| Voice VLAN | True |
| Loop Protection | True |
| Virtual Network Override | True |
Hardware
| PoE Ports — PoE+ | 48 |
| Max. PoE Wattage per Port by PSE — PoE+ | 32W |
| Max. Power Consumption | 150W (Excluding PoE Output) 870W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 511.8 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 600 - 1,200 mm (23.6- 47.2" ) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 05485-22-08356 |
Software
| Application Requirements — UniFi Network | Version 6.2.26 and later |
