UniFi Switch Flex
Technical Specifications
Overview

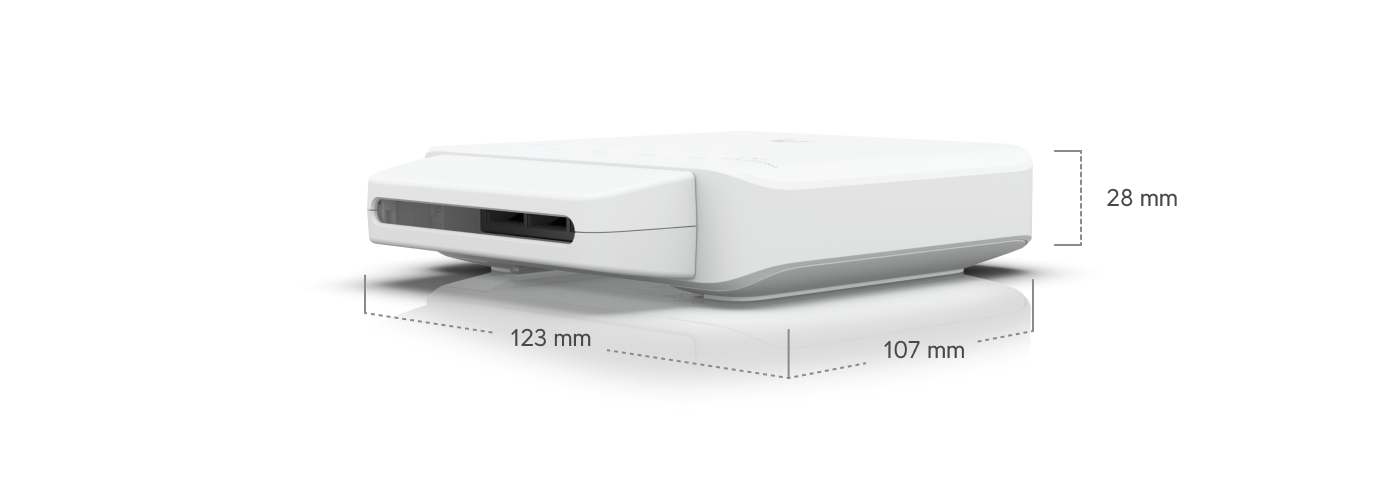

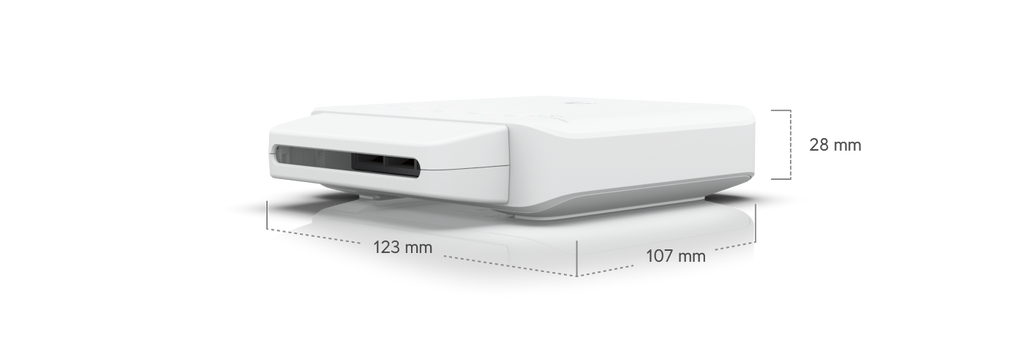

| Dimensions | 122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1") |

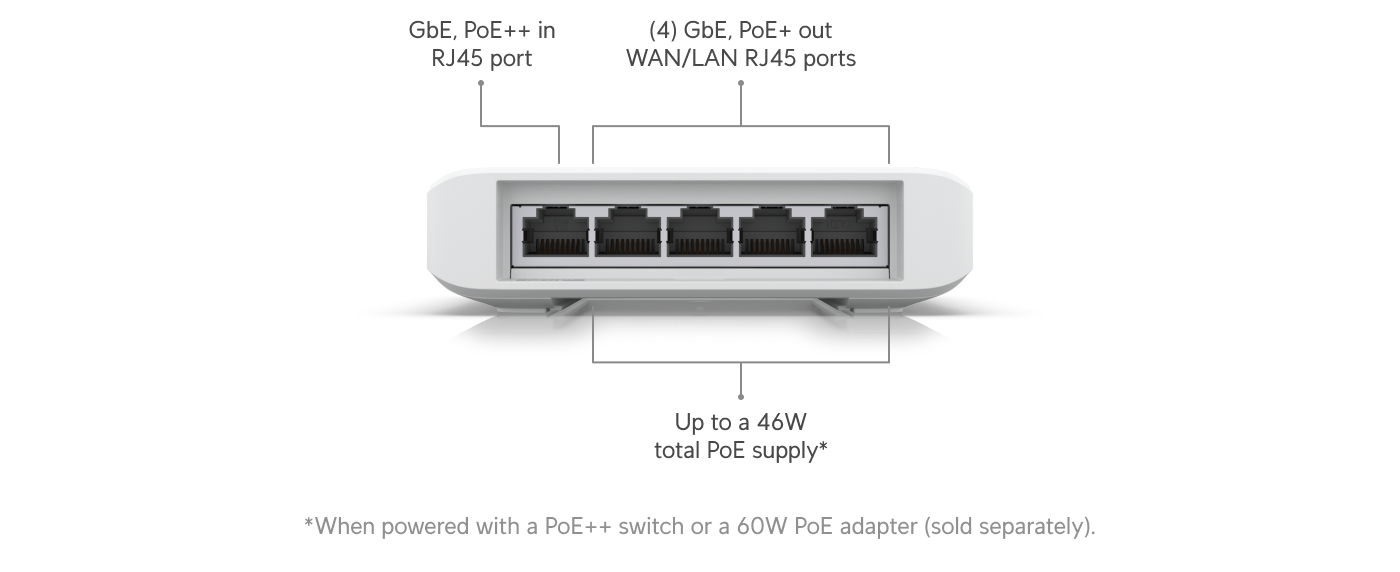

| Port Layout — 1 GbE RJ45 | 5 (4 PoE+; 1 PoE++) (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | PoE++/60W PoE adapter input: 46W PoE+ input: 20W PoE input: 8W |

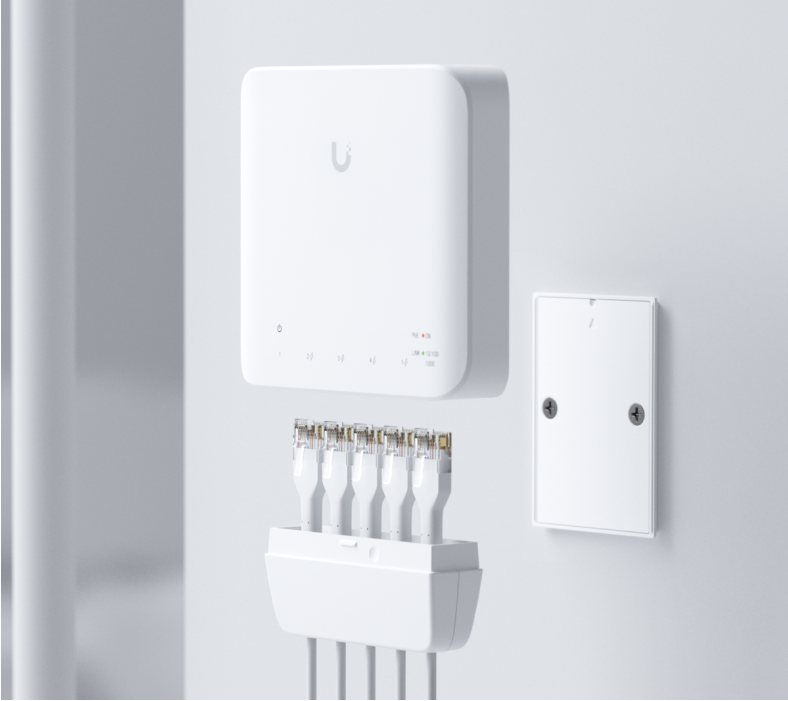

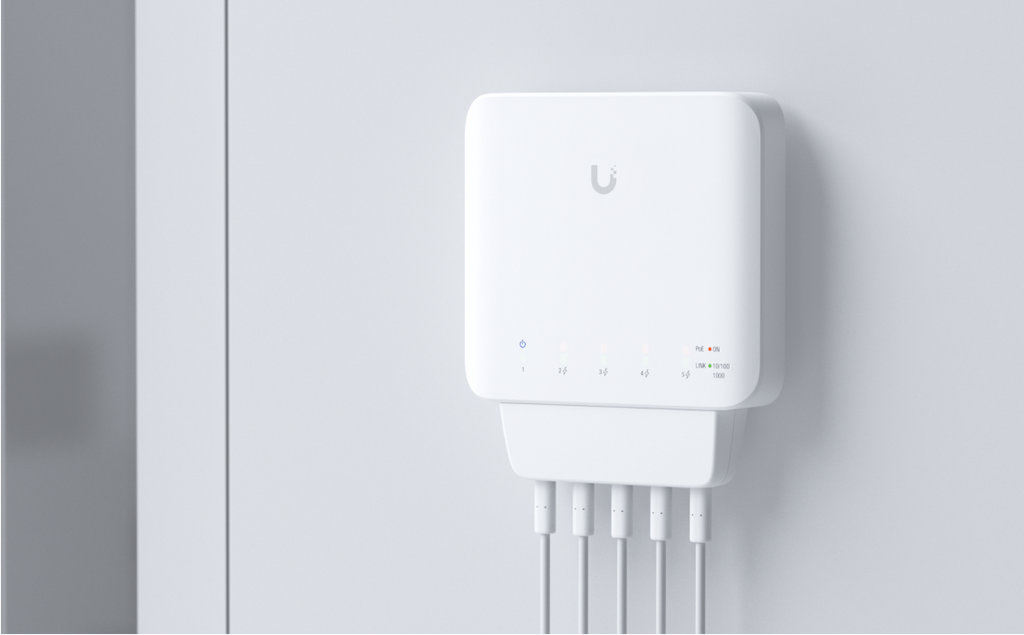

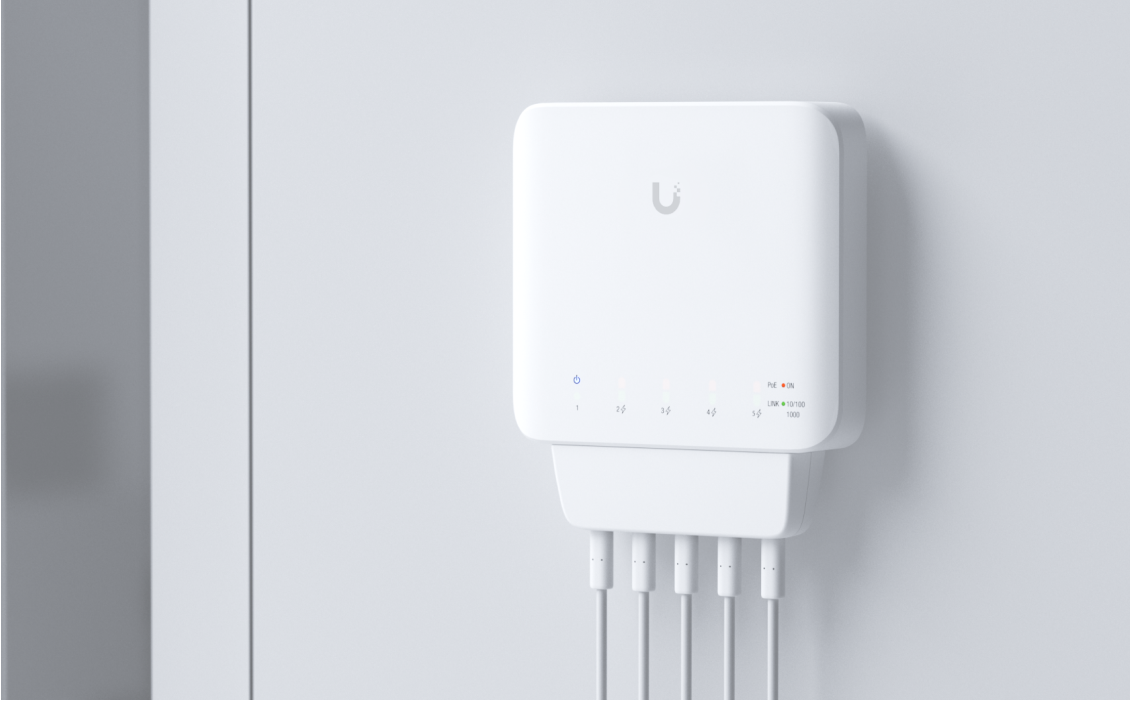

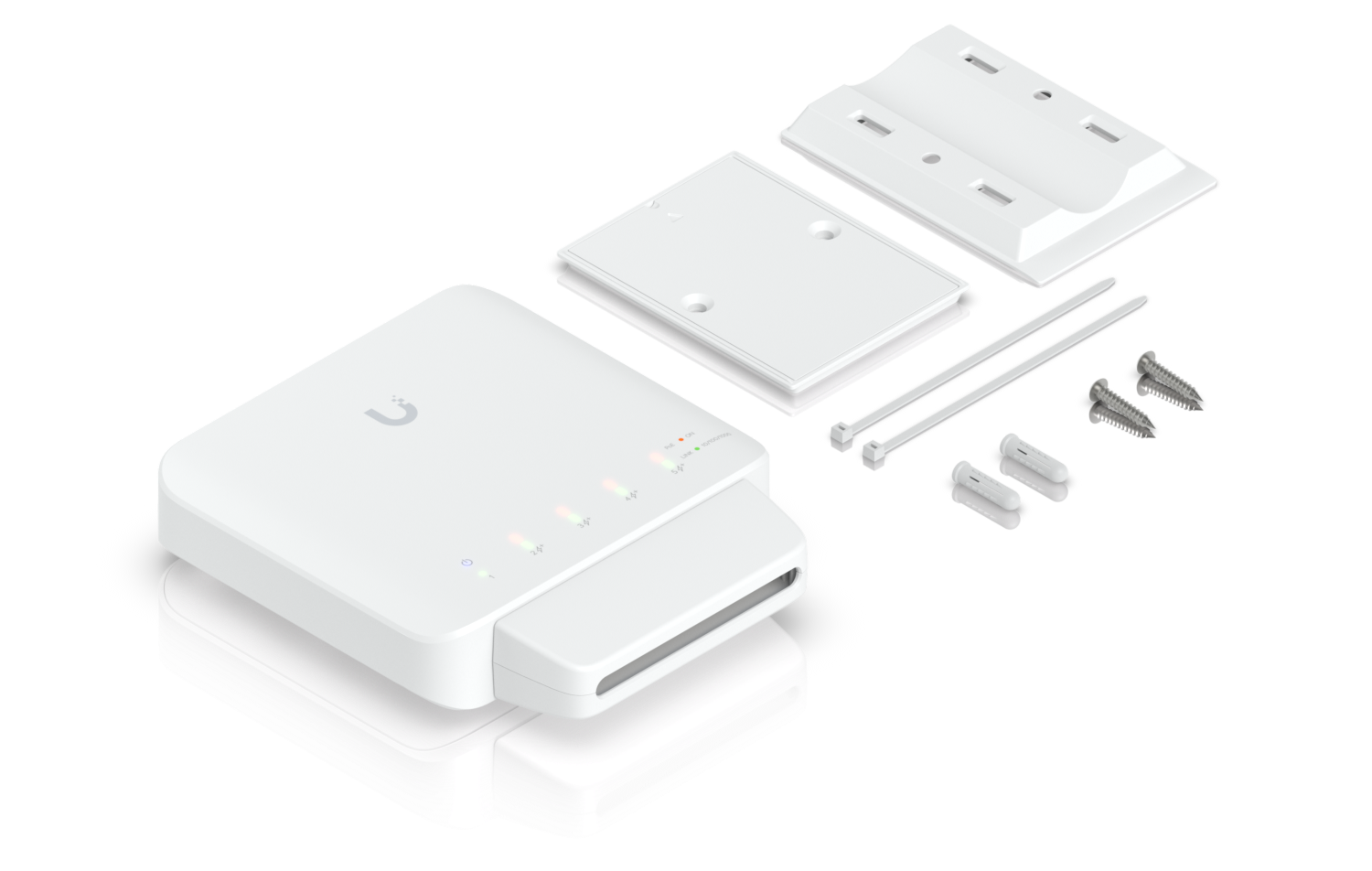

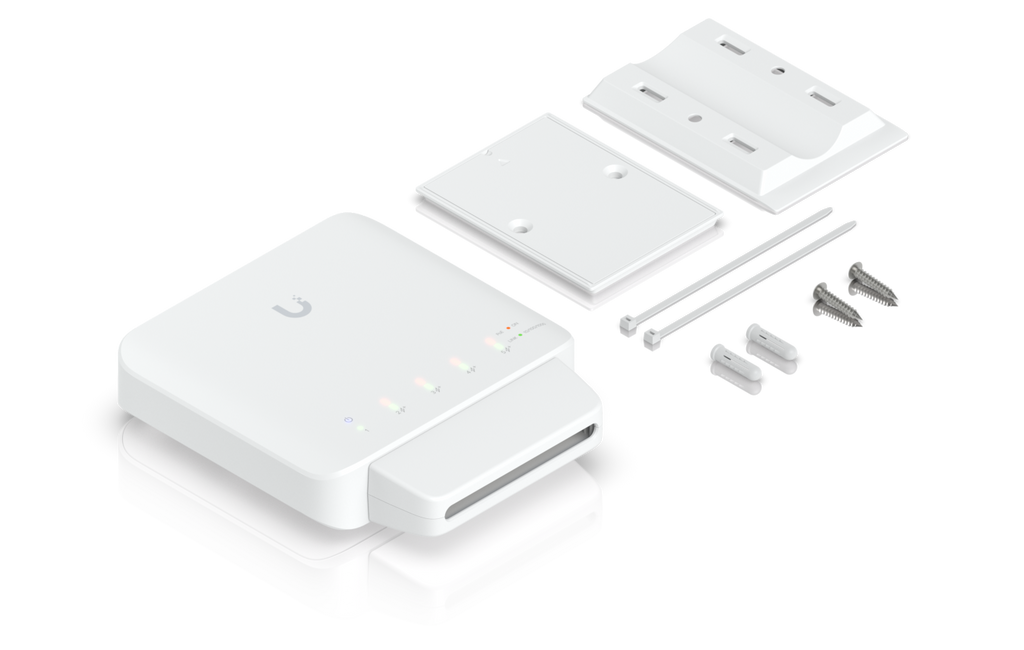

| Form Factor | Compact desktop, wall, pole |
Performance
| Switching Capacity | 10 Gbps |
| Total Non-Blocking Throughput | 5 Gbps |
| Forwarding Rate | 7 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 2,000 |
Layer 2 Features
| Egress Rate Limit | True |
| Flow Control | True |
| Port Isolation | True |
| Port Mirroring | True |
| Jumbo Frames | True |
Hardware
| PoE Ports — PoE+ | 4 |
| PoE Ports — PoE++ | 1 |
| Max. PoE Wattage per Port by PSE — PoE+ | 25W |
| Max. Power Consumption | 5W (Excluding PoE Output) 51W (Including PoE Output) |
| Power Method | PoE++ |
| Power Input Method | PoE |
| Supported Voltage Range | 50–57V PoE |
| Management | Ethernet |
| Heat Dissipation | 17.1 BTU/hr (Excluding PoE Output) |
| Outdoor Ready | True |
| Weight | 230 g (8.1 oz) |
| ESD Protection | Air/contact: ± 16kV |
| Ambient Operating Temperature | 46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 14502-20-08356 |
Software
| Application Requirements — UniFi Network | Version 5.10.3 and later |
