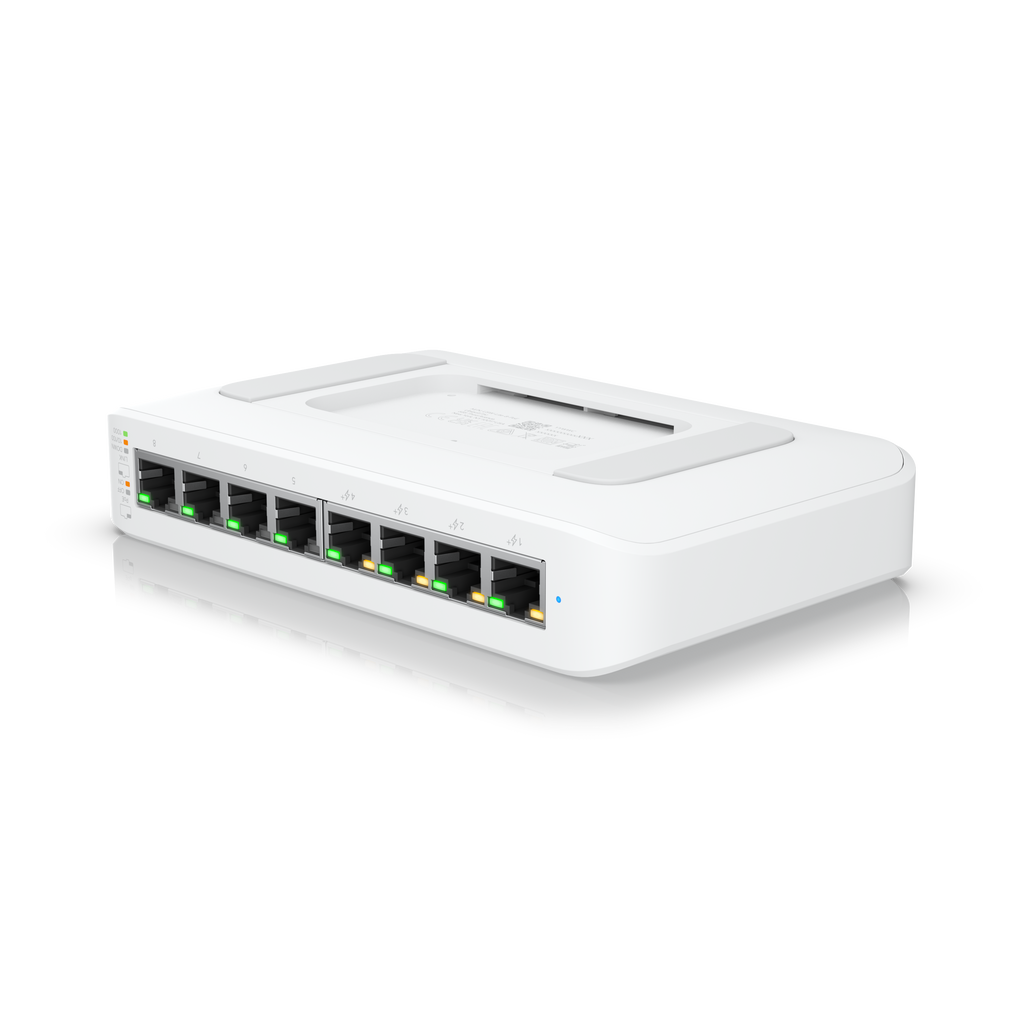

UniFi Lite 8 PoE Switch
Technical Specifications
Overview

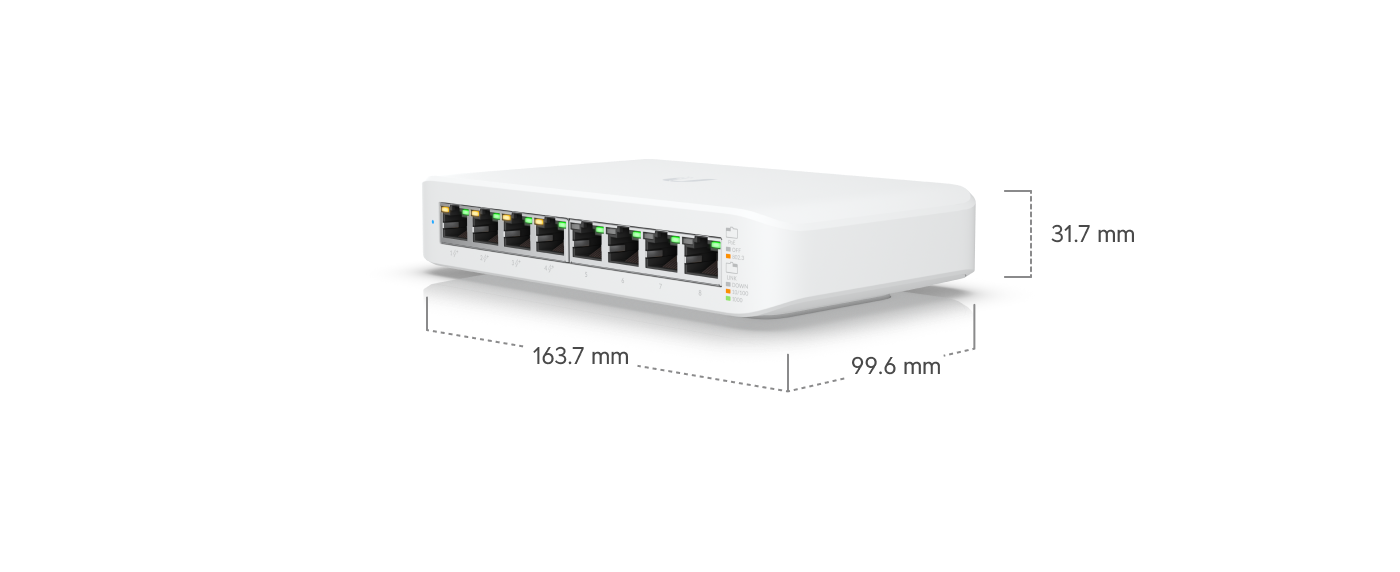

| Dimensions | 99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3") |

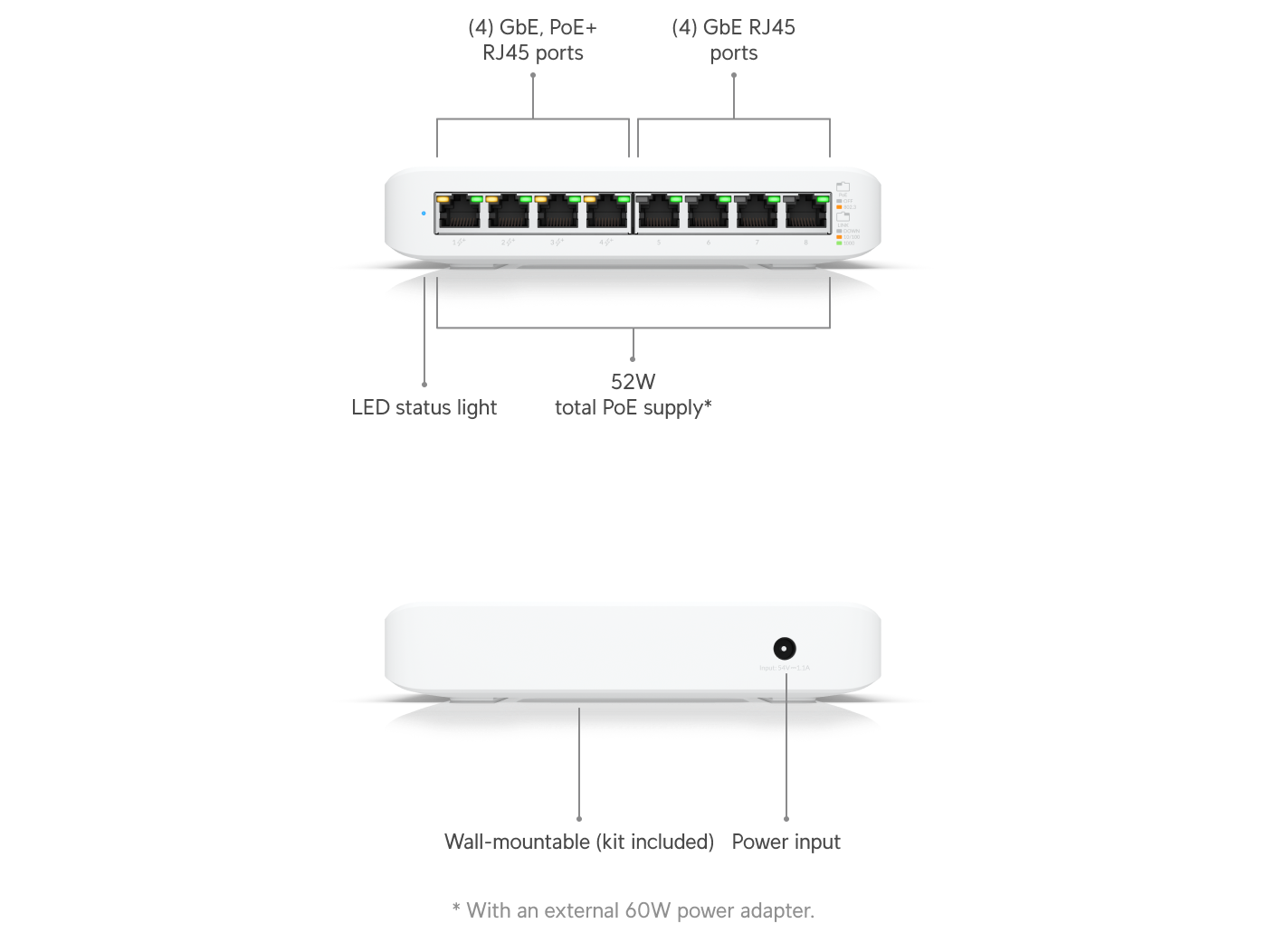

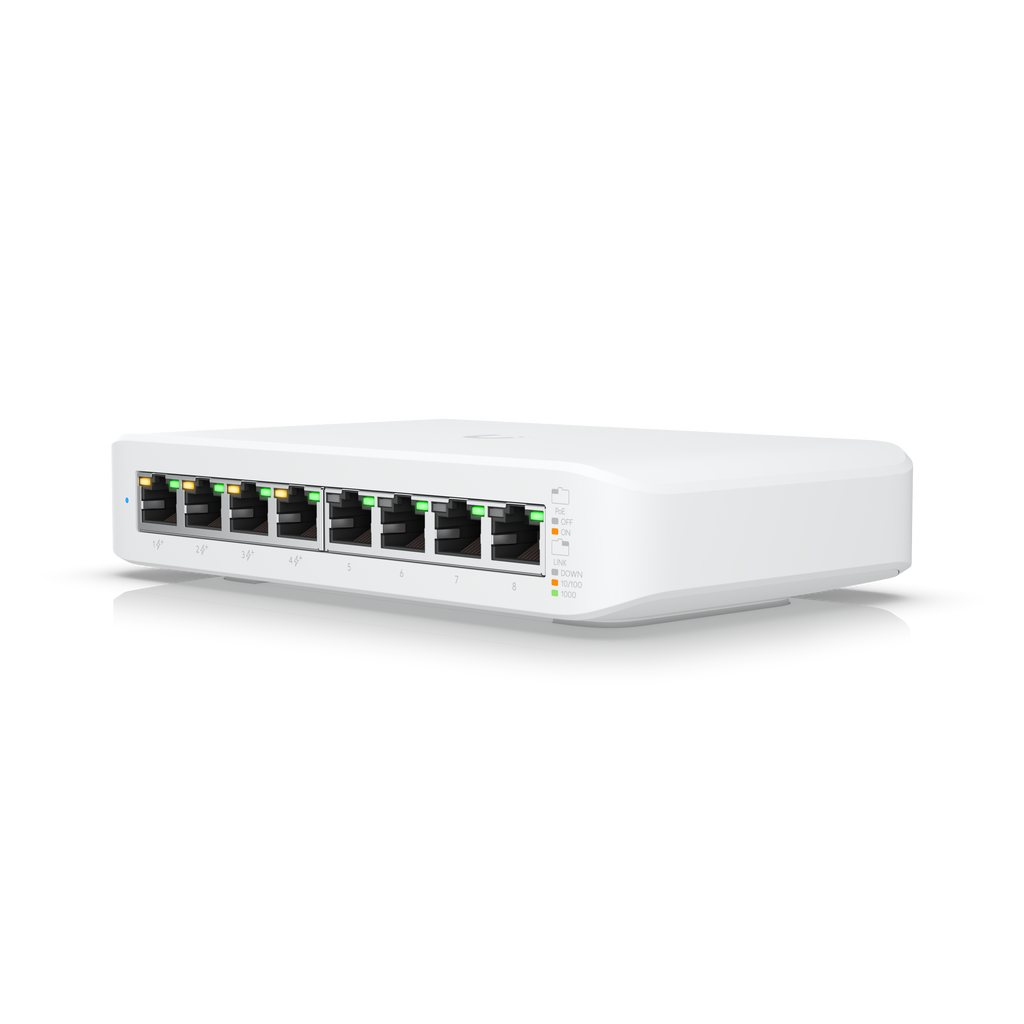

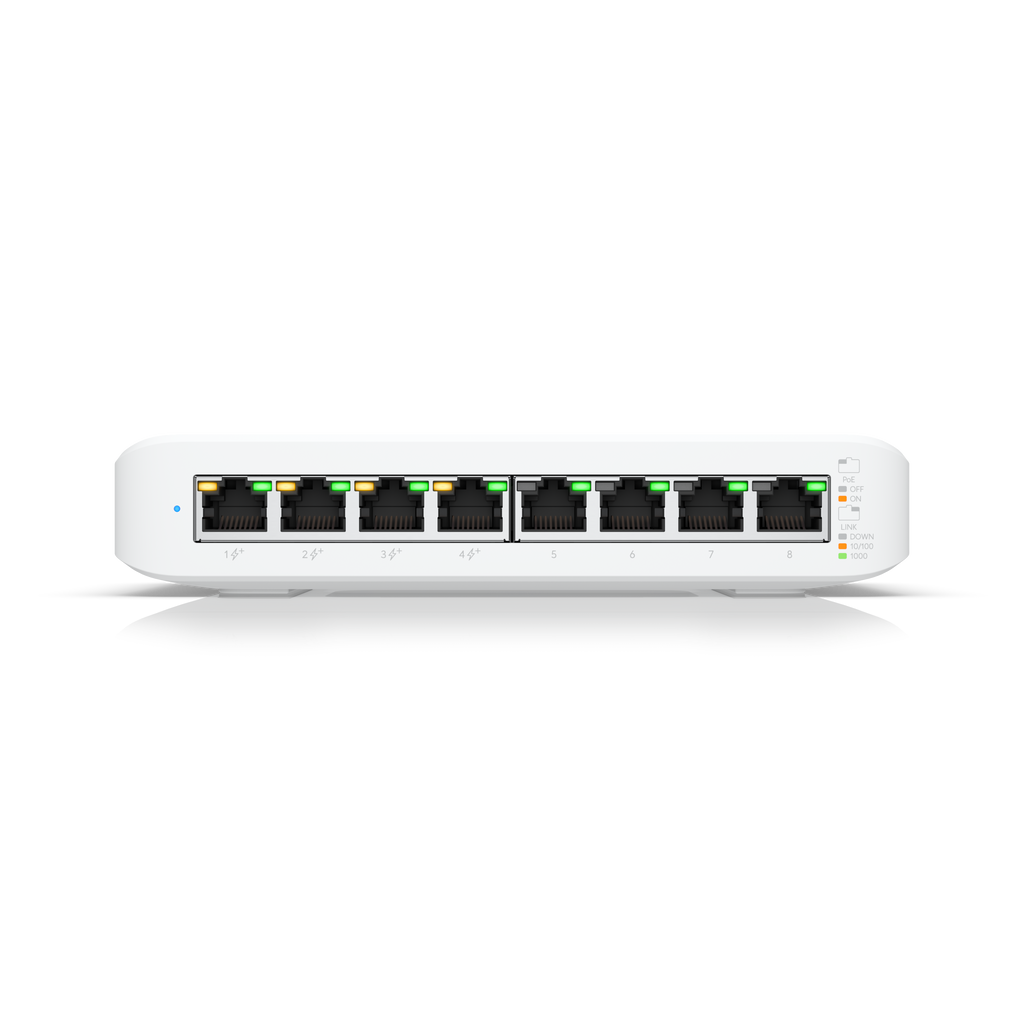

| Port Layout — 1 GbE RJ45 | 8 (4 PoE+) (1G/100M/10M) |
| Max. PoE Output | Up to PoE+ |
| Total PoE Availability | 52W |

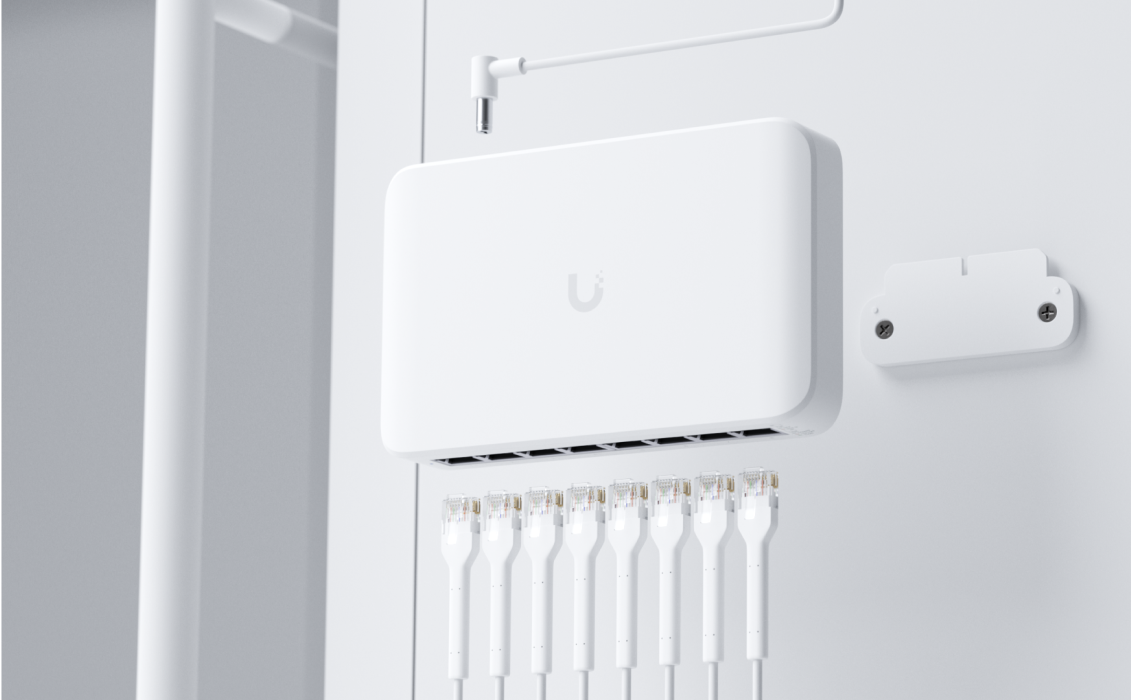

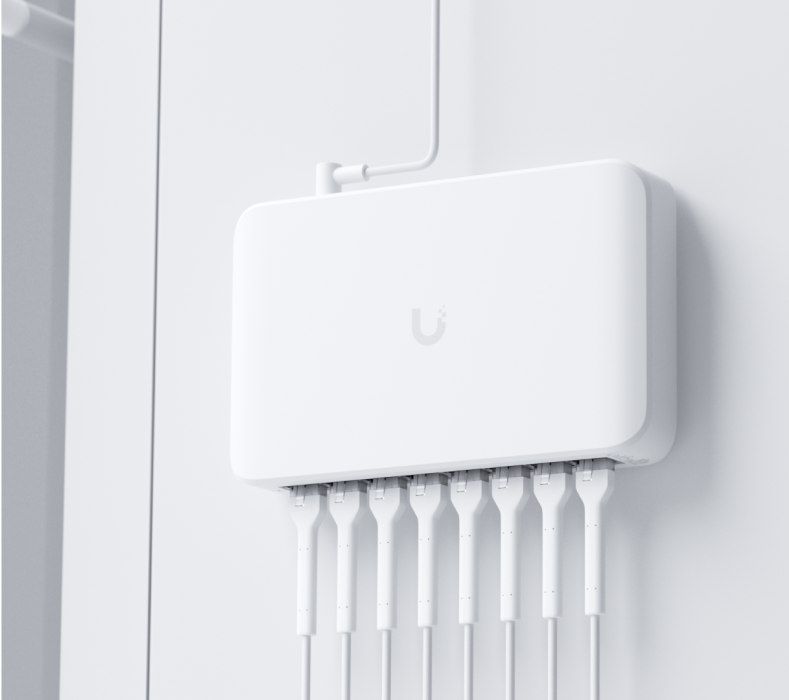

| Form Factor | Compact desktop, wall |
Performance
| Switching Capacity | 16 Gbps |
| Total Non-Blocking Throughput | 8 Gbps |
| Forwarding Rate | 12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| Access Lists — IPv4 | 128 |
| Access Lists — MAC | 128 |
Layer 2 Features
| LACP Port Aggregation | True |
| STP & RSTP | True |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | True |
| IGMP Snooping | True |
| 802.1X Control | True |
| MAC-Based ACLs & Device Isolation | True |
| DHCP Snooping & Guarding | True |
| Egress Rate Limit | True |
| Flow Control | True |
| Storm Control | True |
| Multicast & Broadcast Rate Limiting | True |
| MAC Address Blocking | True |
| IP-Based ACLs & Network Isolation | True |
| MAC-Based Port Restriction | True |
| Port Isolation | True |
| Port Mirroring | True |
| Jumbo Frames | True |
| LLDP-MED | True |
| Voice VLAN | True |
| Loop Protection | True |
| Virtual Network Override | True |
Hardware
| PoE Ports — PoE+ | 4 |
| Max. PoE Wattage per Port by PSE — PoE+ | 30W |
| Max. Power Consumption | 8W (Excluding PoE Output) 60W (Including PoE Output) |

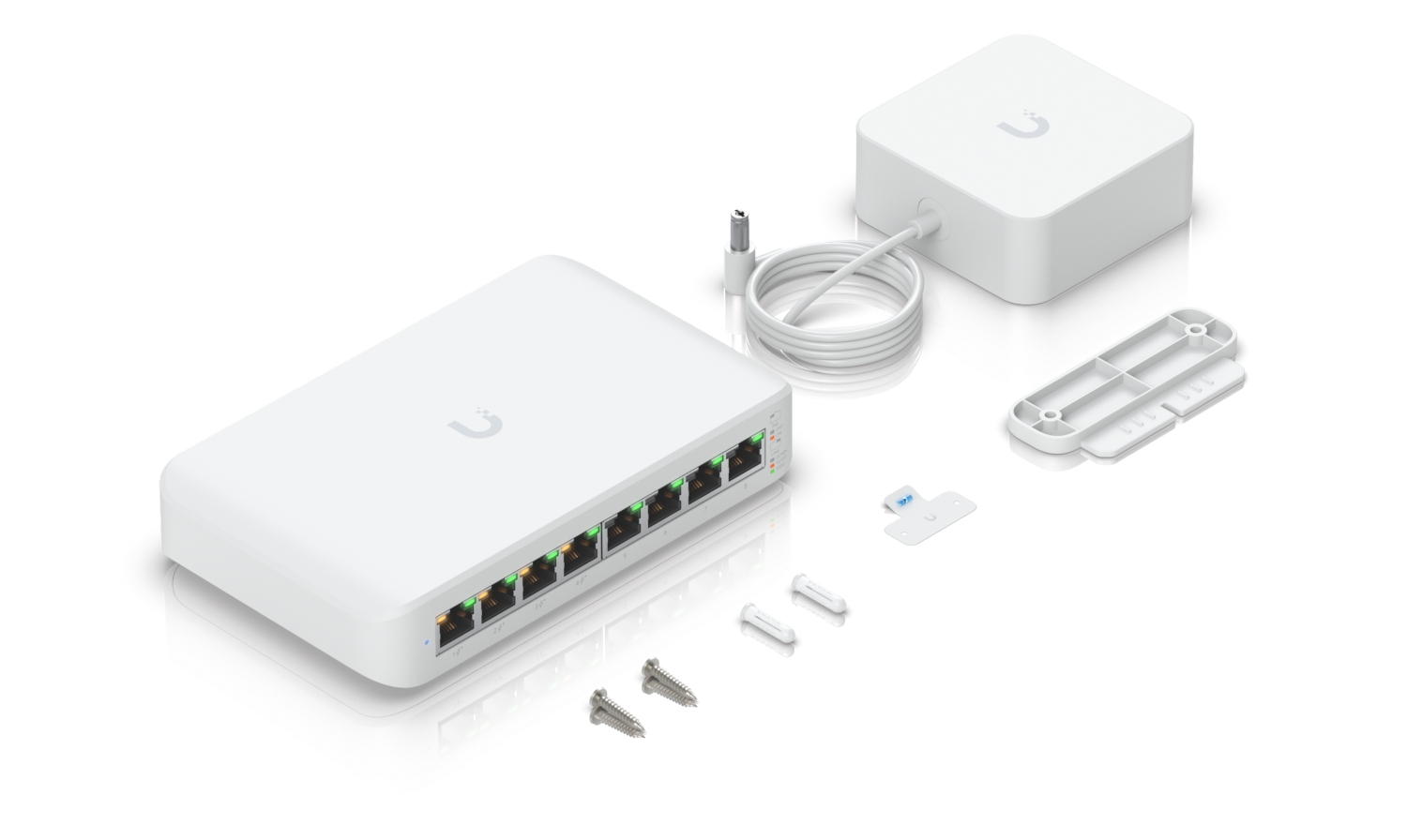

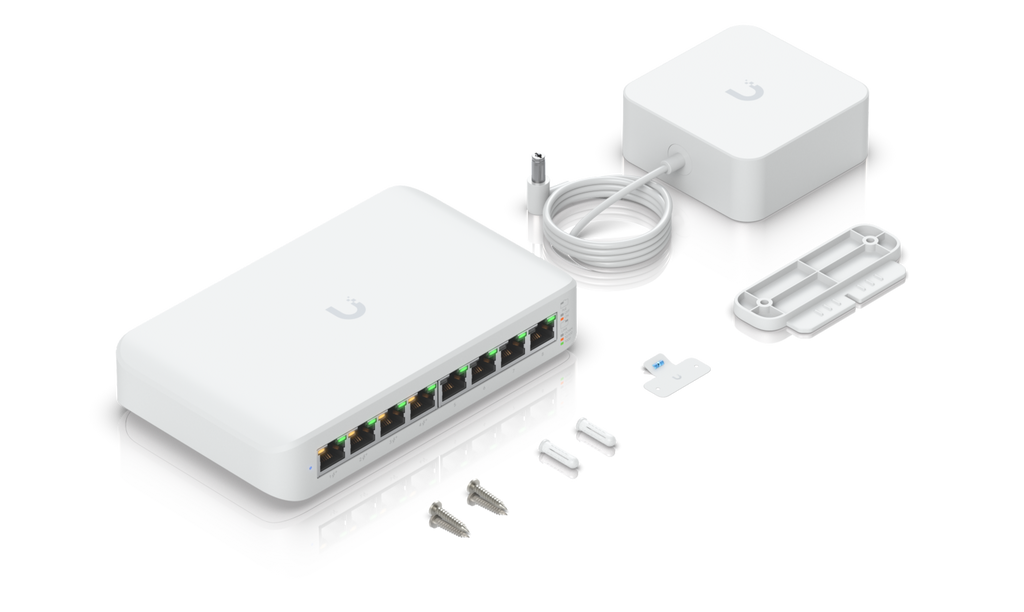

| Power Method | AC/DC Adapter (included) |

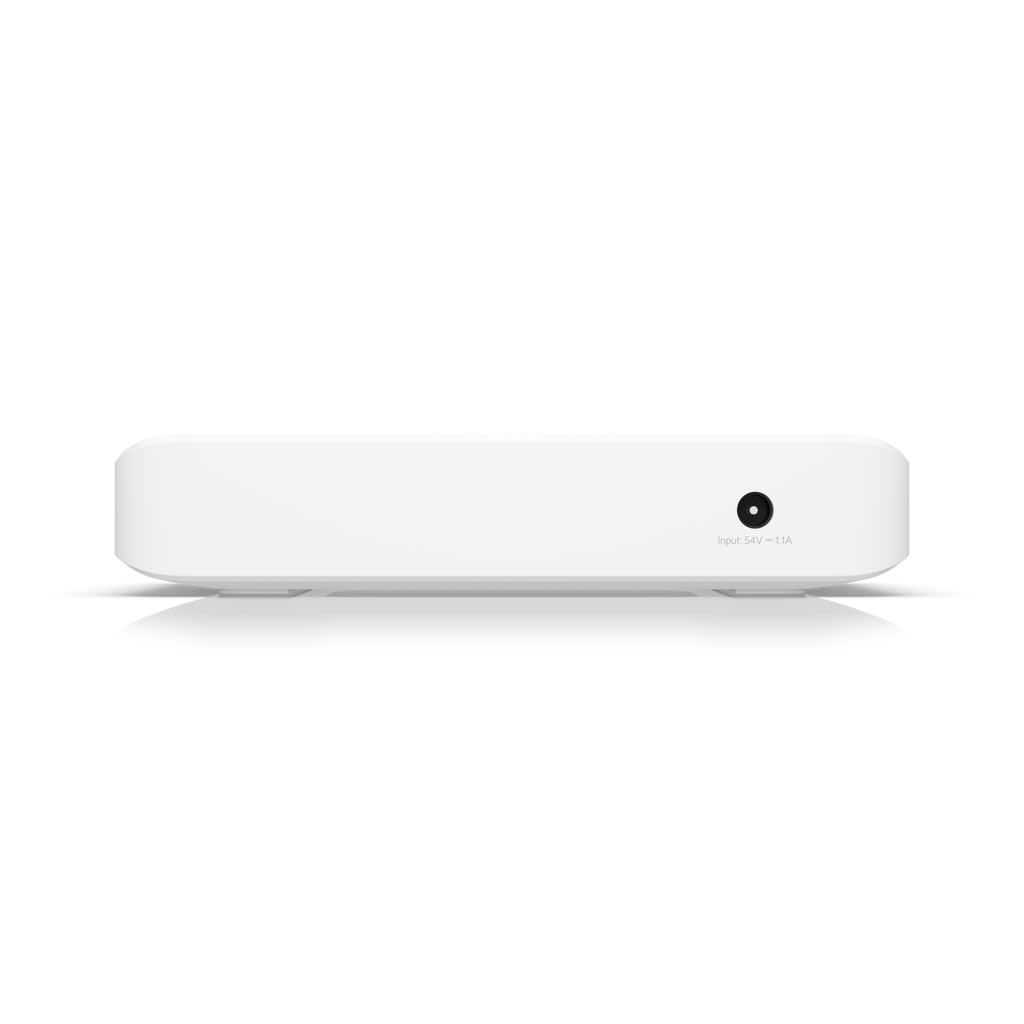

| Power Input Method | DC input |
| Power Supply | AC/DC, external, 60W |
| Supported Voltage Range | 50–57V DC |
| Management | Ethernet |
| Heat Dissipation | 27.3 BTU/hr (Excluding PoE Output) |
| Weight | 295 g (10.4 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Ambient Operating Temperature | -15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 04479-21-08356 |
Software
| Application Requirements — UniFi Network | Version 7.2.94 and later |
