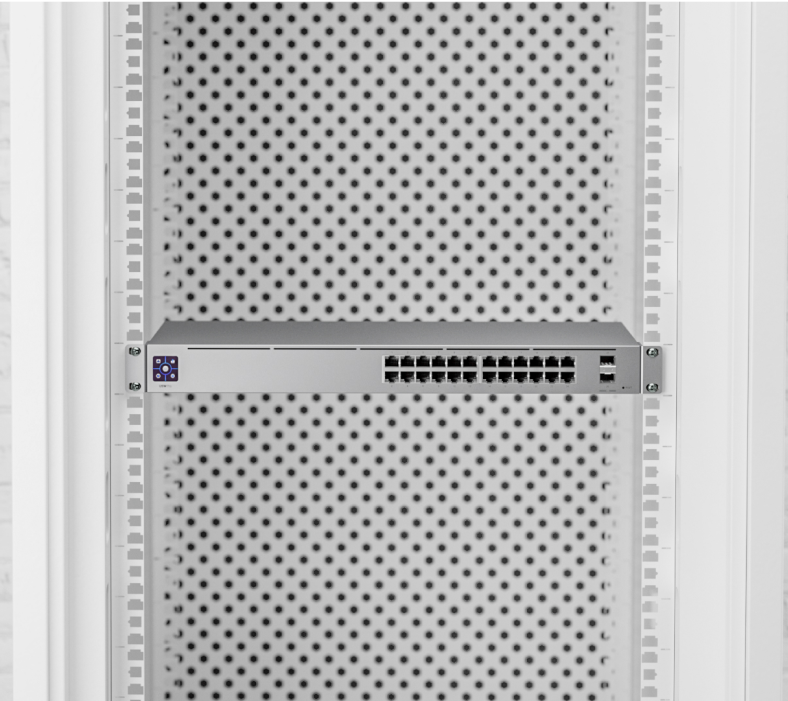

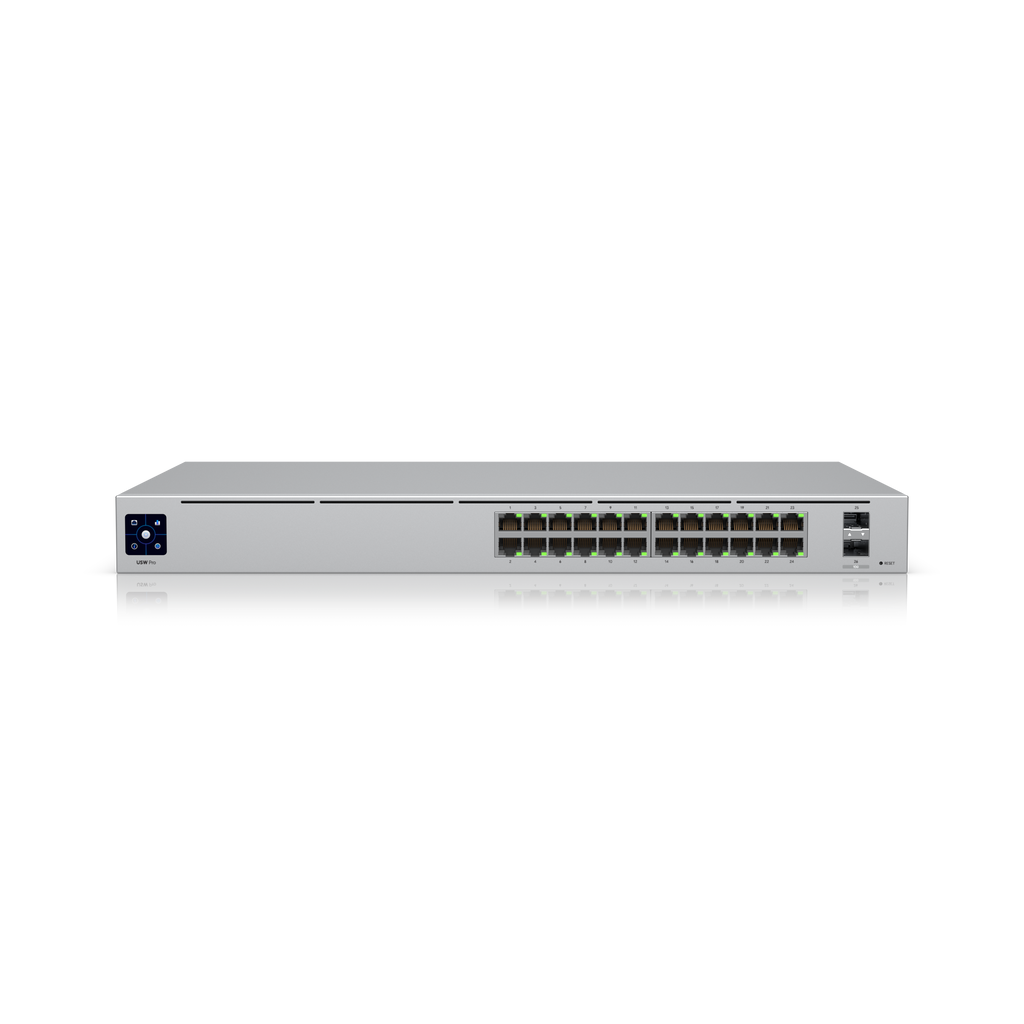

A fanless 1U rack switch for offices and comms rooms that need 24 gigabit ports, Layer 3 routing, and two 10G uplinks without the noise of active cooling.
Why this one
- Two 10G SFP+ uplinks on a 44 Gbps non-blocking fabric mean your aggregation link won't become the bottleneck as you add servers, NAS devices, or a faster internet feed.
- Layer 3 support with up to 1,000 VLANs lets you segment traffic between departments or IoT devices directly at the switch, without routing everything through a separate appliance.
- Fanless design draws only 30W at max load, so it runs silently in an open-plan office, meeting room, or shallow comms cabinet without adding noise or a ventilation problem.

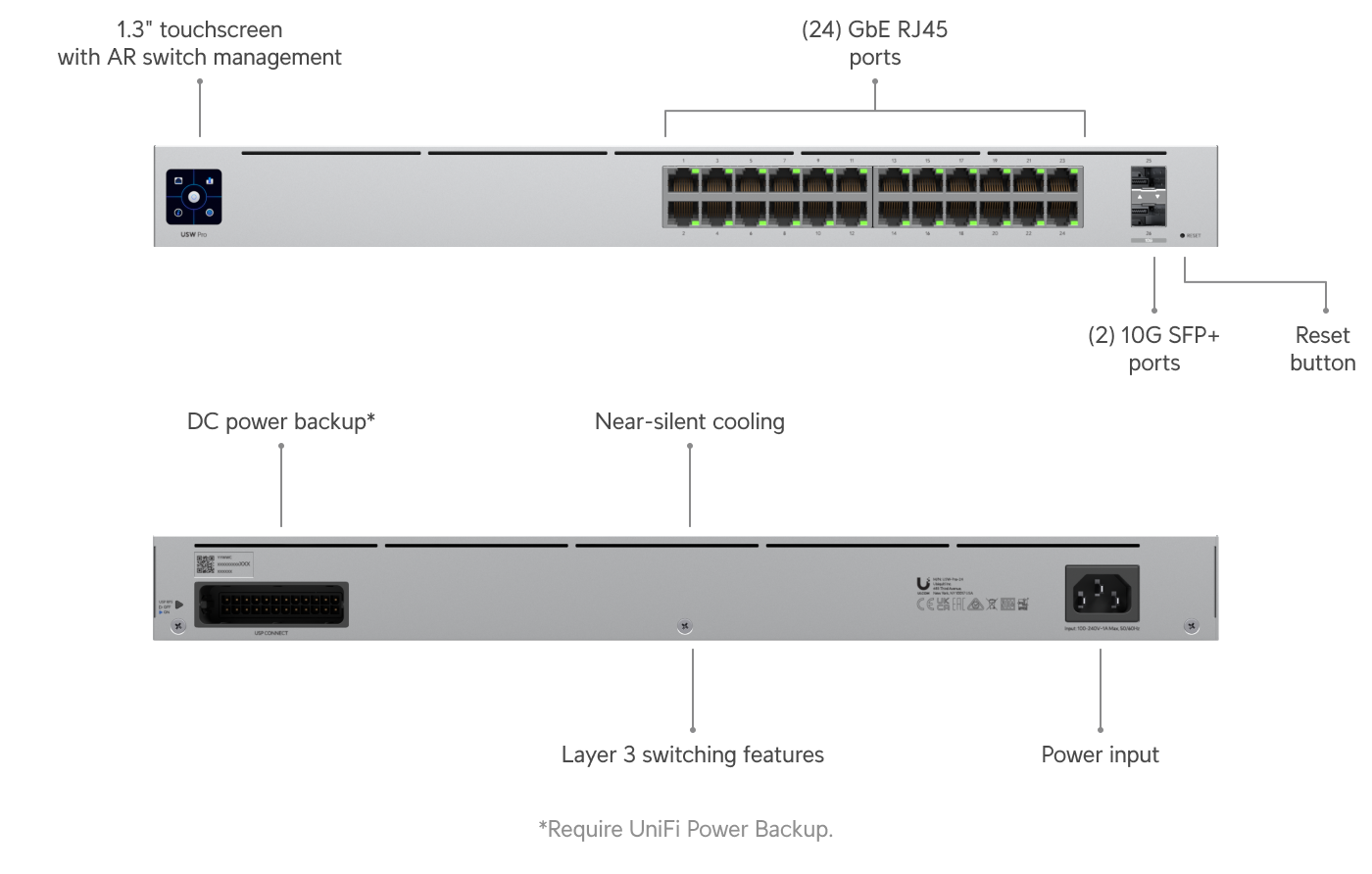

- The 1.3" touchscreen gives you a port-status readout on the front panel without opening UniFi Network, which saves time when you're physically tracing a fault in the rack.
Good fit if you're building or expanding a UniFi network around a rack or wall cabinet, need clean inter-VLAN routing at the access layer, and the work environment rules out fan noise.
Worth considering something else if you need PoE on the access ports — this switch delivers none, so look at the USW-PRO-24-POE instead, which carries the same uplink and Layer 3 capability with PoE+ on all 24 ports.
What you'll also need

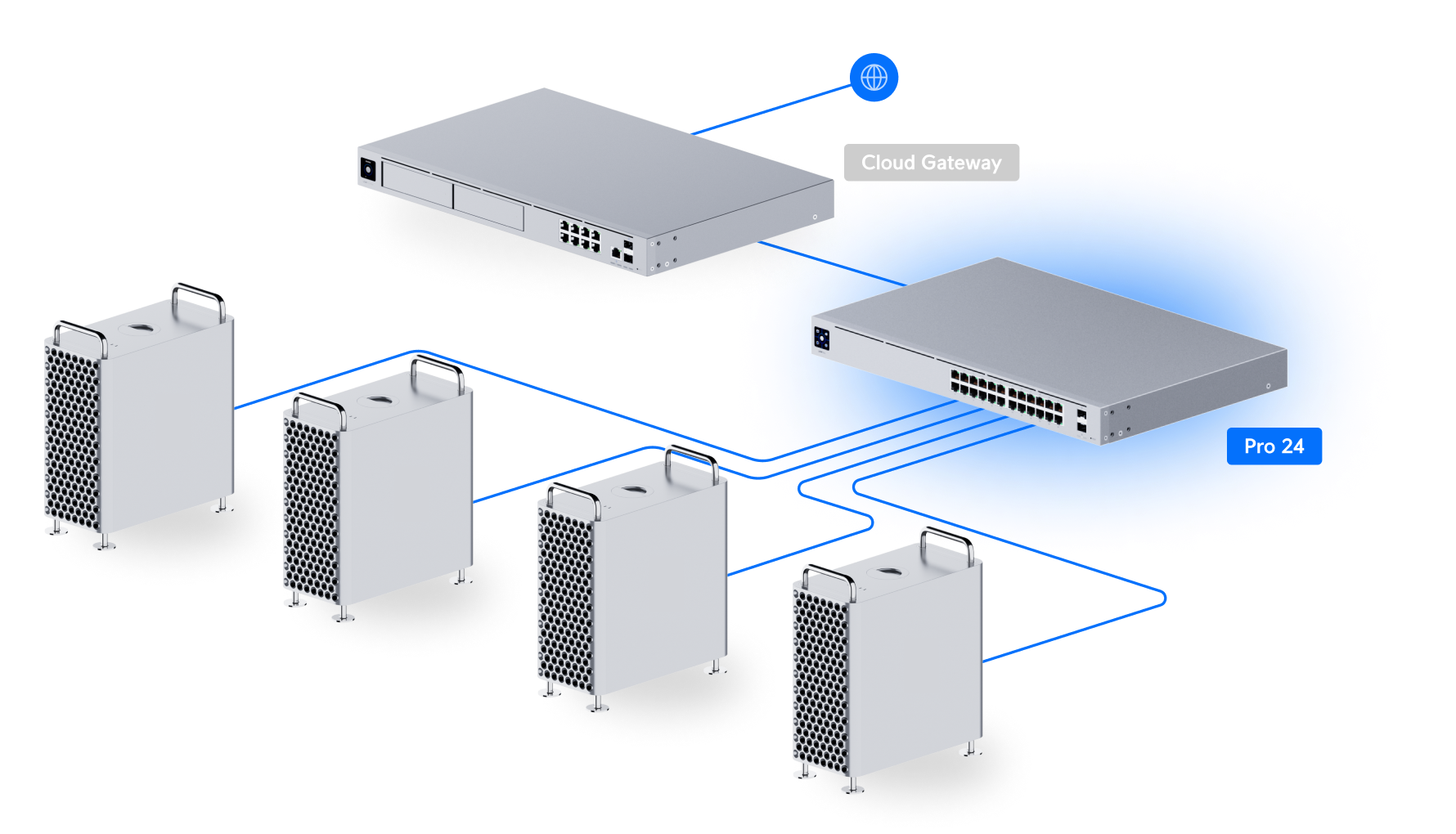

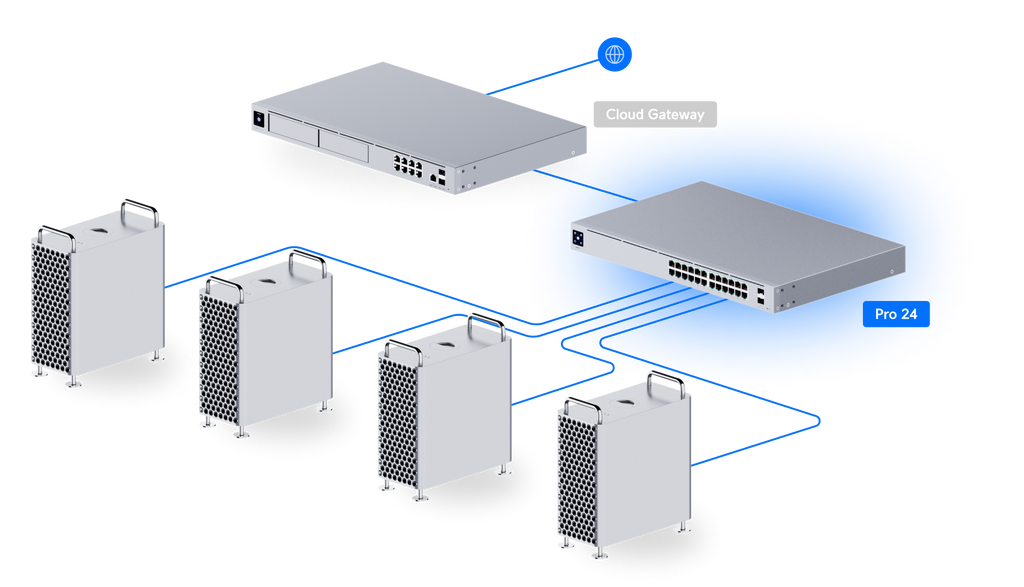

A UniFi gateway or Dream Machine to manage the switch via UniFi Network (version 5.12.11 or later), SFP+ transceivers or DAC cables for the uplink ports, a standard 1U rack or cabinet with 400–1200mm depth, and a UniFi RPS if you want DC power backup for the switch.
Technical specifications
Overview

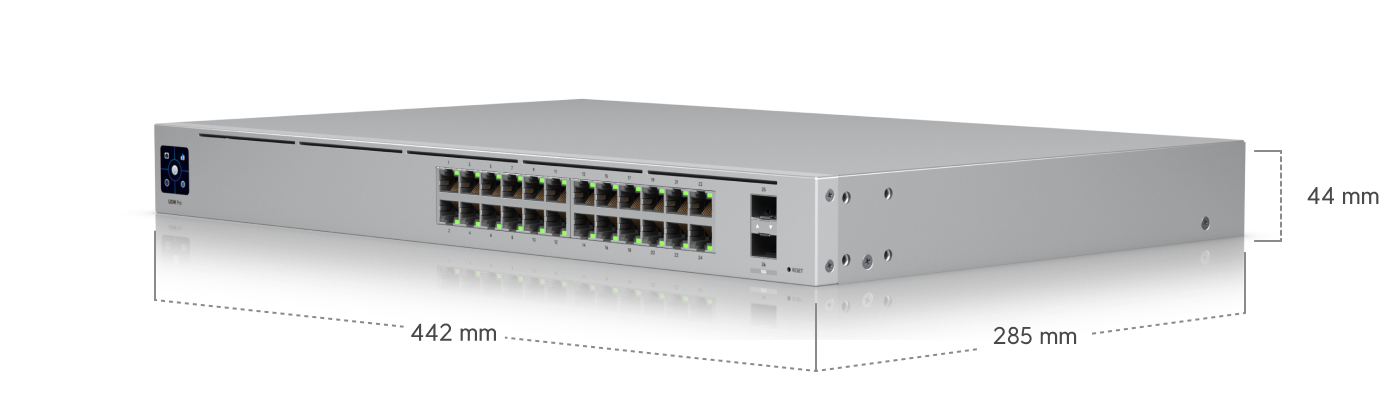

| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| 1 GbE RJ45 | 24 (1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Redundancy | DC Power Backup |

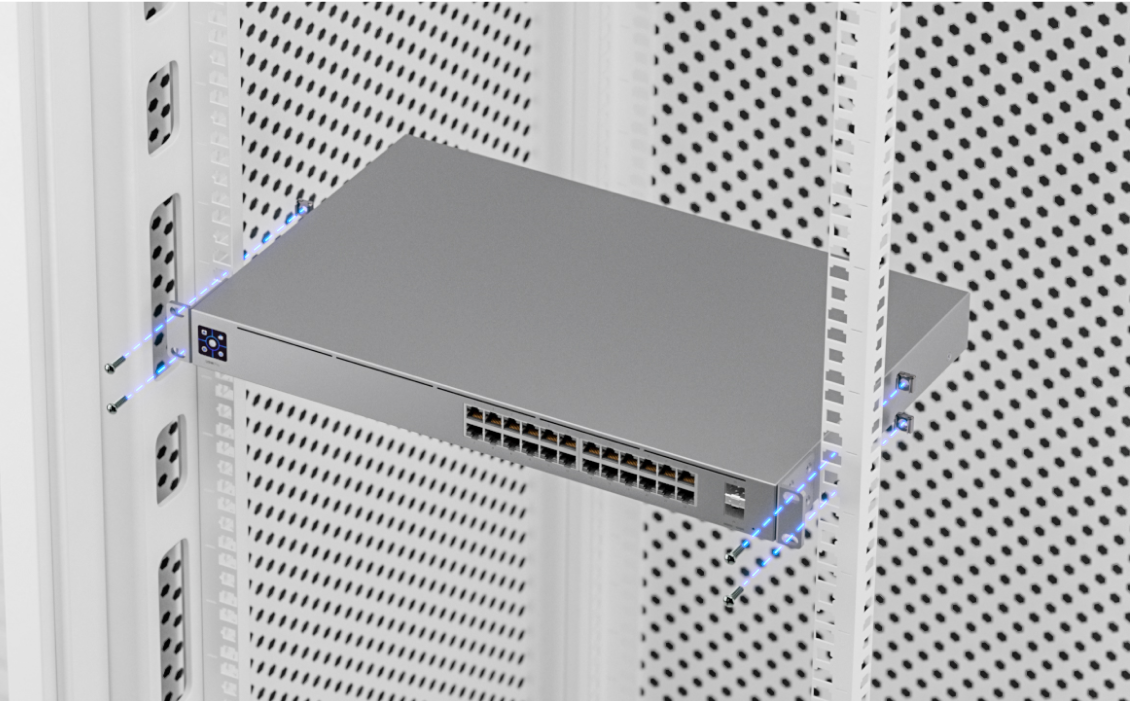

| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 88 Gbps |
| Total Non-Blocking Throughput | 44 Gbps |
| Forwarding Rate | 65 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| IPv4 Static Routes | 2 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
Hardware
| Max. Power Consumption | 30W |

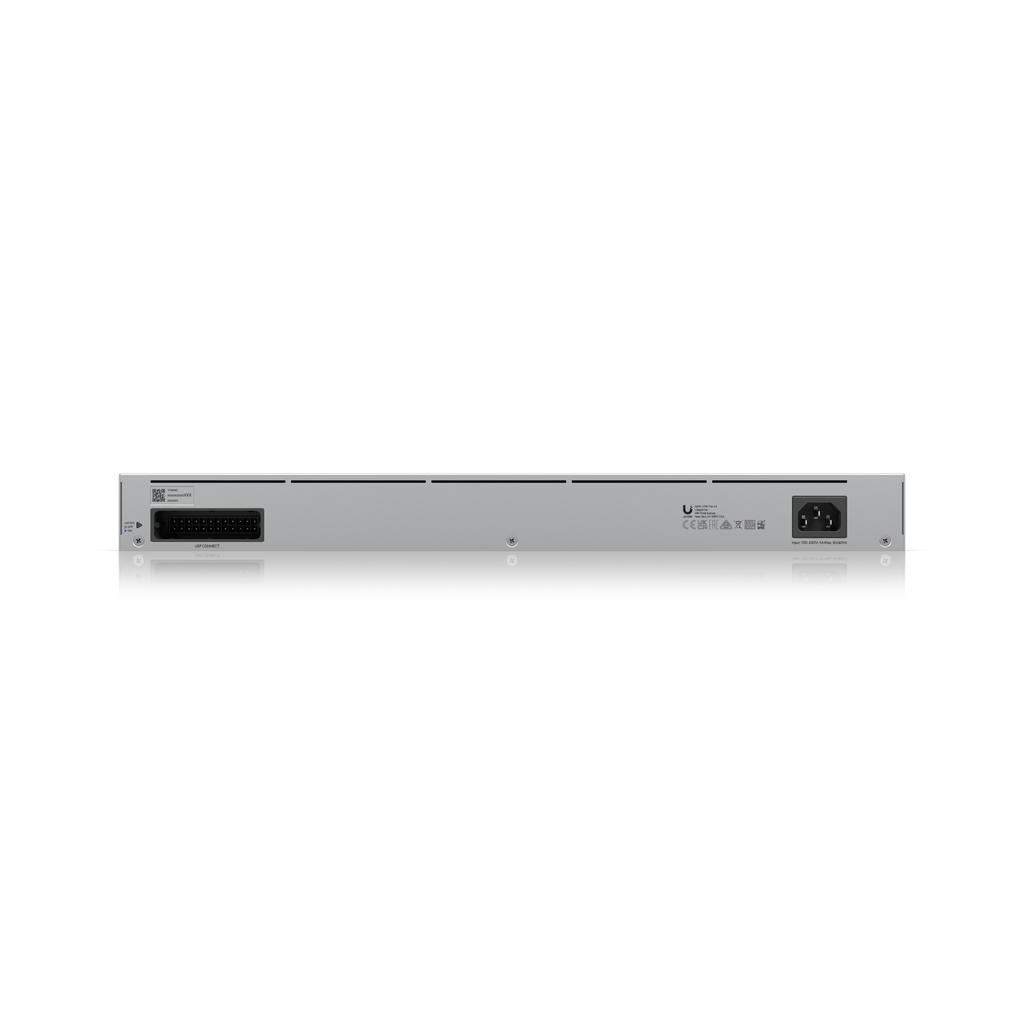

| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 102.4 BTU/hr |
| Weight | Without mounting brackets: 3.5 kg (7.7 lb) With mounting brackets: 3.6 kg (7.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature | -5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 00469-21-08356 |
Software
| UniFi Network | Version 5.12.11 and later |
