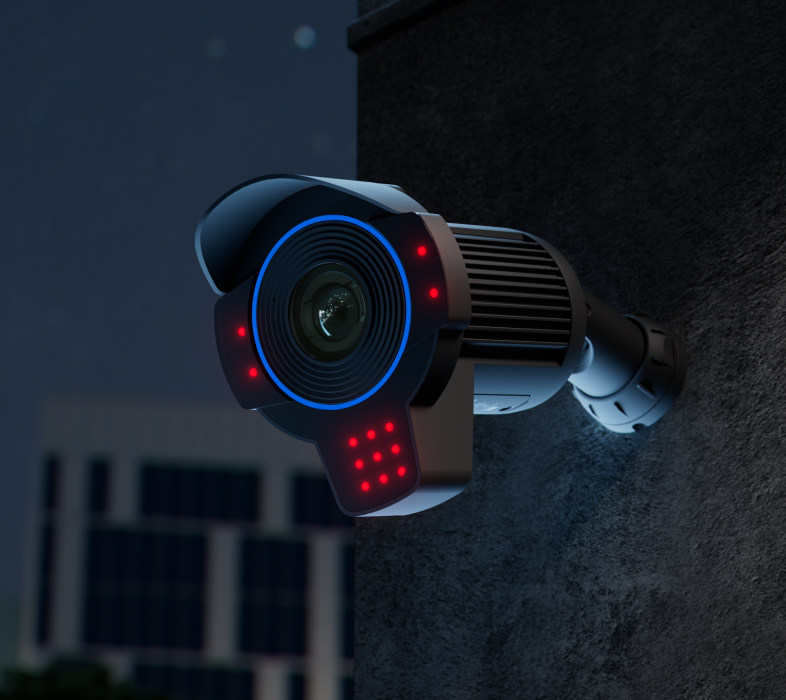

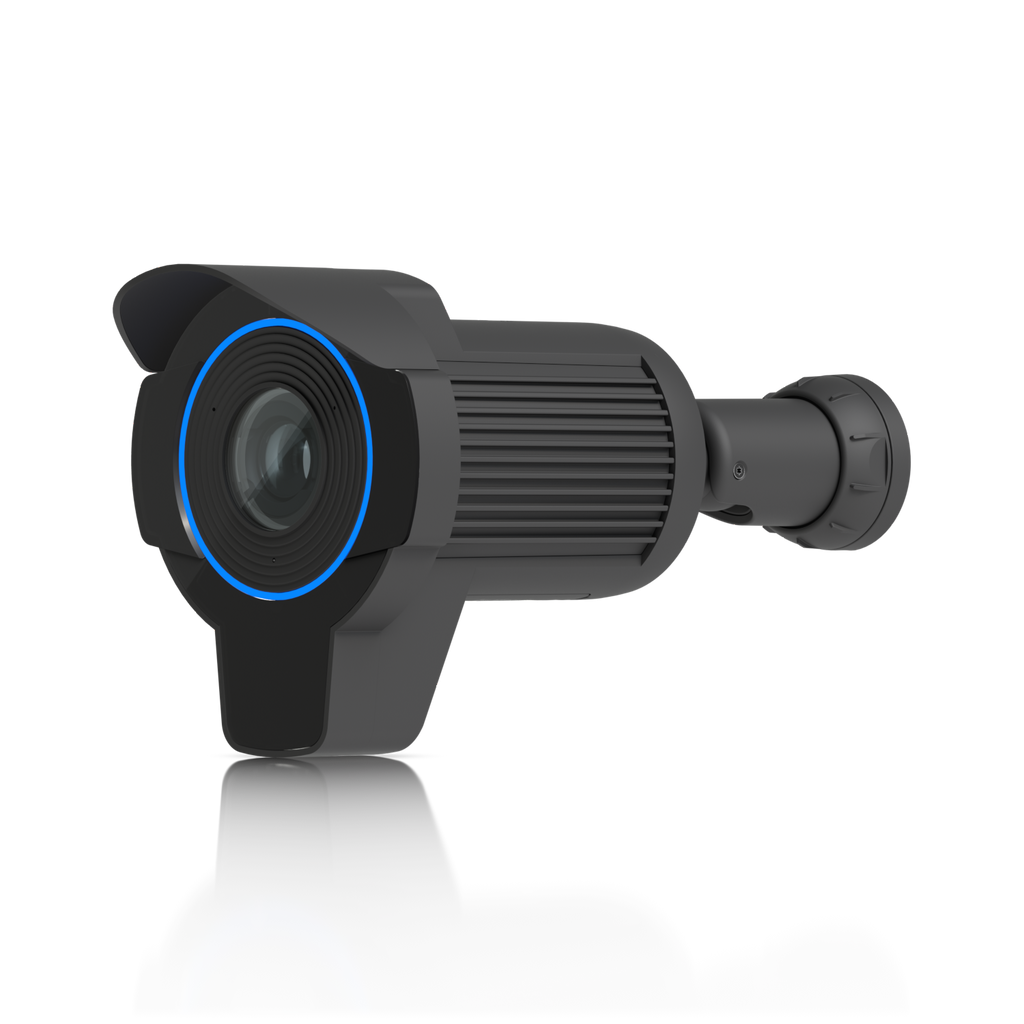

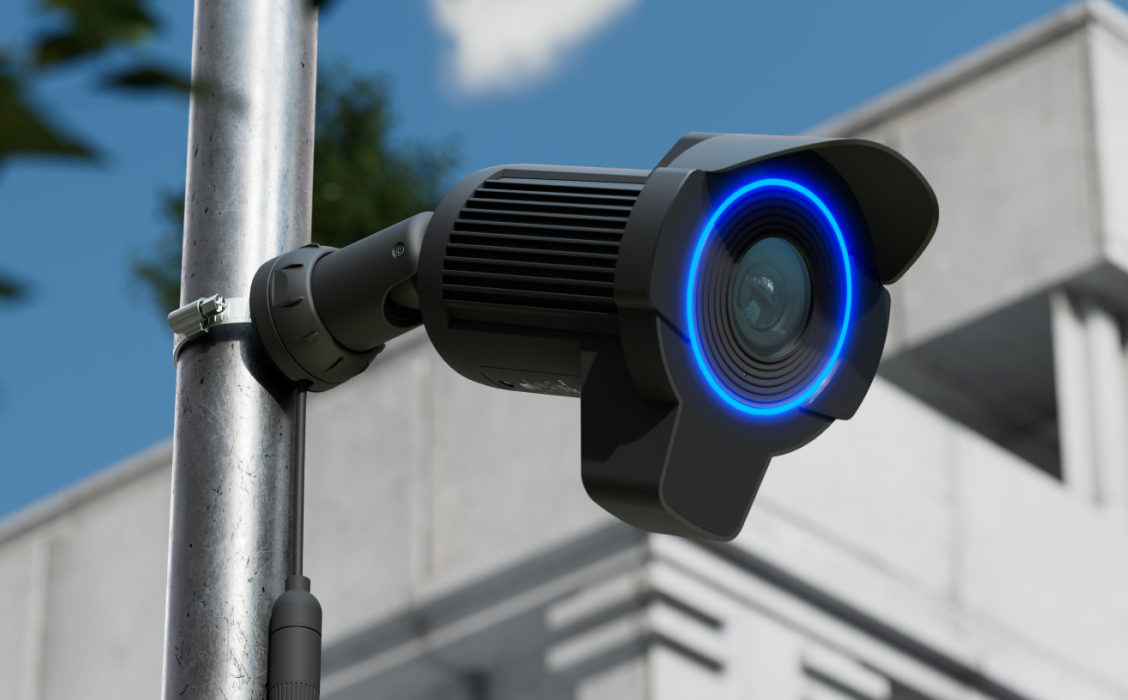

A specialist outdoor camera for entry points and car parks where you need to read licence plates on moving vehicles, not just record them.
Why this one

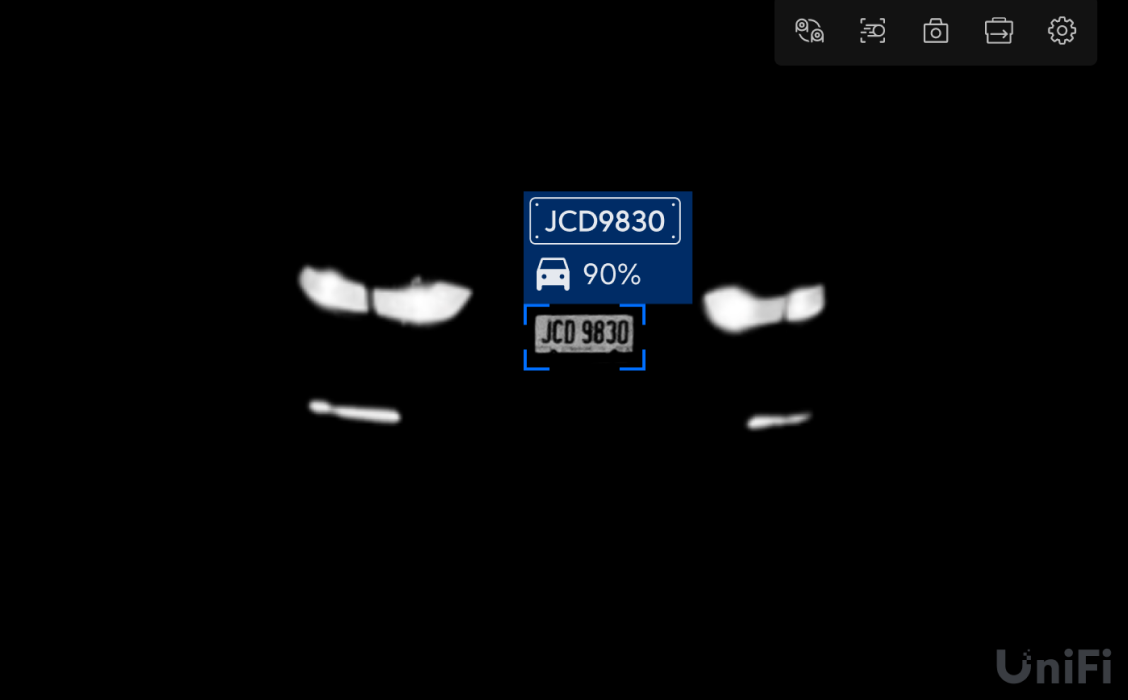

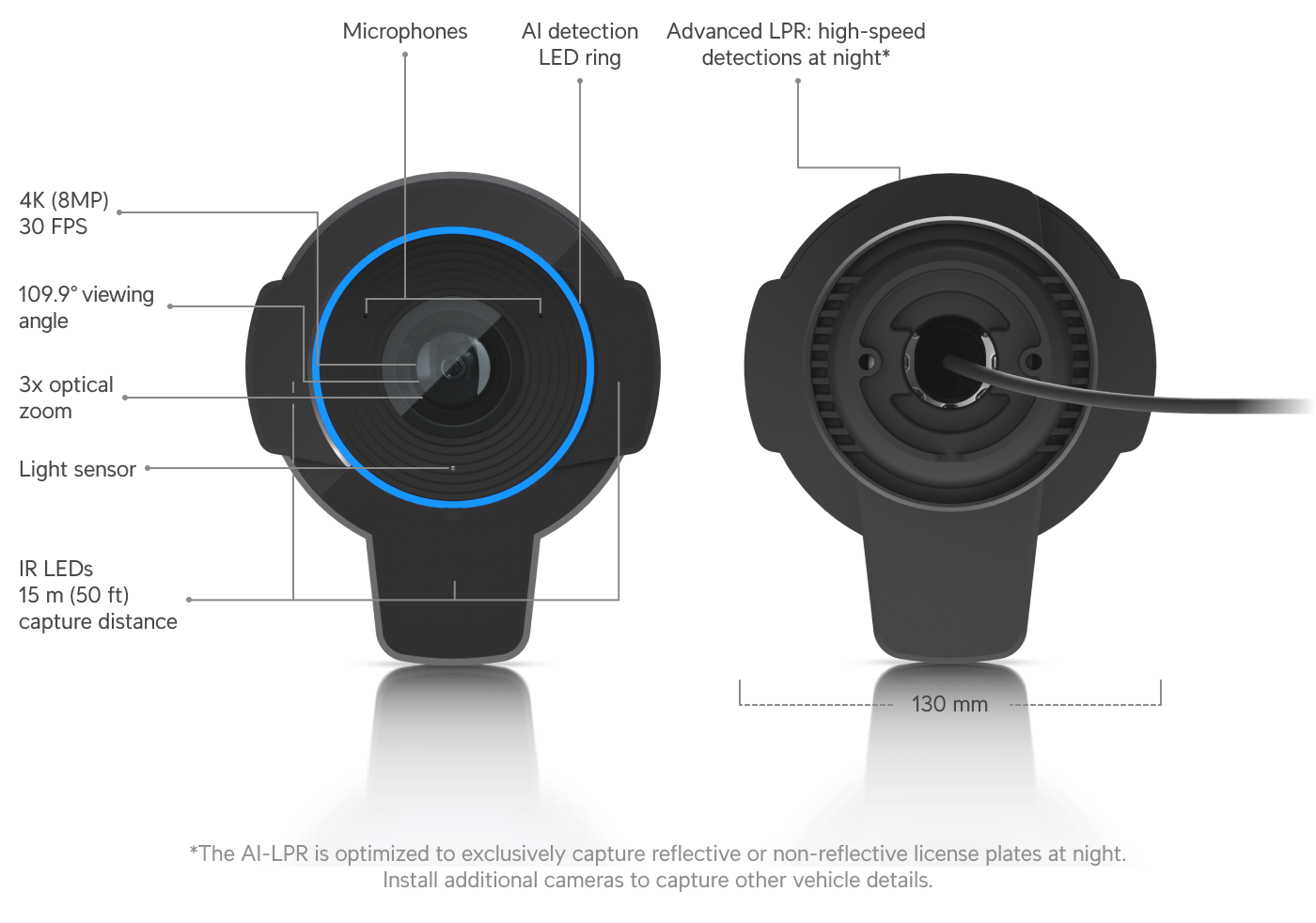

- The LPR optimisation filter captures both reflective and non-reflective plates at night within 15m IR range — standard security cameras blur plates at speed; this one is tuned to hold them sharp at up to 90 km/h.
- 3x optical zoom with a tele field of view of 35° horizontal lets you frame a lane entry tightly without losing resolution to digital crop, so the plate detail your NVR stores is actually readable.
- The 1/1.8" 8MP sensor at 4K/30fps gives you frames dense enough to pull a still from any moment in a clip — useful when a plate read is disputed and you need a single clear frame as evidence.
- PoE+ (25.5W max) means a single Cat5e run handles both power and data; at -20 to 50°C operating range it stays online through Australian summer heat as well as cold-climate sites.
Good fit if you're managing vehicle access at a car park, loading dock, gated entry or site with a boom gate where automated or manual plate matching matters more than wide-area coverage.
Worth considering something else if you need broad perimeter surveillance rather than lane-specific plate capture — the UVC-AI-PRO's 3x optical zoom covers a similar focal range but is optimised for general 4K scene detail rather than LPR, and for wide-area coverage the UVC-G6-180 or UVC-AI-360 will serve better without the LPR overhead.
What you'll also need

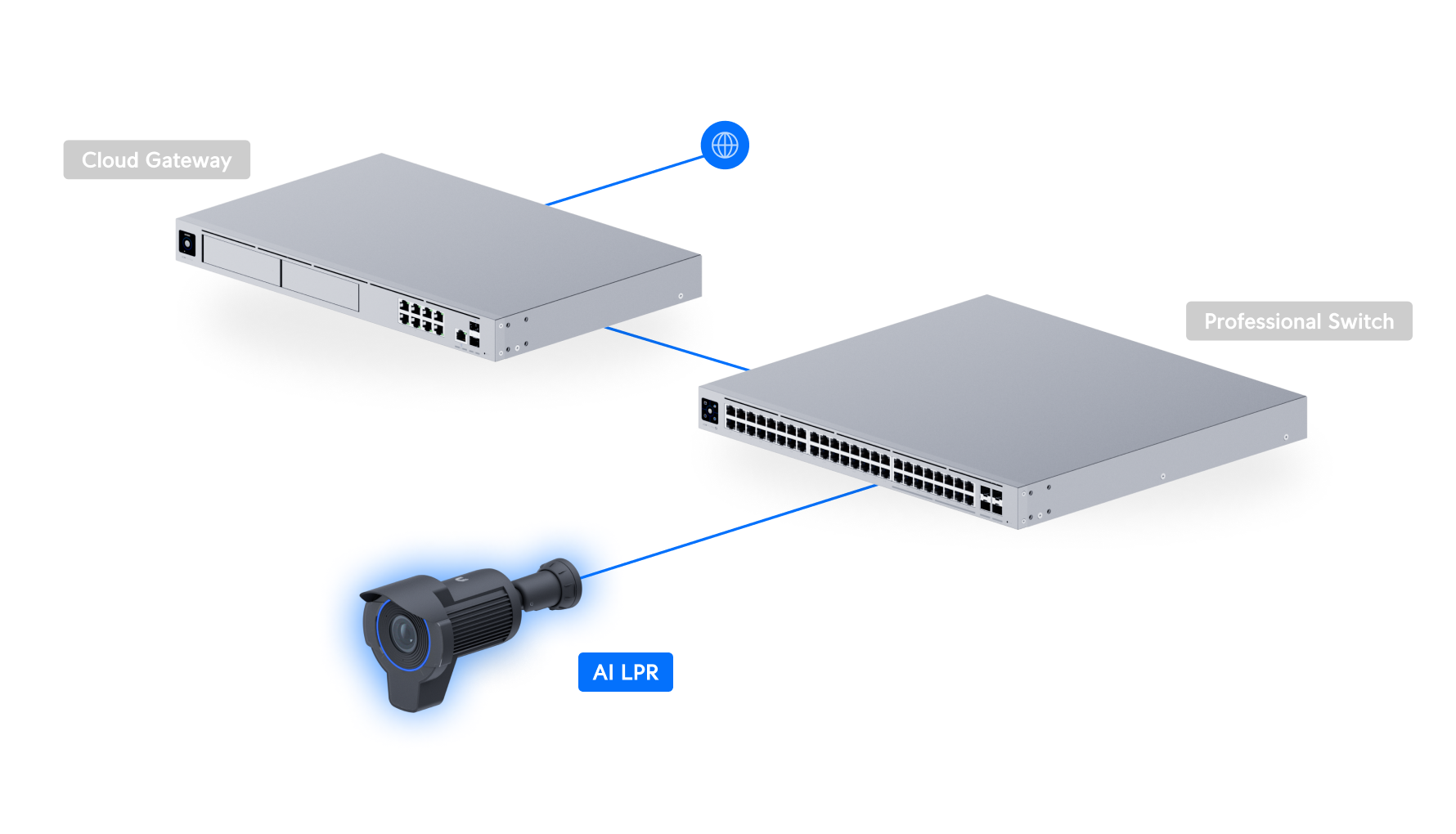

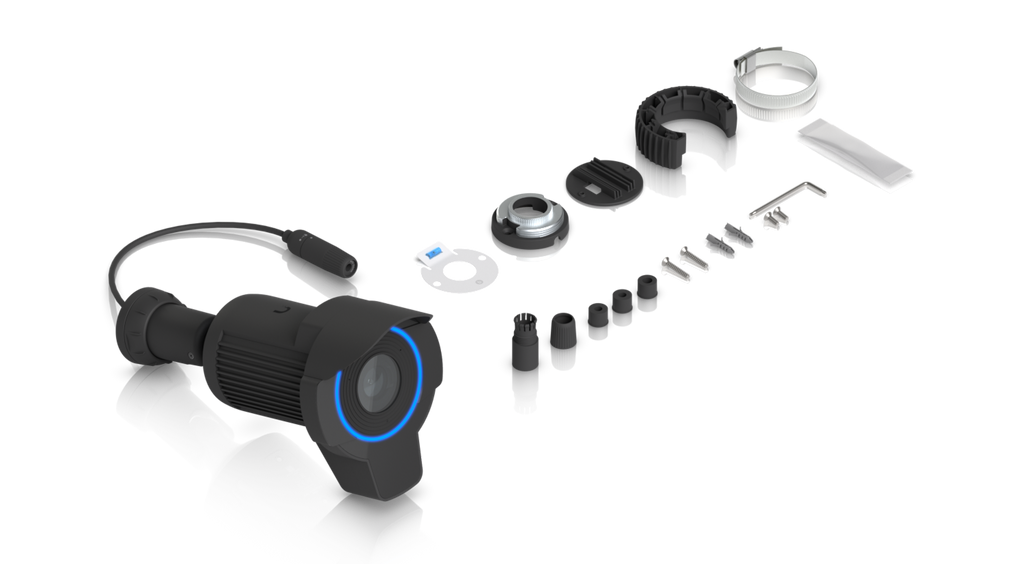

A UniFi Protect NVR (UNVR, UNVR-PRO, or a Dream Machine with Protect), a PoE+ capable switch or injector, outdoor-rated Cat5e or better to the mounting point, and a microSD card of at least 64GB if you want local edge storage; wall, ceiling and pole mounts are included, but a junction box or angled base requires a separate accessory if your mounting surface needs one.
Technical specifications
Overview

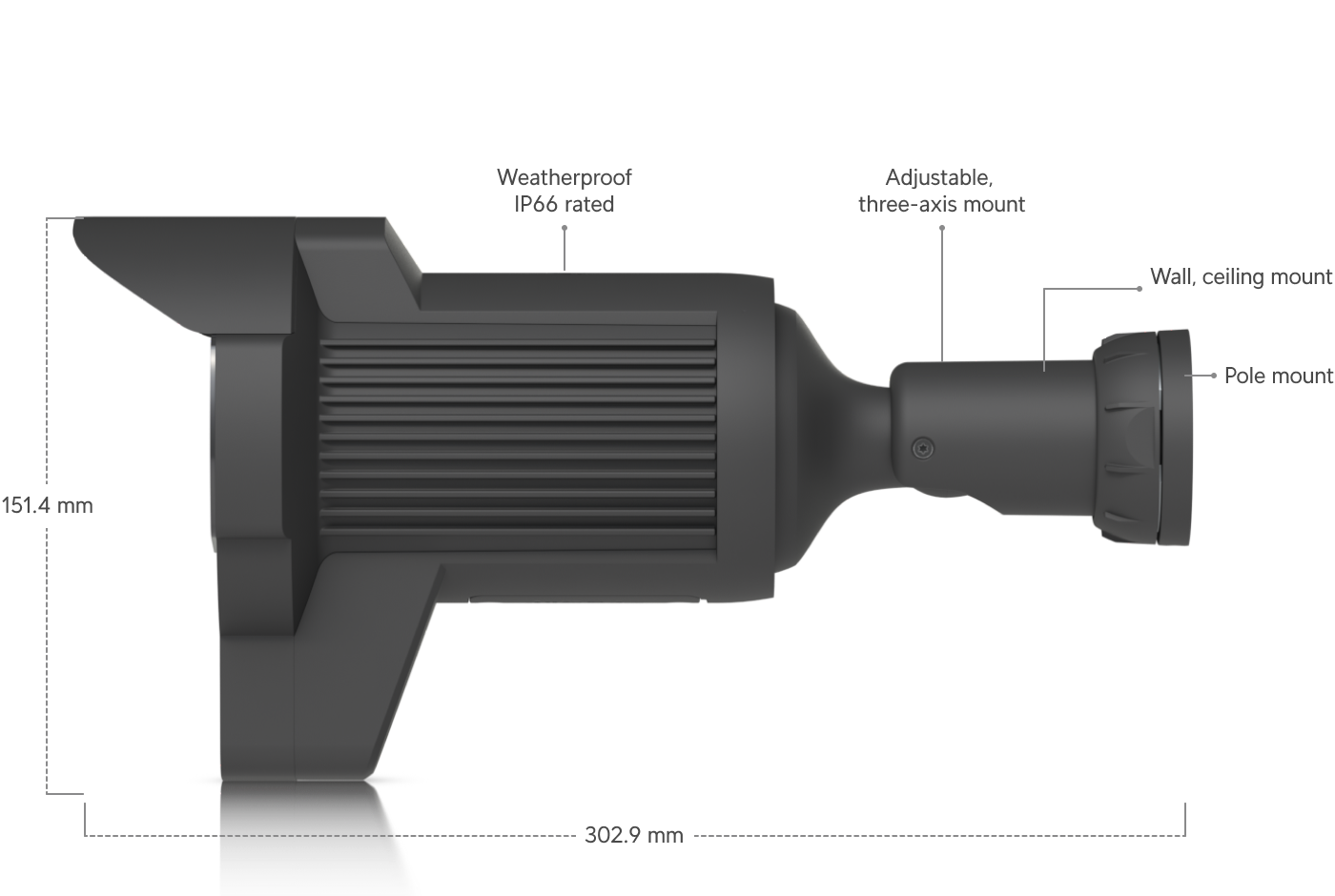

| Dimensions | 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
| IR Night Vision | 15 m (50 ft) |
| Zoom Mode | 3x Optical |
| Resolution | 4K |
| Field of View | Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |

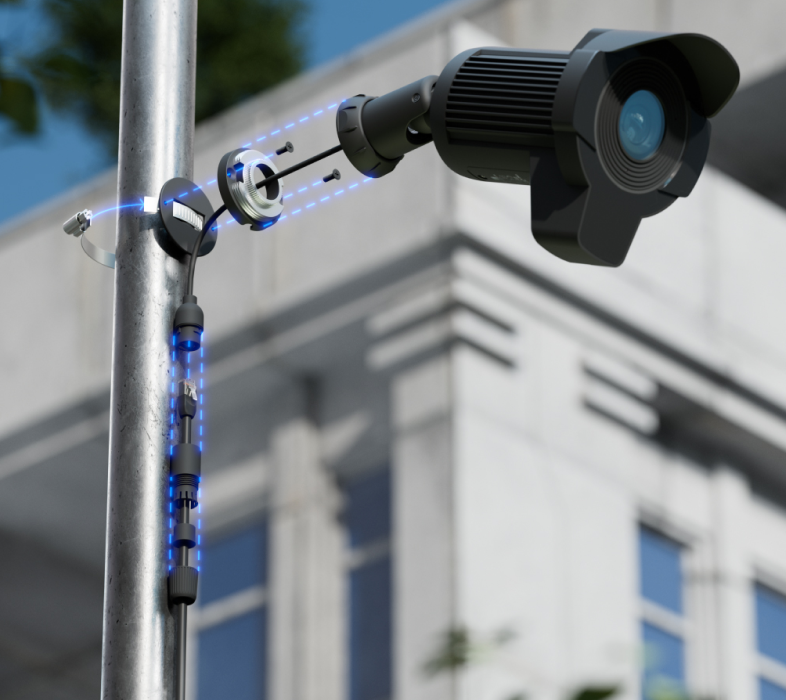

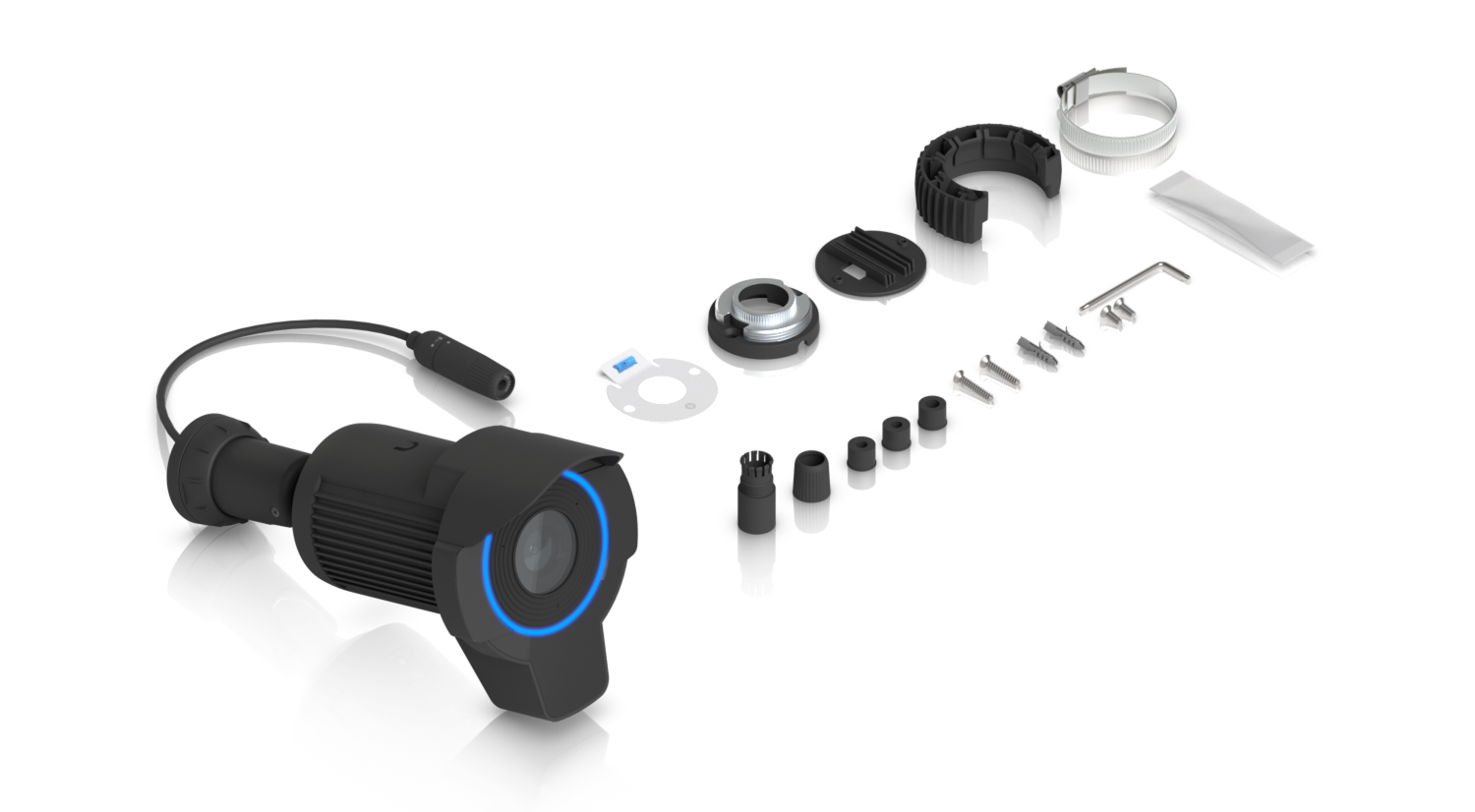

| Mounting | Wall, ceiling, pole mount (Included) Junction box, angled base (Optional) |
Performance
| Networking Interface | GbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| IR Capture Distance | 15 m (50 ft) |
| LPR Night Mode | LPR optimization filter |
Hardware
| Max. Power Consumption | 25.5W |
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |

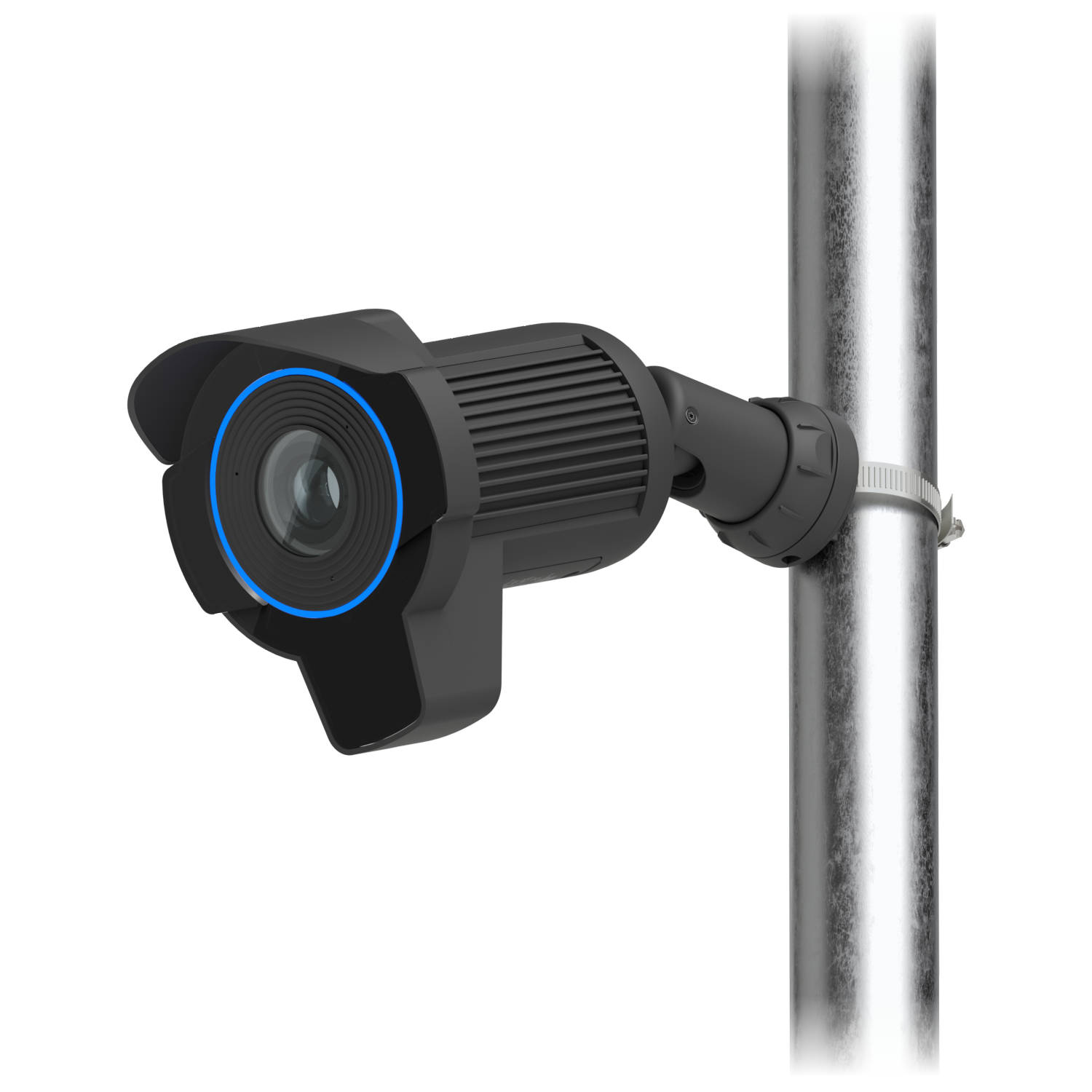

| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Aluminum Alloy |

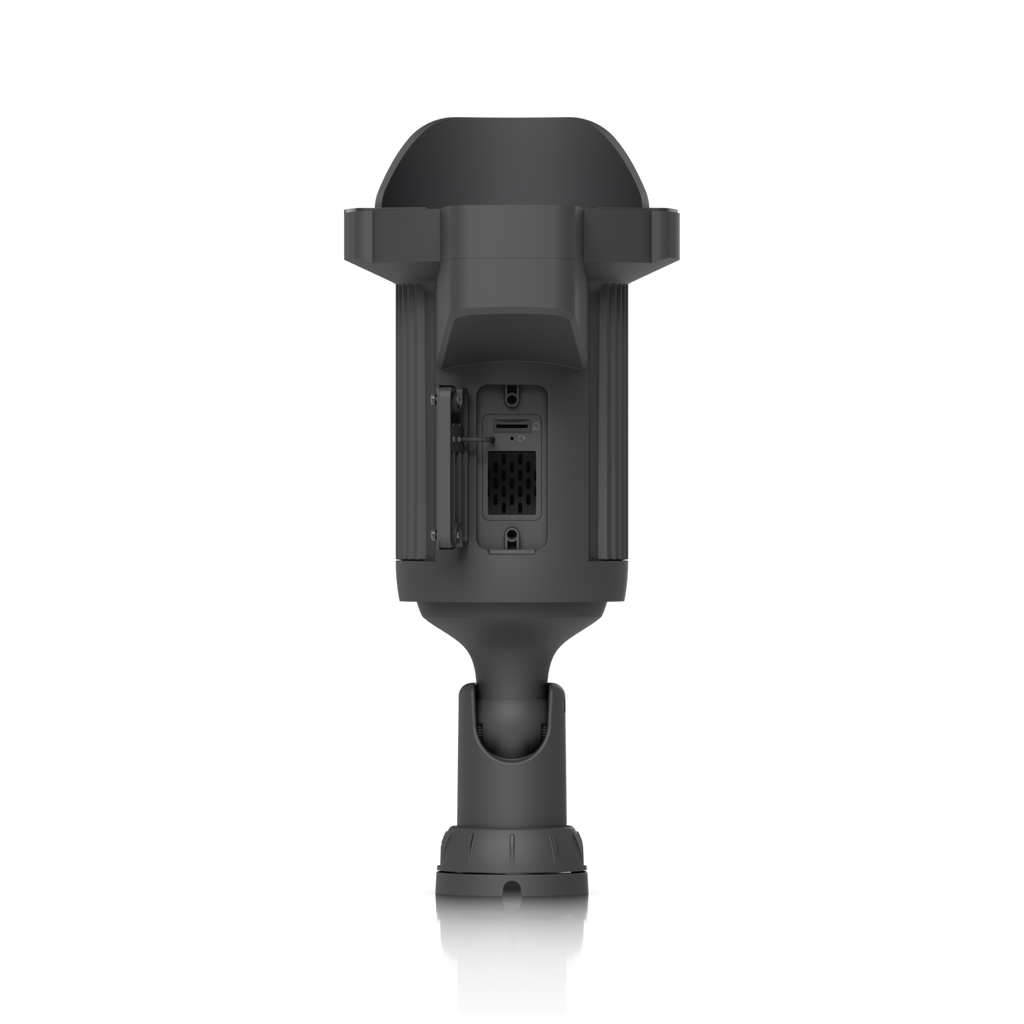

| Expansion Slot | Micro SD memory card |
| Button | (1) Factory reset |

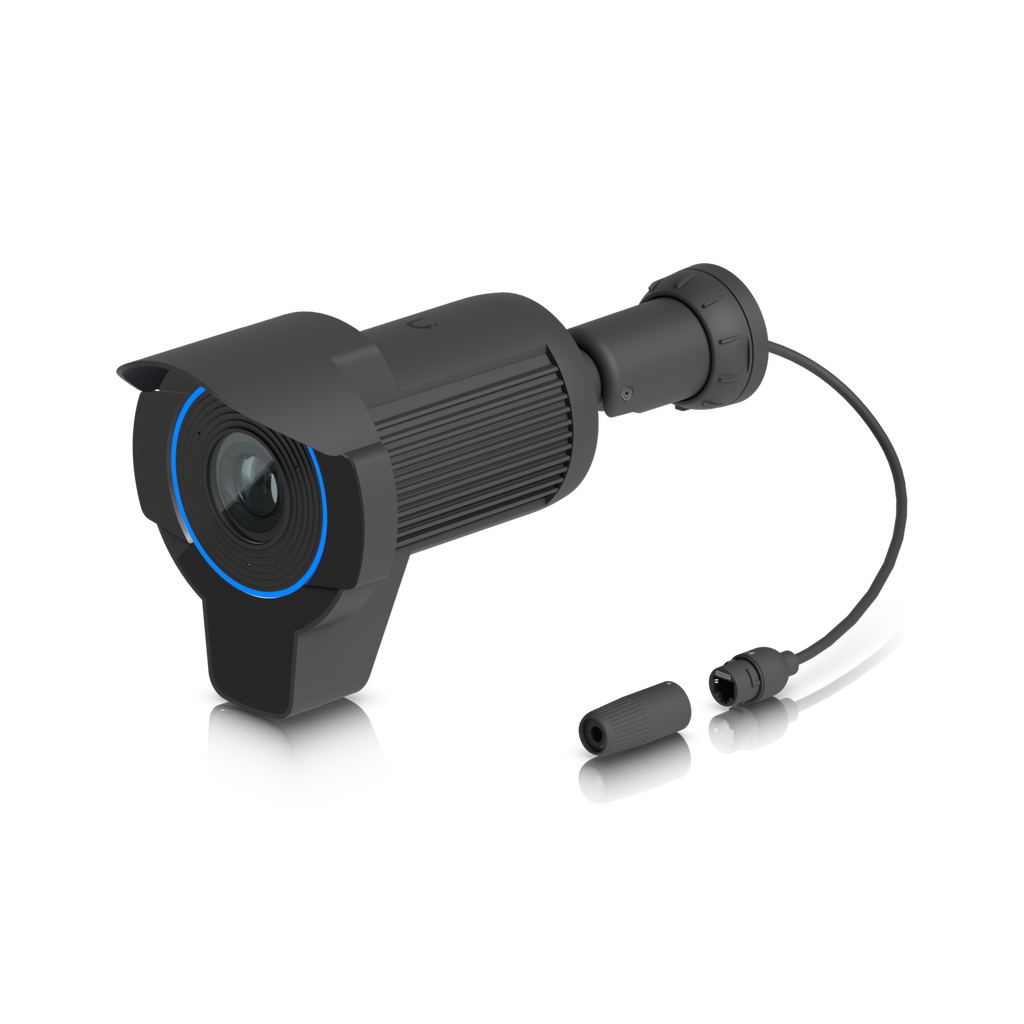

| Cable Connector Type | RJ45 |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
