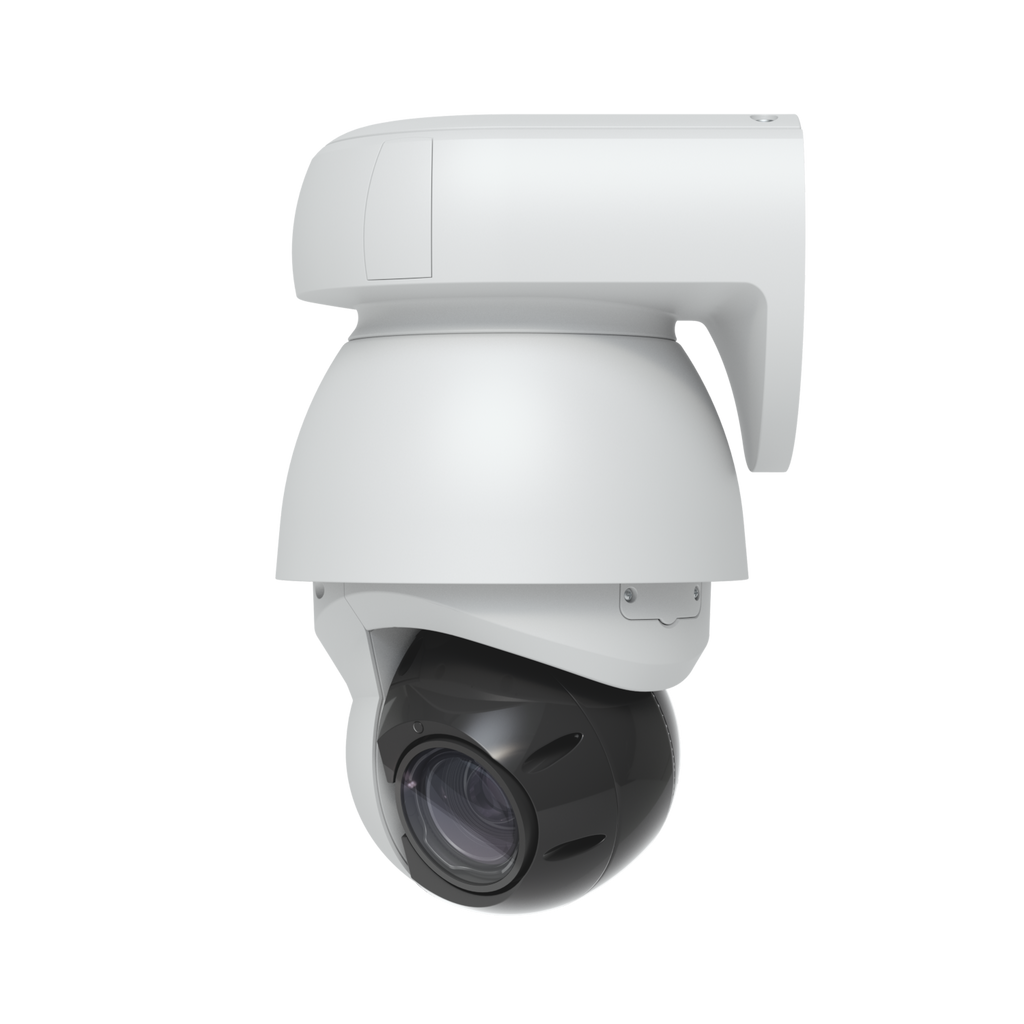

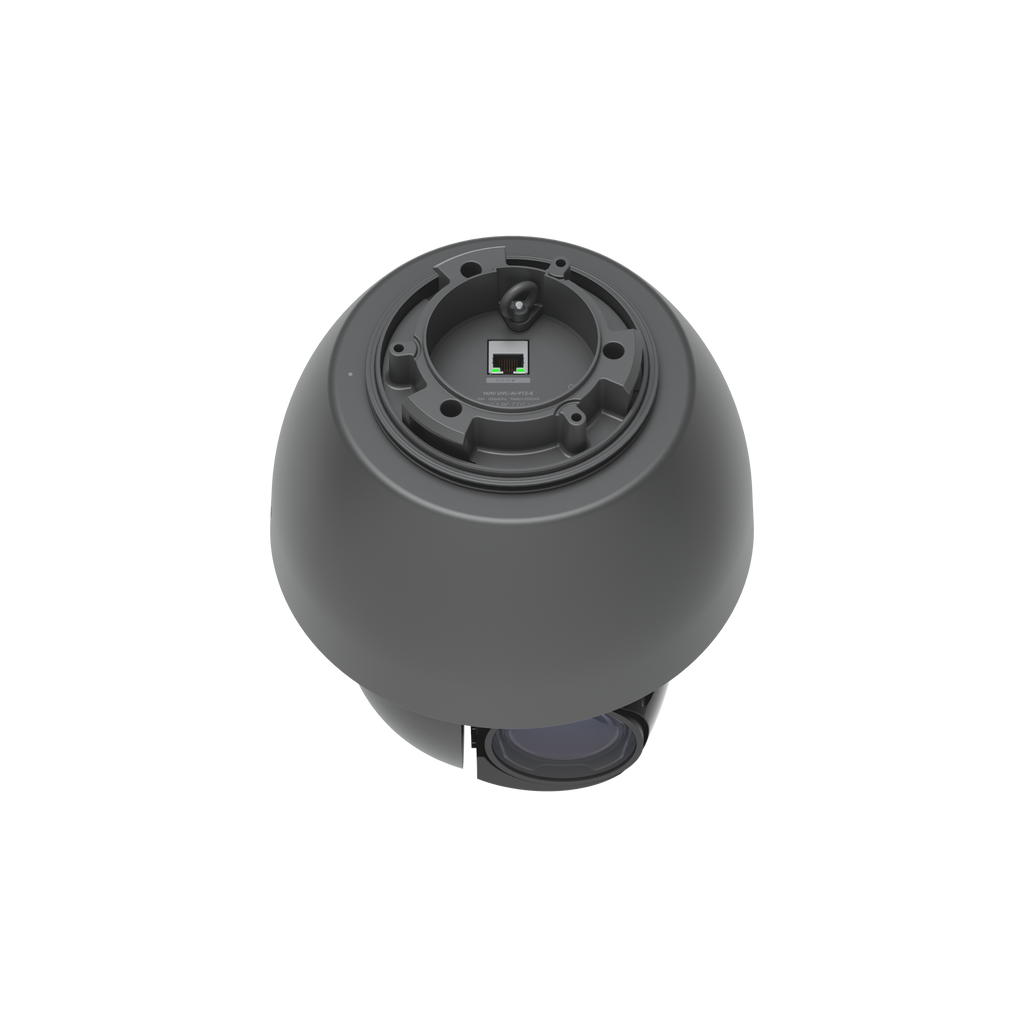

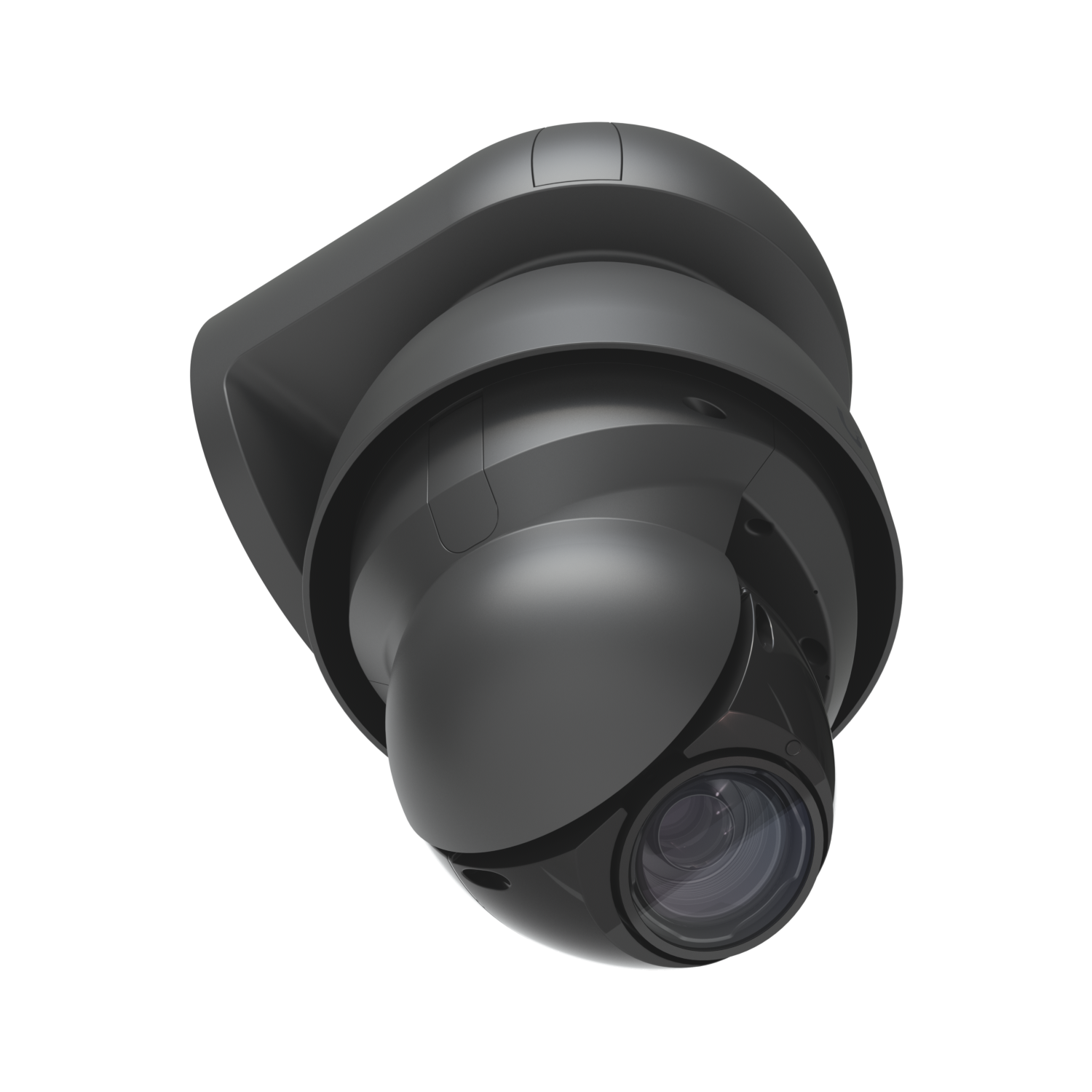

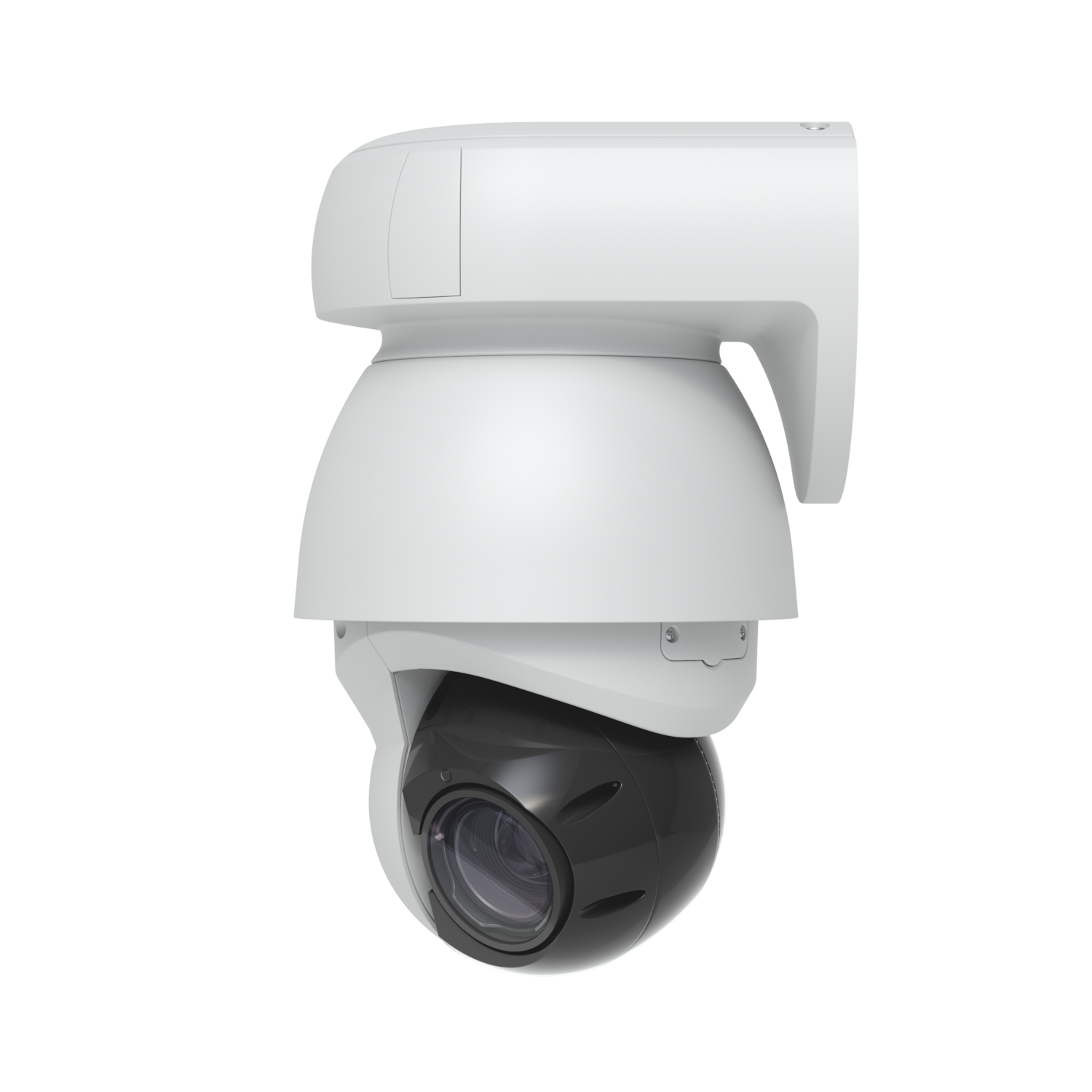

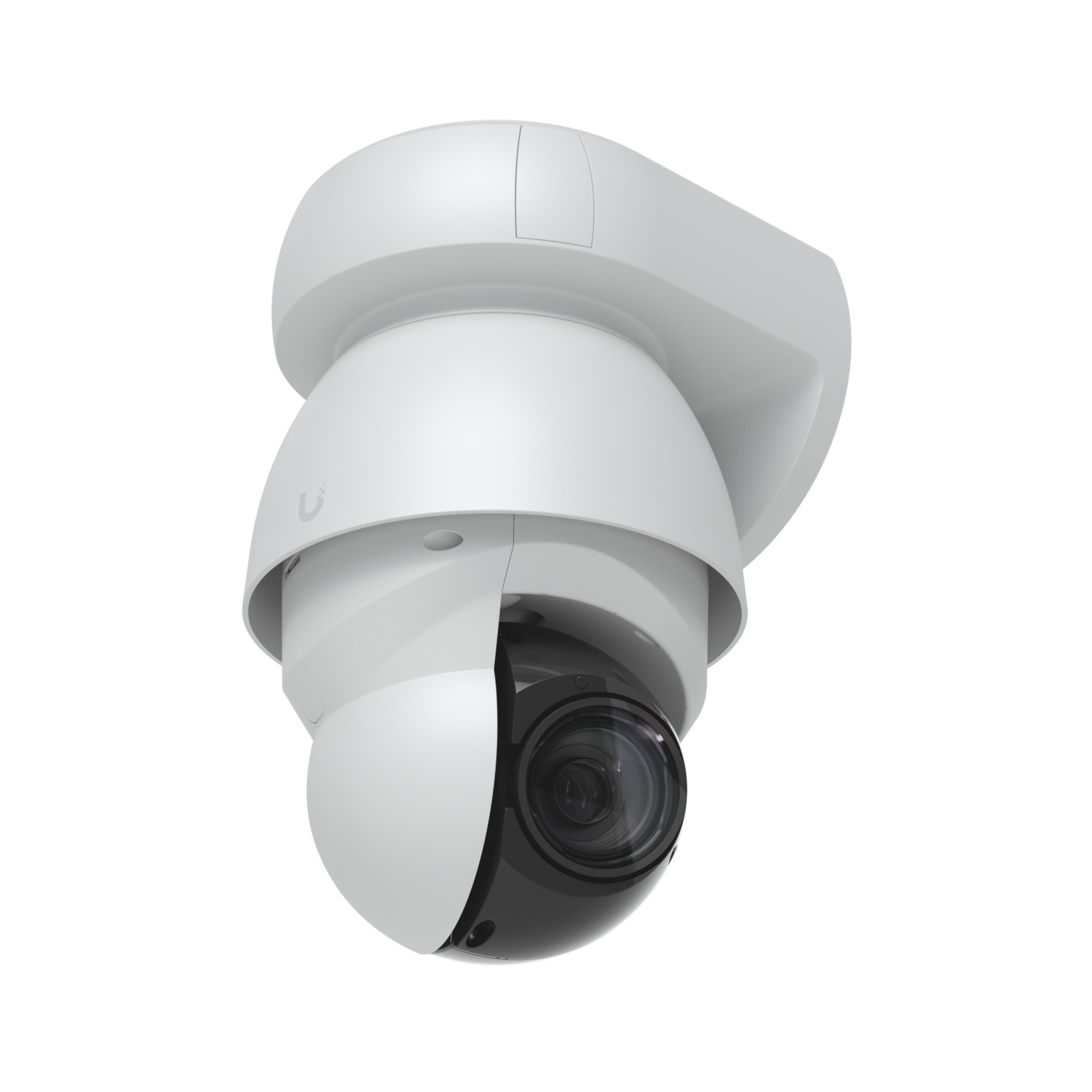

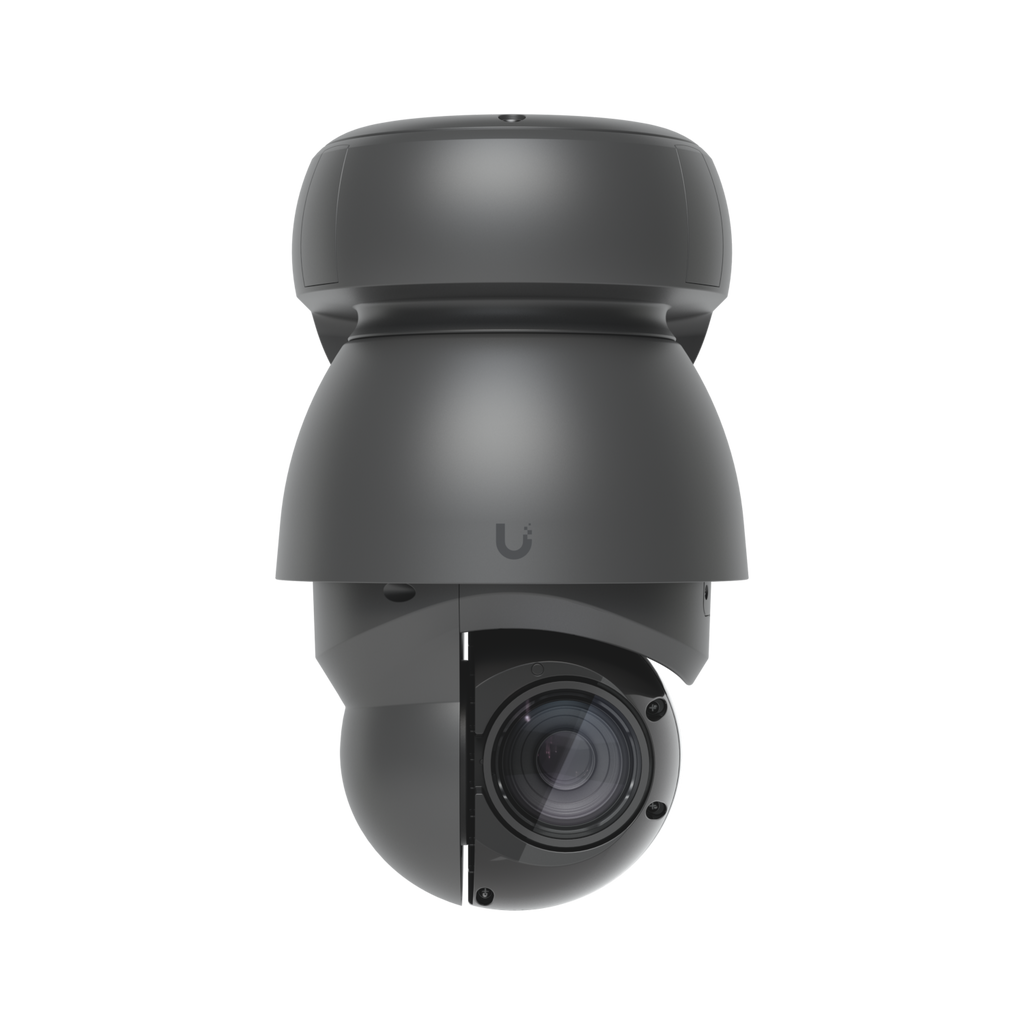

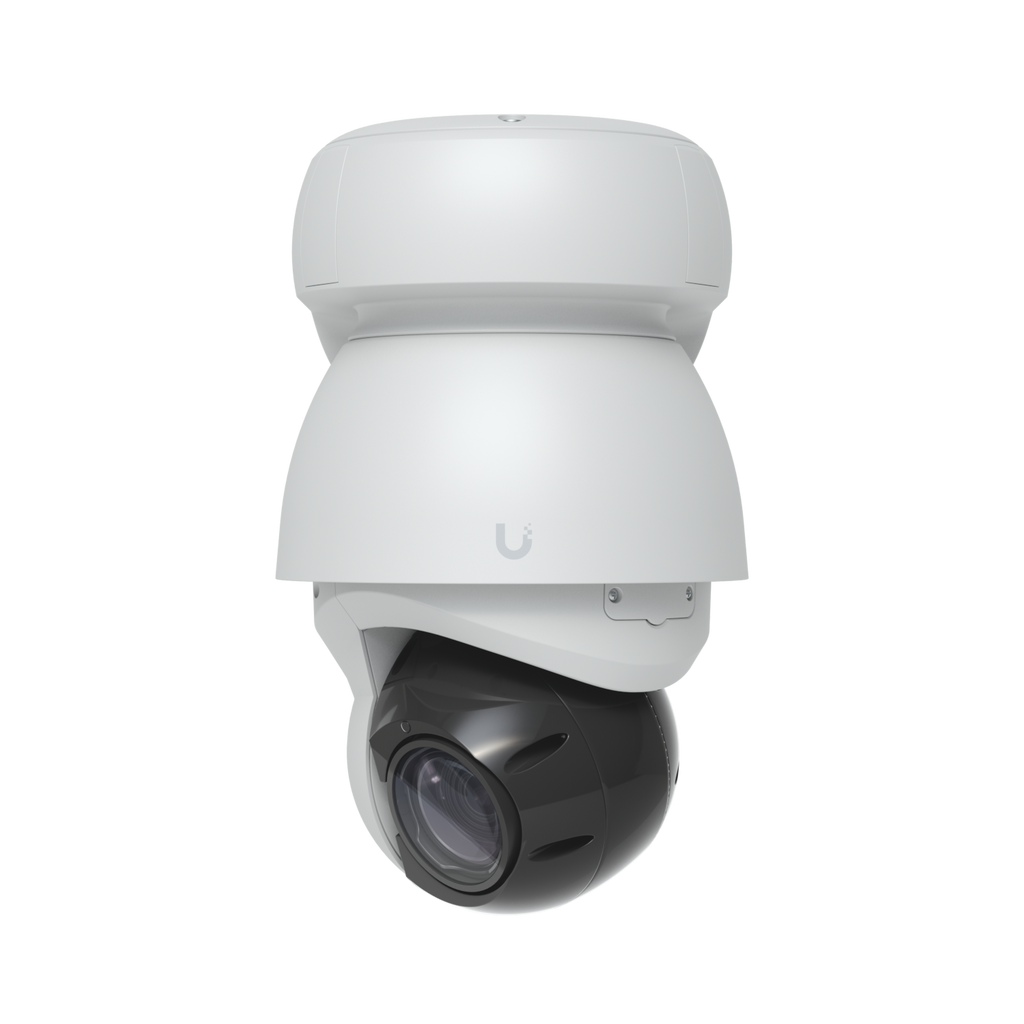

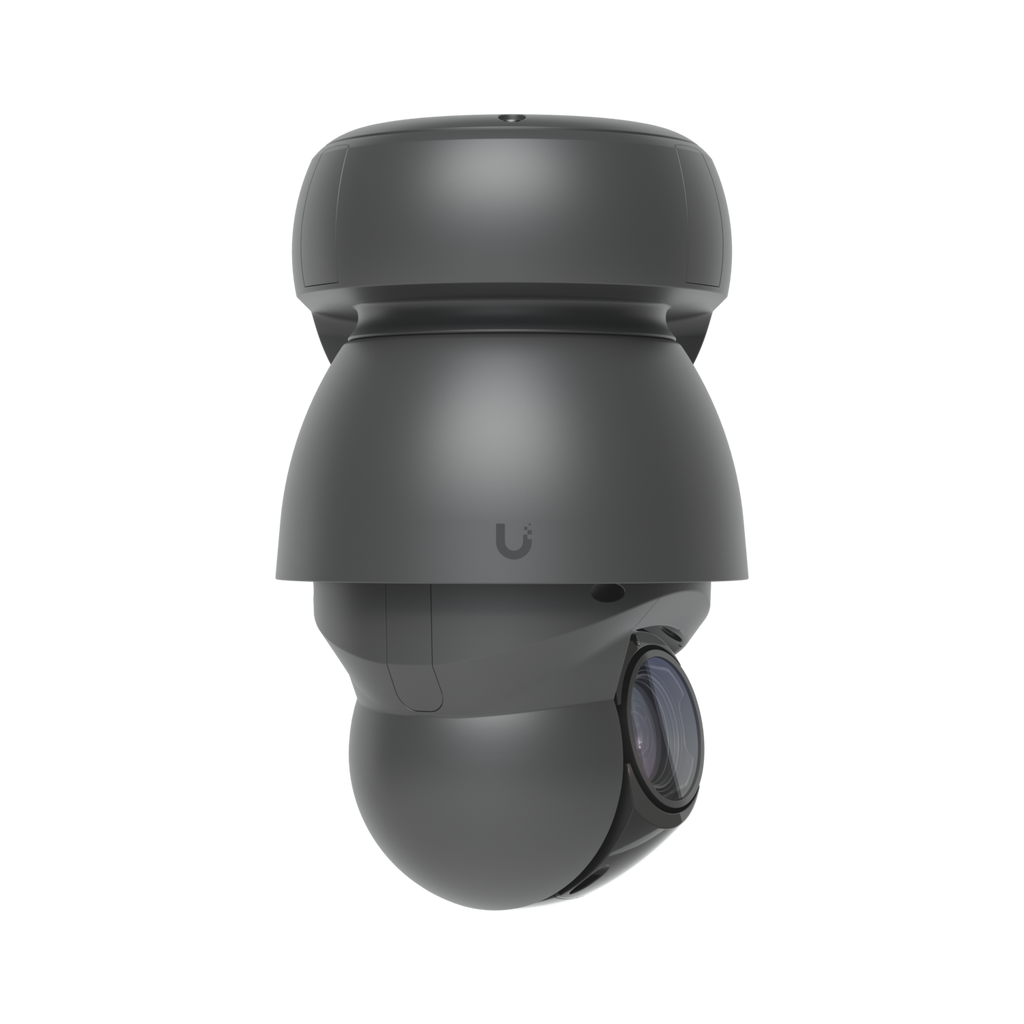

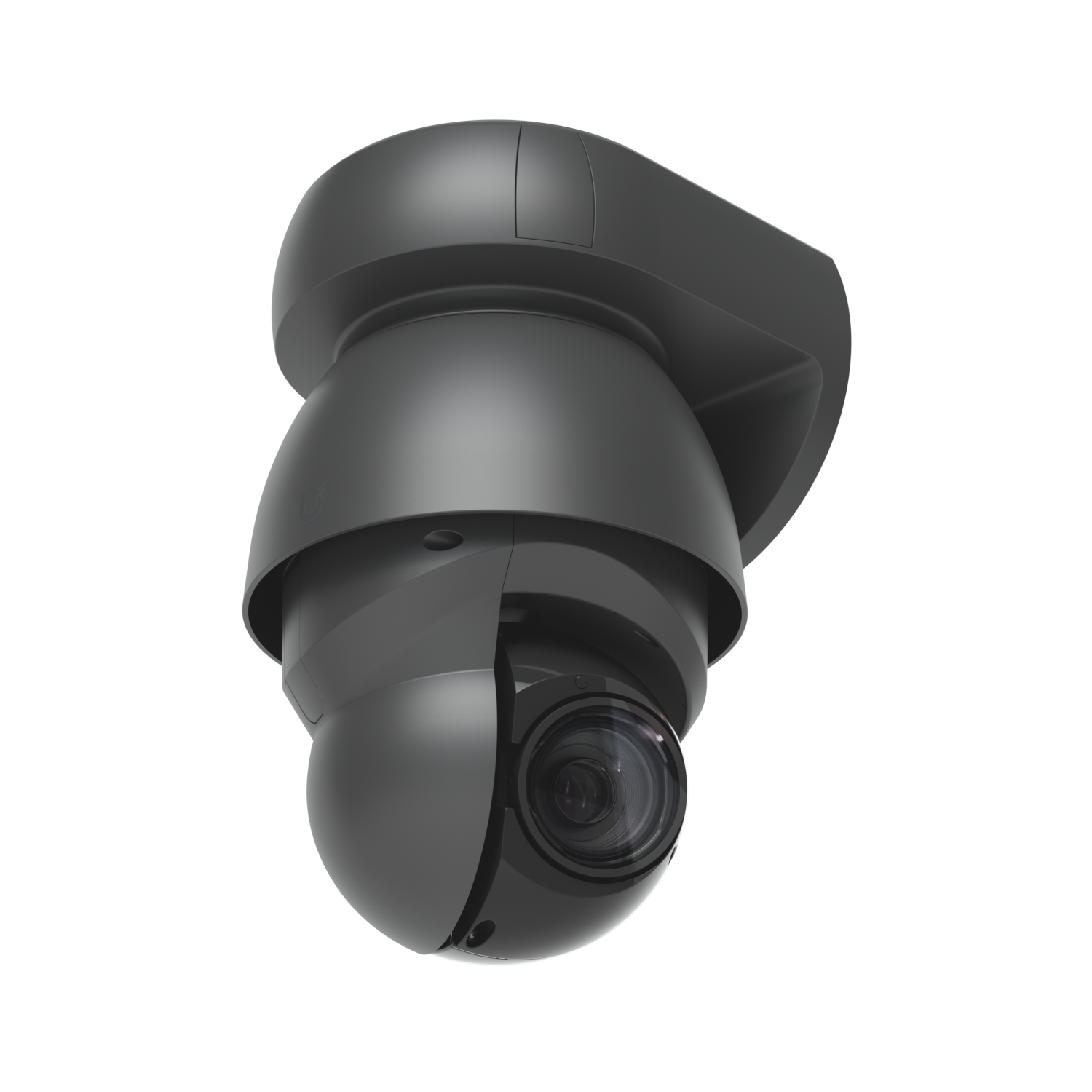

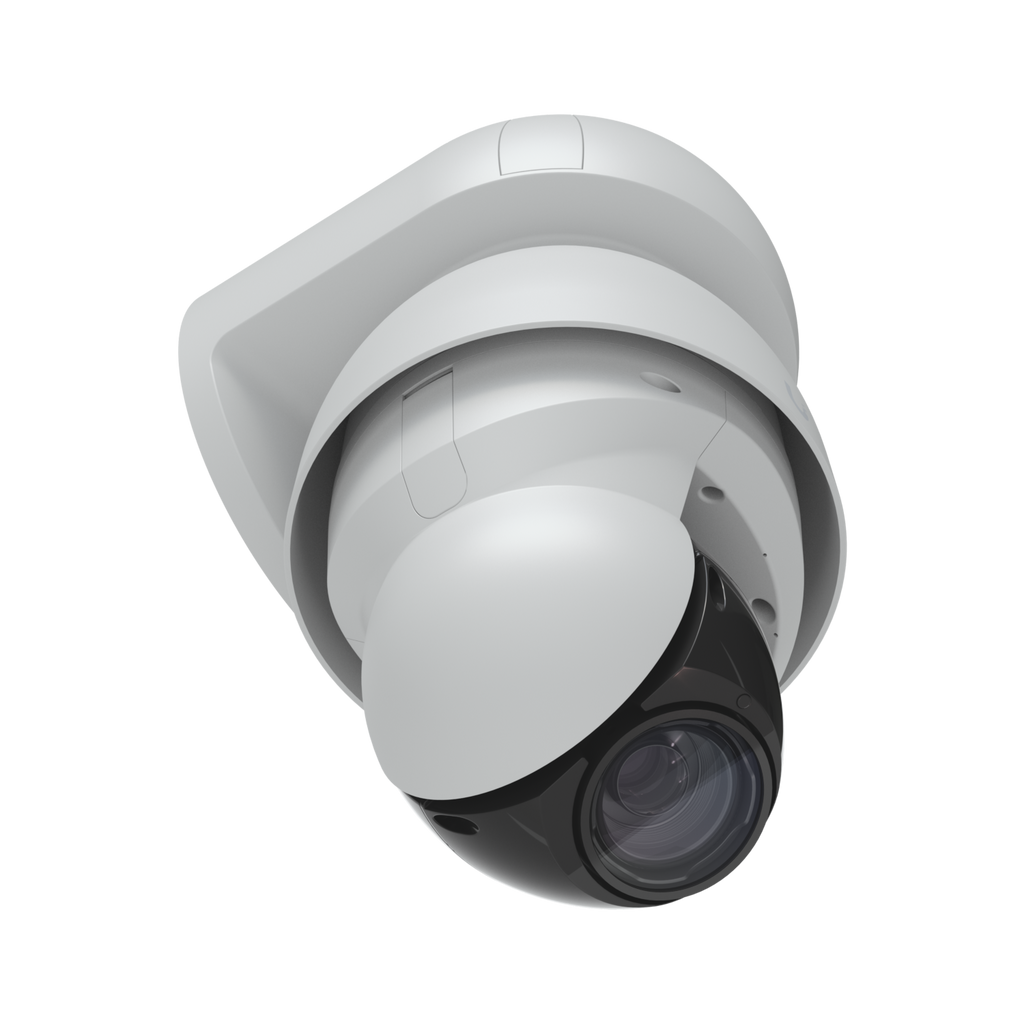

Ubiquiti UVC-AI-PTZ | AI PTZ Camera | 4K | IP66 | 22x Optical
White
$2,920.00
Ubiquiti UVC-AI-PTZ | AI PTZ Camera | 4K | IP66 | 22x Optical
$2,920.00
AI PTZ Camera
Technical Specifications
Overview

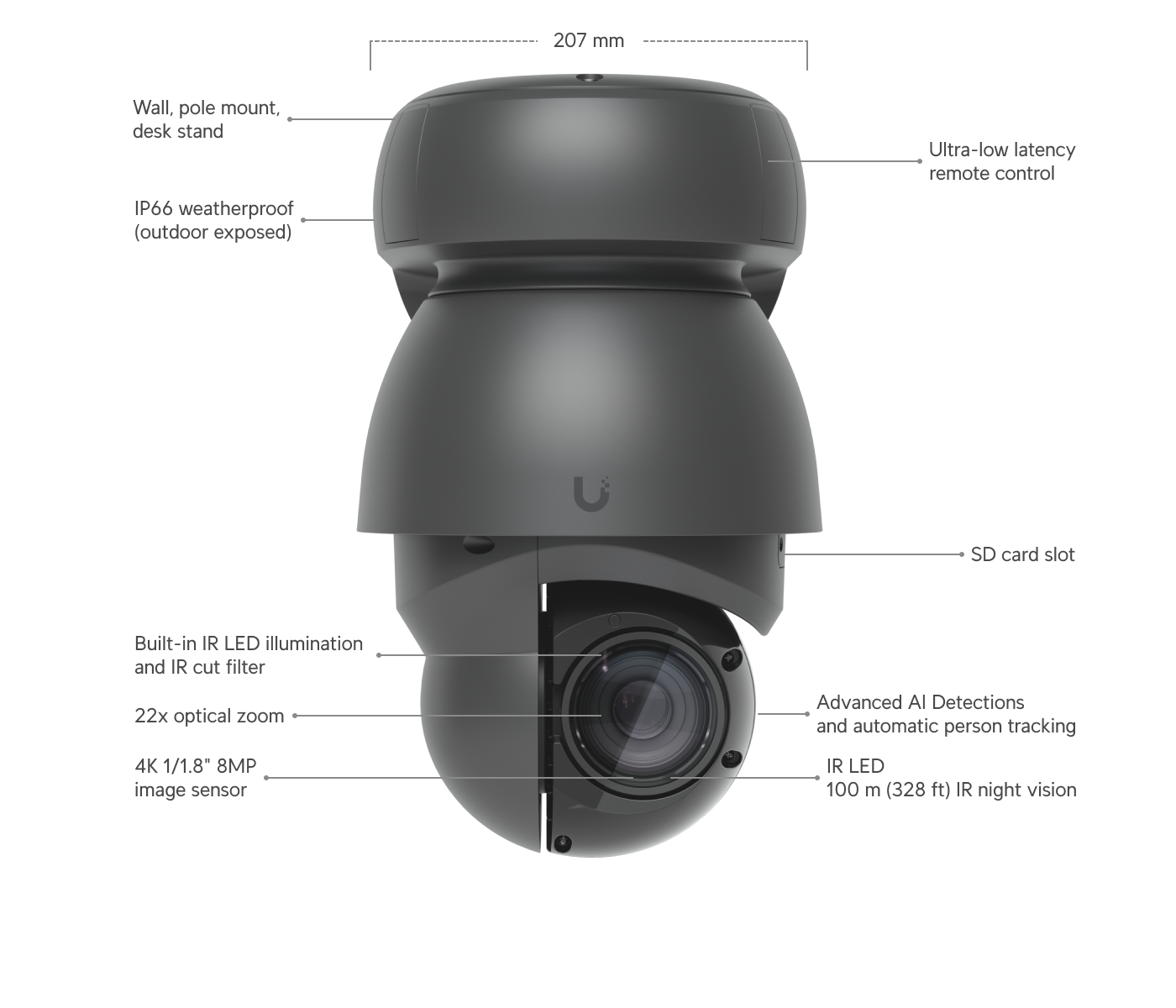

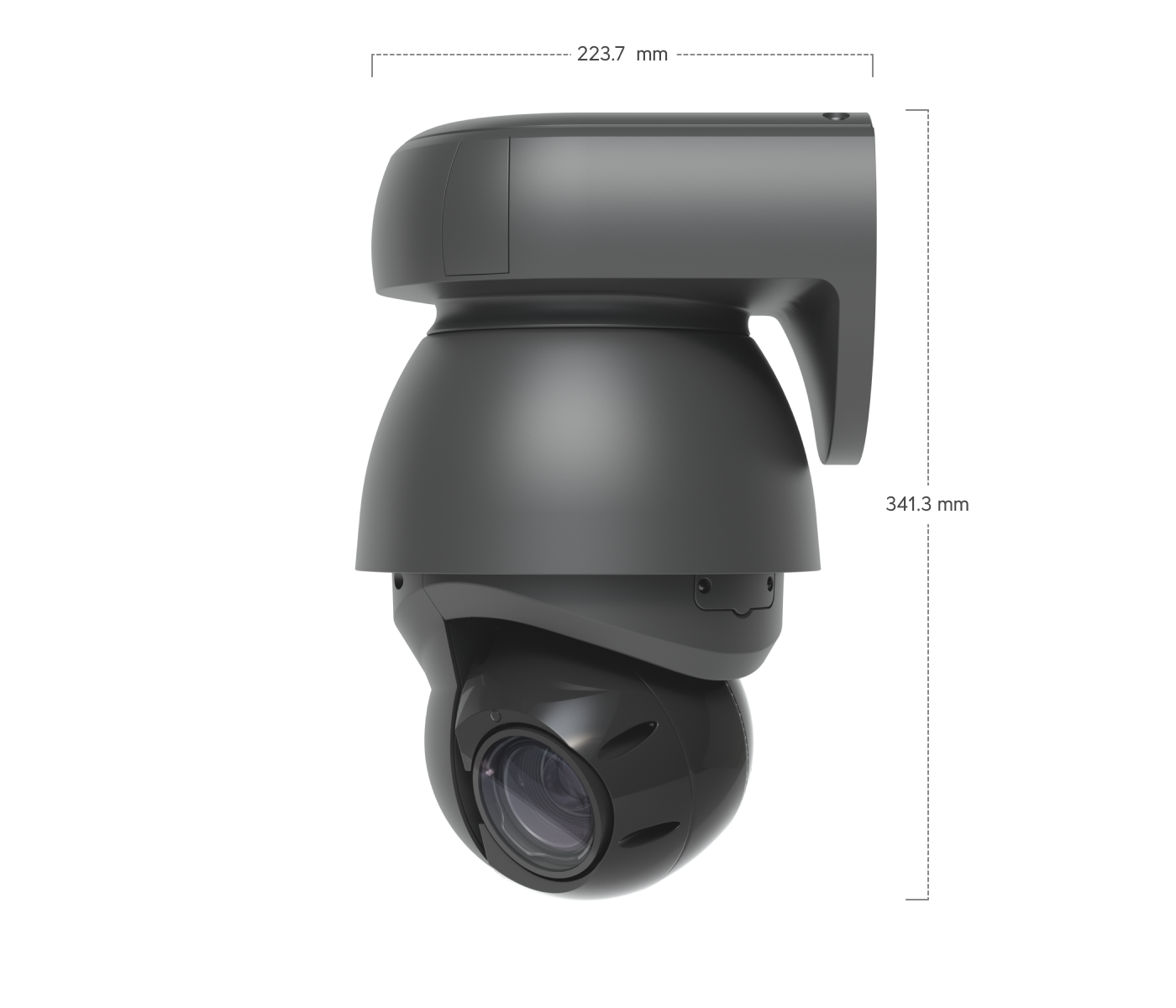

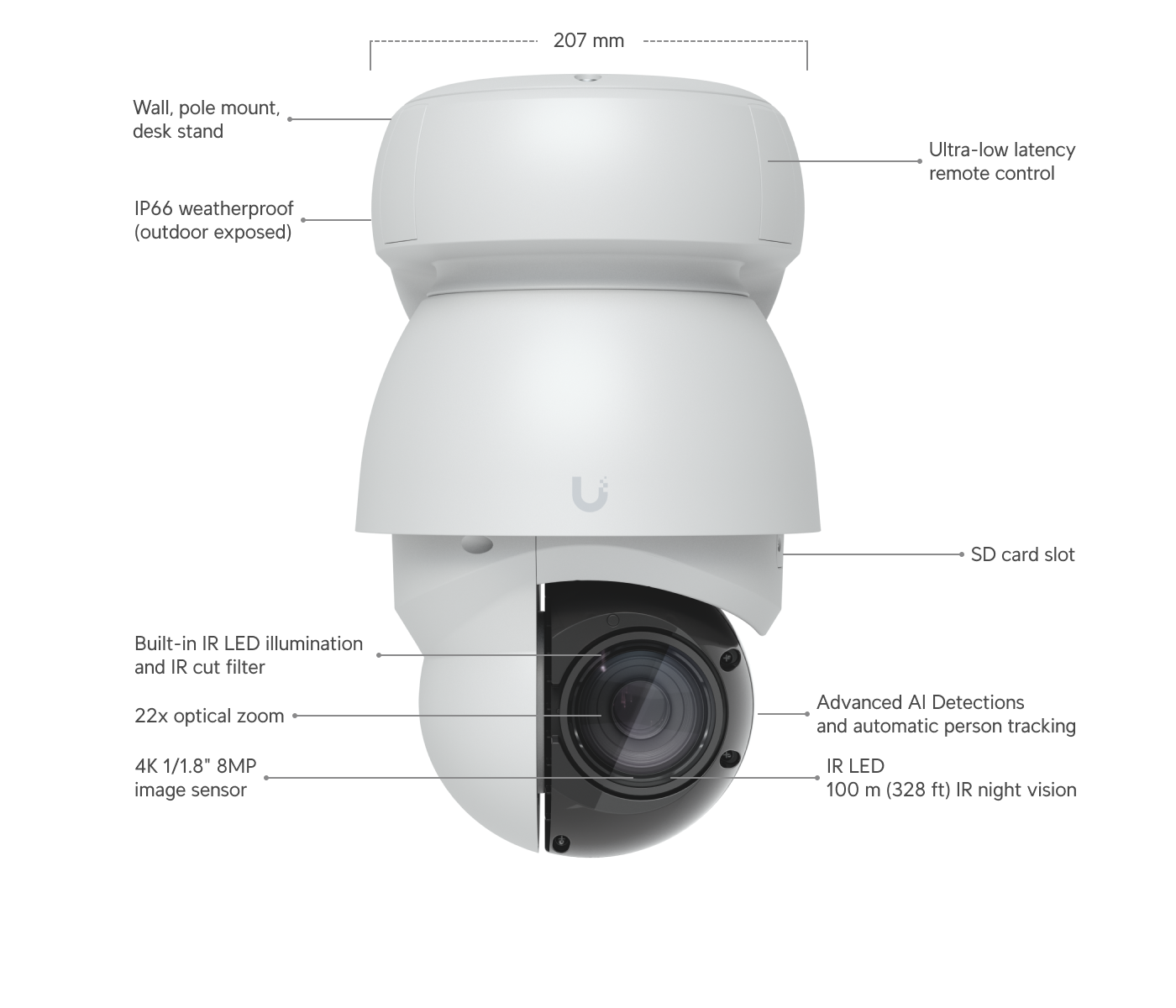

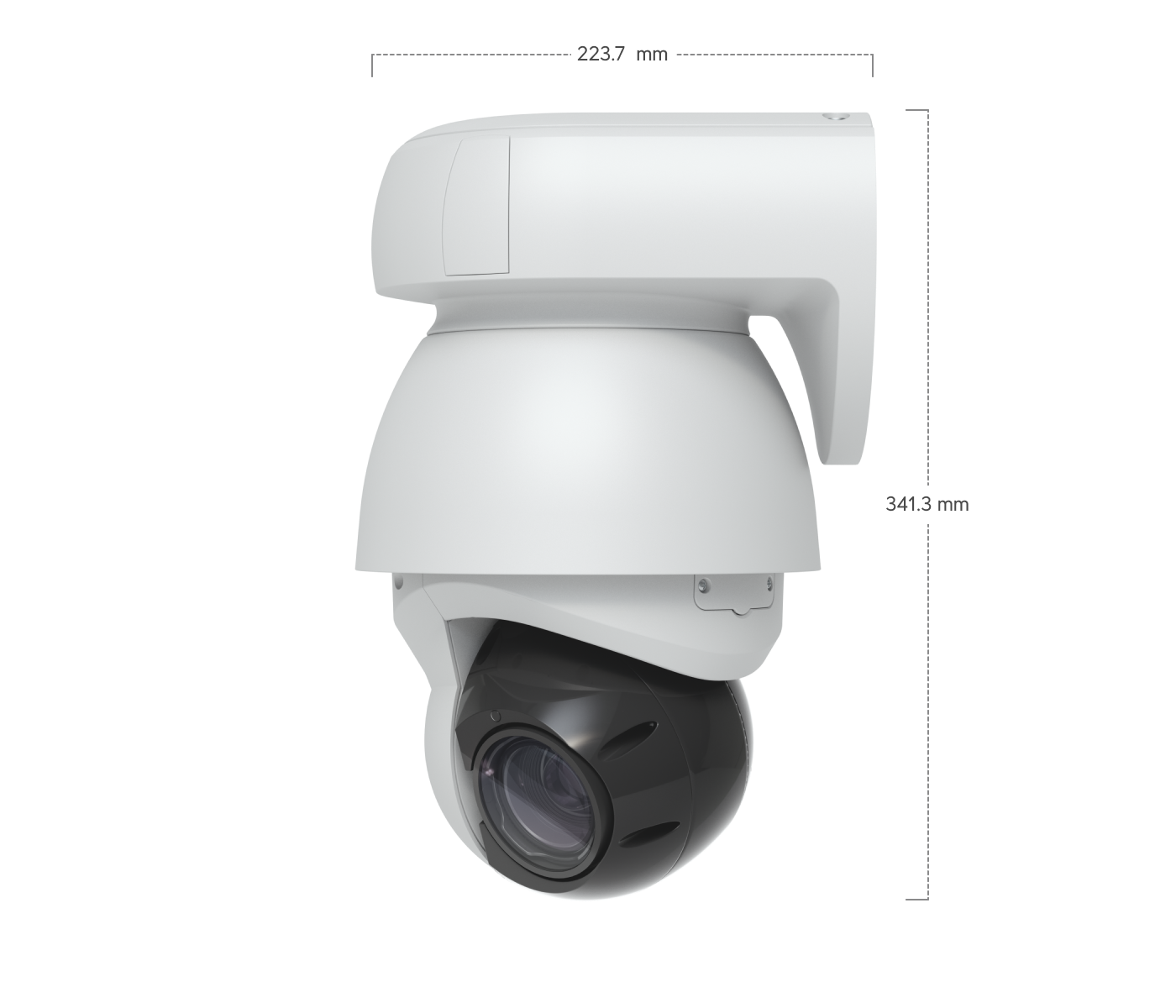

| Dimensions | 207 x 223.7 x 341.3 mm (8.2 x 8.8 x 13.4") |
| IR Night Vision | 100 m (328 ft) |
| Zoom Mode | 22x Optical |
| Face Recognition | True |
| License Plate Recognition | True |
| Smart Detections (People, Vehicles, Animals) | True |
| Resolution | 4K |
| Field of View | Wide: H: 59.8°, V: 44.4° , D: 70° Tele: H: 3°, V: 2.24° , D: 3.76° |
| Pan-Tilt Range | Pan: 360° (Endless) Tilt: 120° |
| Weatherproofing | IP66 |

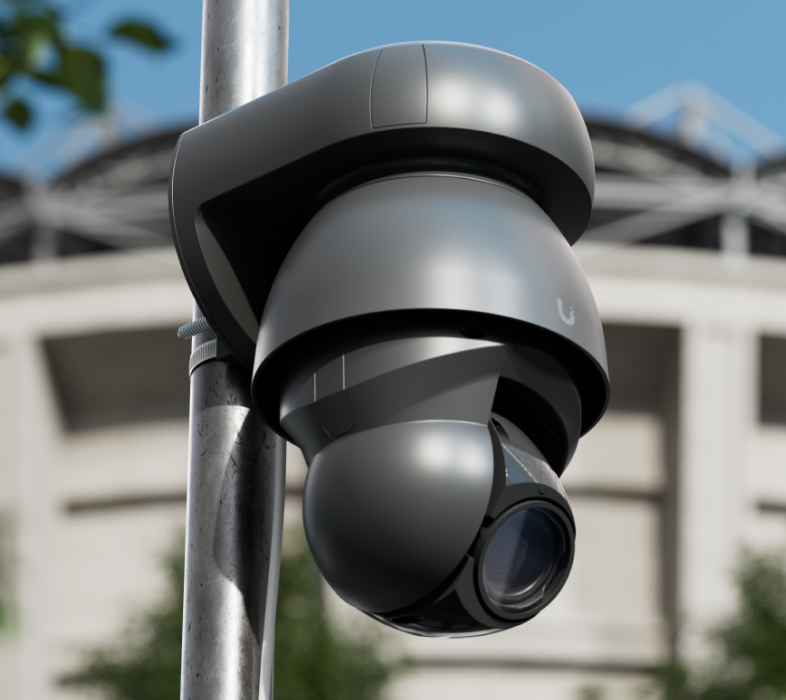

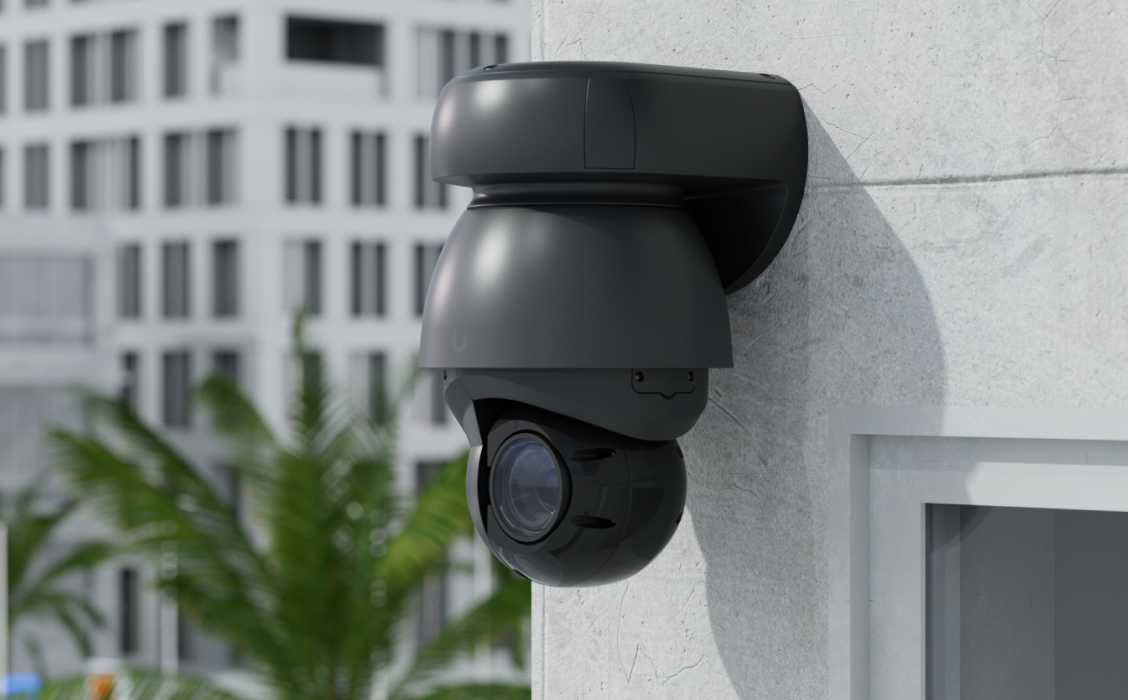

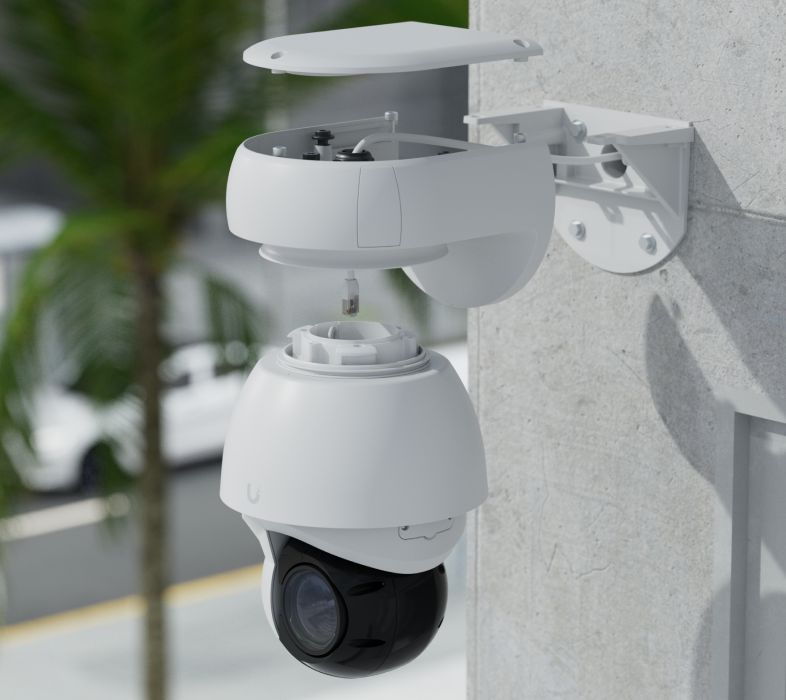

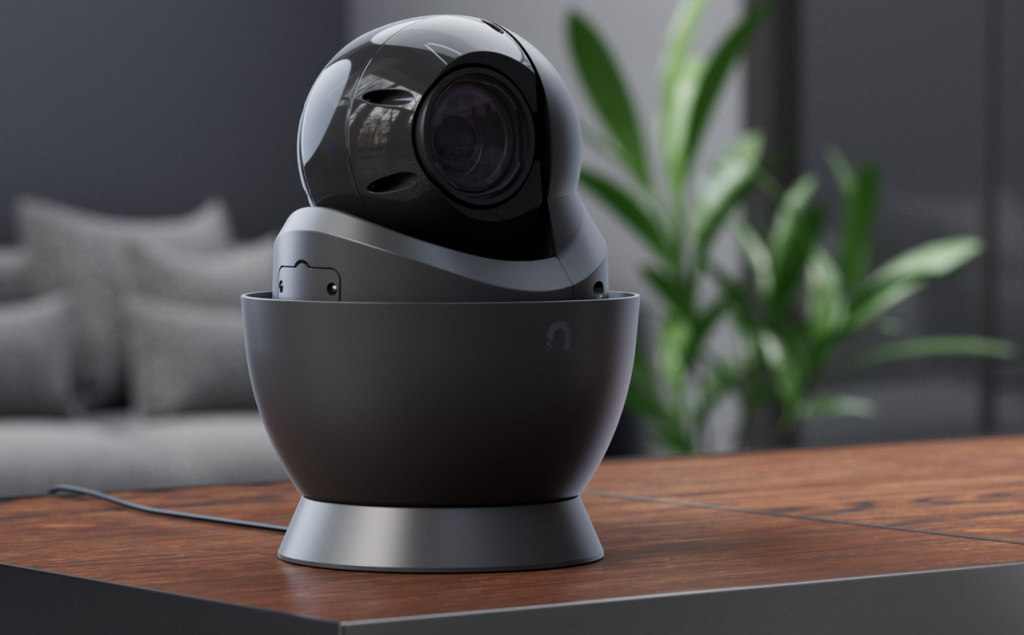

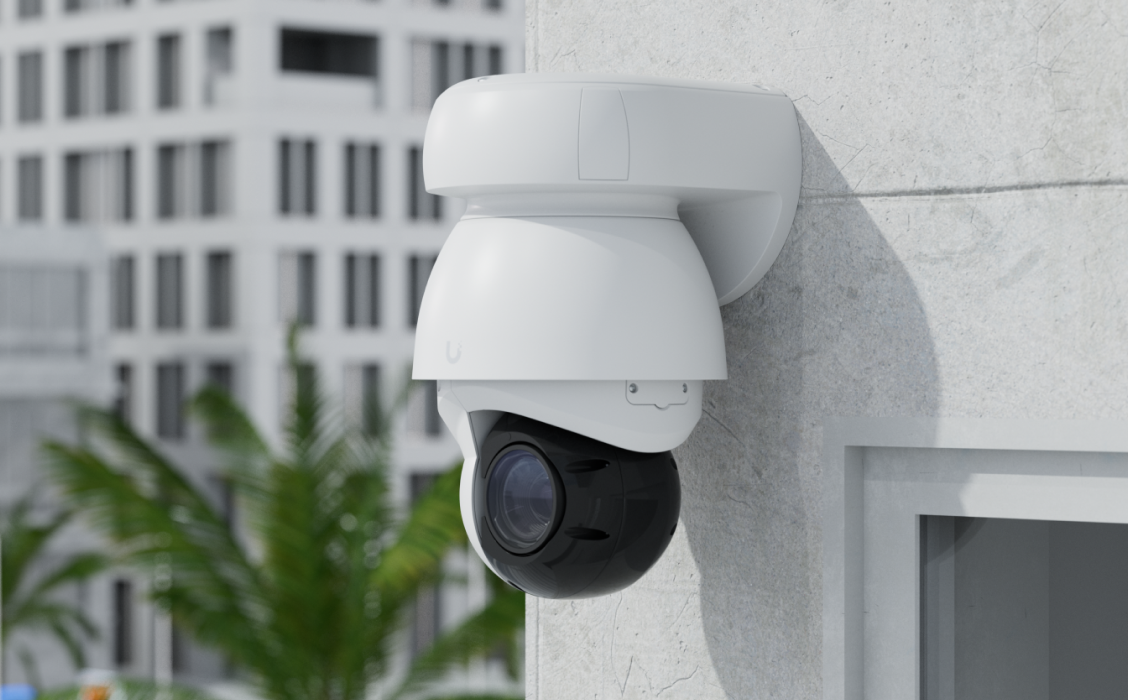

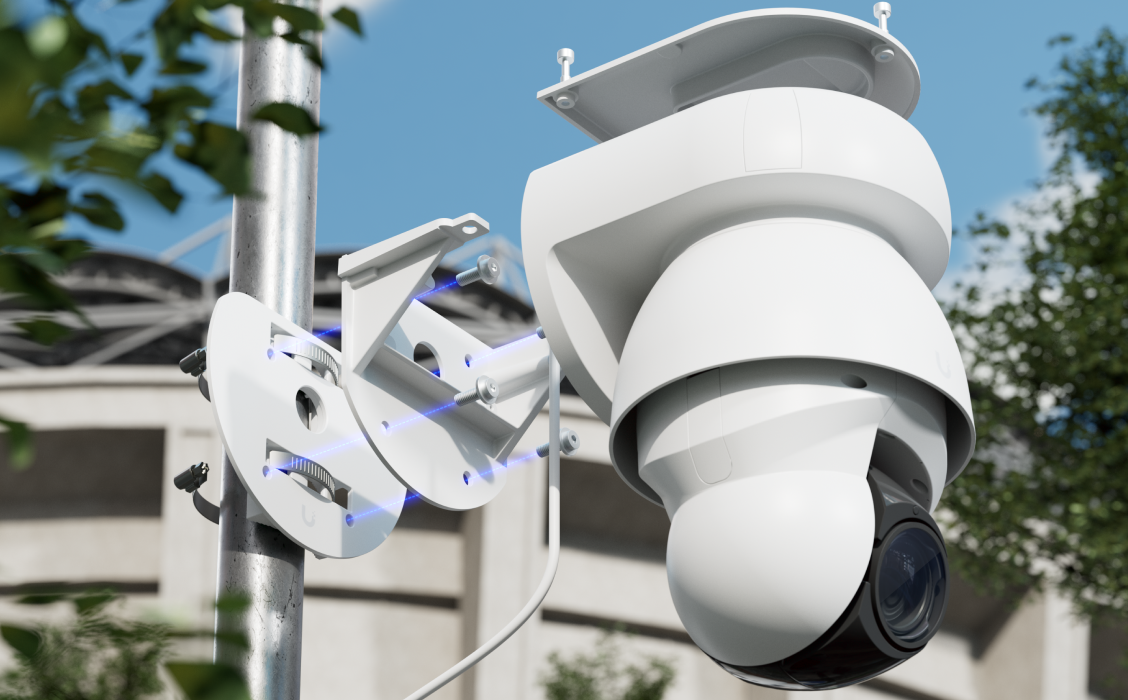

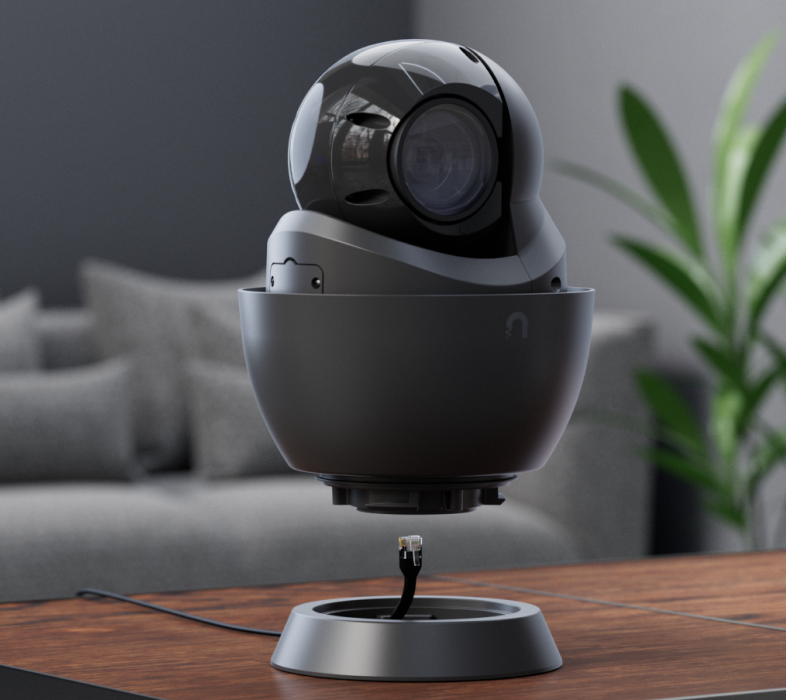

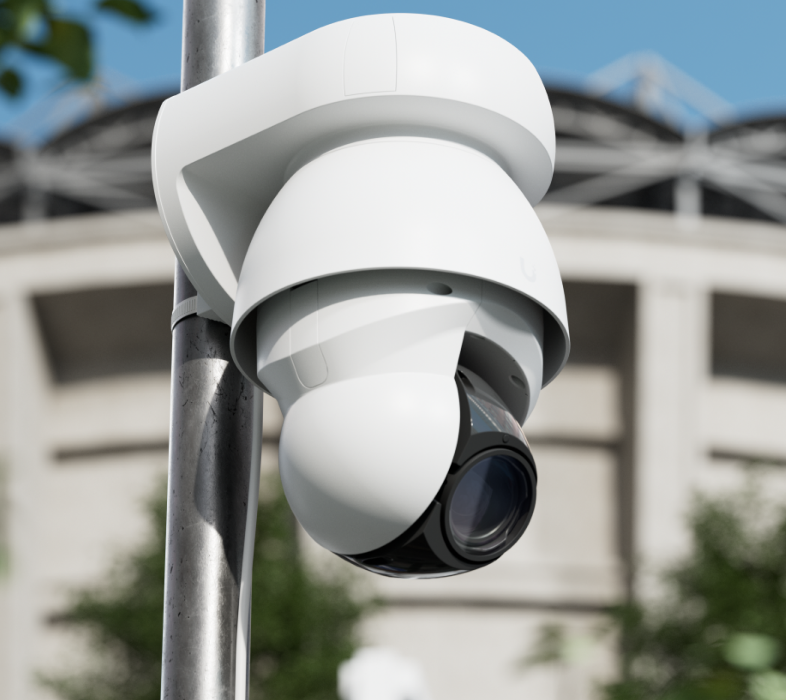

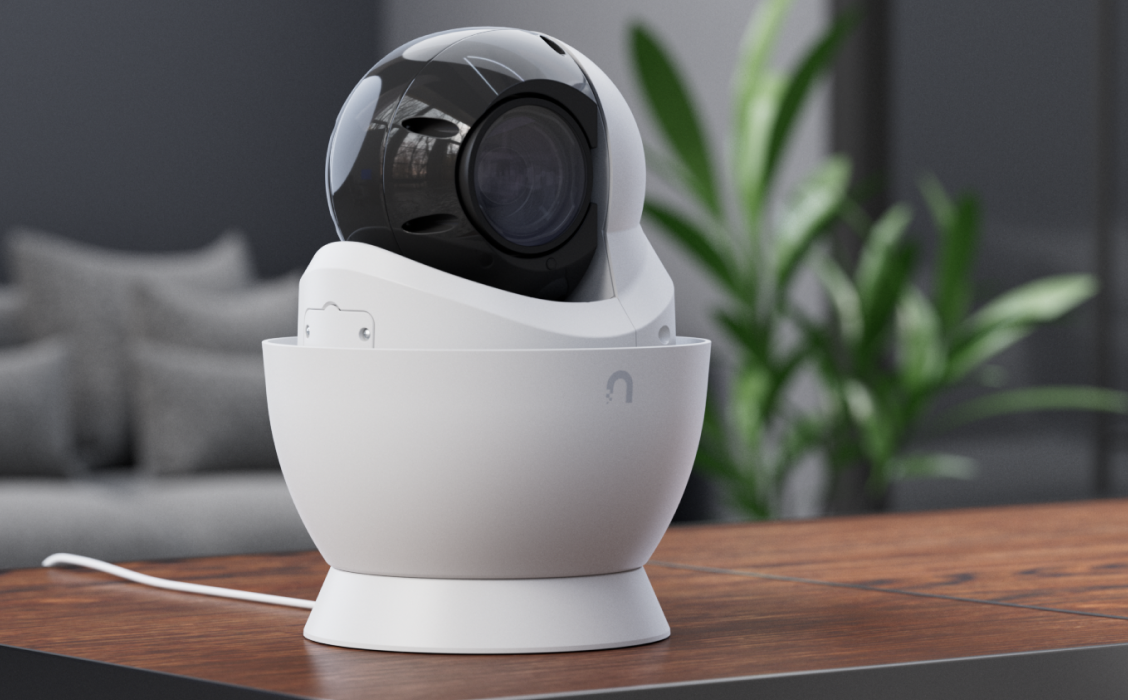

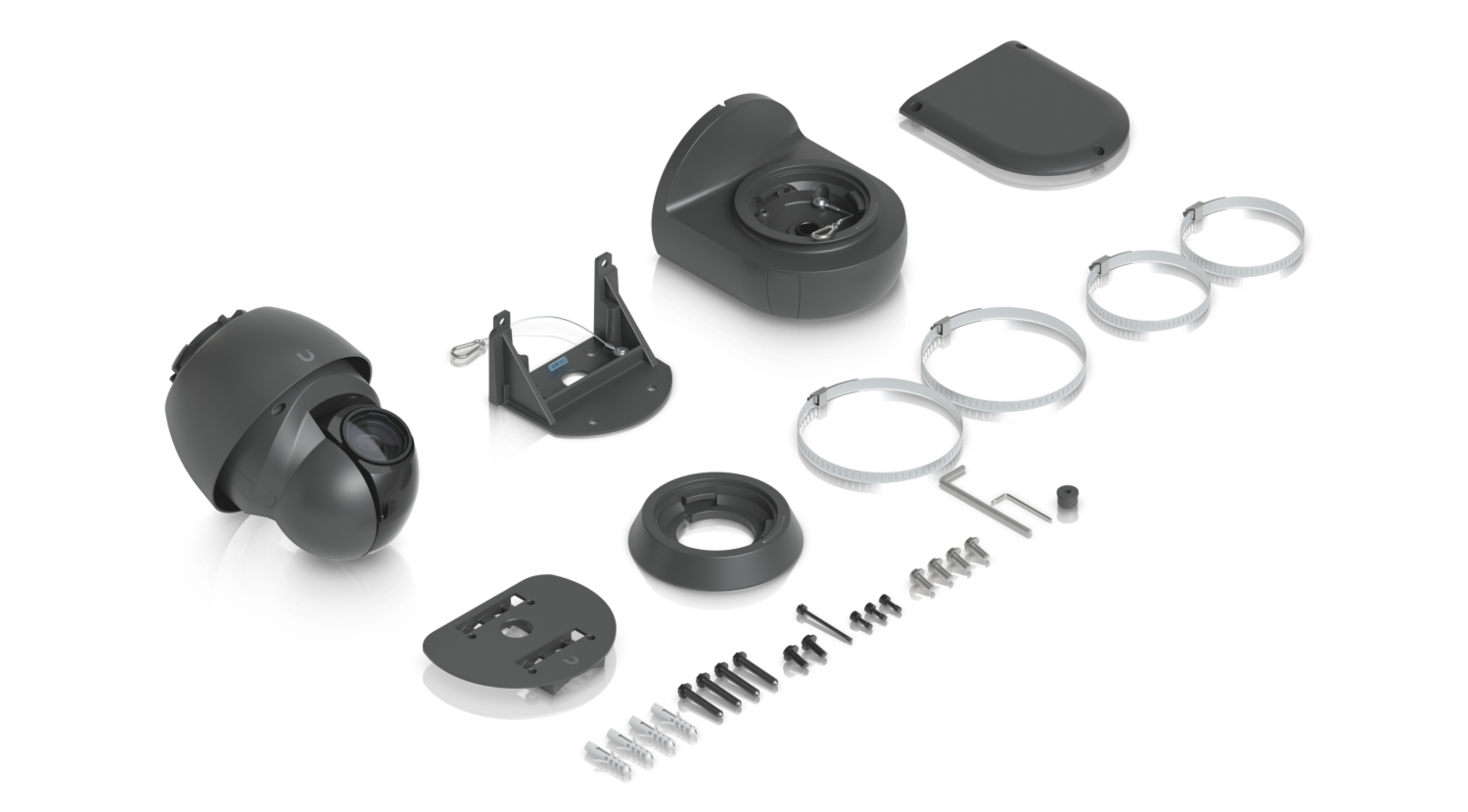

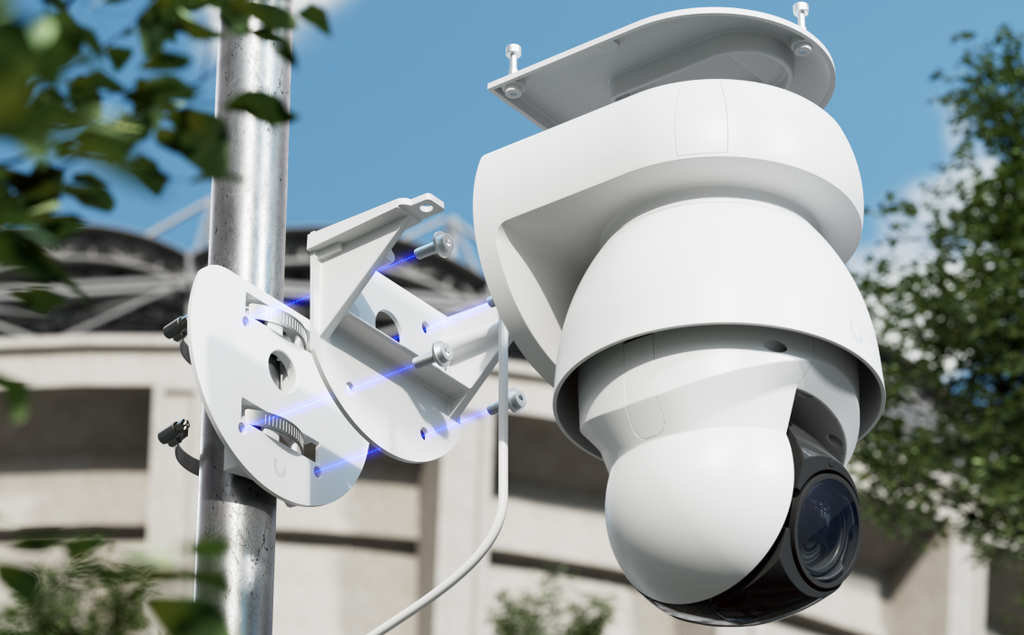

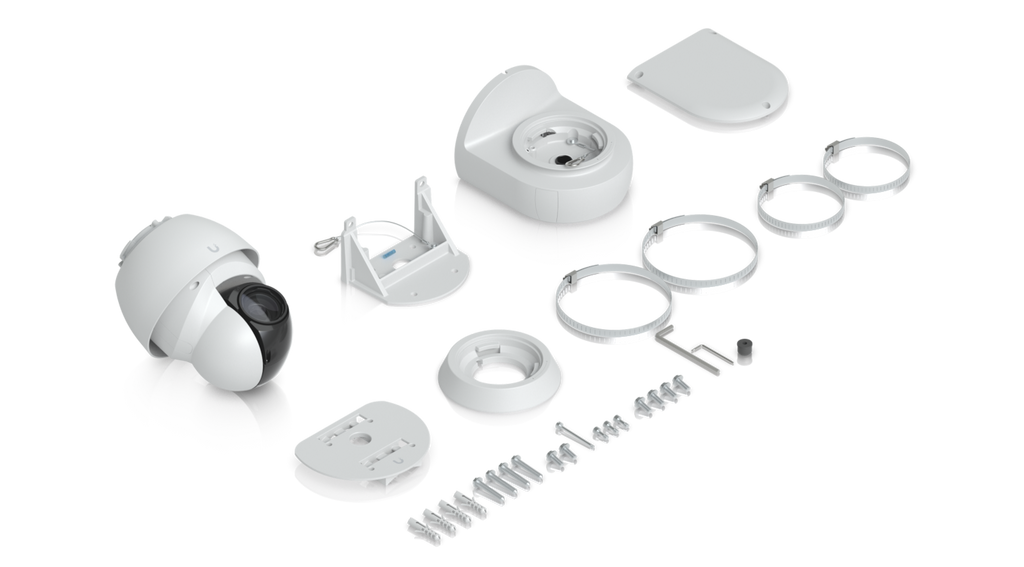

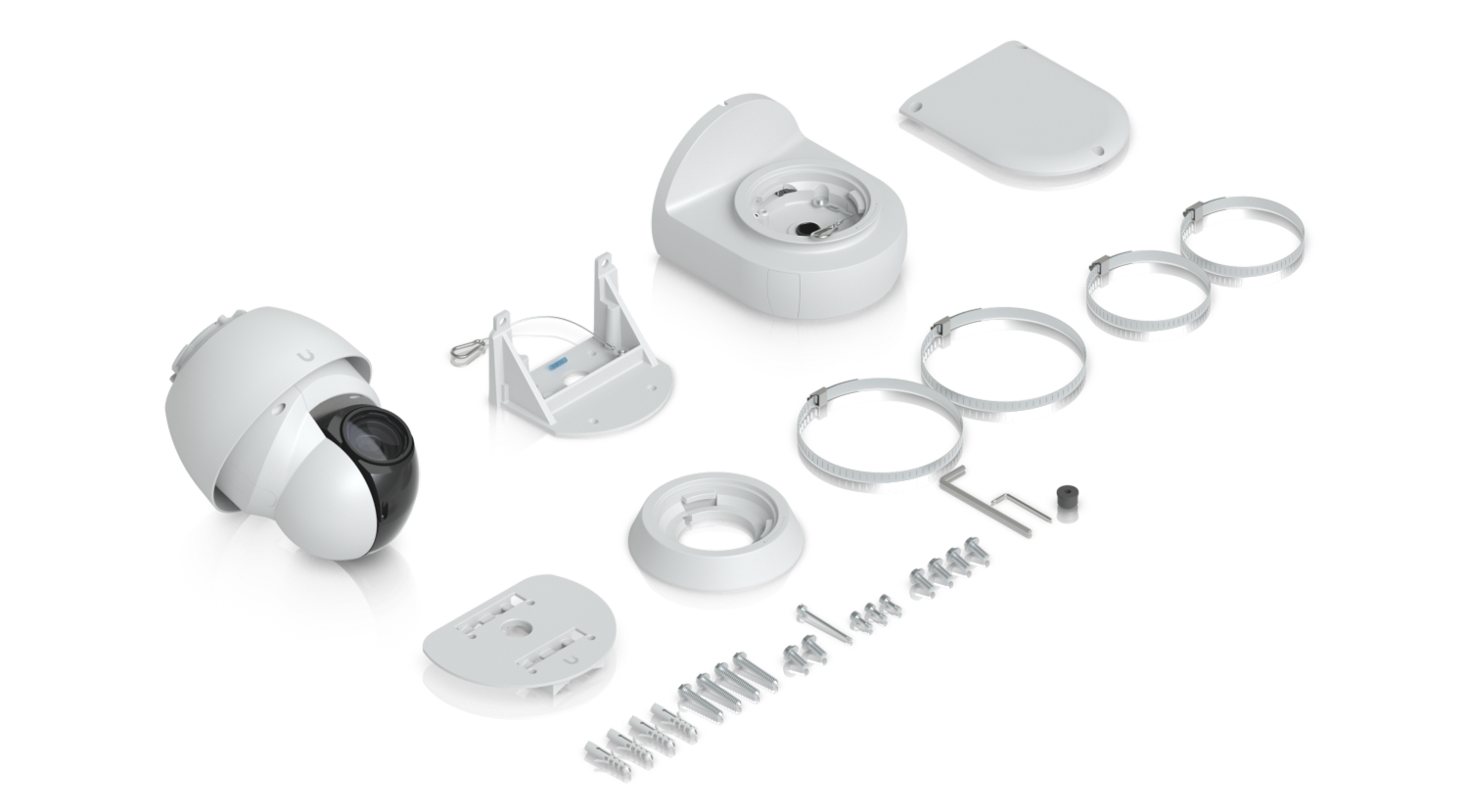

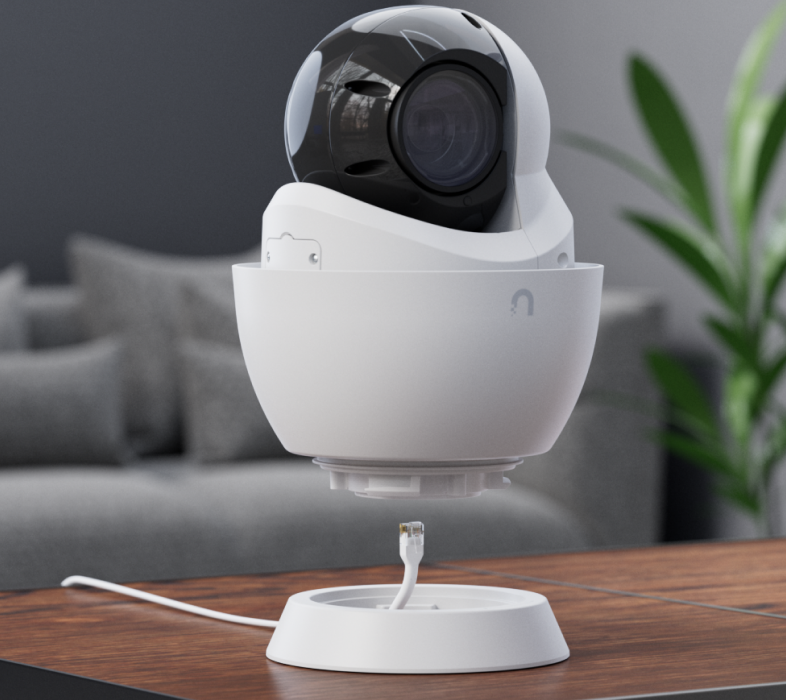

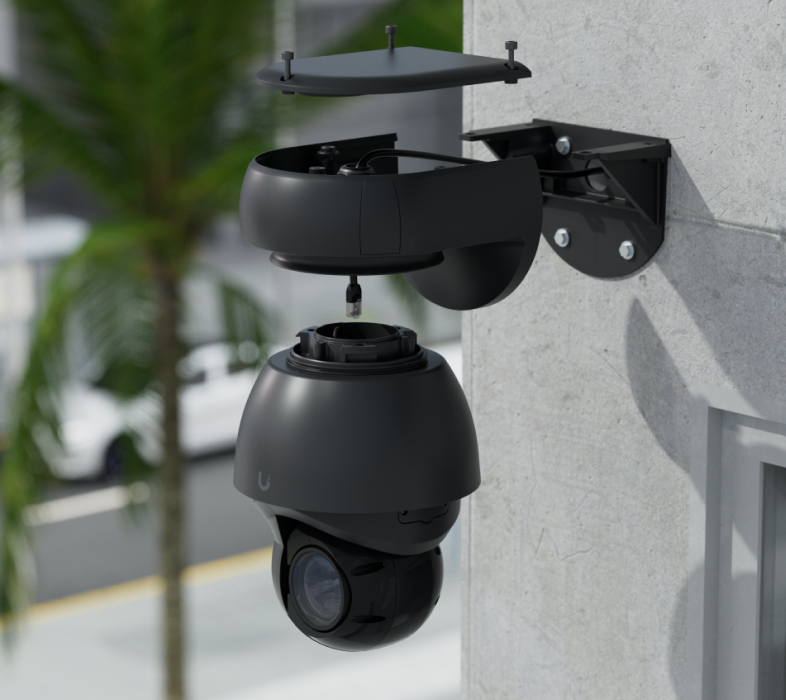

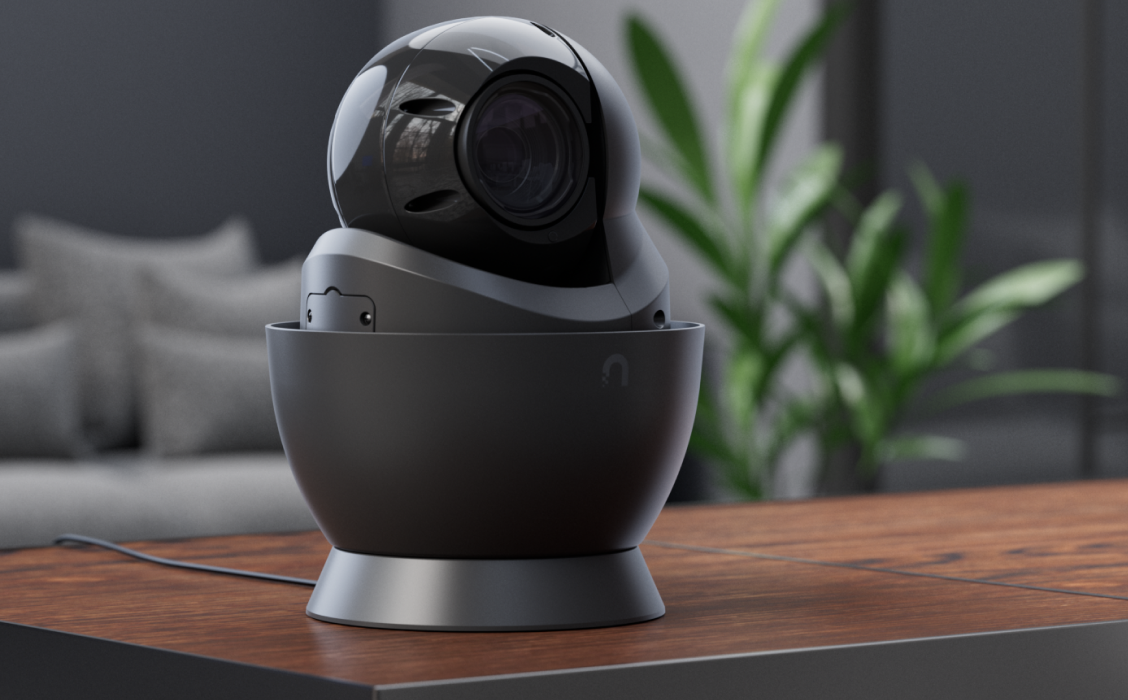

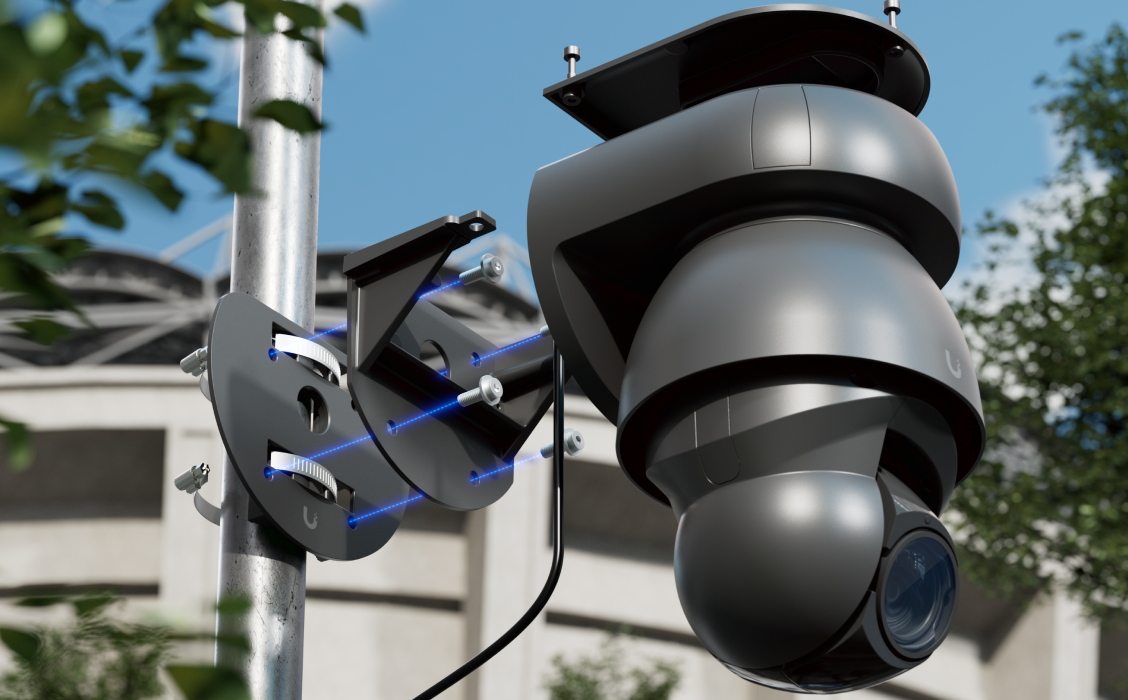

| Mounting | Wall, Pole mount, Desk stand (Included) |
Performance

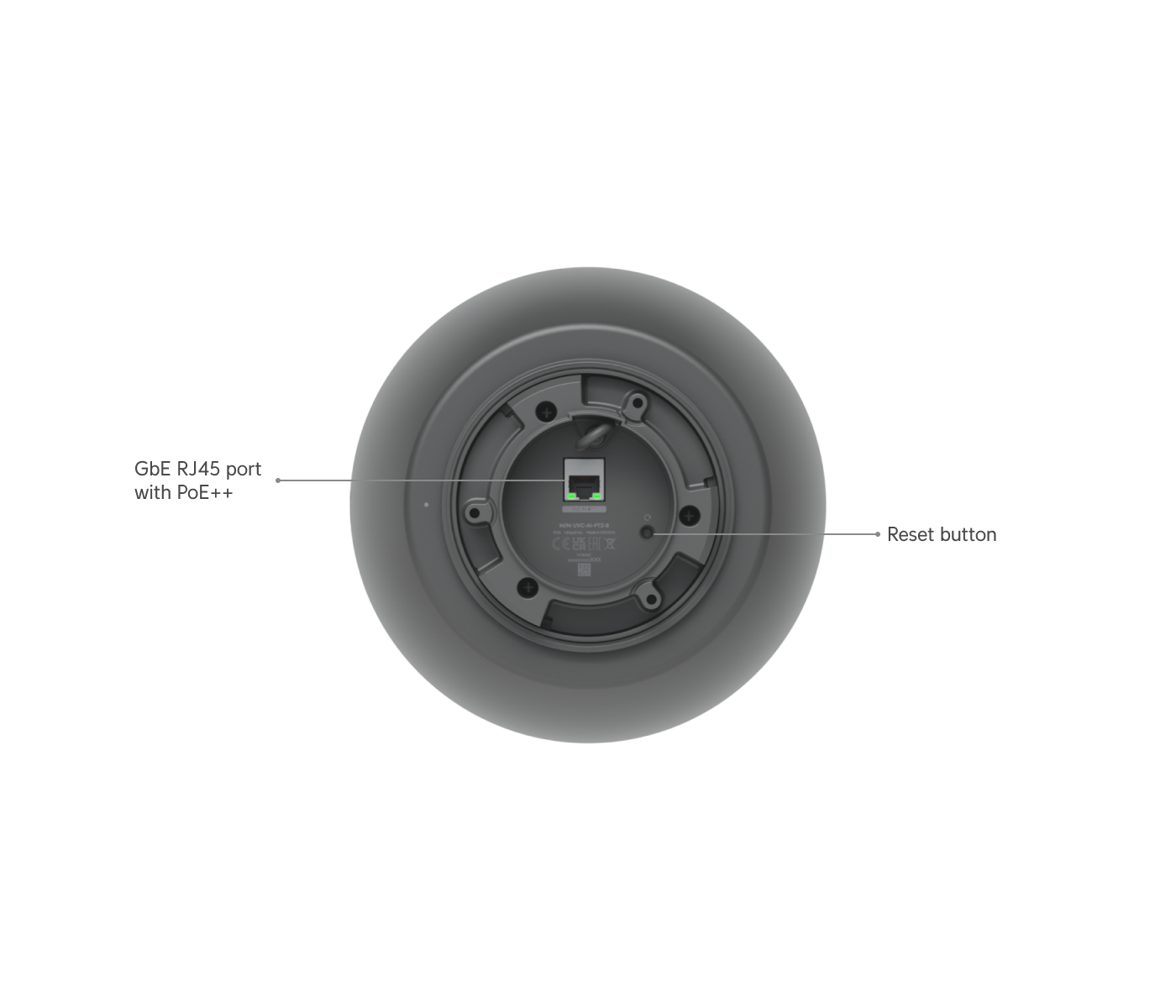

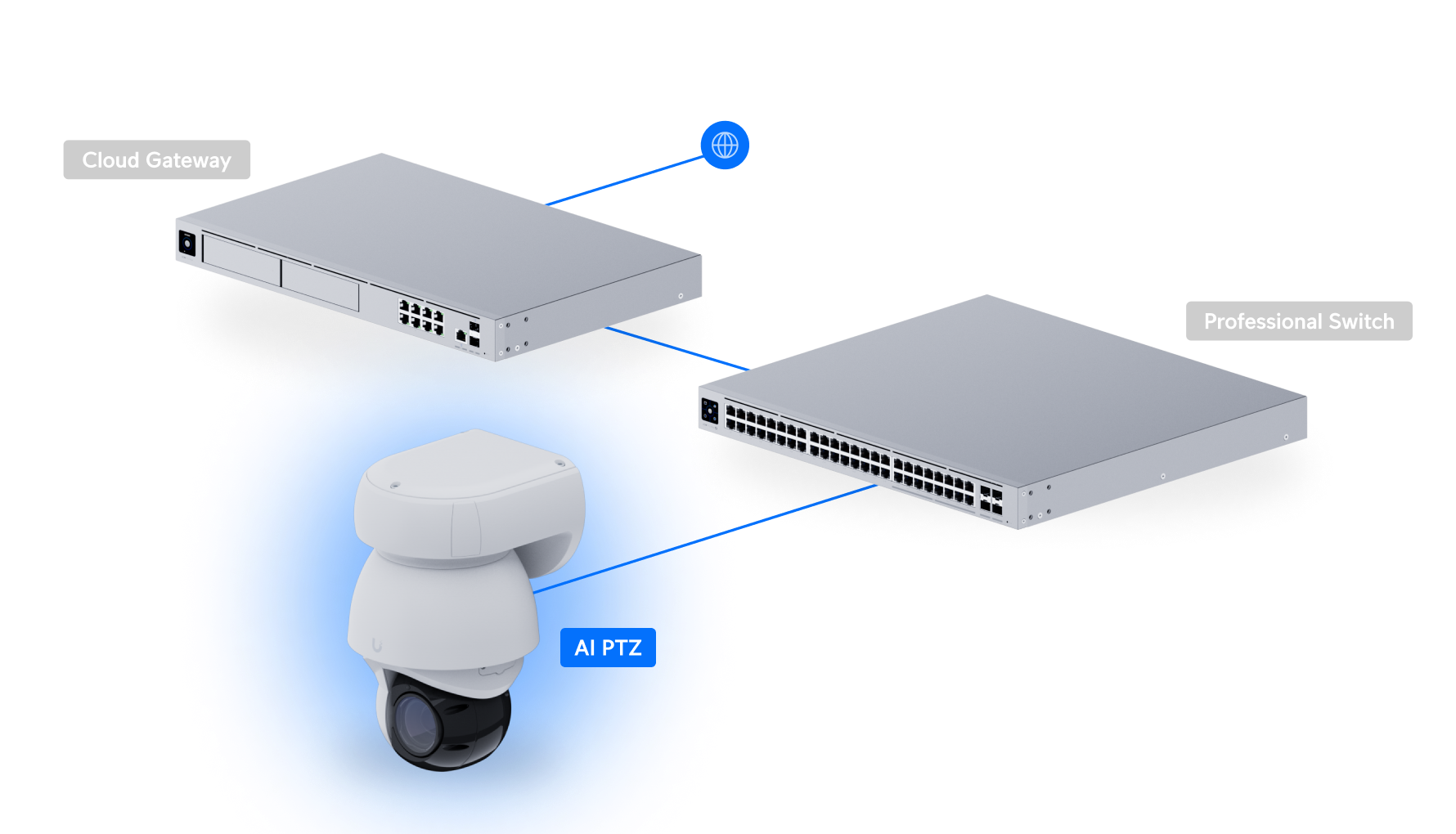

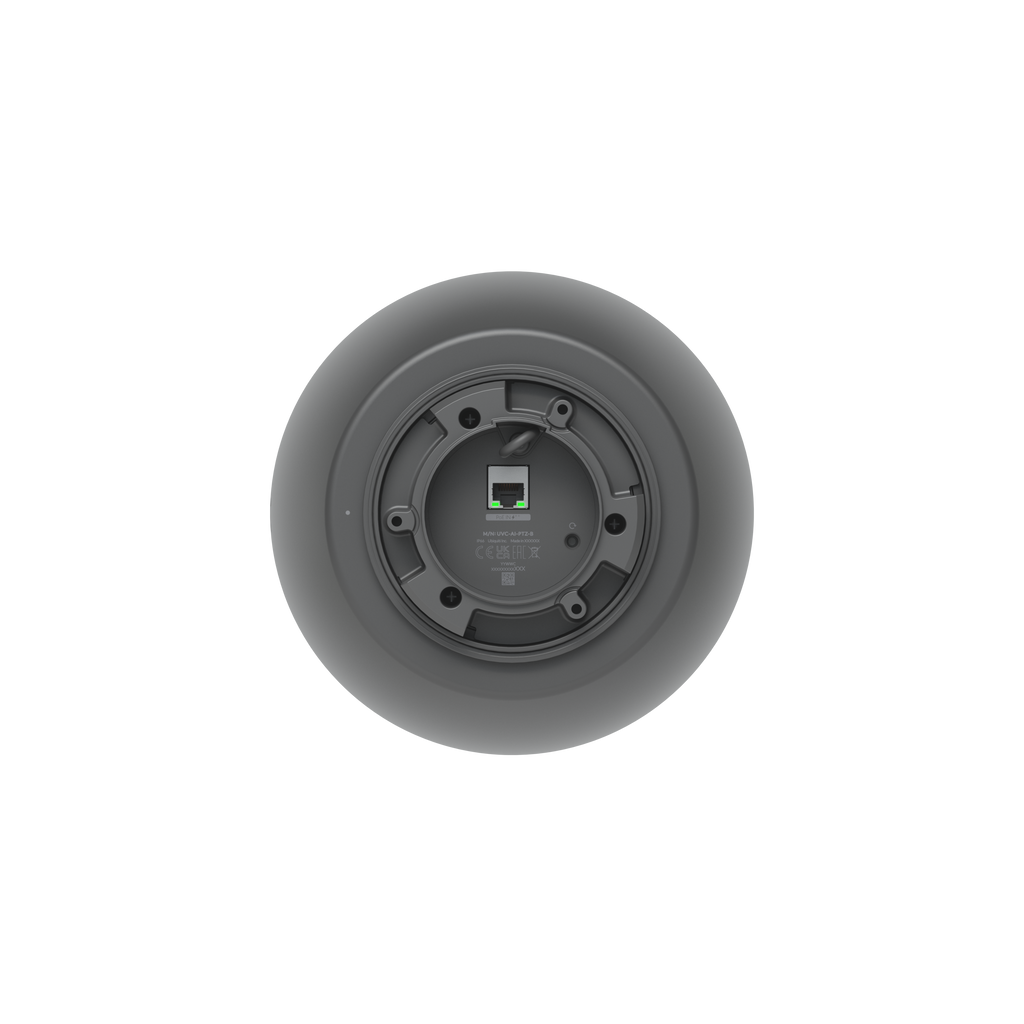

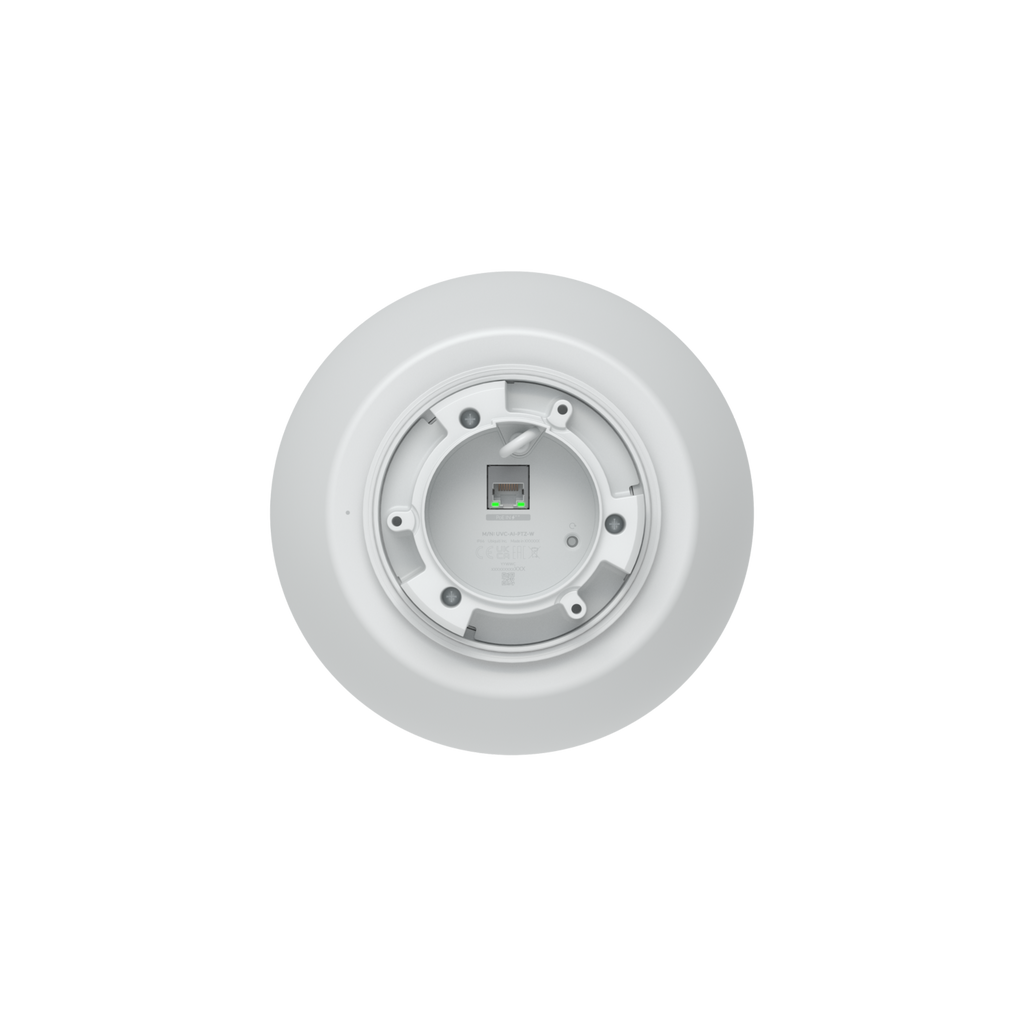

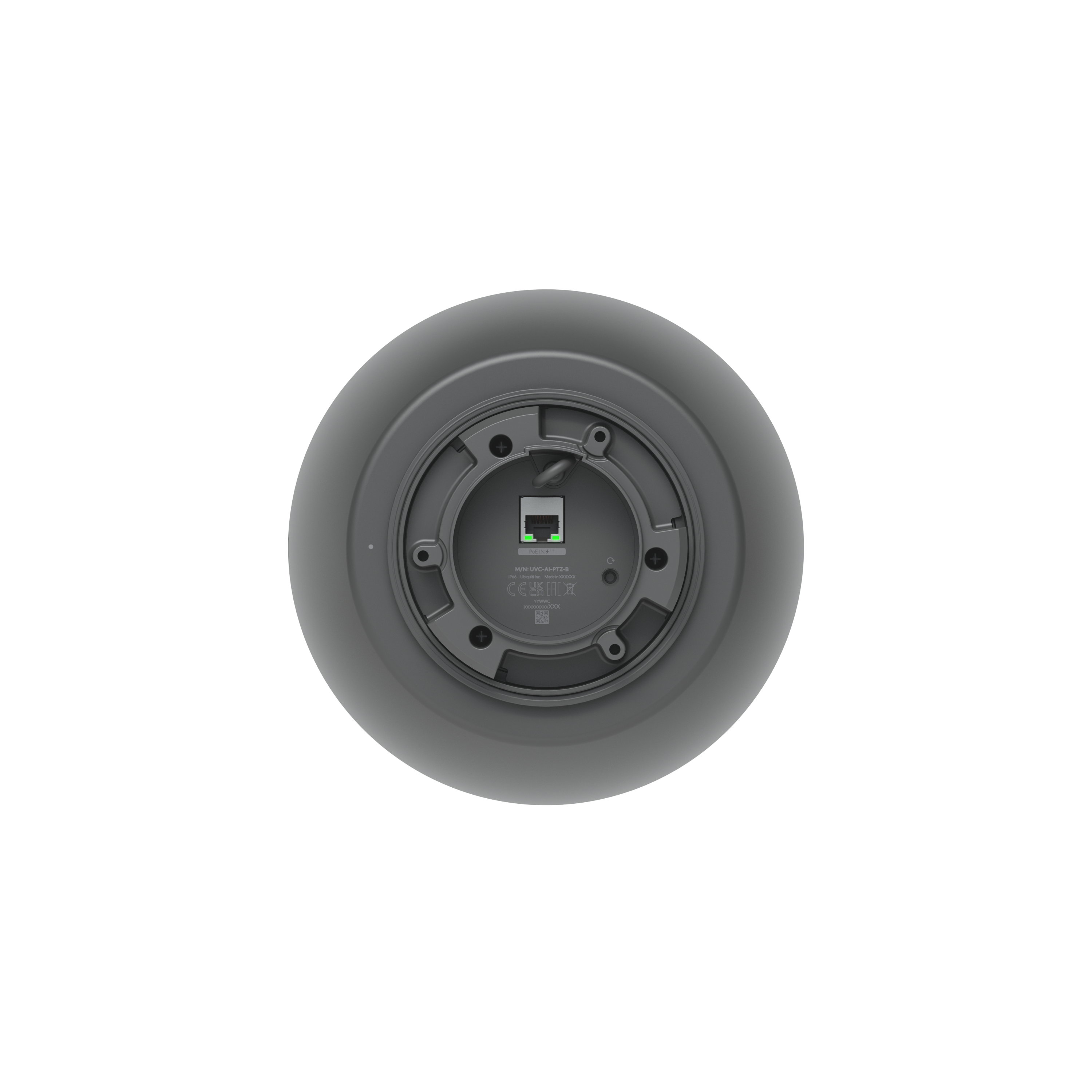

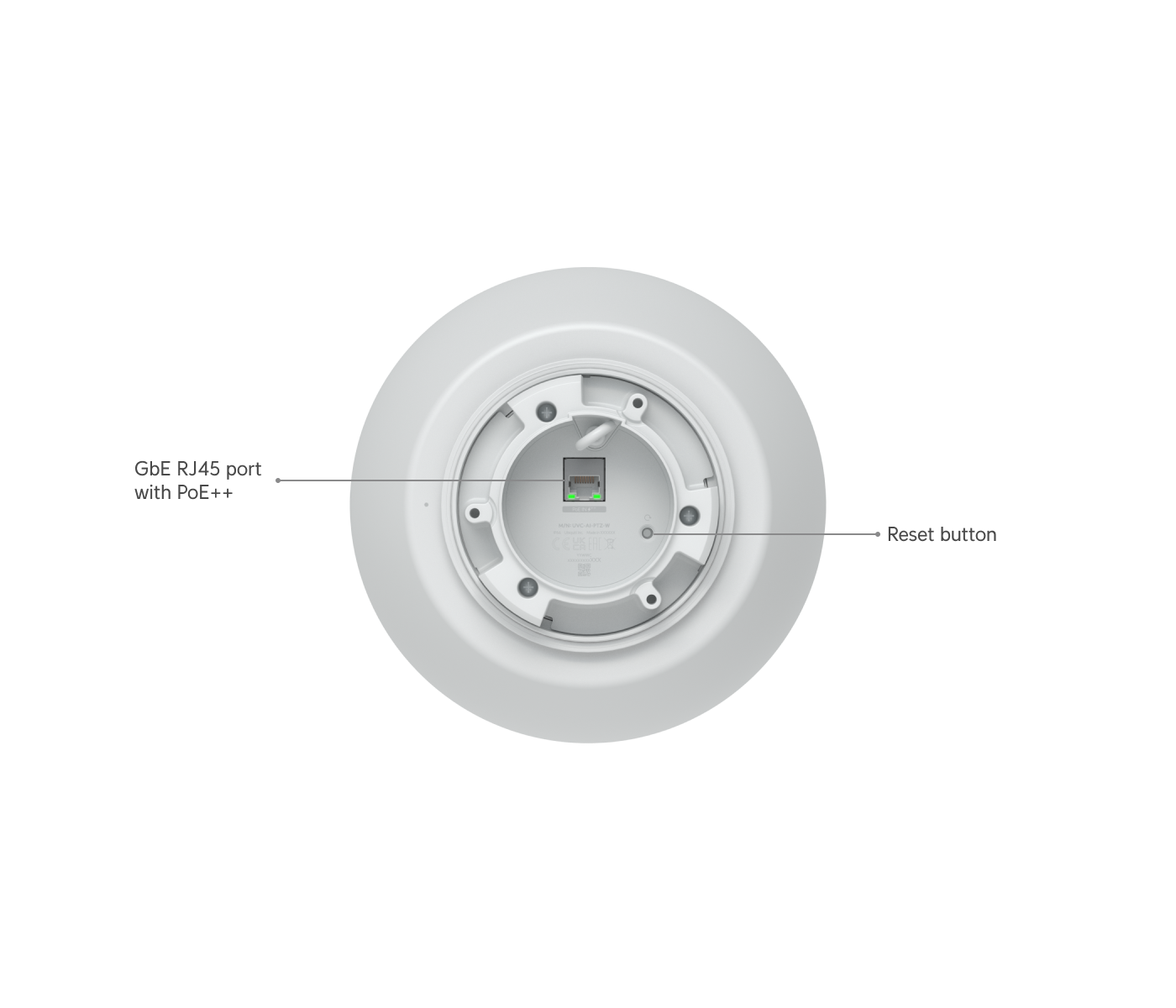

| Networking Interface | GbE RJ45 port |
| Video — Image Settings | Color, brightness, sharpness, contrast white balance, exposure control 2DNR, 3DNR, NR by motion masking, text overlay |
| Video — Max. Frame Rate | 30 FPS |
| Video — Resolution | 8MP 3840 x 2160 (16:9) |
| Optics — Sensor | 1/1.8" 8MP |
| Optics — Lens | F 6.36-138.5 mm; ƒ/1.5-ƒ/3.4 |
| Optics — Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 51W |
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE++ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | Without mount: 3.8 kg (8.4 lb) Wall mount (Pedant): 3 kg (6.6 lb) Table stand: 150 g (5.3 oz) Pole mount: 320 g (11.3 oz) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Powder-coated aluminum alloy |
| Expansion Slot | MicroSD card |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -40 to 50º C (-40 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC |
