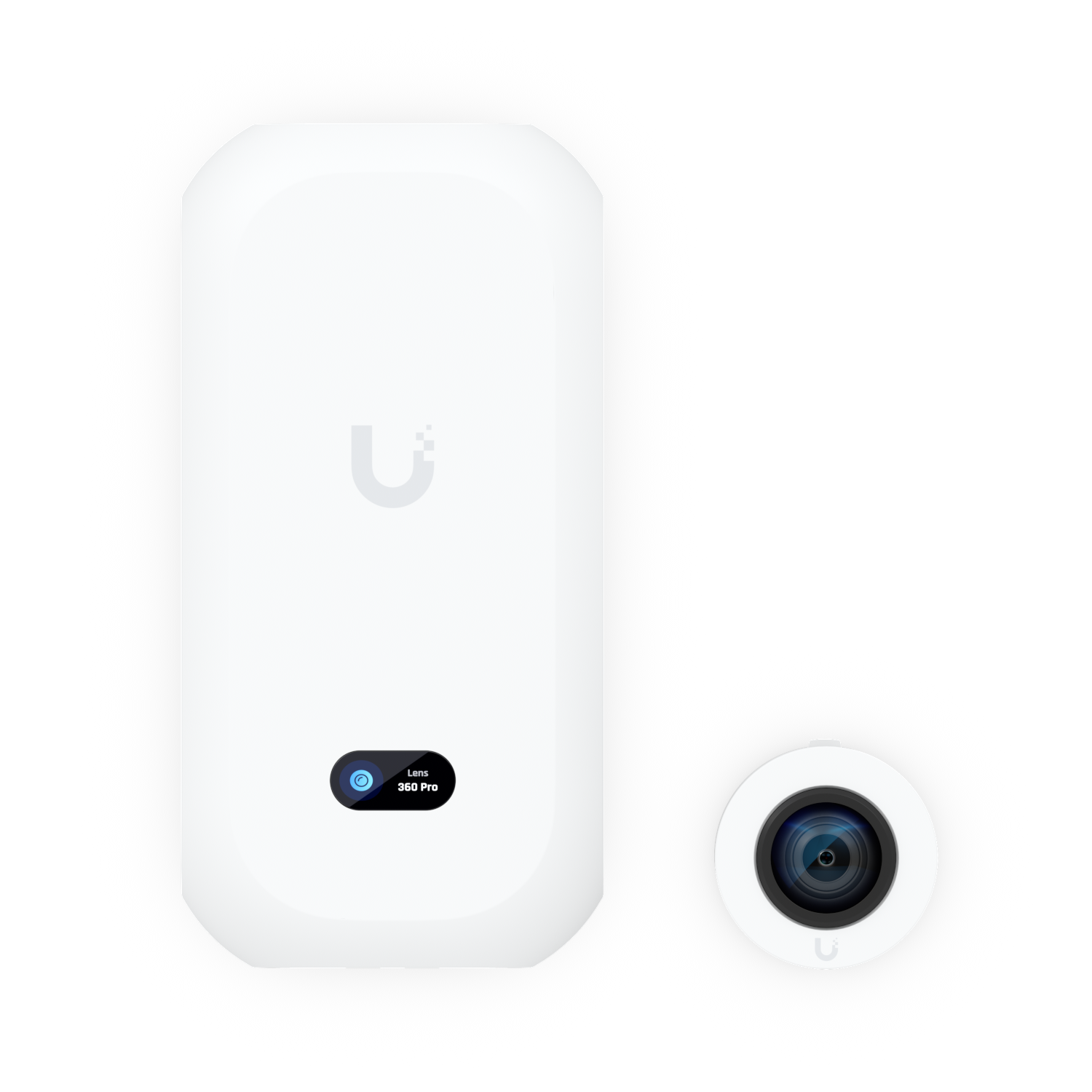

Ubiquiti UVC-AI-THETA | AI Theta Camera | 4K | PoE
Ubiquiti UVC-AI-THETA | AI Theta Camera | 4K | PoE

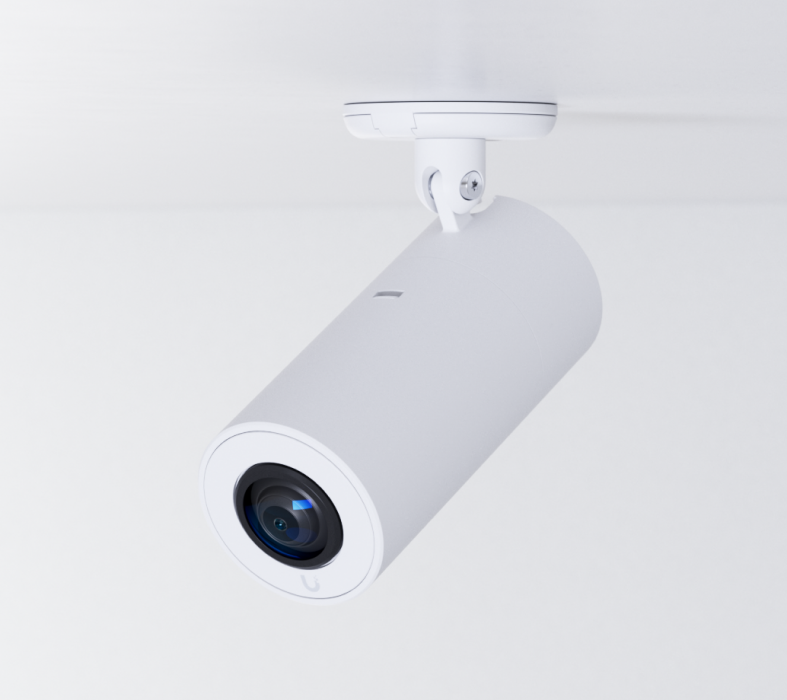

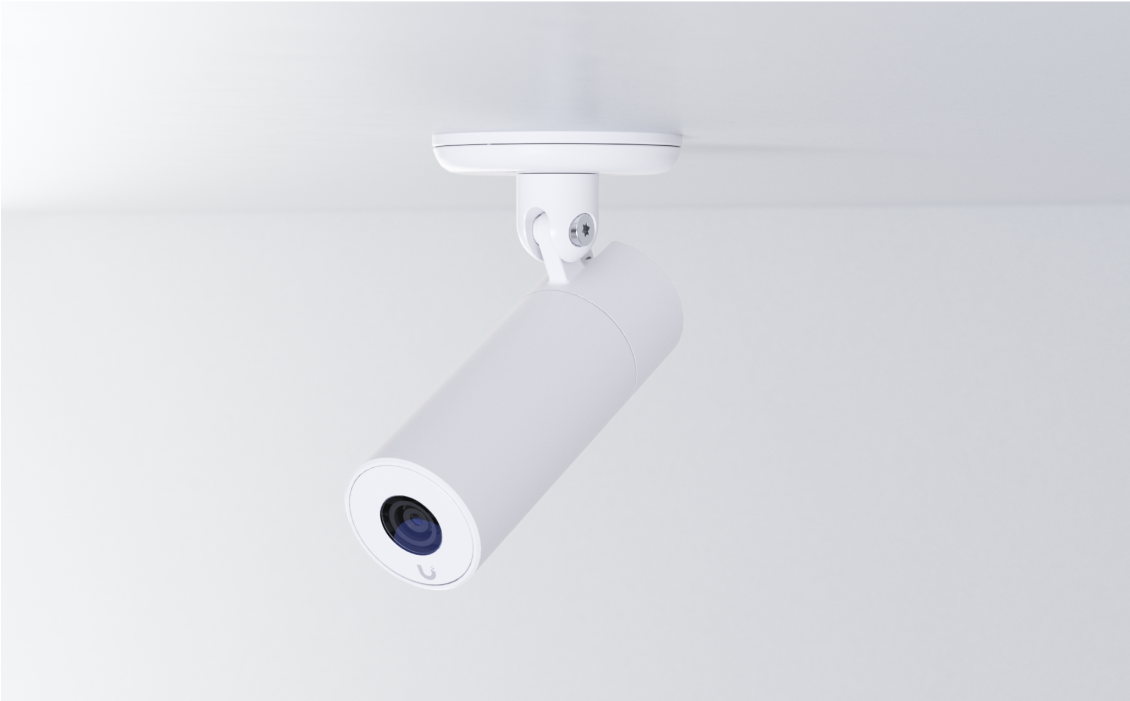

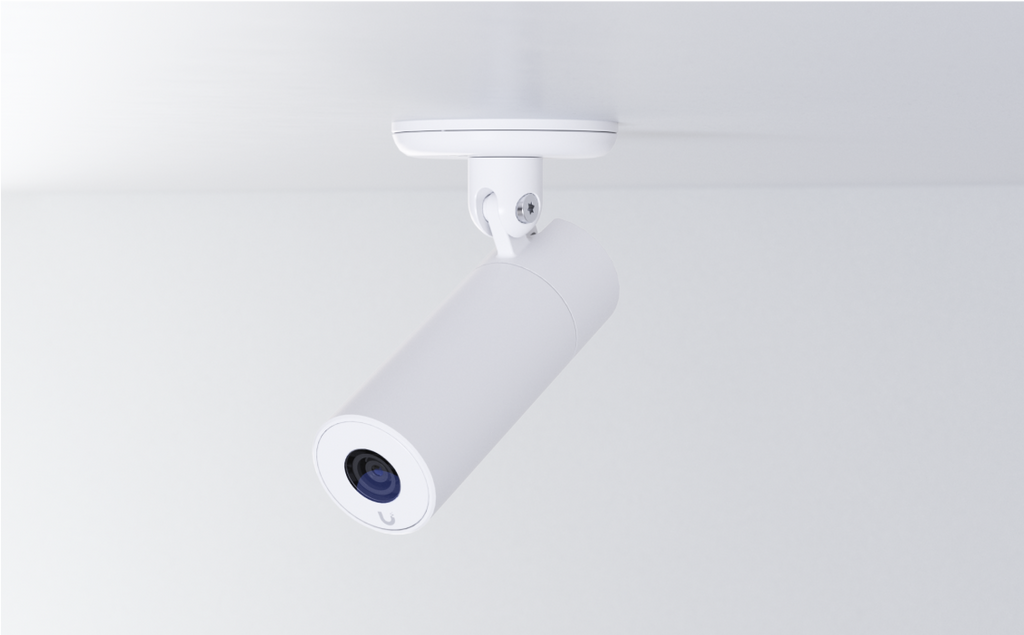

A modular indoor 4K camera hub for spaces where ceiling-mounted surveillance needs to stay unobtrusive — hotels, open-plan offices, retail floors.
Why this one

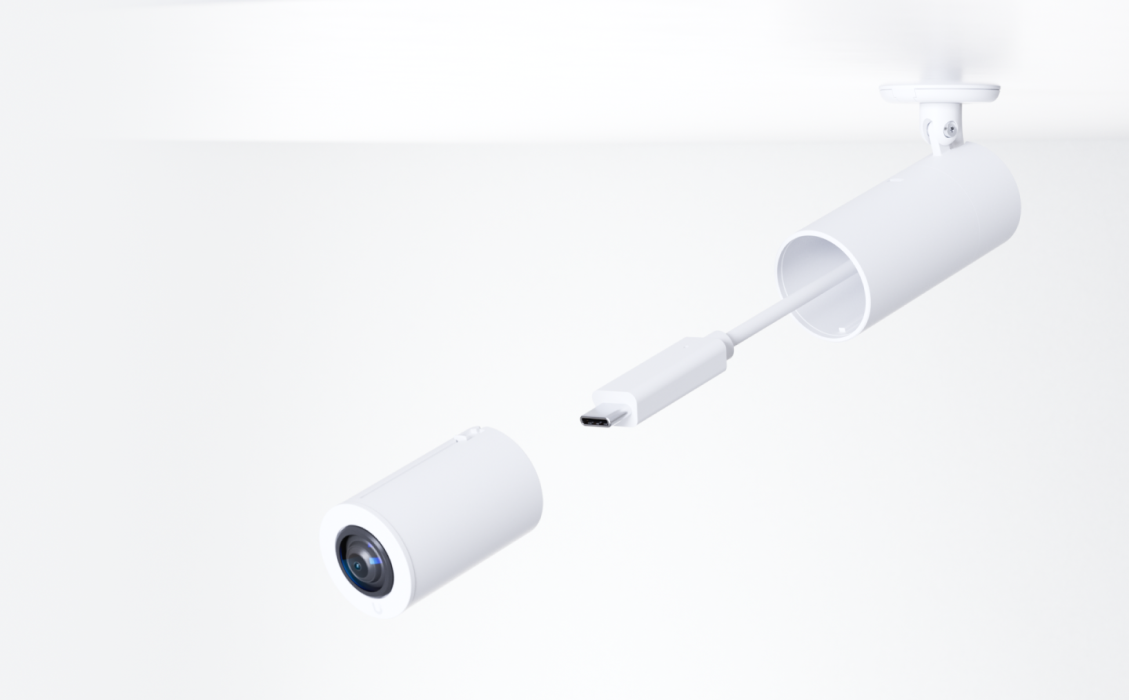

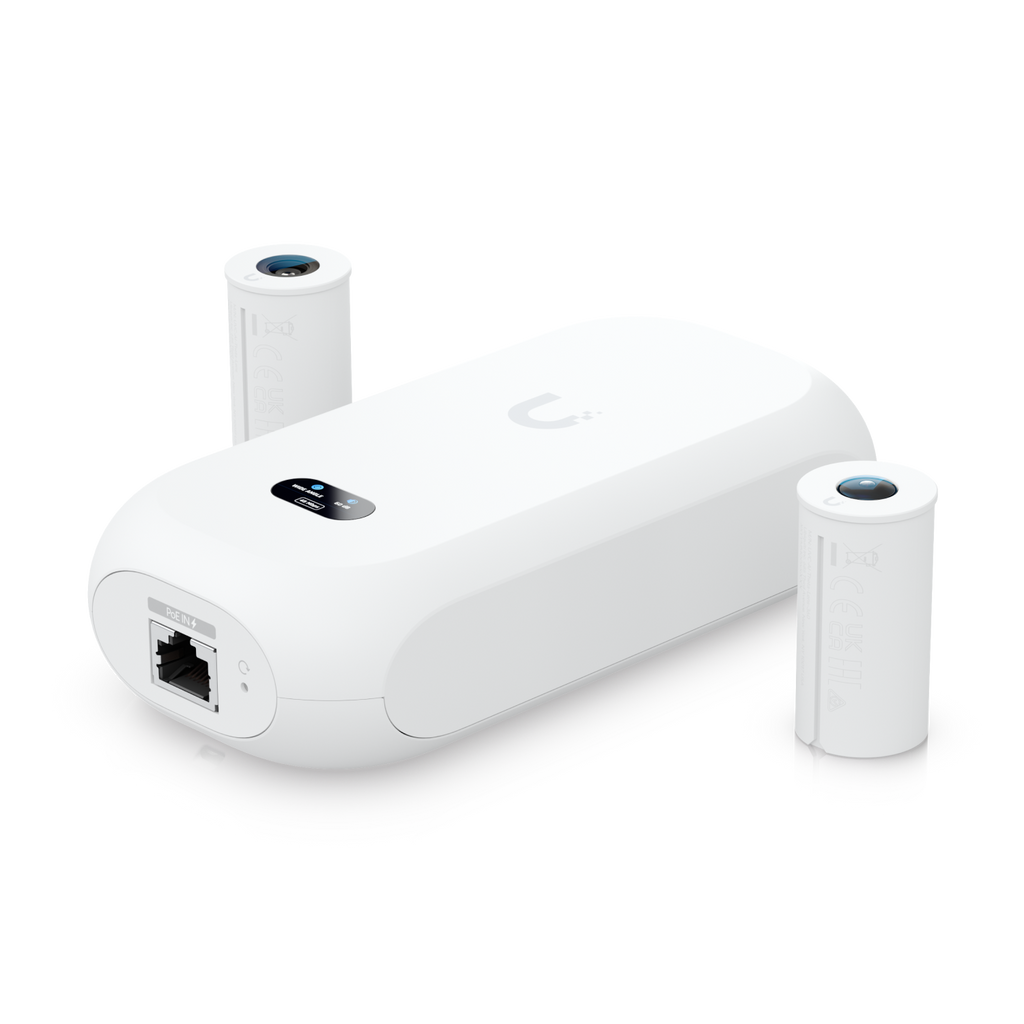

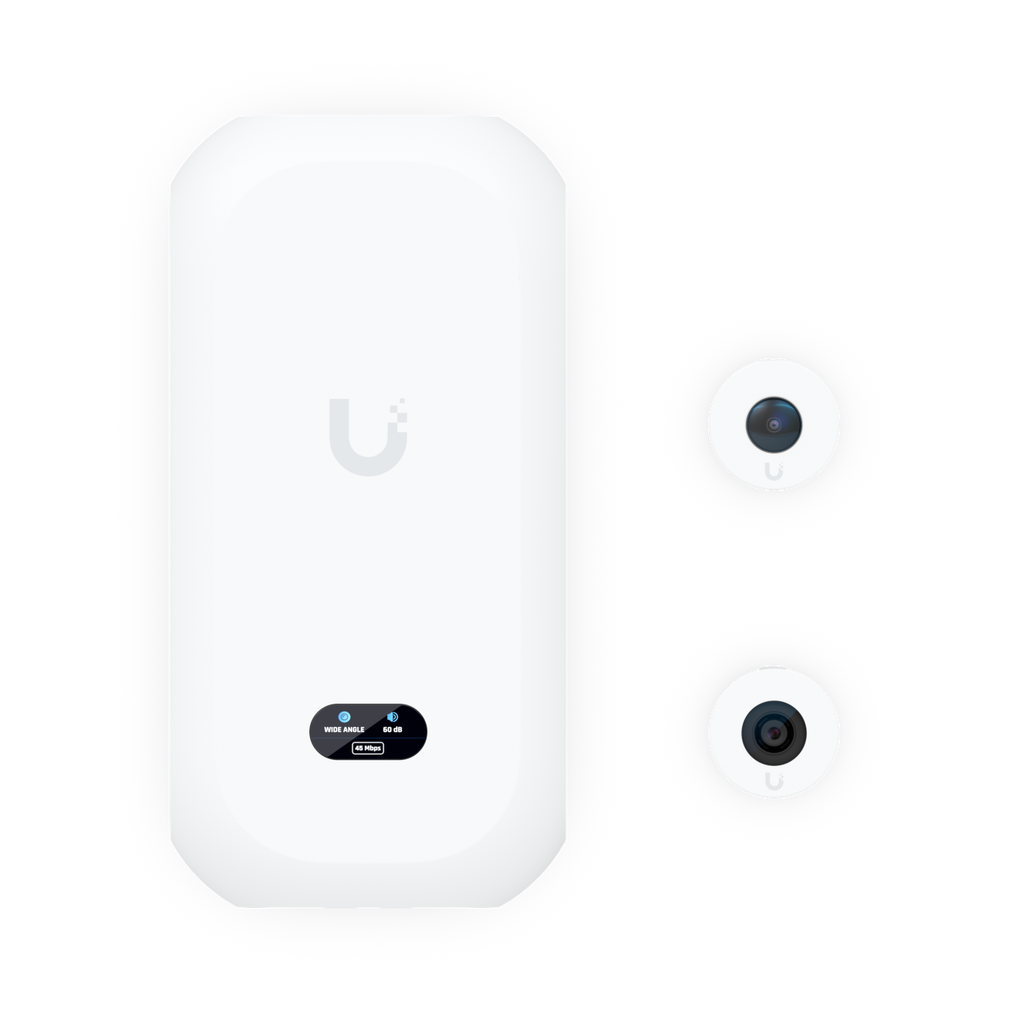

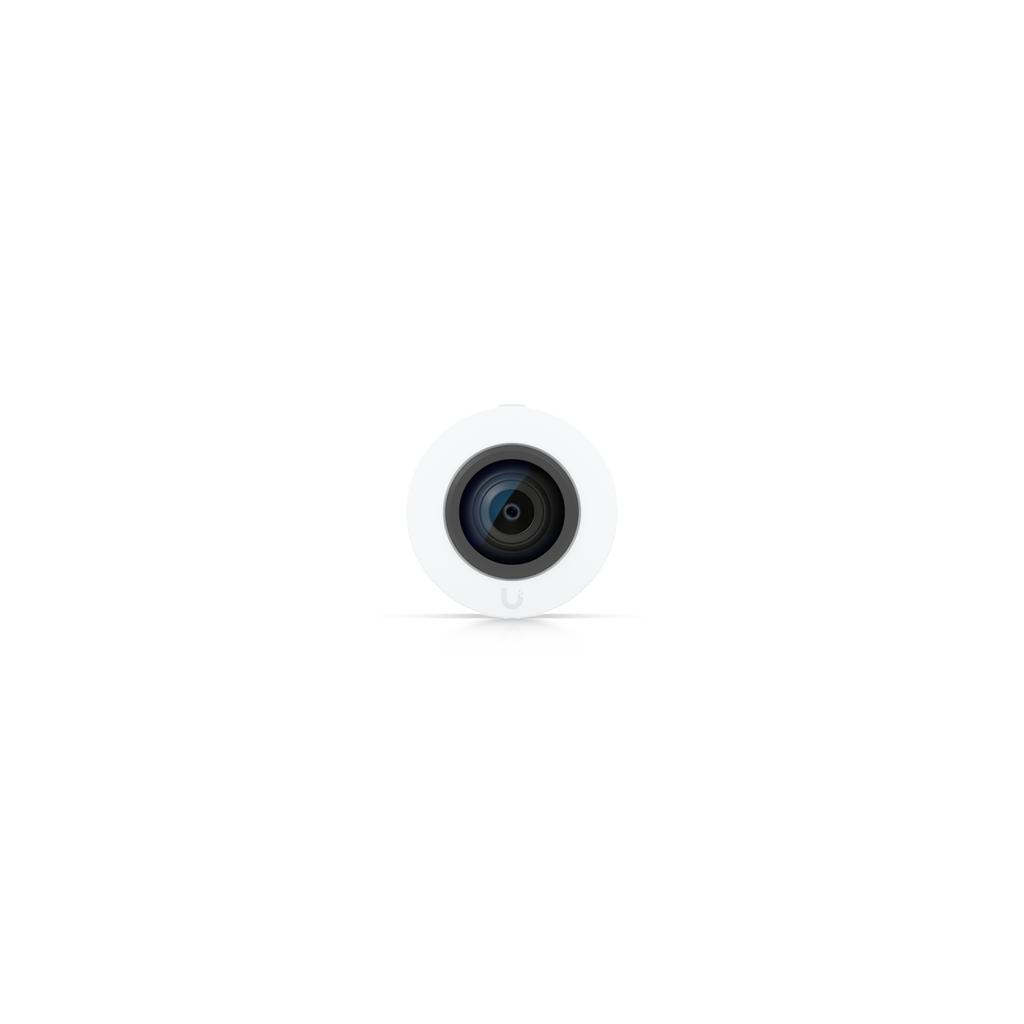

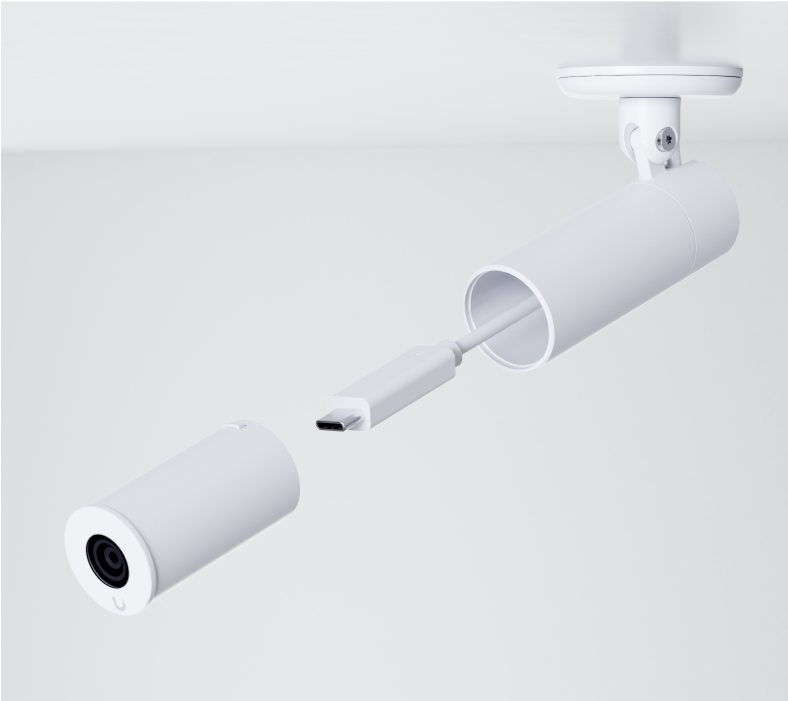

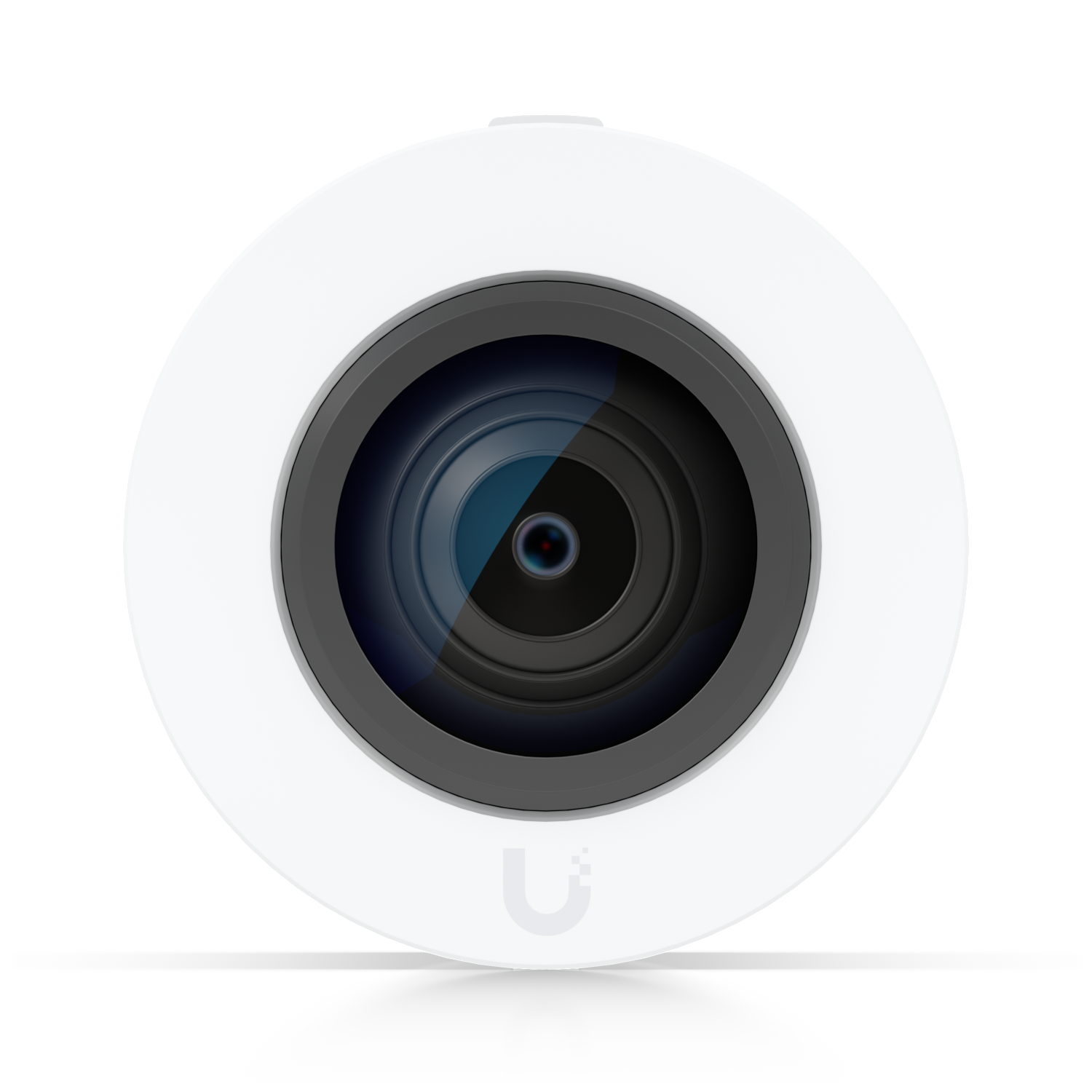

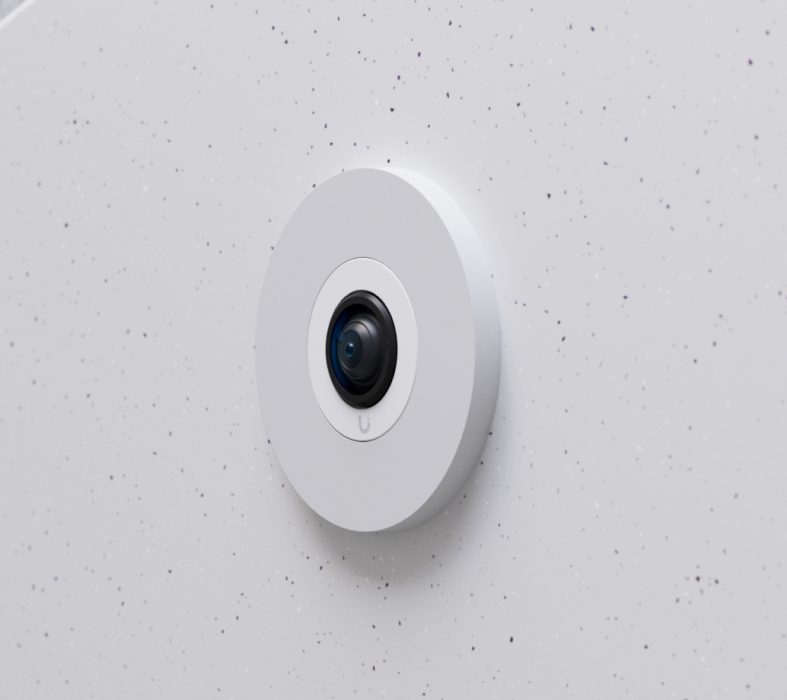

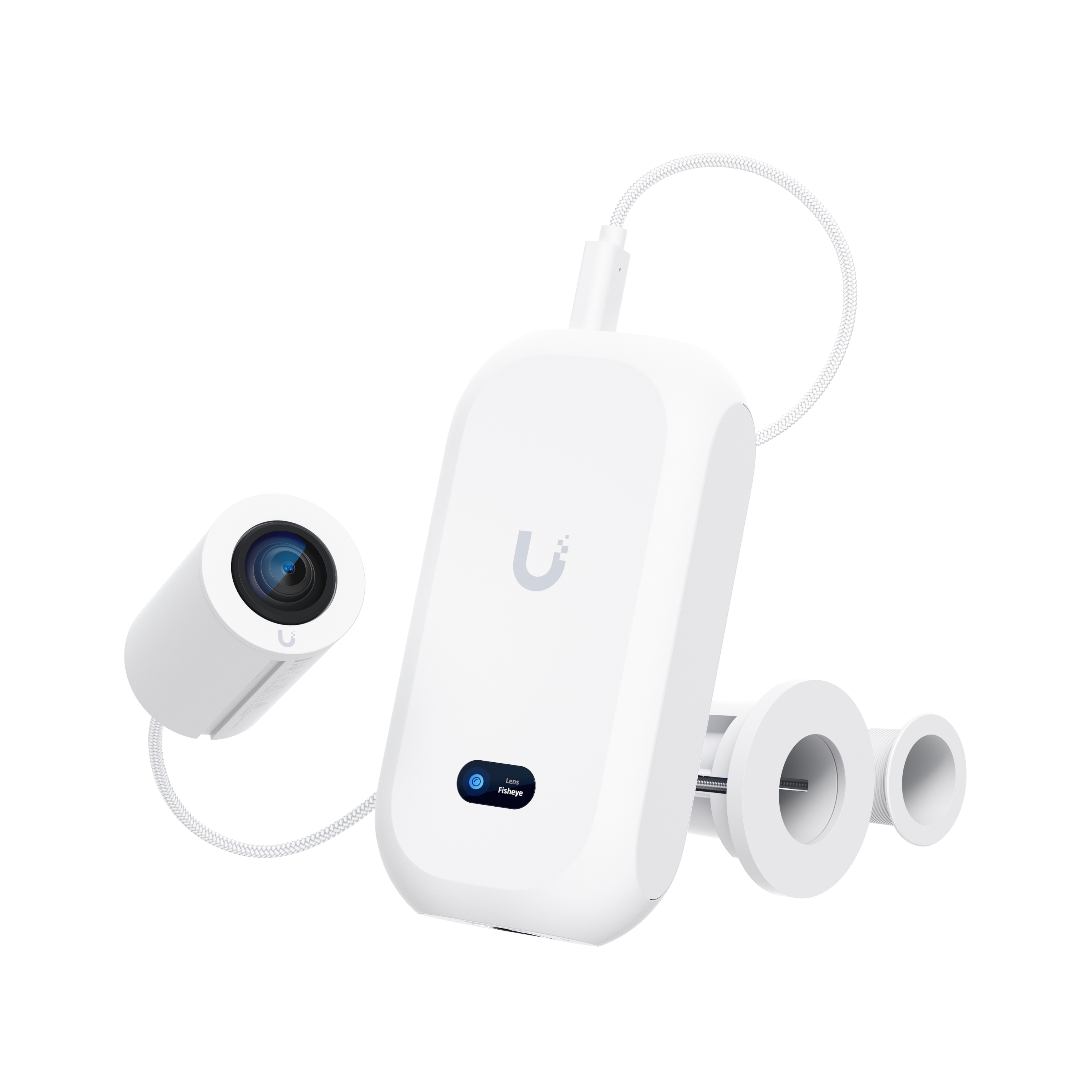

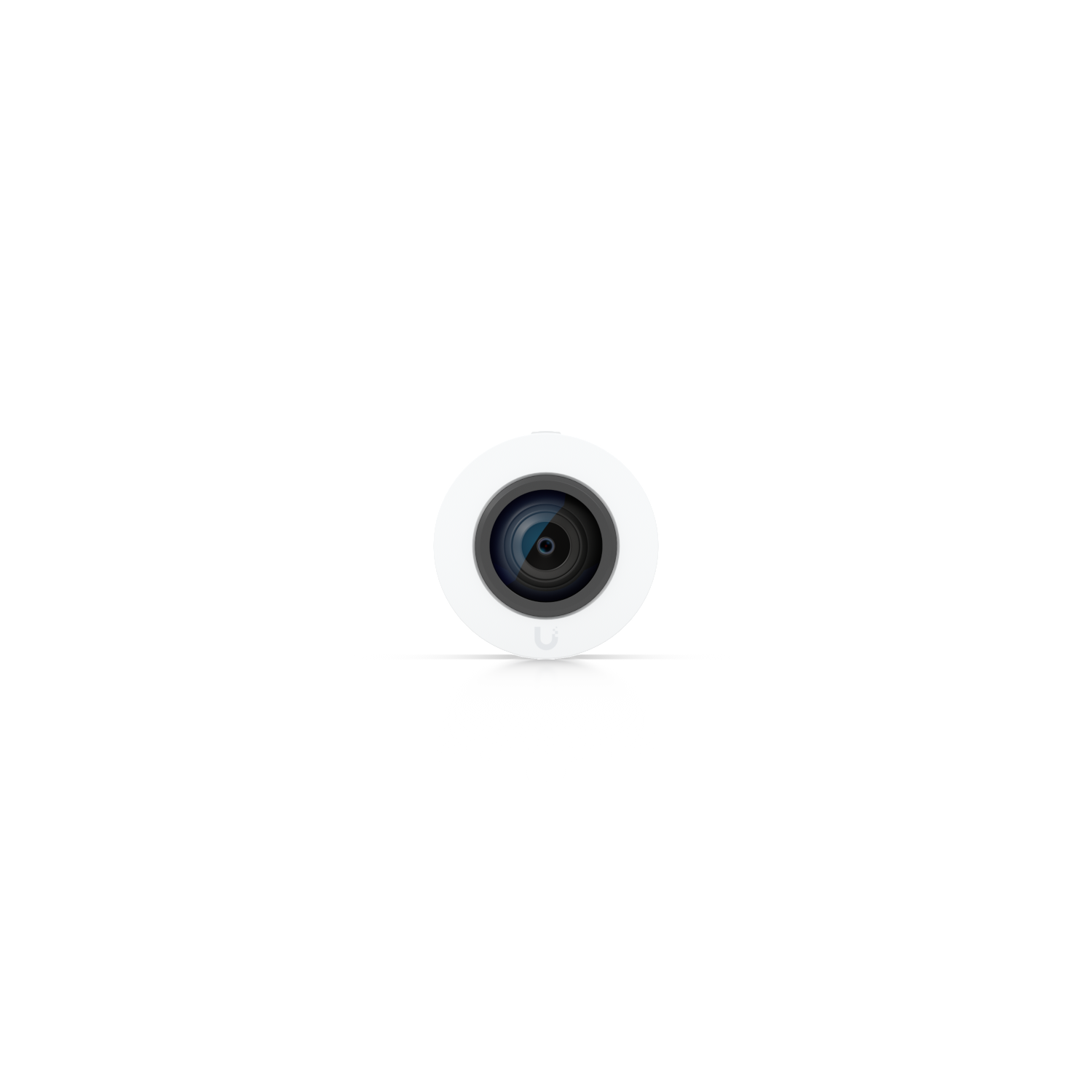

- The hub accepts either the standard 8MP wide-angle lens (97.5° horizontal) or the 12MP 360° fisheye lens, so you choose the coverage pattern at install time without replacing the hub wiring.
- At 12.5W it sits within standard PoE budgets, meaning a single Cat5e run to the ceiling delivers both power and data with no separate power supply or conduit.
- The quad-core Arm Cortex-A53 processor runs AI detection on the device itself, identifying people and vehicles without offloading that work to your NVR.

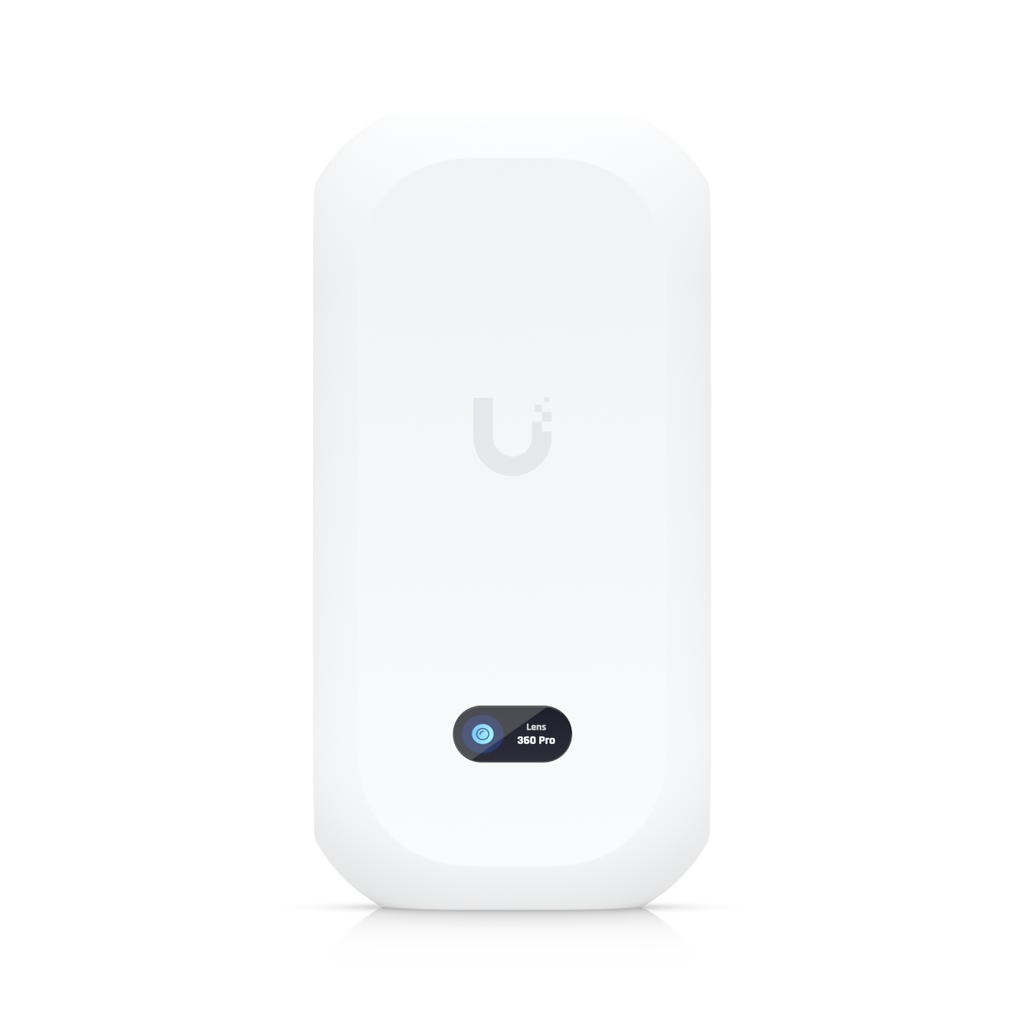

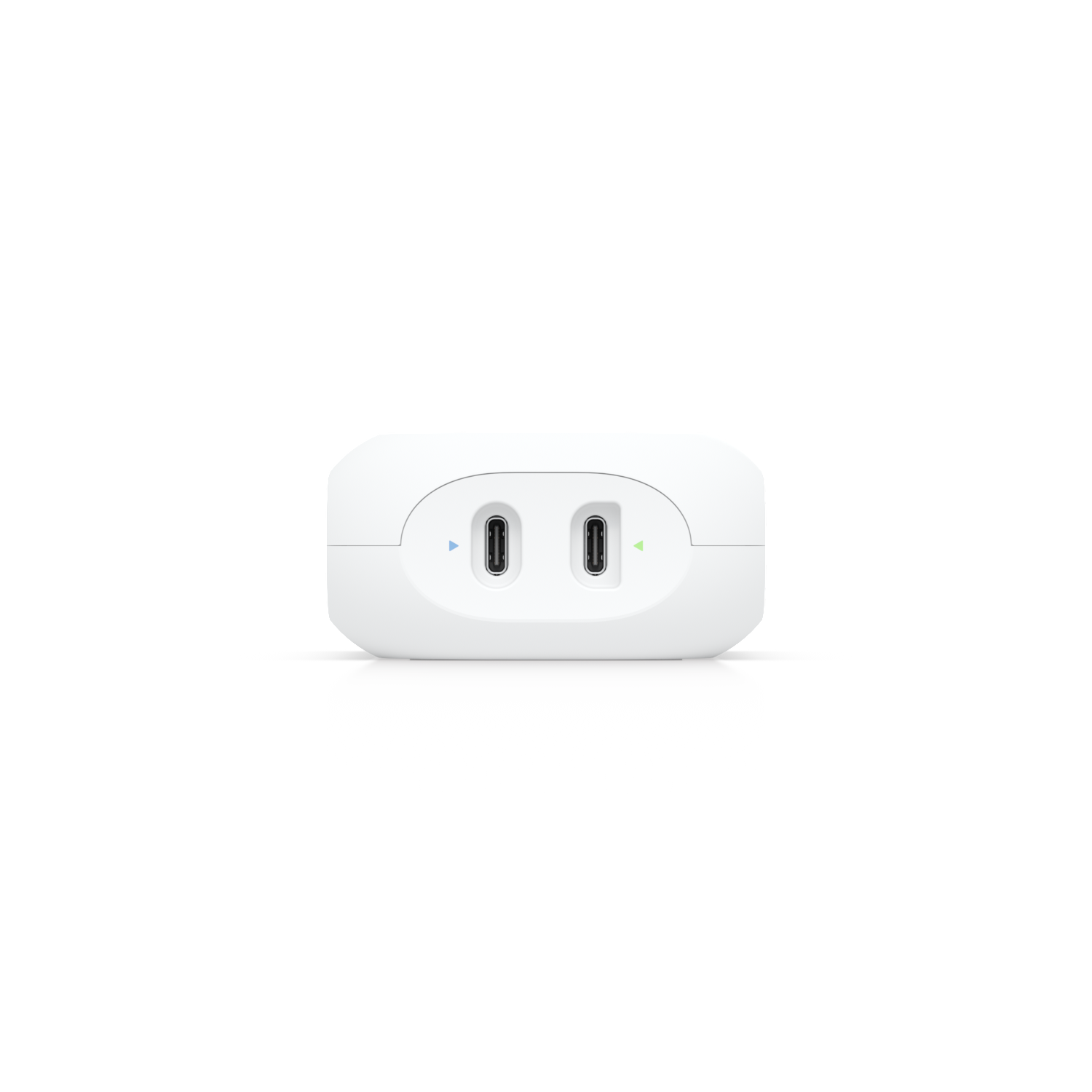

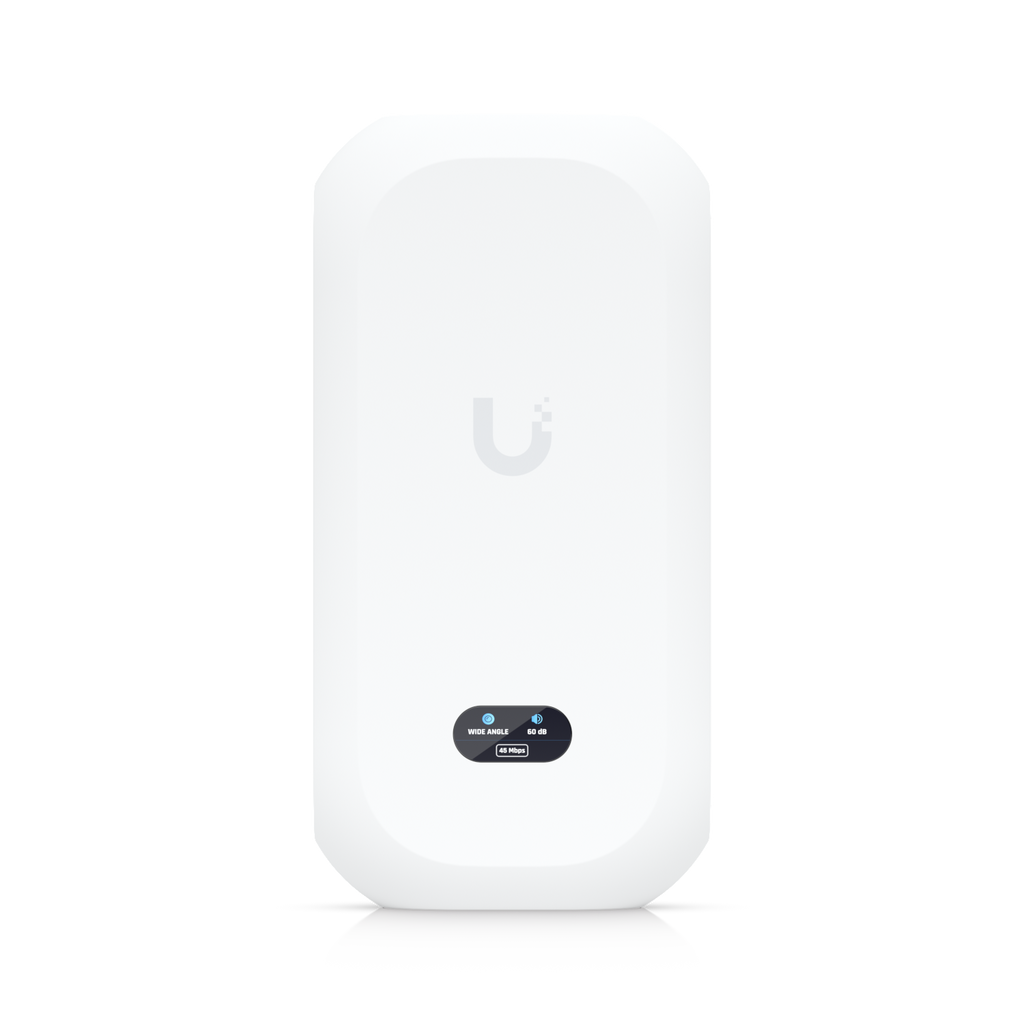

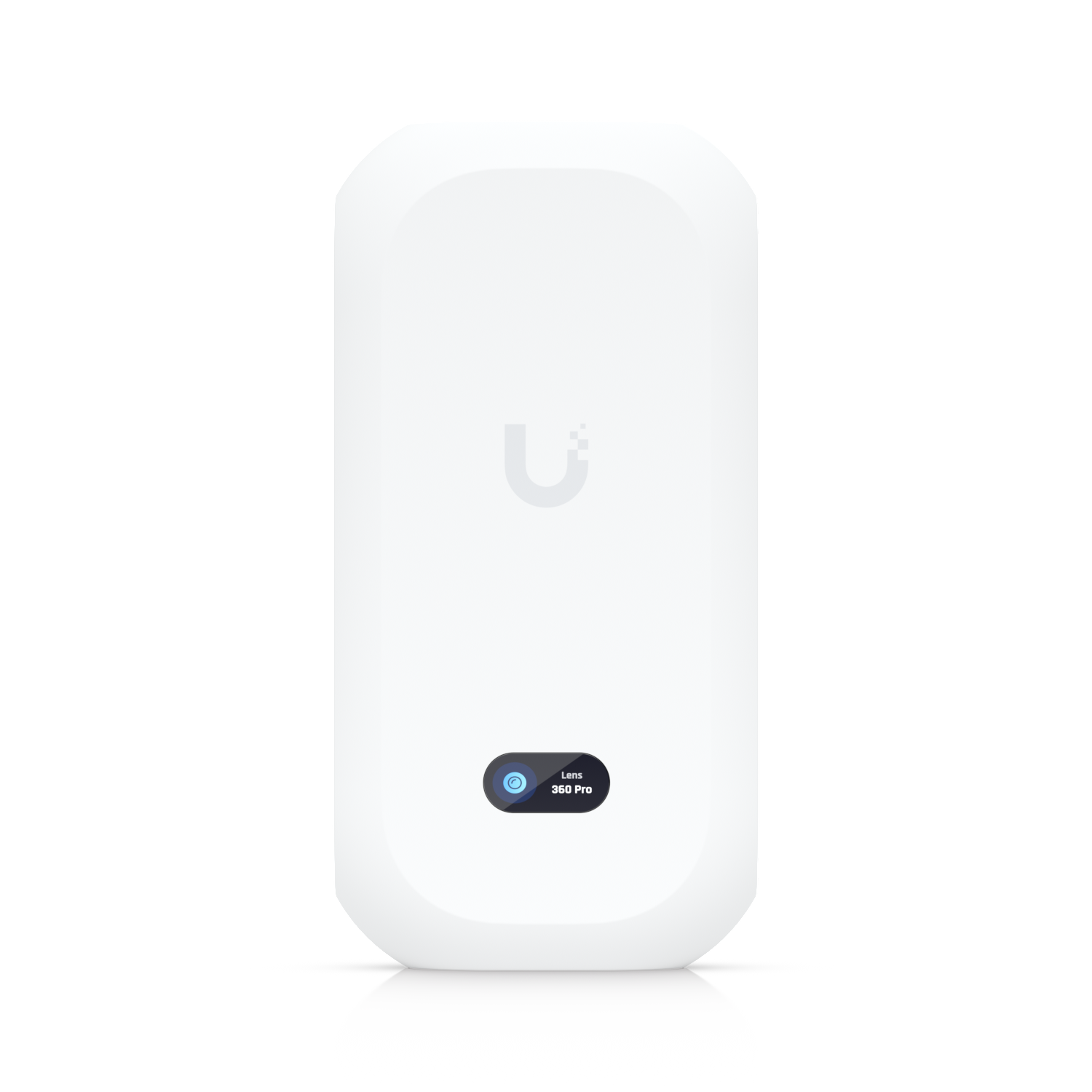

- The colour LCM display on the hub shows device status at a glance, which cuts down on app-switching during a multi-camera install when you're confirming each unit is live.
Good fit if you're covering an indoor space where a discreet ceiling mount matters and you want the flexibility to choose between a wide-angle or full 360° view from the same hub.
Worth considering something else if you need outdoor-rated coverage — the UVC-AI-DOME is IP66-rated and built for those conditions — or if you're working at short range indoors where a simpler fixed camera like the UVC-G6-TURRET would do the job without the modular complexity.
What you'll also need

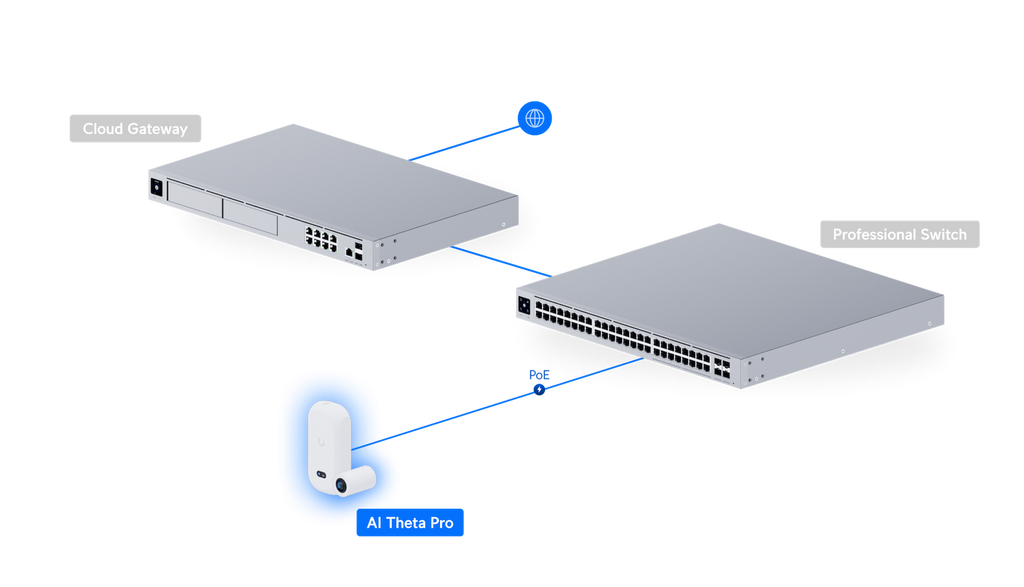

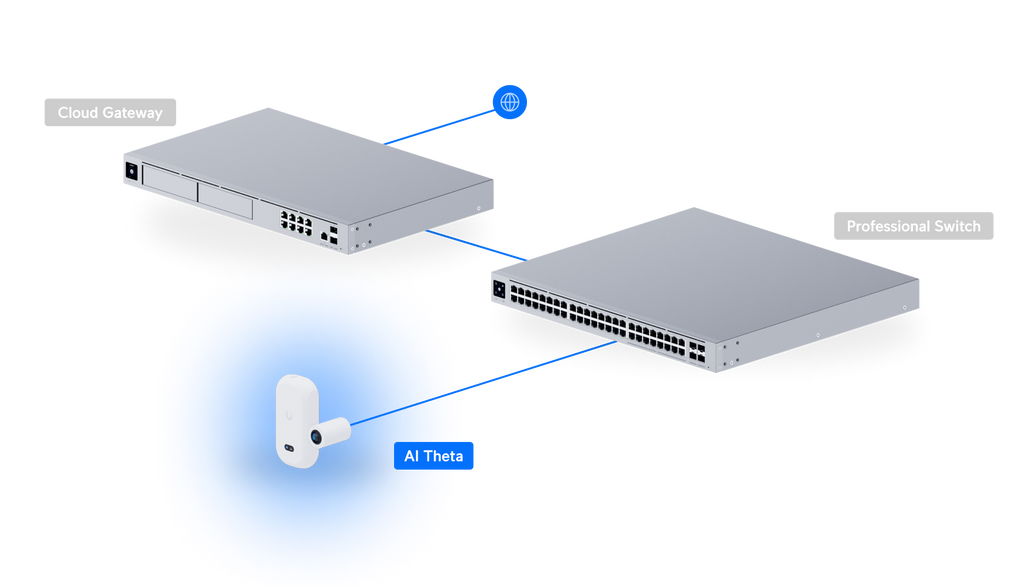

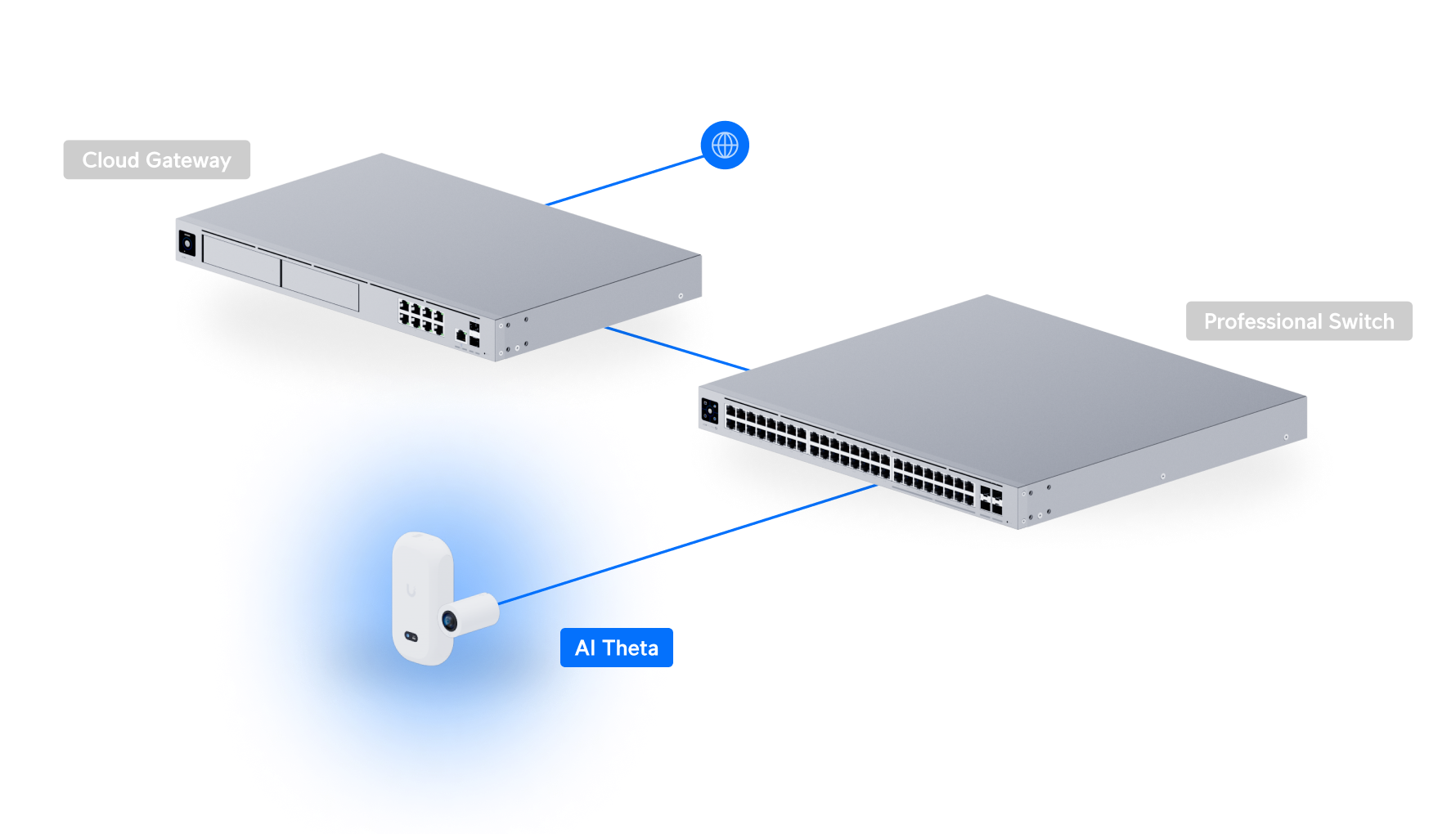

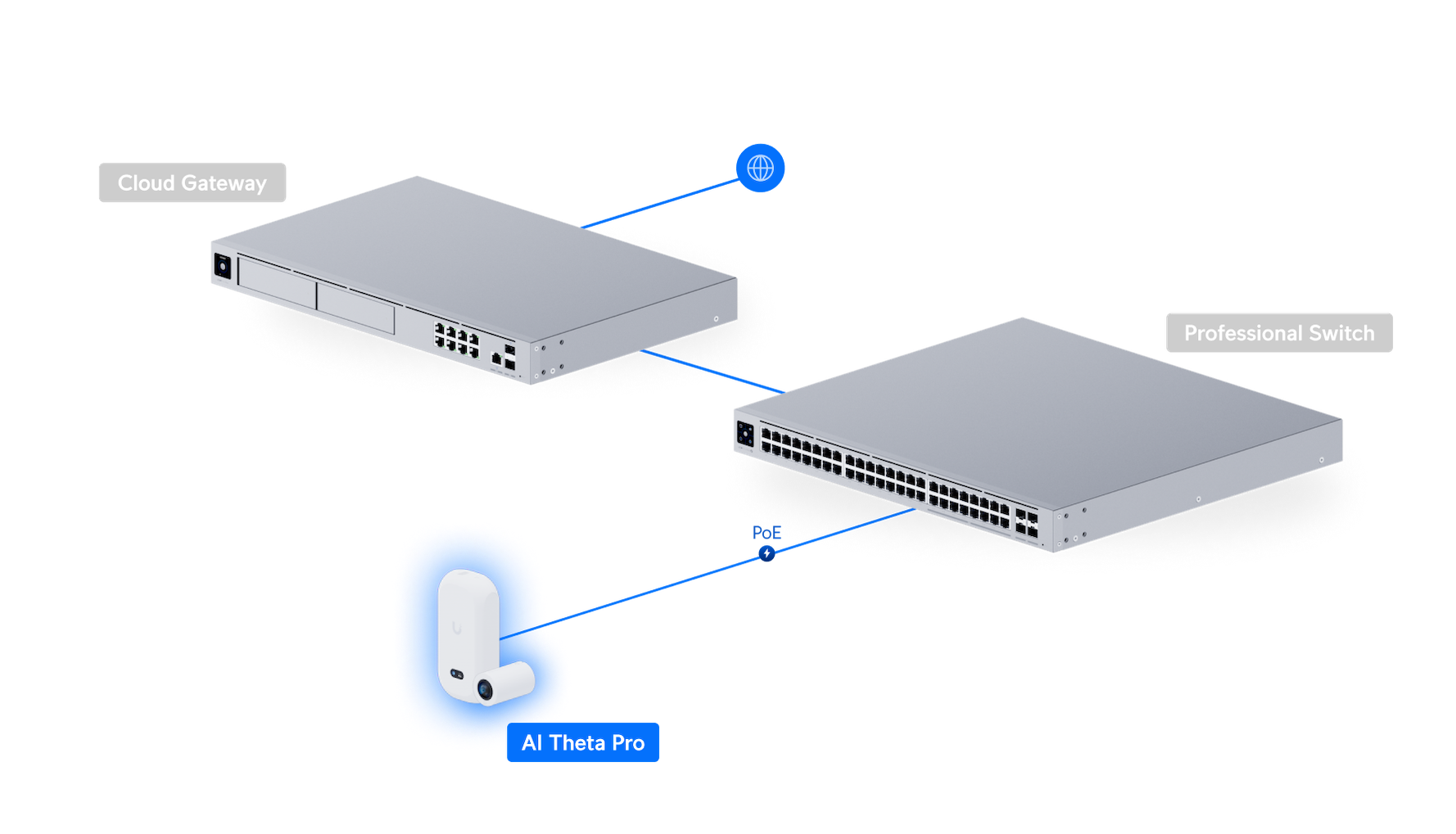

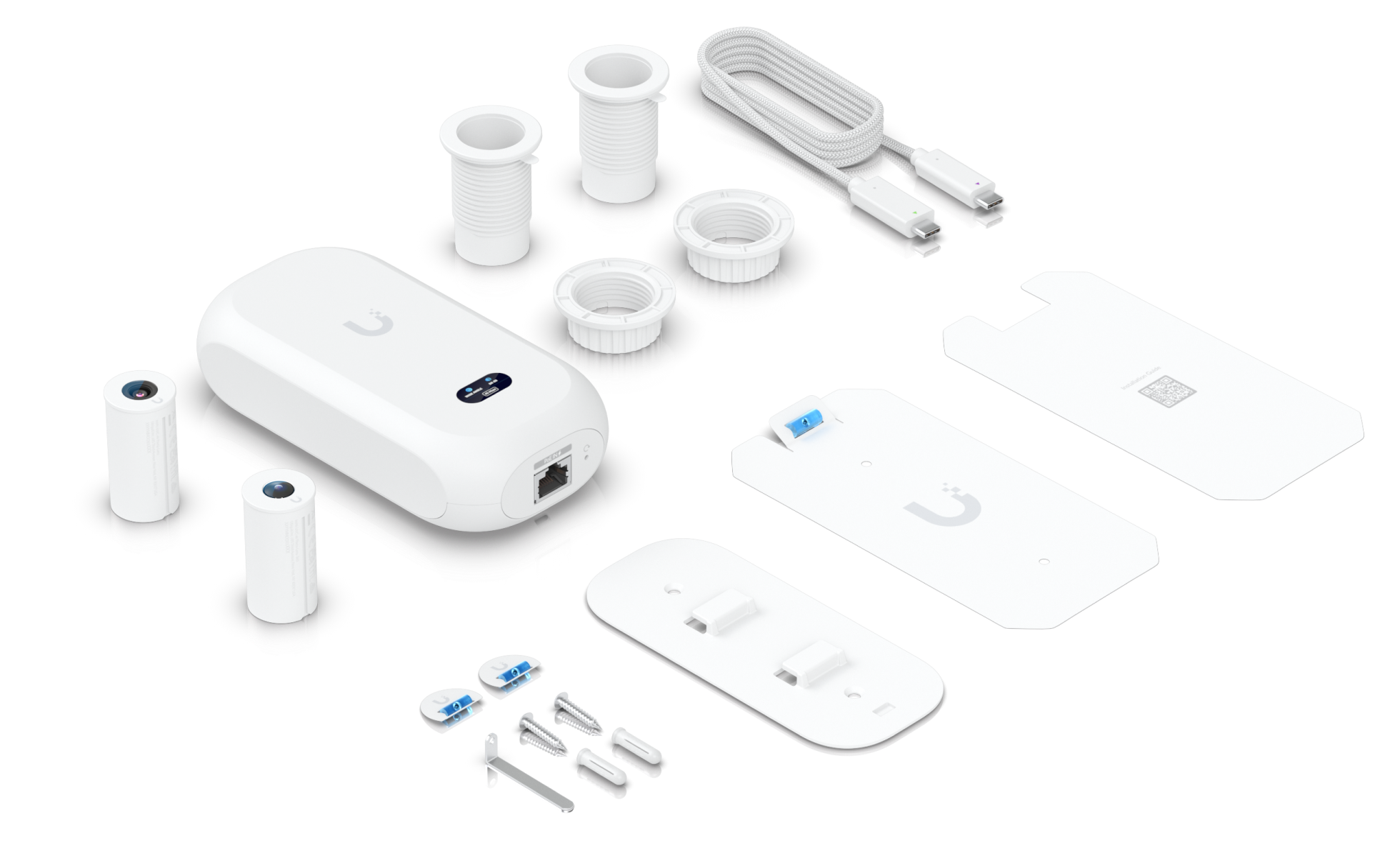

A UniFi Protect NVR (UNVR or UNVR-PRO, or a Dream Machine with Protect), a PoE switch or injector, Cat5e or better to the ceiling mount point, and the appropriate lens module — the UVC-AI-THETA-HUB is available separately if you need additional hub units.
Technical specifications
Overview

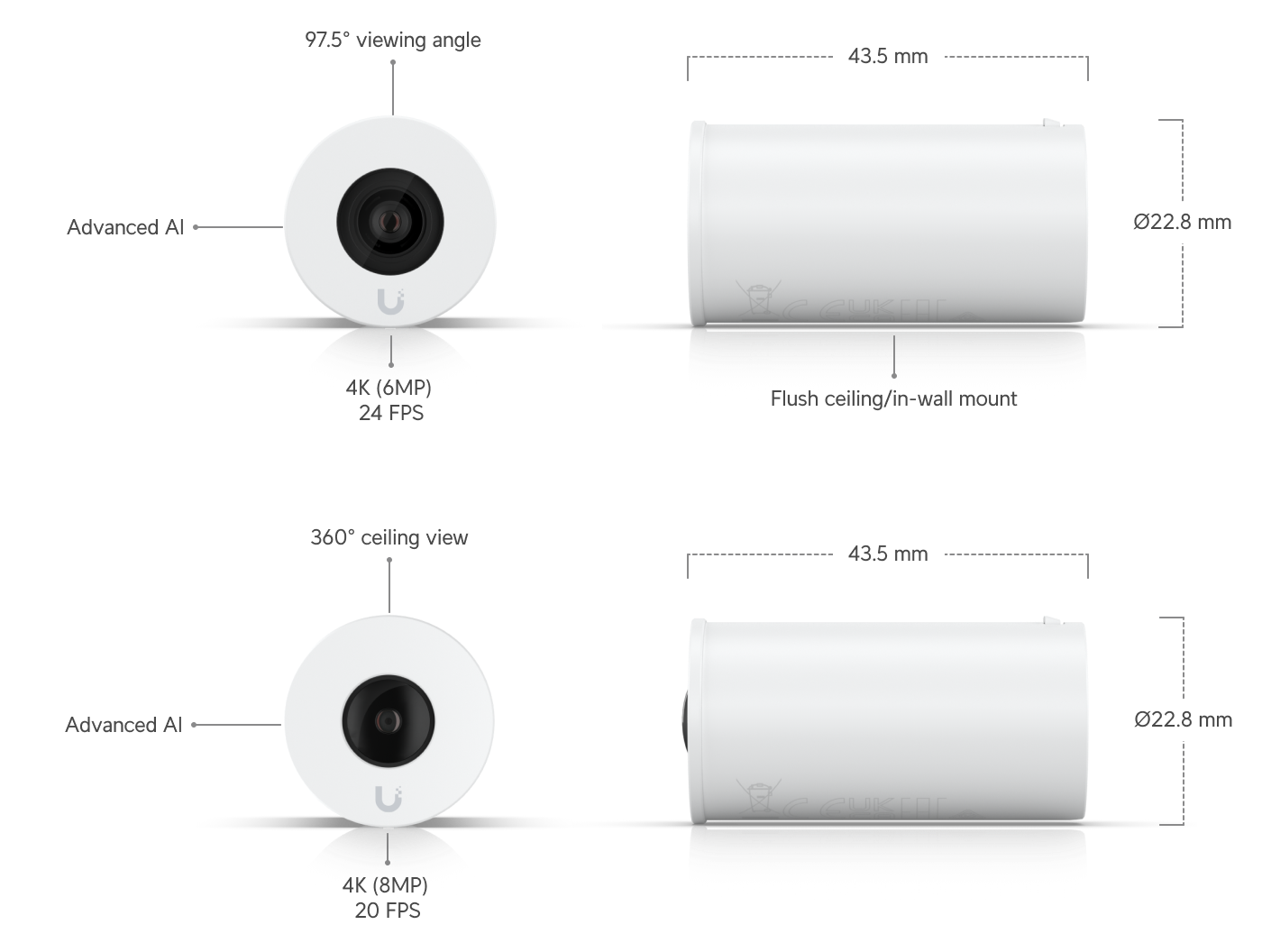

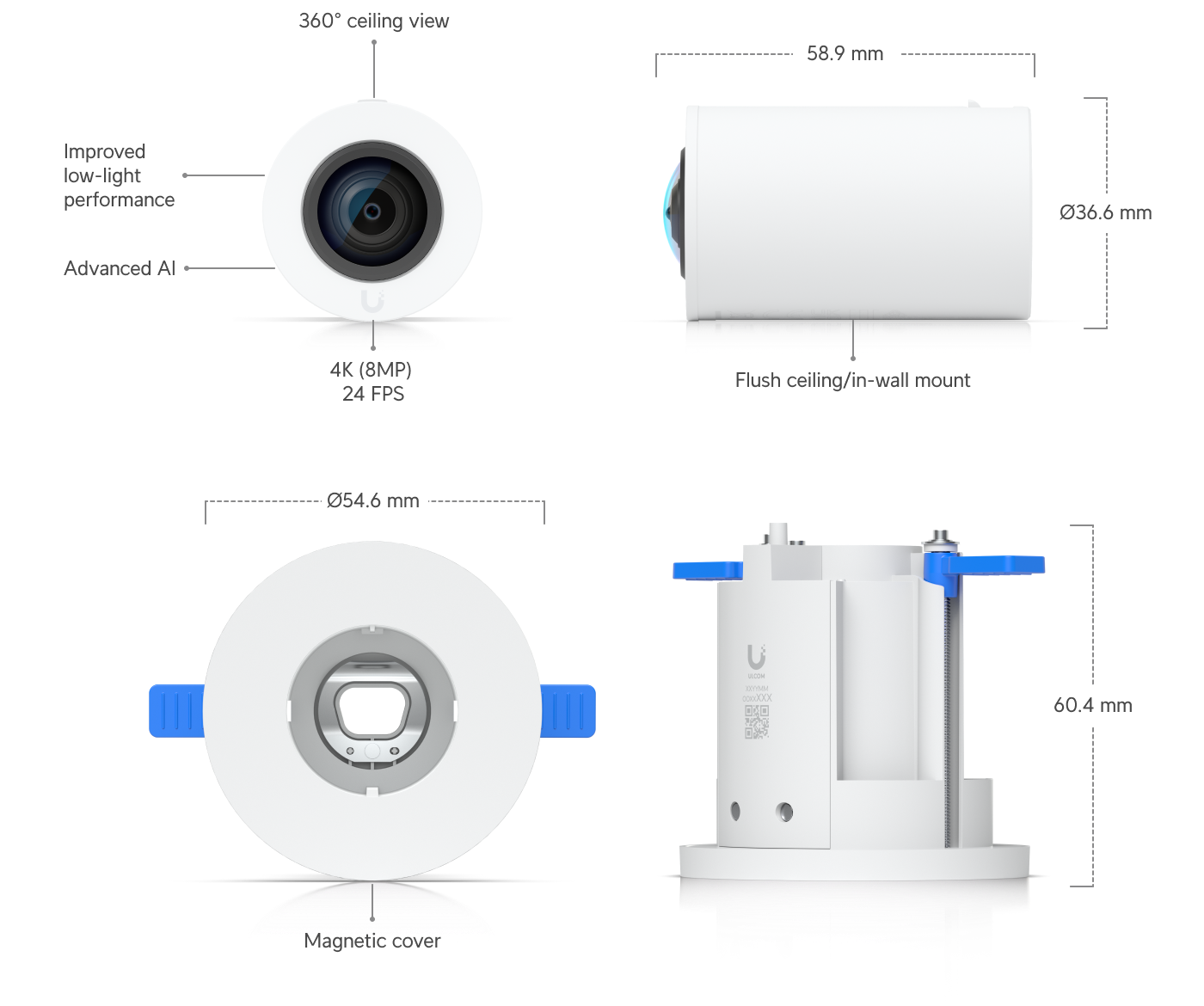

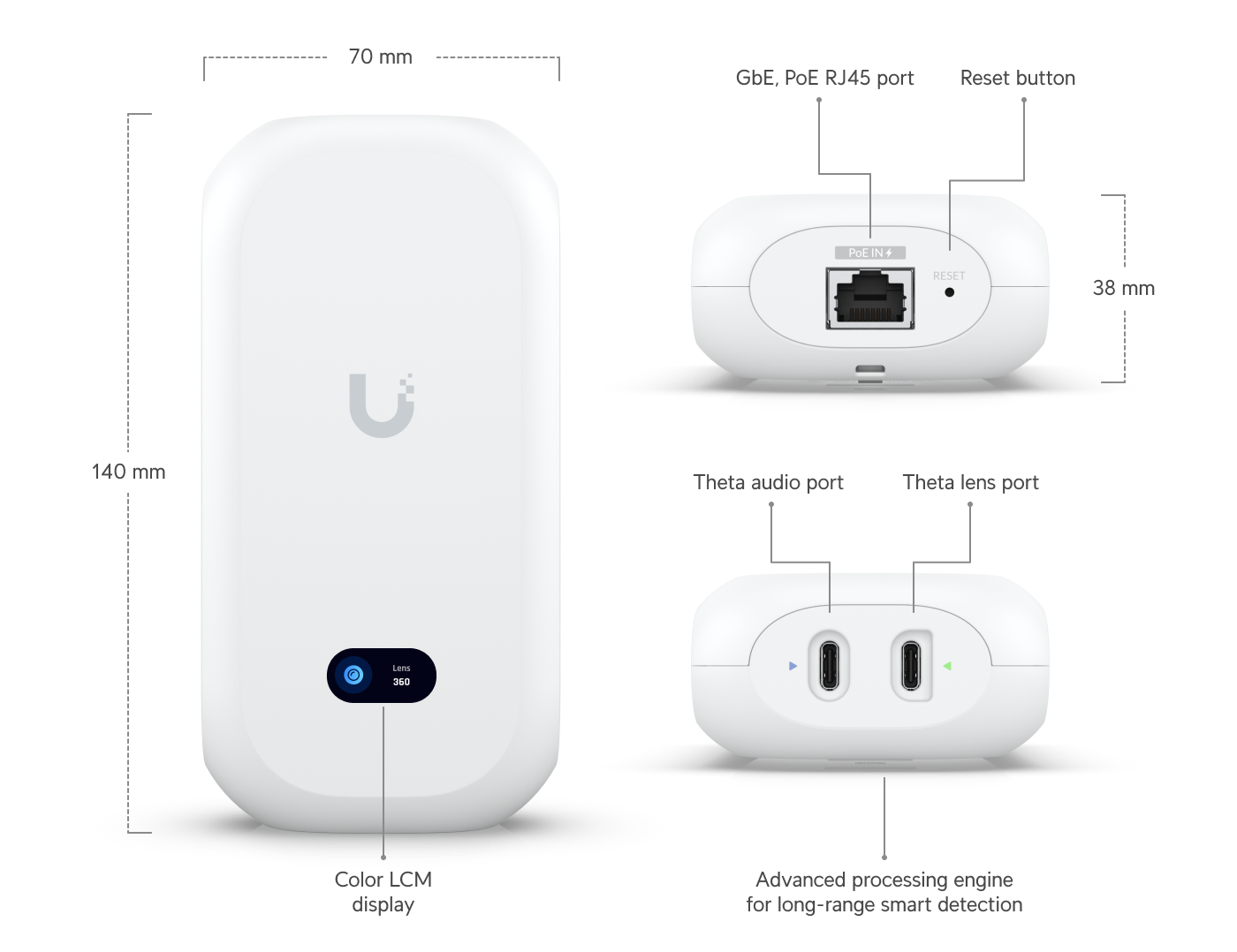

| Dimensions | UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) UVC-AI-Theta-Lens/360: ⌀22.8. x 43.5 mm (⌀0.9 x 1.7”) |
| Resolution | 4k |
| Field of View | H: 97.5°, V: 79.4°, D: 118.2° |
| Audio | Two-way audio with optional AI Theta Audio |

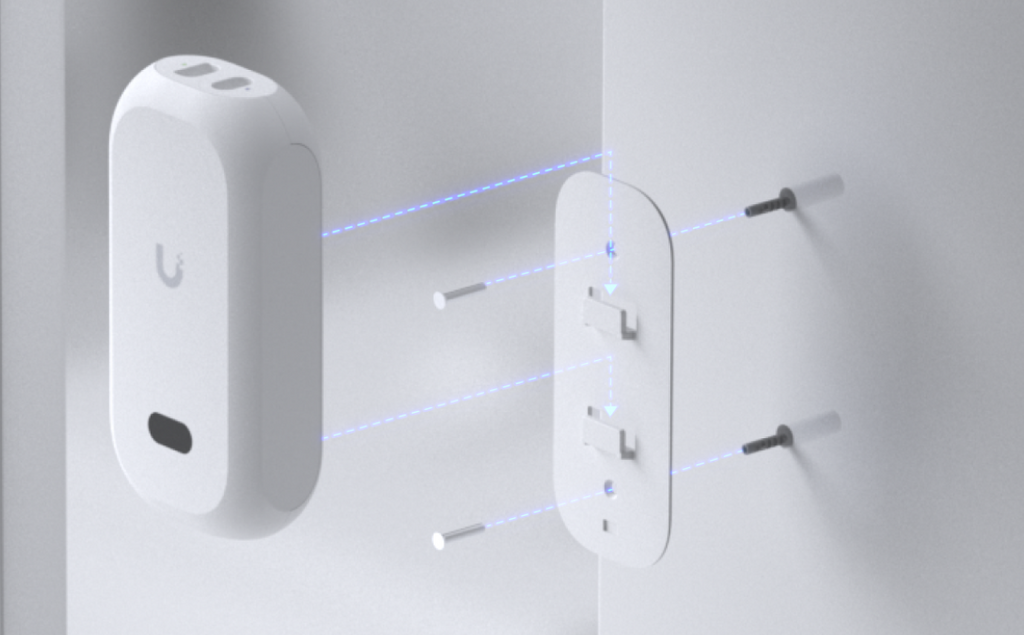

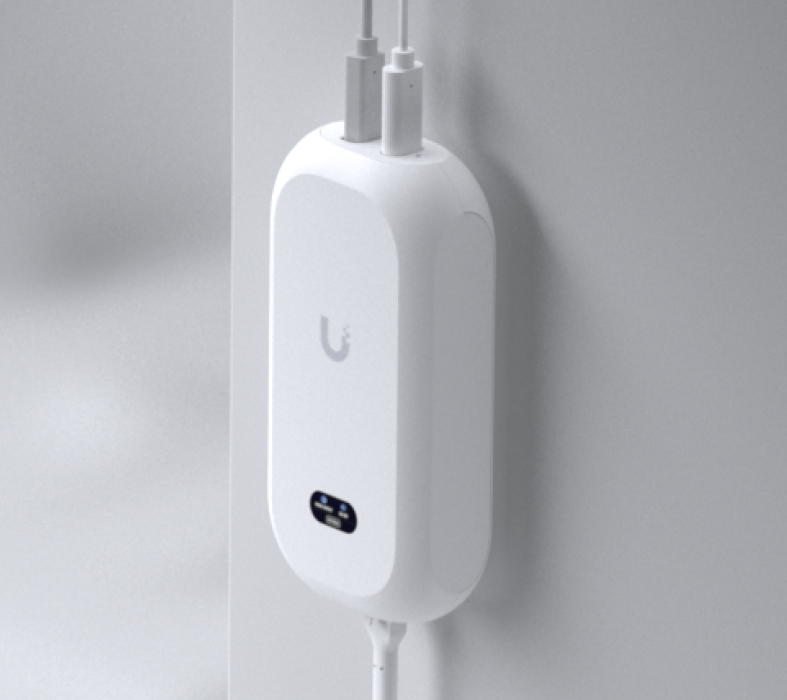

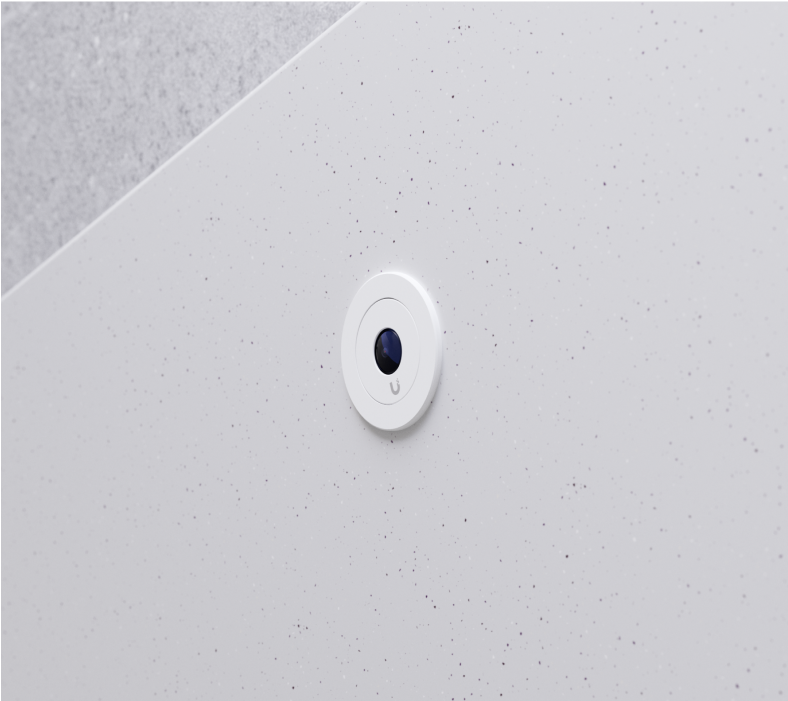

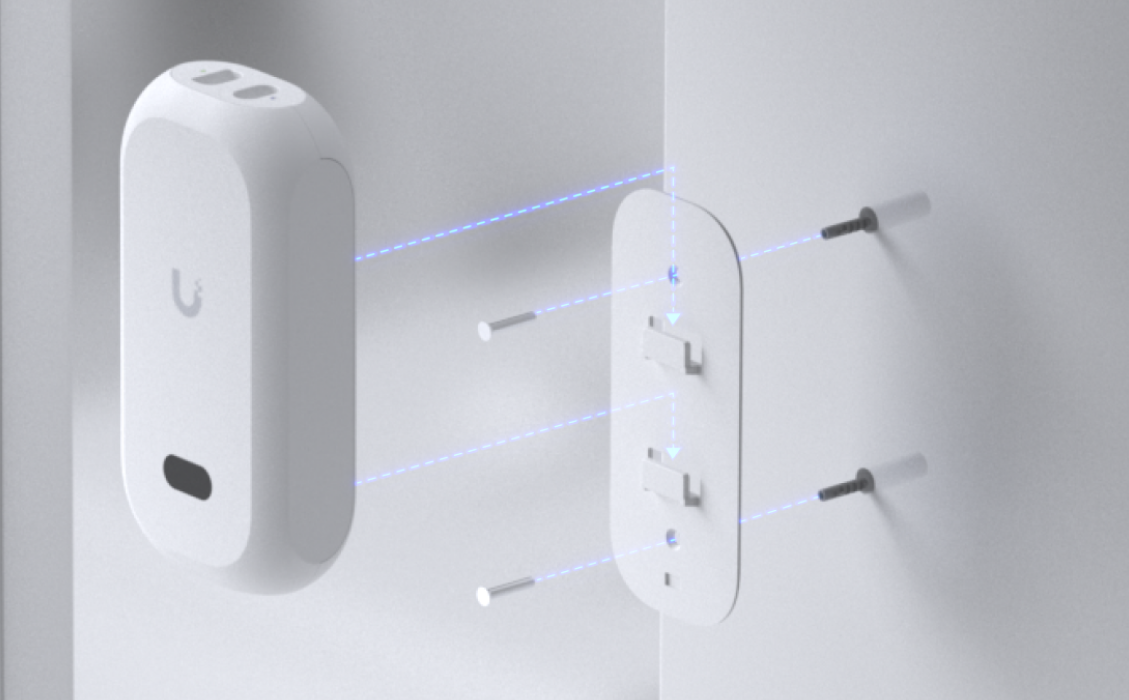

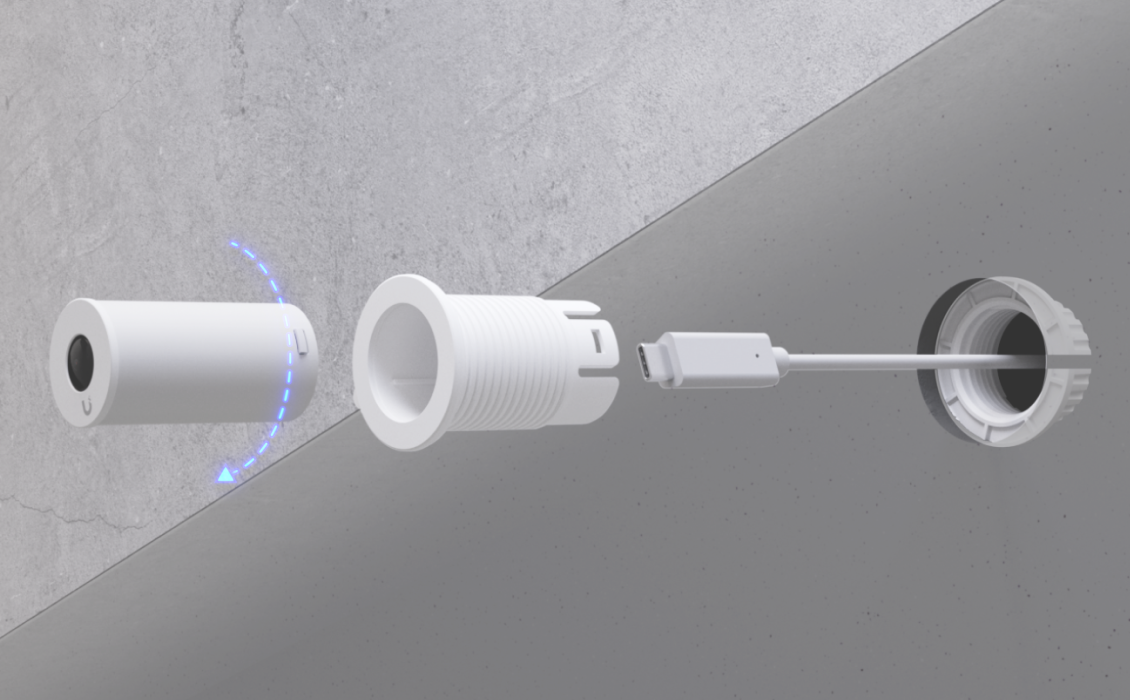

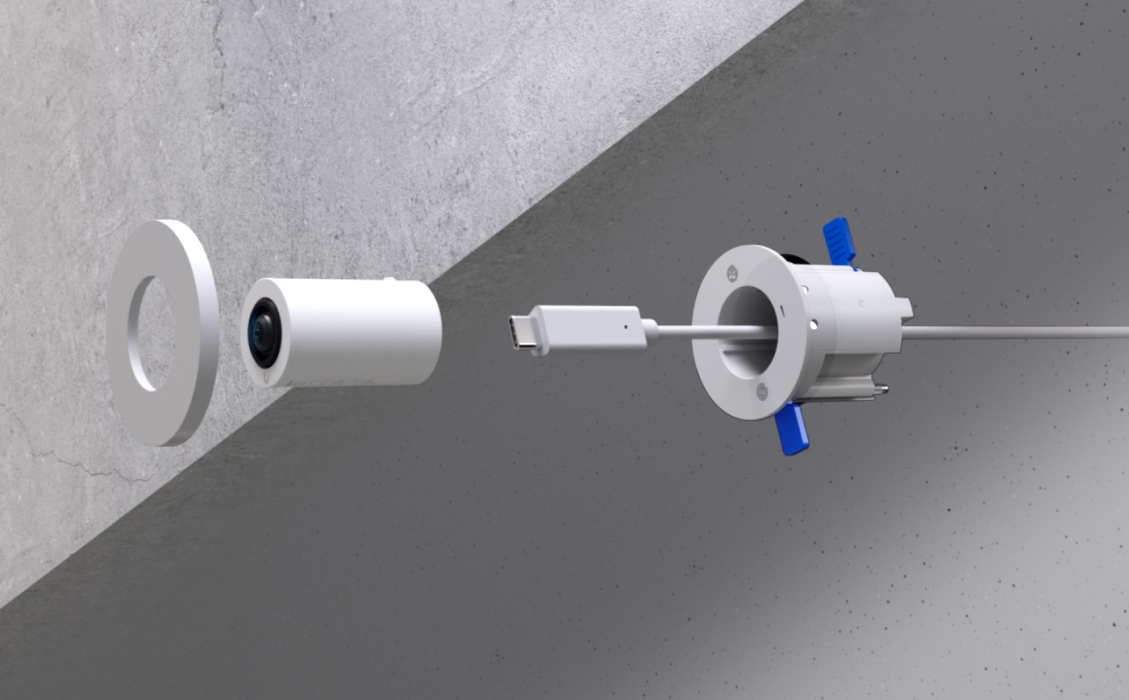

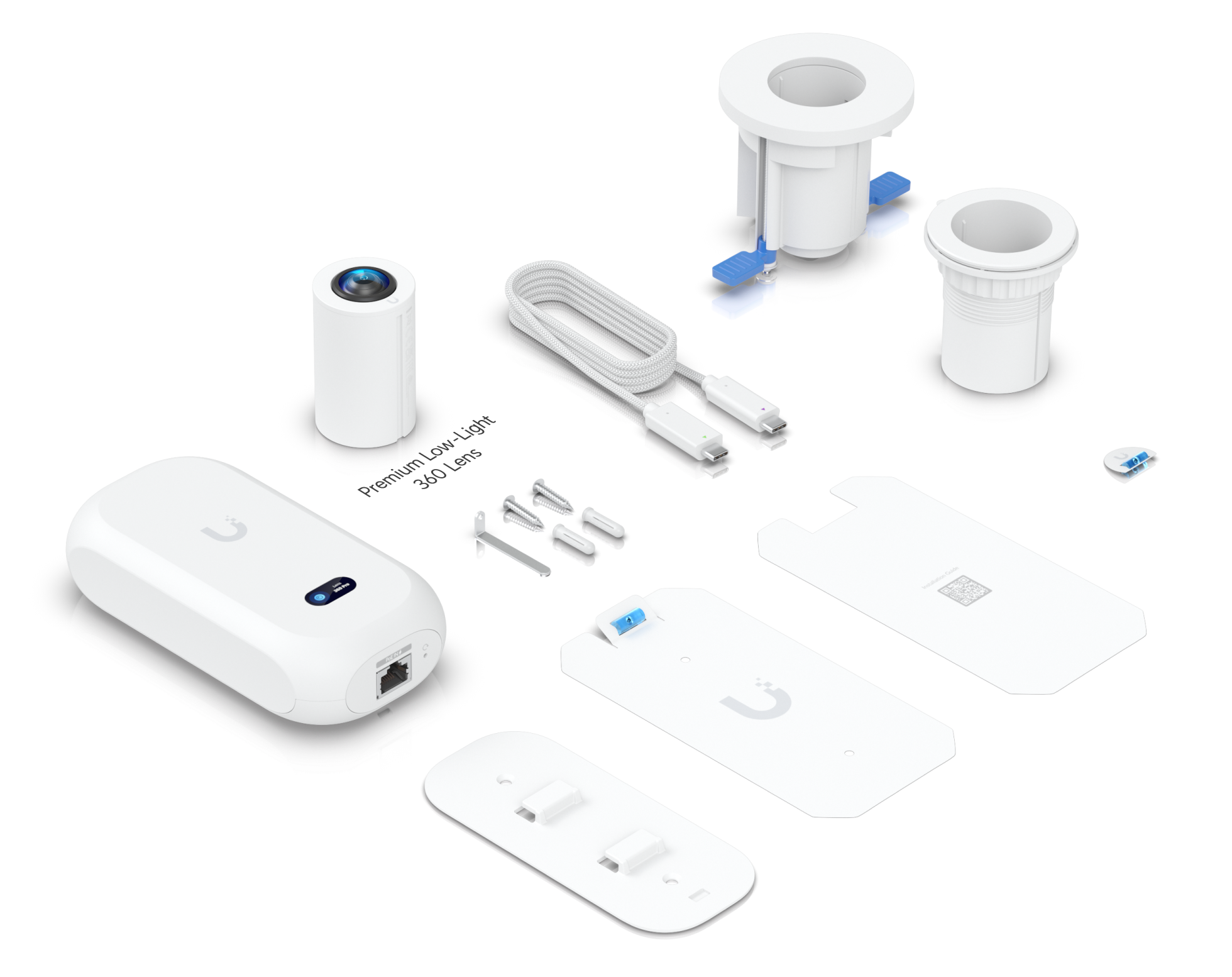

| Mounting | Wall, ceiling, flush mount (Included) Angle mount (Optional) |
Performance

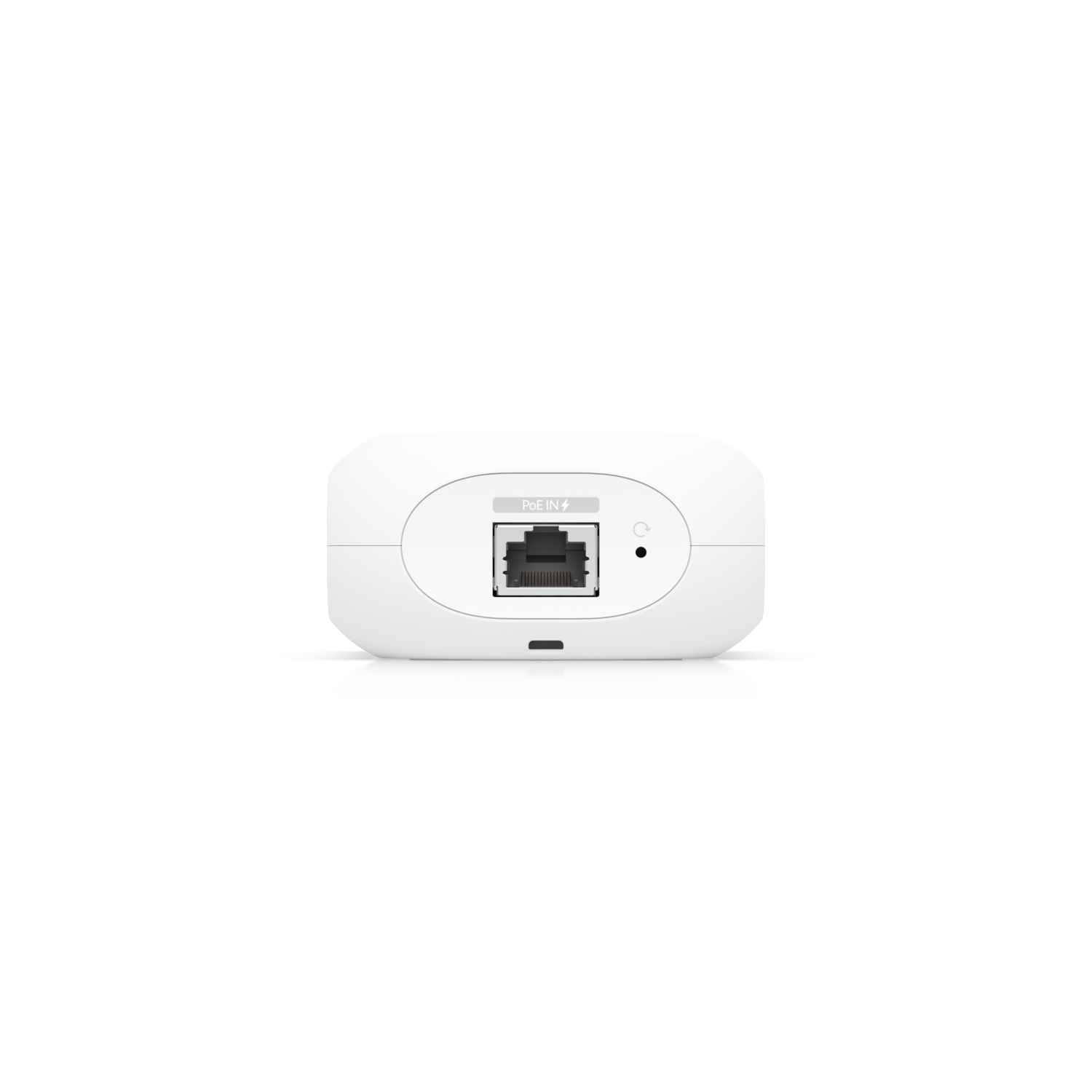

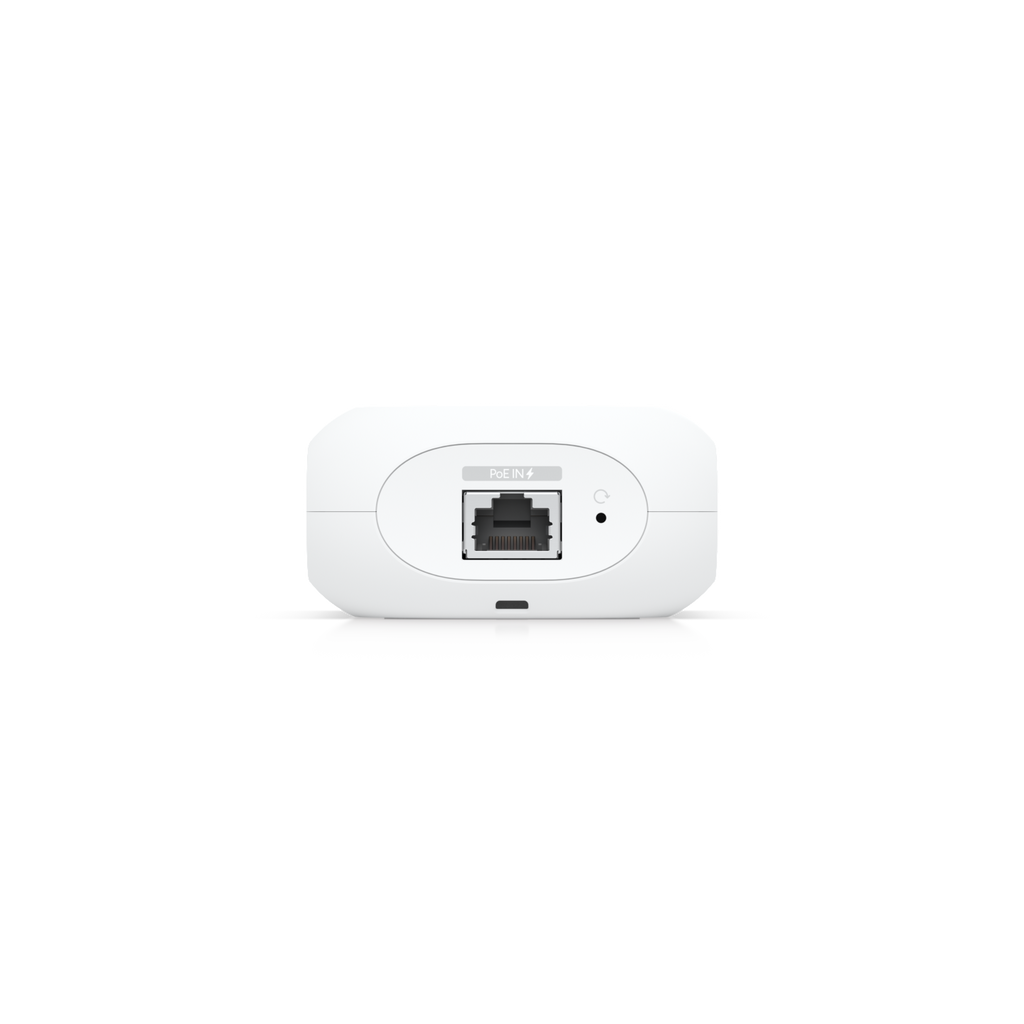

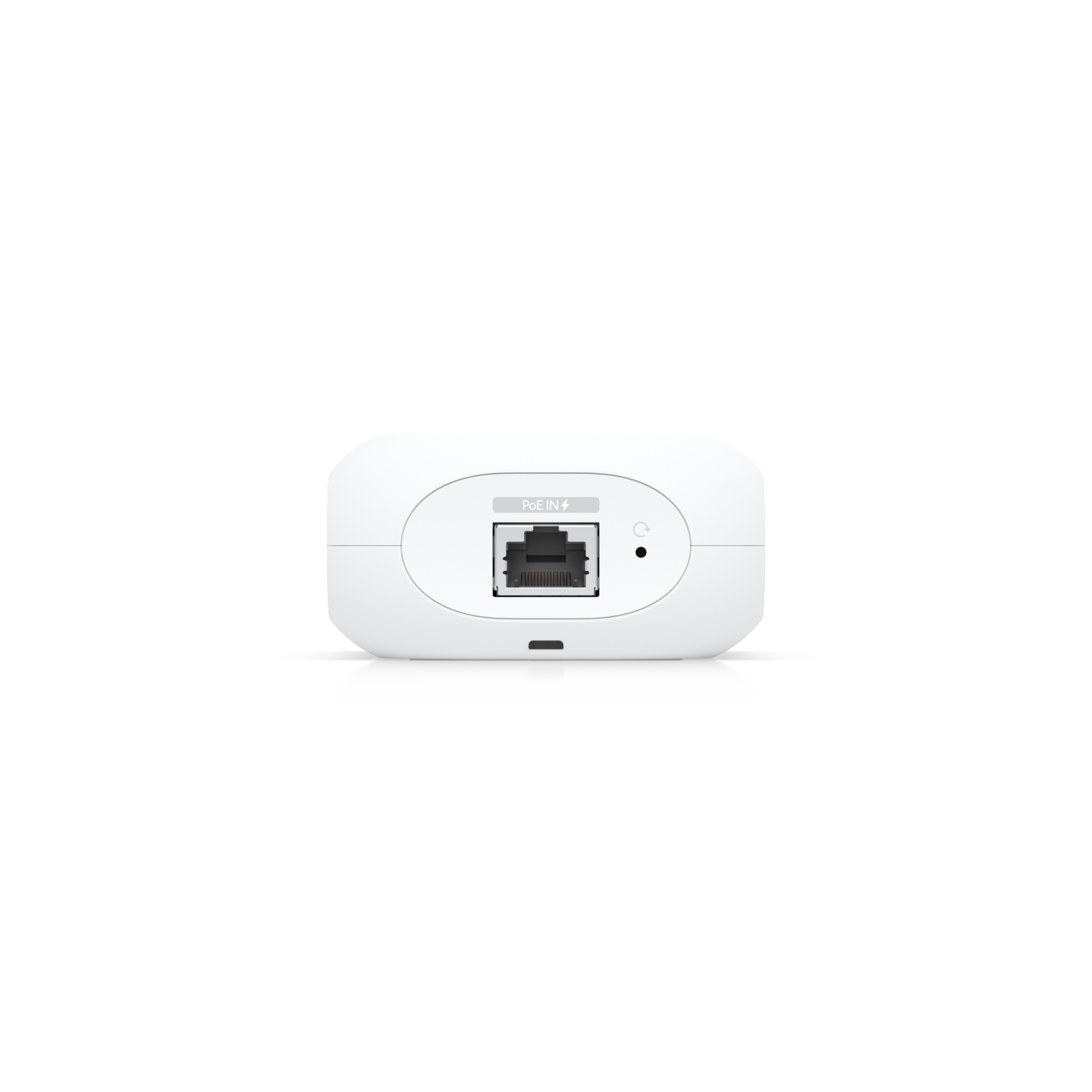

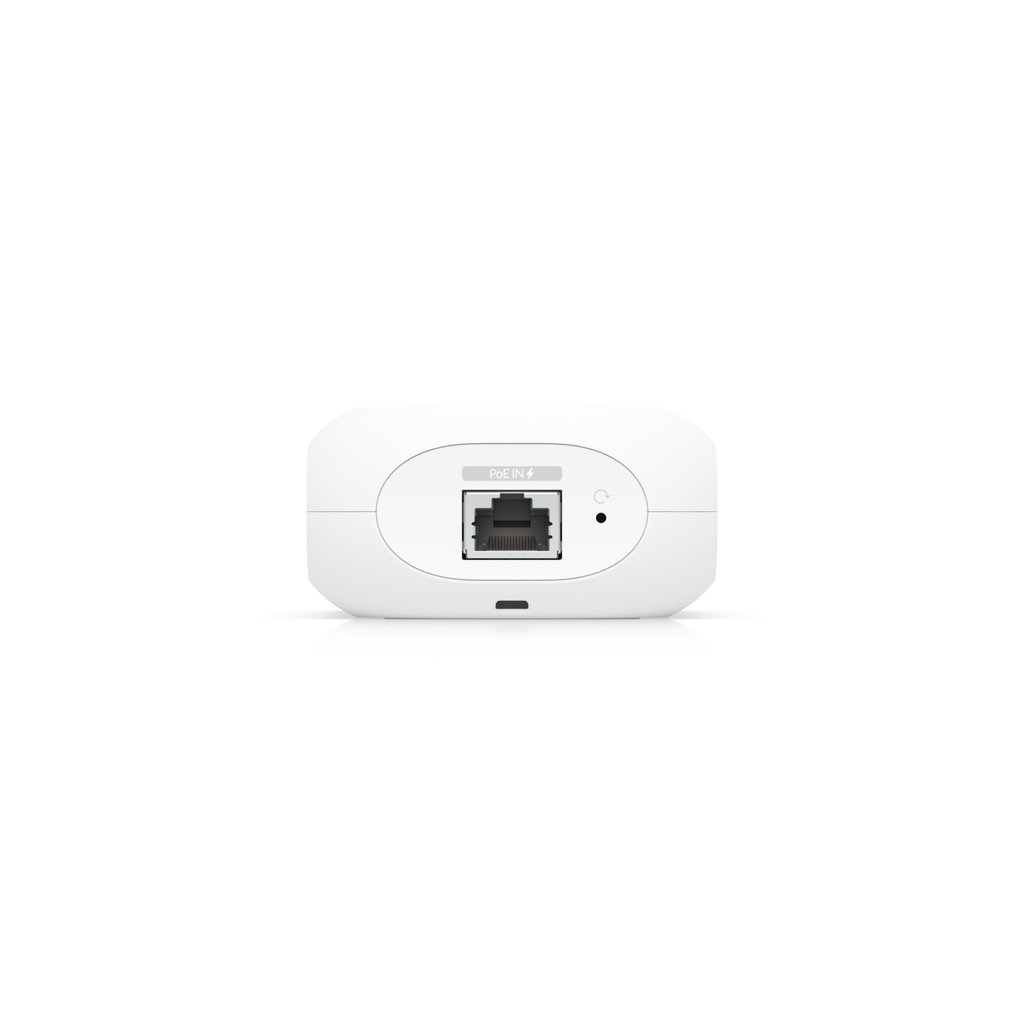

| Networking Interface | GbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | UVC-AI-Theta-Lens: 24 FPS UVC-AI-Theta-Lens-360: 20 FPS |
| Resolution | UVC-AI-Theta-Lens: 8MP 3264 x 2448 (4:3) UVC-AI-Theta-Lens-360: 6MP 2560 x 2560 (1:1) |
| Sensor | UVC-AI-Theta-Lens: 8MP CMOS UVC-AI-Theta-Lens-360: 12MP CMOS |
| Lens | Fixed focal length |
Hardware
| Max. Power Consumption | 12.5W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | UVC-AI-Theta-Hub: 330 g (11.6 oz) UVC-AI-Theta-Hub mount: 35 g (1.2 oz) UVC-AI-Theta-Lens/360: 15 g (0.5 oz) UVC-AI-Theta-Lens/360 Flush mount: 12 g (0.4 oz) |
| Enclosure Material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush mount: polycarbonate |
| Mount Material | UVC-AI-Theta-Hub: aluminum alloy UVC-AI-Theta-Lens/360: aluminum alloy, polycarbonate UVC-AI-Theta-Lens/360 Flush mount: polycarbonate |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
