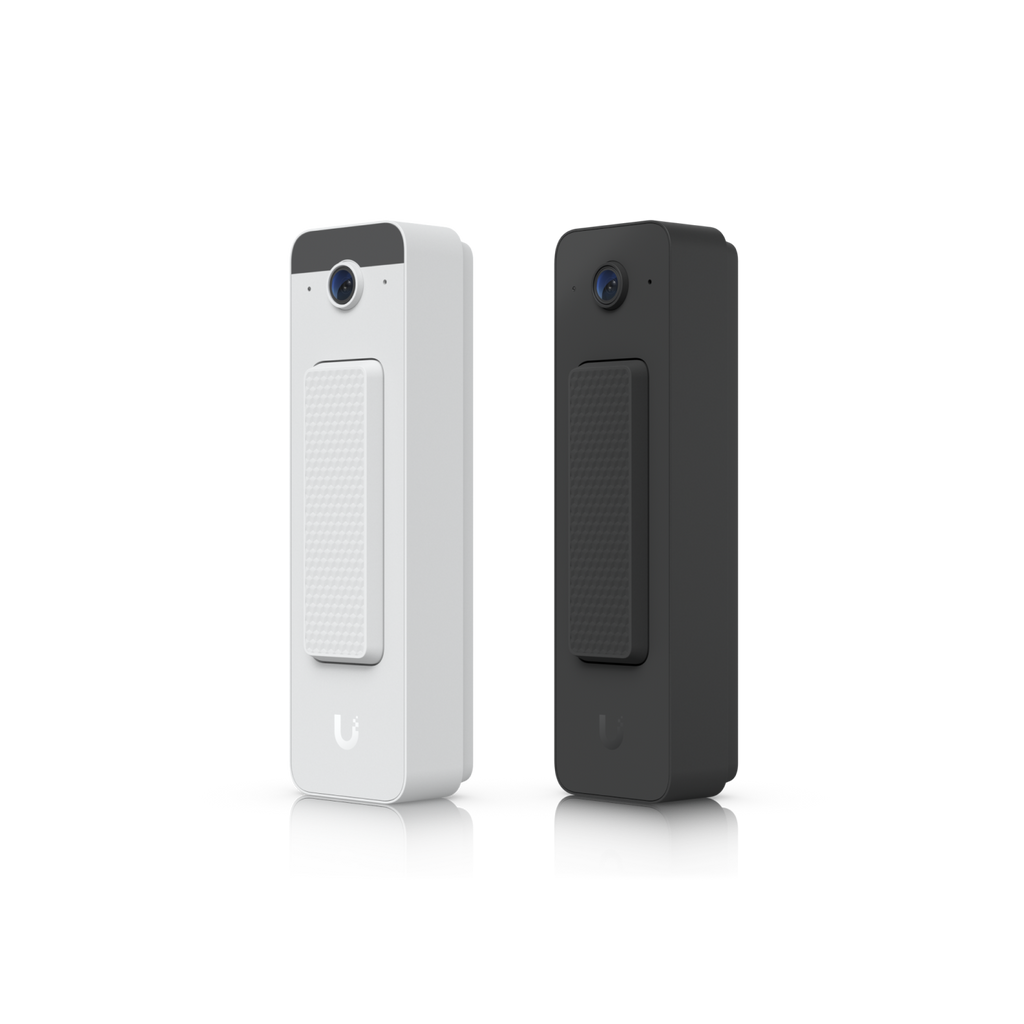

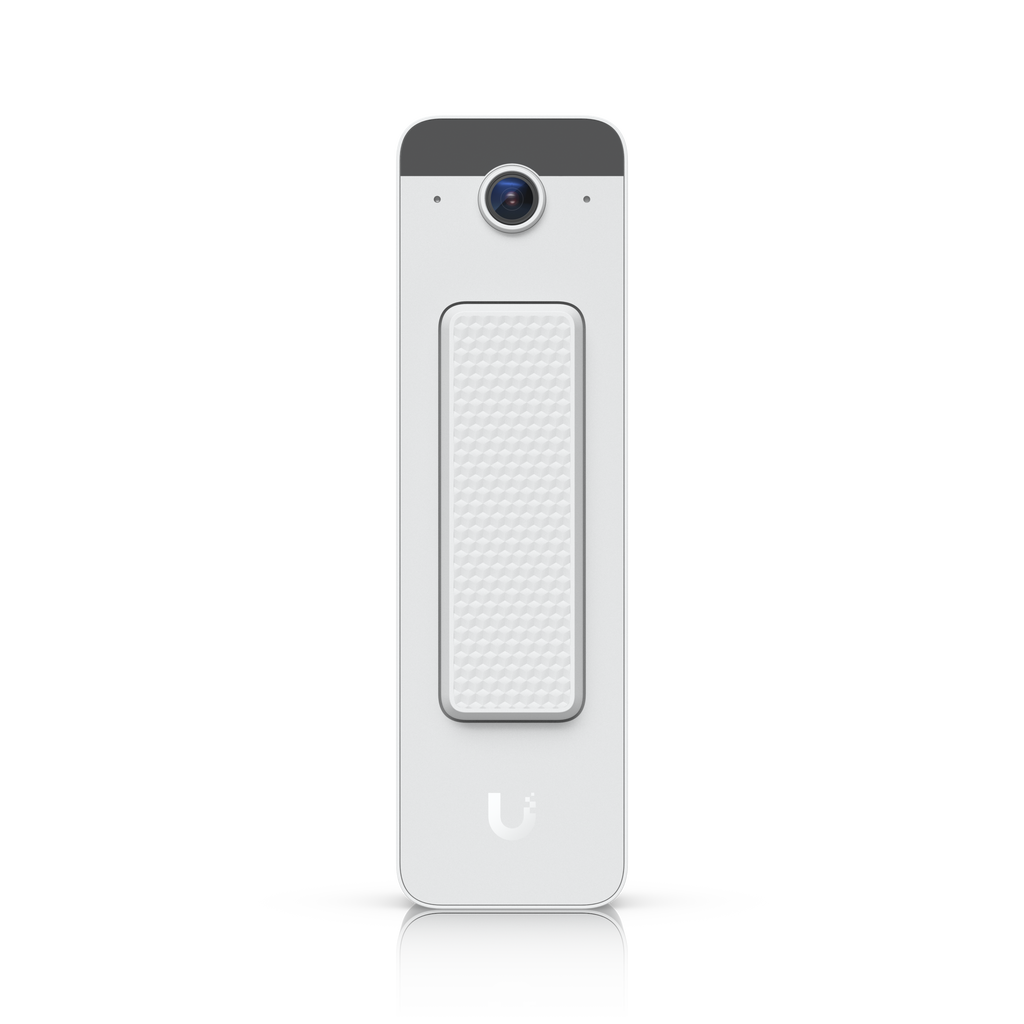

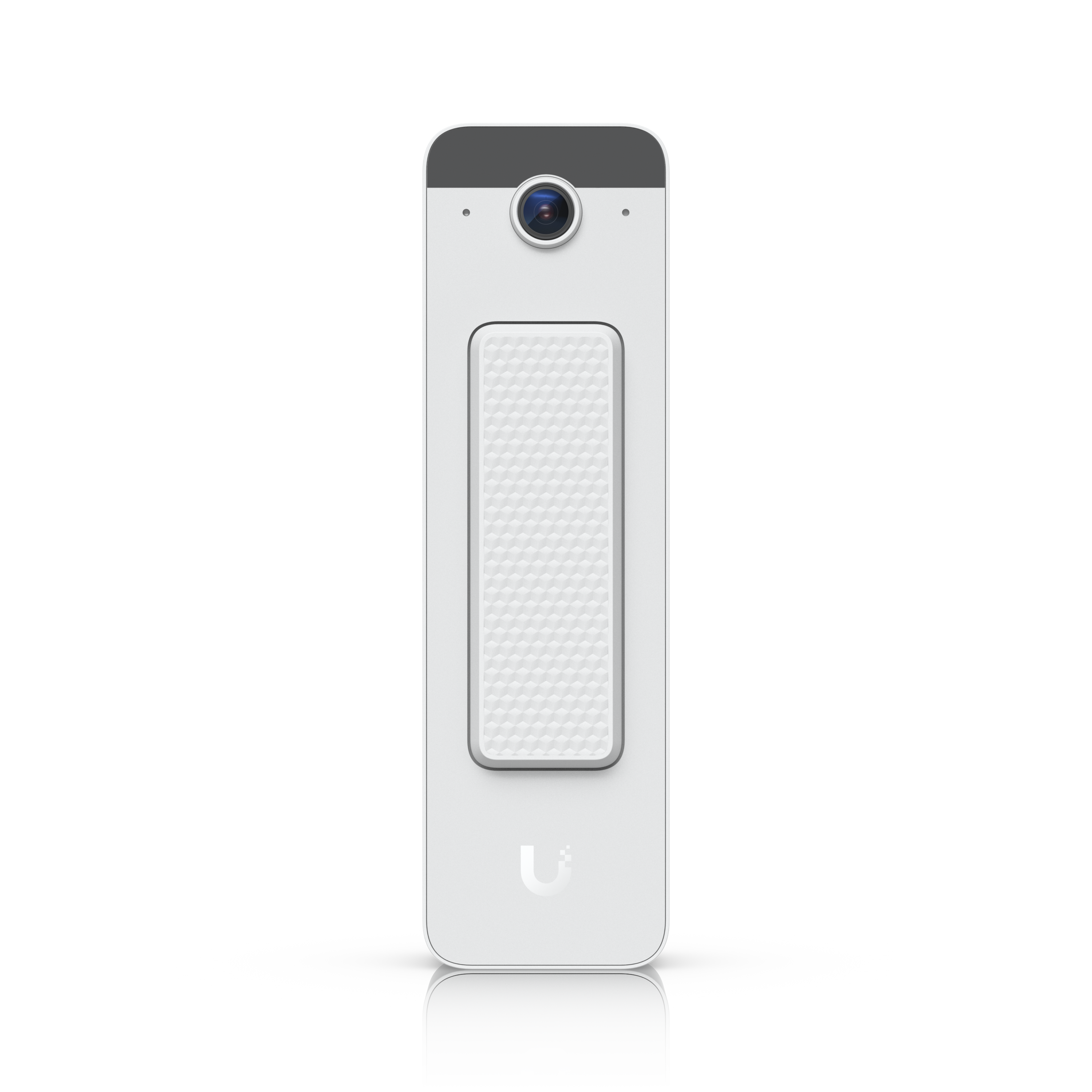

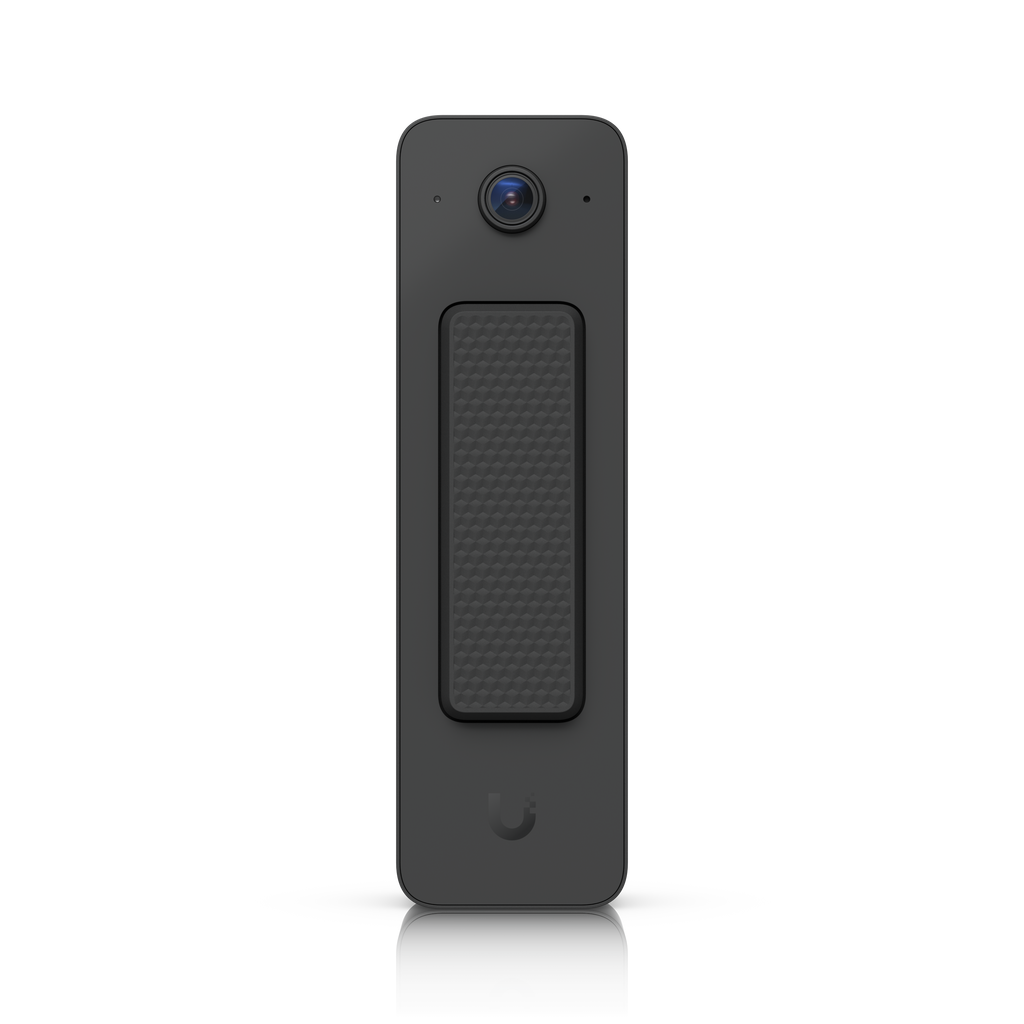

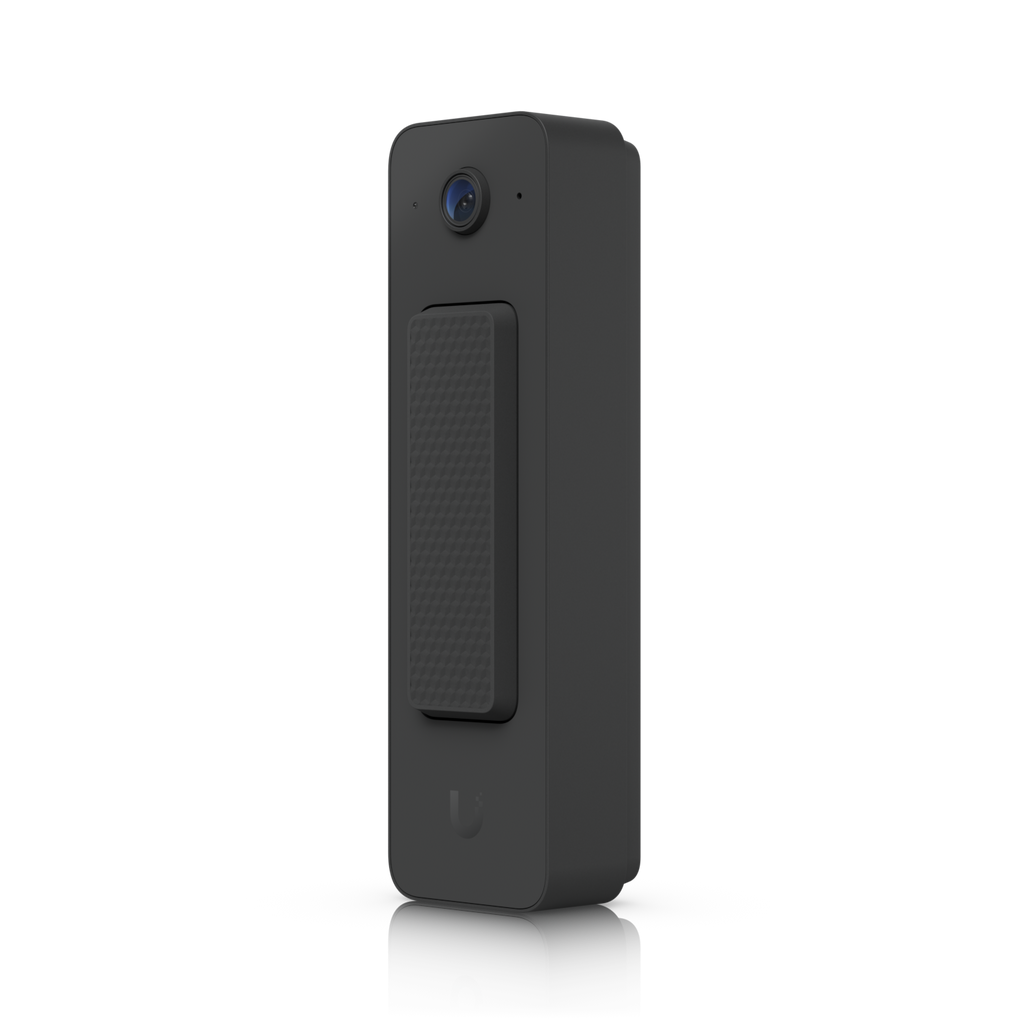

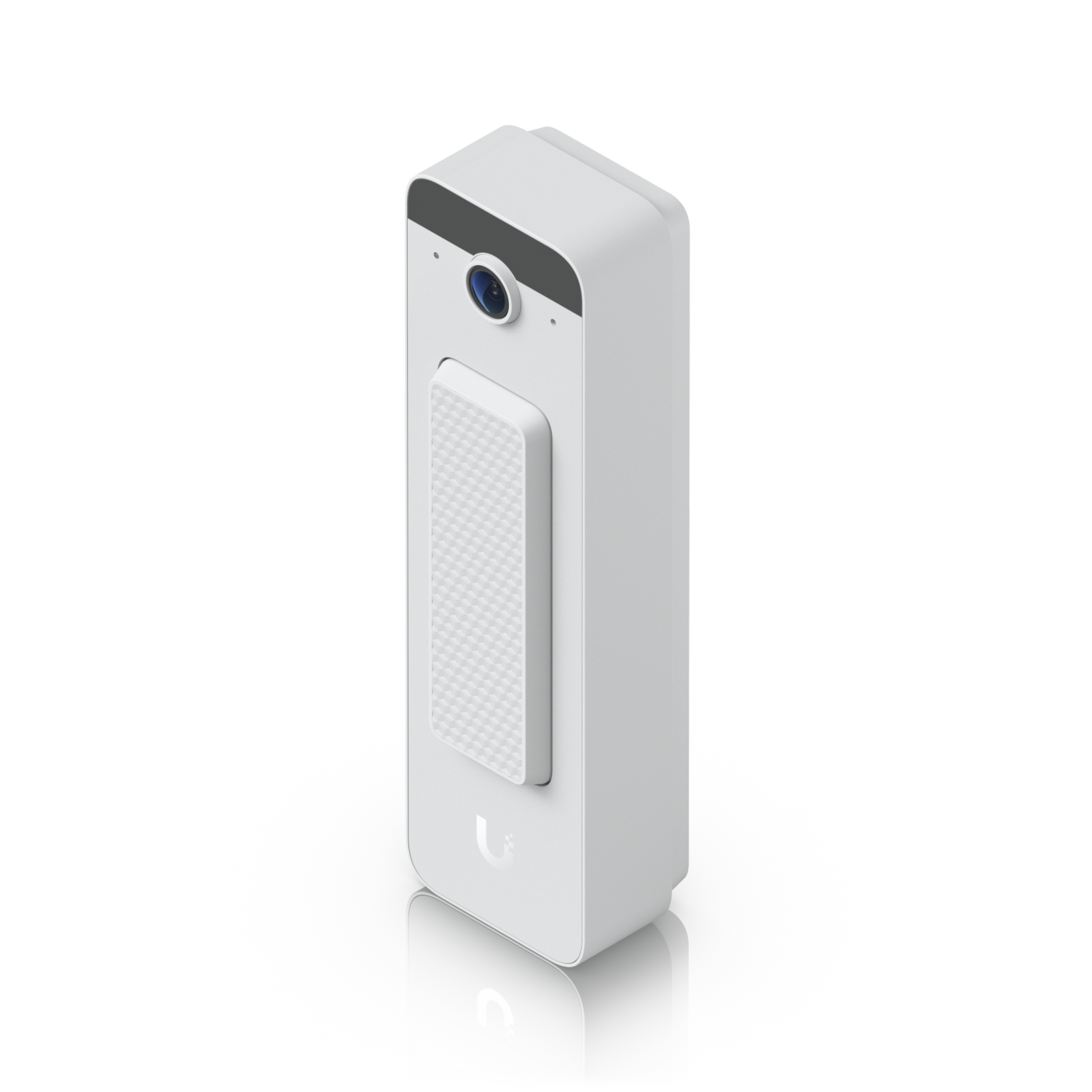

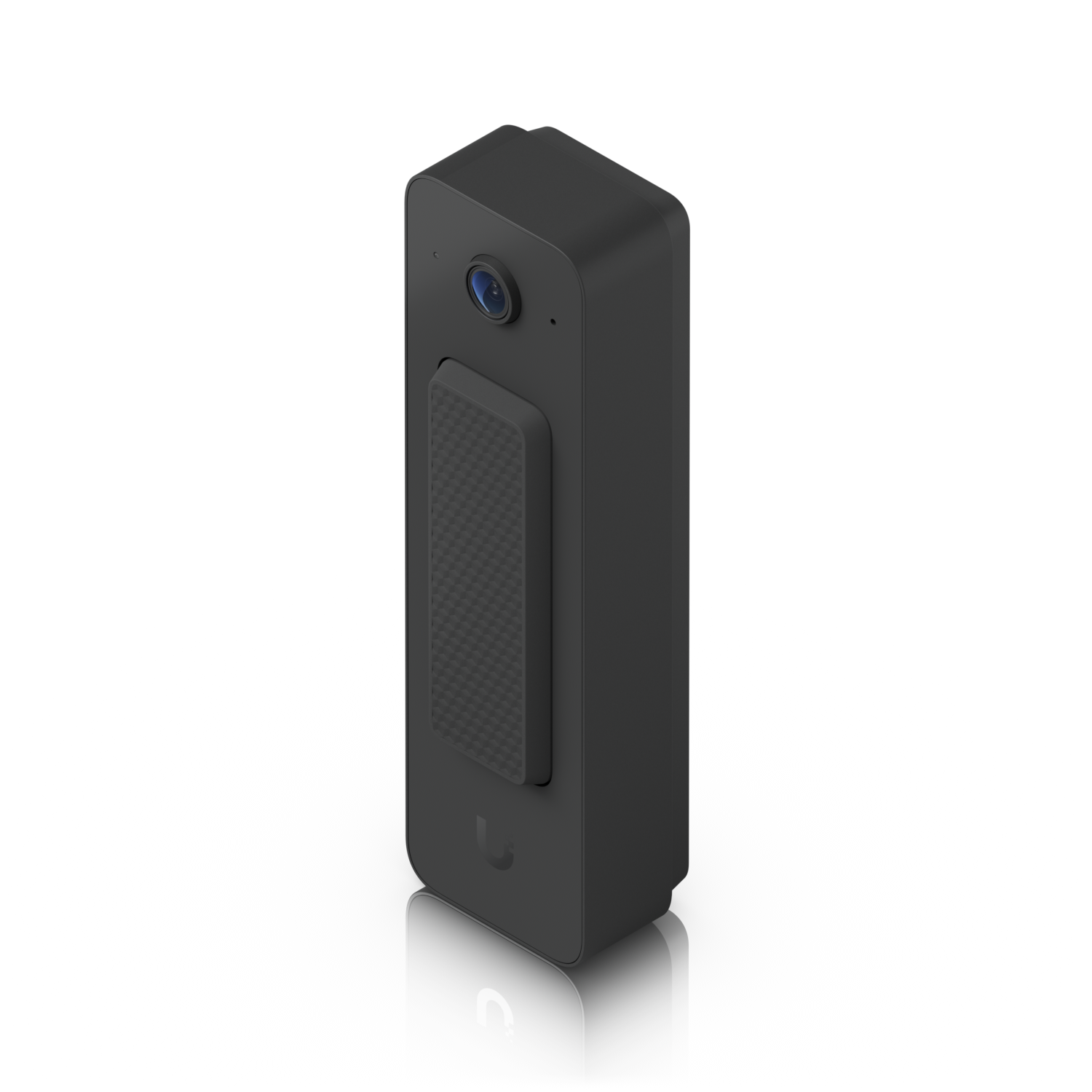

Ubiquiti UVC-DOORBELL-LITE | Doorbell Lite | 5MP | IPX5 | PoE
White
$201.00
Ubiquiti UVC-DOORBELL-LITE | Doorbell Lite | 5MP | IPX5 | PoE
$201.00
Doorbell Lite
Technical Specifications
Overview

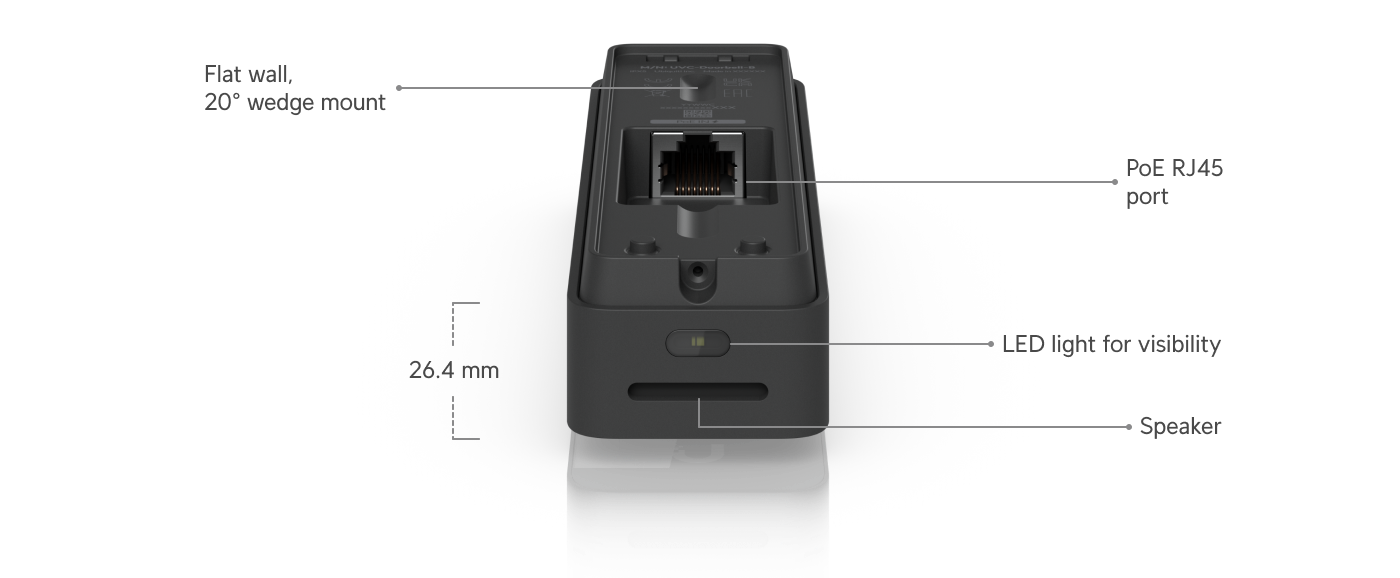

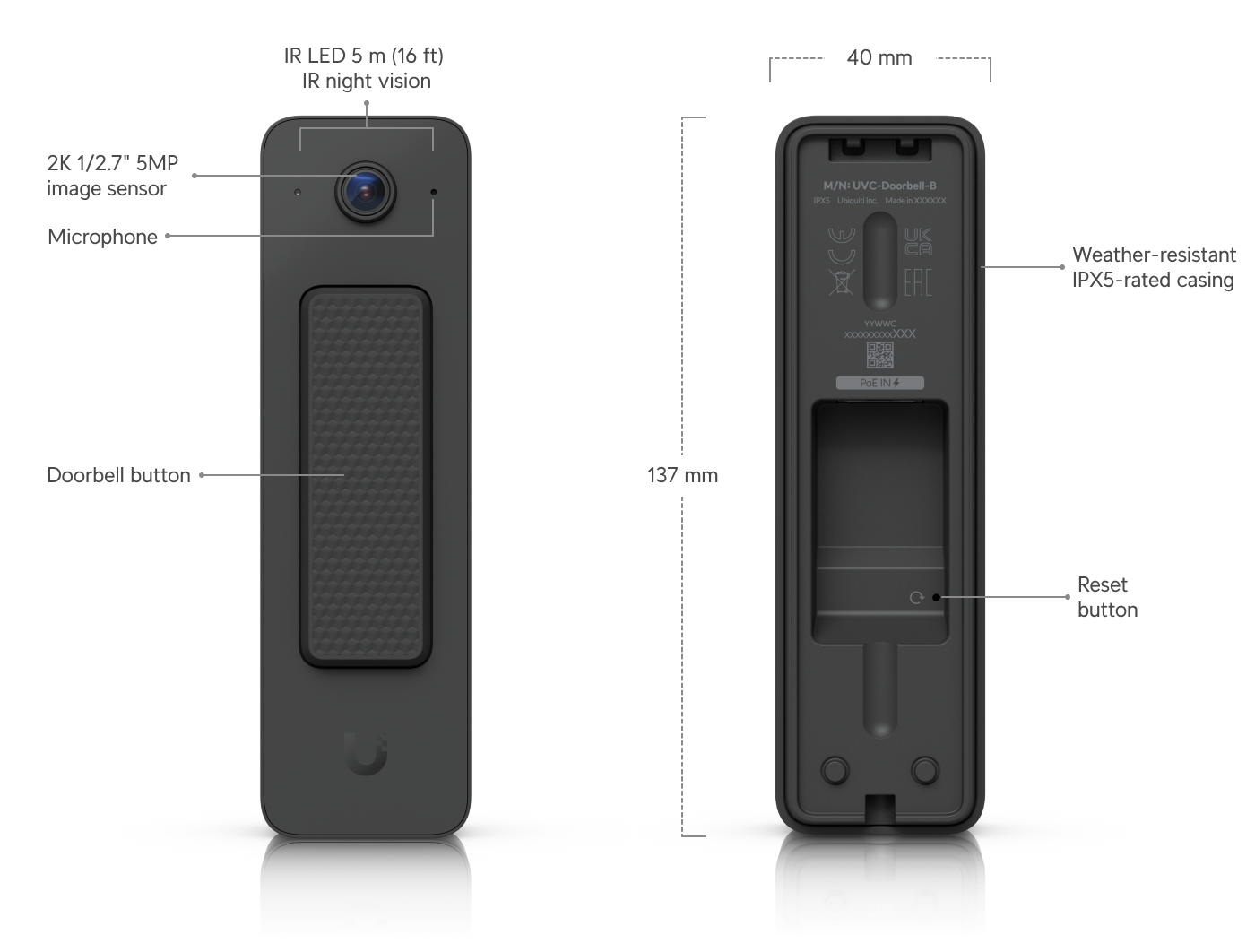

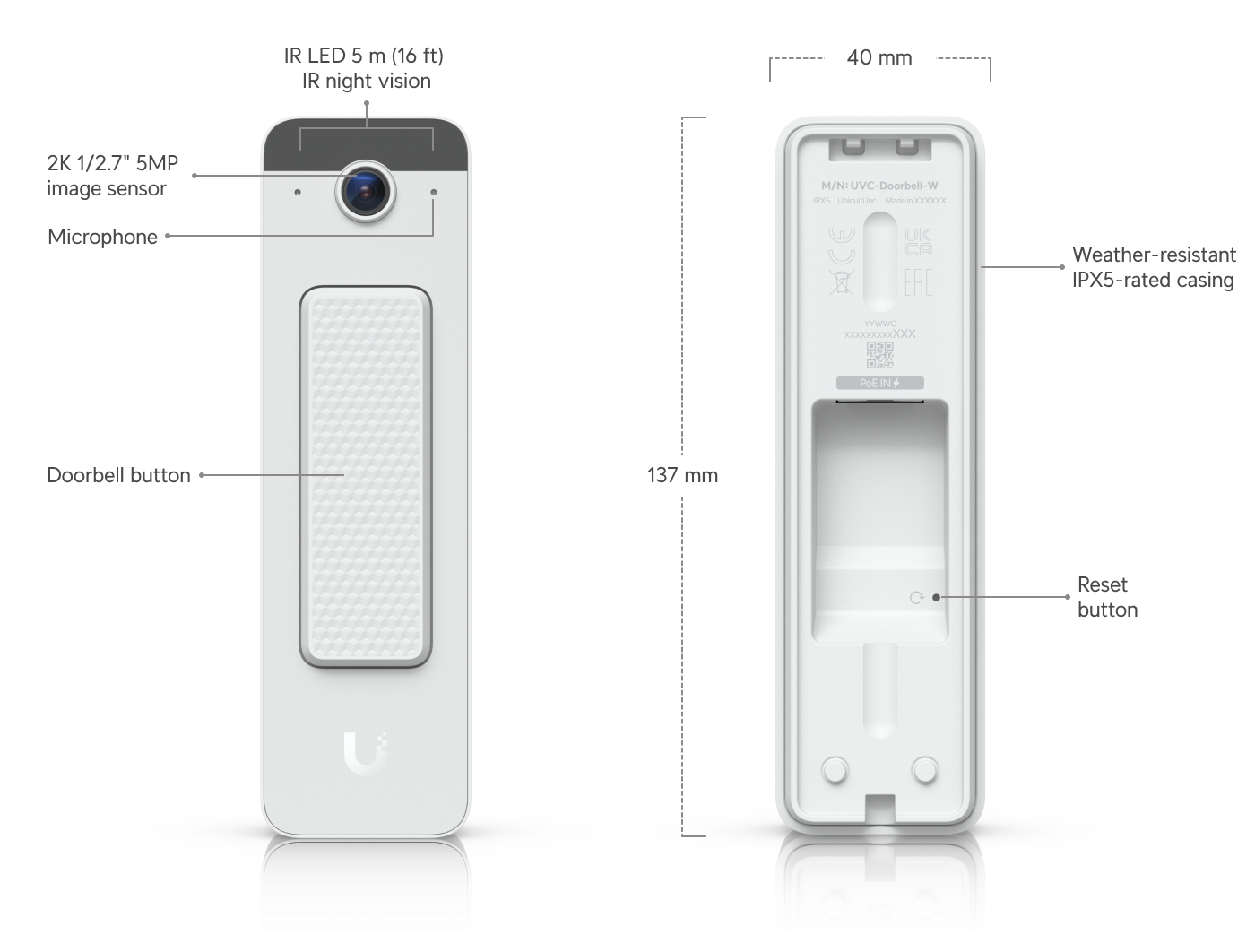

| Dimensions | 137 x 40 x 26.4 mm (5.4 x 1.6 x 1") |
| IR Night Vision | 5 m (16 ft) |
| Smart Detections (People, Vehicles, Animals) | True |
| Resolution | 5MP |
| Field of View | H: 95.8°, V: 131.2°, D: 175.9° |
| Audio | Two-way audio |
| Weatherproofing | IPX5 |

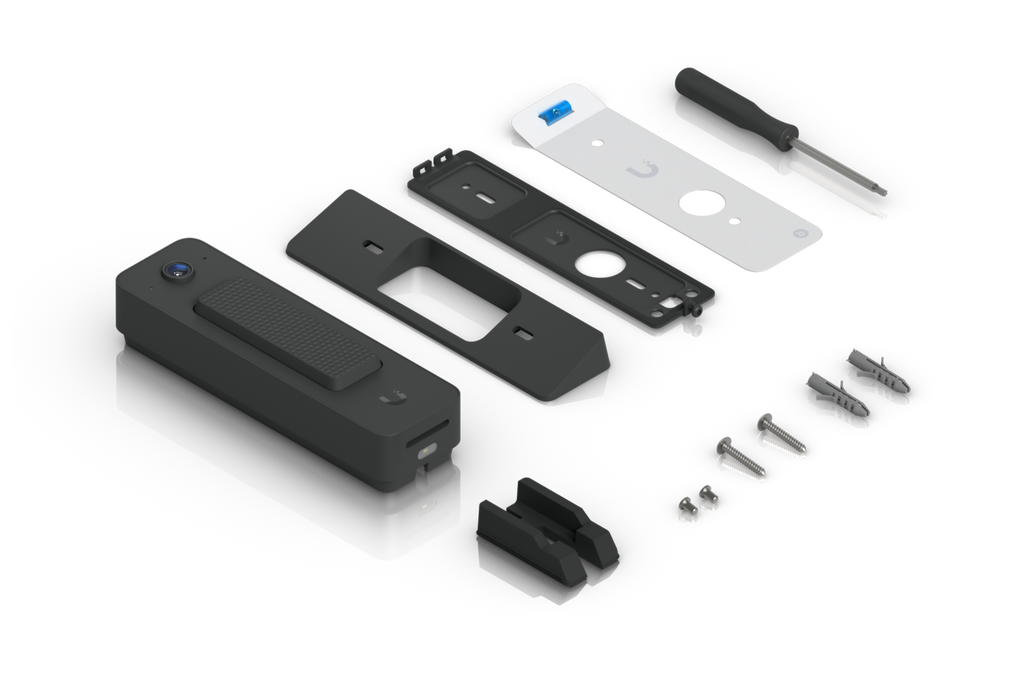

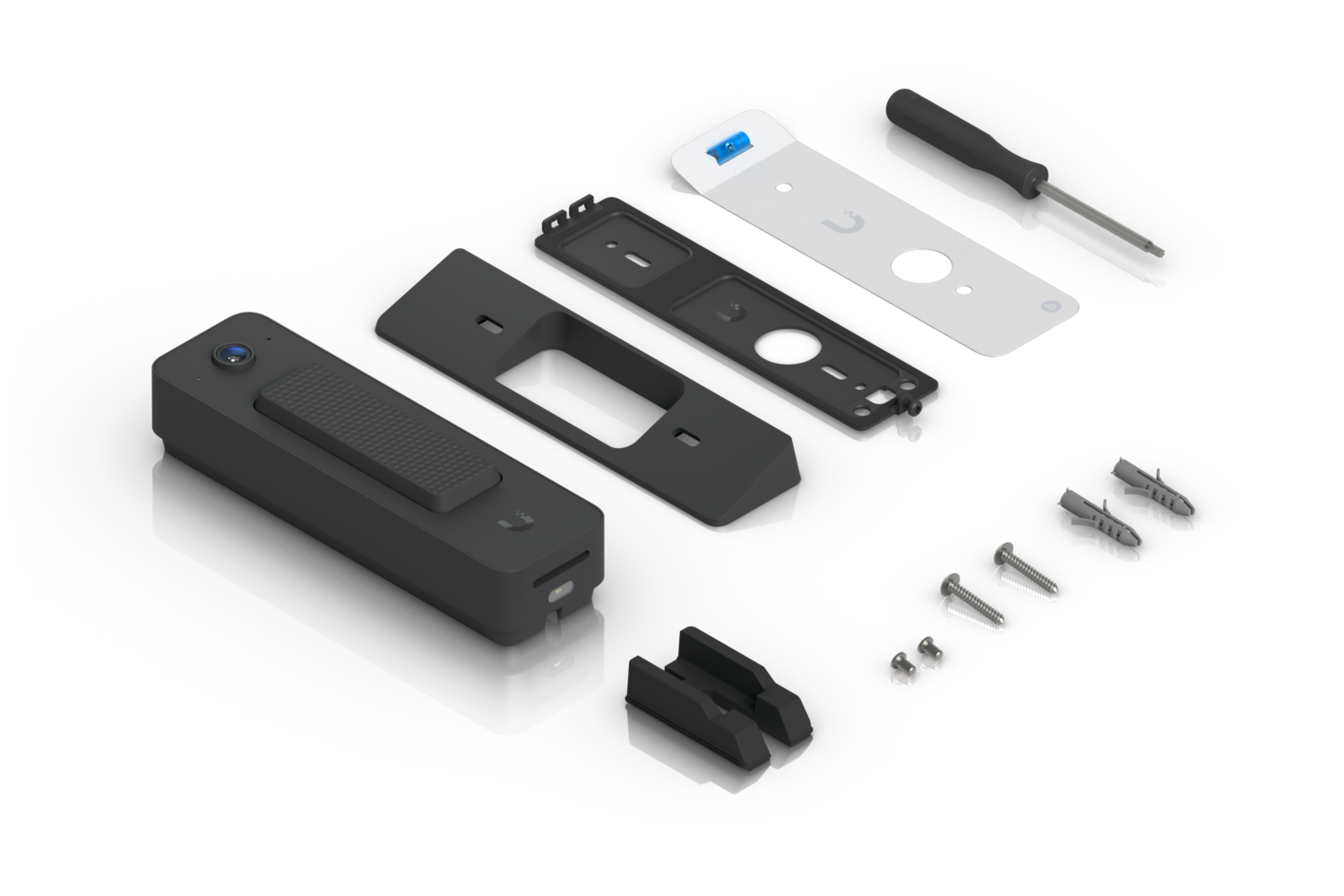

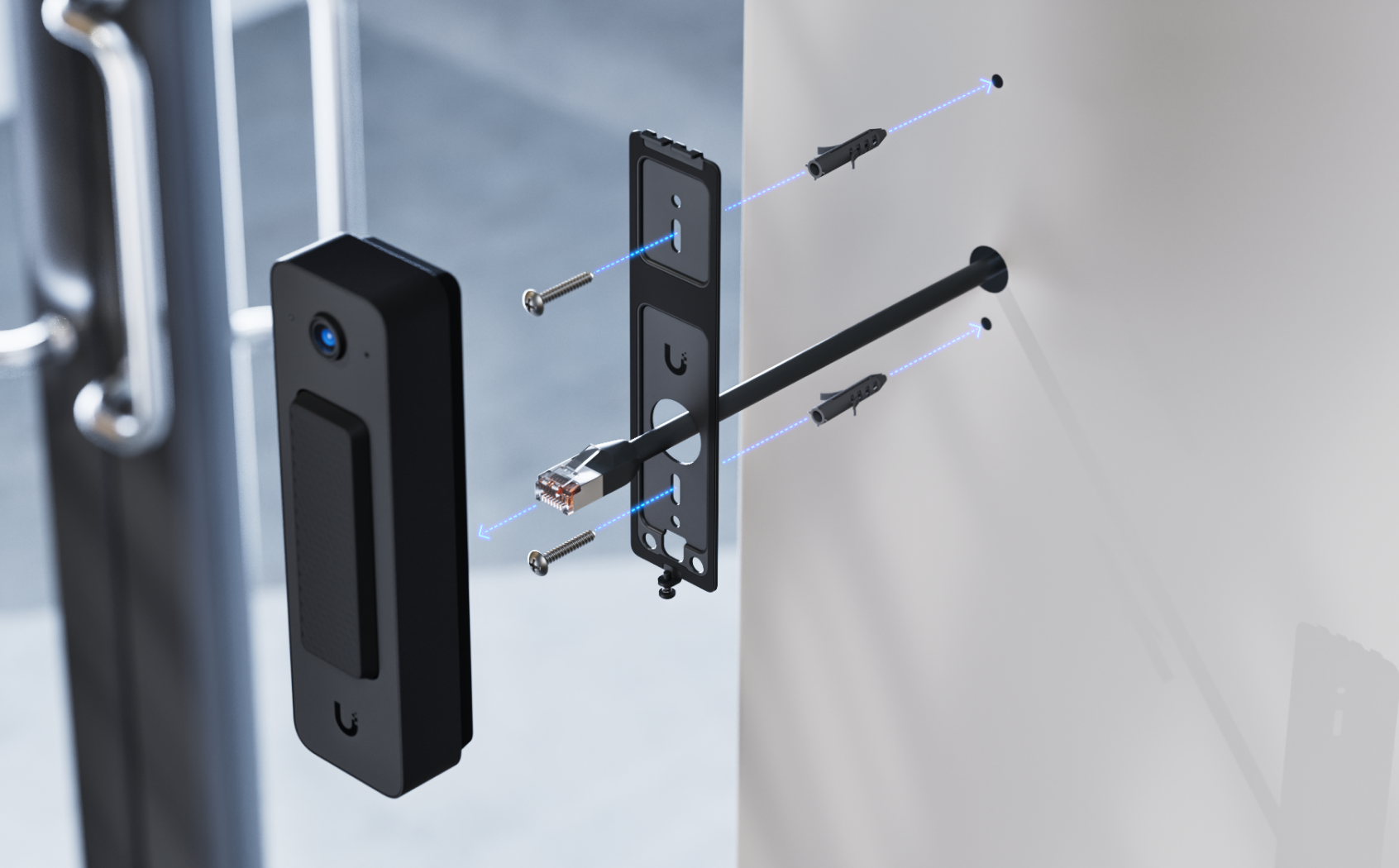

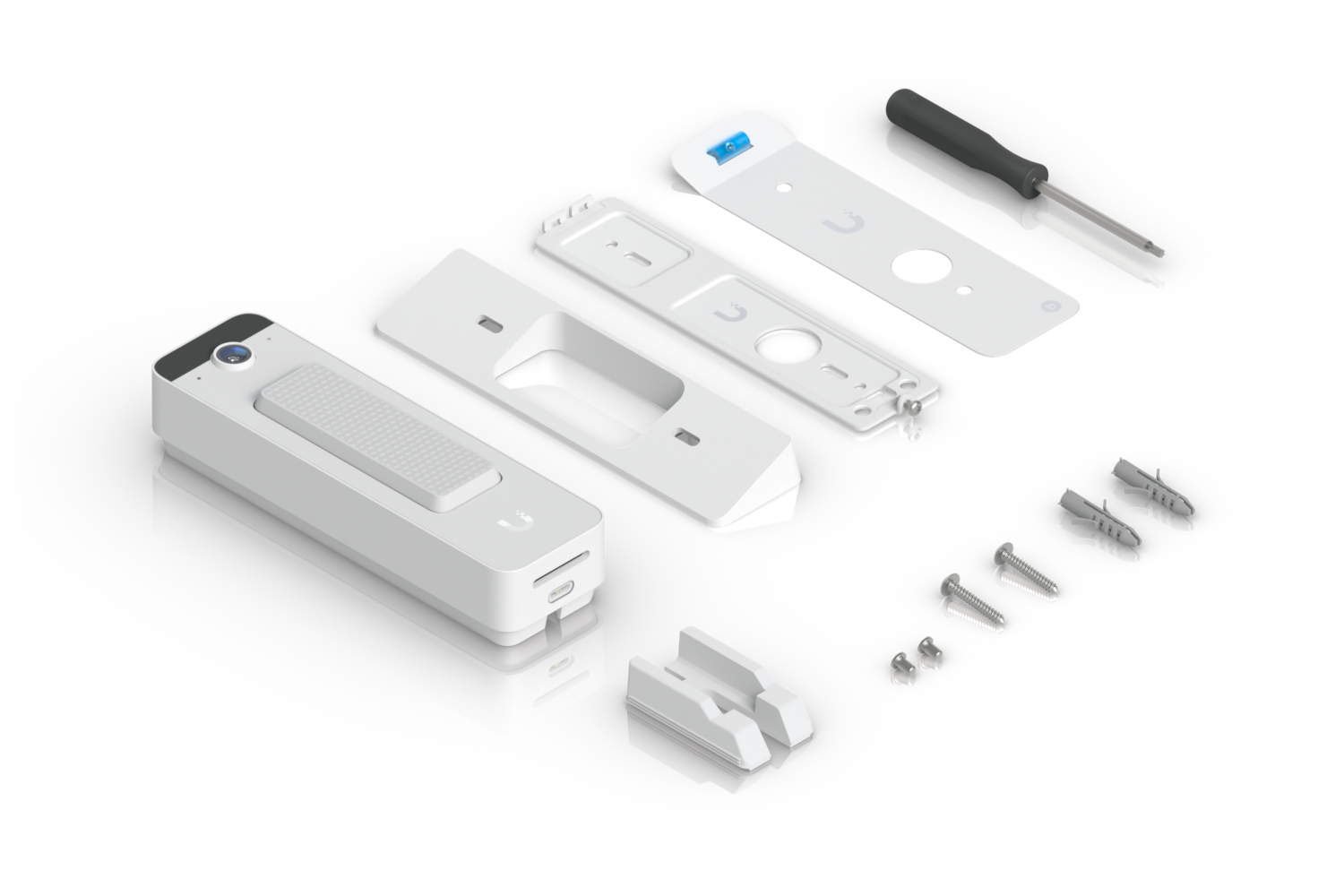

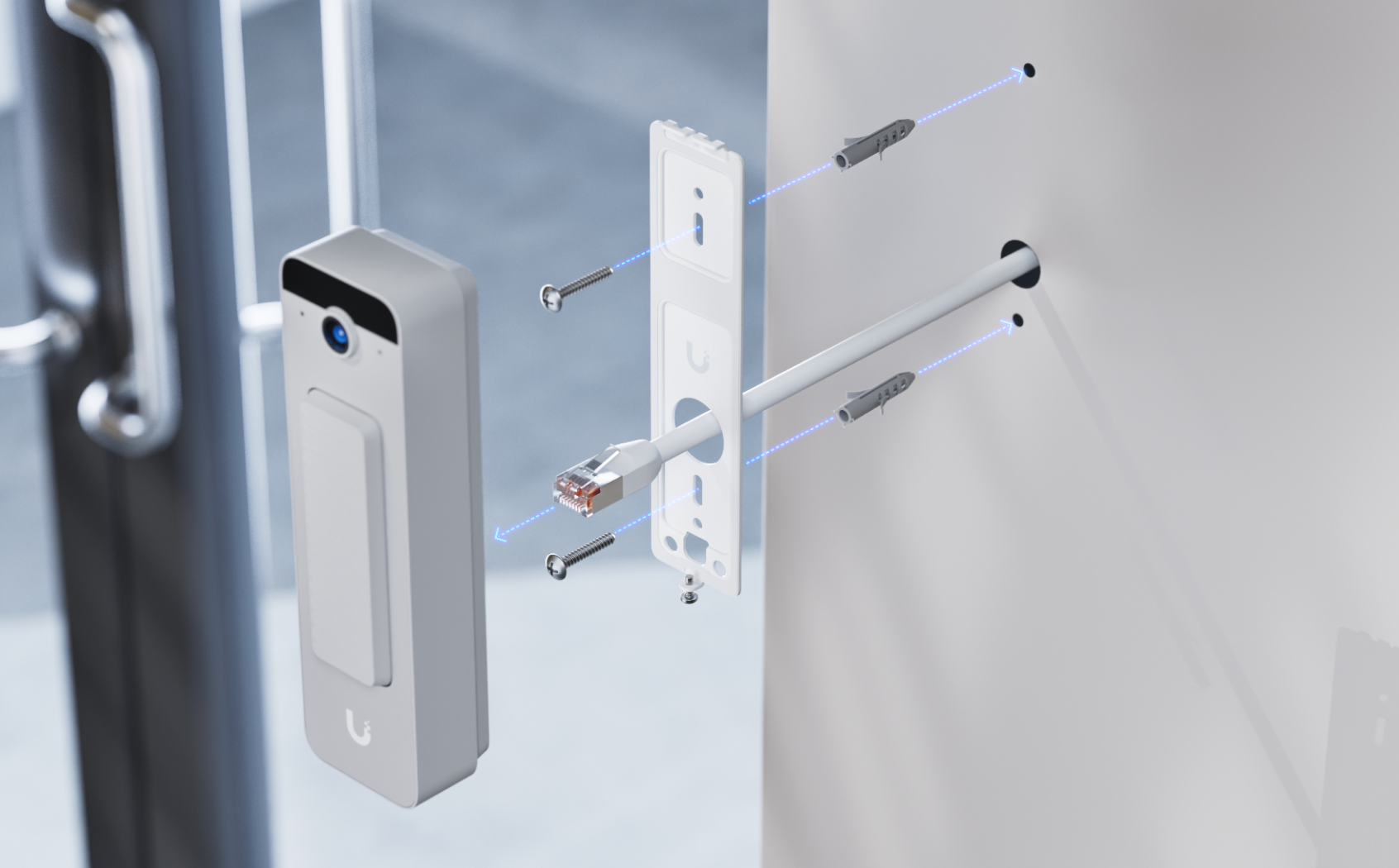

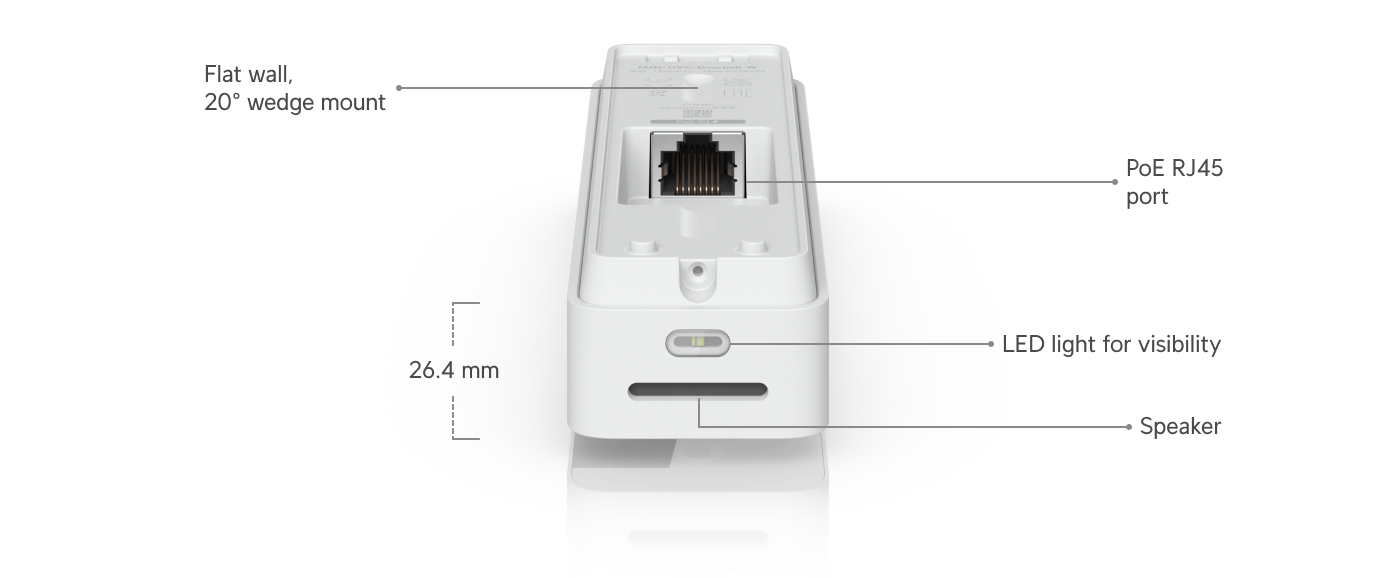

| Mounting | Wall, 20° wedge (Included) Gang box, junction box (Optional) |
Performance

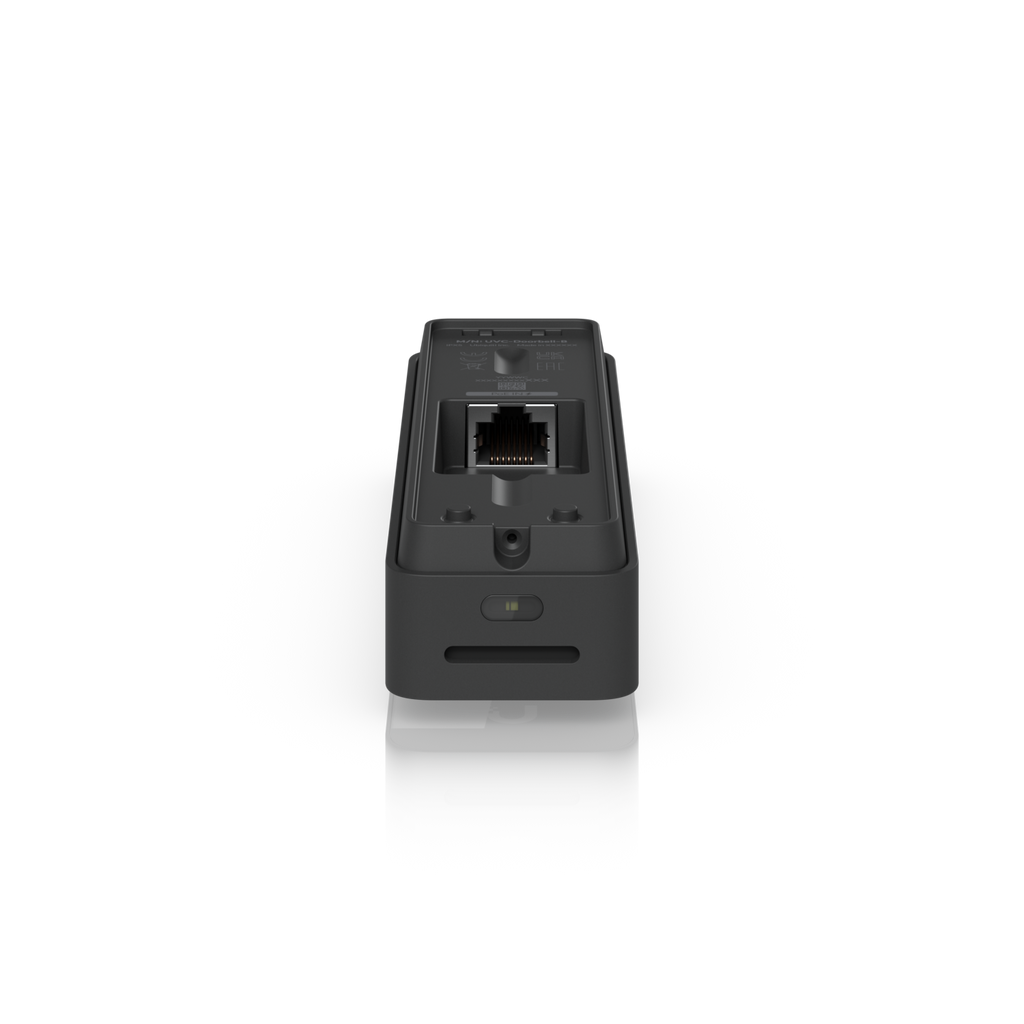

| Networking Interface | 10/100 MbE port |
| Video — Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Video — Max. Frame Rate | 24 FPS |
| Video — Resolution | 5MP 1920 x 2560 (3:4) |
| Optics — Sensor | 1/2.7" 5MP |
| Optics — Lens | Fixed focal length |
| Optics — Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | 8W |
| Supported Voltage Range | 37—57V DC |

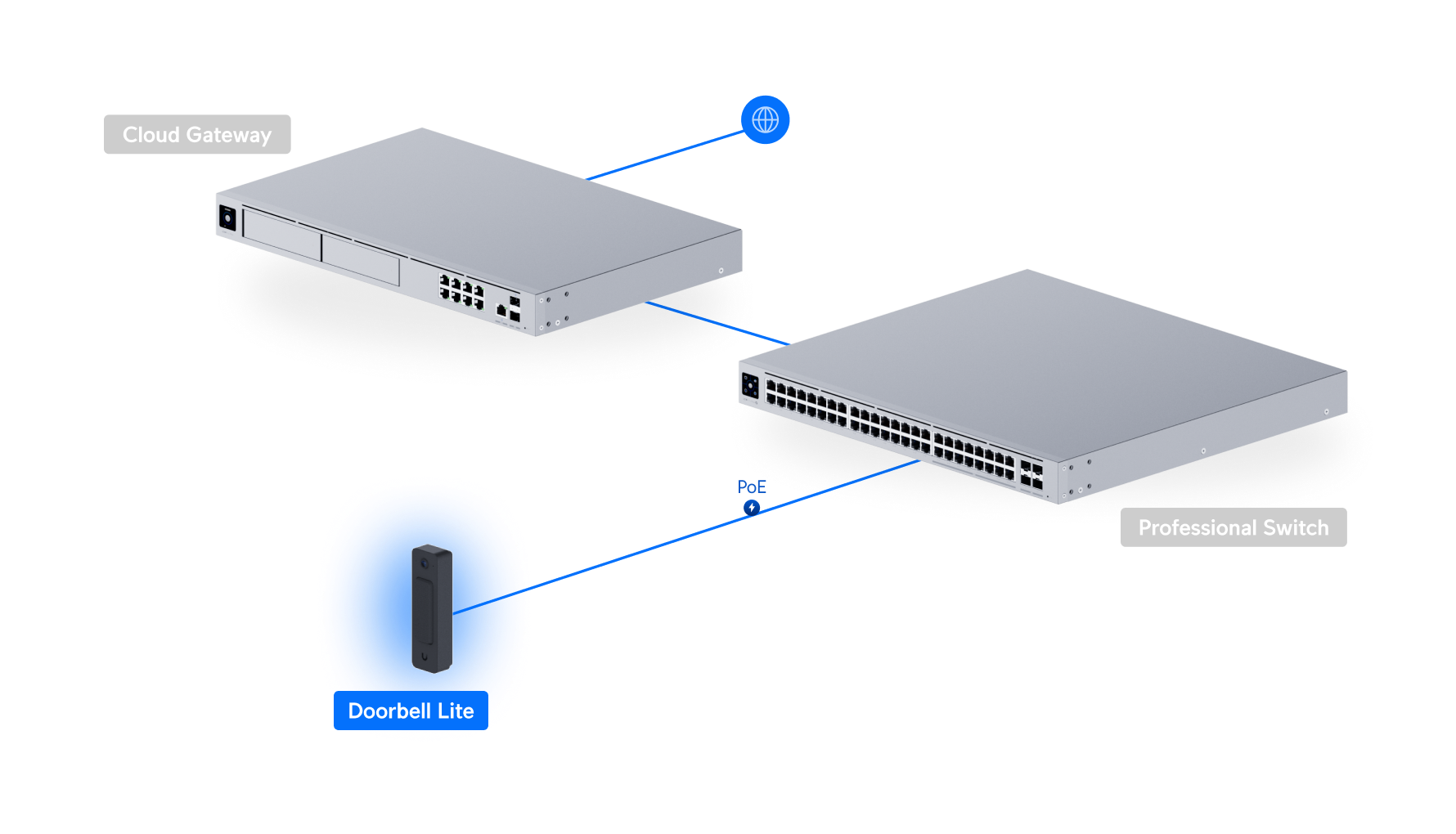

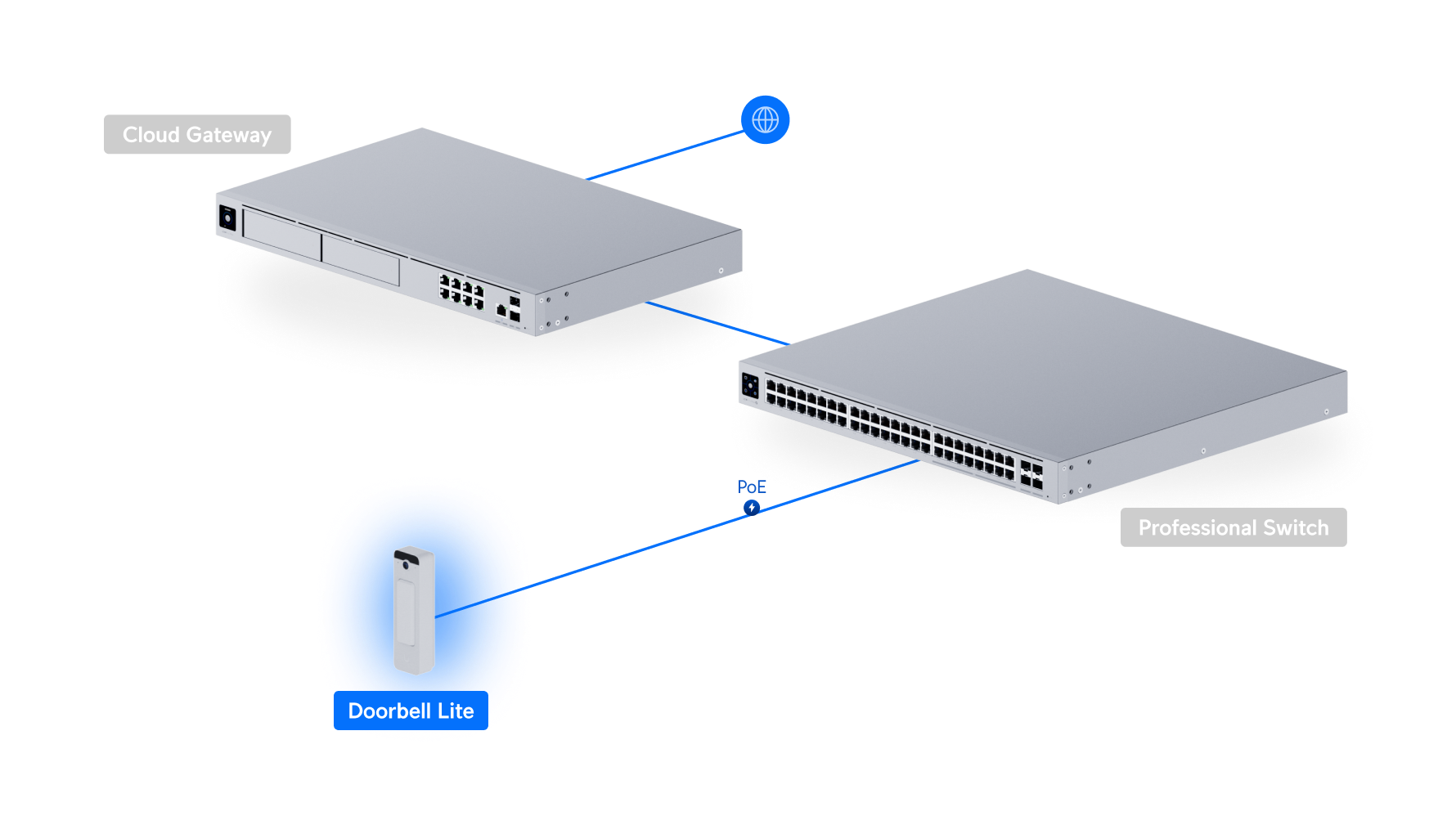

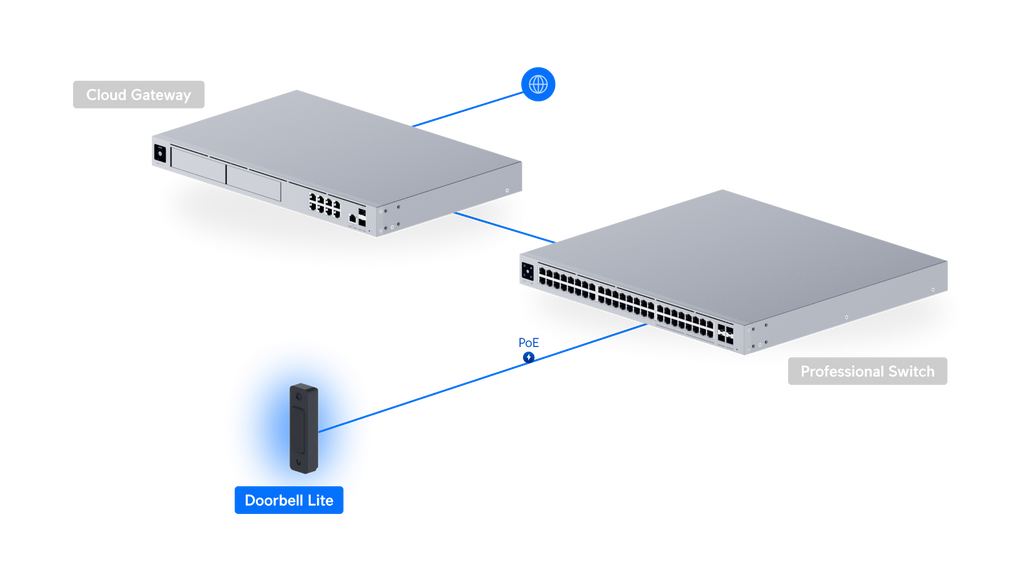

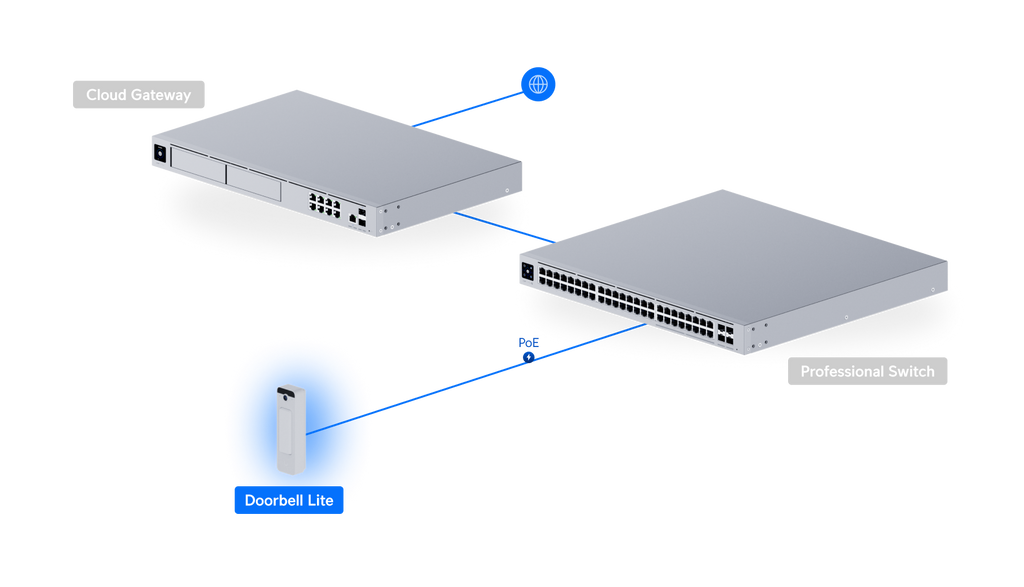

| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Weight | Device: 142 g (5 oz) With flat wall mount: 165 g (5.8 oz) With 20° wedge mount: 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Formed sheet metal |
| Button | (1) Ring button (1) Factory reset |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC |
