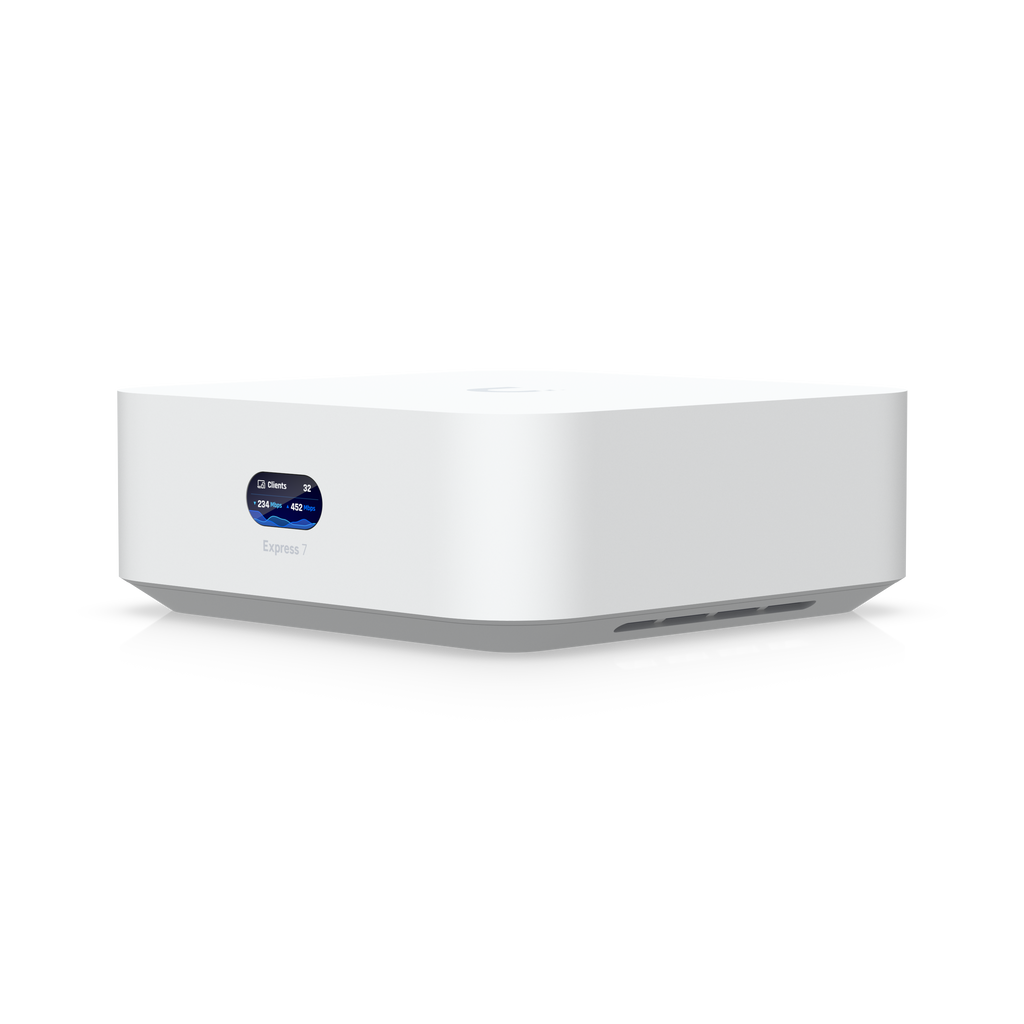

Ubiquiti UX | UniFi Express
Ubiquiti UX | UniFi Express
A compact gateway and WiFi 6 access point in one desktop unit, for small homes or offices that want a proper UniFi network without rack gear or ceiling mounts.
Why this one
- It runs a full UniFi Network controller on-device, so you get the same routing, VLANs, and traffic management as a rack-mounted gateway — without needing a separate server or cloud key.
- The integrated WiFi 6 radio covers up to 140 m², which is enough for a small office floor plate or a single-storey home without adding a separate access point.
- At 98 × 98 × 30 mm and USB-C powered at 10W, it sits on a desk or shelf next to your modem — no rack space, no PoE switch, no dedicated power run.
- It manages up to 4 UniFi devices, so you can add a switch or a second access point as the network grows, all within the same UniFi app.
Good fit if you're setting up a small home or office network from scratch, want UniFi's management layer without buying separate controller hardware, and your site fits within a handful of devices.
Worth considering something else if you need to manage more than 4 UniFi devices, or you're on UniFi Network 9.1 or higher — the UX tops out at Network 8.x, so sites that need the latest platform should look at the UX7 instead, which is listed separately on this page.
What you'll also need
A modem or ONT to connect the GbE WAN port to your internet service; if you plan to add wired devices or PoE cameras, a UniFi switch such as the USW-FLEX-MINI or USW-LITE-8-POE will be required, as the UX itself has only two GbE ports.
Technical specifications
Overview
| Dimensions | 98 x 98 x 30 mm (3.6 x 3.6 x 1.2") |
| Managed UniFi Devices | 4 |
| Simultaneous Users Connected | 50+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) GbE RJ45 |
| 1 GbE RJ45 | 2 (1G/100M/10M) |
| Form Factor | Compact desktop |
| Coverage Area | 140 m² (1,500 ft²) |
Integrated WiFi
| WiFi Standard | 802.11a/b/g/n/ac/ax (WiFi 6) |
| 5 GHz | 2.4 Gbps |
| 2.4 GHz | 573.5 Mbps |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 5.15 dBi |
| 2.4 GHz | 4 dBi |
| 5 GHz | 25 dBm |
| 2.4 GHz | 22 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 3 per Radio (Gateway Mode) 4 per Radio (AP Mode) |
| Antennas | (2) Internal 2.4G/5G WiFi dual-band antenna (1) Internal 2.4G single-band BT antenna |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Hardware
| Max. Power Consumption | 10W |
| Power Method | USB type C (5V DC/3A) |
| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 34 BTU/hr |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| System Memory | 1 GB |
| Weight | 302 g (10.7 oz) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 21391-23-08356 |
Software
| VLAN | 802.1Q |
| UniFi Network | Version 8.x Note. UniFi Express will continue to receive updates on UniFi Network 8.x, including critical security updates and select feature enhancements. For UniFi Network 9.1 and higher, please see UniFi Express 7. |
