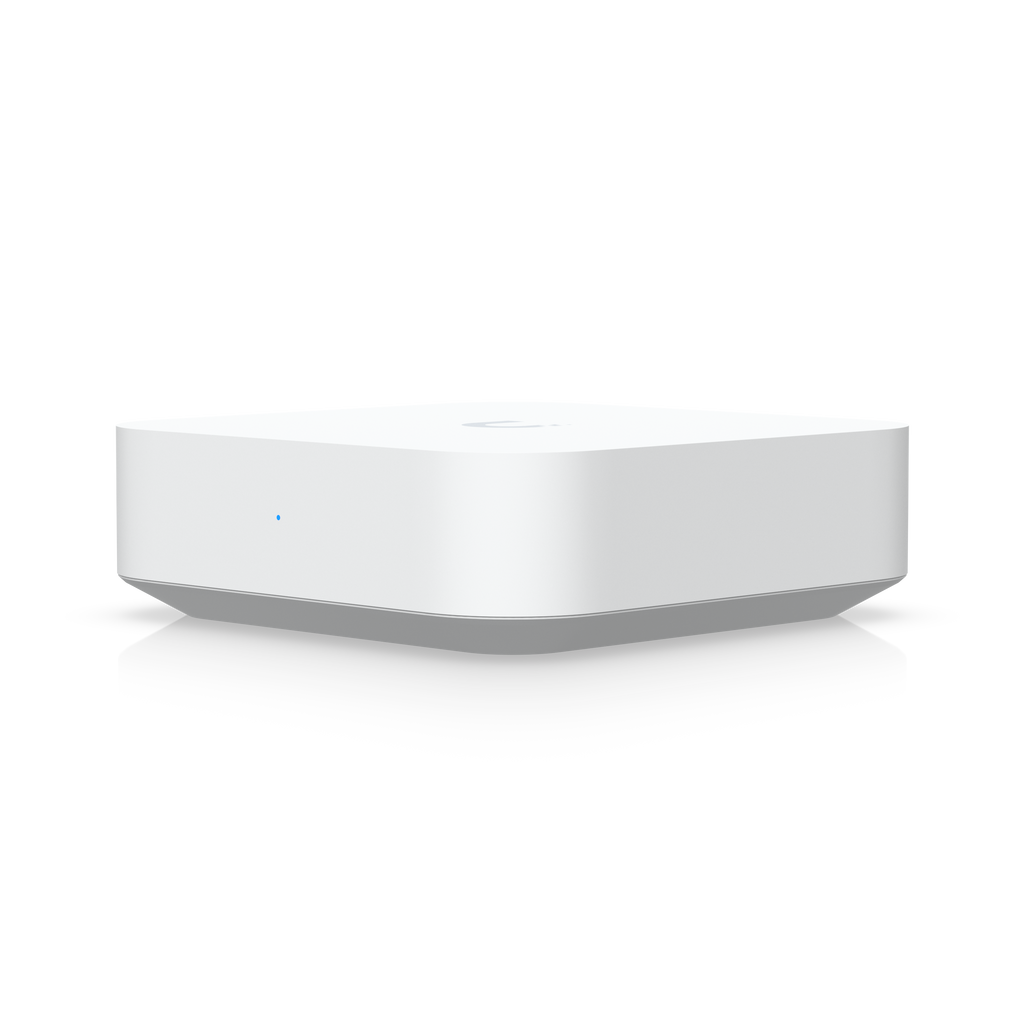

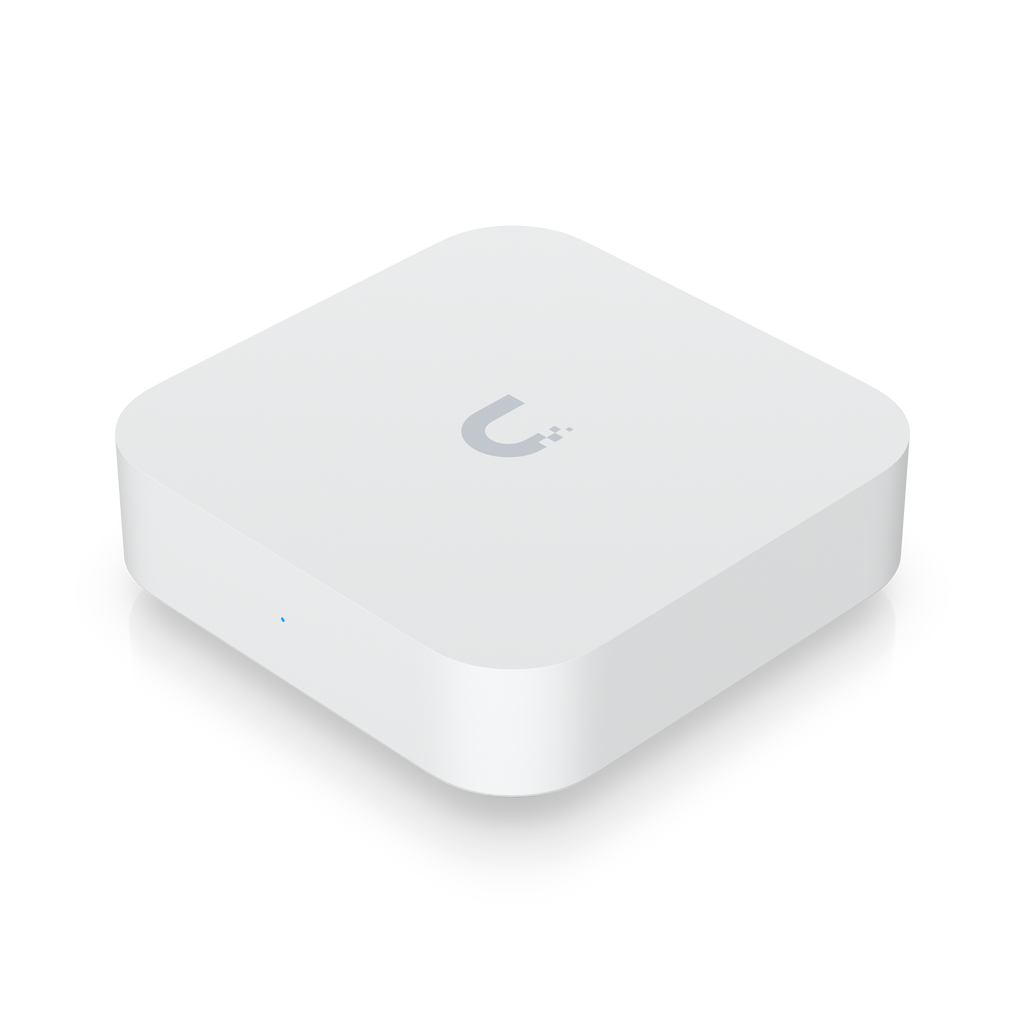

Ubiquiti UXG-LITE | UniFi Gateway Lite | (1) GbE RJ45
Default Title
$105.00
Ubiquiti UXG-LITE | UniFi Gateway Lite | (1) GbE RJ45
$105.00
UniFi Gateway Lite
Technical Specifications
Overview

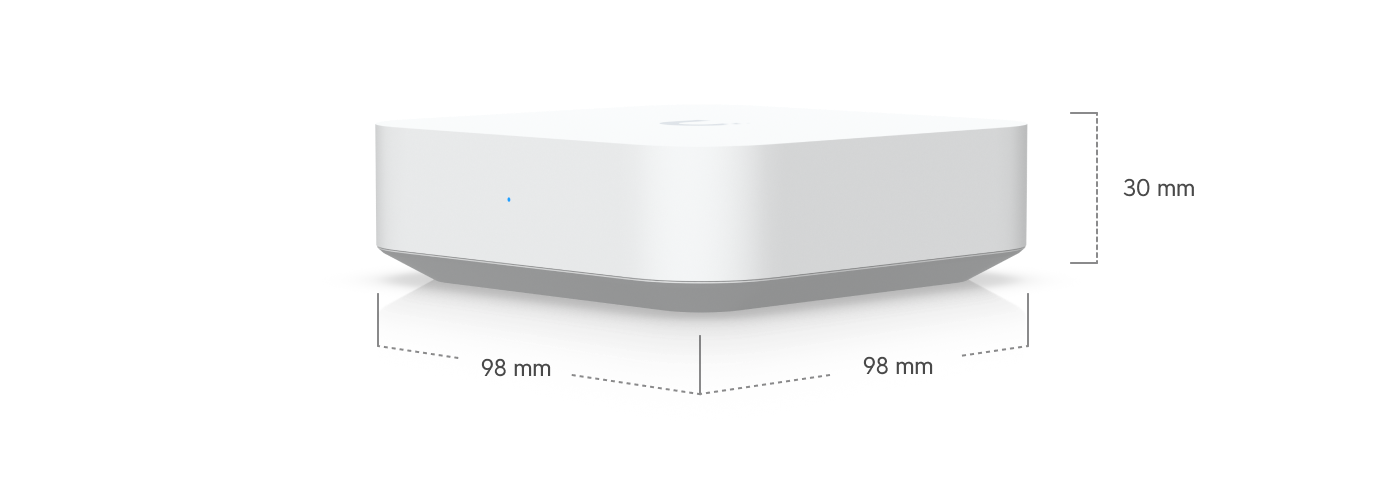

| Dimensions | 98 x 98 x 30 mm (3.9 x 3.9 x 1.2") |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) GbE RJ45 |

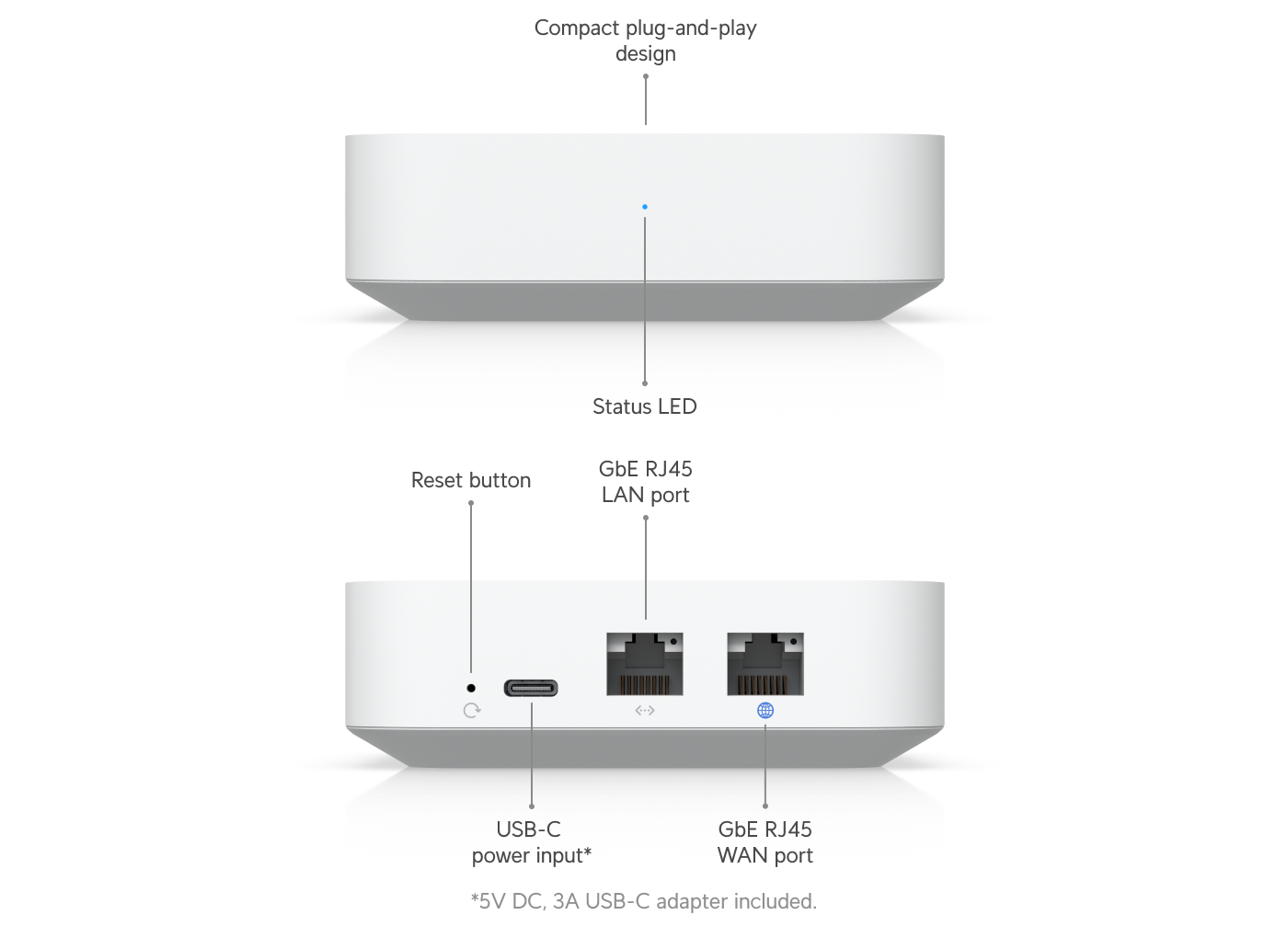

| Port Layout — 1 GbE RJ45 | 2 (1G/100M/10M) |
| IDS/IPS Throughput | 1 Gbps |
| Form Factor | Compact desktop |
Security
| Stateful Firewall | True |
| Application-Aware Layer 7 Firewall | True |
| DPI & Traffic Identification | True |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | True |
| Content Filtering | True |
| Intrusion Prevention (IPS/IDS) | True |
| Ad Blocking | True |
VPN & SD-WAN
| License-Free SD-WAN | True |
| Site-to-Site VPN — Site Magic | True |
| Site-to-Site VPN — IPsec | True |
| Site-to-Site VPN — OpenVPN | True |
| VPN Server — Teleport Zero-Configuration VPN | True |
| VPN Server — WireGuard | True |
| VPN Server — OpenVPN | True |
| VPN Server — L2TP | True |
| VPN Client — OpenVPN | True |
| VPN Client — WireGuard | True |
Networking
| Dynamic Routing — OSPF | True |
| Advanced QoS | True |
| Multicast DNS (mDNS) | True |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | True |
| Integrated RADIUS Server | True |
| RADIUS over TLS (RadSec) | True |
| Additional Internet Failover with UniFi LTE Backup | True |
| Internet Quality and Outage Reporting | True |
| Policy-based WAN and VPN Routing | True |
| Customizable DHCP Server | True |
| IPv6 ISP Support | True |
Hardware
| Max. Power Consumption | 3.83W |
| Power Method | USB type C (5V DC/3A) |

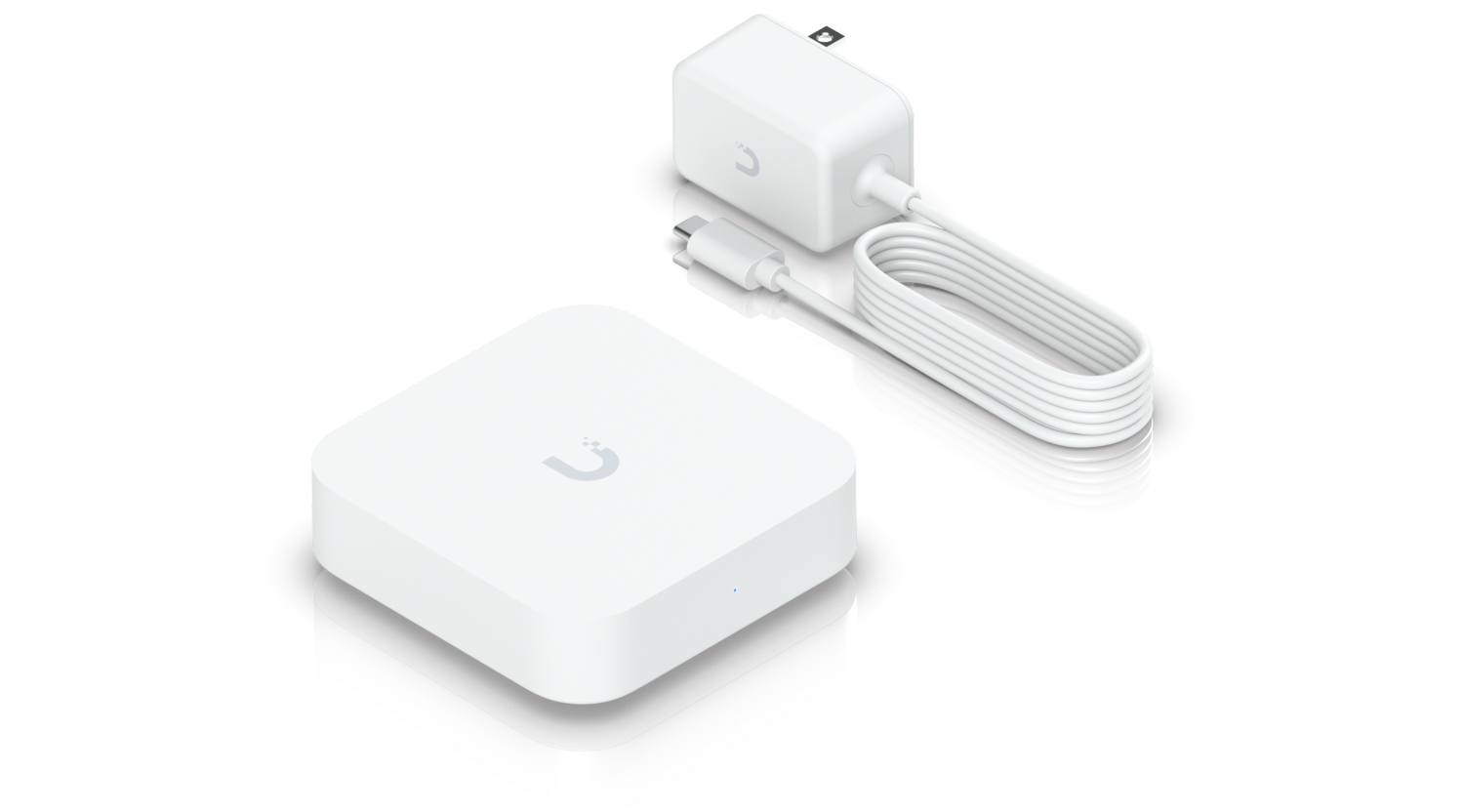

| Power Supply | USB type C (5V DC/3A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 13 BTU/hr |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| System Memory | 1 GB |
| Weight | 320 g (11.3 oz) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet Bluetooth |
| LEDs — Ethernet | True |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | True |
| Certifications | CE, FCC, IC, Anatel: 01874-24-08356 |
Software
| Application Requirements — UniFi Network | Version 8.3.32 and later |
